3545-4. Refueling
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

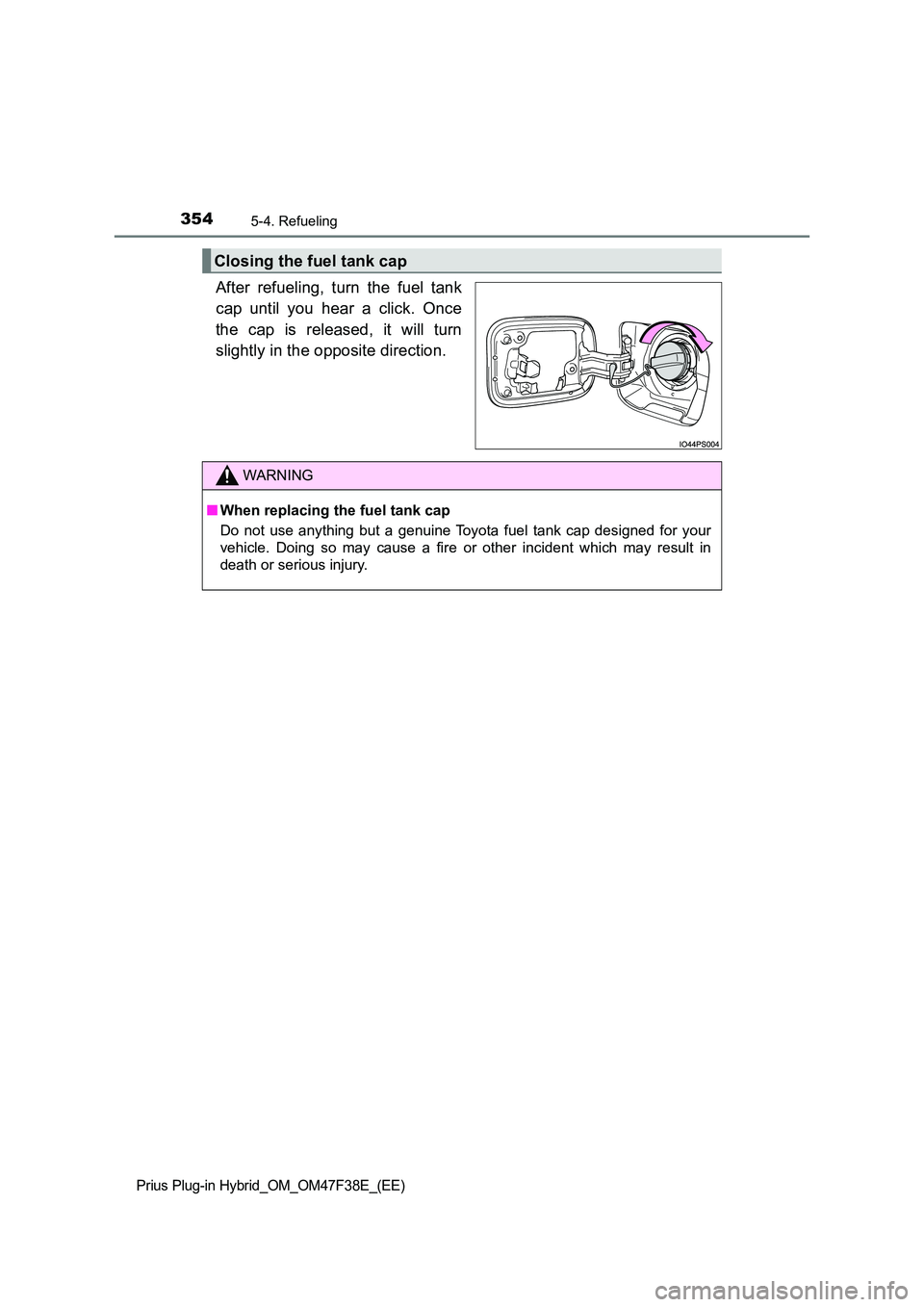

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

816
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

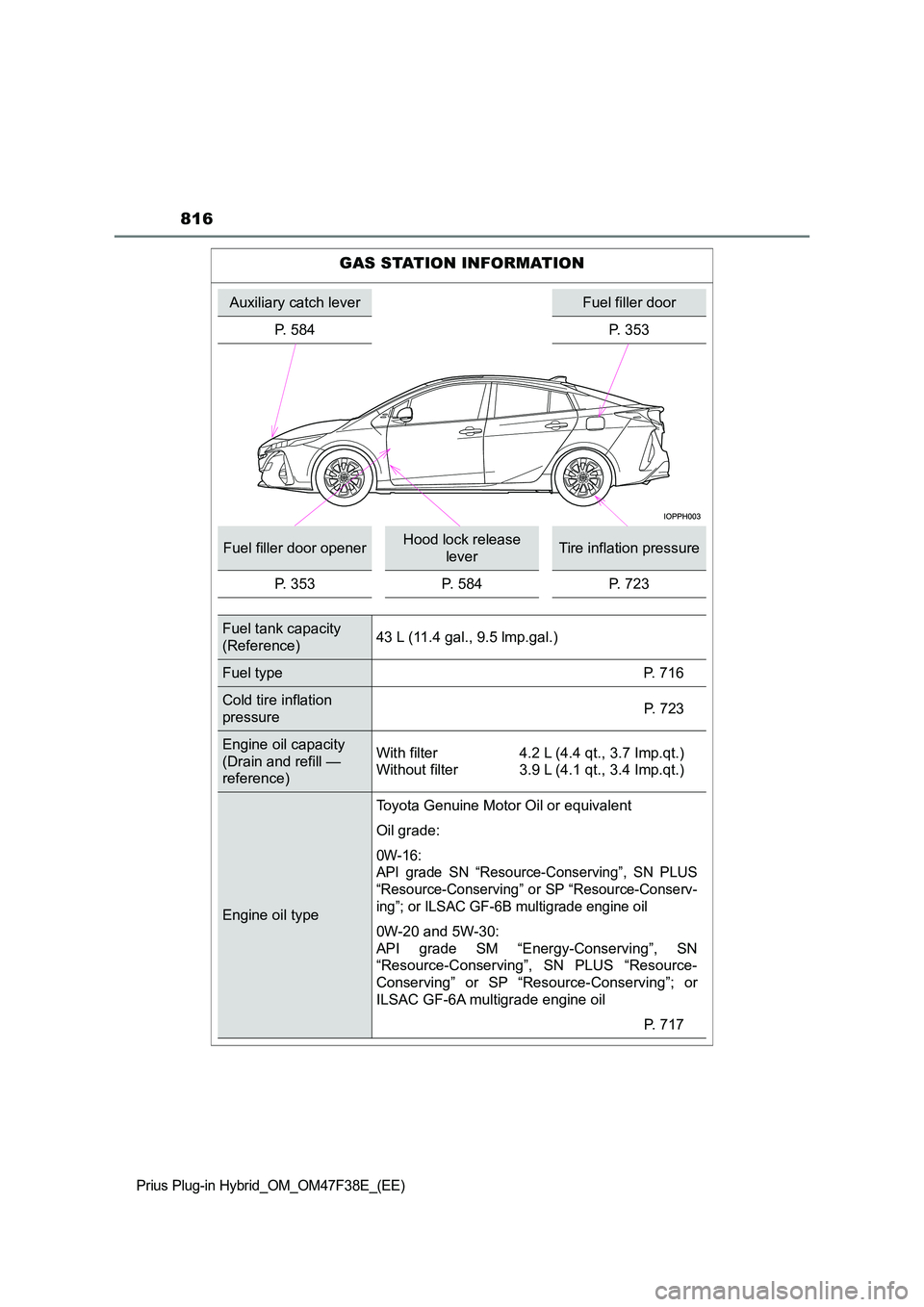

GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 584 P. 353
Fuel filler door openerHood lock release
leverTire inflation pressure
P. 353 P. 584 P. 723
Fuel tank capacity
(Reference) 43 L (11.4 gal., 9.5 lmp.gal.)
Fuel type P. 716
Cold tire inflation
pressure P. 723
Engine oil capacity
(Drain and refill —
reference)
With filter 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter 3.9 L (4.1 qt., 3.4 Imp.qt.)
Engine oil type
Toyota Genuine Motor Oil or equivalent
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS
“Resource-Conserving” or SP “Resource-Conserv-
ing”; or ILSAC GF-6B multigrade engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN
“Resource-Conserving”, SN PLUS “Resource-
Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
P. 717
