fuse box TOYOTA PRIUS PLUG-IN HYBRID 2023 Owners Manual

5877-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care

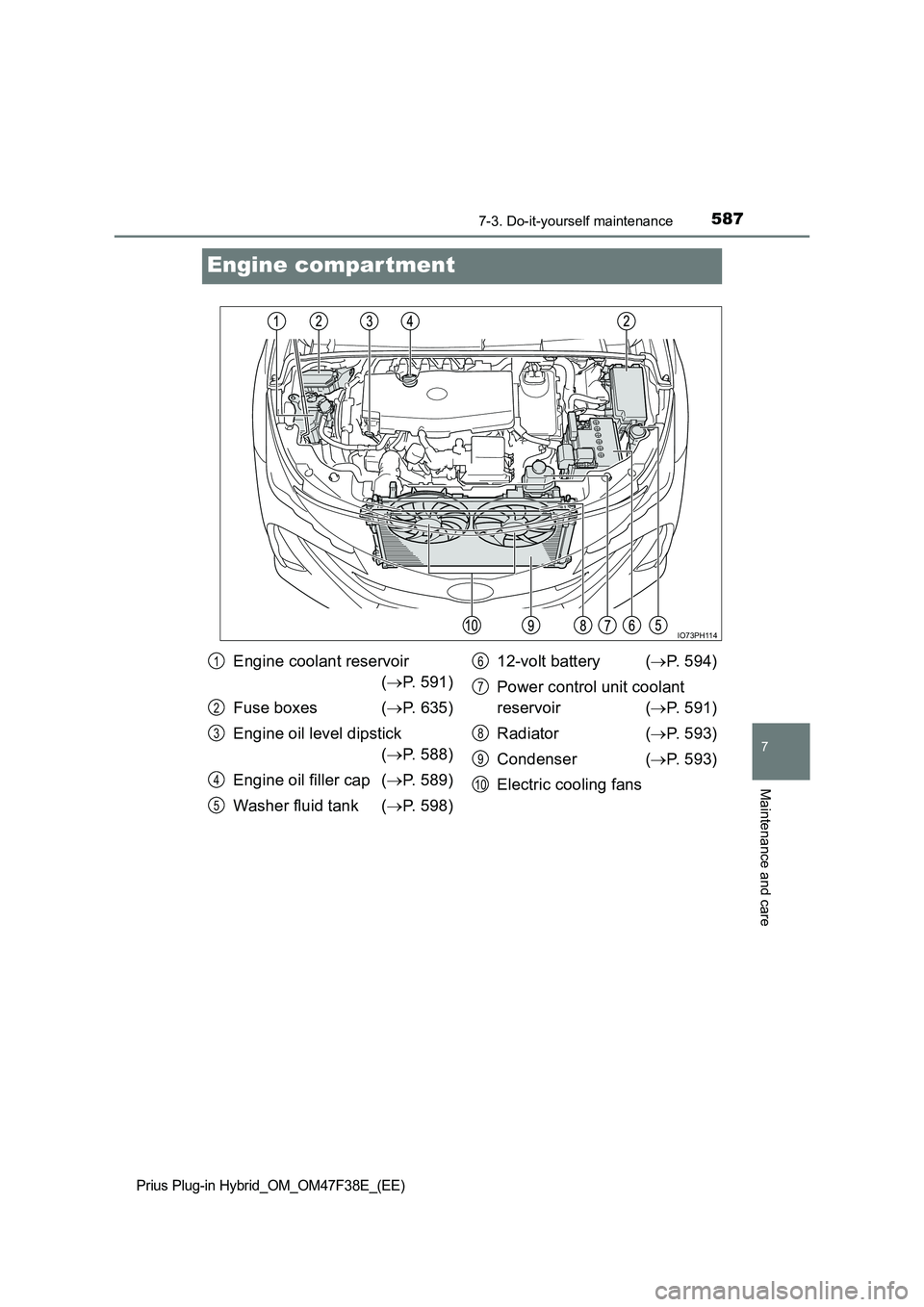

Engine compar tment
IO73PH114
Engine coolant reservoir
( P. 591)
Fuse boxes ( P. 635)
Engine oil level dipstick
( P. 588)
Engine oil filler cap ( P. 589)
Washer fluid tank ( P. 598)
12-volt battery ( P. 594)
Power control unit coolant
reservoir ( P. 591)
Radiator ( P. 593)
Condenser ( P. 593)
Electric cooling fans
1
2
3
4
5
6
7
8
9
10

6357-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care

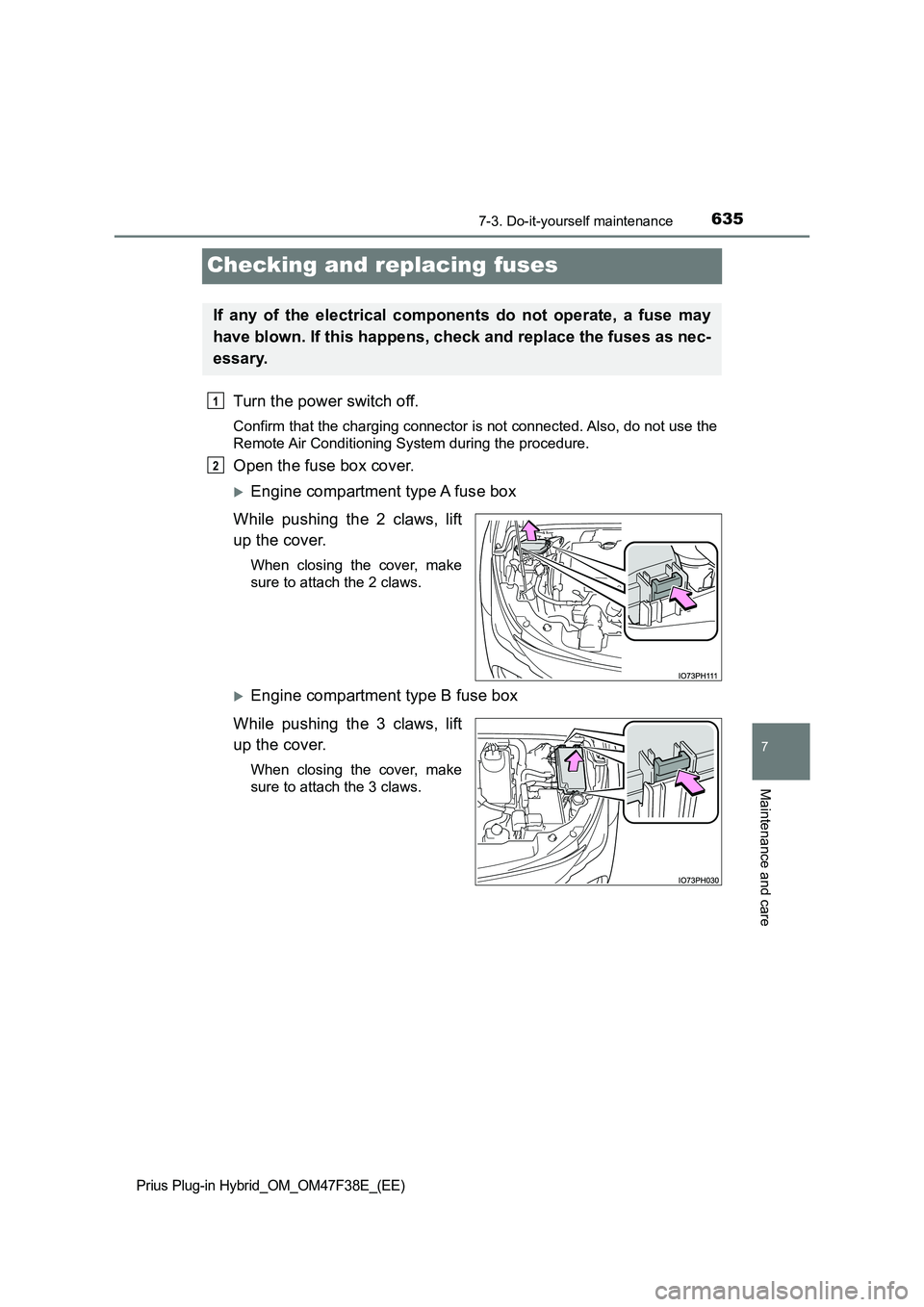

Checking and replacing fuses
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make
sure to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make
sure to attach the 3 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

6377-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care

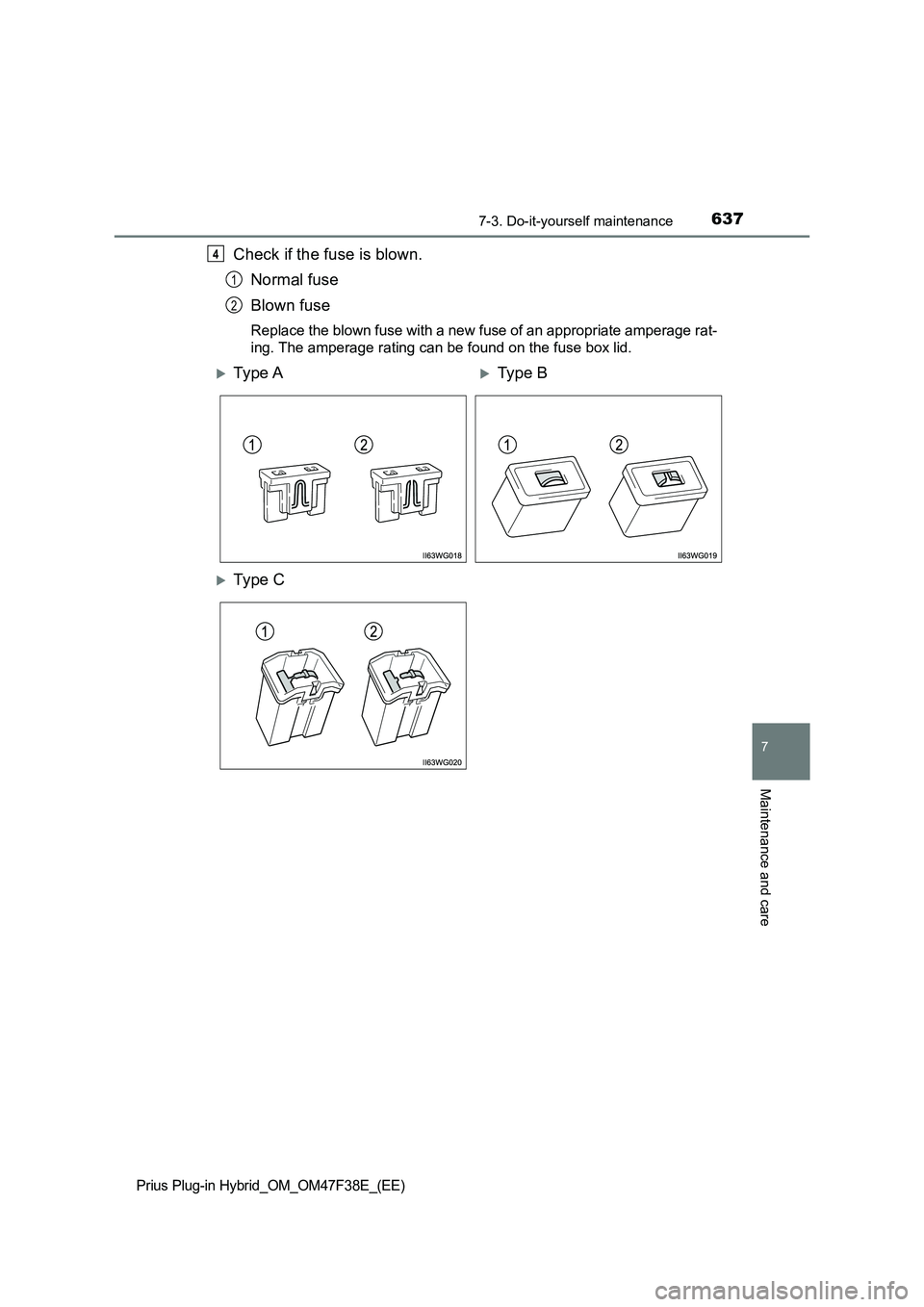

Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty pe AType B
Ty pe C

6387-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

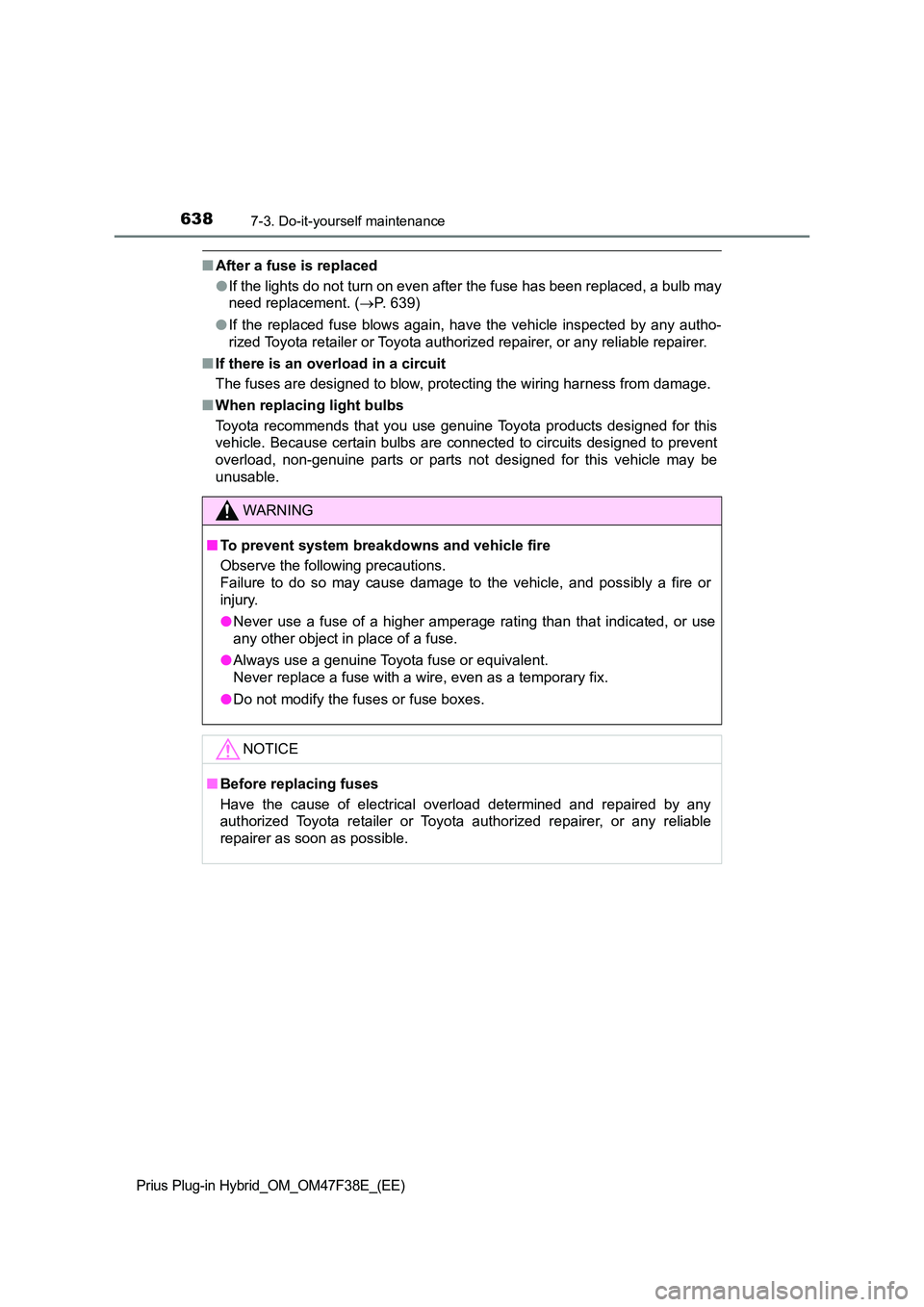

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 639)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

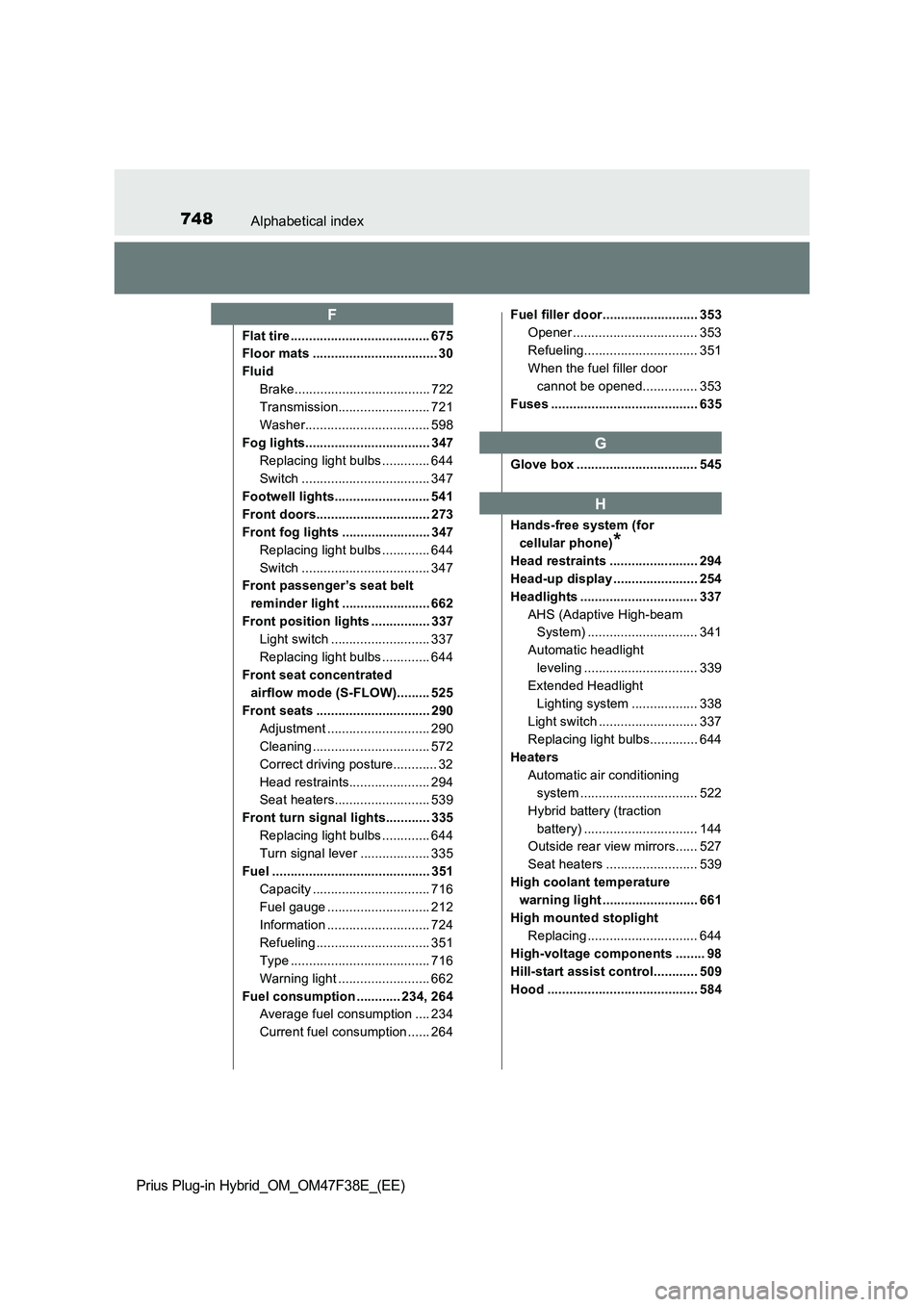

748Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Flat tire ...................................... 675
Floor mats .................................. 30
Fluid
Brake..................................... 722
Transmission......................... 721
Washer.................................. 598
Fog lights.................................. 347
Replacing light bulbs ............. 644
Switch ................................... 347
Footwell lights.......................... 541
Front doors............................... 273
Front fog lights ........................ 347
Replacing light bulbs ............. 644
Switch ................................... 347
Front passenger’s seat belt
reminder light ........................ 662
Front position lights ................ 337
Light switch ........................... 337
Replacing light bulbs ............. 644
Front seat concentrated
airflow mode (S-FLOW)......... 525
Front seats ............................... 290
Adjustment ............................ 290
Cleaning ................................ 572
Correct driving posture............ 32
Head restraints...................... 294
Seat heaters.......................... 539
Front turn signal lights............ 335
Replacing light bulbs ............. 644
Turn signal lever ................... 335
Fuel ........................................... 351
Capacity ................................ 716
Fuel gauge ............................ 212
Information ............................ 724
Refueling ............................... 351
Type ...................................... 716
Warning light ......................... 662
Fuel consumption ............ 234, 264
Average fuel consumption .... 234
Current fuel consumption ...... 264Fuel filler door.......................... 353
Opener .................................. 353
Refueling............................... 351
When the fuel filler door
cannot be opened............... 353
Fuses ........................................ 635
Glove box ................................. 545
Hands-free system (for
cellular phone)
*
Head restraints ........................ 294
Head-up display ....................... 254
Headlights ................................ 337
AHS (Adaptive High-beam
System) .............................. 341
Automatic headlight
leveling ............................... 339
Extended Headlight
Lighting system .................. 338
Light switch ........................... 337
Replacing light bulbs............. 644
Heaters
Automatic air conditioning
system ................................ 522
Hybrid battery (traction
battery) ............................... 144
Outside rear view mirrors...... 527
Seat heaters ......................... 539
High coolant temperature
warning light .......................... 661
High mounted stoplight
Replacing .............................. 644
High-voltage components ........ 98
Hill-start assist control............ 509
Hood ......................................... 584
F
G
H
