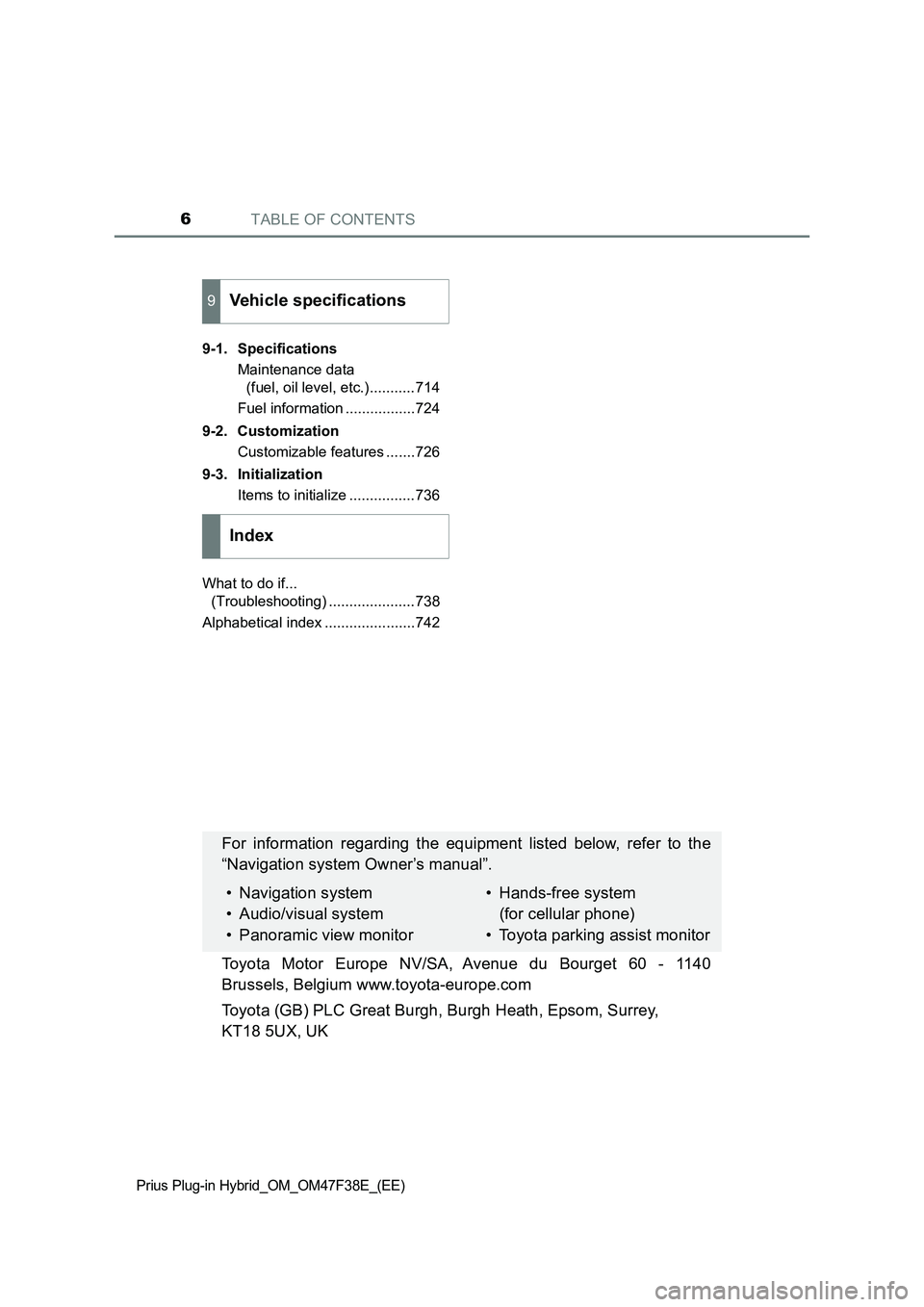

9-1. Specifications
Maintenance data
(fuel, oil level, etc.)...........714
Fuel information .................724
9-2. Customization
Customizable features .......726
9-3. Initialization
Items to initialize ................736
What to do if...
(Troubleshooting) .....................738
Alphabetical index ......................742
9Vehicle specifications
Index
For information regarding the equipment listed below, refer to the
“Navigation system Owner’s manual”.
• Navigation system
• Audio/visual system
• Panoramic view monitor• Hands-free system
(for cellular phone)
• Toyota parking assist monitor
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140
Brussels, Belgium www.toyota-europe.com
Toyota (GB) PLC Great Burgh, Burgh Heath, Epsom, Surrey,
KT18 5UX, UK

17Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
When the warning messages are displayed . . . . . . . . . . . . . . P. 667
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 516
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 648
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 297
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

19Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

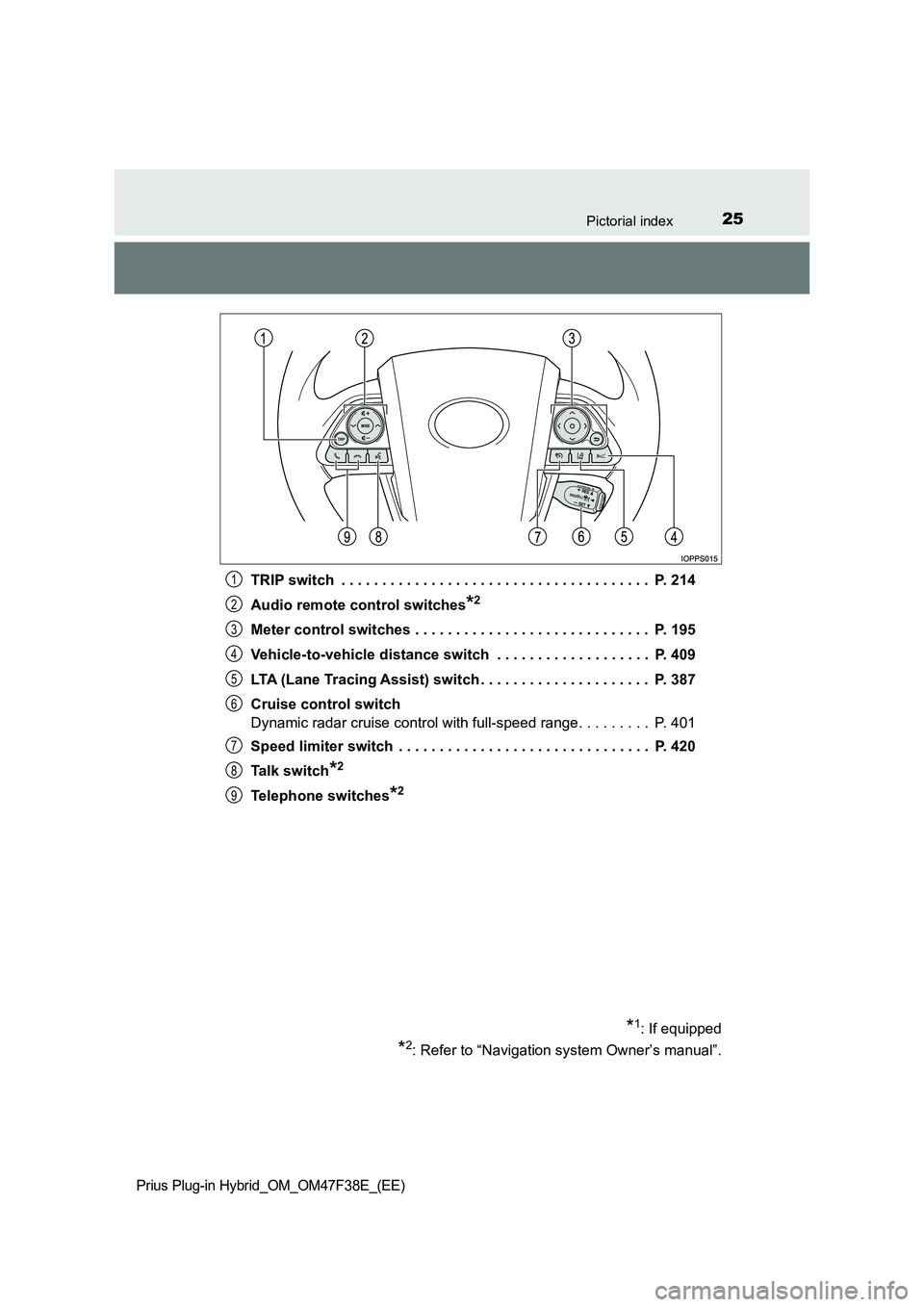

TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9

23Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
When the warning messages are displayed . . . . . . . . . . . . . . P. 667
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 516
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 648
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 297
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

25Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9

2213. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*: When there is a warning message that can be displayed, the color of
changes to amber.

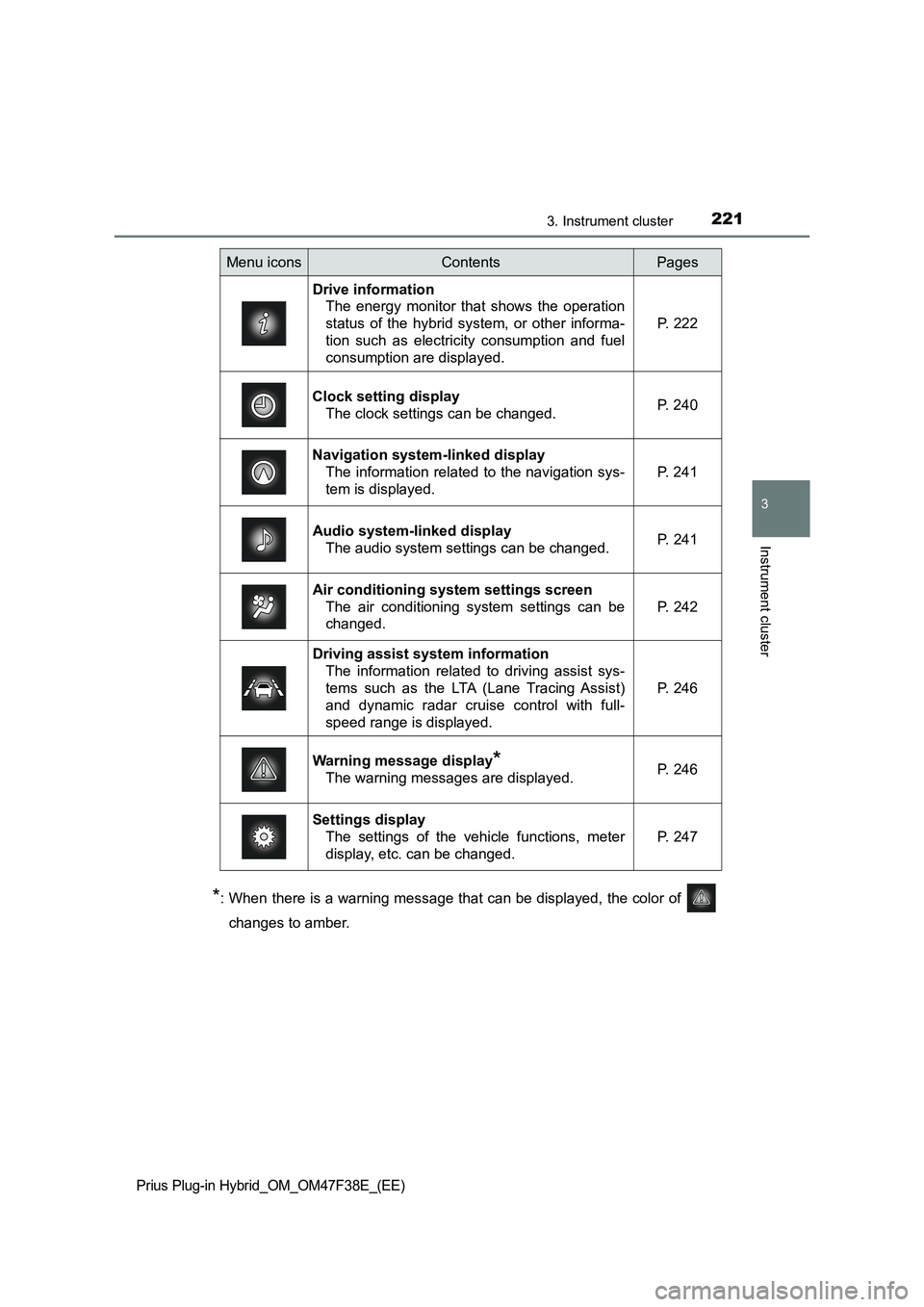

Menu iconsContentsPages
Drive information
The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed.P. 222
Clock setting display
The clock settings can be changed.P. 240
Navigation system-linked display
The information related to the navigation sys-
tem is displayed.P. 241
Audio system-linked display
The audio system settings can be changed.P. 241
Air conditioning system settings screen
The air conditioning system settings can be
changed.
P. 242
Driving assist system information
The information related to driving assist sys-
tems such as the LTA (Lane Tracing Assist)
and dynamic radar cruise control with full-
speed range is displayed.
P. 246
Warning message display*
The warning messages are displayed.P. 246
Settings display
The settings of the vehicle functions, meter
display, etc. can be changed.
P. 247

2413. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

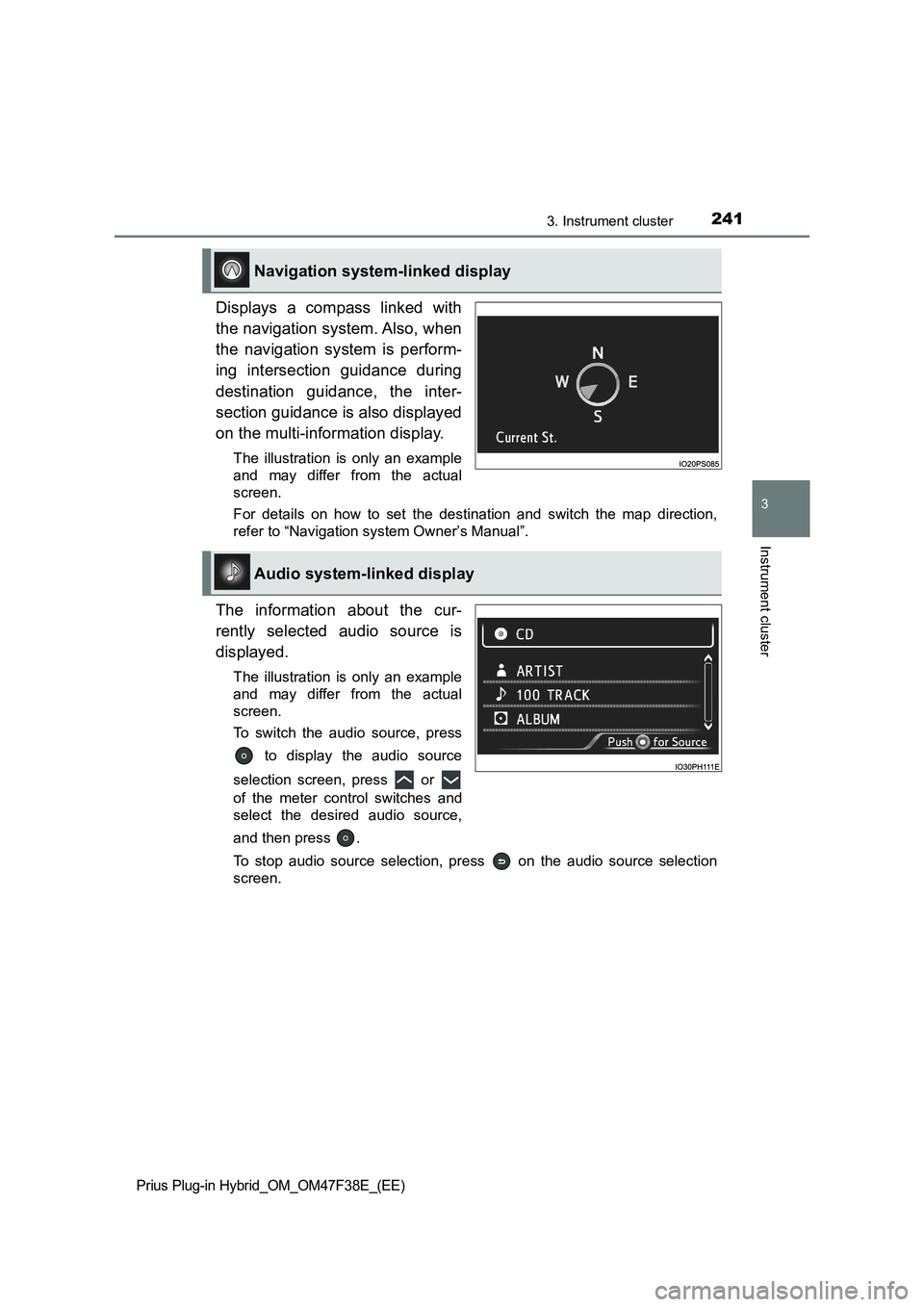

Displays a compass linked with
the navigation system. Also, when
the navigation system is perform-
ing intersection guidance during
destination guidance, the inter-
section guidance is also displayed
on the multi-information display.
The illustration is only an example
and may differ from the actual
screen.
For details on how to set the destination and switch the map direction,
refer to “Navigation system Owner’s Manual”.
The information about the cur-
rently selected audio source is
displayed.
The illustration is only an example
and may differ from the actual
screen.
To switch the audio source, press
to display the audio source
selection screen, press or
of the meter control switches and
select the desired audio source,
and then press .
To stop audio source selection, press on the audio source selection
screen.
Navigation system-linked display
Audio system-linked display

2613. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
3
Instrument cluster
Energy monitor/consumption screen
Navigation system screen
“MENU” button

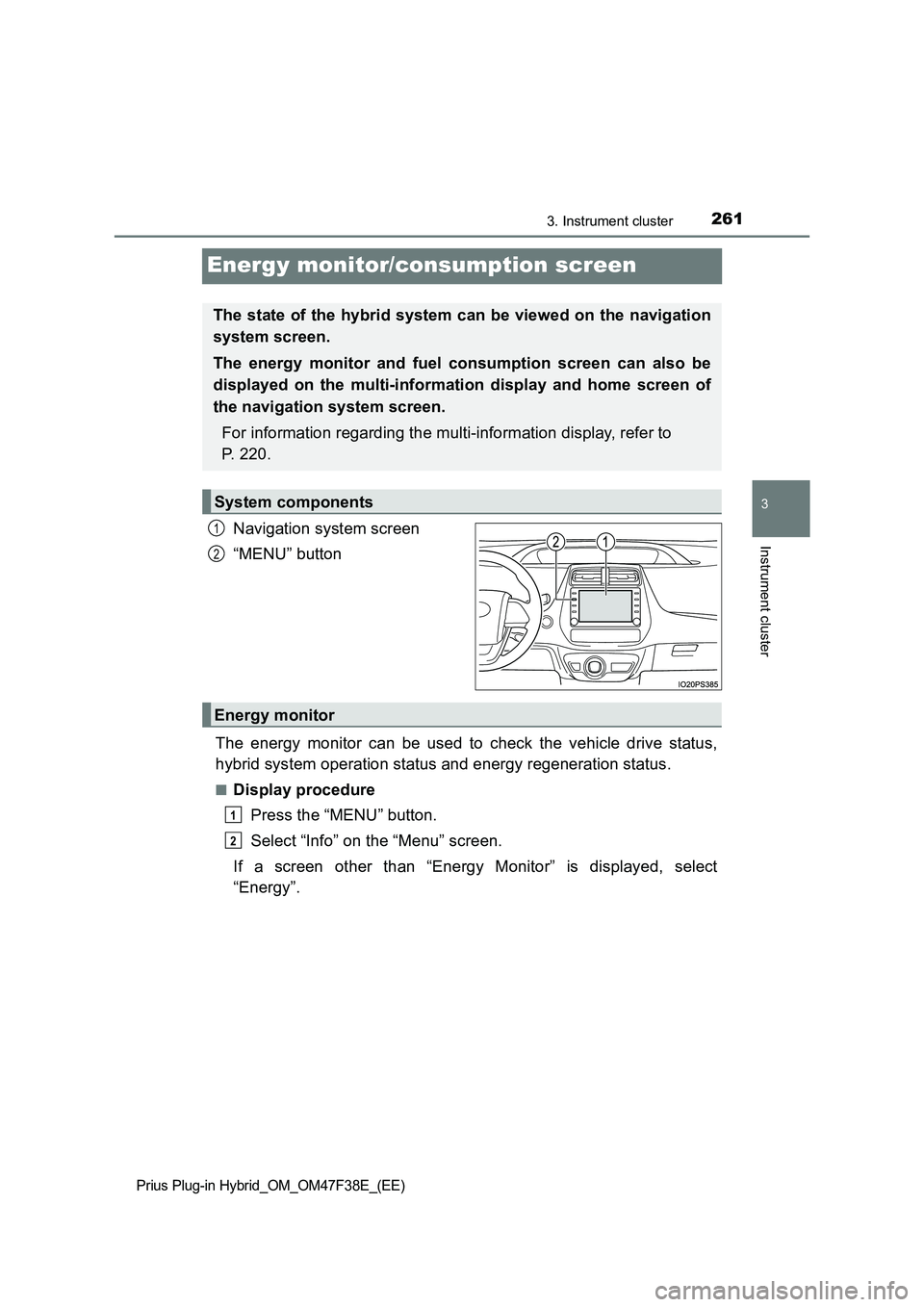

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Display procedure
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If a screen other than “Energy Monitor” is displayed, select
“Energy”.
The state of the hybrid system can be viewed on the navigation
system screen.
The energy monitor and fuel consumption screen can also be
displayed on the multi-information display and home screen of
the navigation system screen.
For information regarding the multi-information display, refer to
P. 220.
System components
1
2
Energy monitor
1
2

2623. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

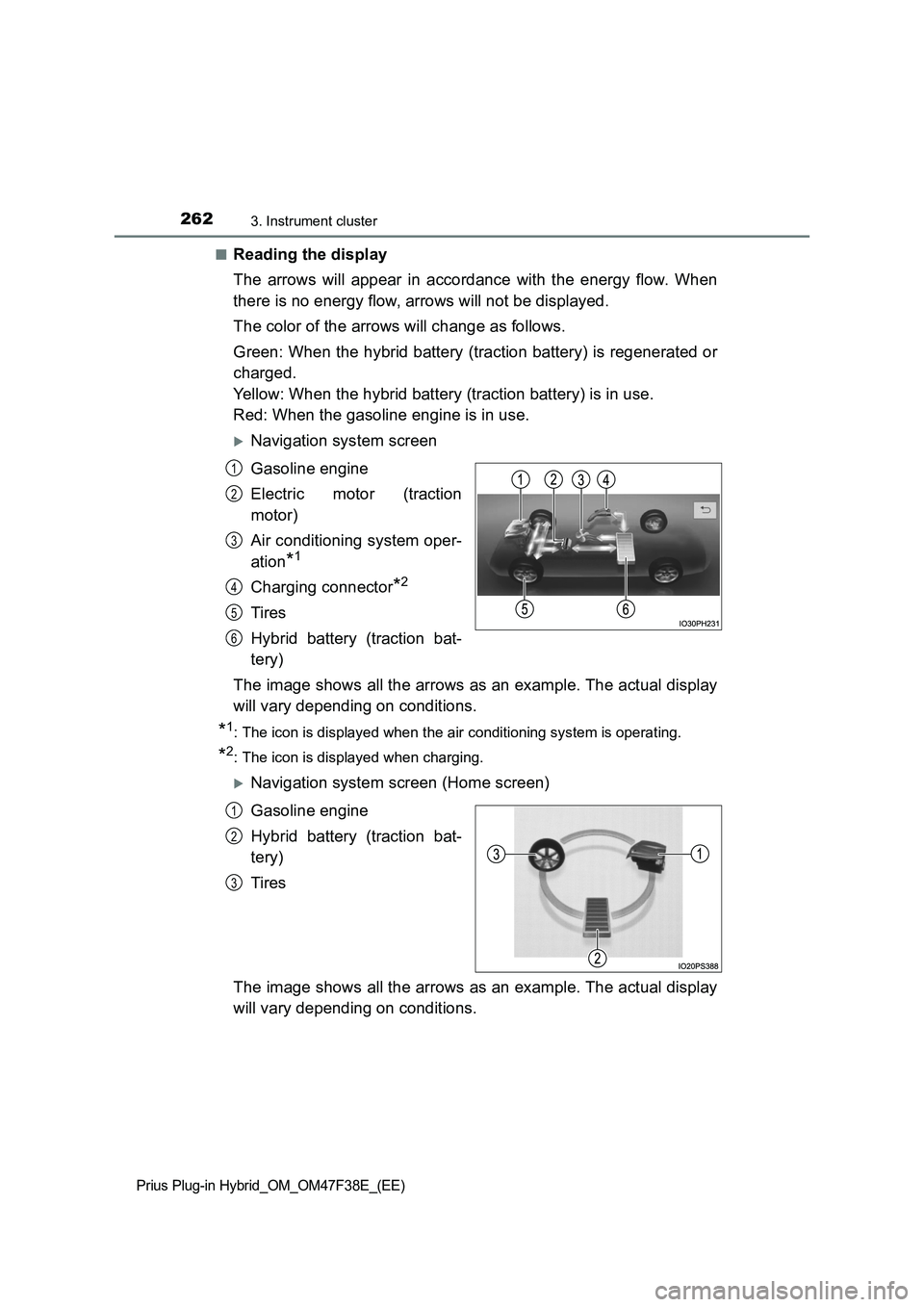

■Reading the display
The arrows will appear in accordance with the energy flow. When
there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows.
Green: When the hybrid battery (traction battery) is regenerated or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.
Navigation system screen
Gasoline engine
Electric motor (traction
motor)
Air conditioning system oper-
ation
*1
Charging connector*2
Tires
Hybrid battery (traction bat-
tery)
The image shows all the arrows as an example. The actual display
will vary depending on conditions.
*1: The icon is displayed when the air conditioning system is operating.
*2: The icon is displayed when charging.
Navigation system screen (Home screen)
Gasoline engine
Hybrid battery (traction bat-
tery)
Tires
The image shows all the arrows as an example. The actual display
will vary depending on conditions.
1
2
3
4
5
6
1
2
3

2633. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.
●When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■Color of the hybrid battery (traction battery) on the navigation system
screen
It will be green when the hybrid battery (traction battery) is being charged,
and yellow when the hybrid battery (traction battery) is being used.
■Color of the gasoline engine on the navigation system screen
It will be blue when the engine is warming up.
