2915-3. Using the storage features
PRIUS +_OM_OM47B16E_(EE)
5
Interior features

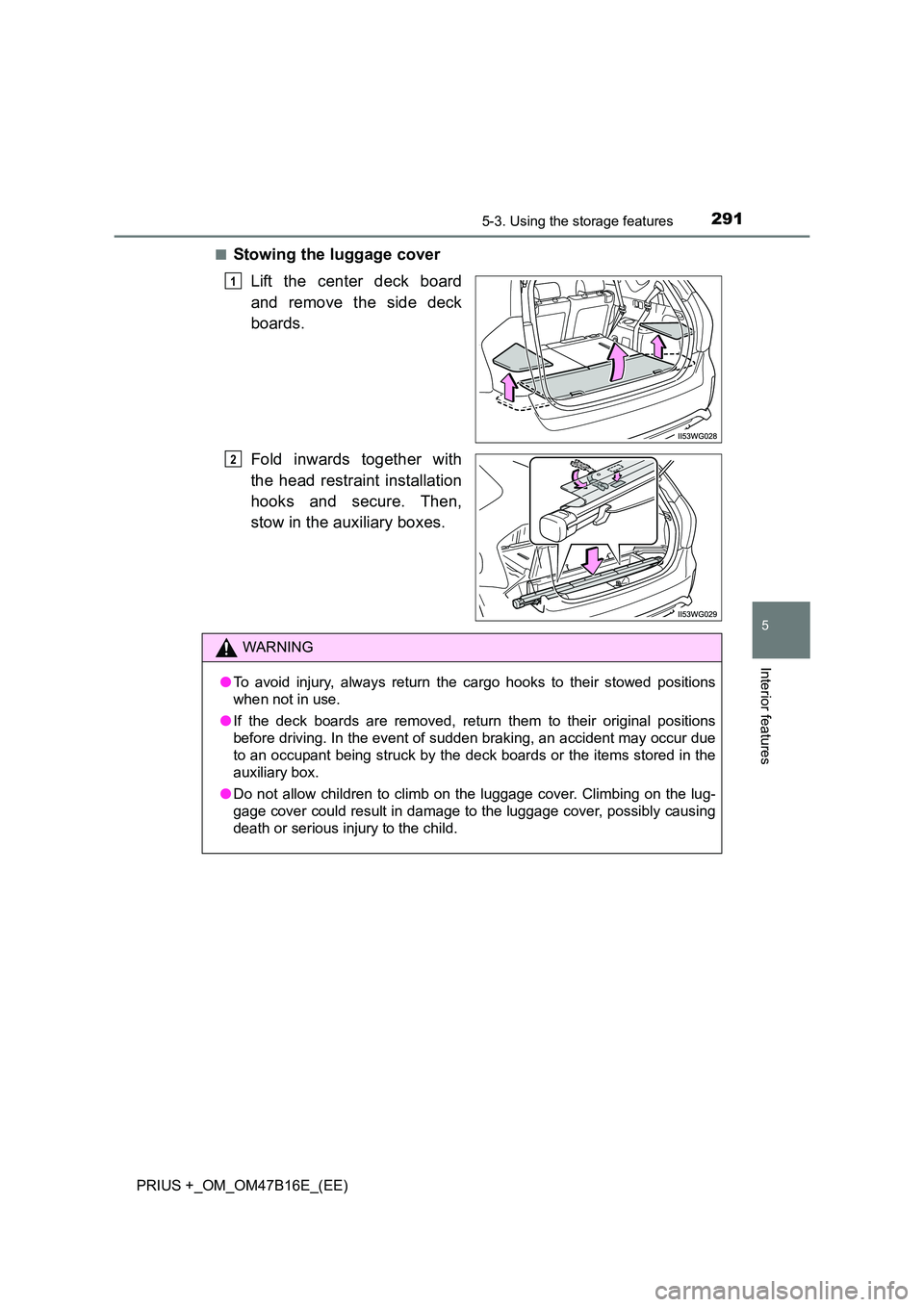

■Stowing the luggage coverLift the center deck board
and remove the side deck
boards.
Fold inwards together with
the head restraint installation
hooks and secure. Then,
stow in the auxiliary boxes.
1
2
WARNING
● To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
● If the deck boards are removed, return them to their original positions
before driving. In the event of sudden braking, an accident may occur due
to an occupant being struck by the deck boards or the items stored in the
auxiliary box.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

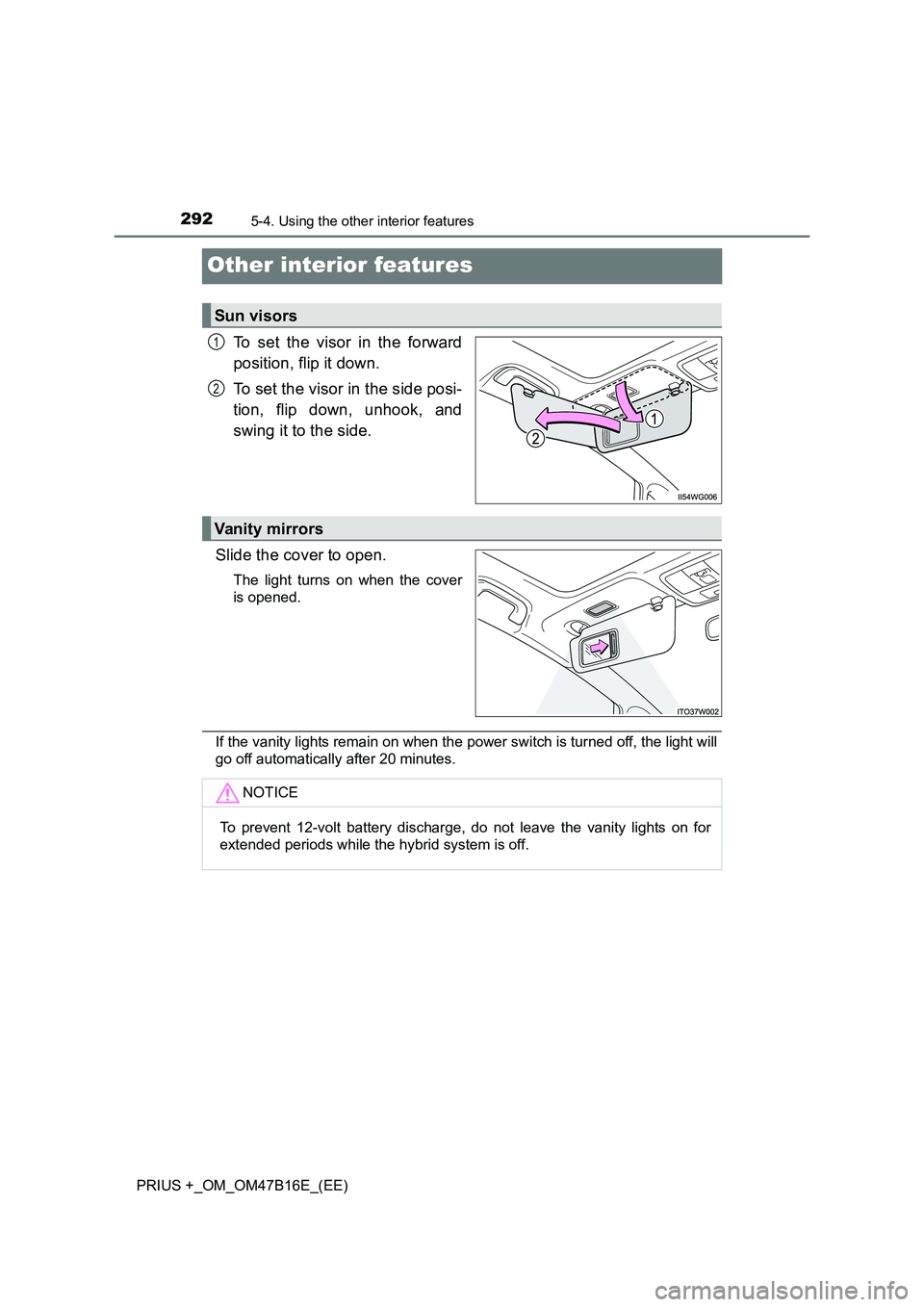

2925-4. Using the other interior features
PRIUS +_OM_OM47B16E_(EE)
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity lights remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.

2935-4. Using the other interior features
PRIUS +_OM_OM47B16E_(EE)
5
Interior features

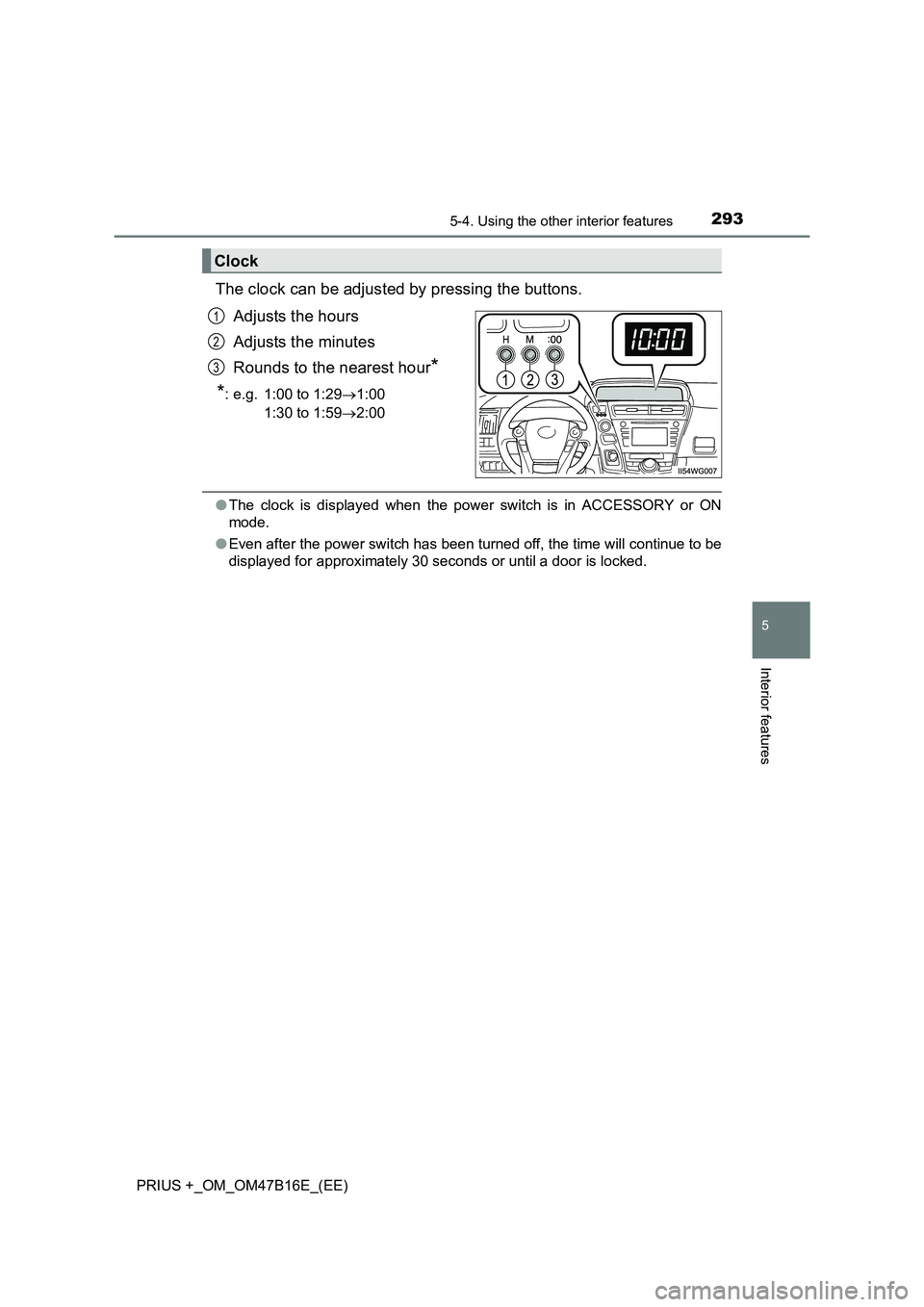

The clock can be adjusted by pressing the buttons.Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
: e.g. 1:00 to 1:29 →1:00
1:30 to 1:59 →2:00
●The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● Even after the power switch has been turned off, the time will continue to be
displayed for approximately 30 seconds or until a door is locked.
Clock
1
2
3

294
PRIUS +_OM_OM47B16E_(EE)
5-4. Using the other interior features

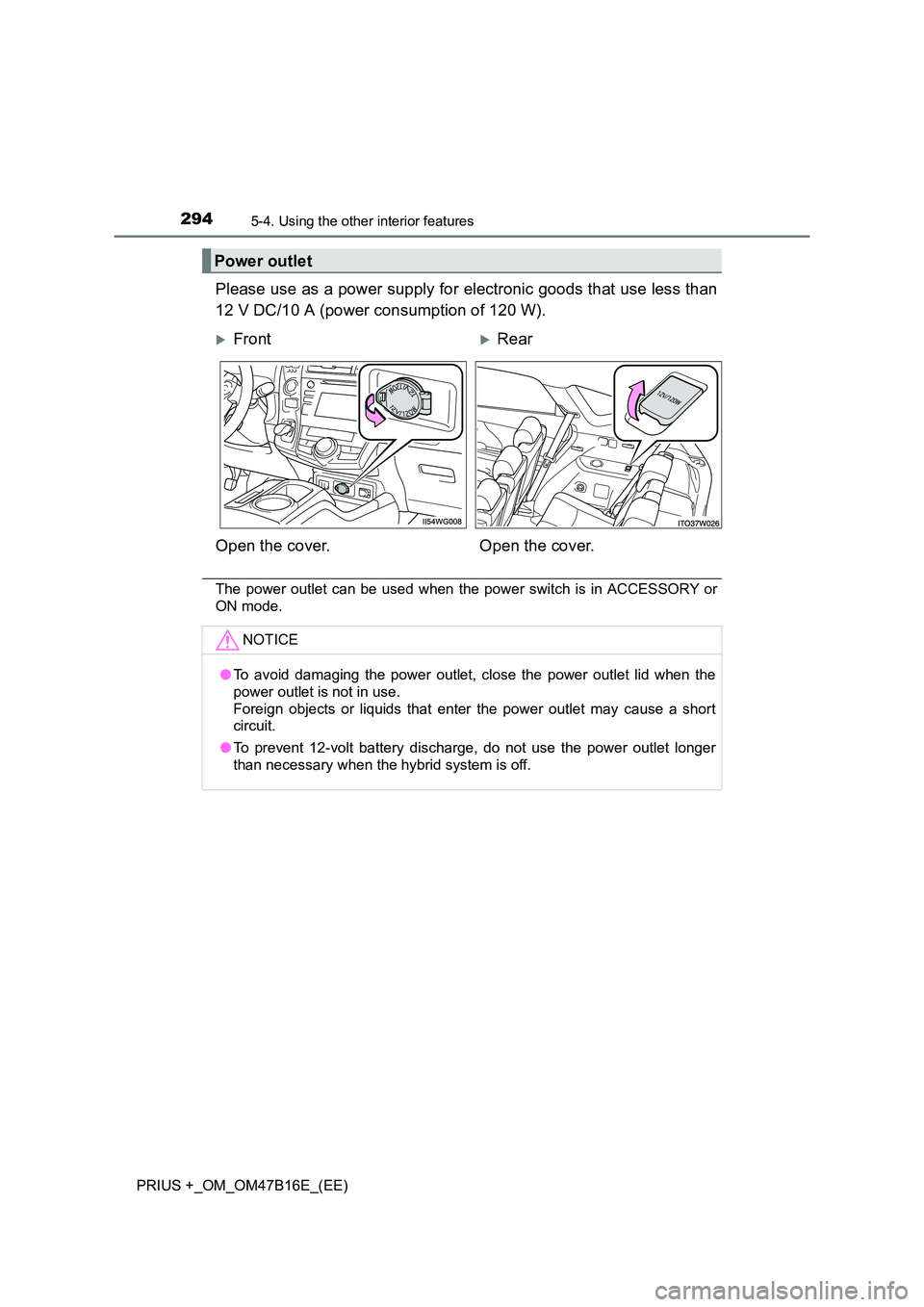

Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
The power outlet can be used when the power switch is in ACCESSORY or
ON mode.
Power outlet
XFrontXRear
Open the cover. Open the cover.
NOTICE
● To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

2955-4. Using the other interior features
PRIUS +_OM_OM47B16E_(EE)
5
Interior features

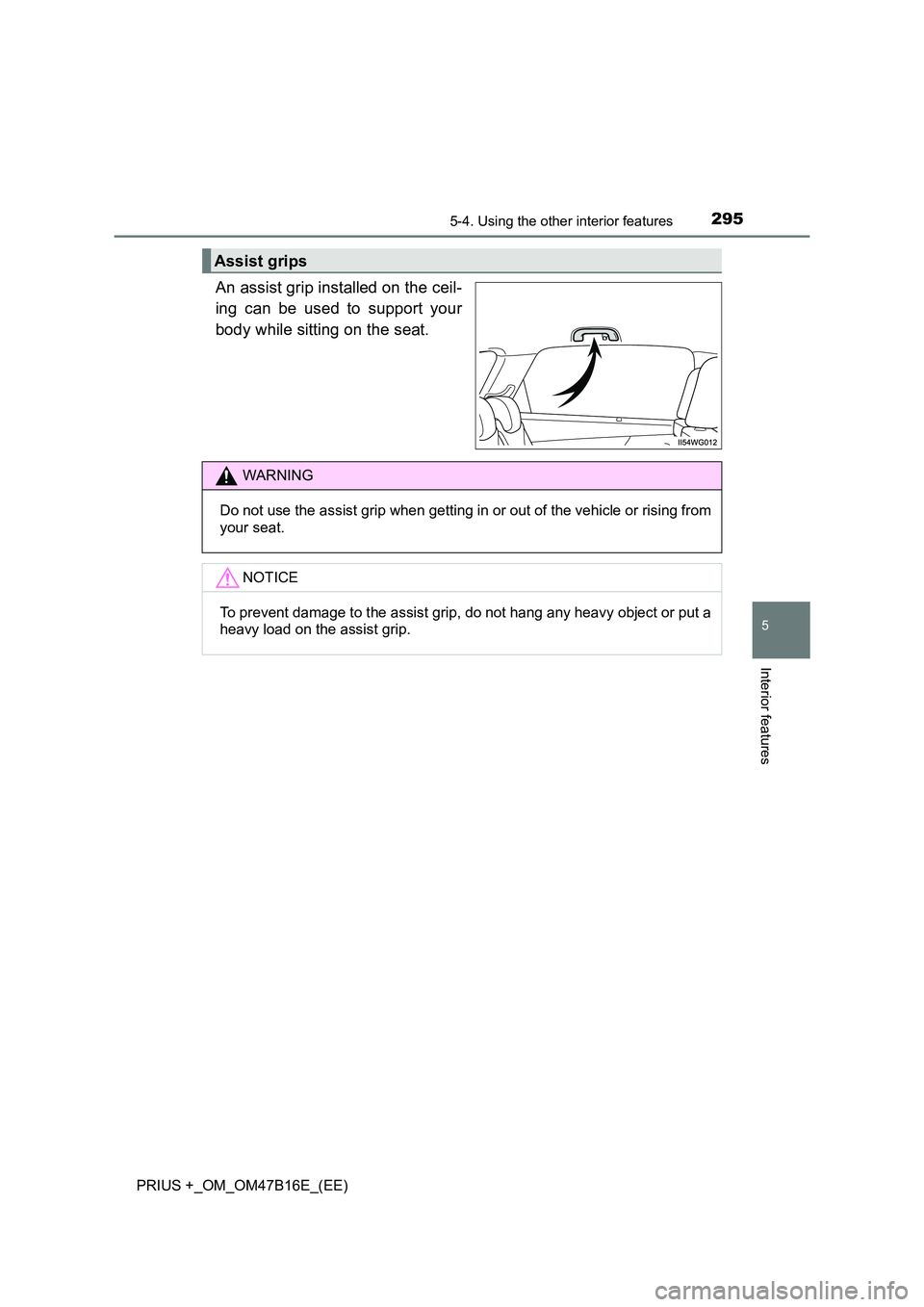

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

296
PRIUS +_OM_OM47B16E_(EE)
5-4. Using the other interior features

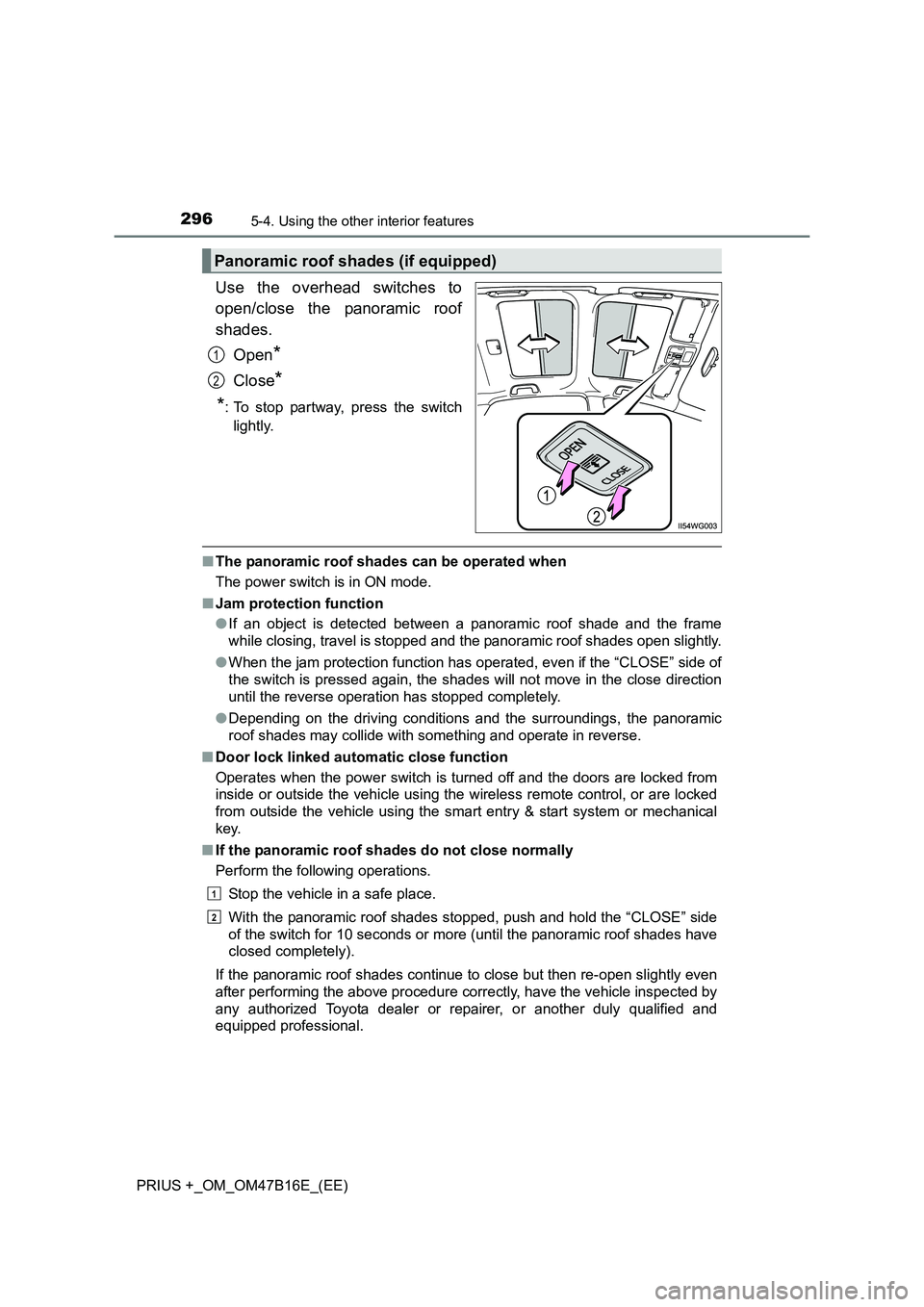

Use the overhead switches to
open/close the panoramic roof
shades.Open
*
Close*
*
: To stop partway, press the switch lightly.
■ The panoramic roof shades can be operated when
The power switch is in ON mode.
■ Jam protection function
●If an object is detected between a panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shades open slightly.
● When the jam protection function has operated, even if the “CLOSE” side of
the switch is pressed again, the shades will not move in the close direction
until the reverse operation has stopped completely.
● Depending on the driving conditions and the surroundings, the panoramic
roof shades may collide with something and operate in reverse.
■ Door lock linked automatic close function
Operates when the power switch is turned off and the doors are locked from
inside or outside the vehicle using the wireless remote control, or are locked
from outside the vehicle using the smart entry & start system or mechanical
key.
■ If the panoramic roof shades do not close normally
Perform the following operations.
Stop the vehicle in a safe place.
With the panoramic roof shades stopped, push and hold the “CLOSE” side
of the switch for 10 seconds or more (until the panoramic roof shades have
closed completely).
If the panoramic roof shades continue to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected by
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional.
Panoramic roof shades (if equipped)
1
2
1
2

2975-4. Using the other interior features
PRIUS +_OM_OM47B16E_(EE)
5
Interior features

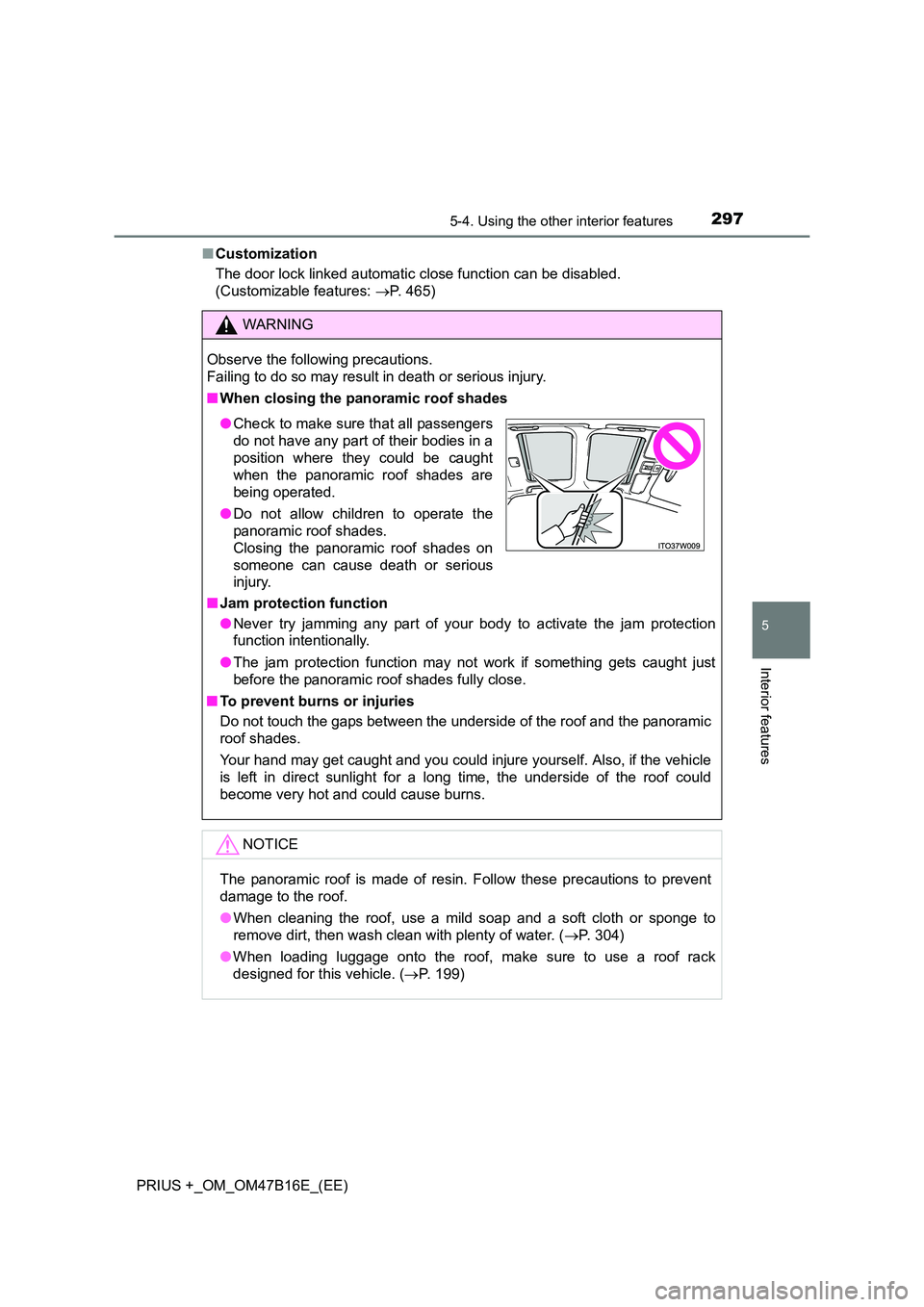

■Customization
The door lock linked automatic close function can be disabled.
(Customizable features: →P. 465)
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
■ When closing the panoramic roof shades
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the panoramic roof shades fully close.
■ To prevent burns or injuries
Do not touch the gaps between the underside of the roof and the panoramic
roof shades.
Your hand may get caught and you could injure yourself. Also, if the vehicle
is left in direct sunlight for a long time, the underside of the roof could
become very hot and could cause burns.
NOTICE
The panoramic roof is made of resin. Follow these precautions to prevent
damage to the roof.
●When cleaning the roof, use a mild soap and a soft cloth or sponge to
remove dirt, then wash clean with plenty of water. ( →P. 304)
● When loading luggage onto the roof, make sure to use a roof rack
designed for this vehicle. ( →P. 199)
●Check to make sure that all passengers
do not have any part of their bodies in a
position where they could be caught
when the panoramic roof shades are
being operated.
● Do not allow children to operate the
panoramic roof shades.
Closing the panoramic roof shades on
someone can cause death or serious
injury.

298
PRIUS +_OM_OM47B16E_(EE)
5-4. Using the other interior features

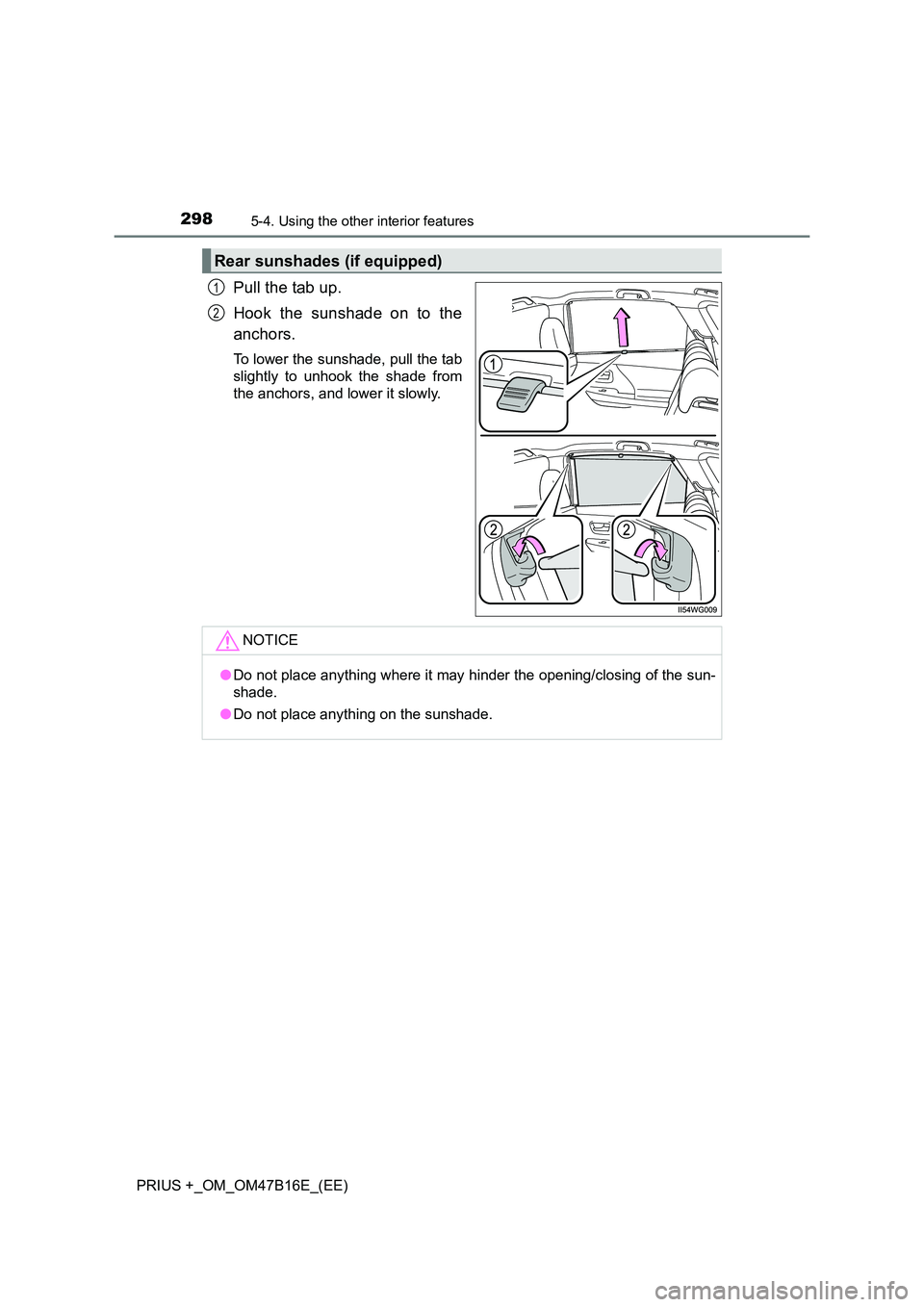

Pull the tab up.
Hook the sunshade on to the
anchors.
To lower the sunshade, pull the tab
slightly to unhook the shade from
the anchors, and lower it slowly.
Rear sunshades (if equipped)
1
2
NOTICE
●Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.

299

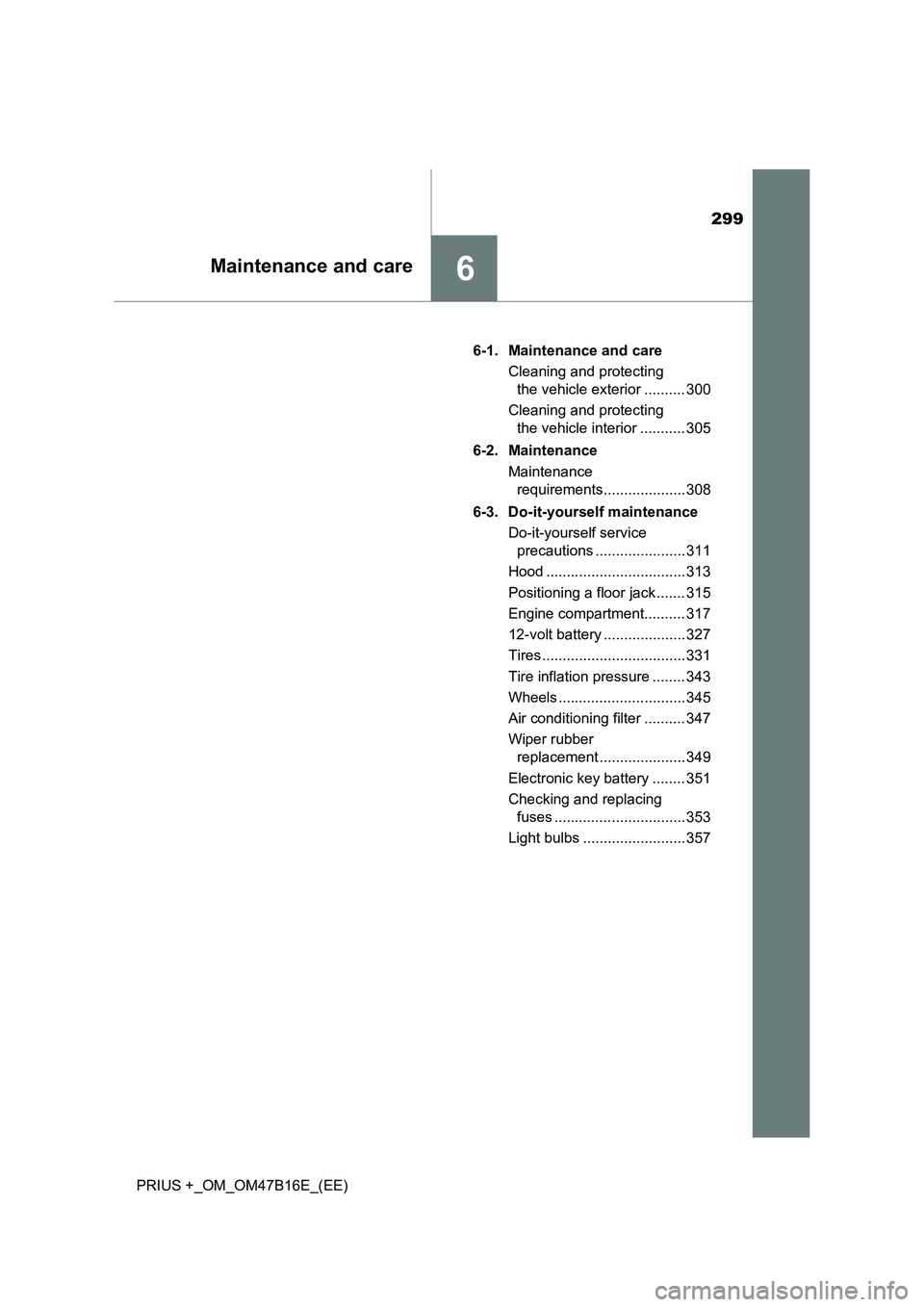

6Maintenance and care
PRIUS +_OM_OM47B16E_(EE)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 300
Cleaning and protecting the vehicle interior ........... 305
6-2. Maintenance Maintenance requirements.................... 308
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 311
Hood .................................. 313
Positioning a floor jack ....... 315
Engine compartment.......... 317
12-volt battery .................... 327
Tires ................................... 331
Tire inflation pressure ........ 343
Wheels ............................... 345
Air conditioning filter .......... 347
Wiper rubber replacement ..................... 349
Electronic key battery ........ 351
Checking and replacing fuses ................................ 353
Light bulbs ......................... 357

3006-1. Maintenance and care
PRIUS +_OM_OM47B16E_(EE)
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors and remove the antenna before washing the vehicle. Start
washing from the front of the vehicle. Make sure to re-install the antenna
and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● Roof antenna and rear spoiler may not be washable in some automatic car
washes. There may also be an increased risk of damage to vehicle.
■ High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Perform the following to protect the vehicle and maintain it in
prime condition:
