3817-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
7
When trouble arises

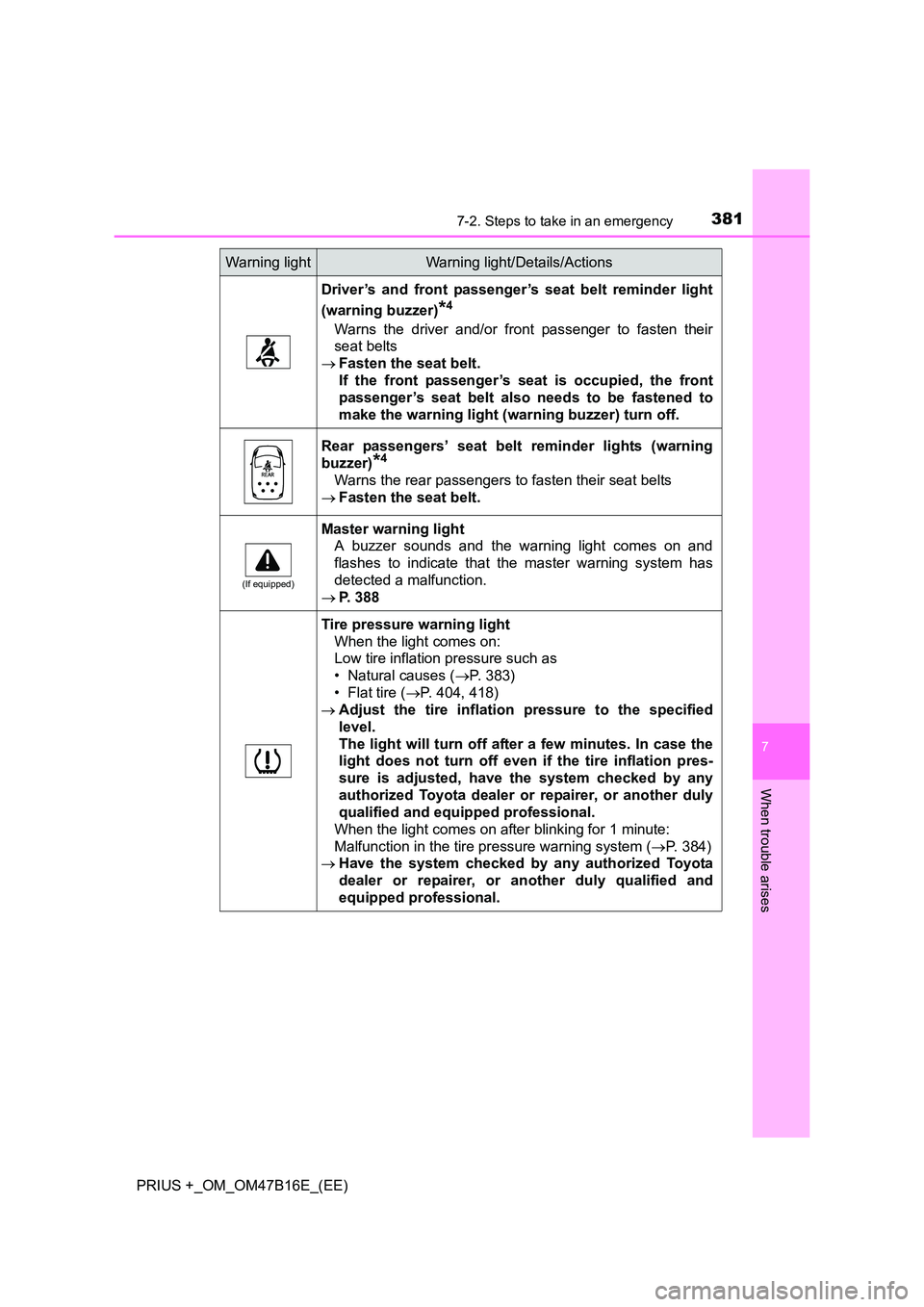

Driver’s and front passenger’s seat belt reminder light
(warning buzzer)
*4
Warns the driver and/or front passenger to fasten their
seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning
buzzer)
*4
Warns the rear passengers to fasten their seat belts
→ Fasten the seat belt.
(If equipped)
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
→ P. 388
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 383)
• Flat tire ( →P. 404, 418)
→ Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( →P. 384)
→ Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Warning lightWarning light/Details/Actions

3827-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)

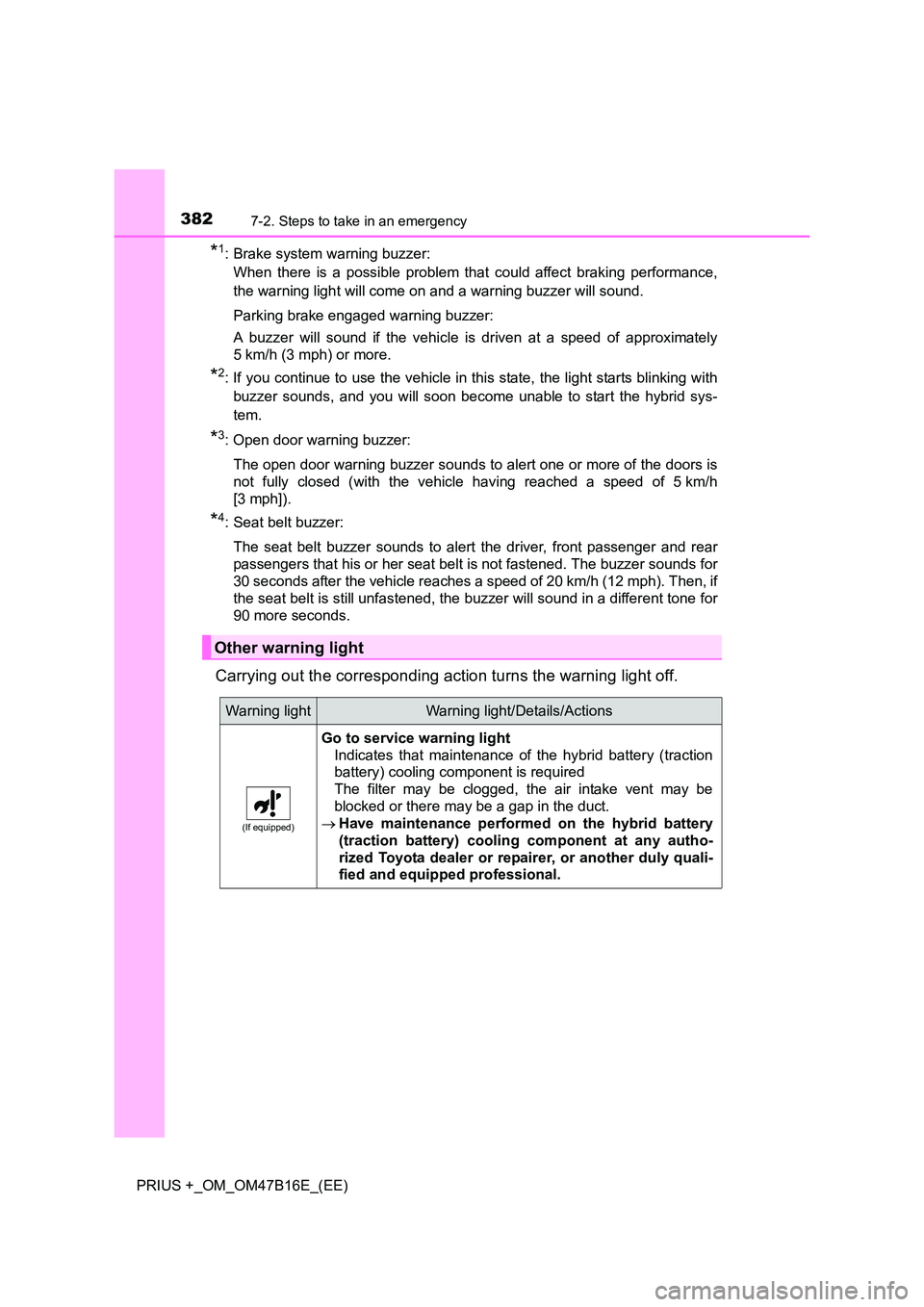

*1: Brake system warning buzzer:When there is a possible problem that could affect braking performance,
the warning light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
*2: If you continue to use the vehicle in this state, the light starts blinking withbuzzer sounds, and you will soon become unable to start the hybrid sys-
tem.
*3: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 5 km/h
[3 mph]).
*4: Seat belt buzzer:The seat belt buzzer sounds to alert the driver, front passenger and rear
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if
the seat belt is still unfastened, the buzzer will sound in a different tone for
90 more seconds.
Carrying out the corresponding action turns the warning light off.
Other warning light
Warning lightWarning light/Details/Actions
(If equipped)
Go to service warning light Indicates that maintenance of the hybrid battery (traction
battery) cooling component is required
The filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
→ Have maintenance performed on the hybrid battery
(traction battery) cooling component at any autho-
rized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

3837-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
7
When trouble arises

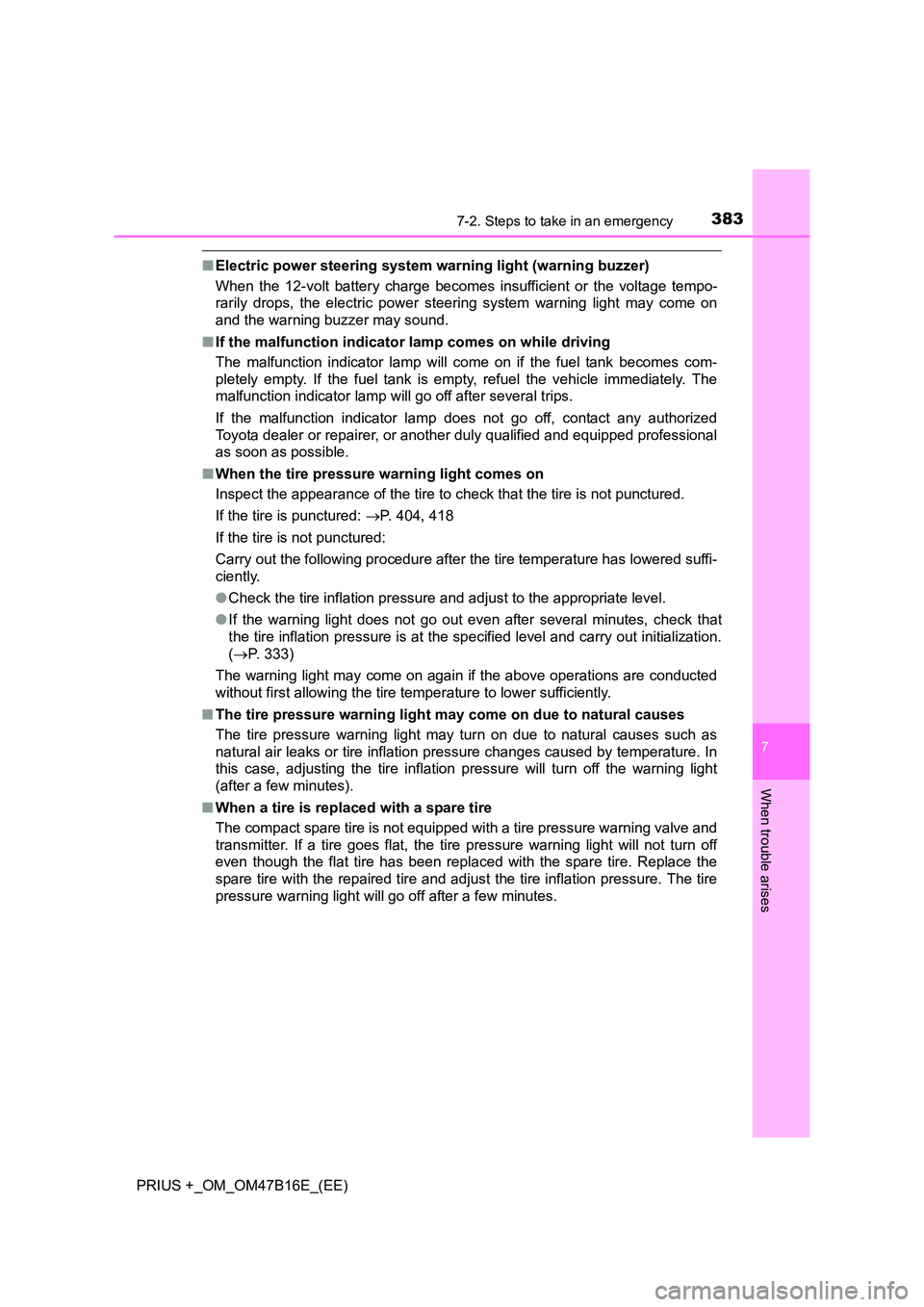

■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empt y, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ When the tire pressure warning light comes on
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: →P. 404, 418
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
(→ P. 333)
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
The tire pressure warning light may turn on due to natural causes such as
natural air leaks or tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjus t the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.

3847-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)■

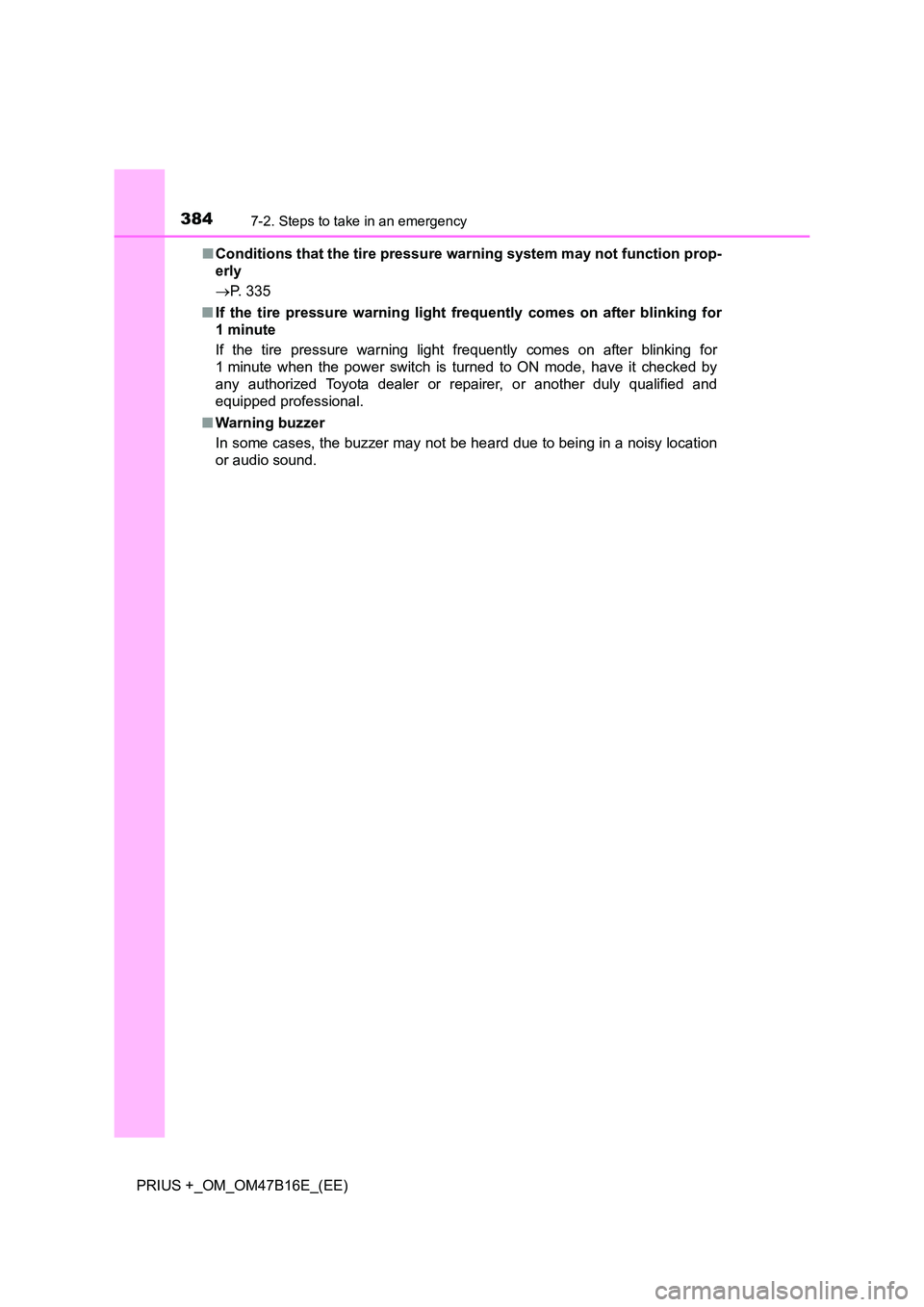

Conditions that the tire pressure warning system may not function prop-
erly
→ P. 335
■ If the tire pressure warning light frequently comes on after blinking for
1minute
If the tire pressure warning light frequently comes on after blinking for
1 minute when the power switch is turned to ON mode, have it checked by
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional.
■ Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.

3857-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
7
When trouble arises

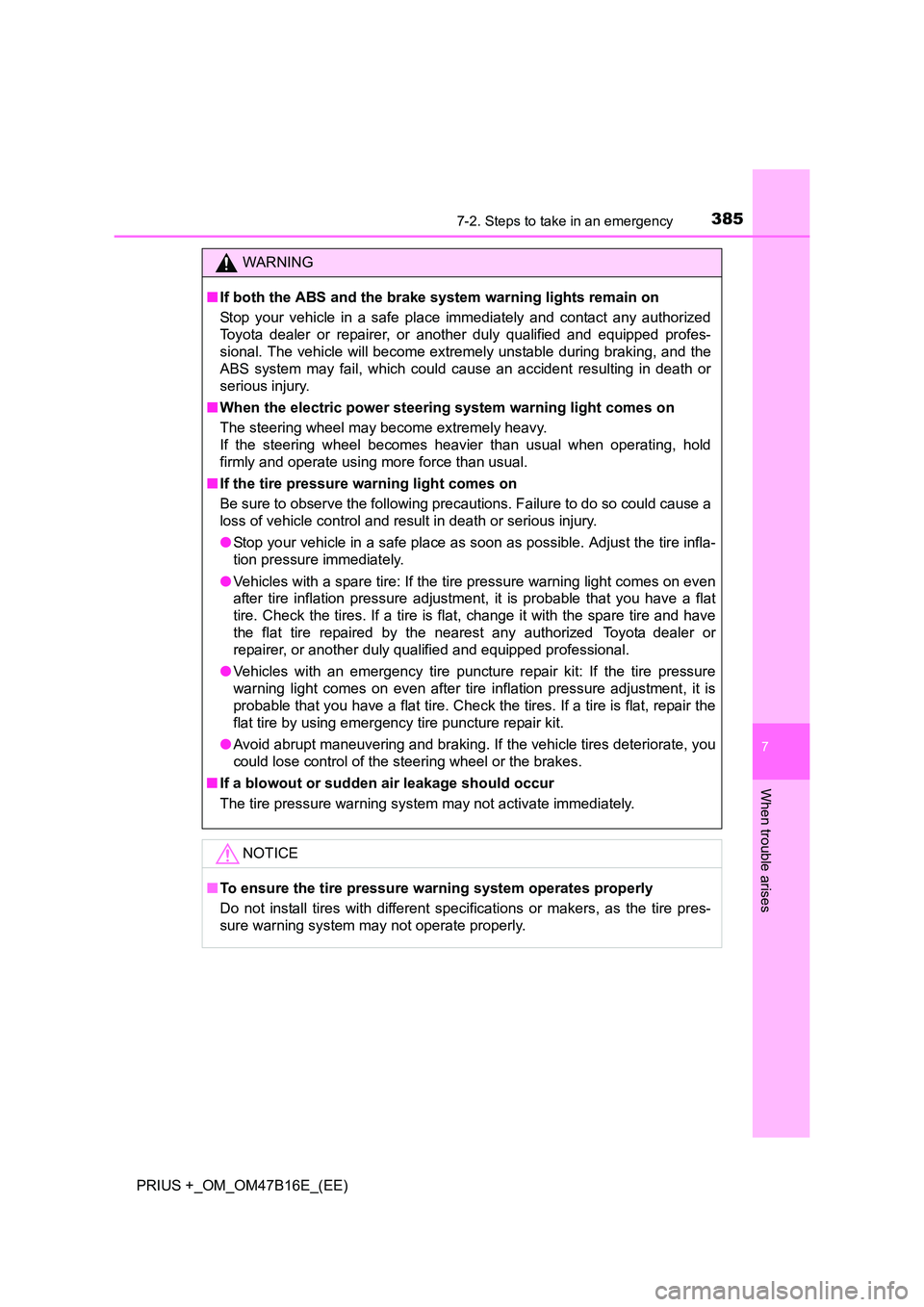

WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with a spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is fl at, change it with the spare tire and have
the flat tire repaired by the nearest any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.

3867-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Follow the correction procedures. (vehicles without multi-infor-
mation display)
InteriorbuzzerExterior buzzerWarning lightDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.
Start the hybrid system
with the electronic key
present.
The power switch
has been pressed
while the elec-
tronic key was not
detected inside
the vehicle.
Confirm the location of
the electronic key.
(→ P. 151)
If the warning light does
not extinguish even
though the electronic
key is within operating
range, touch the elec-
tronic key to the power
switch while depressing
the brake pedal
(→ P. 437)
Transmission
between the elec-
tronic key and the
vehicle is being
blocked, or the bat-
tery in the electronic
key has been
depleted.
Once
Driving has been
started without
the correct elec-
tronic key inside
the vehicle.
Confirm the location of
the electronic key.

3877-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
7
When trouble arises

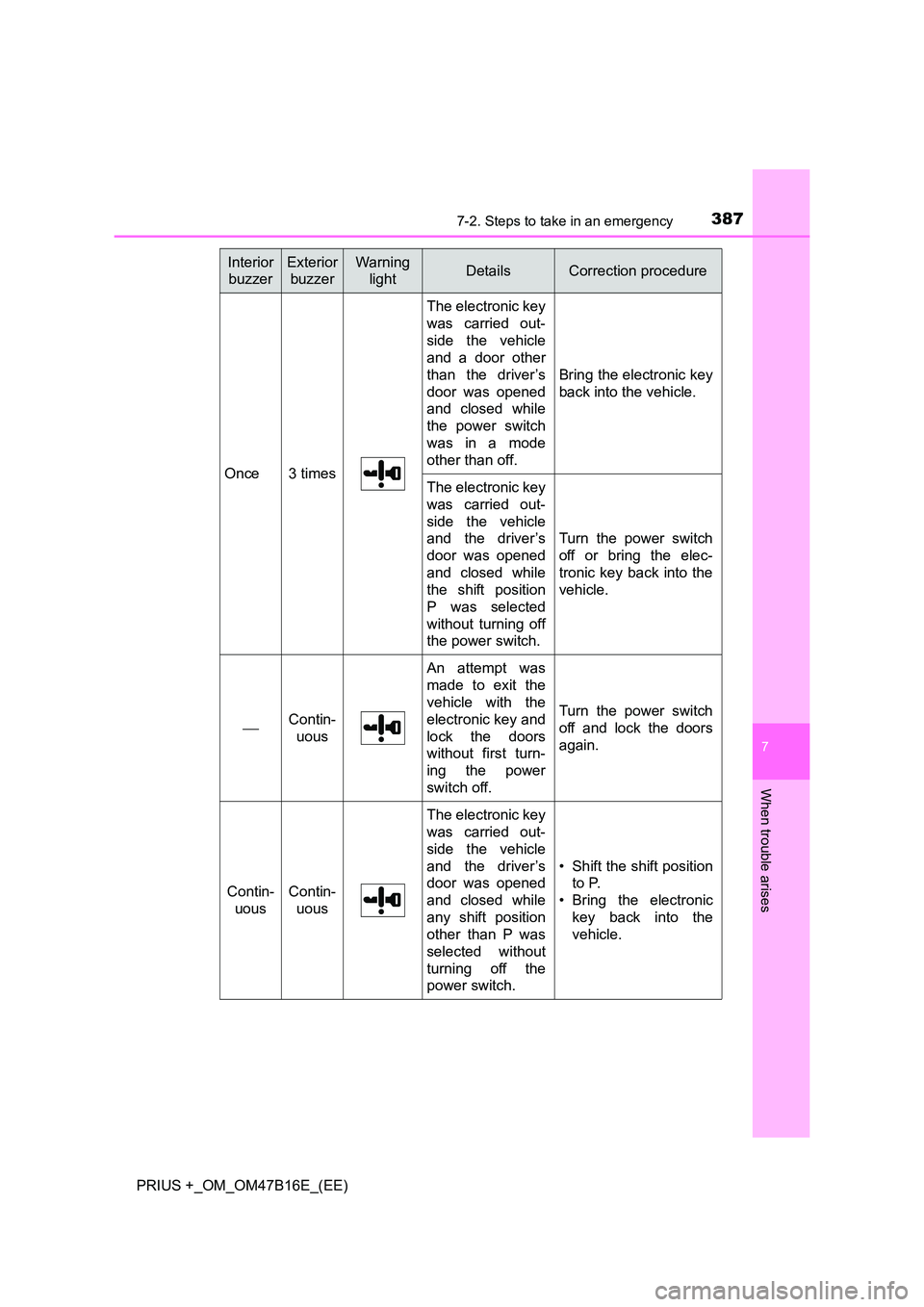

Once3 times
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the power switch
was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
the shift position
P was selected
without turning off
the power switch.
Turn the power switch
off or bring the elec-
tronic key back into the
vehicle.
Contin-uous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the power
switch off.
Turn the power switch
off and lock the doors
again.
Contin-uousContin- uous
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
power switch.
• Shift the shift position to P.
• Bring the electronic key back into the
vehicle.
InteriorbuzzerExterior buzzerWarning lightDetailsCorrection procedure

3887-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)

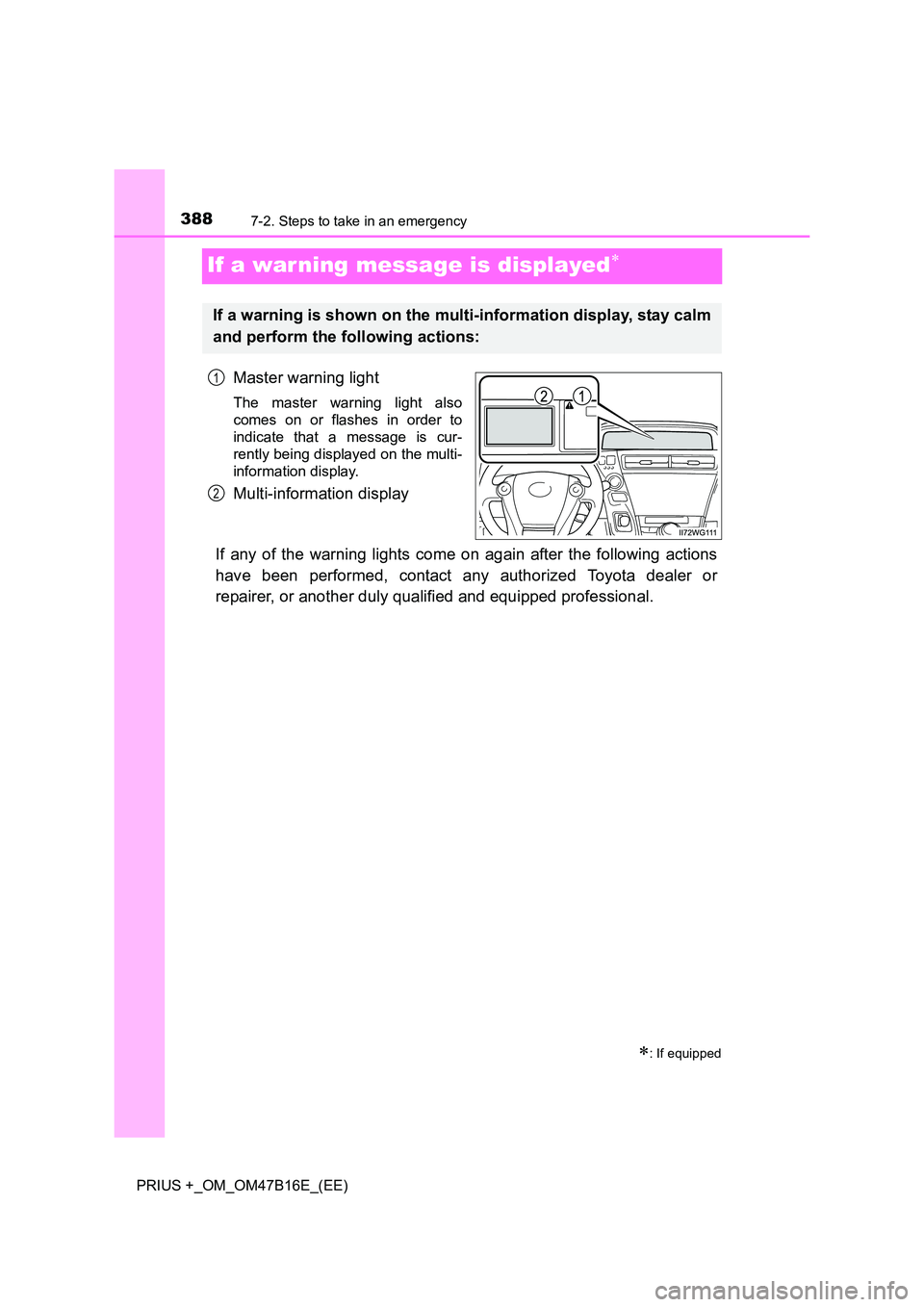

If a war ning message is displayed∗
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning lights come on again after the following actions
have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
∗: If equipped
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2

3897-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
7
When trouble arises

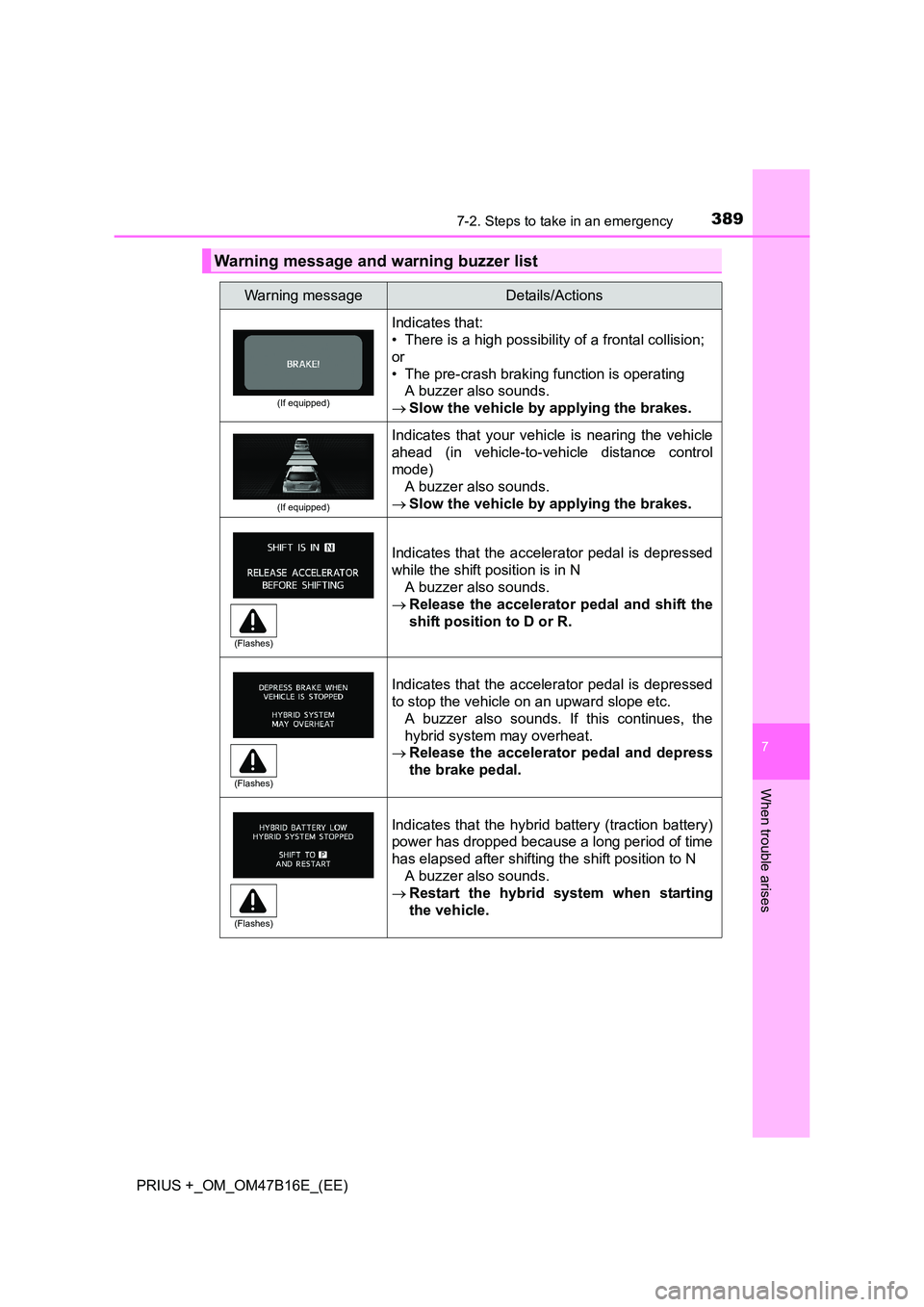

Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision;
or
• The pre-crash braking function is operatingA buzzer also sounds.
→ Slow the vehicle by applying the brakes.
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance control
mode)
A buzzer also sounds.
→ Slow the vehicle by applying the brakes.
Indicates that the accelerator pedal is depressed
while the shift position is in N
A buzzer also sounds.
→ Release the accelerator pedal and shift the
shift position to D or R.
Indicates that the accelerator pedal is depressed
to stop the vehicle on an upward slope etc.
A buzzer also sounds. If this continues, the
hybrid system may overheat.
→ Release the accelerator pedal and depress
the brake pedal.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift position to N
A buzzer also sounds.
→ Restart the hybrid system when starting
the vehicle.
(Flashes)
(Flashes)
(Flashes)

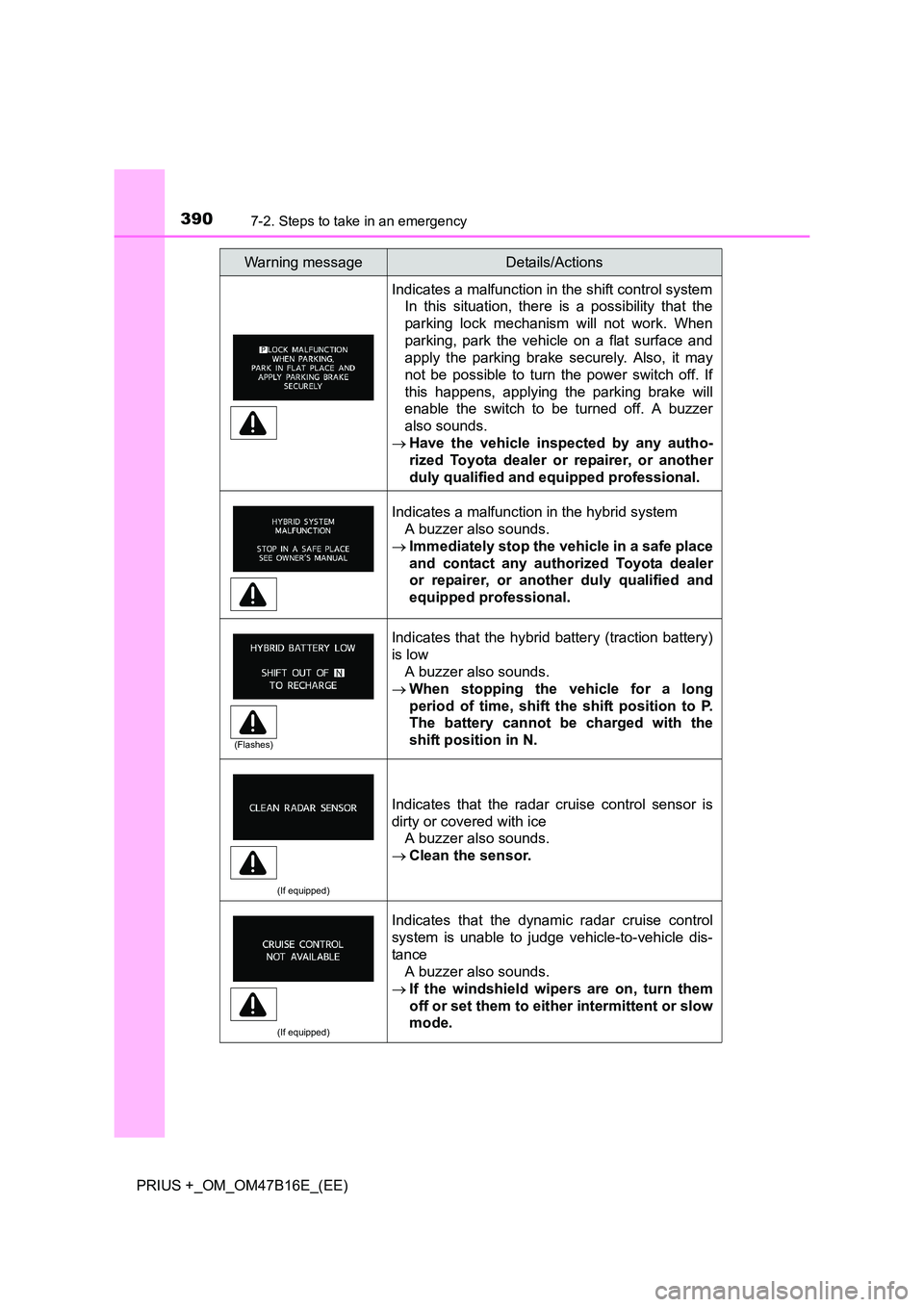

3907-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
Indicates a malfunction in the shift control systemIn this situation, there is a possibility that the
parking lock mechanism will not work. When
parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may
not be possible to turn the power switch off. If
this happens, applying the parking brake will
enable the switch to be turned off. A buzzer
also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional.
Indicates that the hybrid battery (traction battery)
is low
A buzzer also sounds.
→ When stopping the vehicle for a long
period of time, shift the shift position to P.
The battery cannot be charged with the
shift position in N.
(If equipped)
Indicates that the radar cruise control sensor is
dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
→ If the windshield wipers are on, turn them
off or set them to either intermittent or slow
mode.
Warning messageDetails/Actions
(Flashes)
