TOYOTA PRIUS PLUS 2015 Owner's Guide

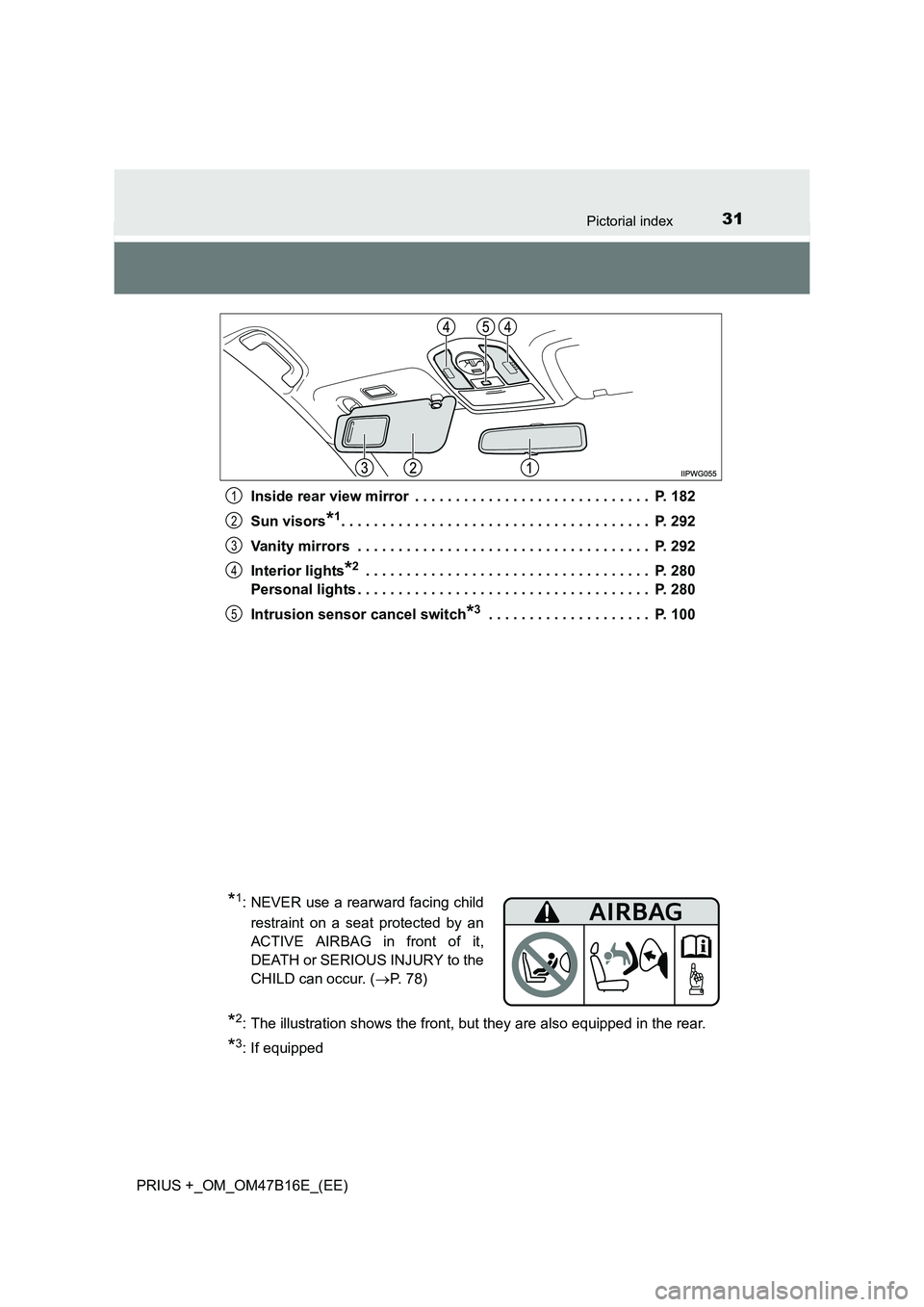

31Pictorial index
PRIUS +_OM_OM47B16E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Interior lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Intrusion sensor cancel switch
*3 . . . . . . . . . . . . . . . . . . . . P. 100
1
2
3
4
5
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( →P. 78)
*2: The illustration shows the front, but they are also equipped in the rear.
*3: If equipped

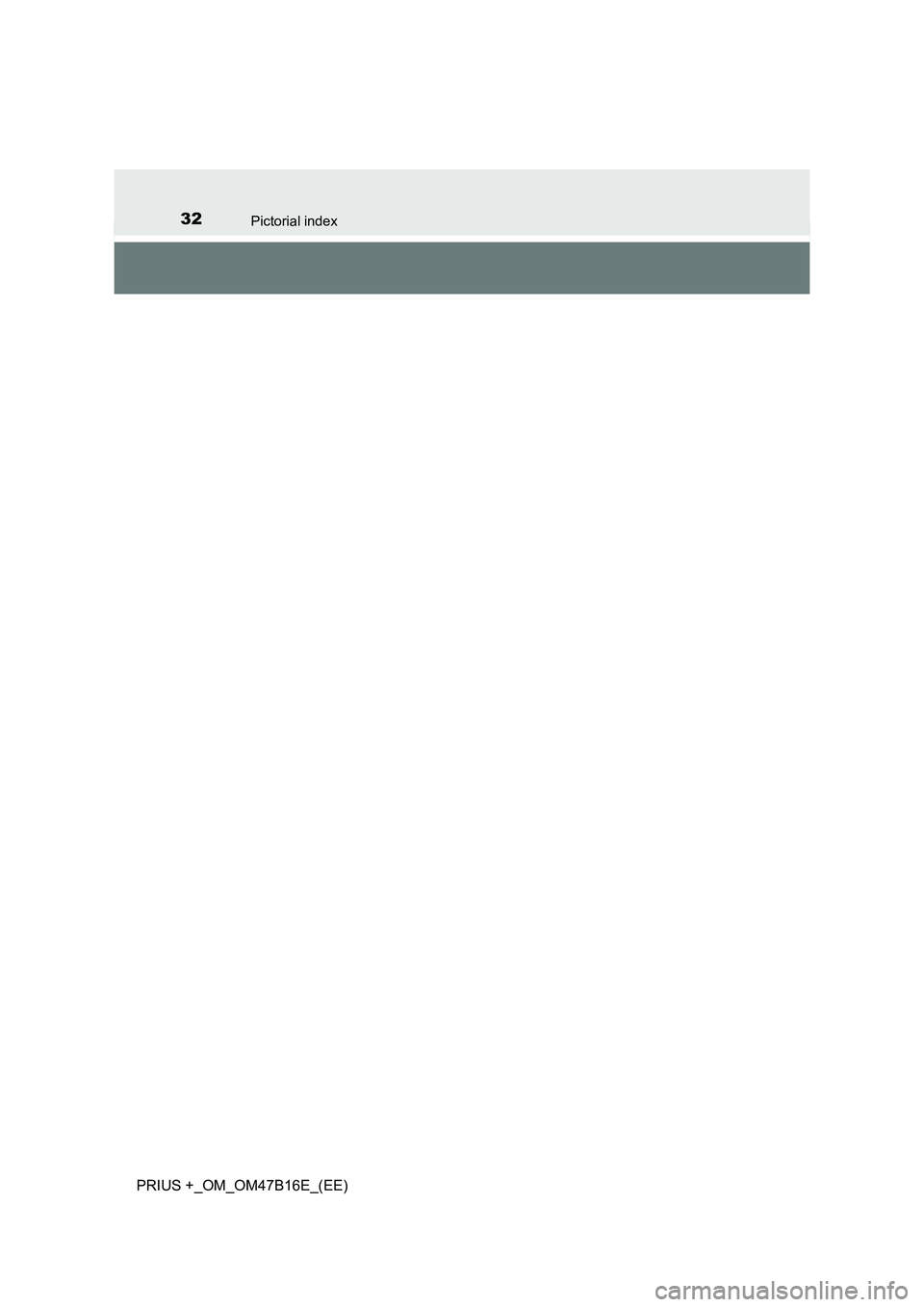

32Pictorial index
PRIUS +_OM_OM47B16E_(EE)

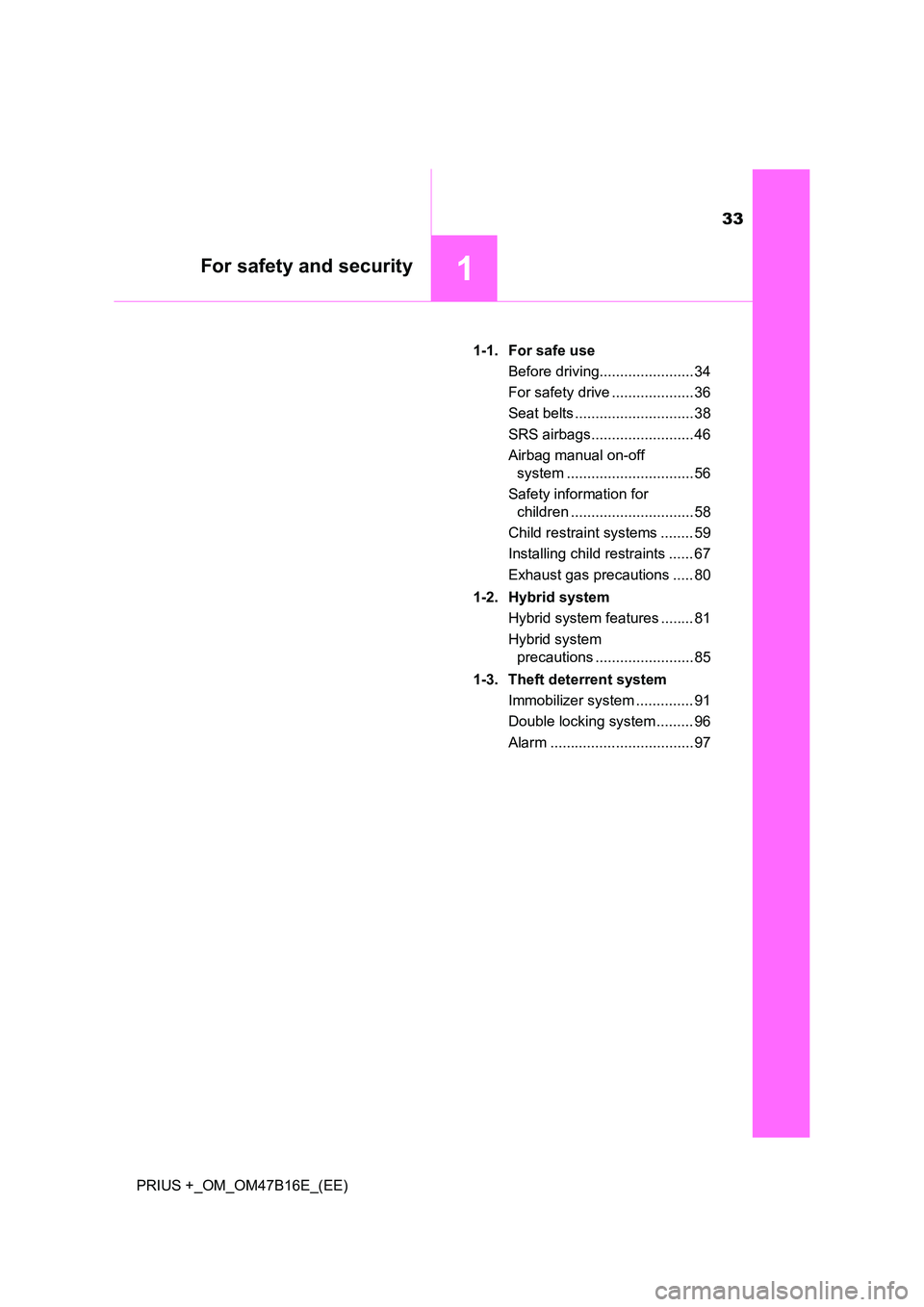

33
1For safety and security
PRIUS +_OM_OM47B16E_(EE)1-1. For safe use
Before driving....................... 34
For safety drive .................... 36
Seat belts ............................. 38
SRS airbags.........................46
Airbag manual on-off system ............................... 56
Safety information for children .............................. 58
Child restraint systems ........ 59
Installing child restraints ...... 67
Exhaust gas precautions ..... 80
1-2. Hybrid system Hybrid system features ........ 81
Hybrid system precautions ........................ 85
1-3. Theft deterrent system Immobilizer system .............. 91
Double locking system ......... 96
Alarm ................................... 97

341-1. For safe use
PRIUS +_OM_OM47B16E_(EE)

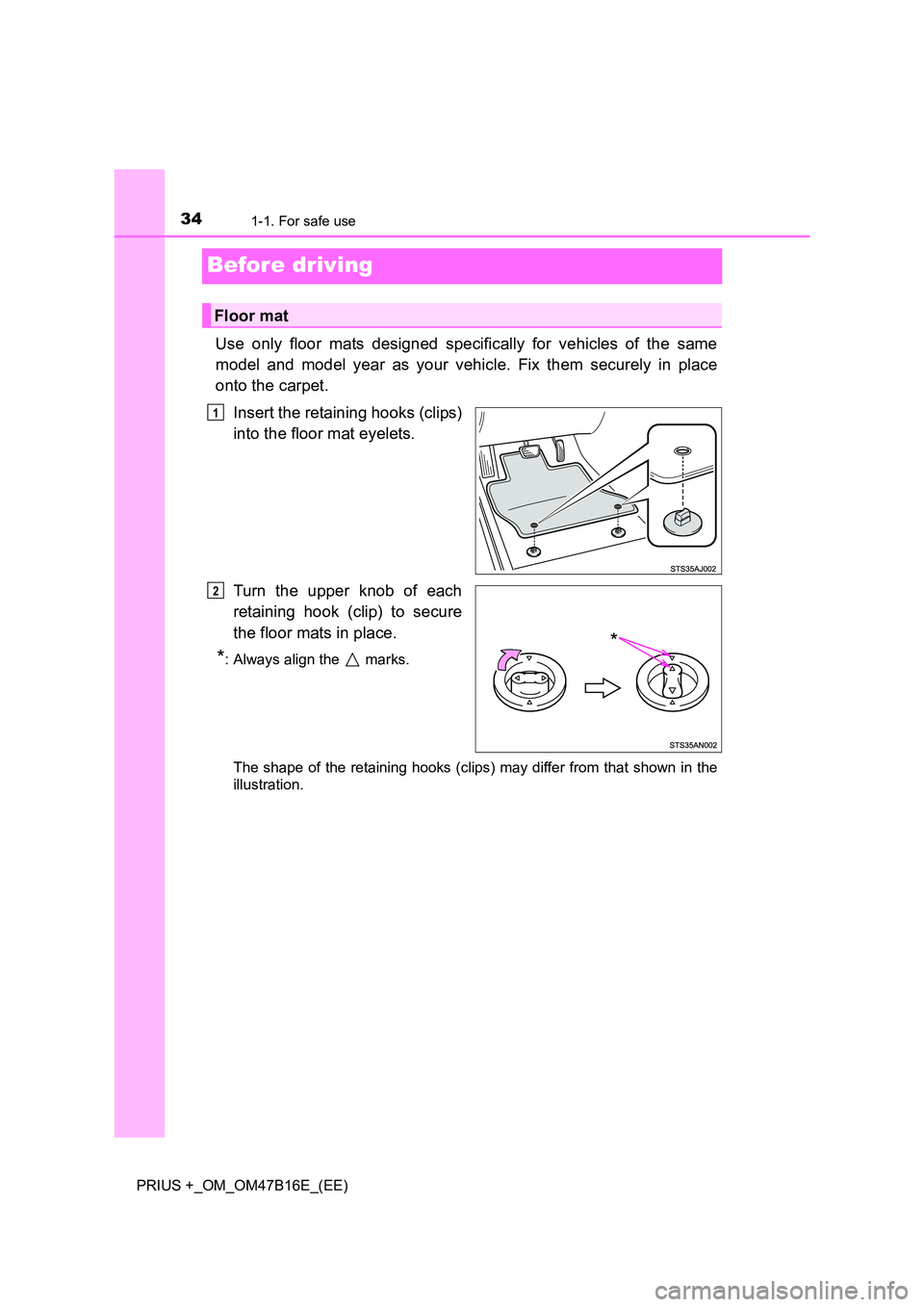

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

351-1. For safe use
1
PRIUS +_OM_OM47B16E_(EE)
For safety and security

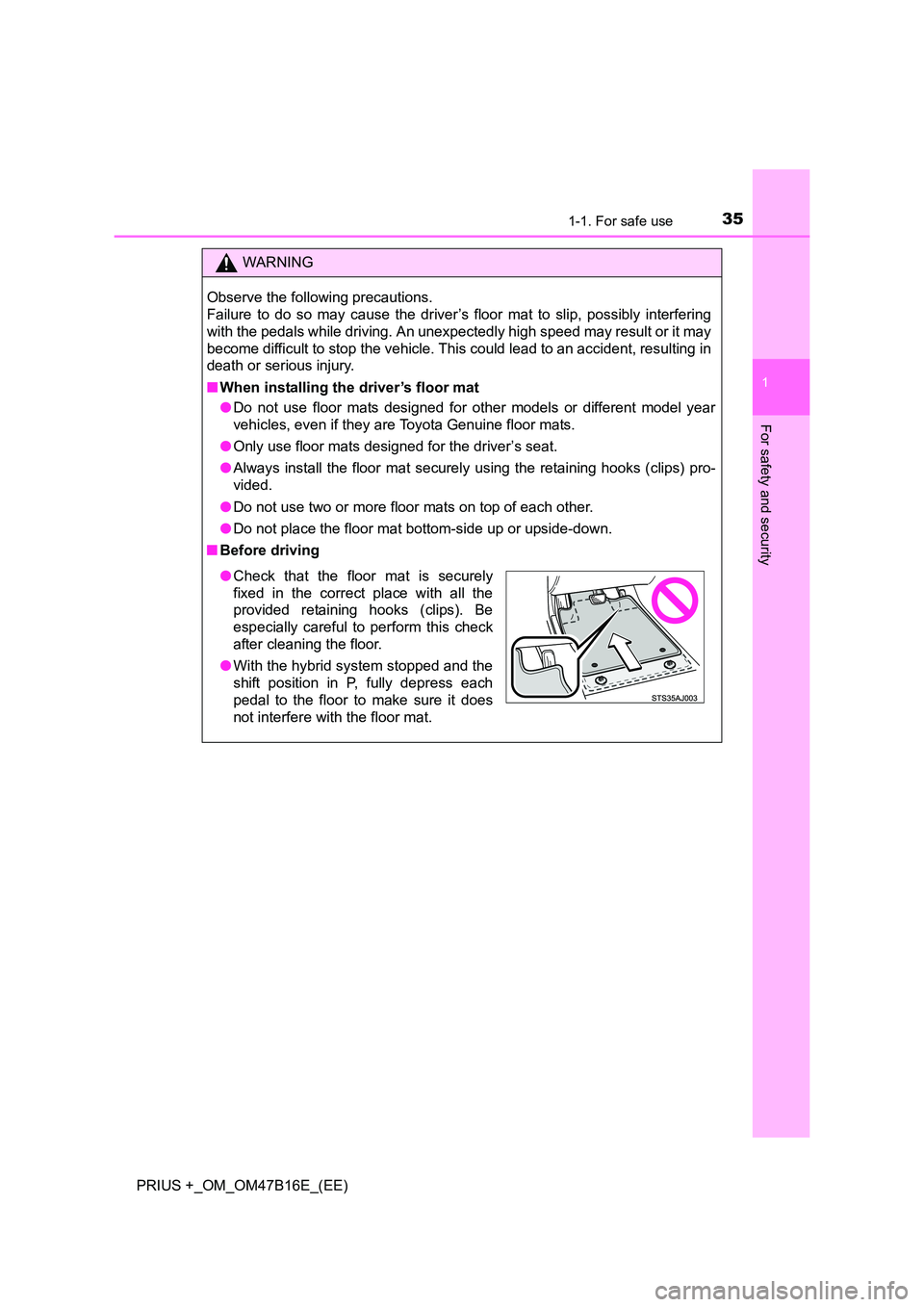

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

361-1. For safe use
PRIUS +_OM_OM47B16E_(EE)

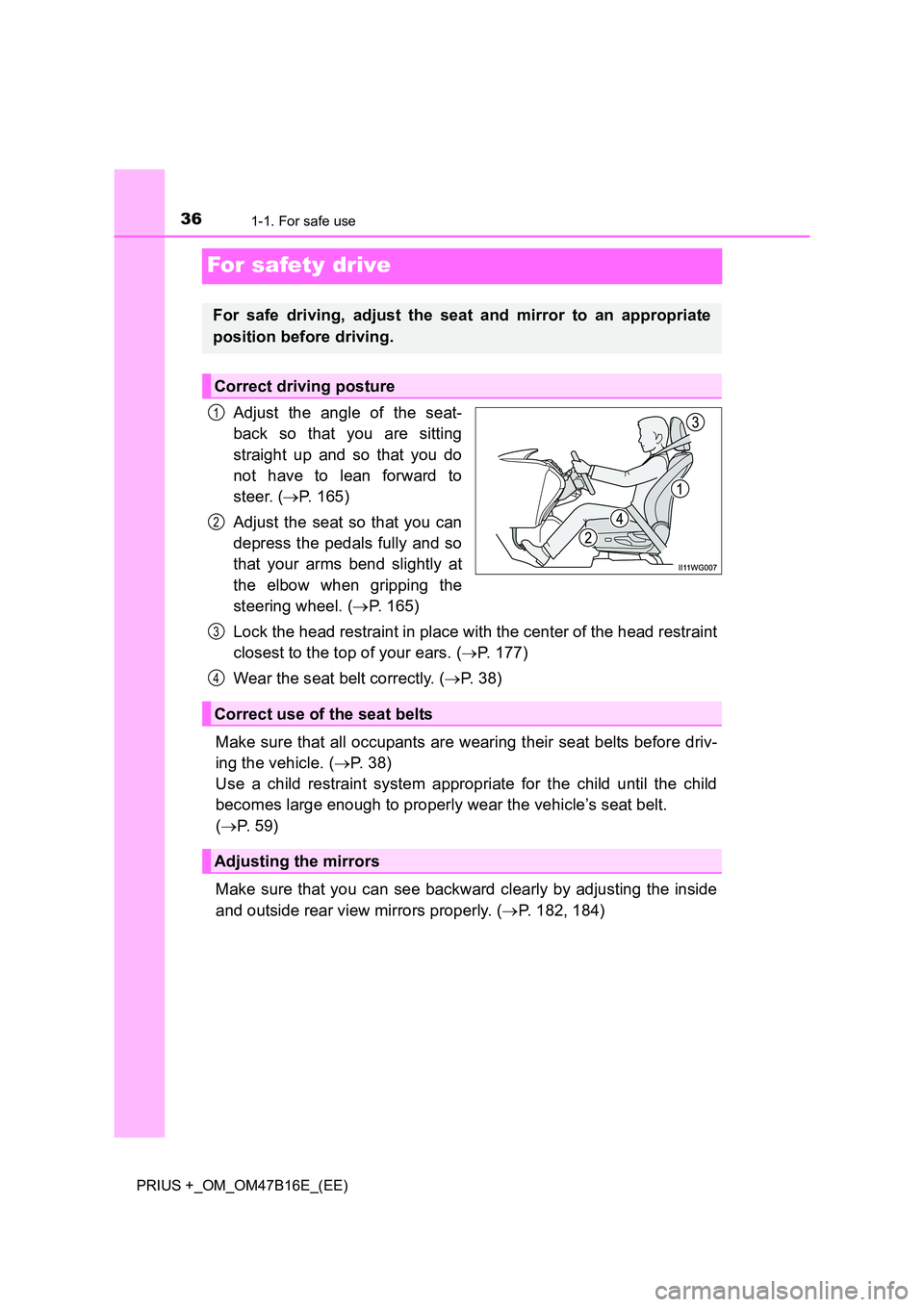

For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 165)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( →P. 165)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 177)
Wear the seat belt correctly. ( →P. 3 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( →P. 3 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( → P. 5 9 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( →P. 182, 184)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

371-1. For safe use
1
PRIUS +_OM_OM47B16E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

381-1. For safe use
PRIUS +_OM_OM47B16E_(EE)

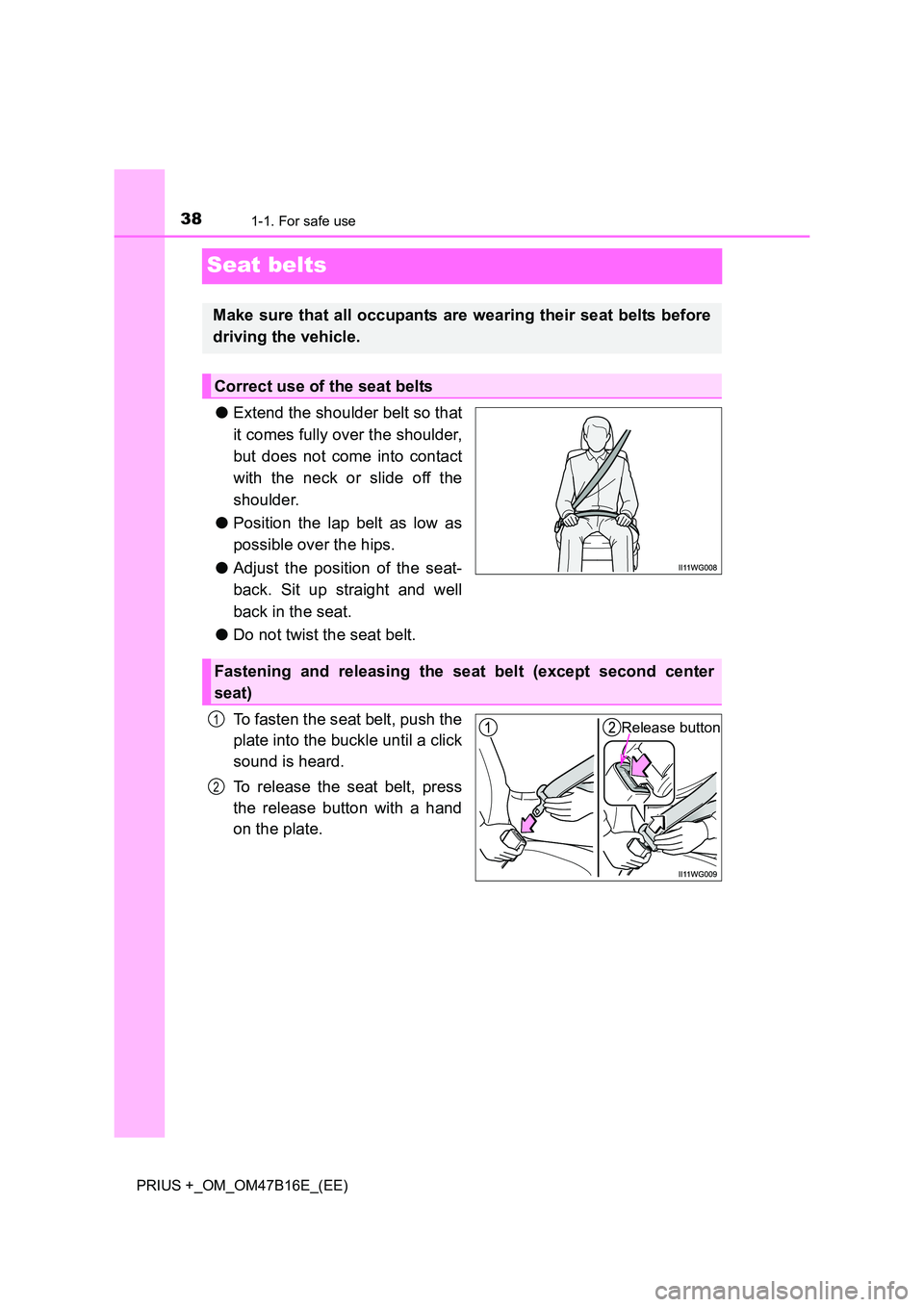

Seat belts
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button with a hand
on the plate.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except second center
seat)
Release button1
2

391-1. For safe use
1
PRIUS +_OM_OM47B16E_(EE)
For safety and security

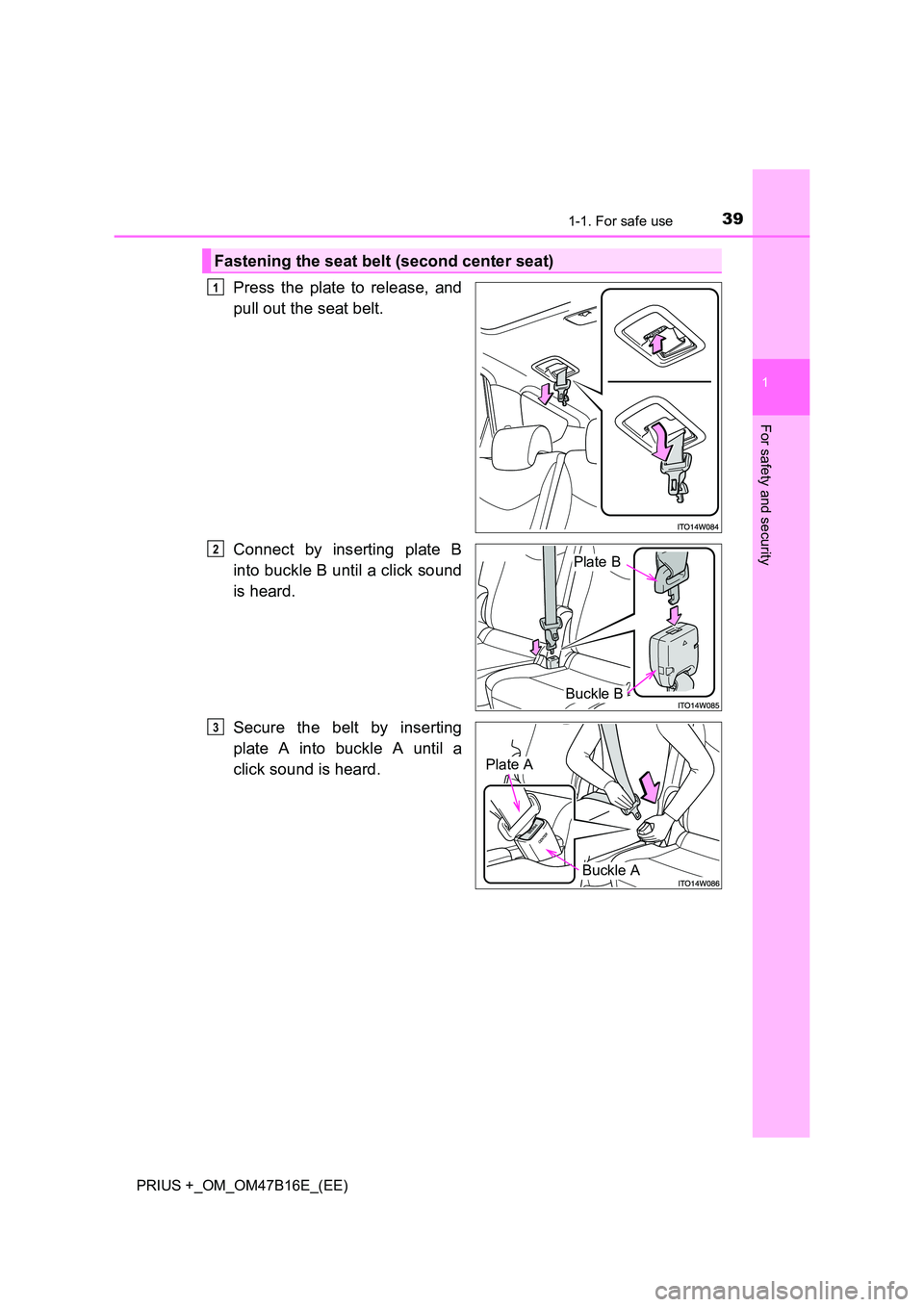

Press the plate to release, and
pull out the seat belt.
Connect by inserting plate B
into buckle B until a click sound
is heard.
Secure the belt by inserting
plate A into buckle A until a
click sound is heard.
Fastening the seat belt (second center seat)
1
Plate B
Buckle B
2
Plate A
Buckle A
3

401-1. For safe use
PRIUS +_OM_OM47B16E_(EE)

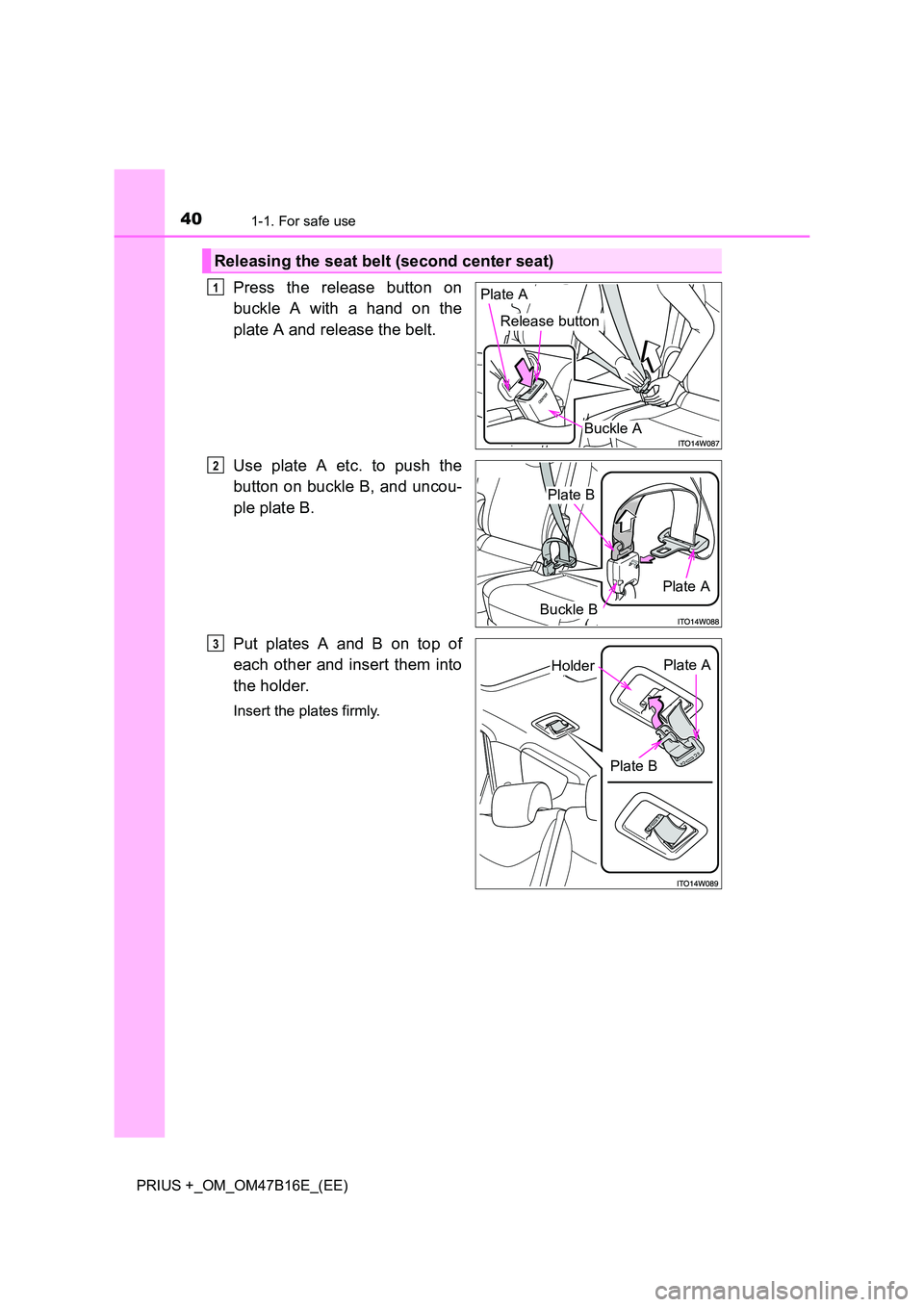

Press the release button on
buckle A with a hand on the
plate A and release the belt.
Use plate A etc. to push the
button on buckle B, and uncou-
ple plate B.
Put plates A and B on top of
each other and insert them into
the holder.
Insert the plates firmly.
Releasing the seat belt (second center seat)
Release button
Buckle A
Plate A1
Plate B
Plate A
Buckle B
2
HolderPlate A
Plate B
3
