8Vehicle specifications
PRIUS +_OM_OM47B16E_(EE)8-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 452
Fuel information ................. 463
8-2. Customization Customizable features ....... 465
8-3. Initialization Item to initialize ..................471

4528-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles without panoramic roof
*3: Vehicles with panoramic roof
*4: Vehicles with 16-inch tires
*5: Vehicles with 17-inch tires

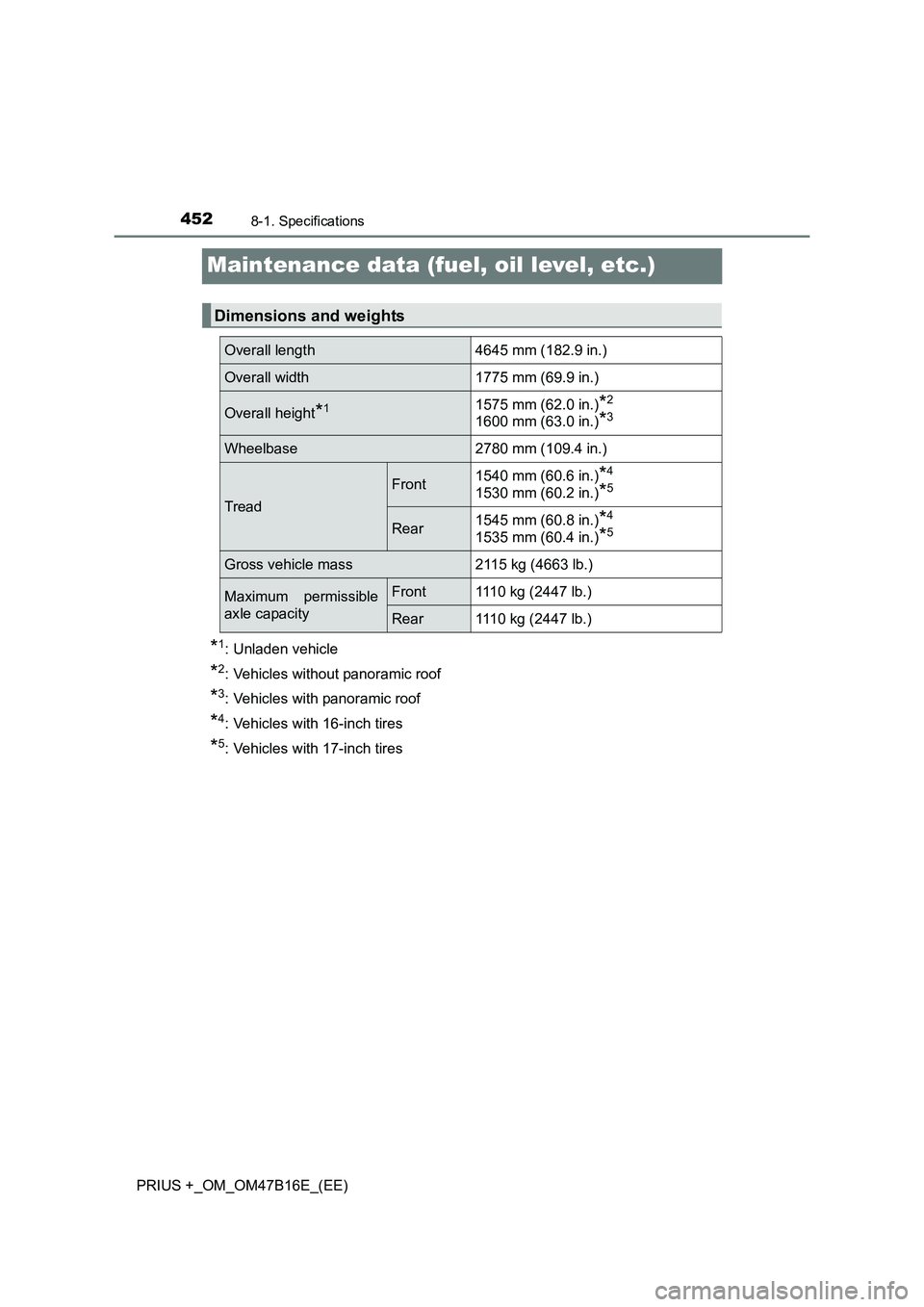

Dimensions and weights
Overall length4645 mm (182.9 in.)
Overall width1775 mm (69.9 in.)
Overall height*11575 mm (62.0 in.)*2
1600 mm (63.0 in.)*3
Wheelbase2780 mm (109.4 in.)
Tread
Front1540 mm (60.6 in.)*4
1530 mm (60.2 in.)*5
Rear1545 mm (60.8 in.)*4
1535 mm (60.4 in.)*5
Gross vehicle mass2115 kg (4663 lb.)
Maximum permissible
axle capacityFront1110 kg (2447 lb.)
Rear1110 kg (2447 lb.)

4538-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
8
Vehicle specifications

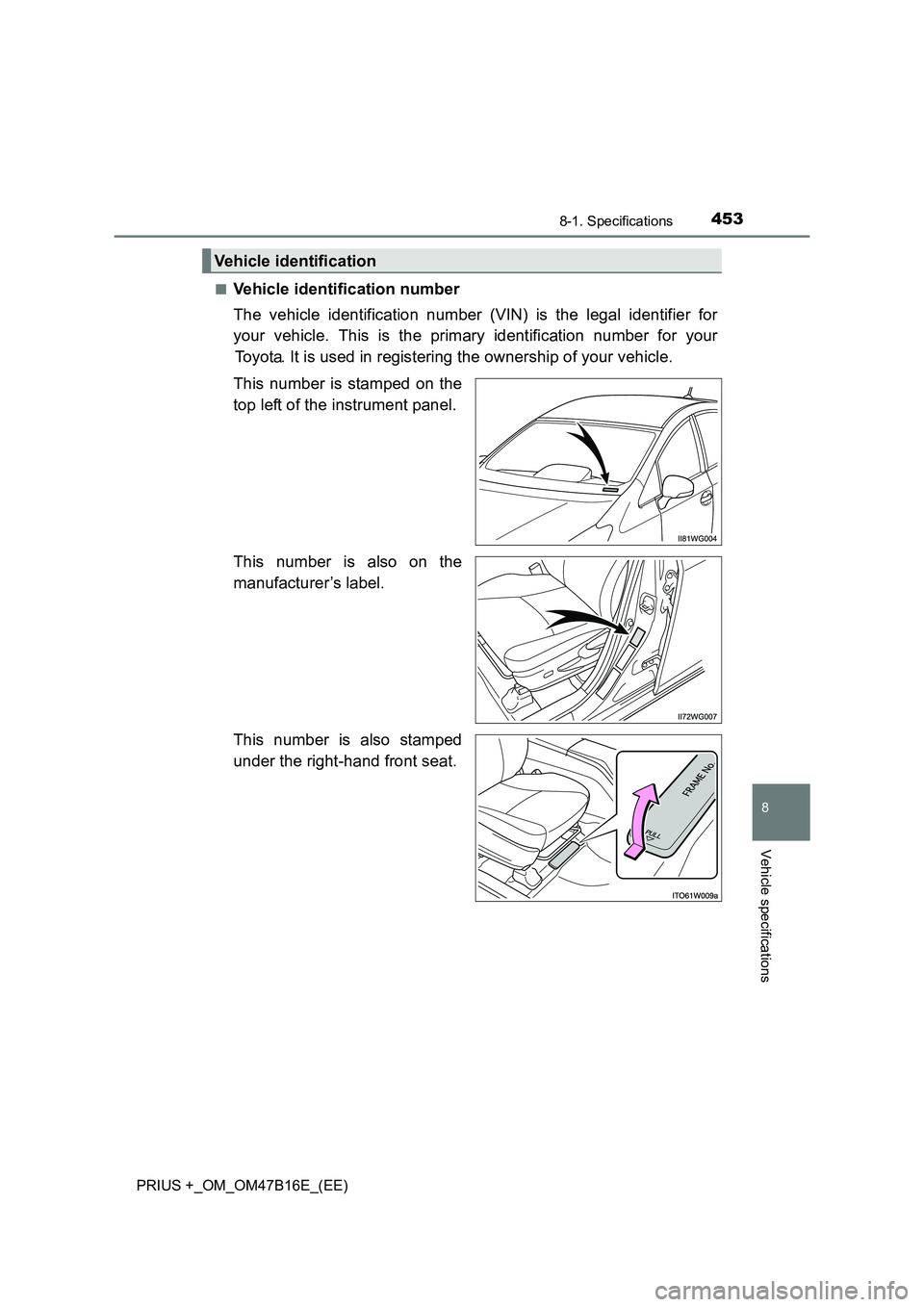

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for yourToyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
manufacturer’s label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

4548-1. Specifications
PRIUS +_OM_OM47B16E_(EE)■

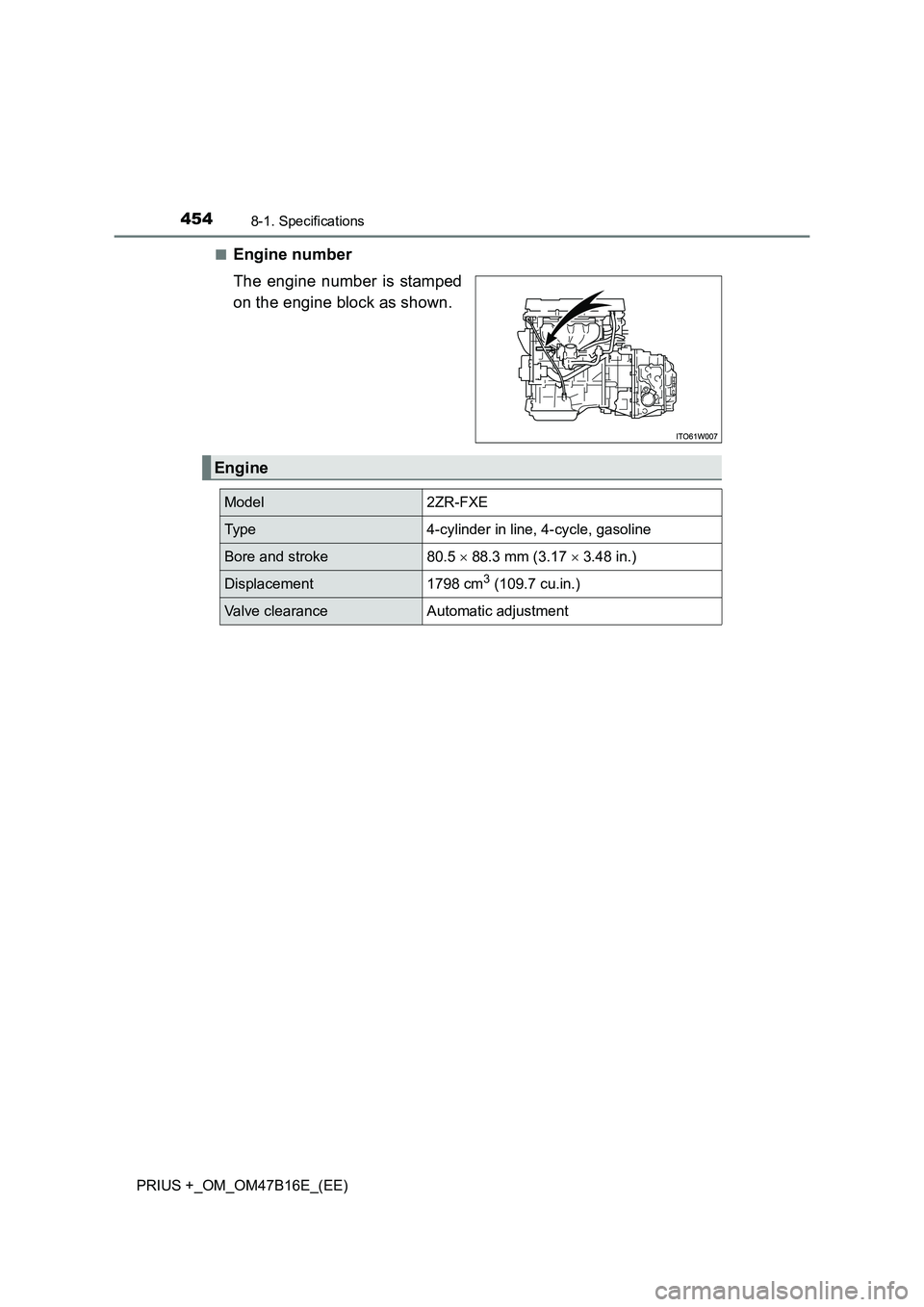

Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5
× 88.3 mm (3.17 × 3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearanceAutomatic adjustment

4558-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.

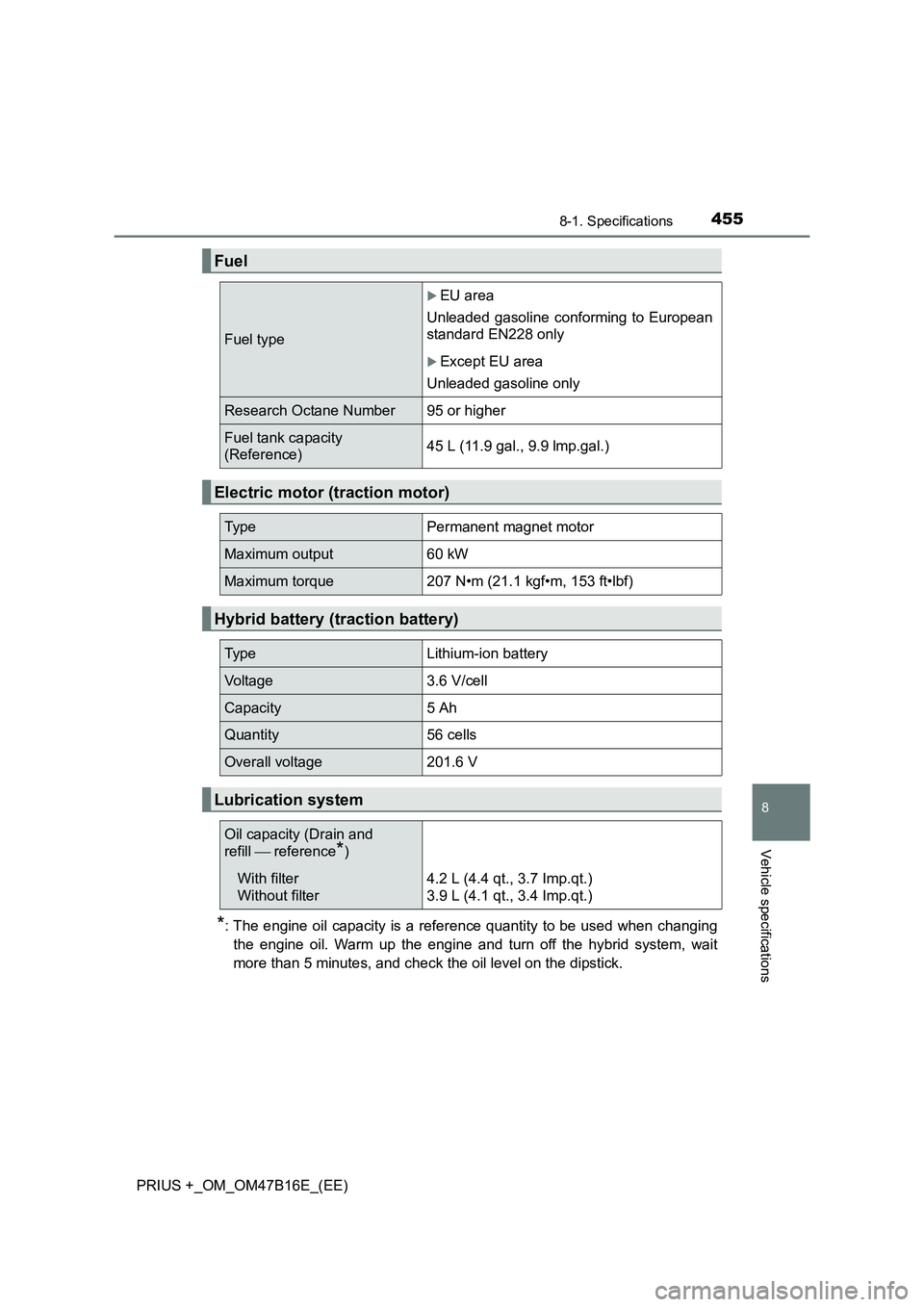

Fuel
Fuel type
XEU area
Unleaded gasoline conforming to European
standard EN228 only
XExcept EU area
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 lmp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Voltage3.6 V/cell
Capacity5 Ah
Quantity56 cells
Overall voltage201.6 V
Lubrication system
Oil capacity (Drain and
refill  reference
*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

4568-1. Specifications
PRIUS +_OM_OM47B16E_(EE)■

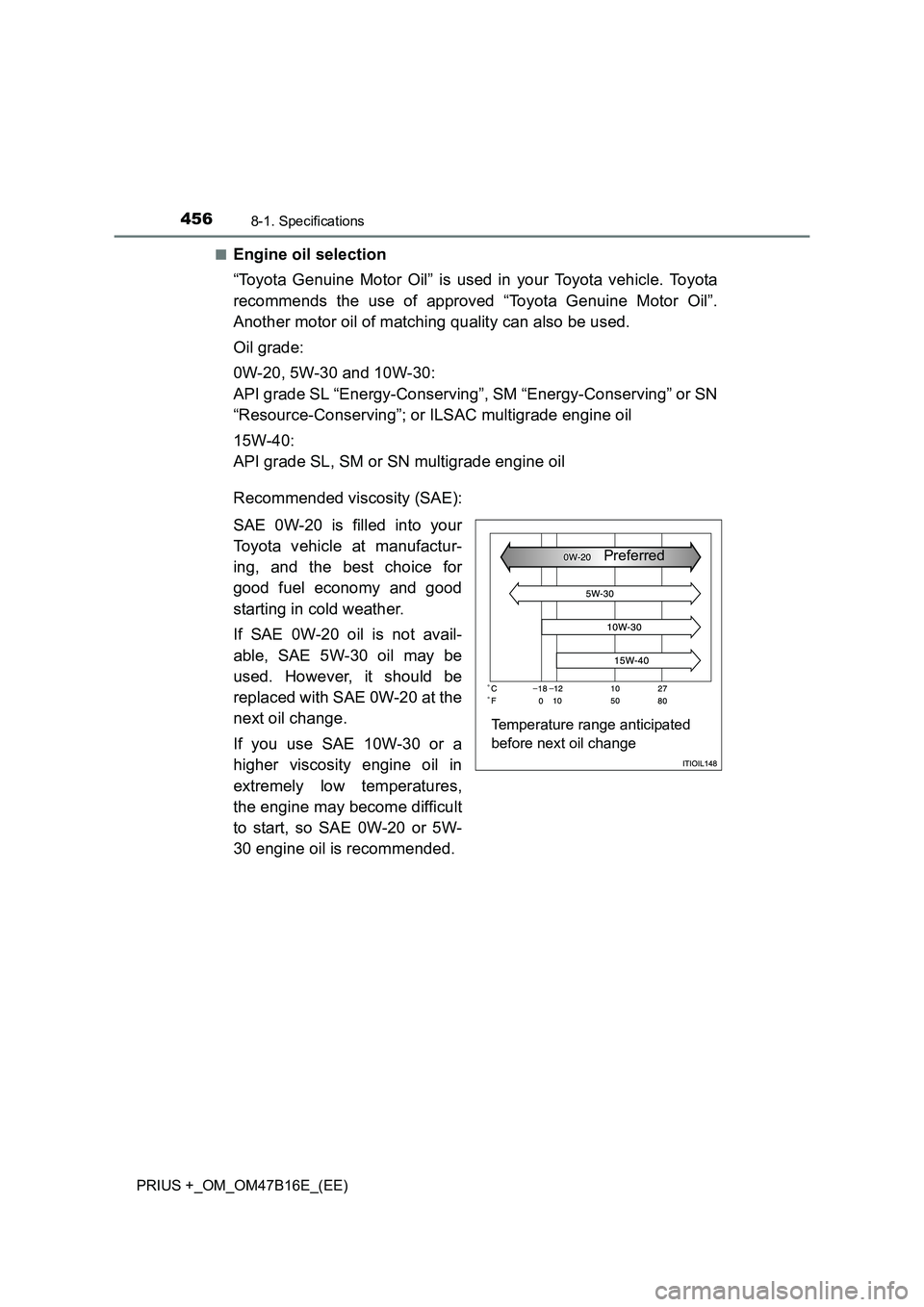

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil change
Preferred

4578-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
8
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

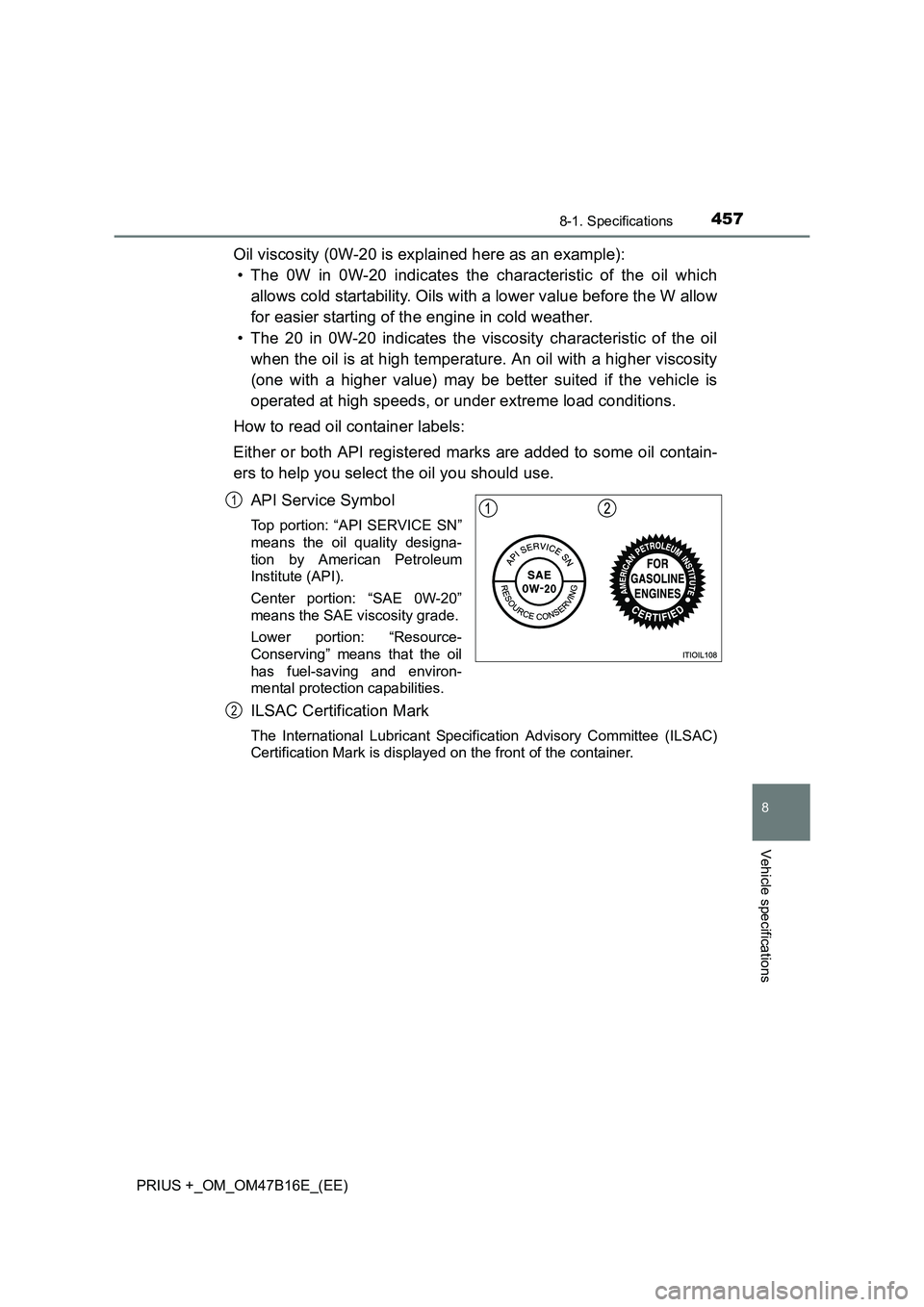

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

4588-1. Specifications
PRIUS +_OM_OM47B16E_(EE)

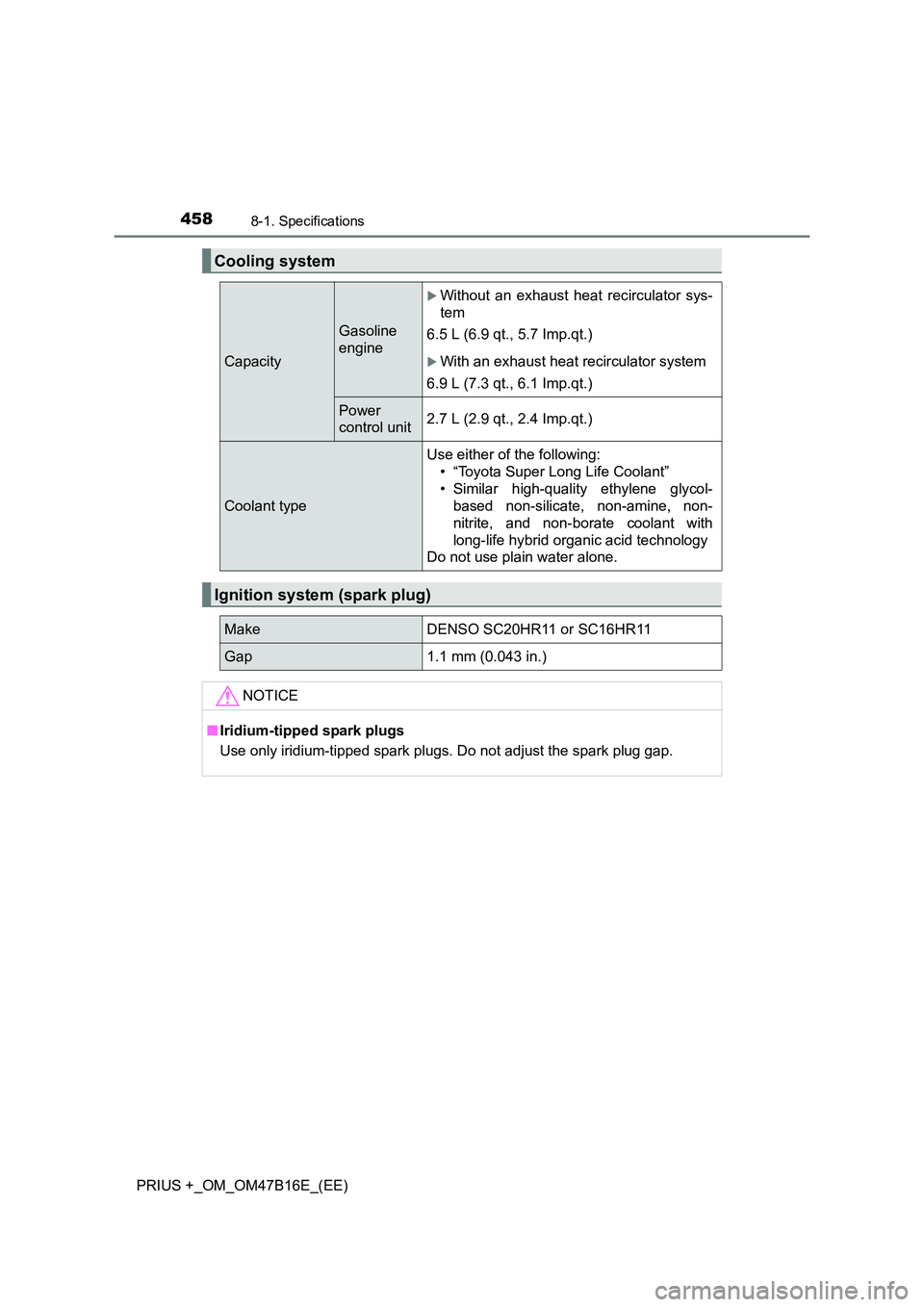

Cooling system
Capacity
Gasoline
engine
XWithout an exhaust heat recirculator sys-
tem
6.5 L (6.9 qt., 5.7 Imp.qt.)
XWith an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Power
control unit2.7 L (2.9 qt., 2.4 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SC20HR11 or SC16HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

4598-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

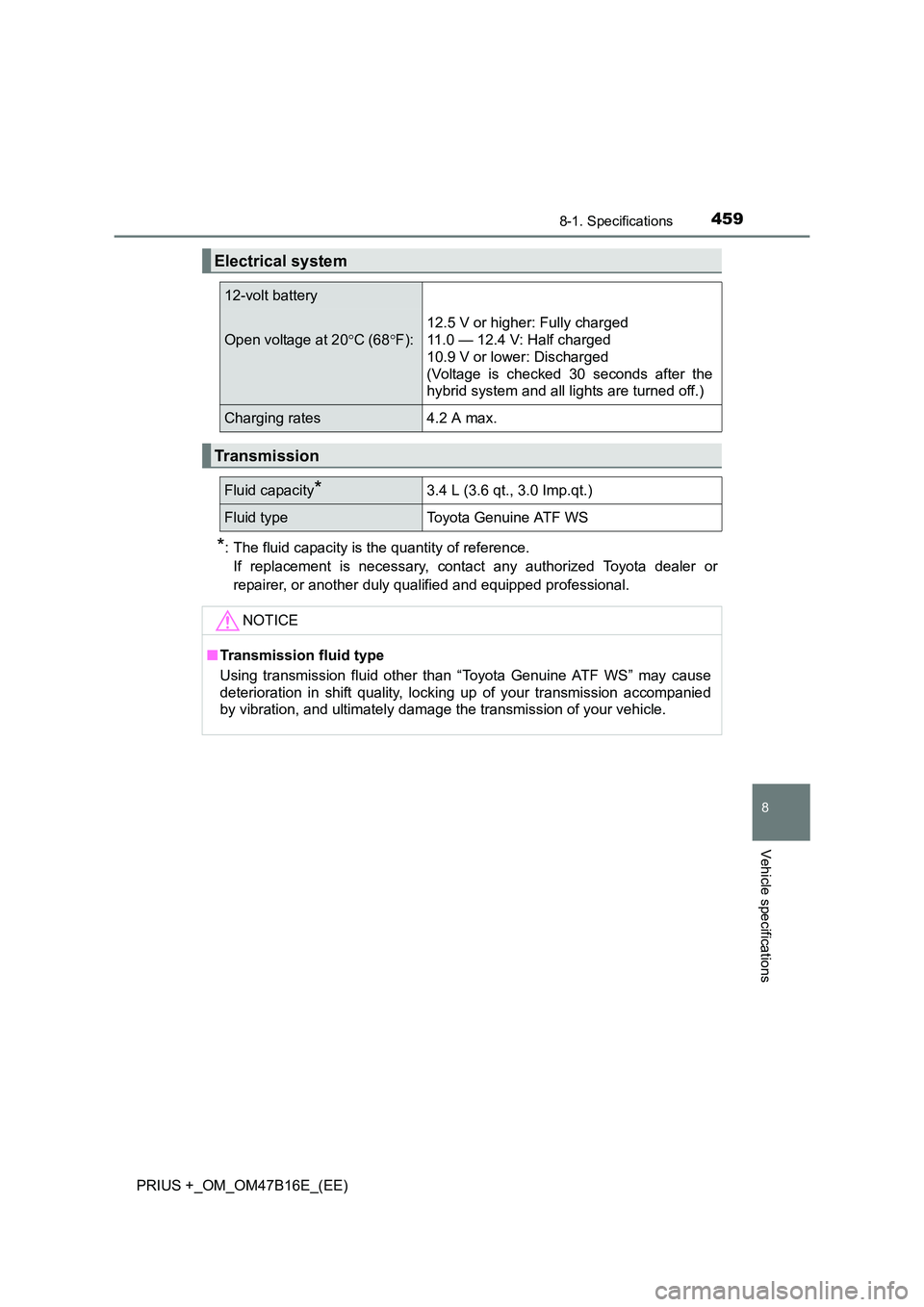

Electrical system
12-volt battery
Open voltage at 20 °C (68 °F):
12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 30 seconds after the
hybrid system and all lights are turned off.)
Charging rates4.2 A max.
Transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

4608-1. Specifications
PRIUS +_OM_OM47B16E_(EE)
*1: Minimum pedal clearance when depressed with a force of 196 N (20.0 kgf,44.1 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,67.5 lbf).

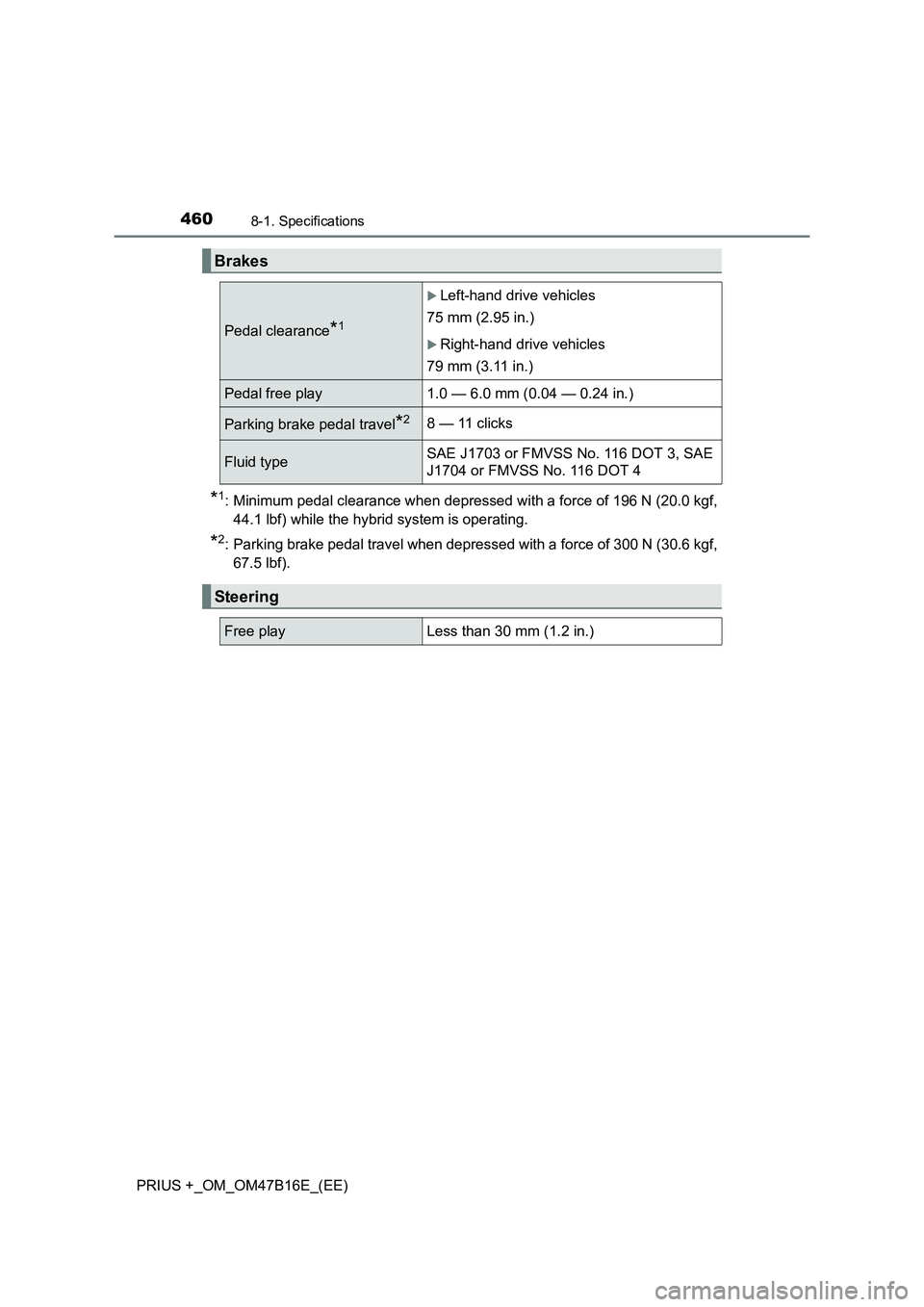

Brakes
Pedal clearance*1
XLeft-hand drive vehicles
75 mm (2.95 in.)
XRight-hand drive vehicles
79 mm (3.11 in.)
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 — 11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3, SAE
J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
