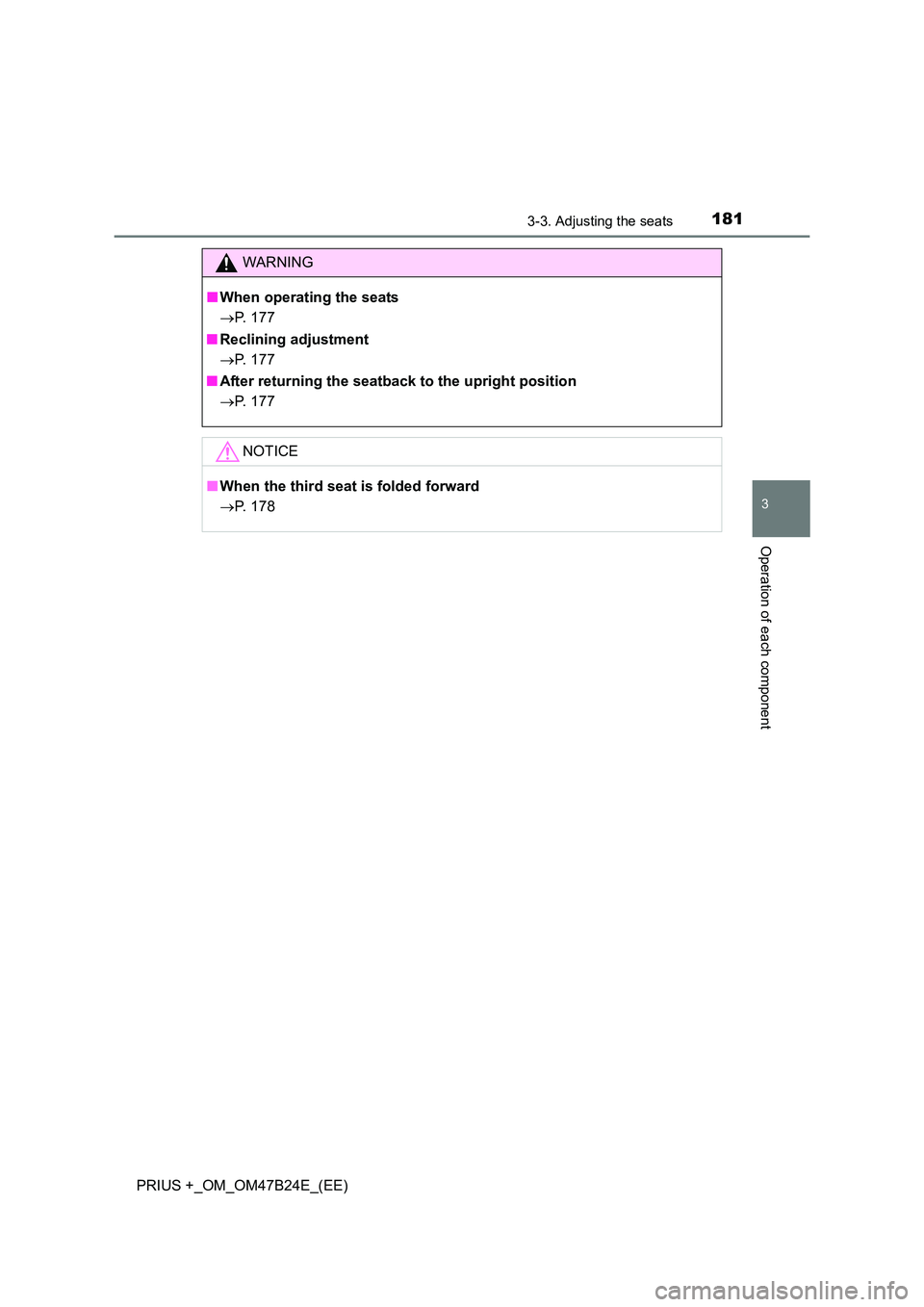

TOYOTA PRIUS PLUS 2016 Owners Manual

1813-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
WARNING
■ When operating the seats
→ P. 177
■ Reclining adjustment
→ P. 177
■ After returning the seatback to the upright position
→ P. 177
NOTICE
■ When the third seat is folded forward
→ P. 178

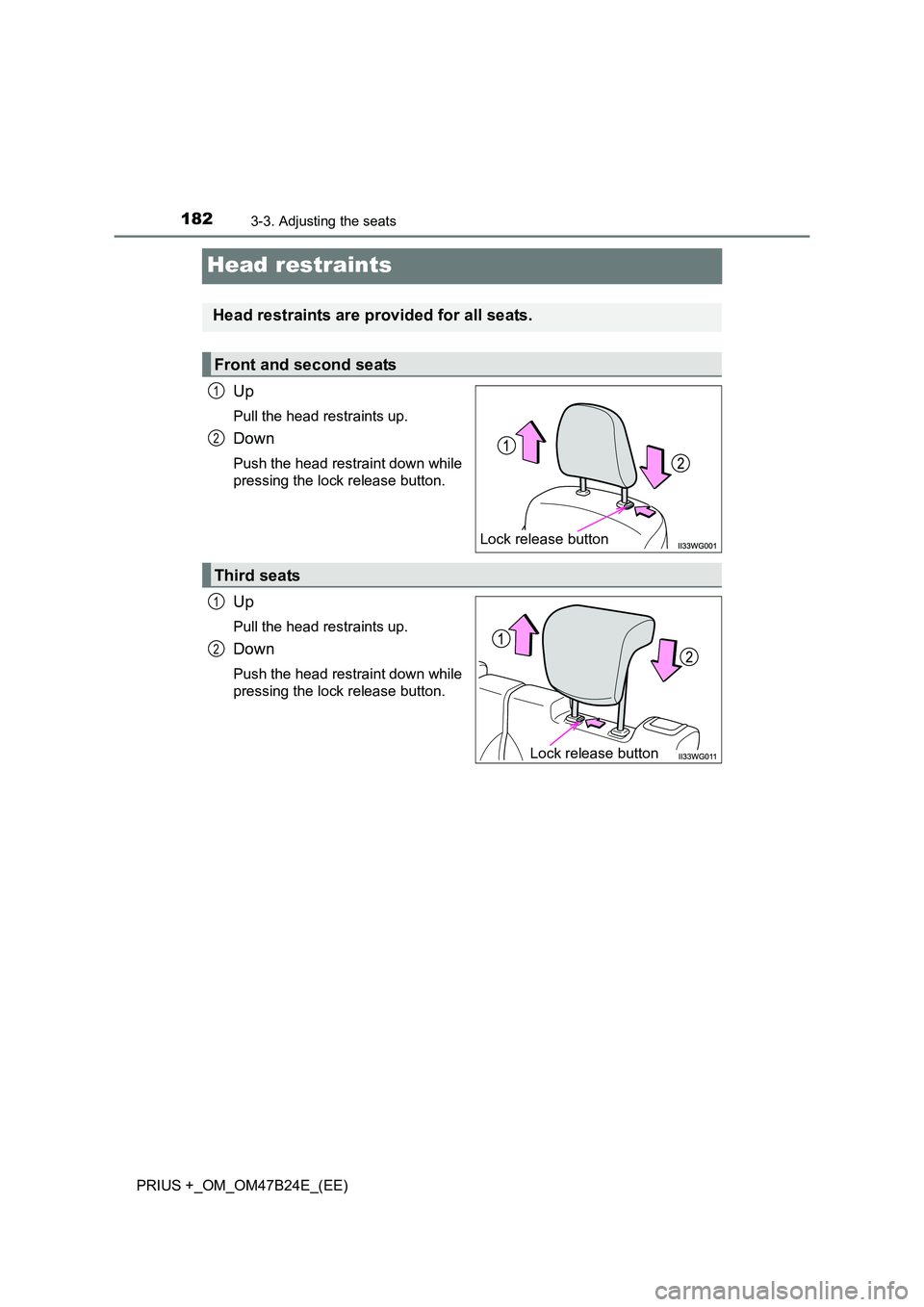

1823-3. Adjusting the seats
PRIUS +_OM_OM47B24E_(EE)
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front and second seats
Lock release button
1
2
Third seats
Lock release button
1
2

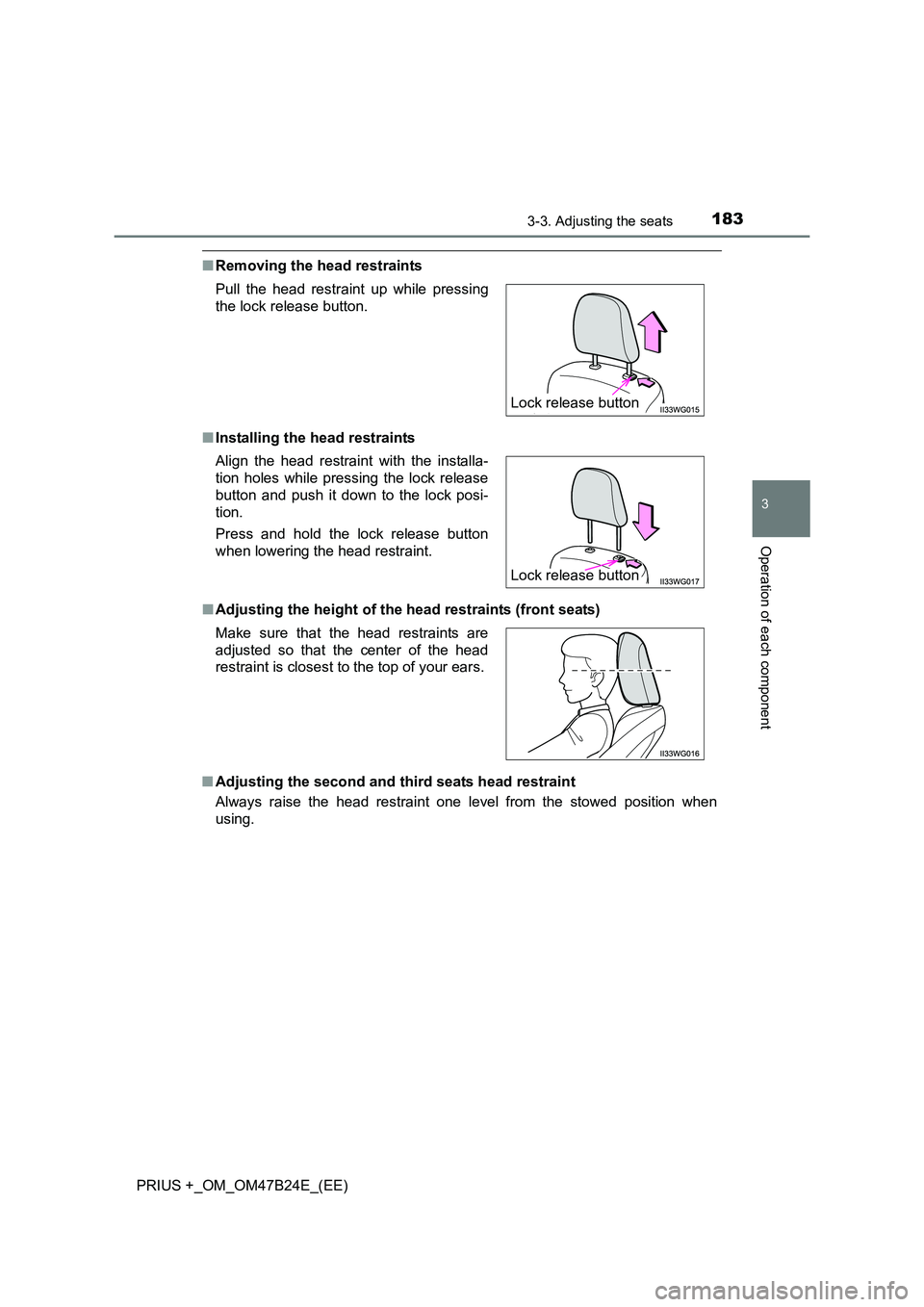

1833-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
■Removing the head restraints
■ Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the second and thir d seats head restraint
Always raise the head restraint one level from the stowed position when
using. Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes while pressing the lock release
button and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button

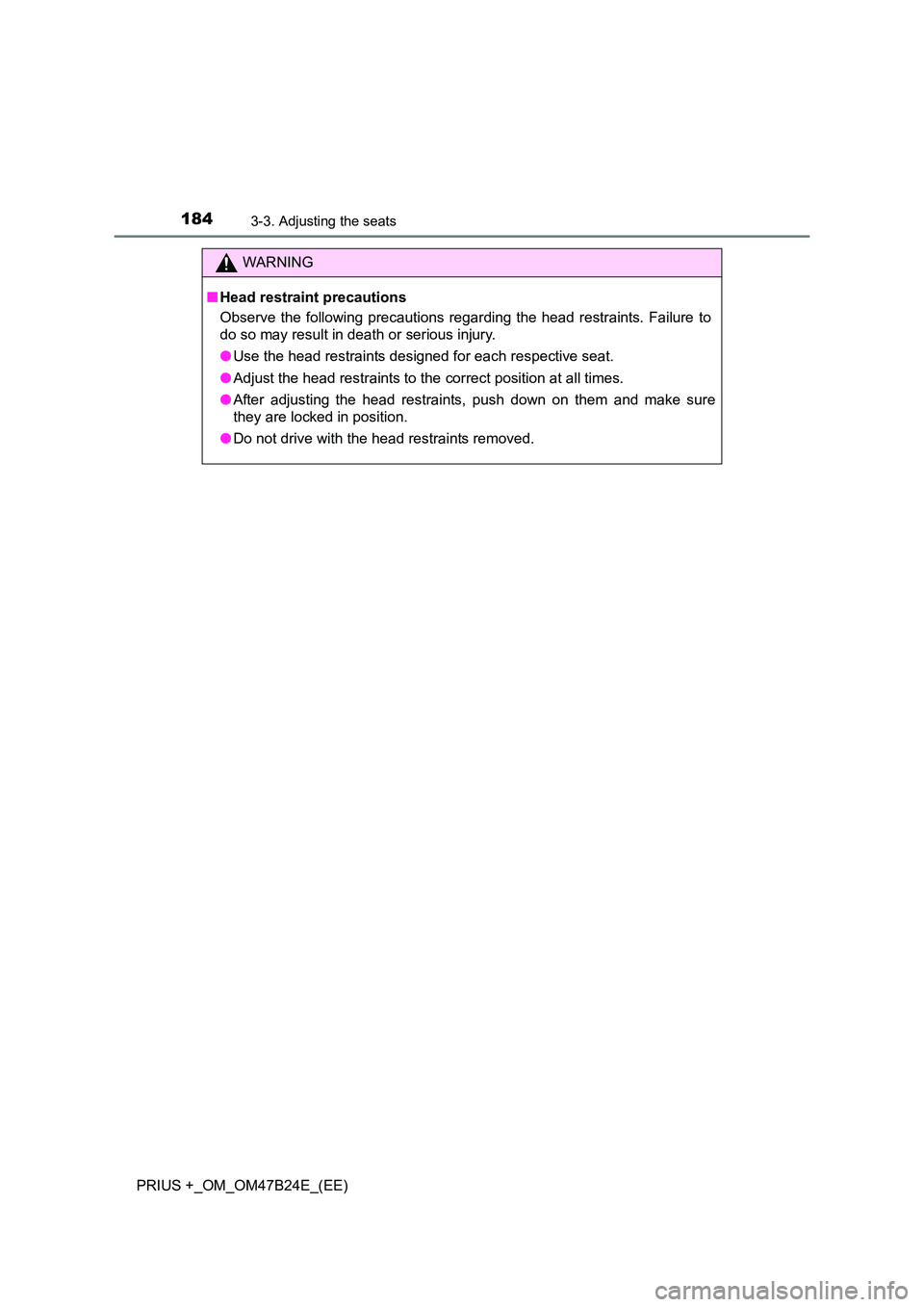

1843-3. Adjusting the seats
PRIUS +_OM_OM47B24E_(EE)
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

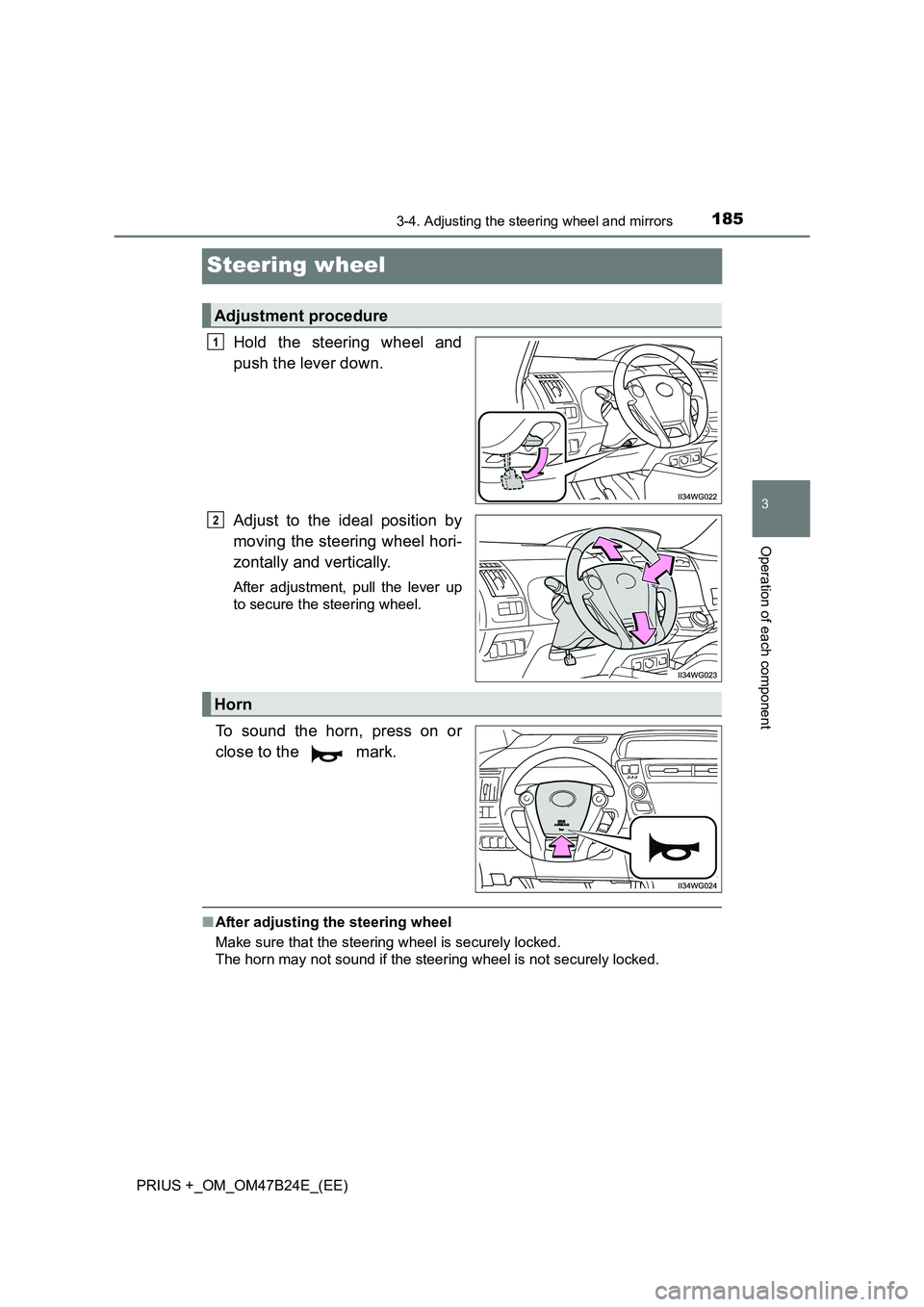

185
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn

1863-4. Adjusting the steering wheel and mirrors
PRIUS +_OM_OM47B24E_(EE)
WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

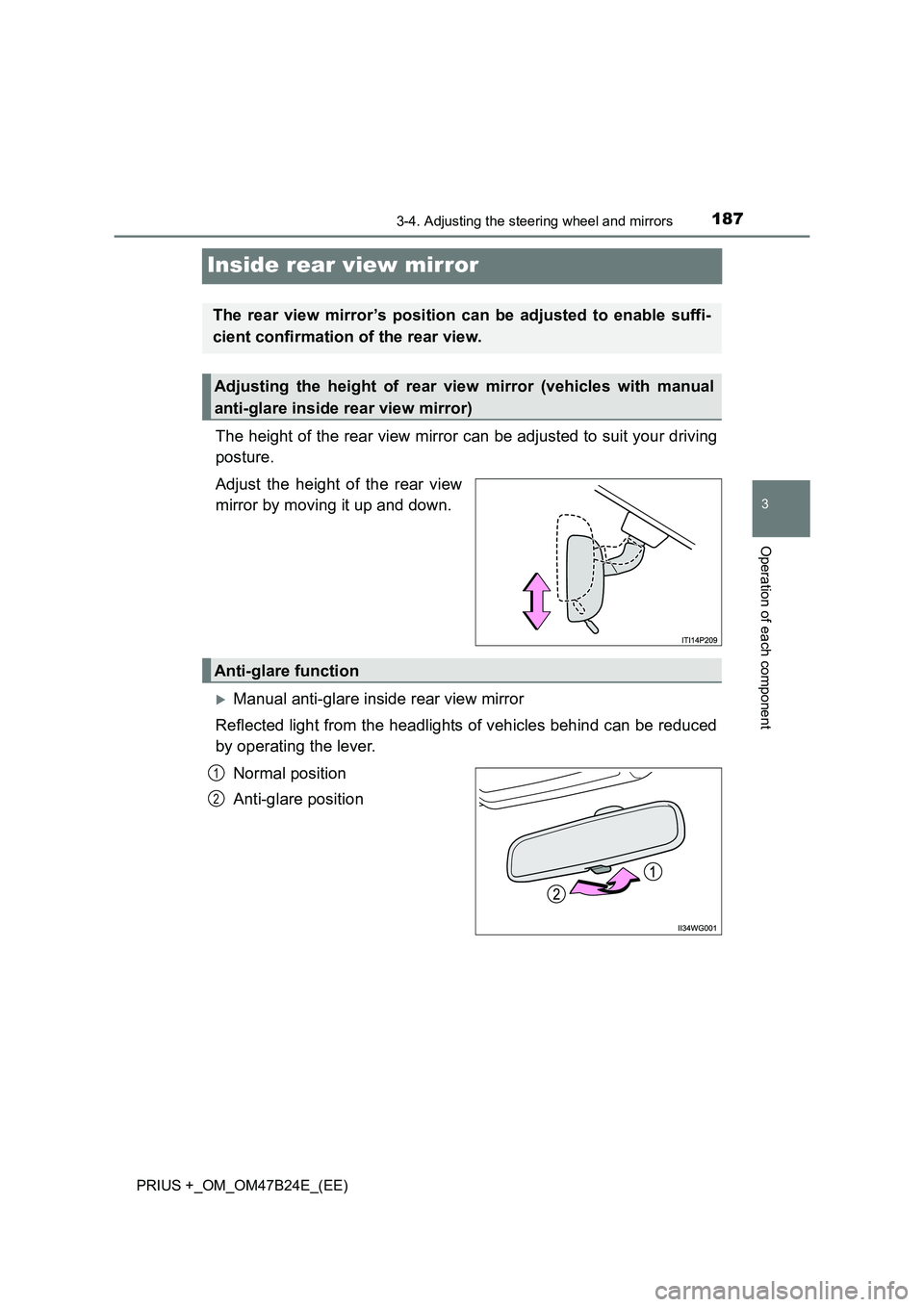

187
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (vehicles with manual
anti-glare inside rear view mirror)
Anti-glare function
1
2

1883-4. Adjusting the steering wheel and mirrors
PRIUS +_OM_OM47B24E_(EE)
XAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

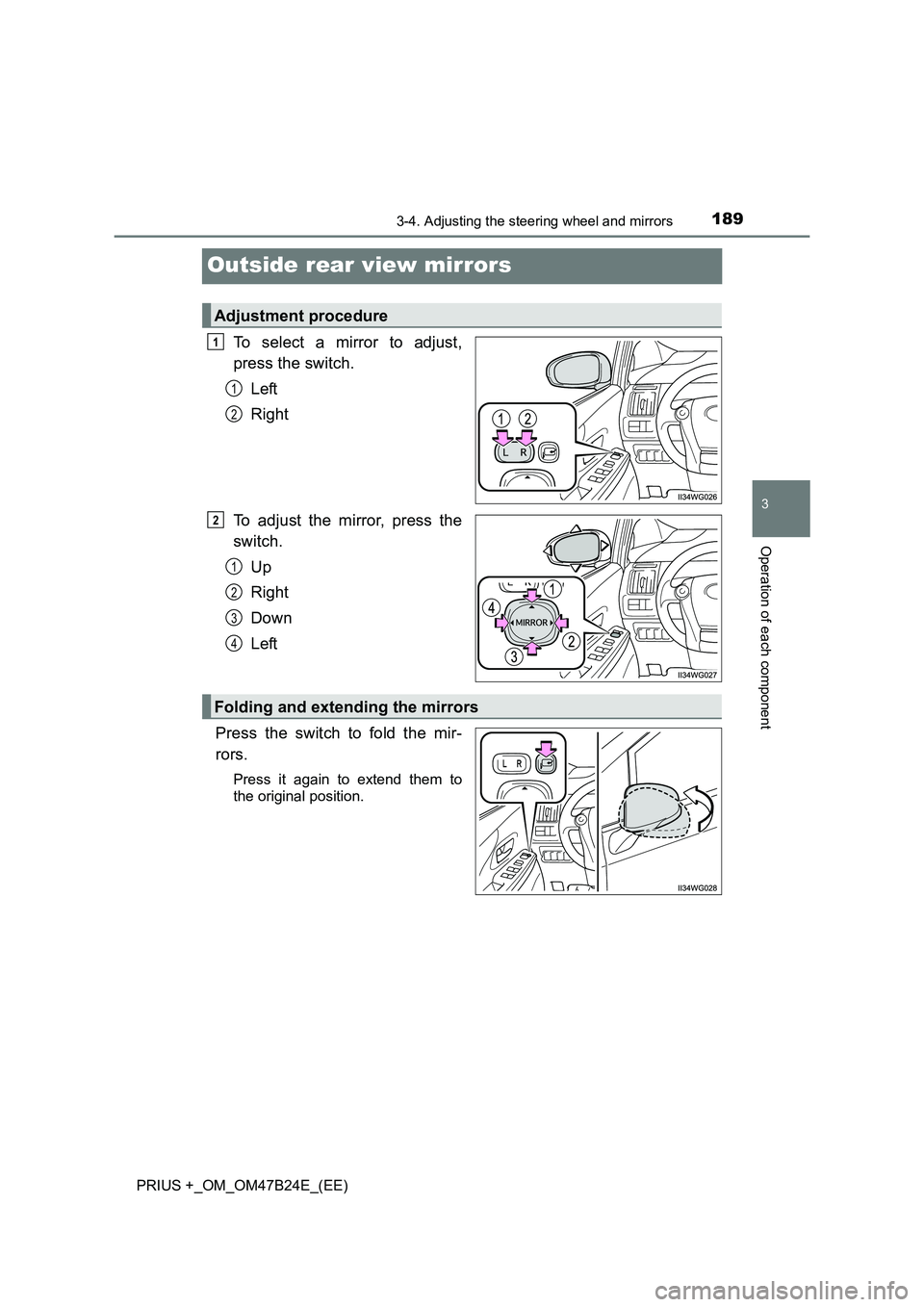

189
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
Outside rear view mirrors
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors

1903-4. Adjusting the steering wheel and mirrors
PRIUS +_OM_OM47B24E_(EE)
■Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( →P. 283)
WARNING
■ Important points while driving
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
