isofix TOYOTA PRIUS PLUS 2016 Owners Manual

631-1. For safe use
1
PRIUS +_OM_OM47B24E_(EE)
For safety and security
Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Mass groupsSize classFixture
Vehicle ISOFIX positions
Second outside seat
Carrycot F
ISO/L1X
G
ISO/L2X
(1) X
0
Up to 10 kg (22 lb.)
(0 - 9 months) E
ISO/R1IL
(1) X
0+
Up to 13 kg (28 lb.)
(0 - 2 years) E
ISO/R1IL
D
ISO/R2IL
C
ISO/R3IL
(1) X
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years) D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF*, IL*
B1ISO/F2XIUF*, IL*
AISO/F3IUF*, IL*
(1) X
II, III
15 to 36 kg (34 to 79 lb.)
(4 - 12 years) (1) X

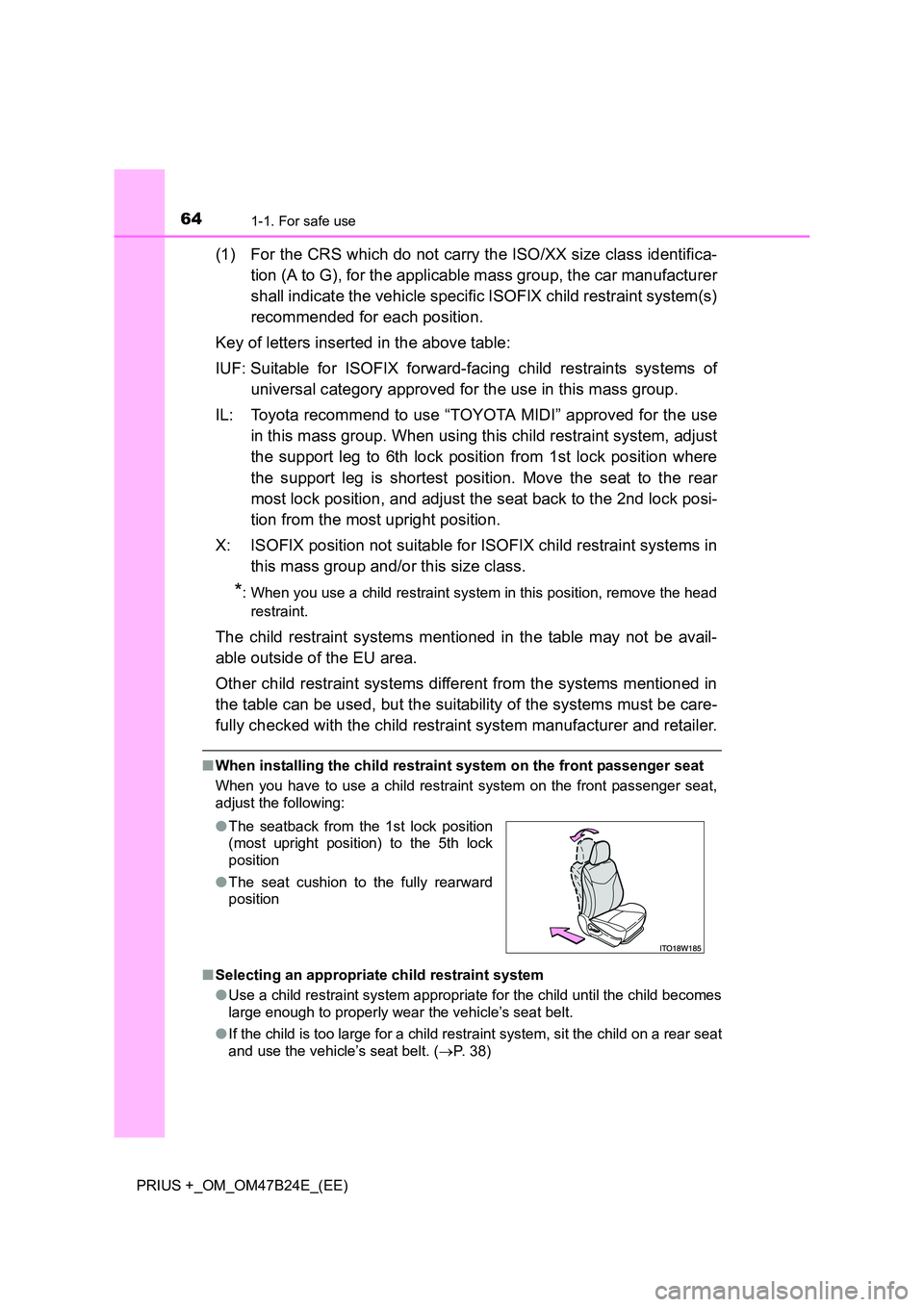

641-1. For safe use
PRIUS +_OM_OM47B24E_(EE)
(1) For the CRS which do not carry the ISO/XX size class identifica-tion (A to G), for the applicable mass group, the car manufacturer
shall indicate the vehicle specific ISOFIX child restraint system(s)
recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraints systems of universal category approved for the use in this mass group.
IL: Toyota recommend to use “TOYOTA MIDI” approved for the use in this mass group. When using this child restraint system, adjust
the support leg to 6th lock position from 1st lock position where
the support leg is shortest position. Move the seat to the rear
most lock position, and adjust the seat back to the 2nd lock posi-
tion from the most upright position.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: When you use a child restraint system in this position, remove the headrestraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and retailer.
■ When installing the child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
■ Selecting an appropriat e child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. ( →P. 38)
●
The seatback from the 1st lock position
(most upright position) to the 5th lock
position
● The seat cushion to the fully rearward
position

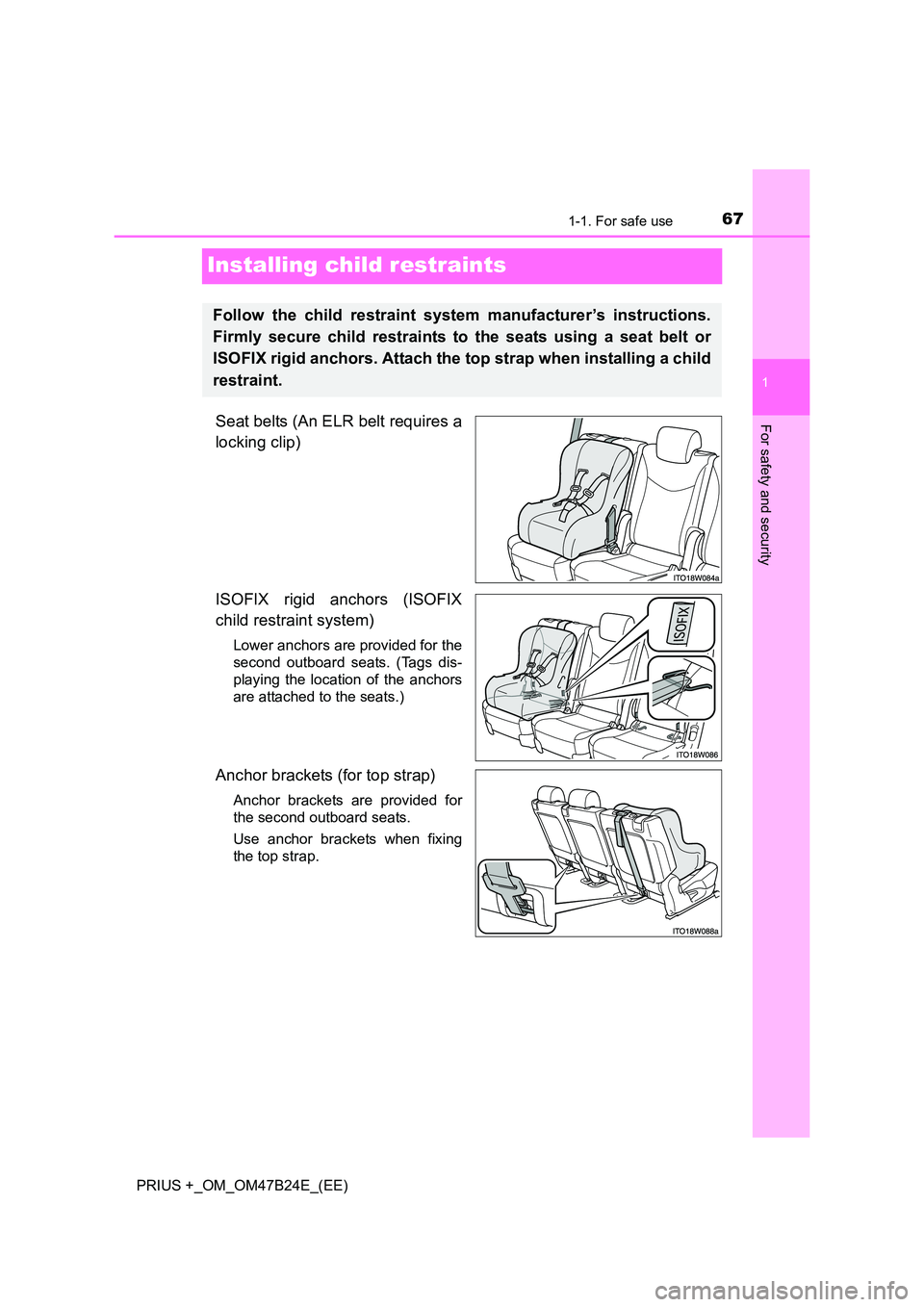

671-1. For safe use
1
For safety and security
PRIUS +_OM_OM47B24E_(EE)
Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
second outboard seats. (Tags dis-
playing the location of the anchors
are attached to the seats.)
Anchor brackets (for top strap)
Anchor brackets are provided for
the second outboard seats.
Use anchor brackets when fixing
the top strap.
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

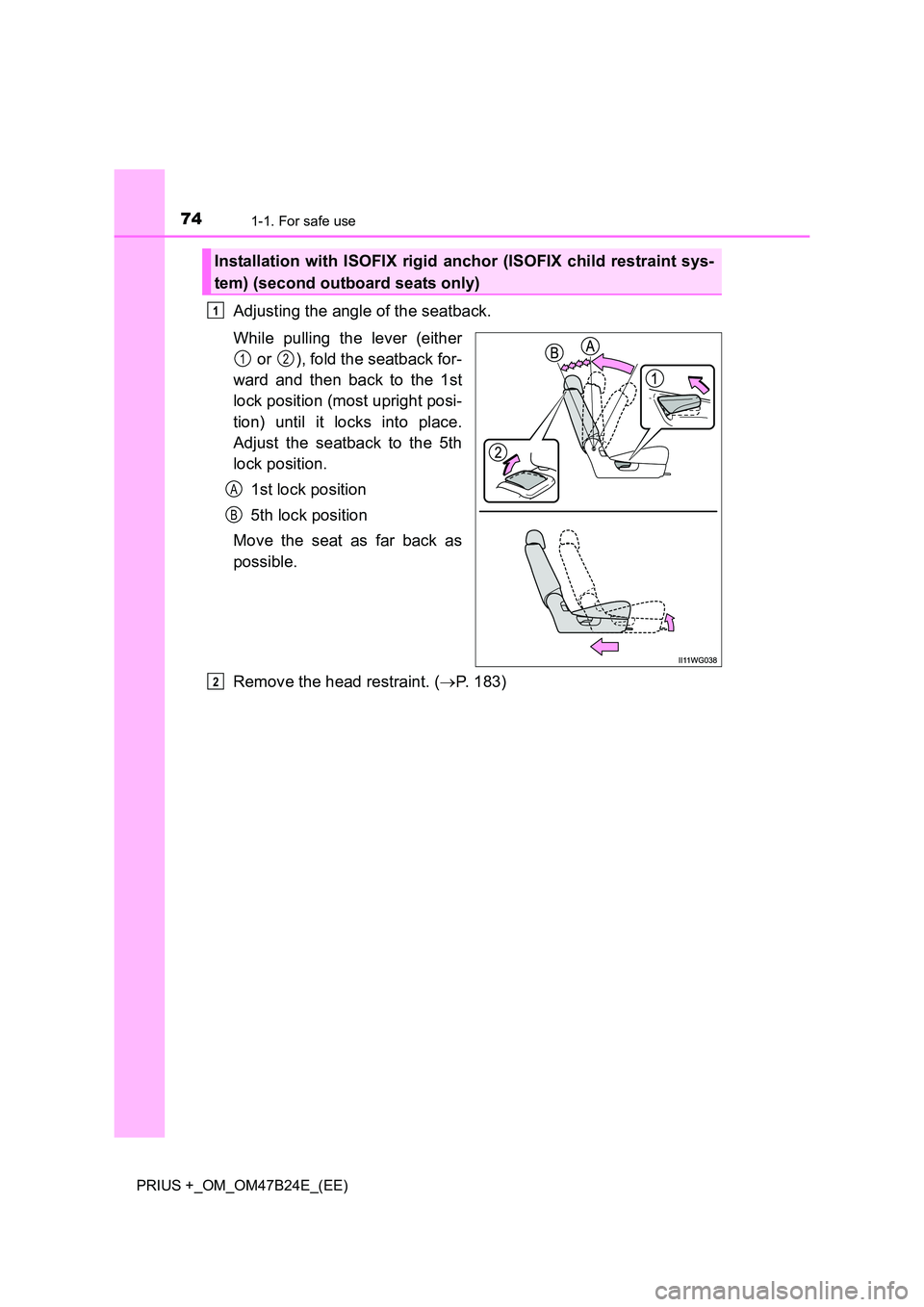

741-1. For safe use
PRIUS +_OM_OM47B24E_(EE)
Adjusting the angle of the seatback.
While pulling the lever (either or ), fold the seatback for-
ward and then back to the 1st
lock position (most upright posi-
tion) until it locks into place.
Adjust the seatback to the 5th
lock position.
1st lock position
5th lock position
Move the seat as far back as
possible.
Remove the head restraint. ( →P. 183)
Installation with ISOFIX rigid anchor (ISOFIX child restraint sys-
tem) (second outboard seats only)
1
12
A
B
2

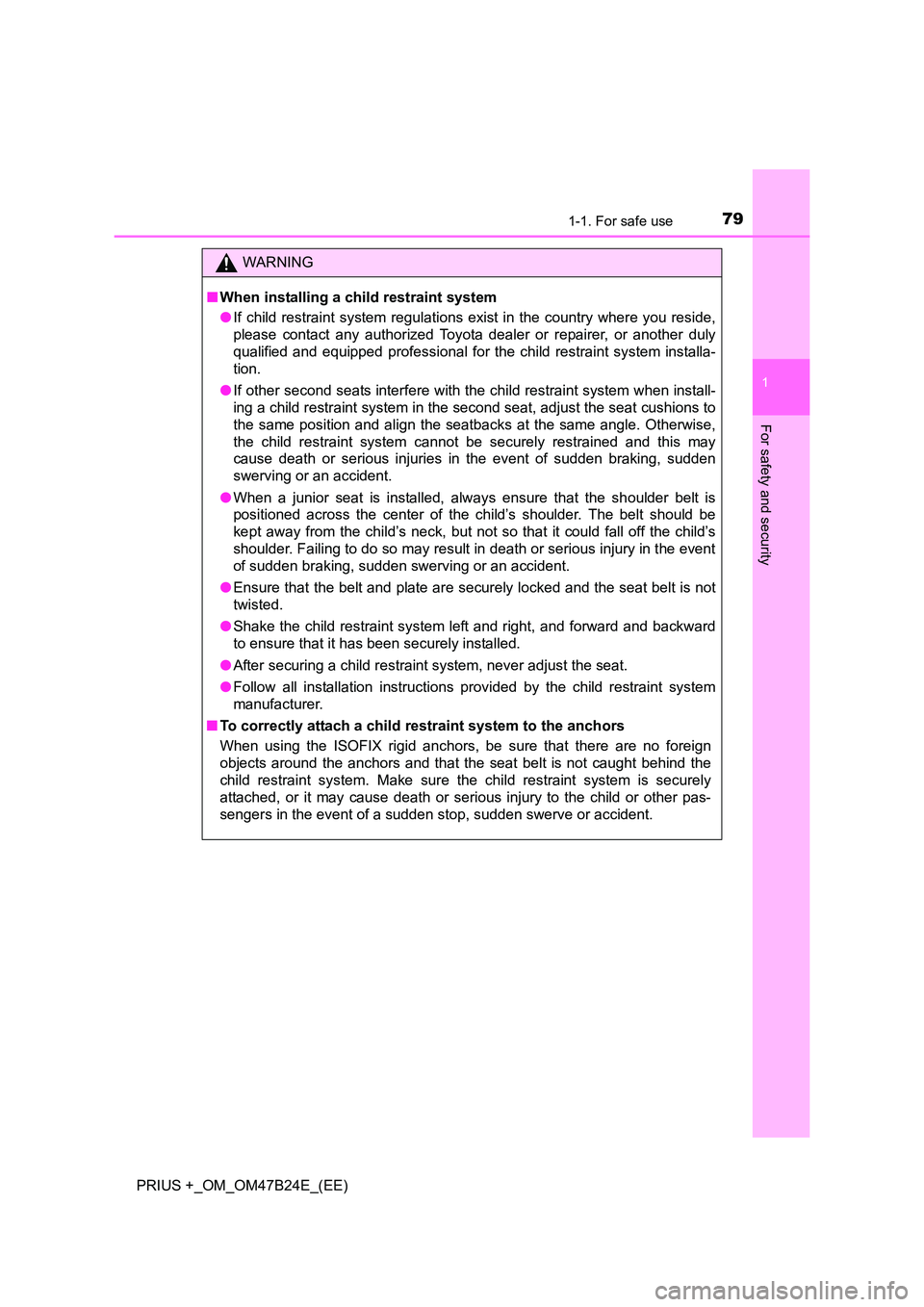

791-1. For safe use
1
PRIUS +_OM_OM47B24E_(EE)
For safety and security
WARNING
■ When installing a child restraint system
●If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
● If other second seats interfere with the child restraint system when install-
ing a child restraint system in the second seat, adjust the seat cushions to
the same position and align the seatbacks at the same angle. Otherwise,
the child restraint system cannot be securely restrained and this may
cause death or serious injuries in the event of sudden braking, sudden
swerving or an accident.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the anchors and that the seat belt is not caught behind the
child restraint system. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other pas-
sengers in the event of a sudden stop, sudden swerve or accident.

492Alphabetical index
PRIUS +_OM_OM47B24E_(EE)
Card holder............................... 298
CareAluminum wheels .................. 311
Exterior.................................. 310
Interior ................................... 315
Panoramic roof...................... 314
Radar sensor ................ 254, 269
Seat belts .............................. 316
Cargo hooks ............................. 299
CD player
*
Chains ....................................... 275
Child restraint system ............... 59 Baby seat definition................. 60
Baby seat installation .............. 68
Child seat definition................. 60
Child seat installation .............. 70
Installing CRS with ISOFIX rigid anchors ......................... 74
Installing CRS with seat belt ... 68
Installing CRS with top strap ... 76
Junior seats definition ............. 60
Junior seat installation ............ 72
Child safety ................................ 58 12-volt battery precautions.... 339
Airbag precautions .................. 48
Back door precautions .......... 150
Child restraint system ............. 59
How your child should wear the seat belt .......................... 42
Installing child restraints.......... 67
Power window lock switch .... 191
Power window precautions ... 193 Rear door child-protectors .... 147
Removed key battery
precautions......................... 362
Seat belt precautions .............. 44
Seat heater precautions........ 289
Child-protectors....................... 147
Cleaning Aluminum wheels.................. 311
Exterior ................................. 310
Interior................................... 315
Panoramic roof ..................... 314
Radar sensor ................ 254, 269
Seat belts .............................. 316
Climate remote control ........... 288
Clock ......................................... 303
Condenser ................................ 334
Console box ............................. 294
Coolant Capacity ................................ 470
Checking ............................... 333
Preparing and checking before winter....................... 274
Cooling system ........................ 333 Hybrid system overheating ... 457
Consumption screen ............... 133
Cruise control Cruise control........................ 235
Dynamic radar cruise control................................. 239
Warning messages ............... 403
Cup holders.............................. 295
Curtain shield airbags ............... 46
Customizable features ............ 477
C

497Alphabetical index
PRIUS +_OM_OM47B24E_(EE)
IdentificationEngine ................................... 466
Vehicle .................................. 465
Ignition switch (Power switch) ....................... 207Auto power off function ......... 211
Changing the power switch modes................................. 210
If your vehicle has to be stopped in an emergency ... 379
Starting the hybrid system ................................ 207
Ignition switch light (power switch light)............... 290
Illuminated entry system......... 292
Immobilizer system ................... 91
Indicators.................................. 106
Initialization
Item to initialize ..................... 483
Tire pressure warning system ................................ 343
Inside rear view mirror ............ 187
Instrument cluster light control .................................... 114
Interior lights ............................ 290 Switch ........................... 291, 292
Wattage................................. 474
Intrusion sensor....................... 101
ISOFIX rigid anchors ................. 67 Jack
Positioning a floor jack .......... 325
Vehicle-equipped jack... 418, 433
Jack handle ...................... 418, 433
Jam protection function Panoramic roof shades ......... 306
Power windows ..................... 191
Keyless entry Smart entry & start system ... 153
Wireless remote control ........ 140
Keys .......................................... 140 Electronic key ....................... 140
Engine switch........................ 207
If the electronic key does not operate properly ................. 450
If you lose your keys ............. 143
Key number plate.................. 140
Keyless entry ........................ 140
Keys ...................................... 140
Mechanical key ..................... 140
Power switch......................... 207
Replacing the battery ............ 361
Warning buzzer..................... 154
Wireless remote control
key...................................... 140
Knee airbags .............................. 46
IJ
K
