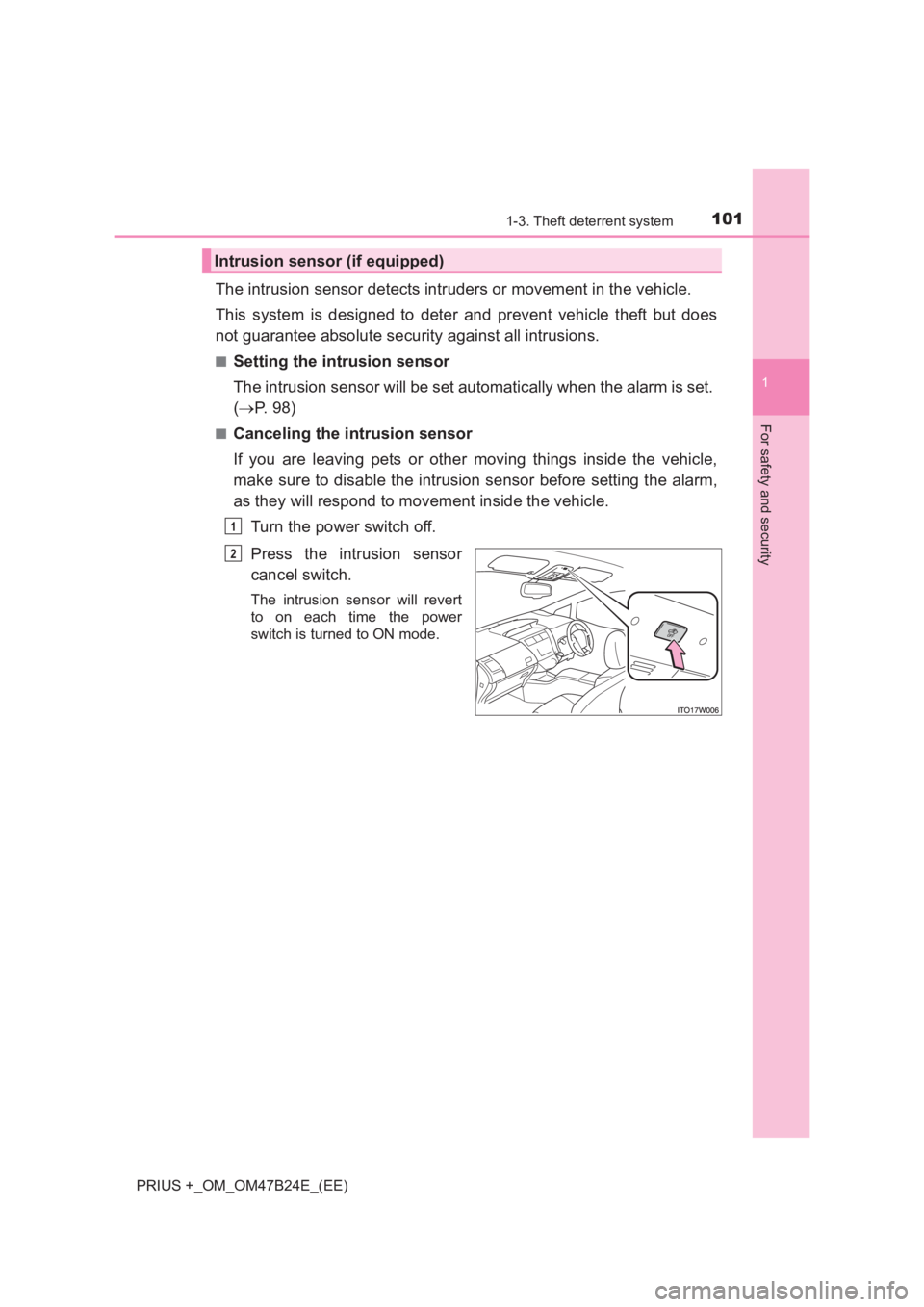

For safety and security
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(→ P. 9 8 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

1021-3. Theft deterrent system
PRIUS +_OM_OM47B24E_(EE)

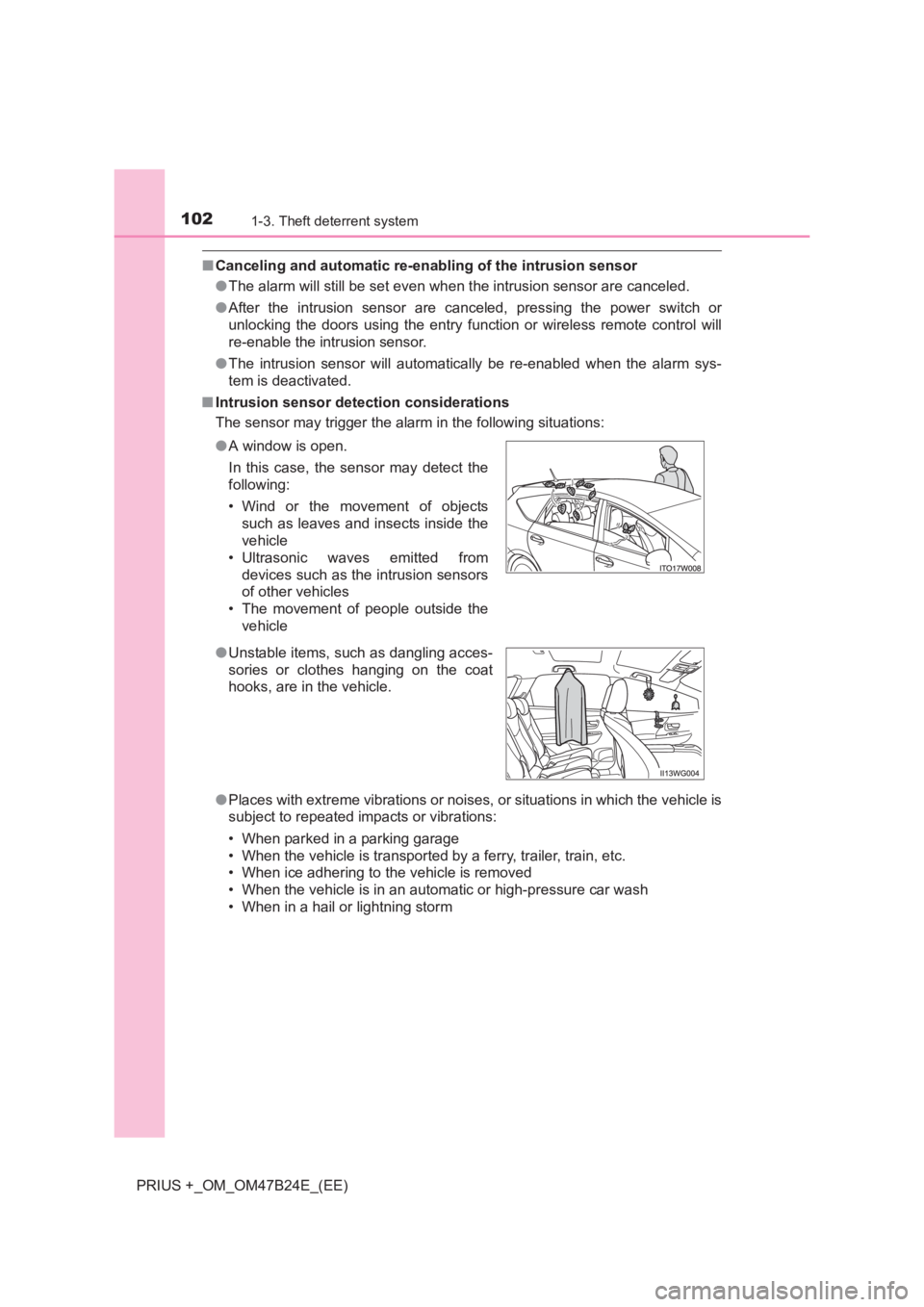

■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor are canceled.
● After the intrusion sensor are canc eled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will
re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Places with extreme vibrations or noises, or situations in which the vehicle is
subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●
A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from devices such as the intrusion sensors
of other vehicles
• The movement of people outside the vehicle
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1031-3. Theft deterrent system
1
PRIUS +_OM_OM47B24E_(EE)
For safety and security

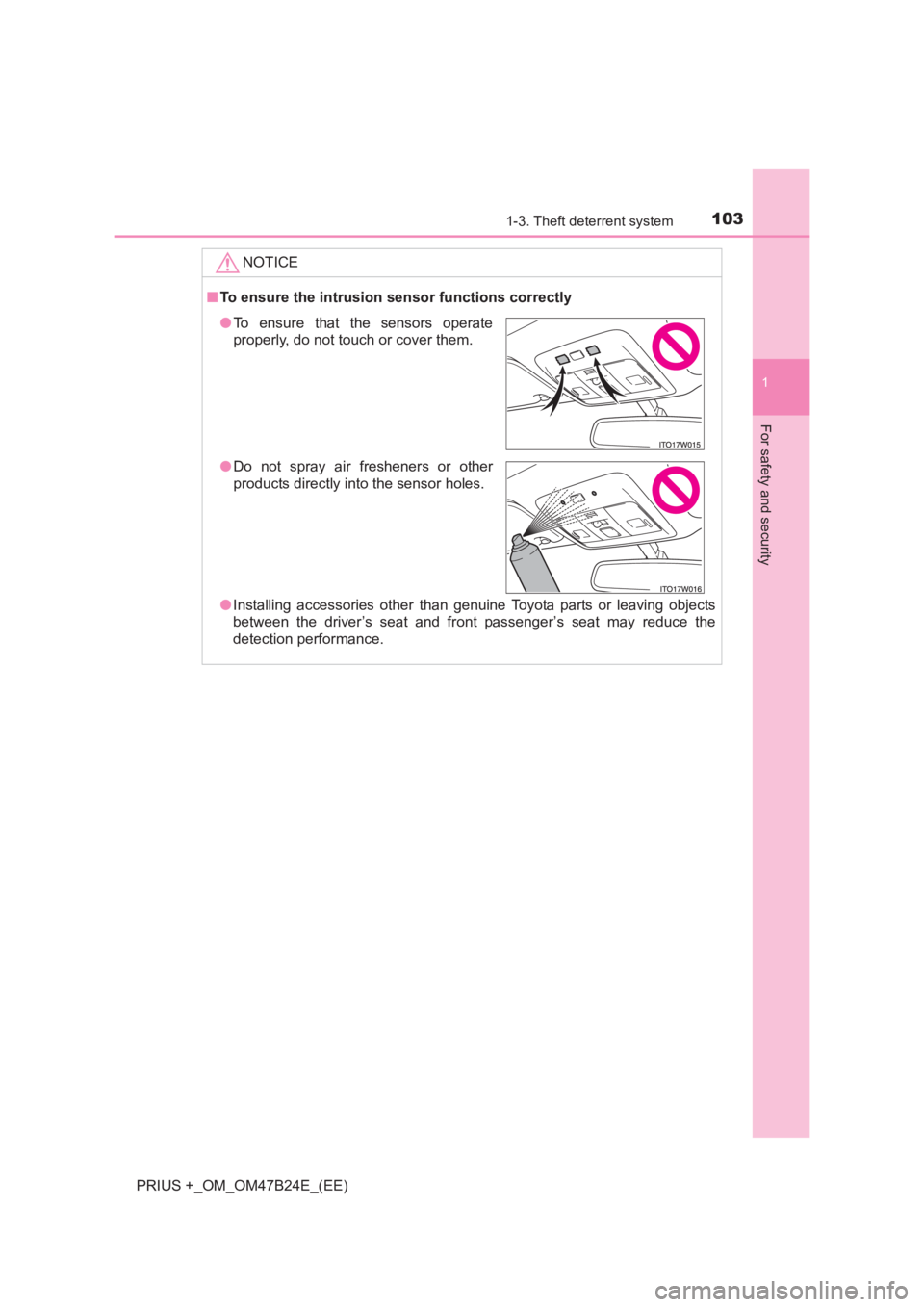

NOTICE
■To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
●To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

1041-3. Theft deterrent system
PRIUS +_OM_OM47B24E_(EE)

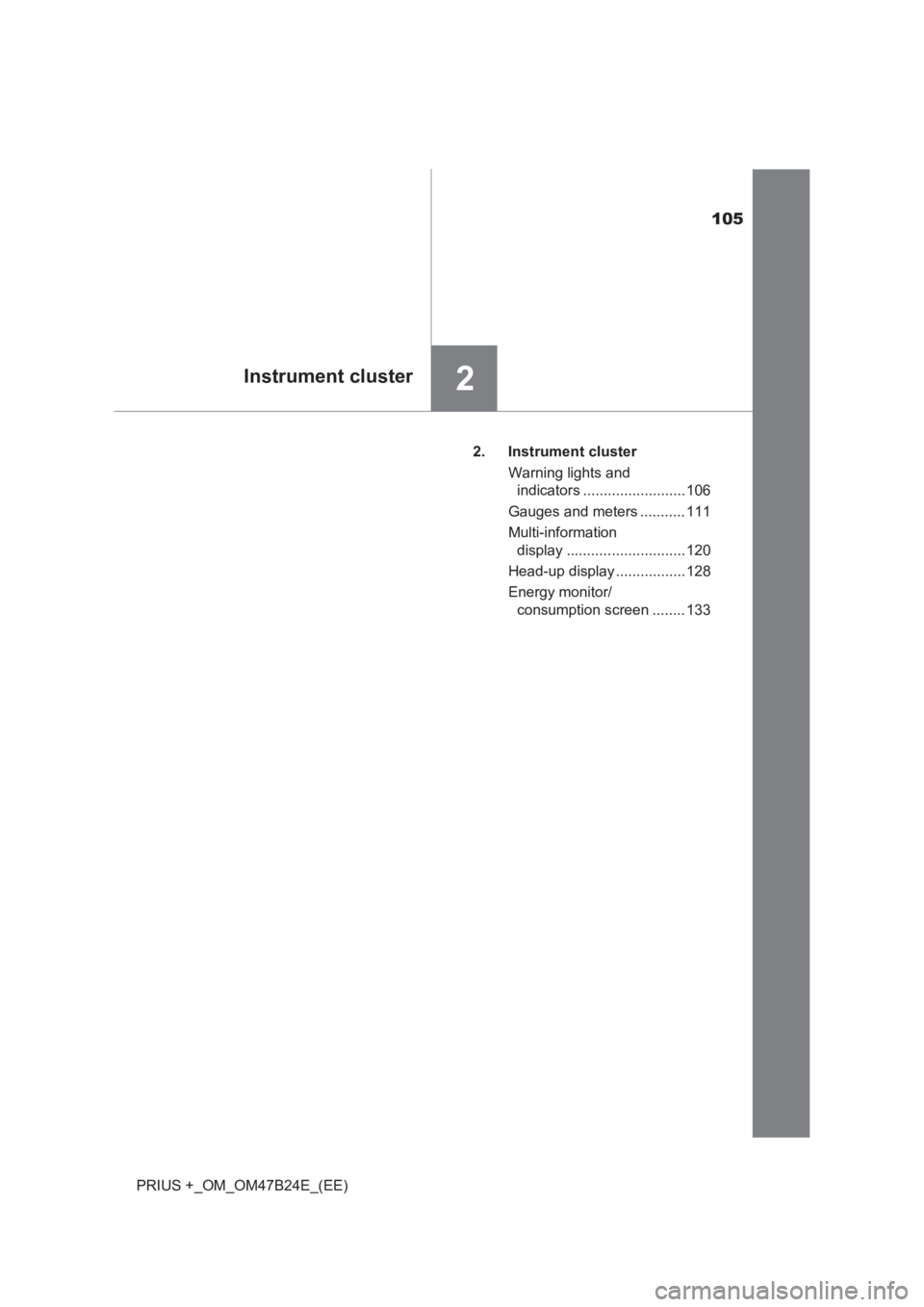

105
2Instrument cluster
PRIUS +_OM_OM47B24E_(EE)2. Instrument cluster
Warning lights and indicators ......................... 106
Gauges and meters ........... 111
Multi-information display ............................. 120
Head-up display .................128
Energy monitor/ consumption screen ........ 133

1062. Instrument cluster
PRIUS +_OM_OM47B24E_(EE)

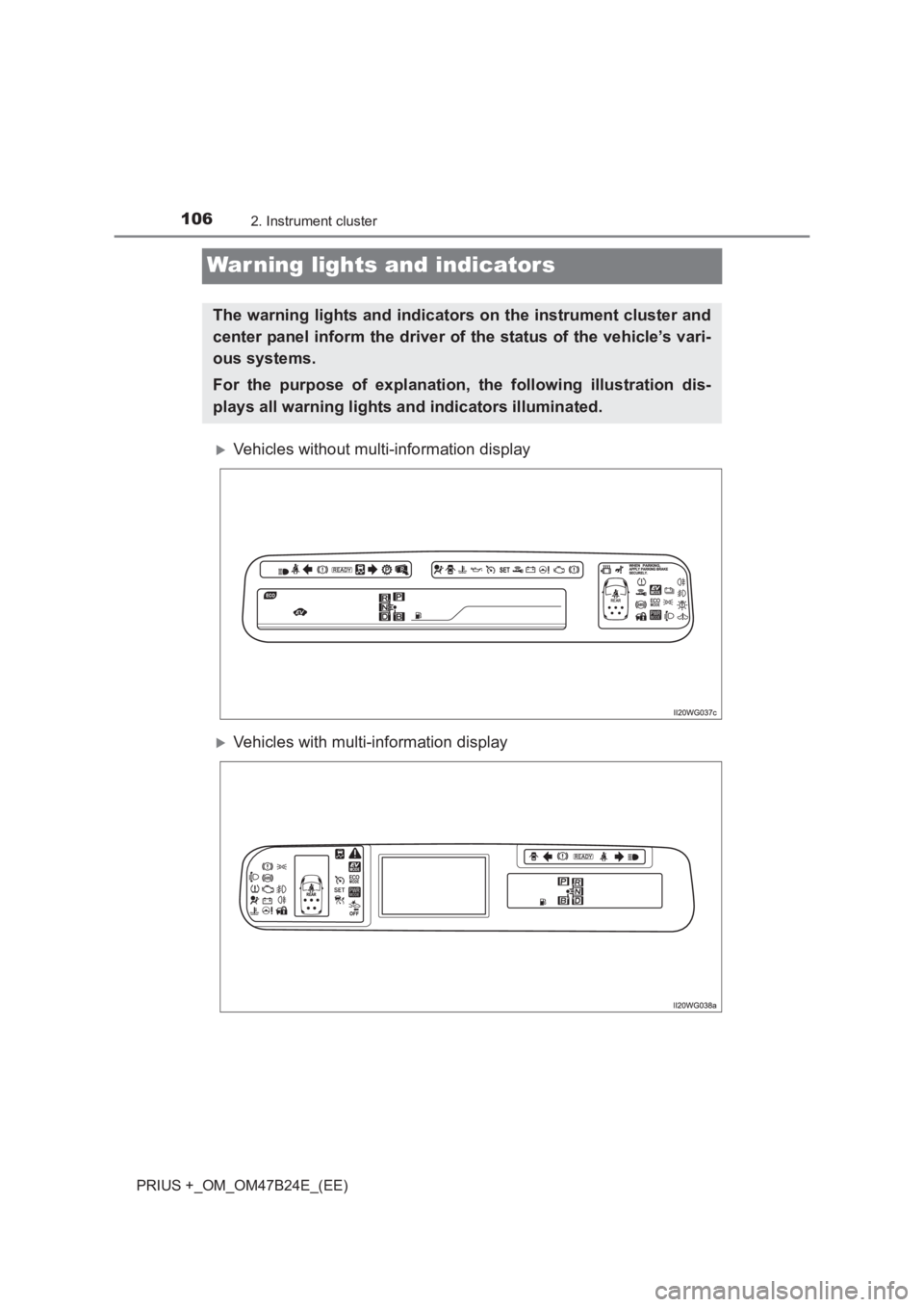

War ning lights and indicators
XVehicles without multi-information display
XVehicles with multi-information display
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1072. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B24E_(EE)

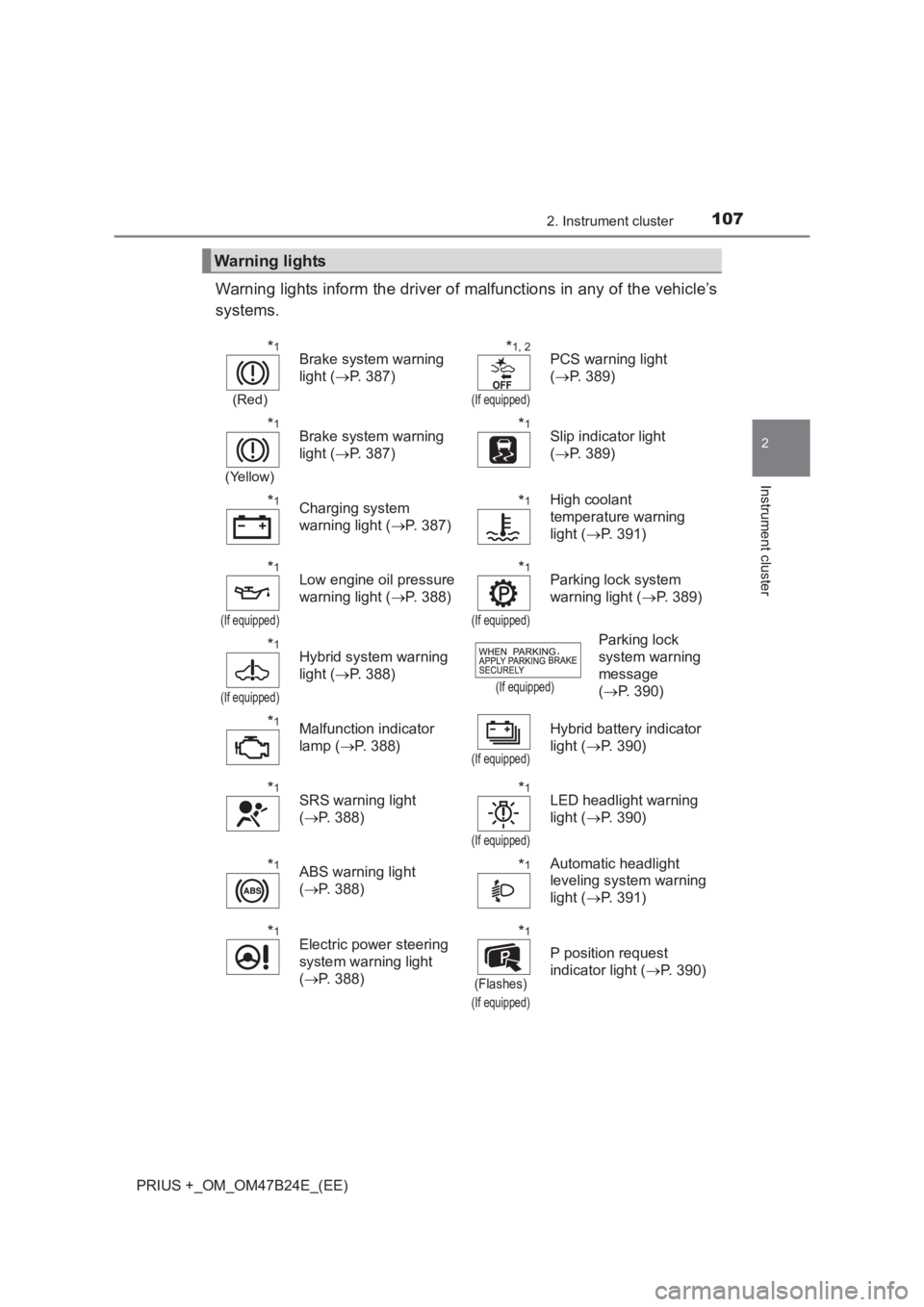

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 387)*1, 2
(If equipped)
PCS warning light
(→ P. 389)
*1
(Yellow)
Brake system warning
light ( →P. 387)*1Slip indicator light
(→ P. 389)
*1Charging system
warning light ( →P. 387)*1High coolant
temperature warning
light ( →P. 391)
*1
(If equipped)
Low engine oil pressure
warning light ( →P. 388)*1
(If equipped)
Parking lock system
warning light ( →P. 389)
*1
(If equipped)
Hybrid system warning
light ( →P. 388)
(If equipped)
Parking lock
system warning
message
(→ P. 390)
*1Malfunction indicator
lamp ( →P. 388)
(If equipped)
Hybrid battery indicator
light ( →P. 390)
*1SRS warning light
(→ P. 388)*1
(If equipped)
LED headlight warning
light ( →P. 390)
*1ABS warning light
(→ P. 388)*1Automatic headlight
leveling system warning
light ( →P. 391)
*1Electric power steering
system warning light
(→ P. 388)*1
(Flashes)
(If equipped)
P position request
indicator light ( →P. 390)

1082. Instrument cluster
PRIUS +_OM_OM47B24E_(EE)

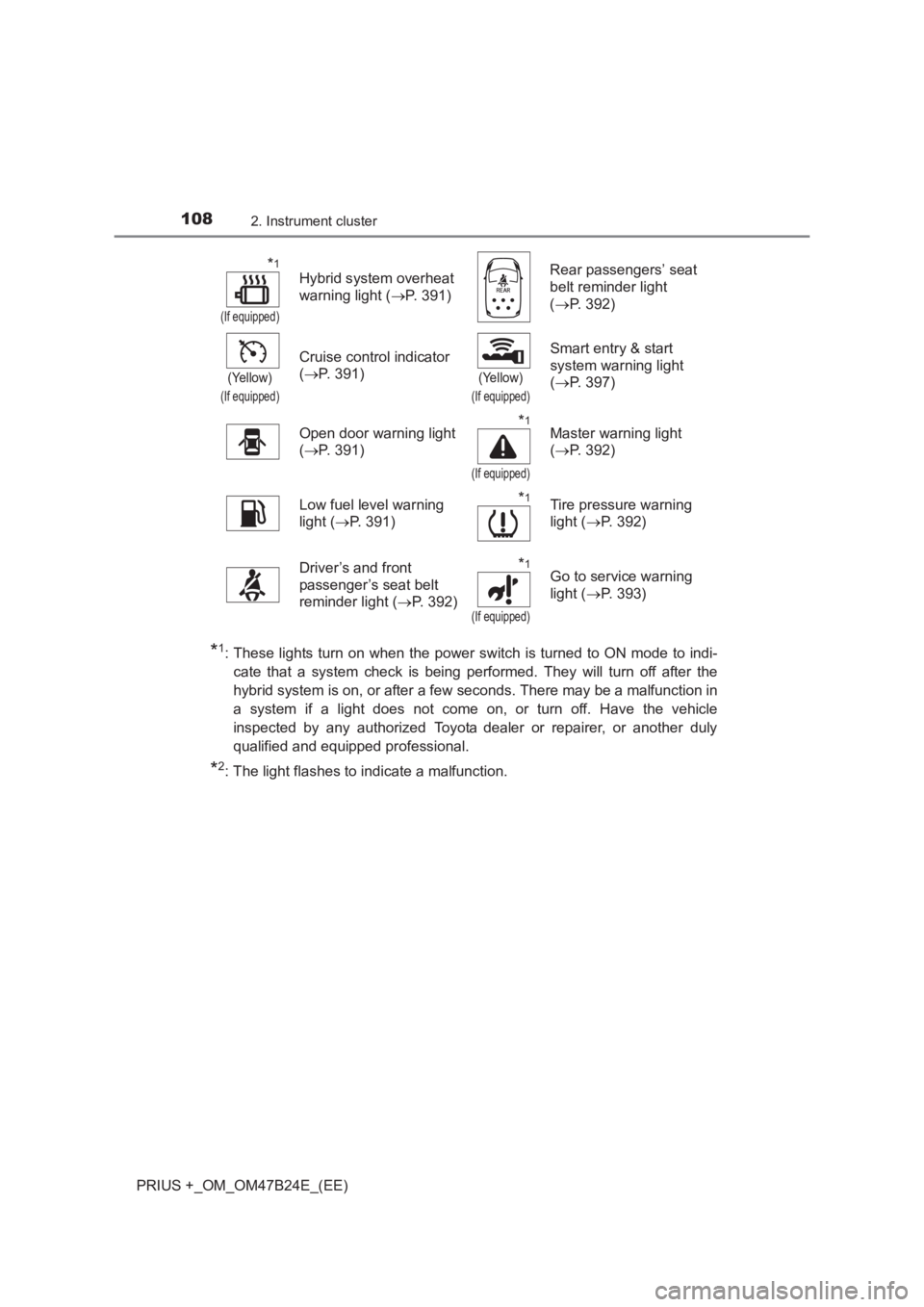

*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*1
(If equipped)
Hybrid system overheat
warning light ( →P. 391) Rear passengers’ seat
belt reminder light
(
→ P. 392)
(Yellow)
(If equipped)
Cruise control indicator
(→ P. 391)
(Yellow)
(If equipped)
Smart entry & start
system warning light
(→ P. 397)
Open door warning light
( → P. 391)
*1
(If equipped)
Master warning light
(→ P. 392)
Low fuel level warning
light ( →P. 391)
*1Tire pressure warning
light ( →P. 392)
Driver’s and front
passenger’s seat belt
reminder light ( →P. 392)
*1
(If equipped)
Go to service warning
light ( →P. 393)

1092. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B24E_(EE)

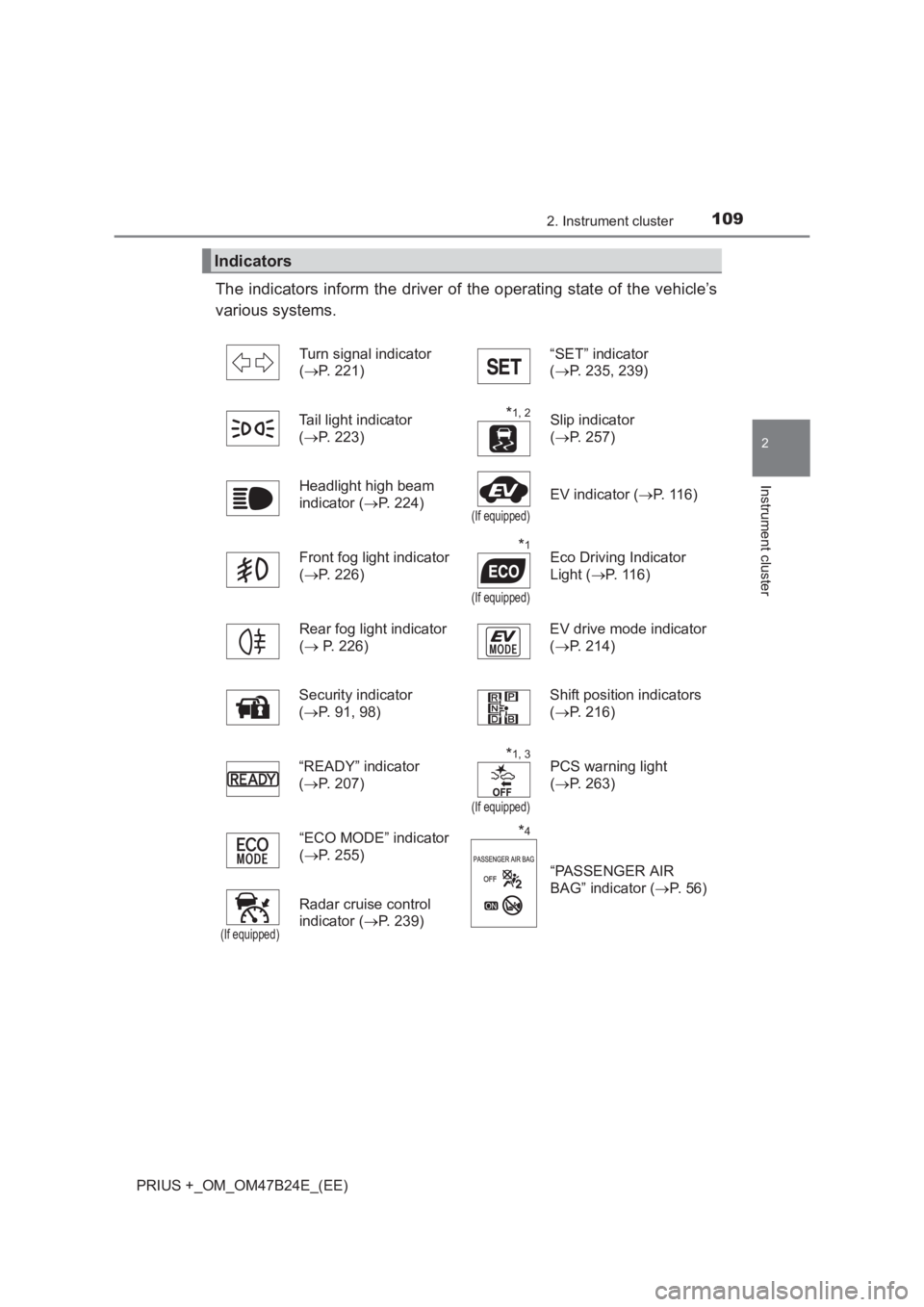

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 221) “SET” indicator
(
→ P. 235, 239)
Tail light indicator
( → P. 223)
*1, 2Slip indicator
(→ P. 257)
Headlight high beam
indicator ( →P. 224)
(If equipped)
EV indicator ( →P. 116)
Front fog light indicator
( → P. 226)
*1
(If equipped)
Eco Driving Indicator
Light ( →P. 116)
Rear fog light indicator
( → P. 226) EV drive mode indicator
(
→ P. 214)
Security indicator
( → P. 91, 98) Shift position indicators
(
→ P. 216)
“READY” indicator
( → P. 207)
*1, 3
(If equipped)
PCS warning light
(→ P. 263)
“ECO MODE” indicator
( → P. 255)
*4
“PASSENGER AIR
BAG” indicator ( →P. 5 6 )
(If equipped)
Radar cruise control
indicator ( →P. 239)

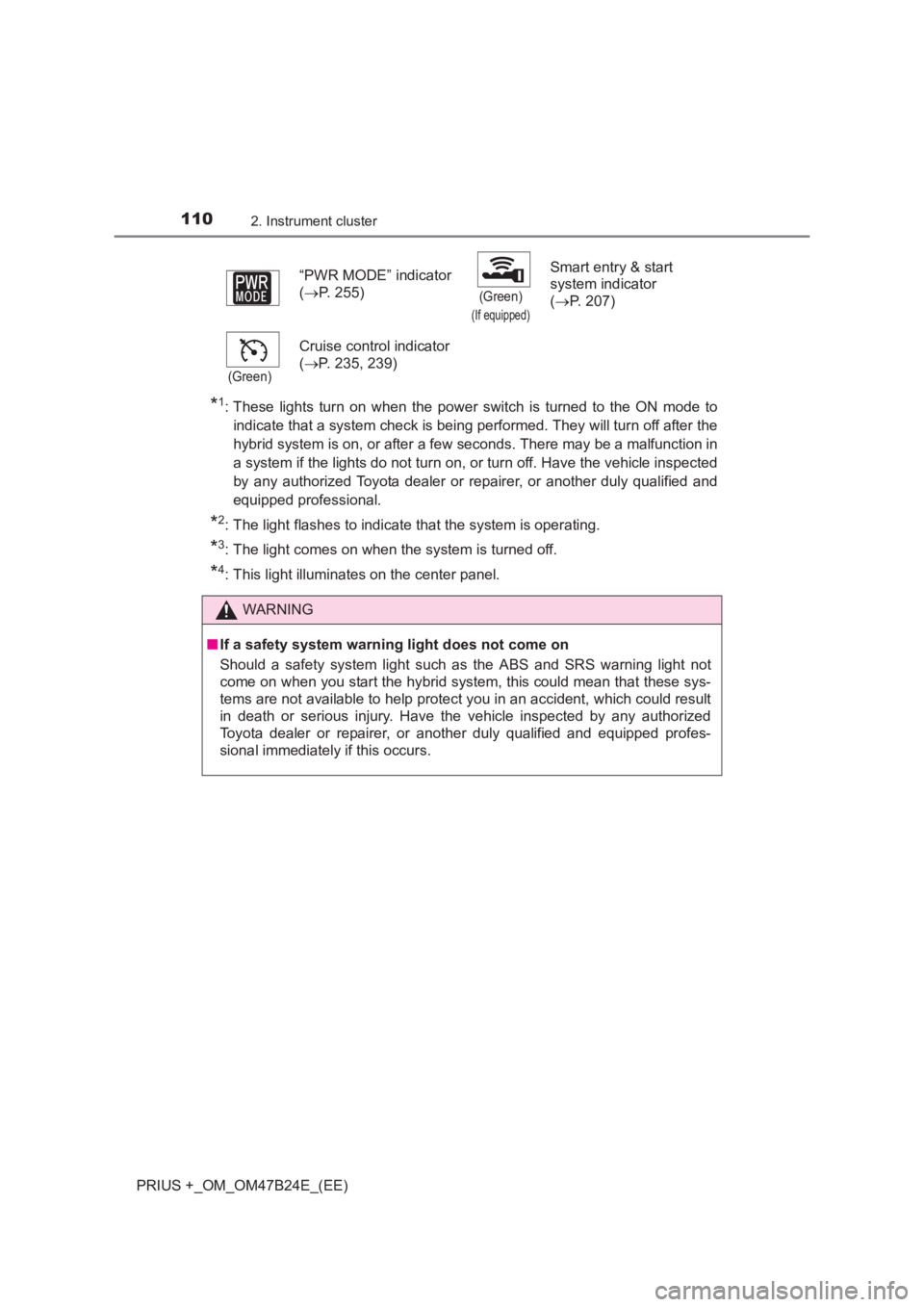

1102. Instrument cluster
