TOYOTA PRIUS PLUS 2017 Owners Manual

221
4
4-2. Driving procedures
Driving
PRIUS +_OM_OM47B24E_(EE)

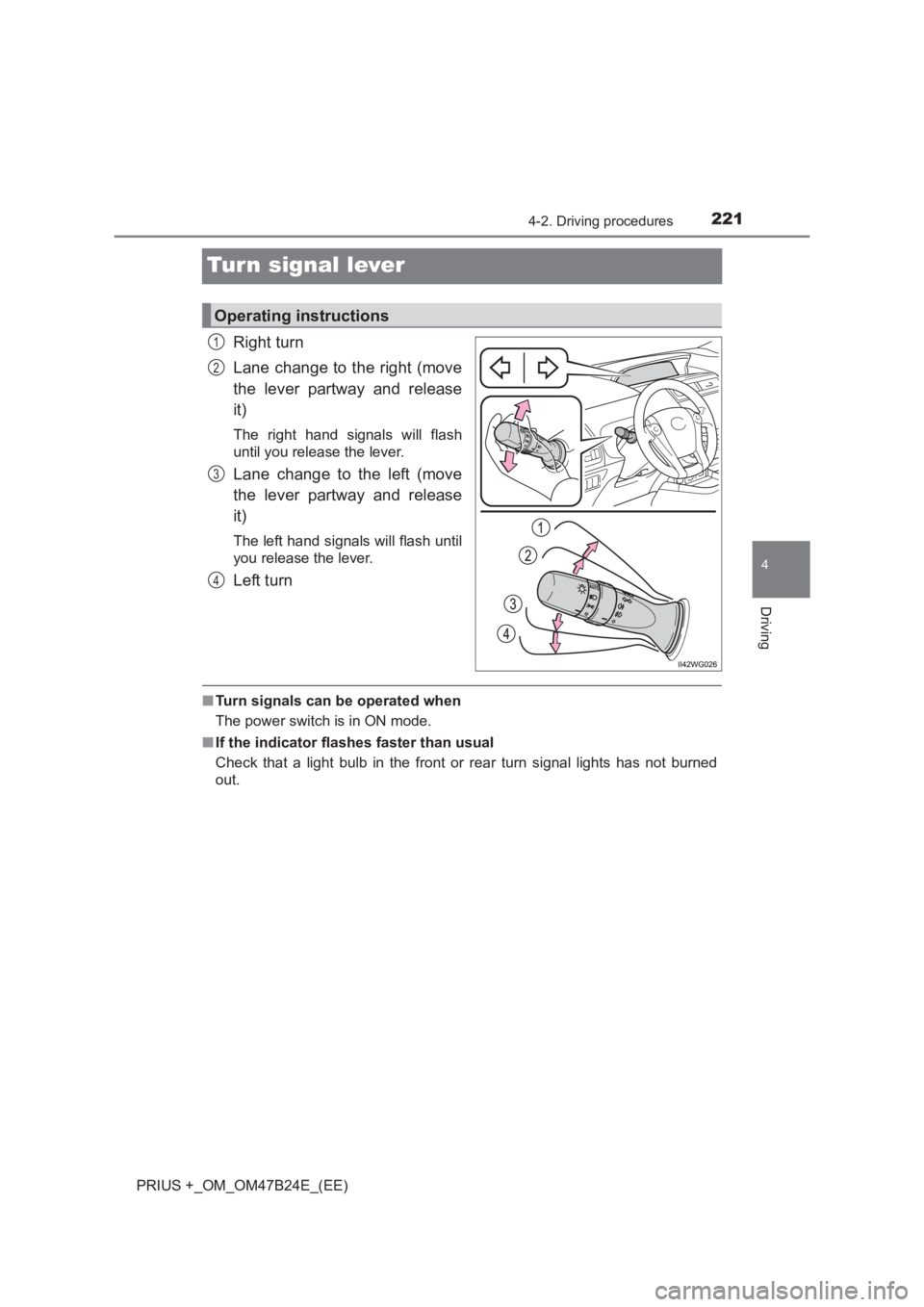

Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash
until you release the lever.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash until
you release the lever.
Left turn
■Turn signals can be operated when
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operating instructions
1
2
3
4

2224-2. Driving procedures
PRIUS +_OM_OM47B24E_(EE)
Parking brake
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depress-
ing the brake pedal with your right
foot.
(Depressing the pedal again
releases the parking brake.)
■Parking the vehicle
→ P. 196
■ Parking brake engaged warning buzzer
→ P. 393
■ Usage in winter time
→ P. 274
Operating instructions
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

223
4
4-3. Operating the lights and wipers
Driving
PRIUS +_OM_OM47B24E_(EE)

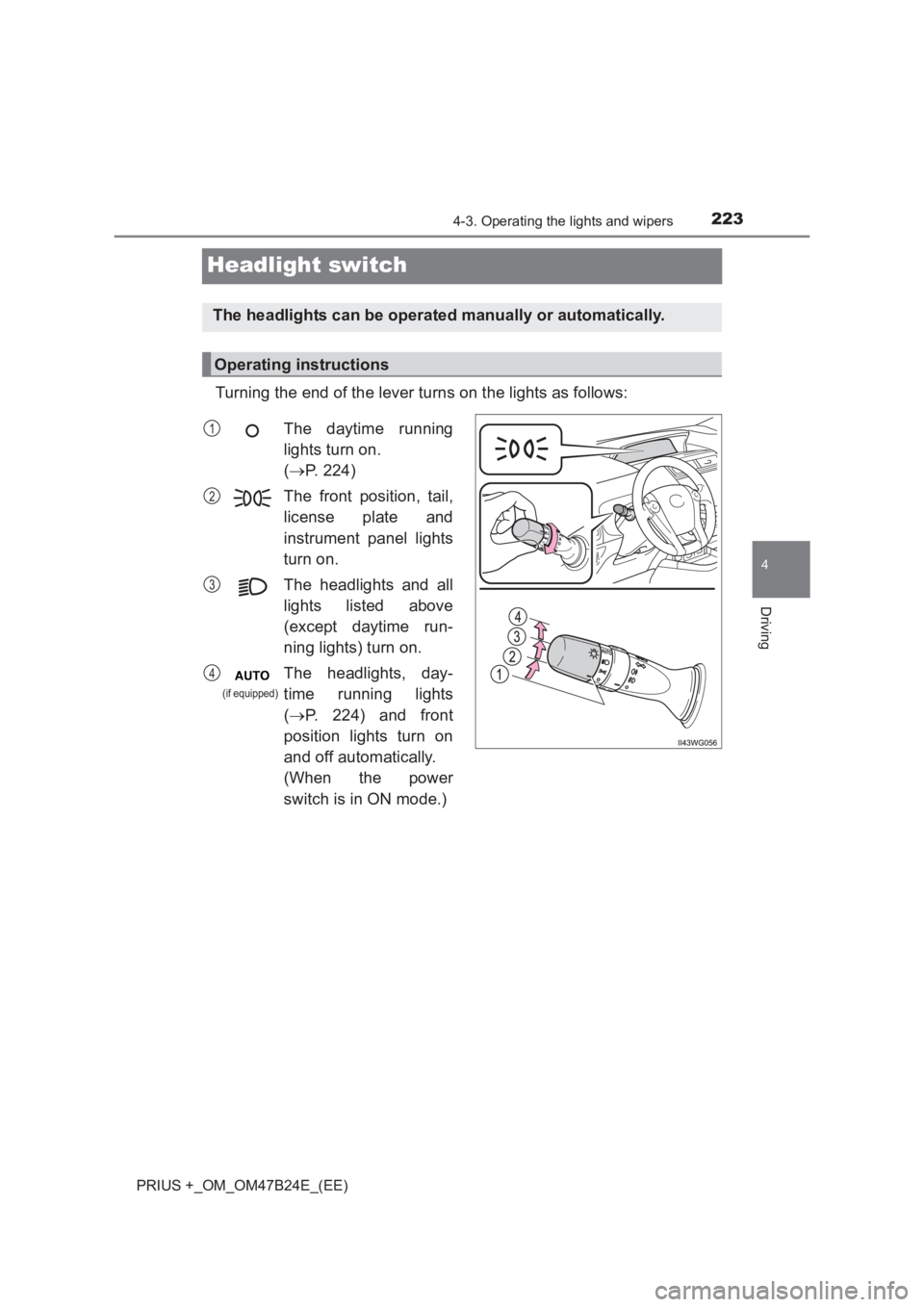

Headlight switch
Turning the end of the lever turns on the lights as follows:
The headlights can be operated manually or automatically.
Operating instructions
The daytime running
lights turn on.
(→ P. 224)
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights
( → P. 224) and front
position lights turn on
and off automatically.
(When the power
switch is in ON mode.)1
2
3
4
(if equipped)

2244-3. Operating the lights and wipers
PRIUS +_OM_OM47B24E_(EE)

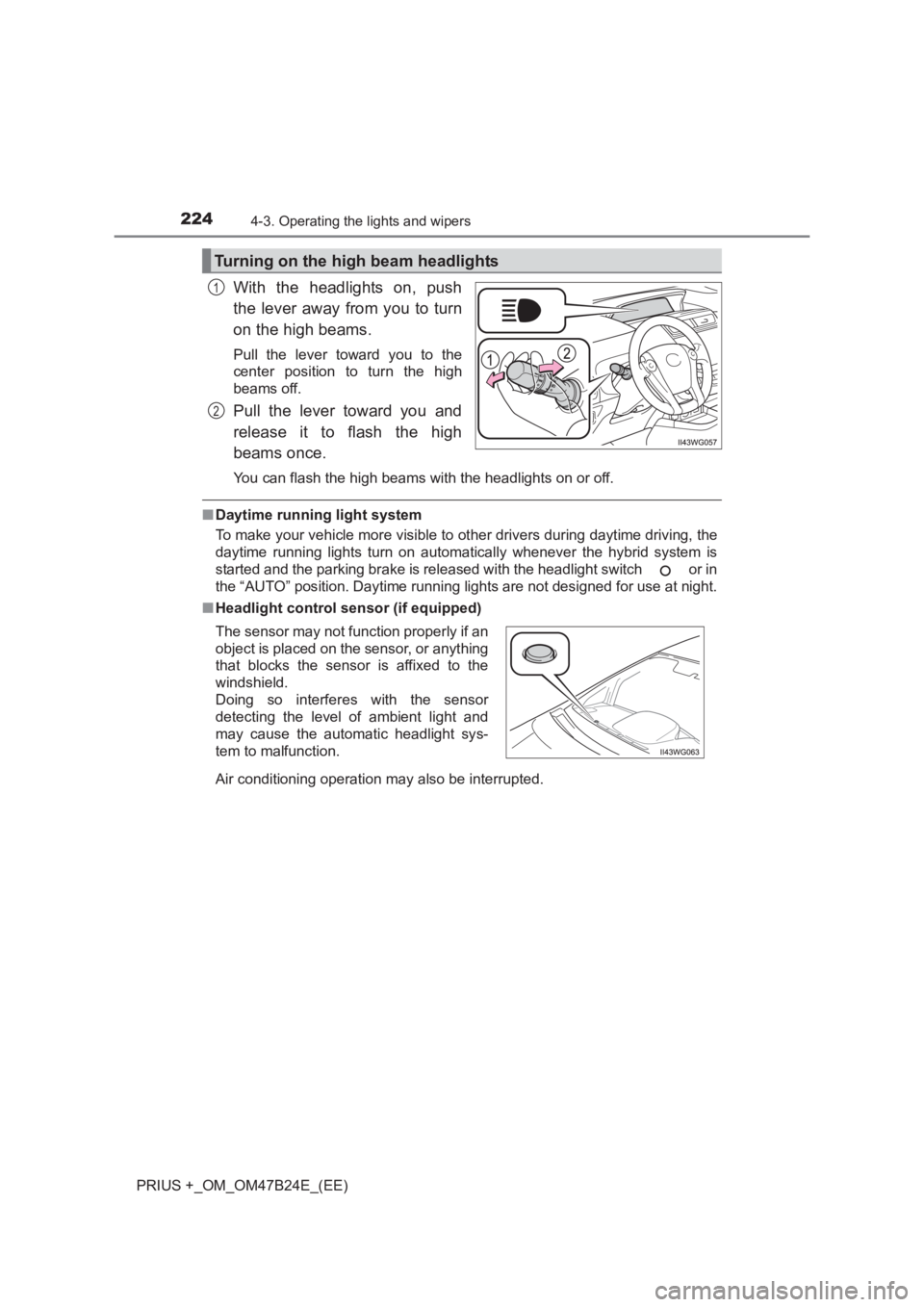

With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the hybrid system is
started and the parking brake is released with the headlight switch or in
the “AUTO” position. Daytime running lights are not designed for use at night.
■ Headlight control sensor (if equipped)
Air conditioning operation may also be interrupted.
Turning on the high beam headlights
1
2
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2254-3. Operating the lights and wipers
4
Driving
PRIUS +_OM_OM47B24E_(EE)■

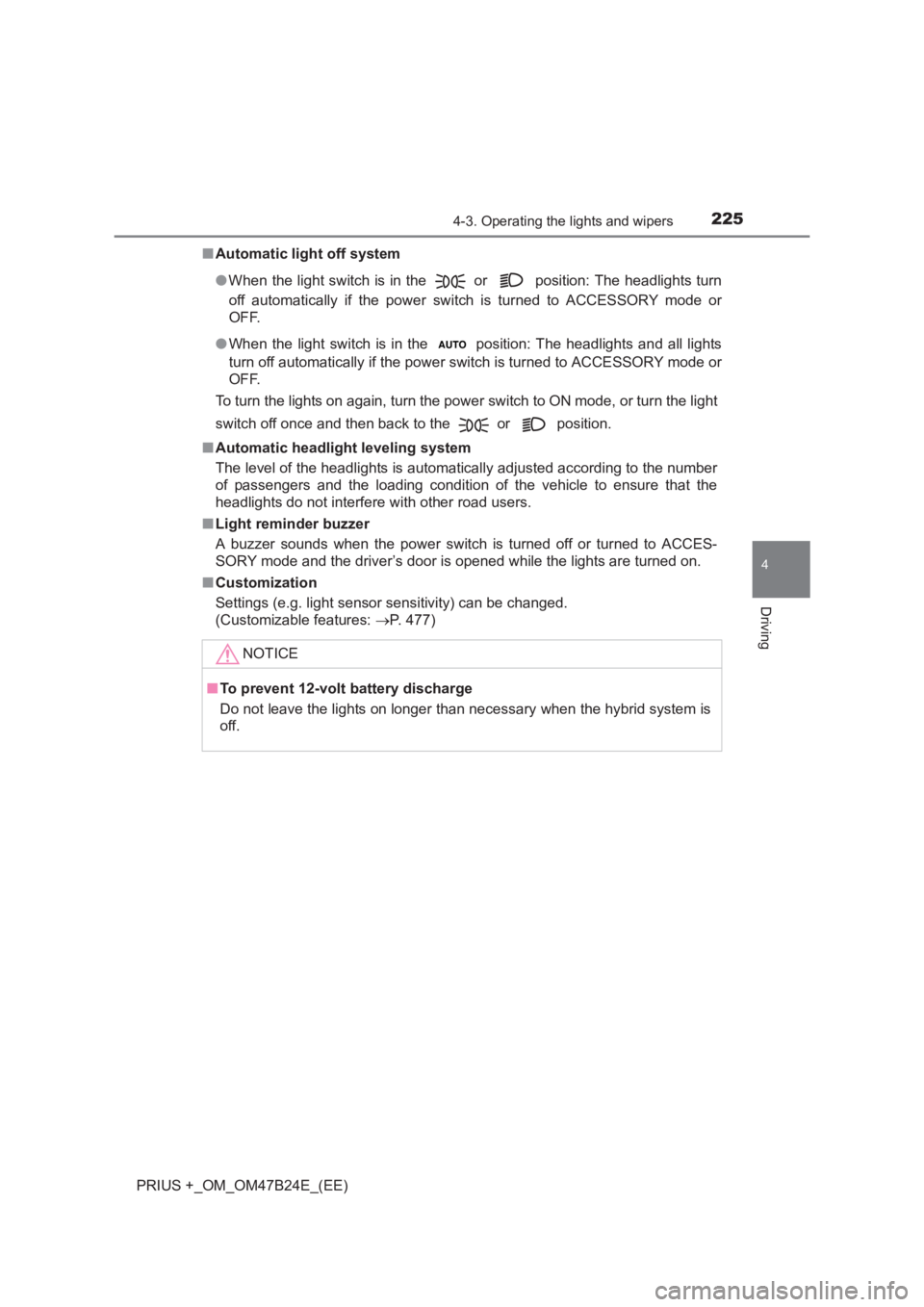

Automatic light off system
●When the light switch is in the
or position: The headlights turn
off automatically if the power swit ch is turned to ACCESSORY mode or
OFF.
● When the light switch is in the position: The headlights and all lights
turn off automatically if the power switch is turned to ACCESSORY mode or
OFF.
To turn the lights on again, turn the power switch to ON mode, or turn the light
switch off once and then back to the
or position.
■ Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACCES-
SORY mode and the driver’s door is opened while the lights are turned on.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 477)
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

2264-3. Operating the lights and wipers
PRIUS +_OM_OM47B24E_(EE)

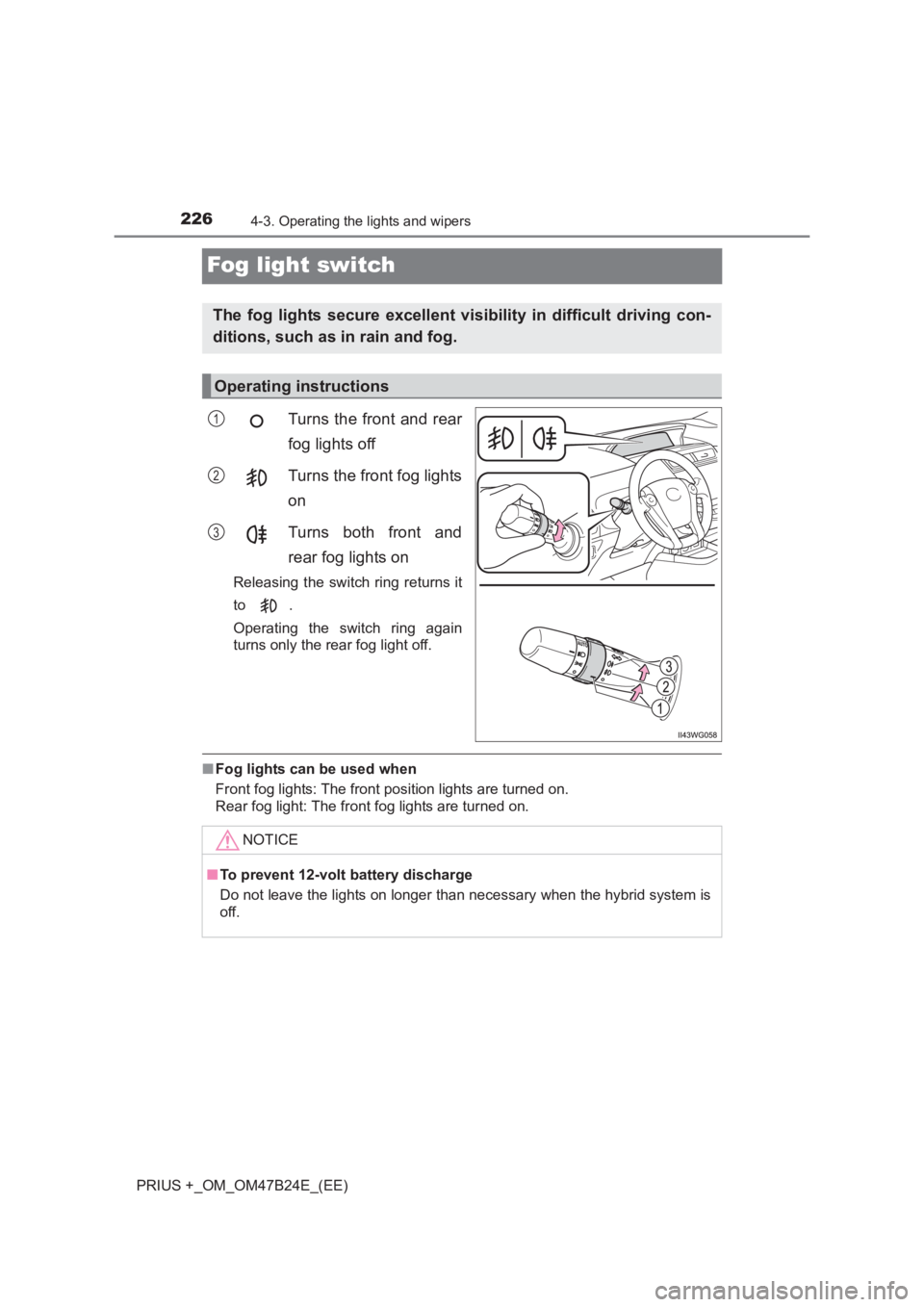

Fog light switch
Turns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and
rear fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
■Fog lights can be used when
Front fog lights: The front position lights are turned on.
Rear fog light: The front fog lights are turned on.
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
Operating instructions
1
2
3
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

227
4
4-3. Operating the lights and wipers
Driving
PRIUS +_OM_OM47B24E_(EE)

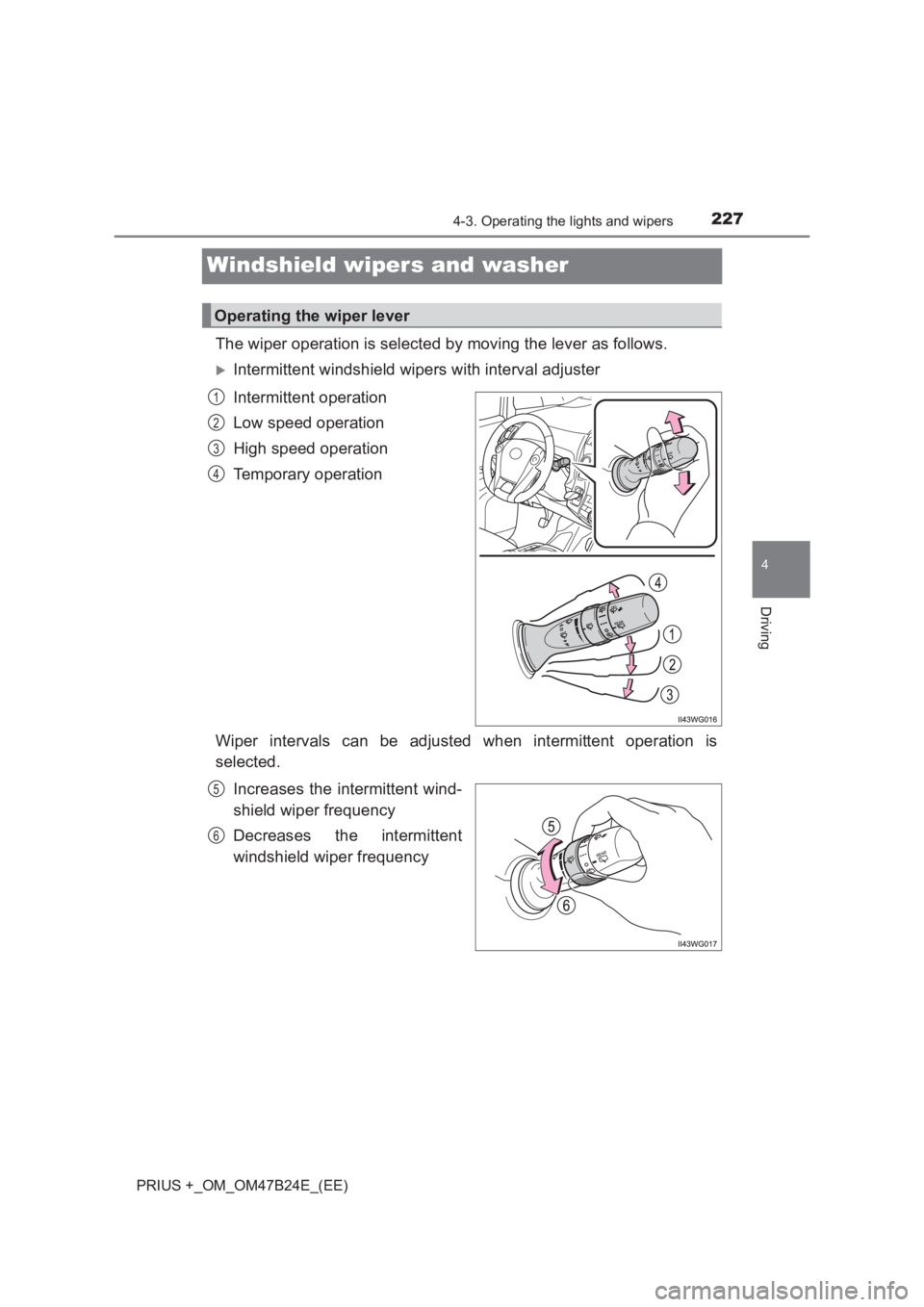

Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
XIntermittent windshield wipers with interval adjuster
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Operating the wiper lever
1
2
3
4
5
6

2284-3. Operating the lights and wipers
PRIUS +_OM_OM47B24E_(EE)

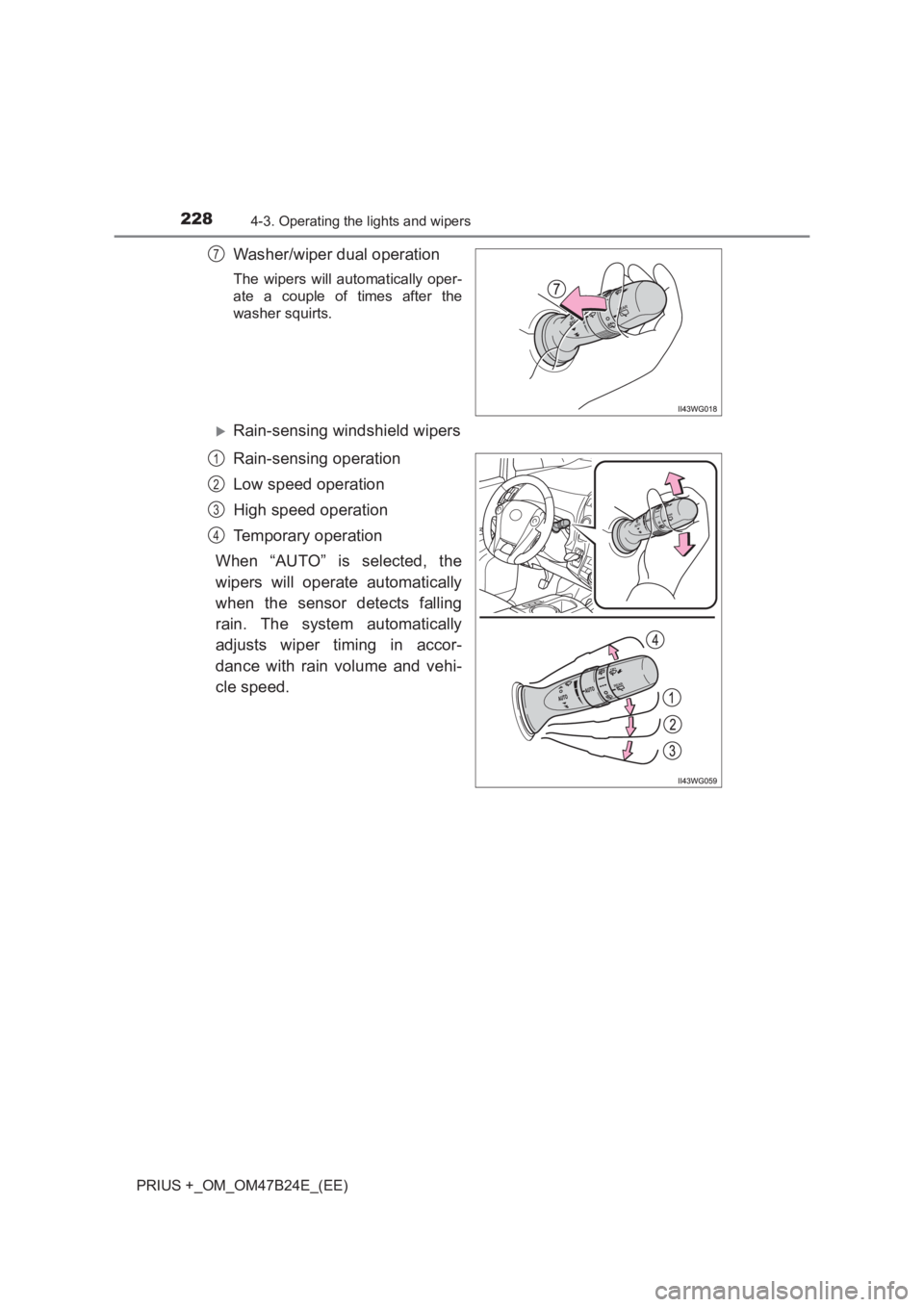

Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
XRain-sensing windshield wipers
Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the
wipers will operate automatically
when the sensor detects falling
rain. The system automatically
adjusts wiper timing in accor-
dance with rain volume and vehi-
cle speed.
7
1
2
3
4

2294-3. Operating the lights and wipers
4
Driving
PRIUS +_OM_OM47B24E_(EE)
The sensor sensitivity can be adjusted when “AUTO” is selected.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■The windshield wipers and washer can be operated when
The power switch is in ON mode.
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the power switch is
in ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
● If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
● If the temperature of the raindrop sensor is 85 °C (185 °F) or higher, or -10 °C
(14 °F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.
5
6
7
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

2304-3. Operating the lights and wipers
PRIUS +_OM_OM47B24E_(EE)

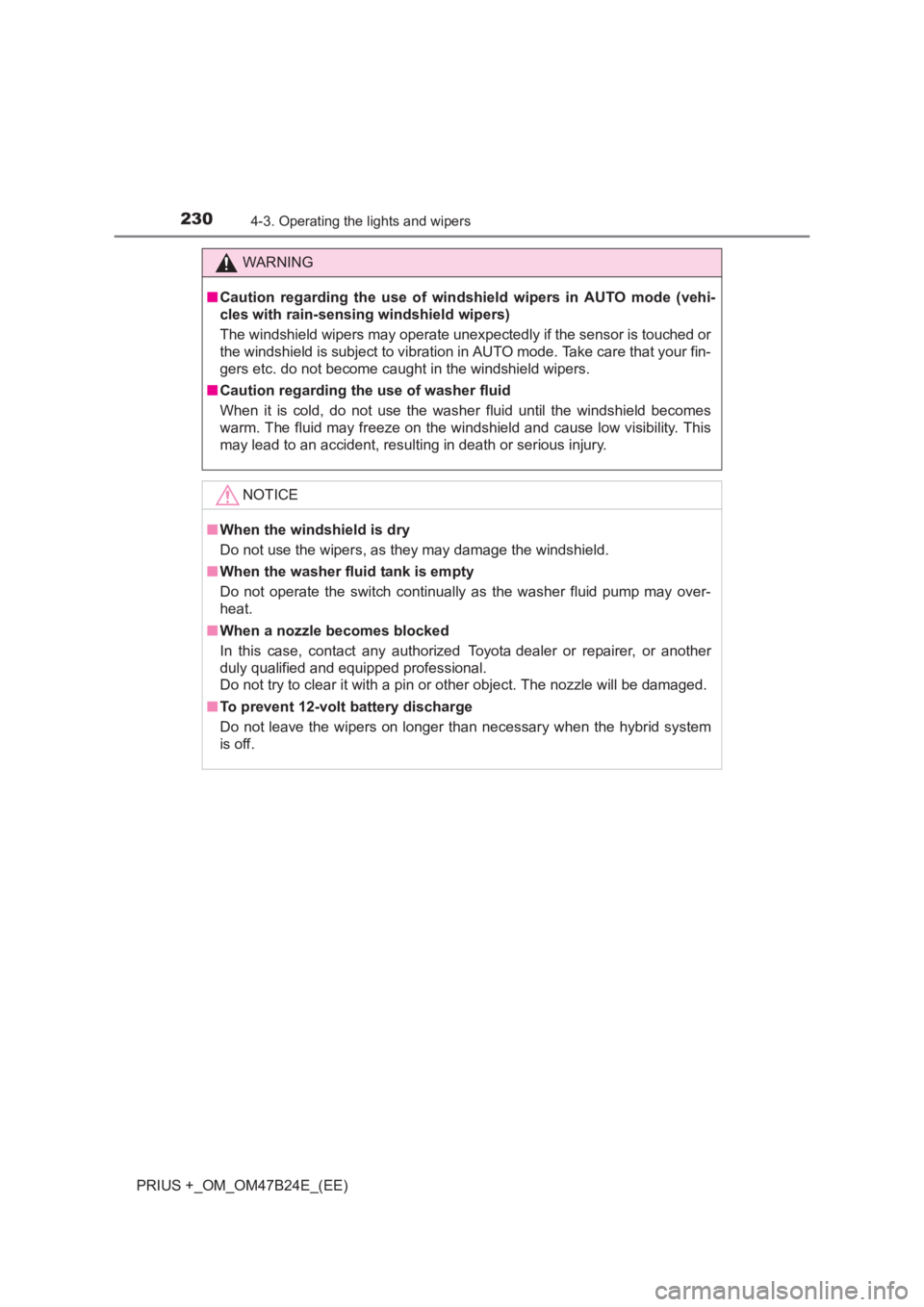

WARNING
■ Caution regarding the use of windshield wipers in AUTO mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers etc. do not become caught in the windshield wipers.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■ To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system
is off.
