TOYOTA PRIUS PLUS 2019 Owners Manual

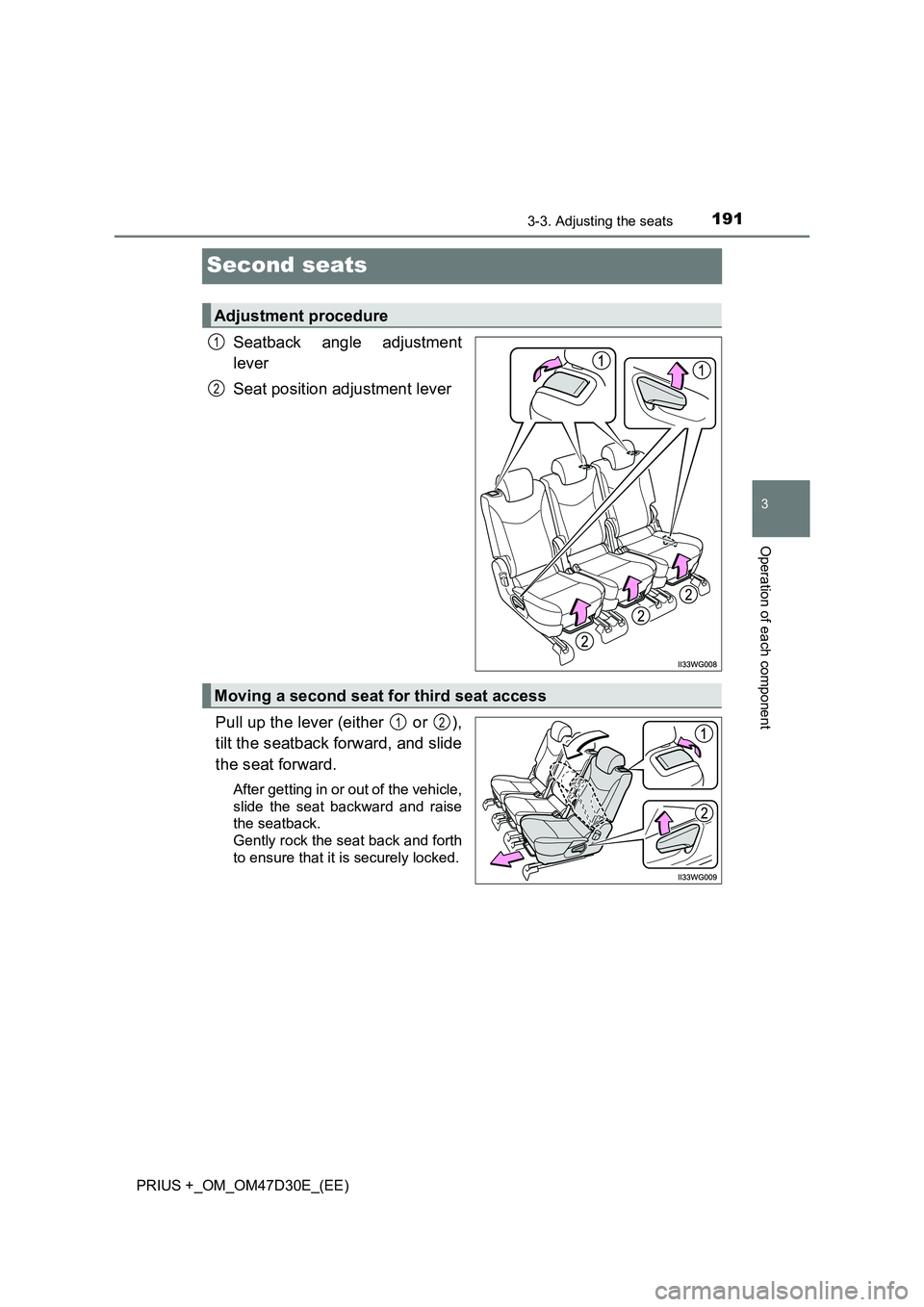

191
3
3-3. Adjusting the seats
Operation of each component
PRIUS +_OM_OM47D30E_(EE)
Second seats
Seatback angle adjustment
lever
Seat position adjustment lever
Pull up the lever (either or ),
tilt the seatback forward, and slide
the seat forward.
After getting in or out of the vehicle,
slide the seat backward and raise
the seatback.
Gently rock the seat back and forth
to ensure that it is securely locked.
Adjustment procedure
1
2
Moving a second seat for third seat access
12

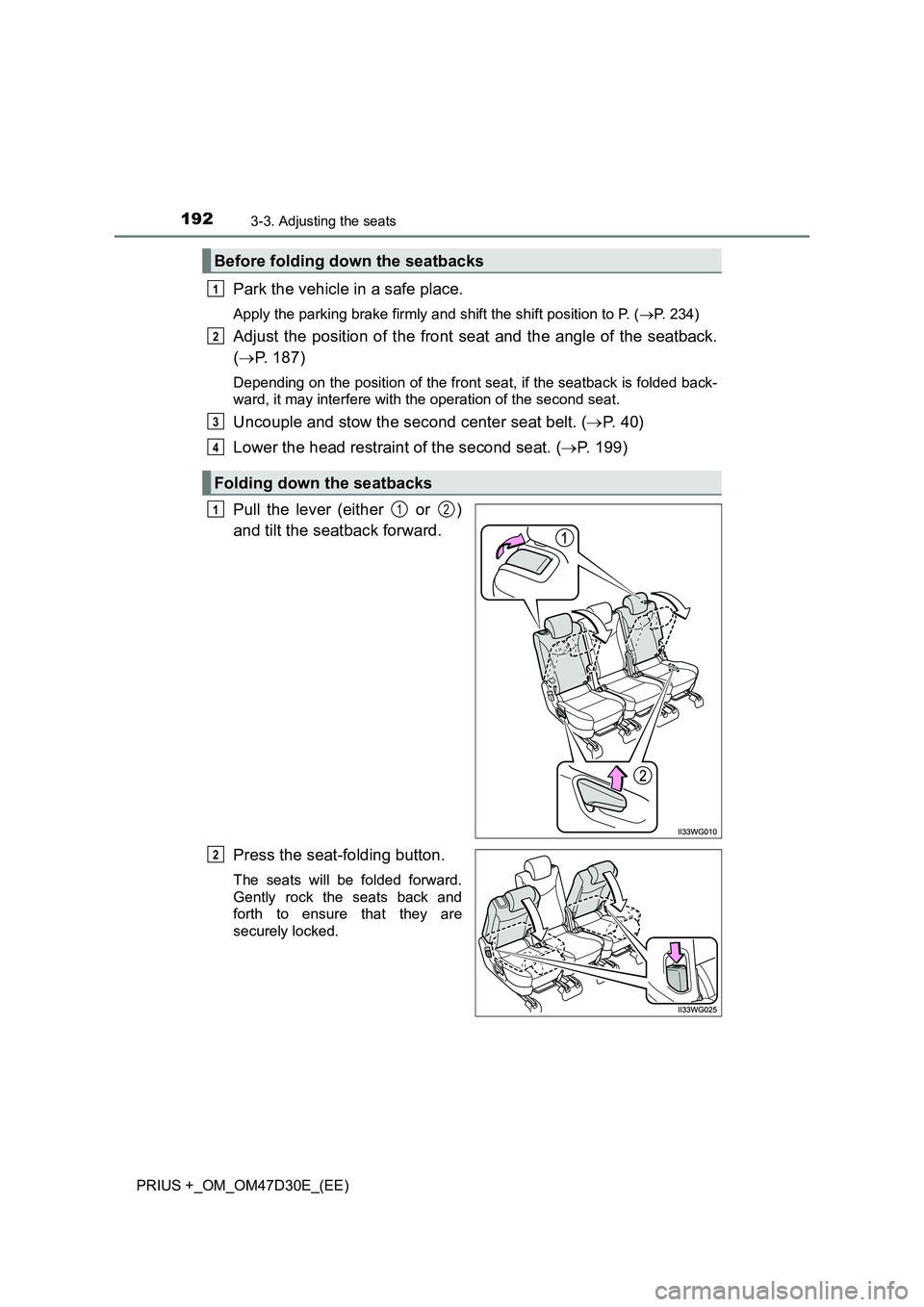

1923-3. Adjusting the seats
PRIUS +_OM_OM47D30E_(EE)
Park the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. (P. 234)
Adjust the position of the front seat and the angle of the seatback.
(P. 187)
Depending on the position of the front seat, if the seatback is folded back-
ward, it may interfere with the operation of the second seat.
Uncouple and stow the second center seat belt. (P. 4 0 )
Lower the head restraint of the second seat. (P. 199)
Pull the lever (either or )
and tilt the seatback forward.
Press the seat-folding button.
The seats will be folded forward.
Gently rock the seats back and
forth to ensure that they are
securely locked.
Before folding down the seatbacks
Folding down the seatbacks
1
2
3
4
112
2

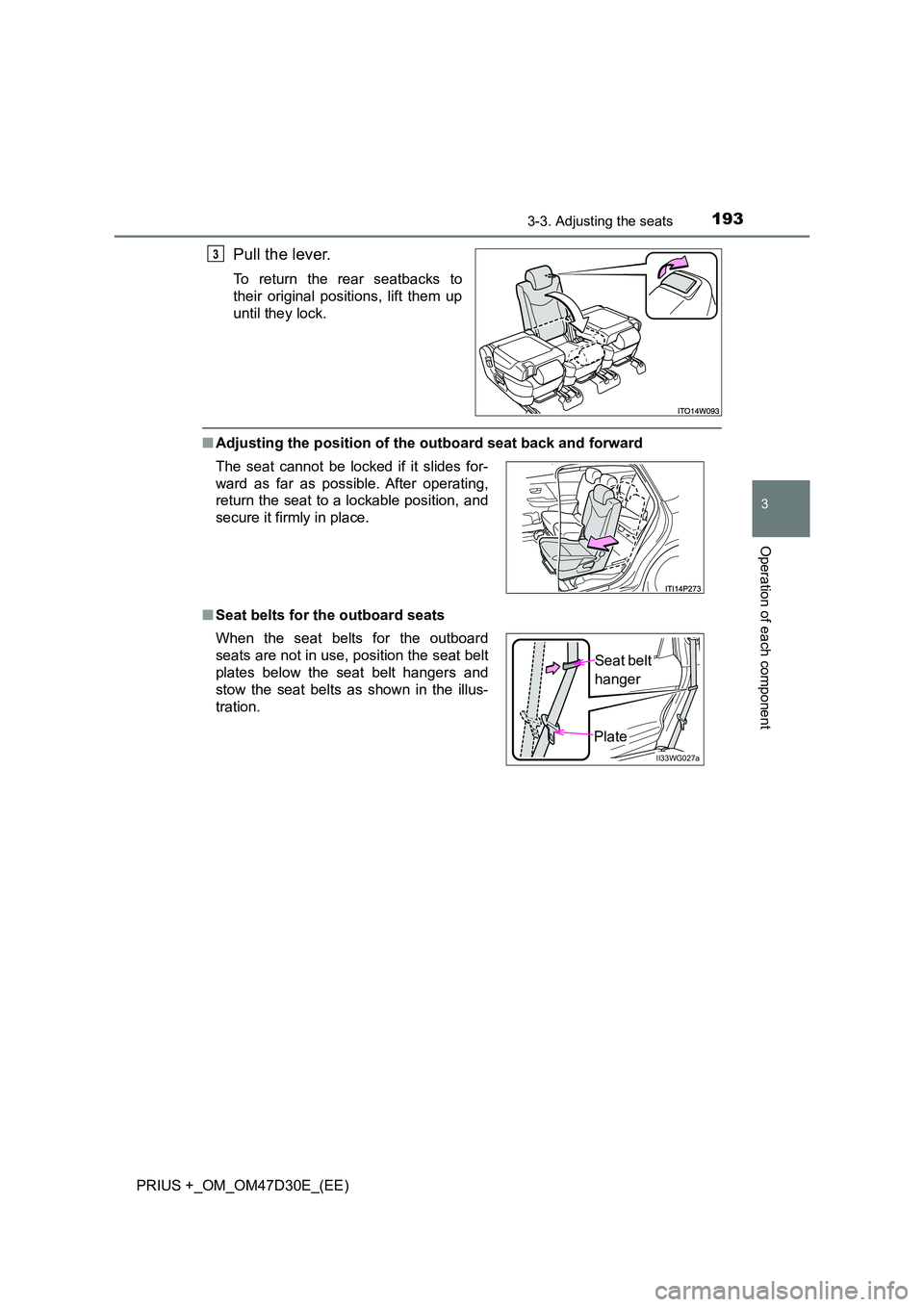

1933-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47D30E_(EE)
Pull the lever.
To return the rear seatbacks to
their original positions, lift them up
until they lock.
■ Adjusting the position of the outboard seat back and forward
■ Seat belts for the outboard seats
3
The seat cannot be locked if it slides for-
ward as far as possible. After operating,
return the seat to a lockable position, and
secure it firmly in place.
When the seat belts for the outboard
seats are not in use, position the seat belt
plates below the seat belt hangers and
stow the seat belts as shown in the illus-
tration.
II33WG027a
Plate
Seat belt
hanger

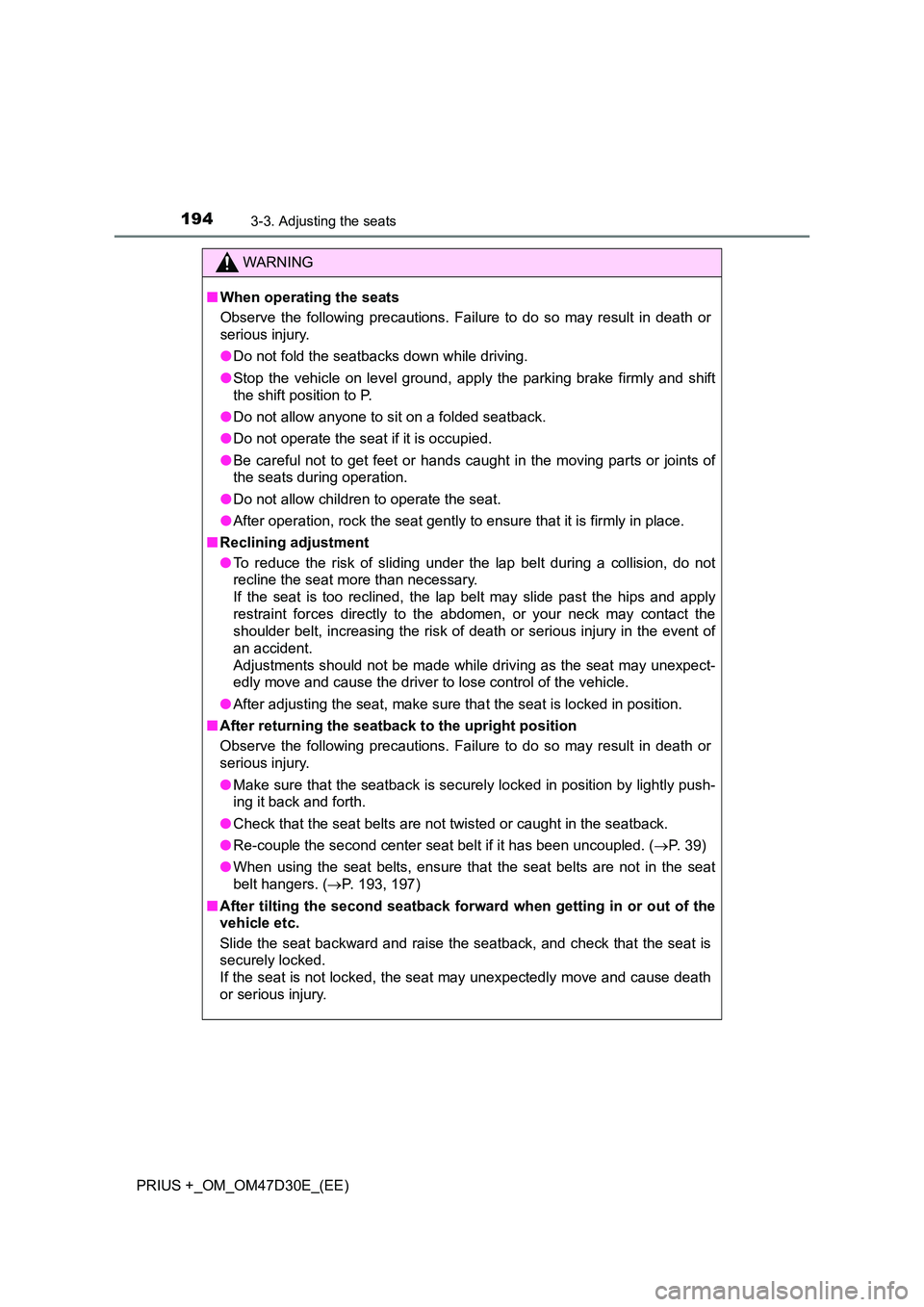

1943-3. Adjusting the seats
PRIUS +_OM_OM47D30E_(EE)
WARNING
■When operating the seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, apply the parking brake firmly and shift
the shift position to P.
● Do not allow anyone to sit on a folded seatback.
● Do not operate the seat if it is occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats during operation.
● Do not allow children to operate the seat.
● After operation, rock the seat gently to ensure that it is firmly in place.
■ Reclining adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure that the seatback is securely locked in position by lightly push-
ing it back and forth.
● Check that the seat belts are not twisted or caught in the seatback.
● Re-couple the second center seat belt if it has been uncoupled. (P. 39)
● When using the seat belts, ensure that the seat belts are not in the seat
belt hangers. ( P. 193, 197)
■ After tilting the second seatback forward when getting in or out of the
vehicle etc.
Slide the seat backward and raise the seatback, and check that the seat is
securely locked.
If the seat is not locked, the seat may unexpectedly move and cause death
or serious injury.

1953-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47D30E_(EE)
NOTICE
■When the third seat is folded forward
To prevent damage to the seats, avoid making contact with the second seat
when adjusting the third seat.

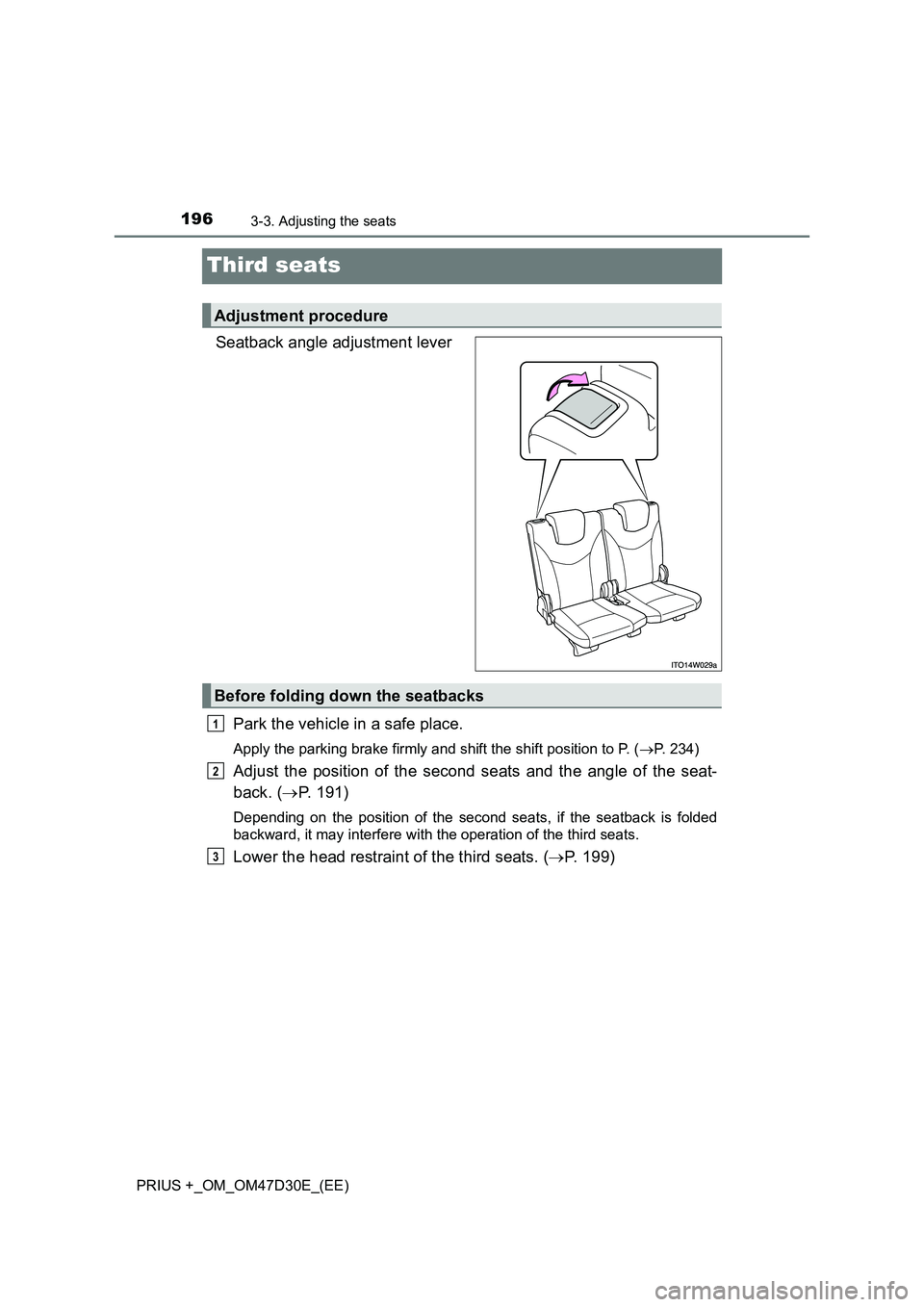

1963-3. Adjusting the seats
PRIUS +_OM_OM47D30E_(EE)
Third seats
Seatback angle adjustment lever
Park the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. (P. 234)
Adjust the position of the second seats and the angle of the seat-
back. (P. 191)
Depending on the position of the second seats, if the seatback is folded
backward, it may interfere with the operation of the third seats.
Lower the head restraint of the third seats. (P. 199)
Adjustment procedure
Before folding down the seatbacks
1
2
3

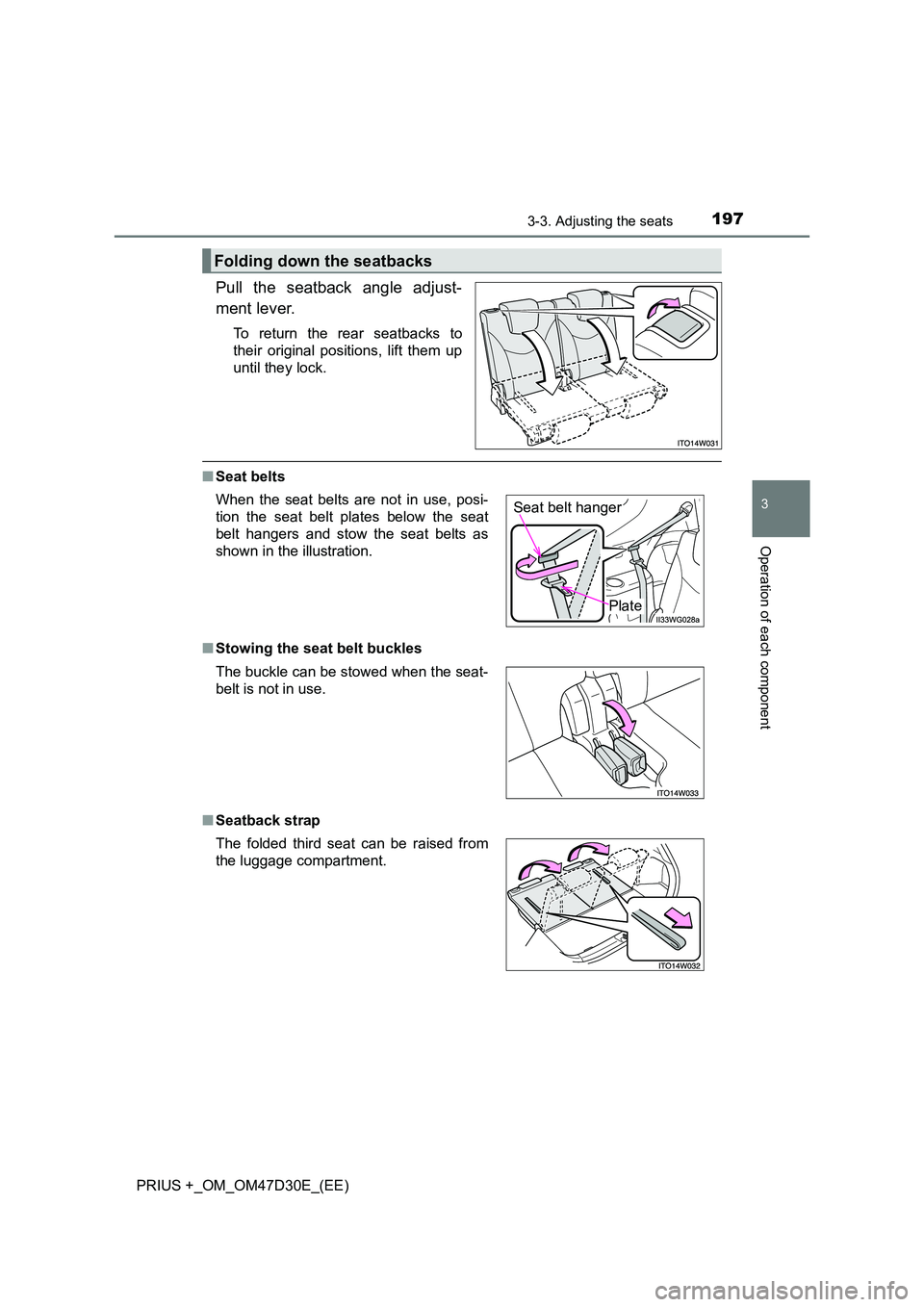

1973-3. Adjusting the seats
3
Operation of each component
PRIUS +_OM_OM47D30E_(EE)
Pull the seatback angle adjust-
ment lever.
To return the rear seatbacks to
their original positions, lift them up
until they lock.
■ Seat belts
■ Stowing the seat belt buckles
■ Seatback strap
Folding down the seatbacks
When the seat belts are not in use, posi-
tion the seat belt plates below the seat
belt hangers and stow the seat belts as
shown in the illustration.
The buckle can be stowed when the seat-
belt is not in use.
The folded third seat can be raised from
the luggage compartment.
Plate
Seat belt hanger

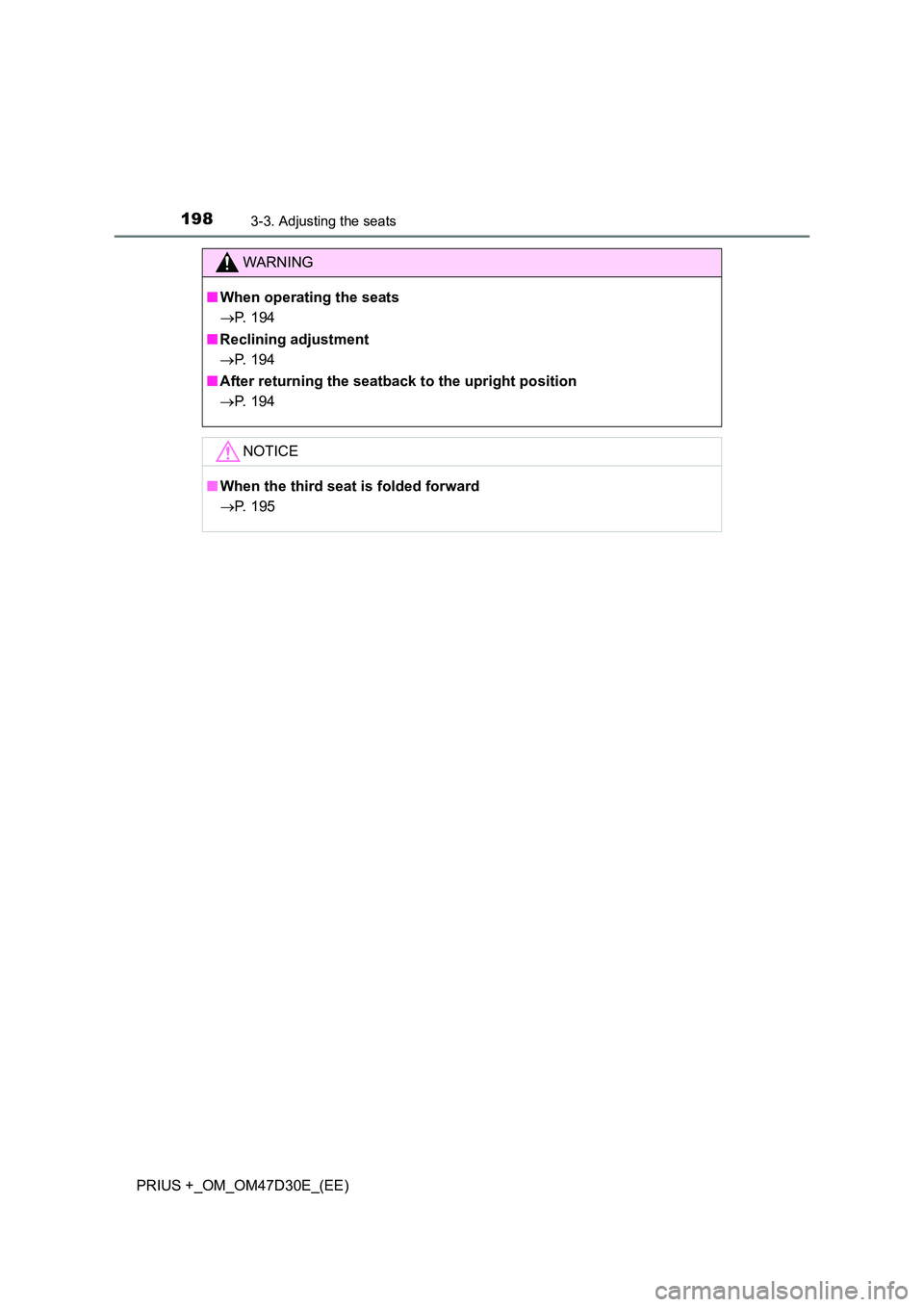

1983-3. Adjusting the seats
PRIUS +_OM_OM47D30E_(EE)
WARNING
■When operating the seats
 P. 194
■ Reclining adjustment
 P. 194
■ After returning the seatback to the upright position
 P. 194
NOTICE
■When the third seat is folded forward
 P. 195

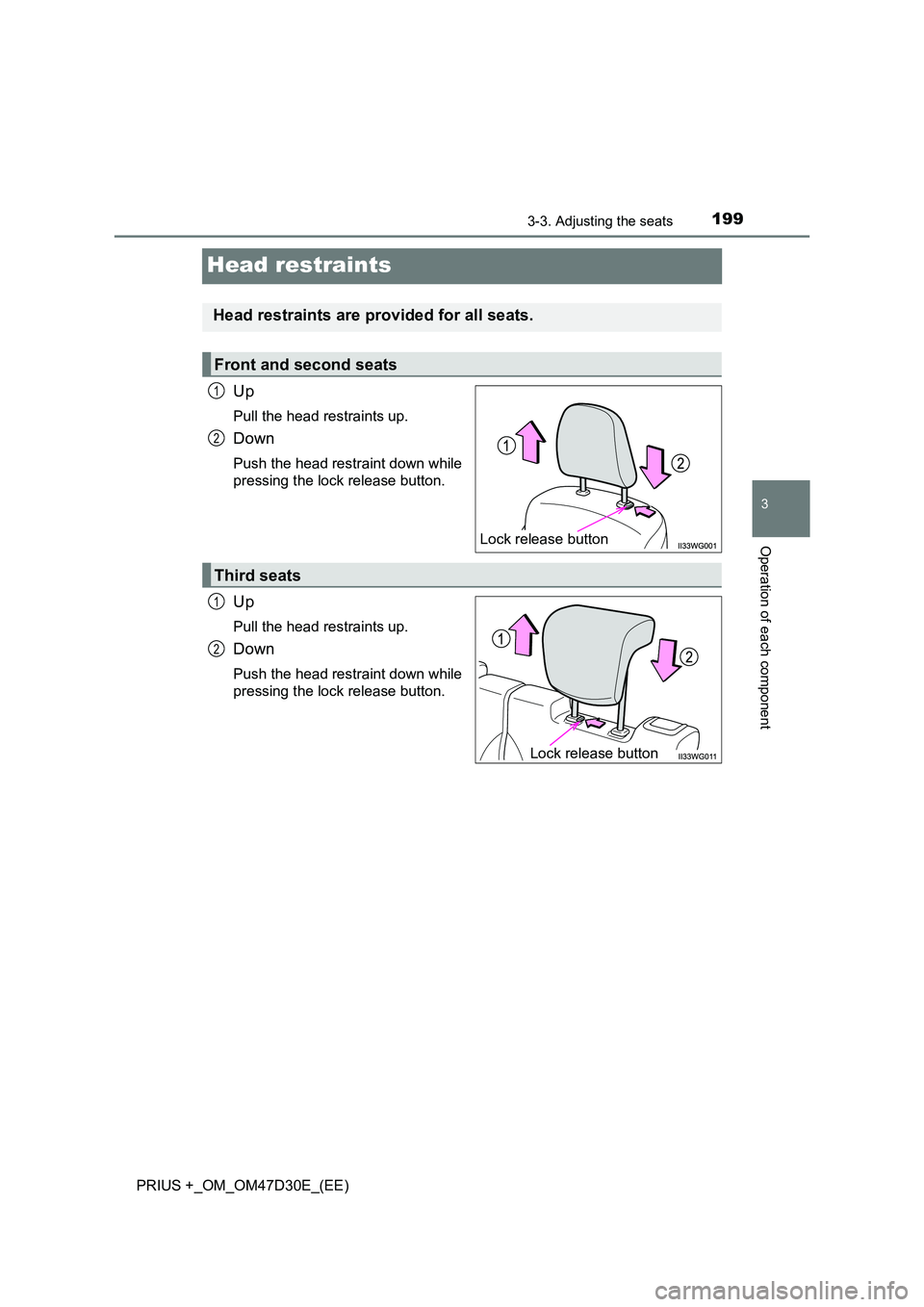

199
3
3-3. Adjusting the seats
Operation of each component
PRIUS +_OM_OM47D30E_(EE)
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front and second seats
Lock release button
1
2
Third seats
Lock release button
1
2

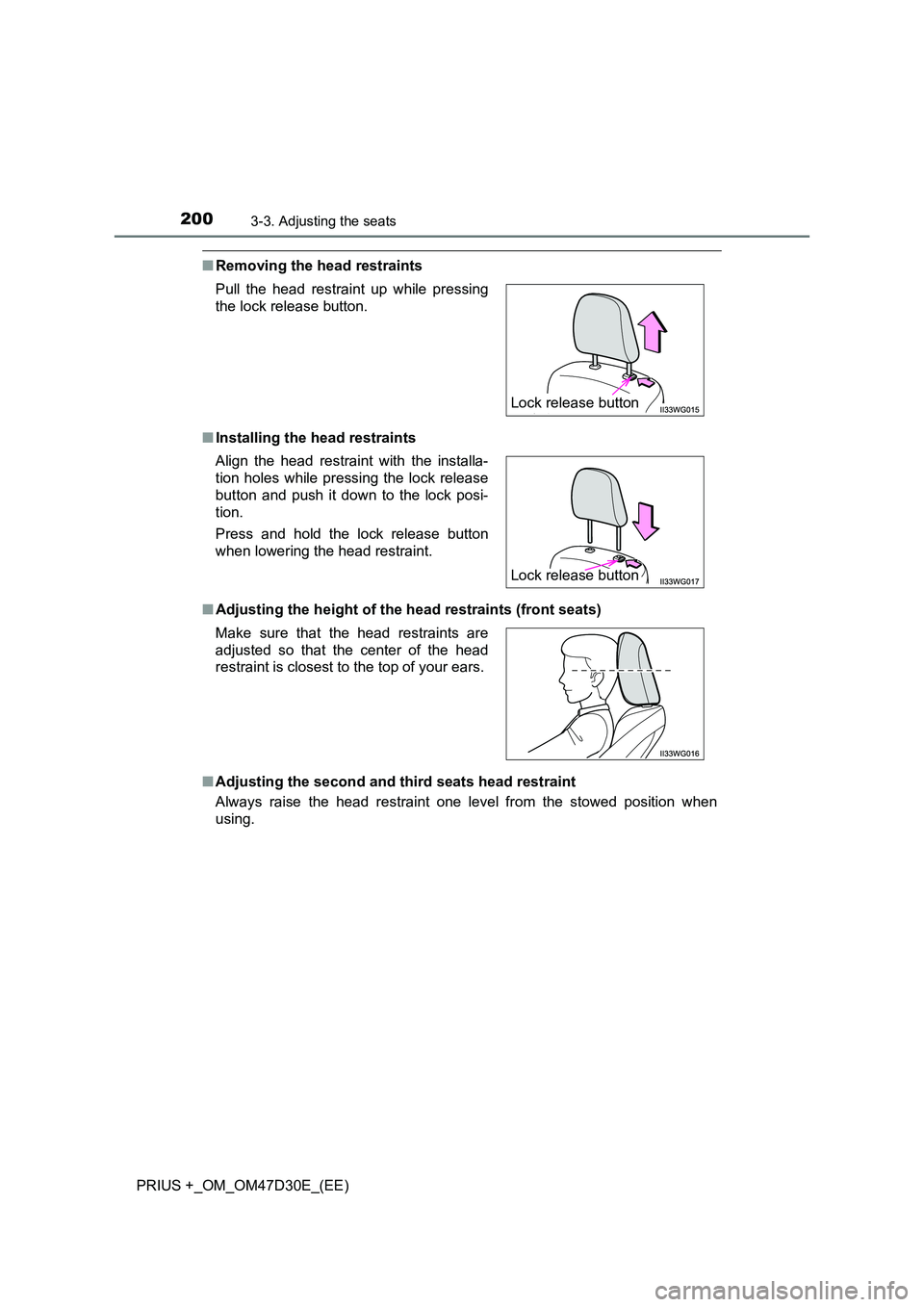

2003-3. Adjusting the seats
PRIUS +_OM_OM47D30E_(EE)
■Removing the head restraints
■ Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the second and third seats head restraint
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes while pressing the lock release
button and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button
