lane assist TOYOTA PRIUS PLUS 2019 Owners Manual

3
1
8
7
6
5
4
3
2
PRIUS +_OM_OM47D30E_(EE)
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................202
Inside rear view mirror .......204
Outside rear view
mirrors .............................206
3-5. Opening and closing the
windows
Power windows ..................208
4-1. Before driving
Driving the vehicle .............212
Cargo and luggage ............221
Trailer towing .....................223
4-2. Driving procedures
Power (ignition) switch .......224
EV drive mode ...................231
Hybrid transmission ...........233
Turn signal lever ................239
Parking brake.....................240
4-3. Operating the lights
and wipers
Headlight switch ................ 241
Automatic High Beam ....... 244
Fog light switch ................. 250
Windshield wipers and
washer ............................ 251
Rear window wiper and
washer ............................ 255
4-4. Refueling
Opening the fuel tank
cap .................................. 256
4-5. Using the driving
support systems
Toyota Safety Sense ......... 259
PCS (Pre-Crash Safety
system) ........................... 271
LDA (Lane Departure Alert
with steering control) ....... 284
RSA (Road Sign Assist) .... 294
Dynamic radar cruise
control ............................. 299
Cruise control .................... 313
Driving mode select
switch .............................. 317
Driving assist systems....... 318
4-6. Driving tips
Hybrid vehicle driving
tips .................................. 324
Winter driving tips.............. 327
4Driving

18Pictorial index
PRIUS +_OM_OM47D30E_(EE)
■Switches (Left-hand drive vehicles)
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . .P. 206
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
IPA (Intelligent Parking Assist) switch*1, 2
LDA (Lane Departure Alert with steering control)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Automatic High Beam switch*1 . . . . . . . . . . . . . . . . . . . . . . P. 244
1
2
3
4
5
6
7

26Pictorial index
PRIUS +_OM_OM47D30E_(EE)
■Switches (Right-hand drive vehicles)
IPA (Intelligent Parking Assist) switch*1, 2
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 206
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
LDA (Lane Departure Alert with steering control)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 244
1
2
3
4
5
6
7

1272. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Clock
Show the current time on the display.
Driving assist system information (if equipped)
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control), cruise control and
dynamic radar cruise control is displayed. (P. 284, 299)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 458)
Settings display
Select to change the meter display settings. (P. 539)

211
4Driving

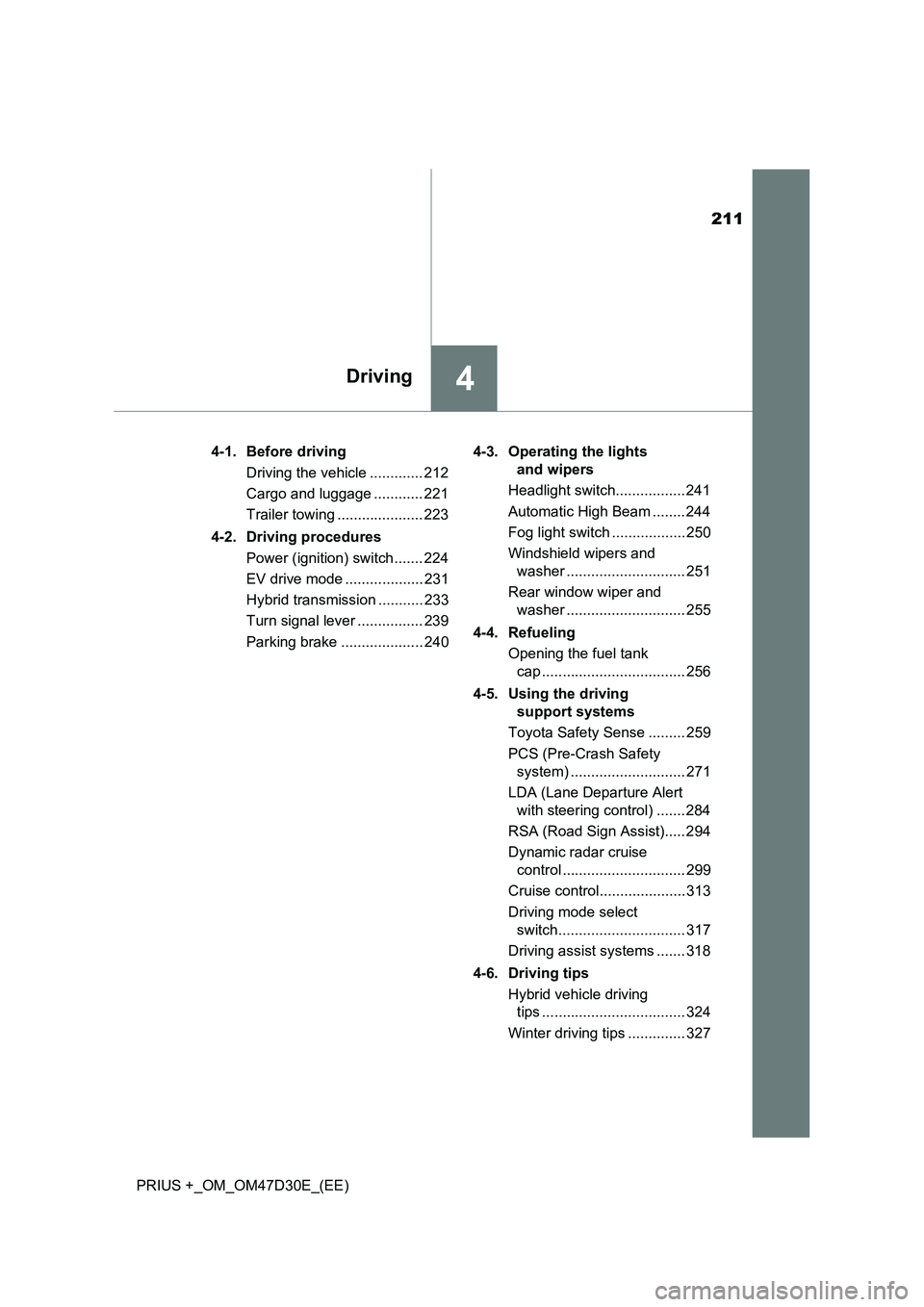

PRIUS +_OM_OM47D30E_(EE)4-1. Before driving
Driving the vehicle ............. 212
Cargo and luggage ............ 221
Trailer towing ..................... 223
4-2. Driving procedures
Power (ignition) switch ....... 224
EV drive mode ................... 231
Hybrid transmission ........... 233
Turn signal lever ................ 239
Parking brake .................... 2404-3. Operating the lights
and wipers
Headlight switch................. 241
Automatic High Beam ........ 244
Fog light switch .................. 250
Windshield wipers and
washer ............................. 251
Rear window wiper and
washer ............................. 255
4-4. Refueling
Opening the fuel tank
cap ................................... 256
4-5. Using the driving
support systems
Toyota Safety Sense ......... 259
PCS (Pre-Crash Safety
system) ............................ 271
LDA (Lane Departure Alert
with steering control) ....... 284
RSA (Road Sign Assist)..... 294
Dynamic radar cruise
control .............................. 299
Cruise control..................... 313
Driving mode select
switch............................... 317
Driving assist systems ....... 318
4-6. Driving tips
Hybrid vehicle driving
tips ................................... 324
Winter driving tips .............. 327

259
4
4-5. Using the driving support systems
Driving
PRIUS +_OM_OM47D30E_(EE)

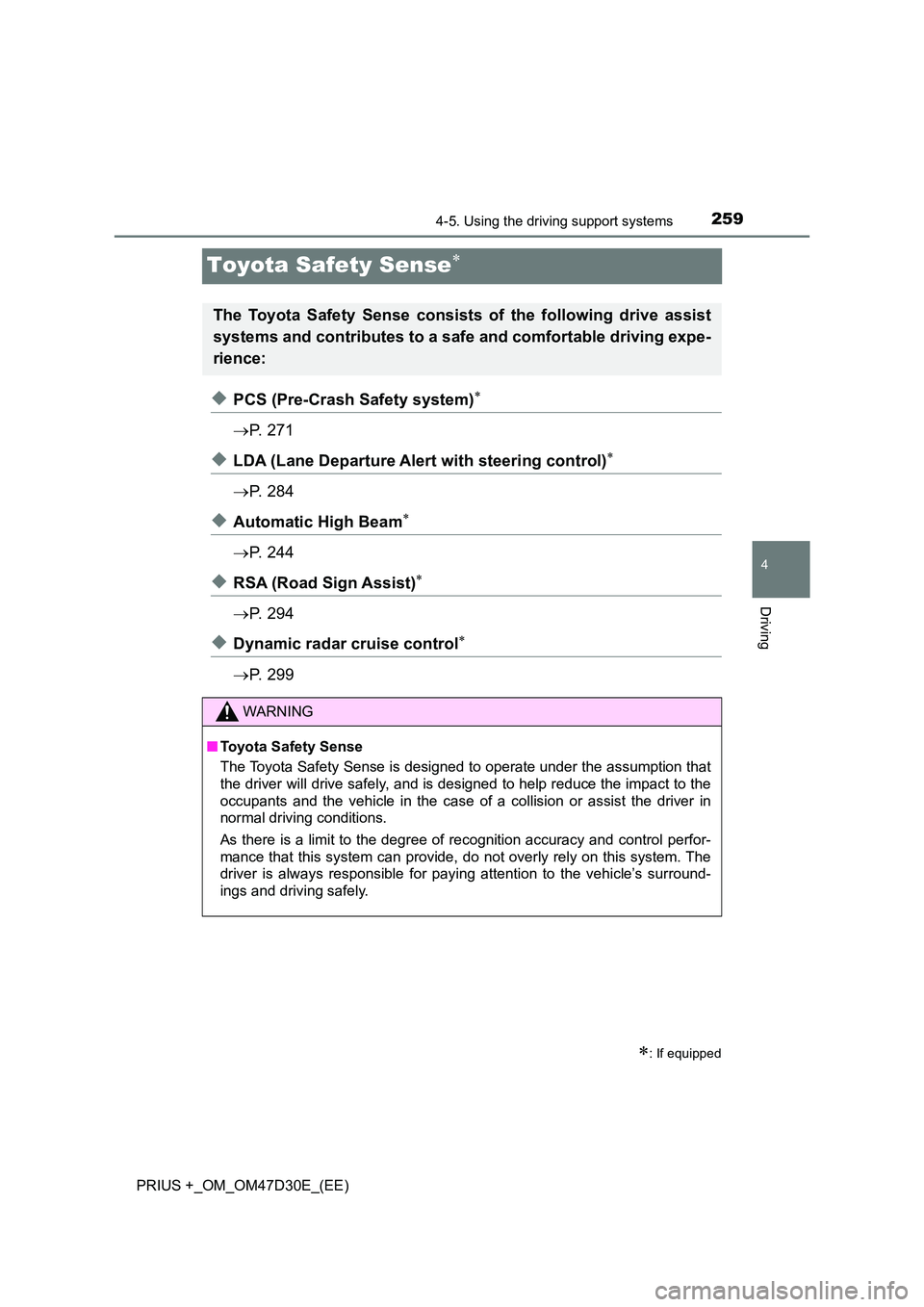

Toyota Safety Sense
◆PCS (Pre-Crash Safety system)
P. 2 7 1
◆LDA (Lane Departure Alert with steering control)
P. 2 8 4
◆Automatic High Beam
P. 2 4 4
◆RSA (Road Sign Assist)
P. 2 9 4
◆Dynamic radar cruise control
P. 2 9 9
: If equipped
The Toyota Safety Sense consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
WARNING
■ Toyota Safety Sense
The Toyota Safety Sense is designed to operate under the assumption that
the driver will drive safely, and is designed to help reduce the impact to the
occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.

2844-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)
LDA (Lane Departure Alert with steering
control)

When driving on highways and freeways with white (yellow) lines, this
function alerts the driver when the vehicle might depart from its lane
and provides assistance by operating the steering wheel to keep the
vehicle in its lane.
The LDA system recognizes visi-
ble white (yellow) lines with the
camera sensor on the upper por-
tion of the front windshield.
: If equipped
Summary of functions

2854-5. Using the driving support systems
4
Driving
PRIUS +_OM_OM47D30E_(EE)

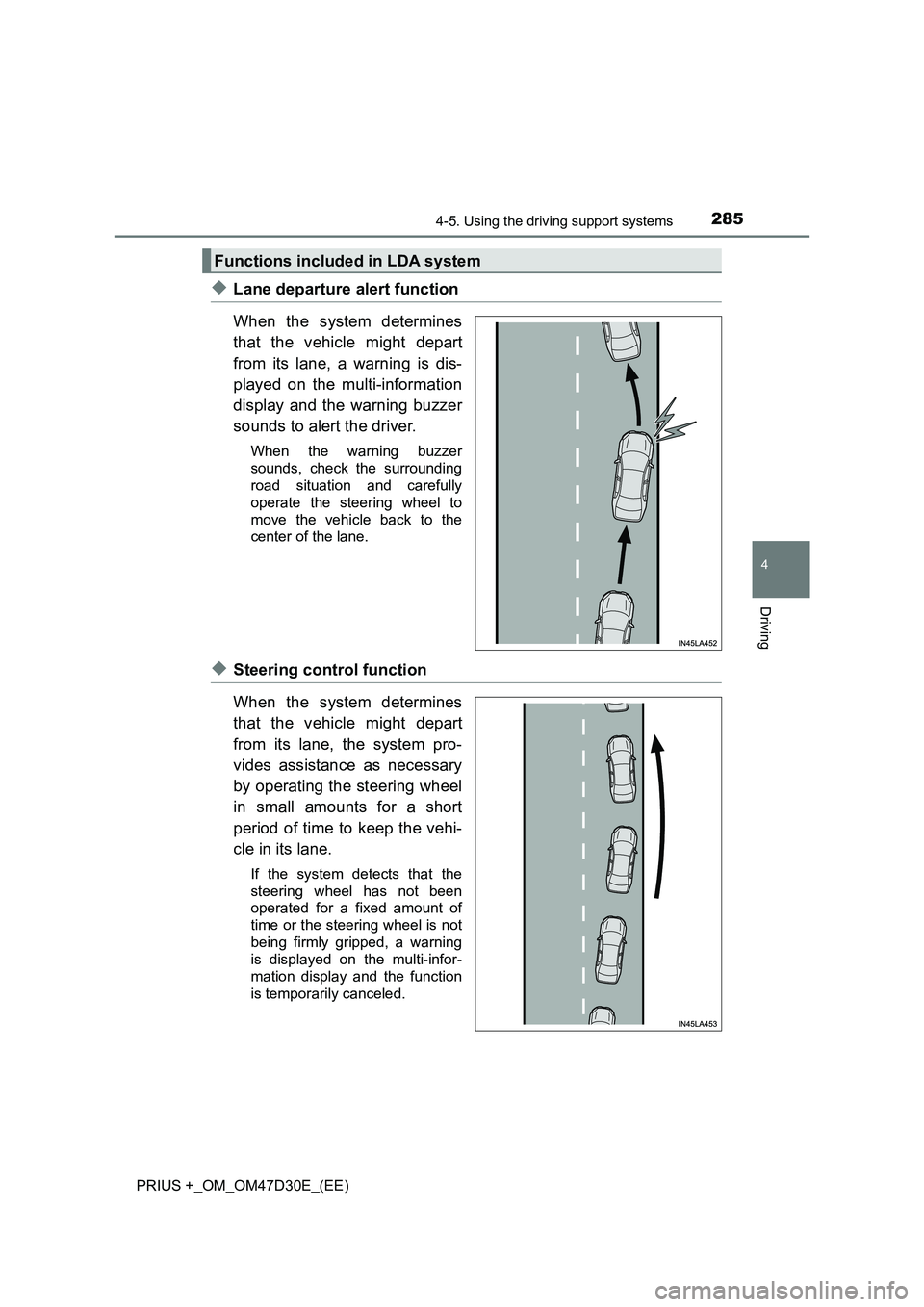

◆Lane departure alert function
When the system determines
that the vehicle might depart
from its lane, a warning is dis-
played on the multi-information
display and the warning buzzer
sounds to alert the driver.
When the warning buzzer
sounds, check the surrounding
road situation and carefully
operate the steering wheel to
move the vehicle back to the
center of the lane.
◆Steering control function
When the system determines
that the vehicle might depart
from its lane, the system pro-
vides assistance as necessary
by operating the steering wheel
in small amounts for a short
period of time to keep the vehi-
cle in its lane.
If the system detects that the
steering wheel has not been
operated for a fixed amount of
time or the steering wheel is not
being firmly gripped, a warning
is displayed on the multi-infor-
mation display and the function
is temporarily canceled.
Functions included in LDA system

2904-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)

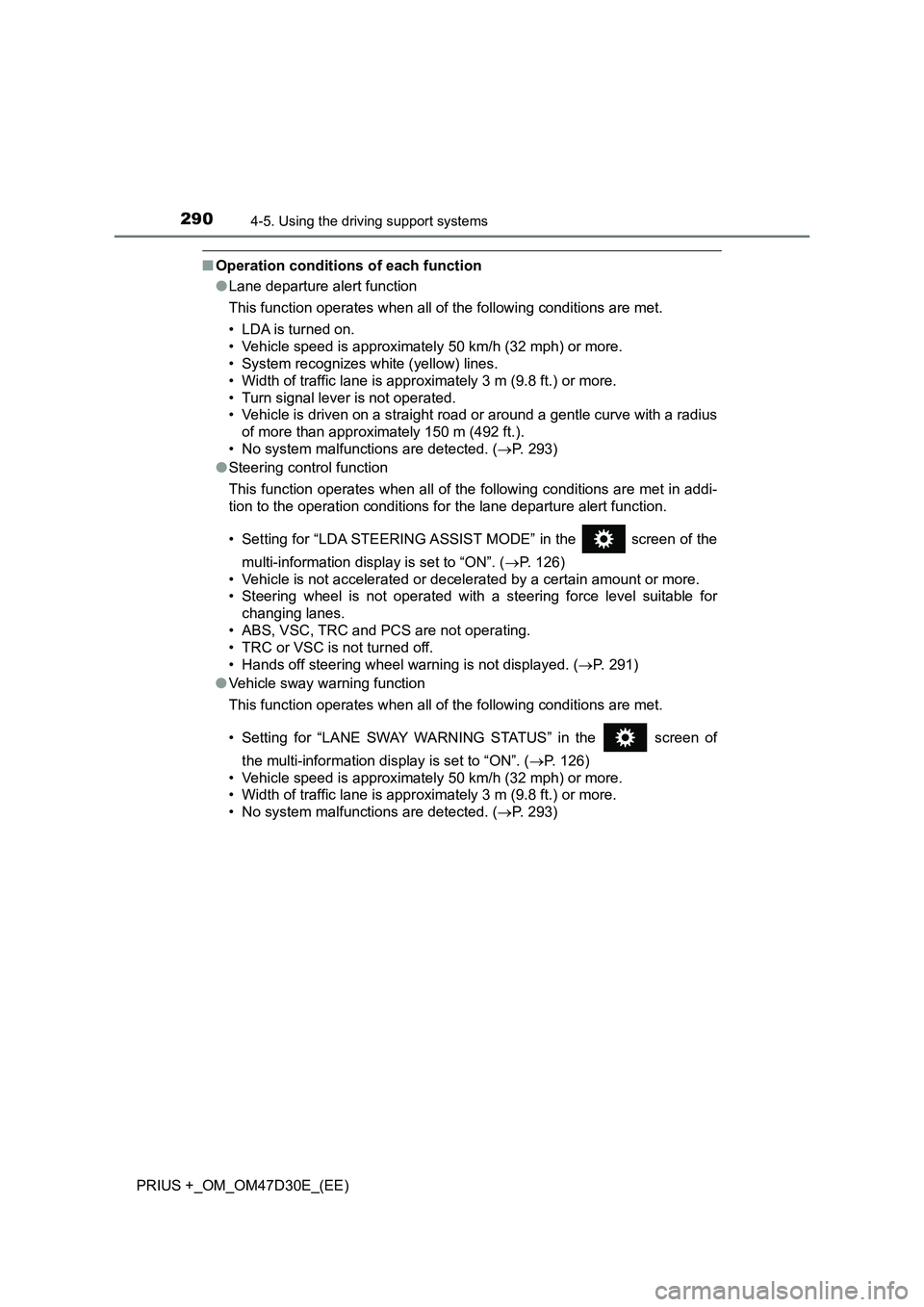

■Operation conditions of each function
●Lane departure alert function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a radius
of more than approximately 150 m (492 ft.).
• No system malfunctions are detected. (P. 293)
●Steering control function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions for the lane departure alert function.
• Setting for “LDA STEERING ASSIST MODE” in the screen of the
multi-information display is set to “ON”. (P. 126)
• Vehicle is not accelerated or decelerated by a certain amount or more.
• Steering wheel is not operated with a steering force level suitable for
changing lanes.
• ABS, VSC, TRC and PCS are not operating.
• TRC or VSC is not turned off.
• Hands off steering wheel warning is not displayed. (P. 291)
●Vehicle sway warning function
This function operates when all of the following conditions are met.
• Setting for “LANE SWAY WARNING STATUS” in the screen of
the multi-information display is set to “ON”. (P. 126)
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• No system malfunctions are detected. (P. 293)

2934-5. Using the driving support systems
4
Driving

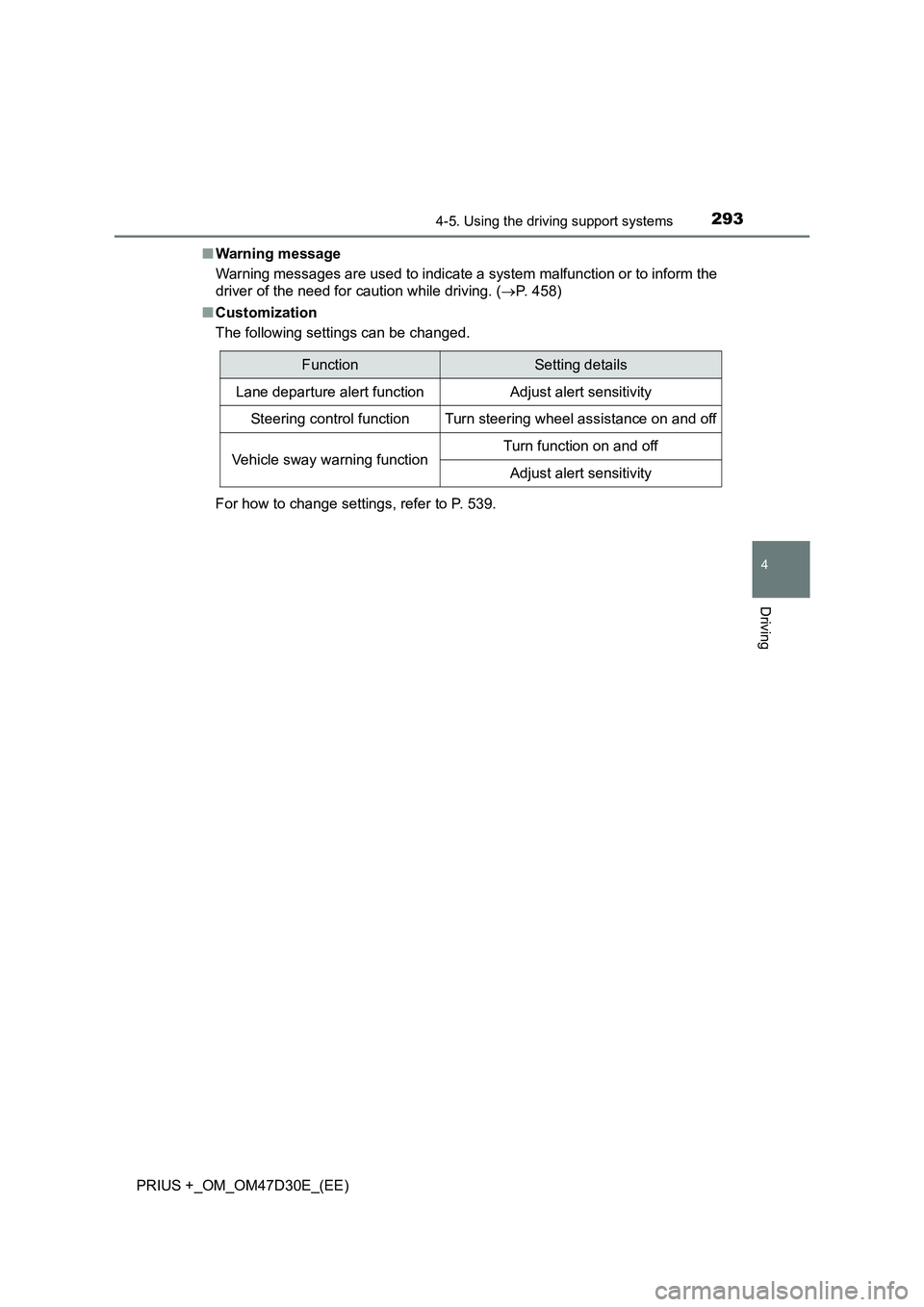

PRIUS +_OM_OM47D30E_(EE)■Warning message
Warning messages are used to indicate a system malfunction or to inform the
driver of the need for caution while driving. (P. 458)
■Customization
The following settings can be changed.
For how to change settings, refer to P. 539.
FunctionSetting details
Lane departure alert functionAdjust alert sensitivity
Steering control functionTurn steering wheel assistance on and off
Vehicle sway warning functionTurn function on and off
Adjust alert sensitivity
