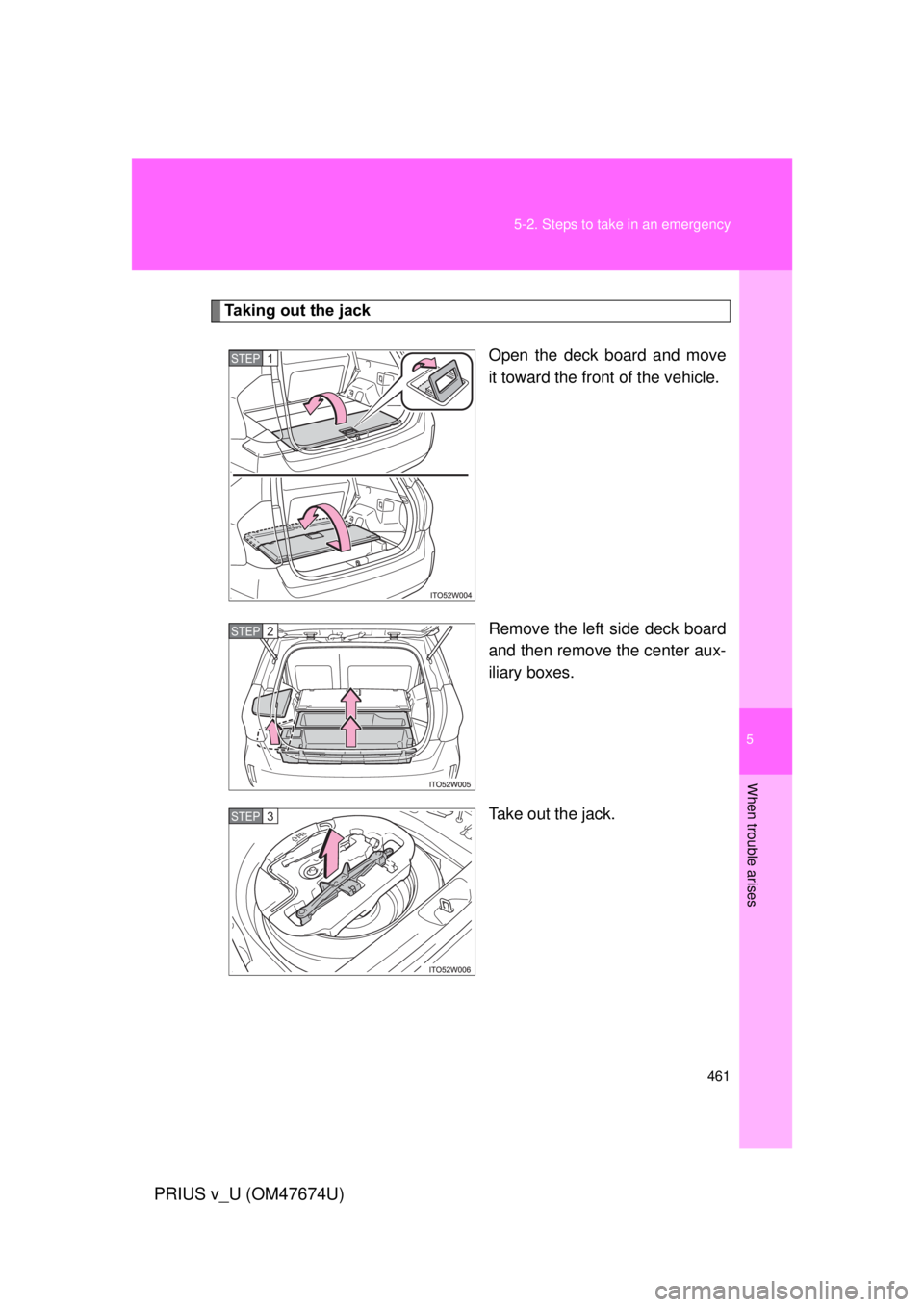

Taking out the jack
Open the deck board and move
it toward the front of the vehicle.
Remove the left side deck board
and then remove the center aux-
iliary boxes.
Take out the jack.
STEP 1
STEP 2
STEP 3

462 5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

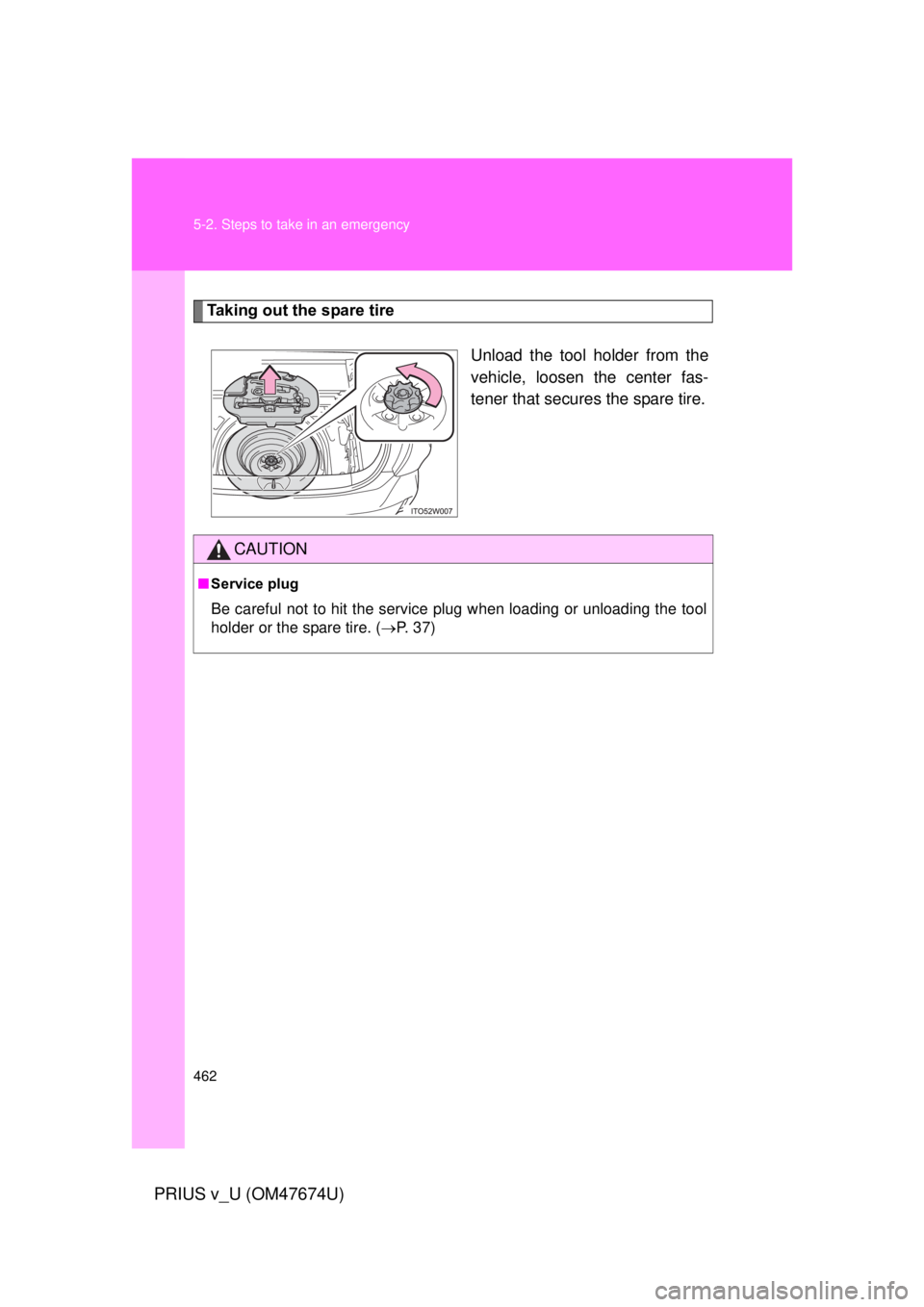

Taking out the spare tireUnload the tool holder from the
vehicle, loosen the center fas-
tener that secures the spare tire.
CAUTION
■Service plug
Be careful not to hit the service plug when loading or unloading the tool
holder or the spare tire. ( P. 3 7 )

5
When trouble arises
463
5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

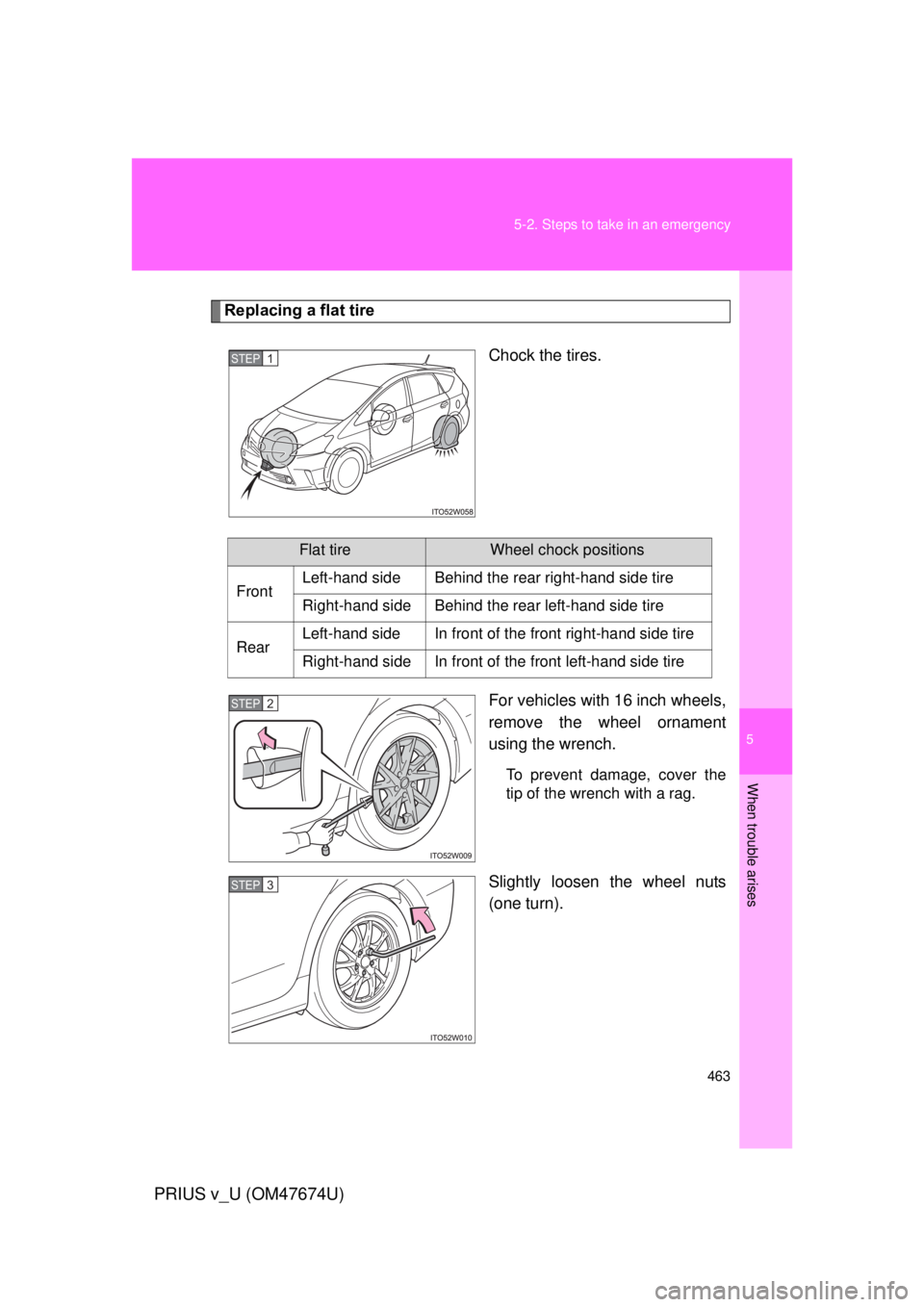

Replacing a flat tire
Chock the tires.
For vehicles with 16 inch wheels,
remove the wheel ornament
using the wrench.
To prevent damage, cover the
tip of the wrench with a rag.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2
STEP 3

464 5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

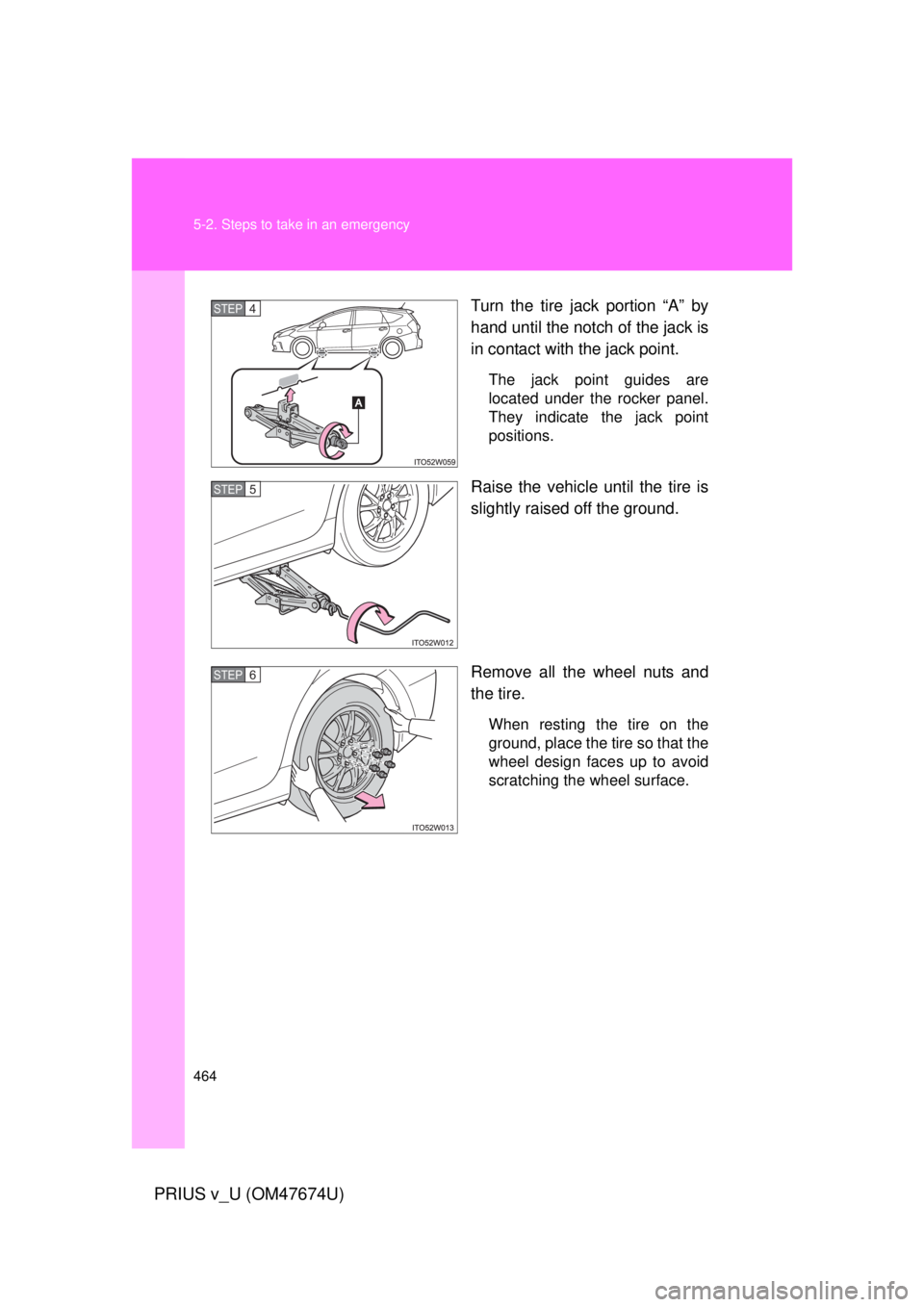

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are
located under the rocker panel.
They indicate the jack point
positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 4
STEP 5
STEP 6

5
When trouble arises
465
5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

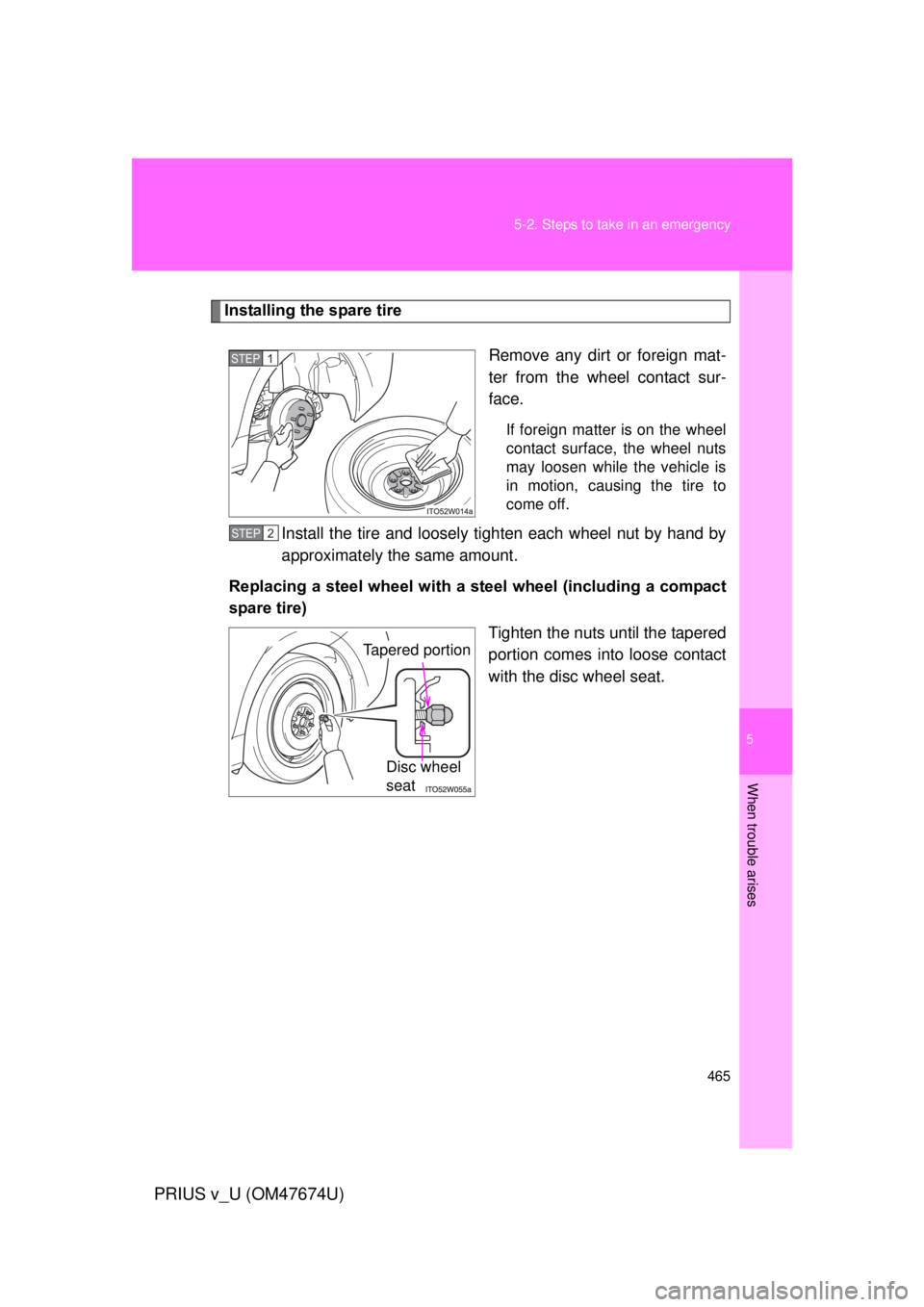

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a steel wheel (including a compact
spare tire) Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat

466 5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)
Replacing an aluminum wheel with a steel wheel (including a
compact spare tire)
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Replacing an aluminum wheel with an aluminum wheel
Turn the nut washers until they
come into contact with the disc
wheel.
Lower the vehicle.
Tapered portion
Disc wheel
seat
Disc wheel
Washer
STEP 3

5
When trouble arises
467
5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

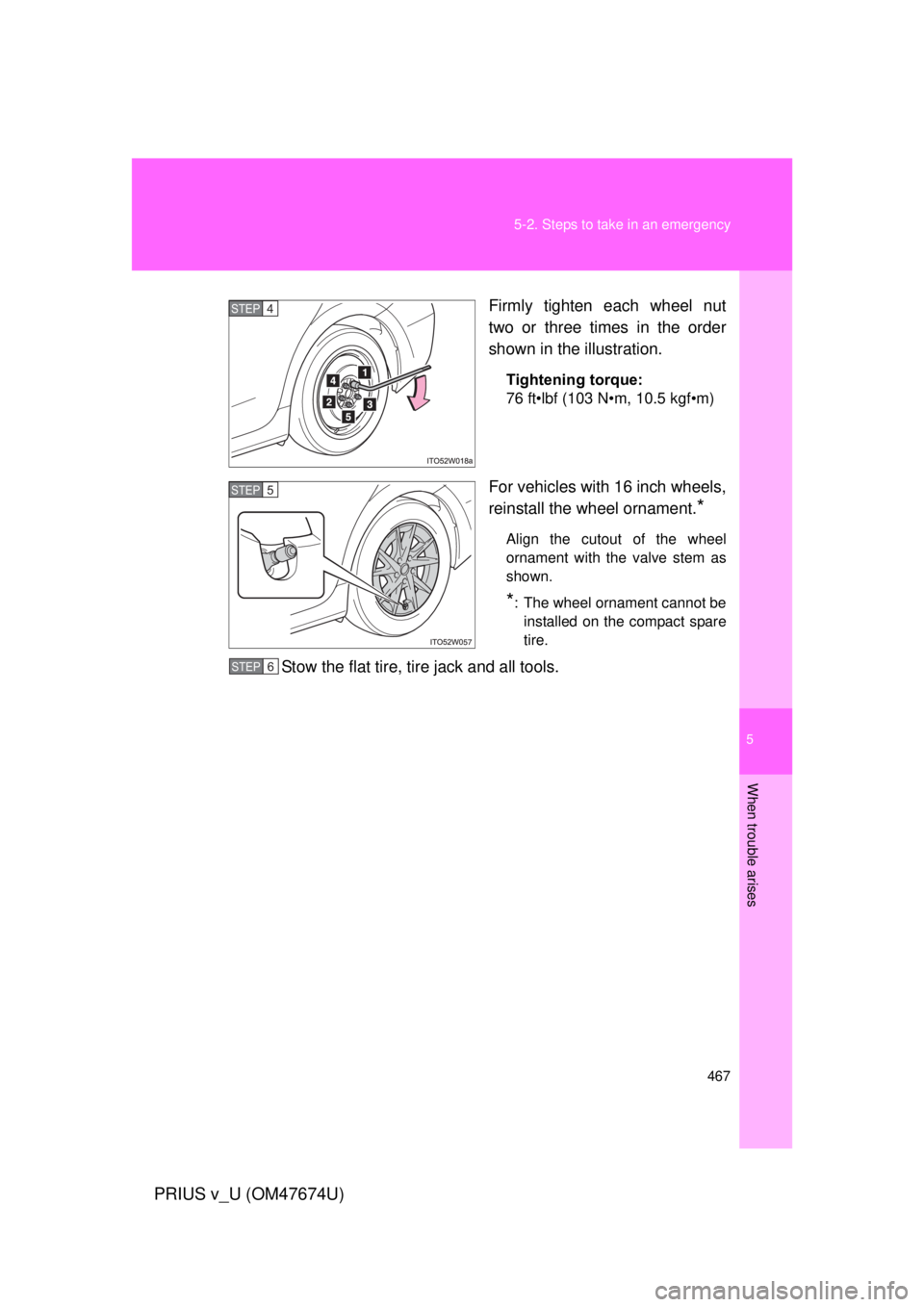

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
For vehicles with 16 inch wheels,
reinstall the wheel ornament.
*
Align the cutout of the wheel
ornament with the valve stem as
shown.
*: The wheel ornament cannot be
installed on the compact spare
tire.
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5
STEP 6

468 5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)
Stowing the flat tireFor vehicles with a 17-inch
wheel: Before stowing the flat
tire, remove the center wheel
ornament by pushing from the
reverse side.
Place the flat tire on the deck
board, and pass the belt through
the lower-right cargo hook and
then through the hole in the cen-
ter of the tire.
Pass the belt through the lower-
left cargo hook.
STEP 1
STEP 2
STEP 3

5
When trouble arises
469
5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)

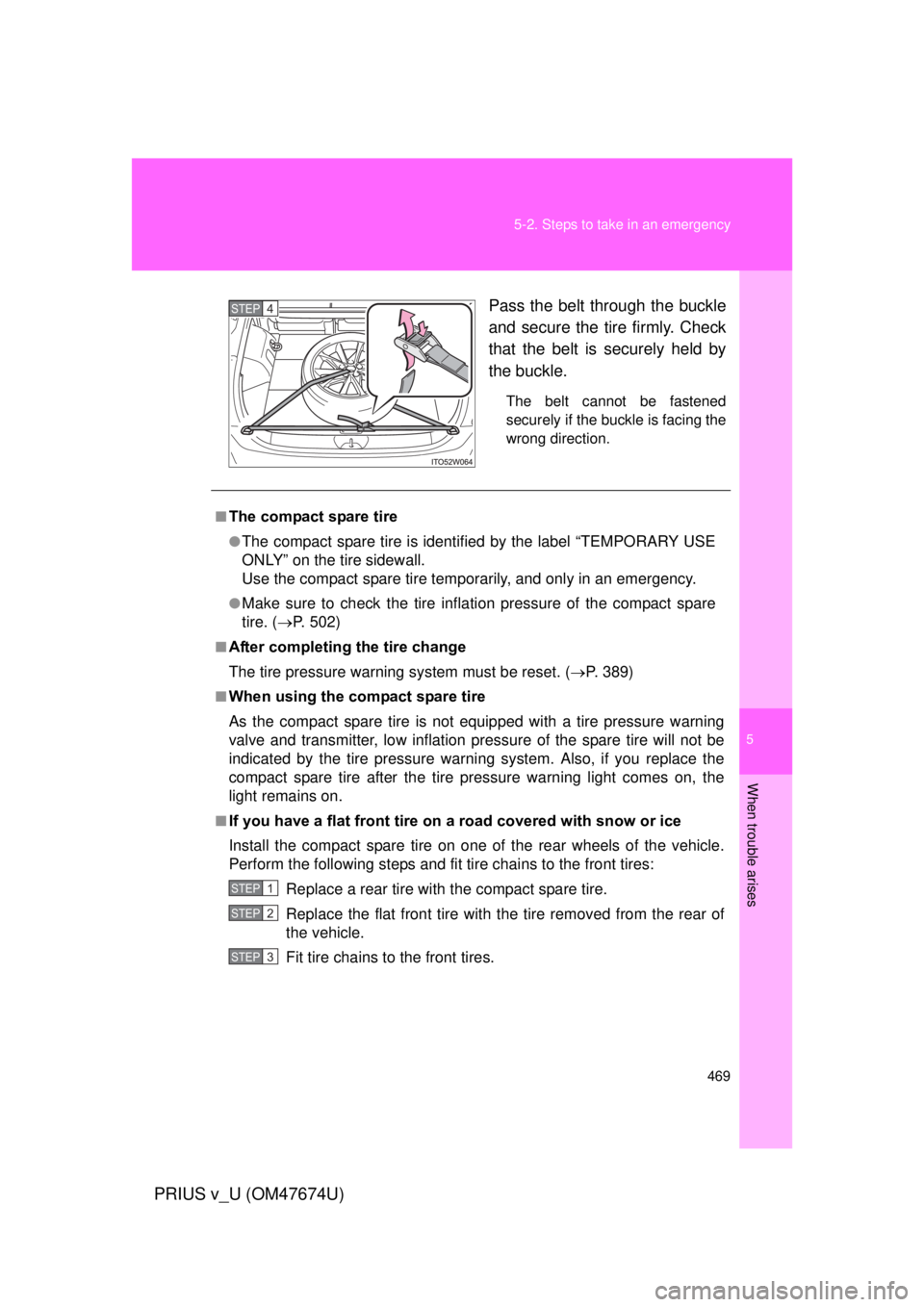

Pass the belt through the buckle
and secure the tire firmly. Check
that the belt is securely held by
the buckle.
The belt cannot be fastened
securely if the buckle is facing the
wrong direction.
STEP 4
■The compact spare tire
●The compact spare tire is identifi
ed by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 502)
■After completing the tire change
The tire pressure warning system must be reset. (P. 389)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
STEP 1
STEP 2
STEP 3

470 5-2. Steps to take in an emergency
PRIUS v_U (OM47674U)
CAUTION
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use
with your vehicle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
●Cruise control (if equipped)
●Dynamic radar cruise control (if equipped)
●Pre-collision system (if equipped)
●EPS
●Rear view monitor system (if equipped)
●Navigation system (if equipped)
