transmission TOYOTA PRIUS V 2014 ZVW40 / 1.G Owners Manual

1
2
3
4
5
6
7
3
PRIUS v_OM_OM47840U_(U)
2-1. Driving proceduresDriving the vehicle............... 164
Power (ignition) switch ........ 175
EV drive mode .................... 182
Hybrid transmission ............ 185
Turn signal lever ................. 194
Parking brake ...................... 195
Horn .................................... 196
2-2. Instrument cluster Gauges and meters ............ 197
Indicators and warning lights ................................. 208
2-3. Operating the lights and windshield wipers
Headlight switch .................. 213
Fog light switch ................... 219
Windshield wipers and washer .............................. 221
Rear window wiper and washer .............................. 226
Headlight cleaner switch ..... 228 2-4. Using other driving systems
Cruise control ..................... 229
Dynamic radar cruise control .............................. 233
Driving assist systems ........ 250
Hill-start assist control ........ 254
PCS (Pre-Collision System) ............................ 256
2-5. Driving information Cargo and luggage ............. 264
Vehicle load limits............... 270
Winter driving tips ............... 271
Trailer towing ...................... 275
Dinghy towing ..................... 276
2When driving

34 1-1. Hybrid system
PRIUS v_OM_OM47840U_(U)
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able
to move. For safety, apply the parking brake and make sure to shift the shift
position to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
●The brake system operation sound heard from the front of the vehicle
when the driver’s door is opened.
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) when the
hybrid system starts or stops.
● Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal
is depressed and accelerator is loosened.
● Other sounds, such as motors and mechanical noises, may be heard
from the brake system when the brake pedal is depressed.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent. (
P. 37)
● The operation sound of the air conditioning system (air conditioning com-
pressor, blower motor).

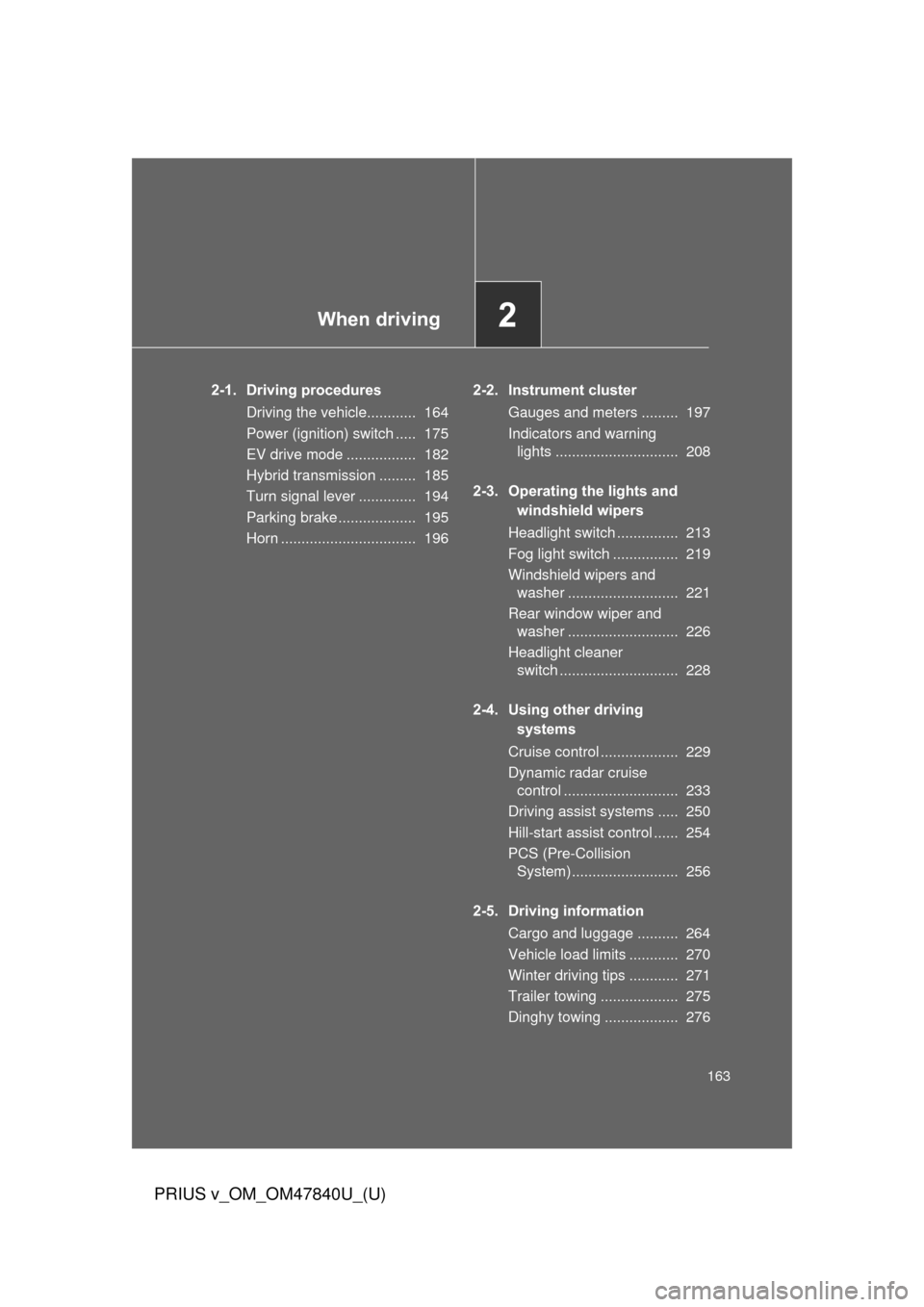

When driving2
163
PRIUS v_OM_OM47840U_(U)
2-1. Driving proceduresDriving the vehicle............ 164
Power (ignition) switch ..... 175
EV drive mode ................. 182
Hybrid transmission ......... 185
Turn signal lever .............. 194
Parking brake ................... 195
Horn ................................. 196 2-2. Instrument cluster
Gauges and meters ......... 197
Indicators and warning lights .............................. 208
2-3. Operating the lights and windshield wipers
Headlight switch ............... 213
Fog light switch ................ 219
Windshield wipers and washer ........................... 221
Rear window wiper and washer ........................... 226
Headlight cleaner switch ............................. 228
2-4. Using other driving systems
Cruise control ................... 229
Dynamic radar cruise control ............................ 233
Driving assist systems ..... 250
Hill-start assist control ...... 254
PCS (Pre-Collision System).......................... 256
2-5. Driving information Cargo and luggage .......... 264
Vehicle load limits ............ 270
Winter driving tips ............ 271
Trailer towing ................... 275
Dinghy towing .................. 276

168 2-1. Driving procedures
PRIUS v_OM_OM47840U_(U)
CAUTION
●Do not shift the shift position to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle\
control.
● Do not shift the shift position to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle\
control.
● Do not shift the shift position to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle\
control.
● Moving the shift position to N while the vehicle is moving will disengage
the hybrid system. Engine braking is not available with the hybrid system
disengaged.
● During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or braking control,
however, power assist to the steering will be lost. This will make it more
difficult to steer smoothly, so you should pull over and stop the vehicle as
soon as it is safe to do so.
In the event of an emergency, such as if it becomes impossible to stop the
vehicle in the normal way: P. 493
● Use engine braking (shift position B instead of shift position D) to maintain
a safe speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 185)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents,
resulting in death or serious injury.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle, as this may result in death or serious injury.

174 2-1. Driving procedures
PRIUS v_OM_OM47840U_(U)
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
●Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
● Brake function
● Changes in quantity and quality of engine oil, transmission fluid for the
hybrid system, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.
If the P position control system is damaged by flooding, it may not be possi-
ble to shift the shift position to P, or from P to other positions. When the shift
position cannot be changed from P to any other position, the front wheels
will lock, and you will be unable to tow the vehicle with the front wheels on
the ground, as the front wheels may be locked. In this case, transport the
vehicle with both front wheels or all four wheels lifted.

185
2-1. Driving procedures
PRIUS v_OM_OM47840U_(U)
2
When driving

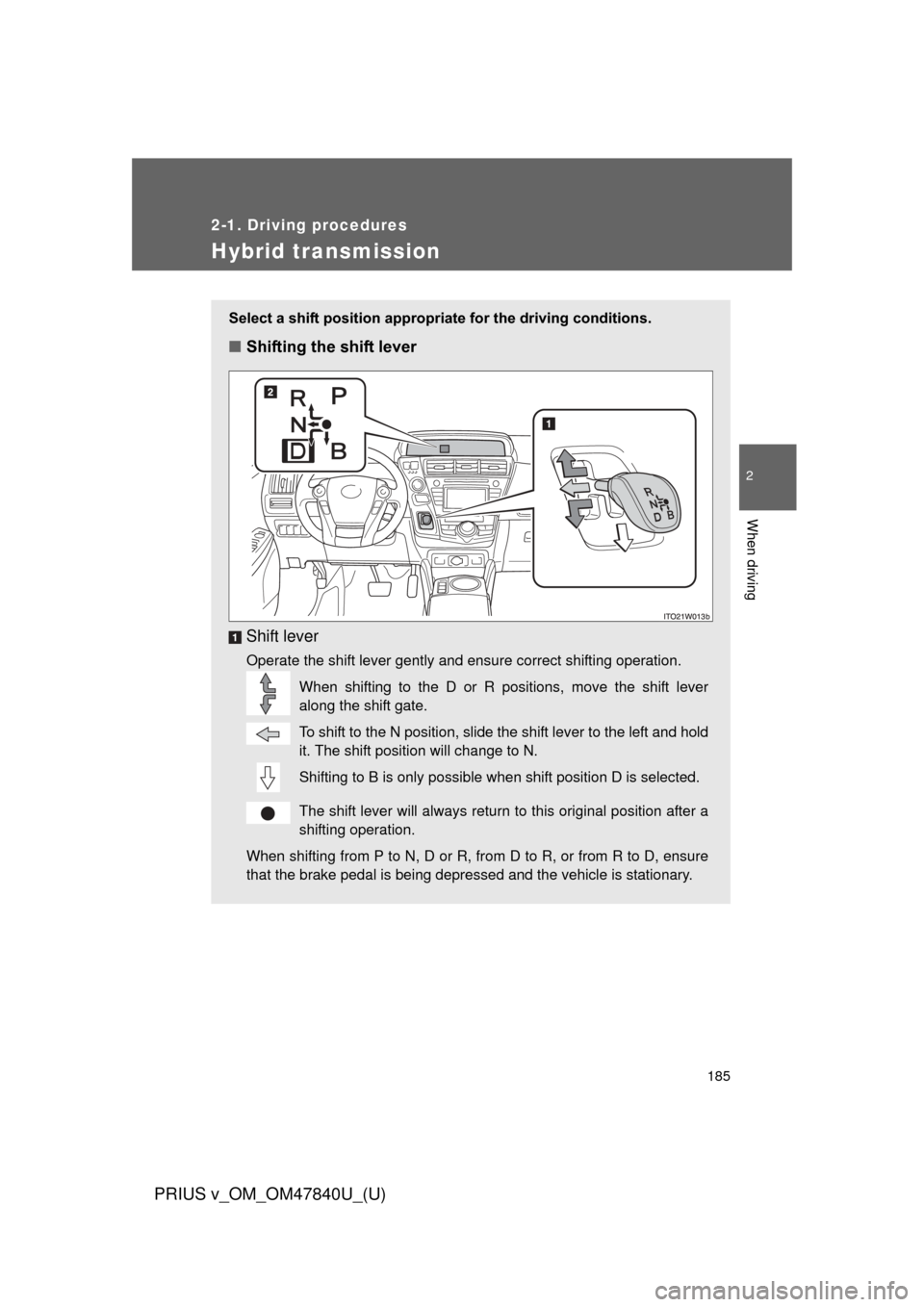

Hybrid transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
Shift lever
Operate the shift lever gently and ensure correct shifting operation.
When shifting to the D or R positions, move the shift lever
along the shift gate.
To shift to the N position, slide the shift lever to the left and hold
it. The shift position will change to N.
Shifting to B is only possible when shift position D is selected.
The shift lever will always return to this original position after a
shifting operation.
When shifting from P to N, D or R, from D to R, or from R to D, ensure
that the brake pedal is being depressed and the vehicle is stationary.

359
4-2. Maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
Luggage compartment
Vehicle interior
ItemsCheck points
12-volt battery Check the connections. (P. 384)
ItemsCheck points
Accelerator pedal
• The accelerator pedal should
move smoothly (without uneven
pedal effort or catching).
Hybrid transmission “Park” mech-
anism • When parked on a slope and the
shift position is in P, is the vehicle
securely stopped?
Brake pedal • Does the brake pedal move
smoothly?
• Does the brake pedal have appro- priate clearance from the floor?
( P. 503)
• Does the brake pedal have the correct amount of free play? (P. 503)
Brakes • The vehicle should not pull to one
side when the brakes are applied.
• The brakes should work effec- tively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the
brakes are applied.

417
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
FUSEAmpereCircuit
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, occupant detection system
(ECU and sensors), smart key
system
29 PANEL 10AAir conditioning system, emer-
gency flashers, seat heaters,
transmission, P position switch,
navigation system, advanced
parking guidance system, head-
light cleaner, seat belt reminder
light, headlight leveling system,
glove box light, clock, audio sys-
tem
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights

5
When trouble arises
437
5-1. Essential information
PRIUS v_OM_OM47840U_(U)

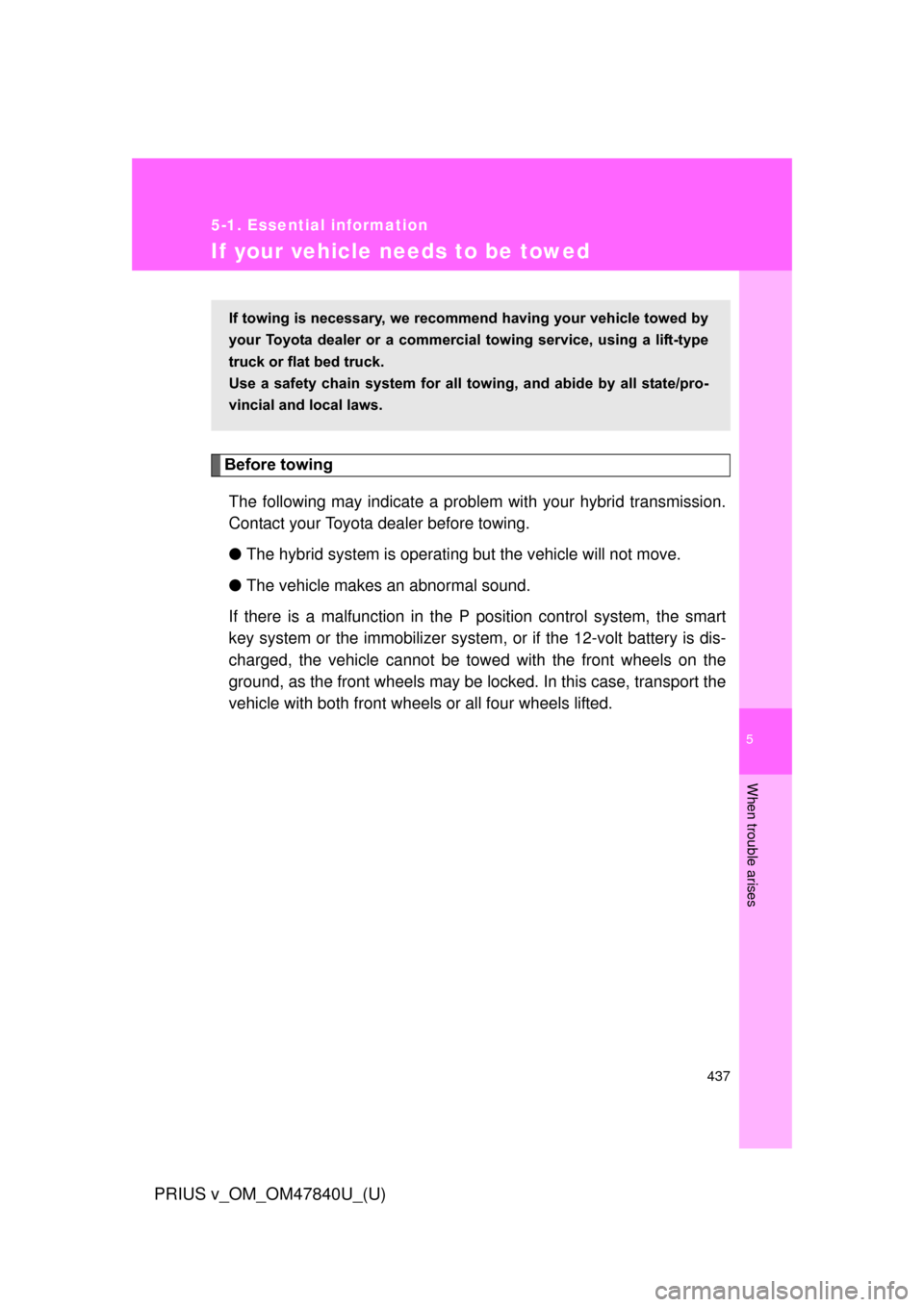

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your hybrid transmission.
Contact your Toyota dealer before towing.
● The hybrid system is operating but the vehicle will not move.
● The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, the smart
key system or the immobilizer system , or if the 12-volt battery is dis-
charged, the vehicle cannot be tow ed with the front wheels on the
ground, as the front wheels may be locked. In this case, transport the
vehicle with both front wheels or all four wheels lifted.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

442 5-1. Essential information
PRIUS v_OM_OM47840U_(U)
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
● Do not turn the “POWER” switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
● If the hybrid system is off, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■ Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
NOTICE
■To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent causing serious damage to the hybrid transmission when
towing using a wheel-lift type truck
Never tow this vehicle from the rear with the front wheels on the ground.
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent causing serious damage to the hybrid transmission in
emergency towing
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the hybrid transmission.
