CD player TOYOTA PRIUS V 2017 ZVW40 / 1.G Navigation Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2017, Model line: PRIUS V, Model: TOYOTA PRIUS V 2017 ZVW40 / 1.GPages: 290, PDF Size: 7.15 MB
Page 125 of 290

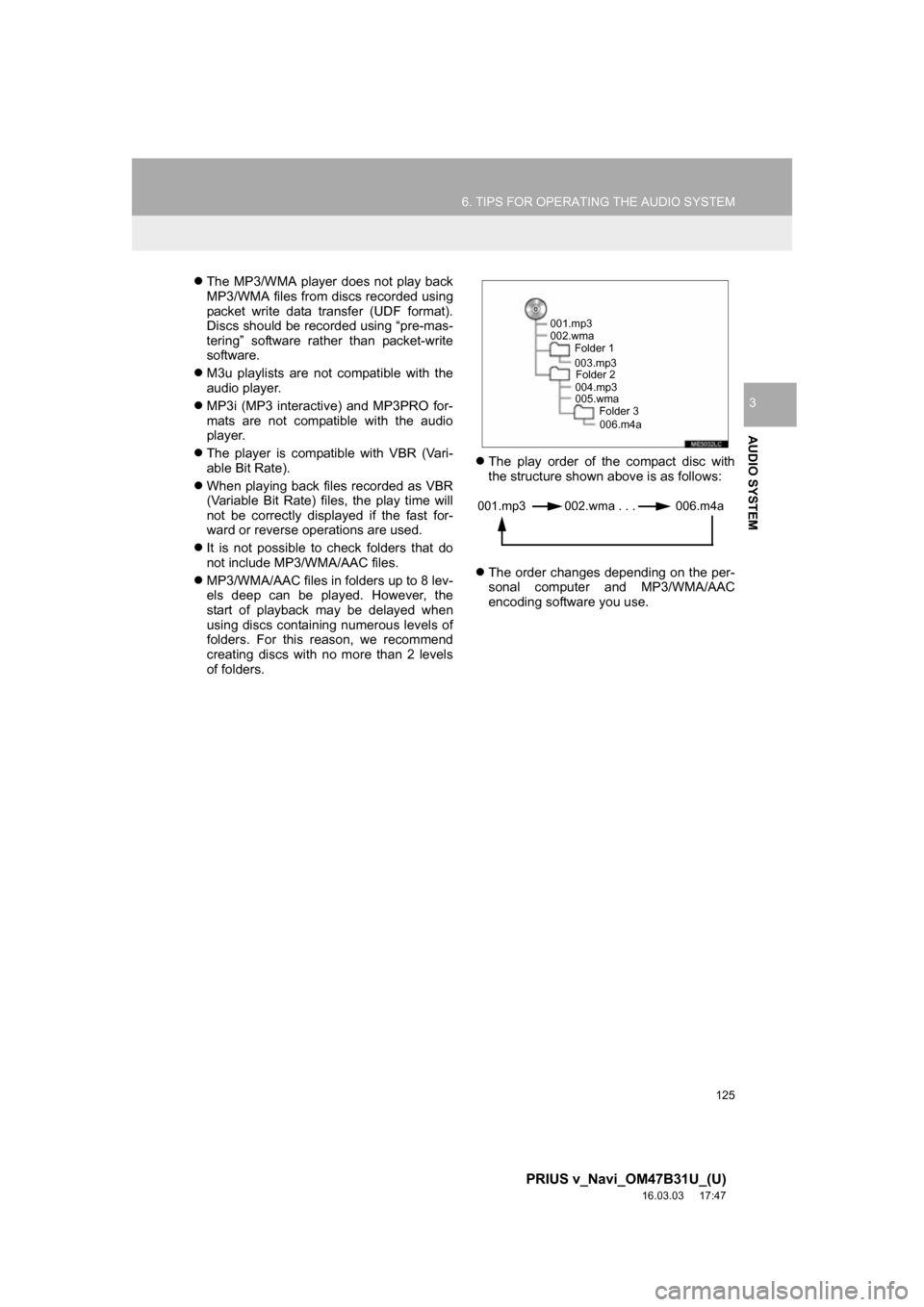

125
6. TIPS FOR OPERATING THE AUDIO SYSTEM
PRIUS v_Navi_OM47B31U_(U)
16.03.03 17:47
AUDIO SYSTEM
3
The MP3/WMA player does not play back
MP3/WMA files from discs recorded using
packet write data transfer (UDF format).
Discs should be recorded using “pre-mas-
tering” software rather than packet-write
software.
M3u playlists are not compatible with the
audio player.
MP3i (MP3 interactive) and MP3PRO for-
mats are not compatible with the audio
player.
The player is compatible with VBR (Vari-
able Bit Rate).
When playing back files recorded as VBR
(Variable Bit Rate) files, the play time will
not be correctly displayed if the fast for-
ward or reverse operations are used.
It is not possible to check folders that do
not include MP3/WMA/AAC files.
MP3/WMA/AAC files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels of
folders. For this reason, we recommend
creating discs with no more than 2 levels
of folders.
The play order of the compact disc with
the structure shown above is as follows:
The order changes depending on the per-
sonal computer and MP3/WMA/AAC
encoding software you use.
001.mp3
002.wma
Folder 1
003.mp3Folder 2
004.mp3
005.wma Folder 3
006.m4a
001.mp3 002.wma . . . 006.m4a
Page 266 of 290

266
2. Entune App Suite OPERATION
PRIUS v_Navi_OM47B31U_(U)
16.03.03 17:47
IF A MESSAGE APPEARS ON THE SCREEN
When problems occur starting up the application player, a message will appear on
the screen. Referring to the table below to identify the problem, take the suggested
corrective action. The following messages are only a few examples. If a message
other than the following is displayed, follow the instructions displayed on \
the
screen.
MessageDisplay conditionsCorrective action
“The Phone is not connected.
For more information, please
visit toyota.com.”The cellular phone cannot be
connected.
Refer to http://
www.toyota.com/entune/ to
confirm if the phone is com-
patible or not.
“To use the services, an ac-
tive application needs to be
running on your phone. For
more information, please visit
toyota.com.”
The Entune App Suite appli-
cation cannot be connected
to Bluetooth SPP.
Refer to http://www.toyota.com/entune/ to
confirm if the phone is
Bluetooth* SPP compatible or
not, and then activate the En-
tune App Suite application on
your phone.
*: Bluetooth is a registered trade mark of Bluetooth SIG, Inc.
INFORMATION
●The actual messages displayed on screen may differ from the messages in this manual.
Page 276 of 290

276
ALPHABETICAL INDEX
PRIUS v_Navi_OM47B31U_(U)
16.03.03 17:47
Memory points settings ........................... 231Deleting previous destinations ............ 240
Setting up address book...................... 235
Setting up areas to avoid..................... 238
Setting up home .................................. 232
Setting up preset destinations ............. 233
Mobile assistant ...................................... 139
Mobile assistant operation ...................... 139
N
Navigation operation ................................. 22
Navigation system........... ..................... ... 186
O
Operating information ............................. 119
CD player and disc .............................. 120
Error messages ................................... 127
File information .................................... 123
iPod ..................................................... 122
Radio ................................................... 119
Terms .................................................. 126
Operation flow: Guiding the route ............. 26
Other settings............................................ 57
P
Phone...................................................... 145
Phone operation (Hands-free system for cellular phones) .............................. 146
Phone/message settings......................... 166
“Contact/Call History Settings” screen .............................................. 168
“Messaging Settings” screen ............... 176
“Phone Display Settings” screen ......... 178
Phone/message settings screen ......... 166
“Sound Settings” screen ...................... 167
Q
Quick guide ...............................................11
Quick reference ...................20, 70, 146, 188 Map screen ..........................................188
Navigation options screen ...................190
R
Radio operation .........................................77
Receiving on the Bluetooth® phone ........157
Incoming calls ......................................157
Receiving weather information ................142 Displaying weather information ...........142
Registering home ......................................22
Registering preset destinations .................24
Registering/connecting Bluetooth
®
device ....................................................44
Certification............................................48
Profiles...................................................46
Registering a Bluetooth
® audio
player for the first time .......................45
Registering a Bluetooth
® phone for
the first time .......................................44
Route guidance .......................................221
Route guidance screen ...........................221 During freeway driving .........................223
Route overview ....................................222
Screen for route guidance ...................221
Turn list screen ....................................225
Turn-by-turn arrow screen ...................225
When approaching intersection ...........224
