TOYOTA PRIUS V 2017 ZVW40 / 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
Engine maintenance
Windshield washer fluid tank Engine oil level dipstick Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend
the life of your vehicle and maintain performance. Please refer to the “\
Warranty
& Maintenance Guide.” Maintenance reset light instructions can be fou\
nd in
“Maintenance Requirements Chapter” in Owner’s Manual.

10
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are s\
hown
on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
FEATURES/OPERATIONSHybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes\
, or
turned OFF.
- Doors lock when shifting from Park.
- Doors lock when the vehicle speed is approximately 12 mph or higher.
- Doors unlock when shifting into Park.
- Doors unlock when the driver’s door is opened within 10 seconds aft\
er turning the “POWER” switch OFF.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal and
press the “POWER” switch briefly
and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
ECO MODE
POWER MODE
* The engine brake is the equivalent of downshifting. Shift to “B”\
when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.). \
While vehicle is
stopped, push “P” button to park.
Eco Mode helps achieve low fuel consumption during trips that involve fr\
equent
accelerating and braking.
Refer to the Owner’s Manual for more details.
Push
Reverse
Park button
Neutral
Drive
Engine brake*
Use when a higher level of response is desired, such as when driving in \
mountainous regions.
Refer to the Owner’s Manual for more details.
Transmission
Push
Push

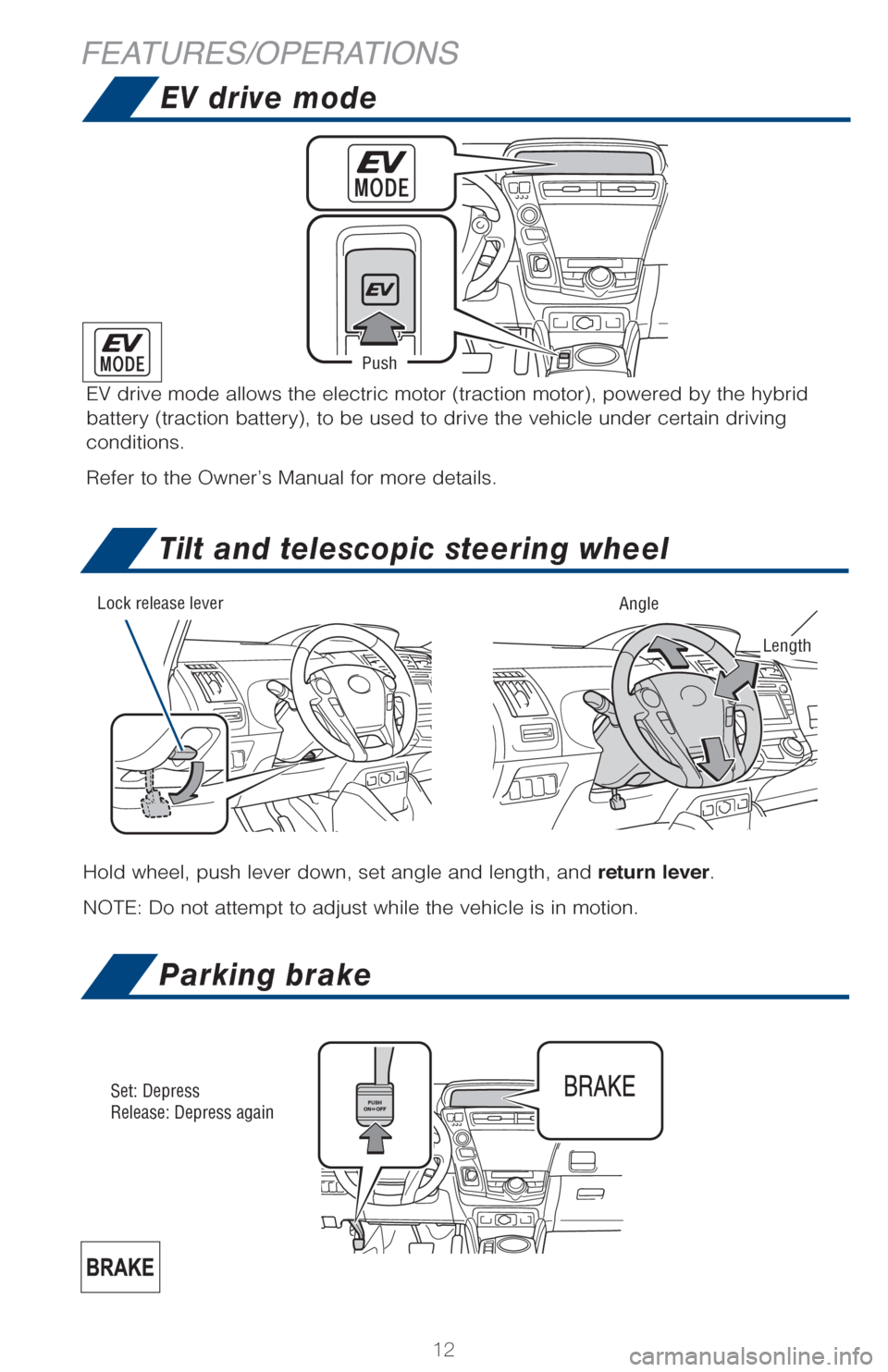

12
Push
EV drive mode allows the electric motor (traction motor), powered by t\
he hybrid
battery (traction battery), to be used to drive the vehicle under cert\
ain driving
conditions.
Refer to the Owner’s Manual for more details.
FEATURES/OPERATIONSEV drive mode
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Angle
Length
Tilt and telescopic steering wheel
Lock release lever

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Seat adjustments - Front
Seats - Head restraints
Seats - Flattening front seatbacks
Manual seat
Power seat (driver’s side)
*If equipped
Seat position
(forward/backward)
Seat cushion
angle*
Height crank
(driver side only) Seatback angle
Lumbar support
(driver side only)
Lumbar support
(driver side only)
Height crank
(driver side only)
Seatback angle
Seat position
(forward/backward)
(2) Remove head restraints(3) Pull up (manual) or turn (power)
(1) Move front seats forward (4) Flatten seatbacks
Lock release button

14
Pull up
FRONT
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Type AType B
FEATURES/OPERATIONS
Seat - Folding down rear seat
Windshield wipers & washers
REAR
Wash
and wipe Wash
and wipe
Wipe Wipe
Interval
wipe Interval
wipe
Wash
and wipeWash
and wipe
Type A
Type A
Interval
wipe
Single
wipe
Single
wipe
Slow Slow
Fast Fast
Adjustment
frequency*
Adjustment
frequency*
Pull to wash and wipePull to wash and wipe
Interval
wipe

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

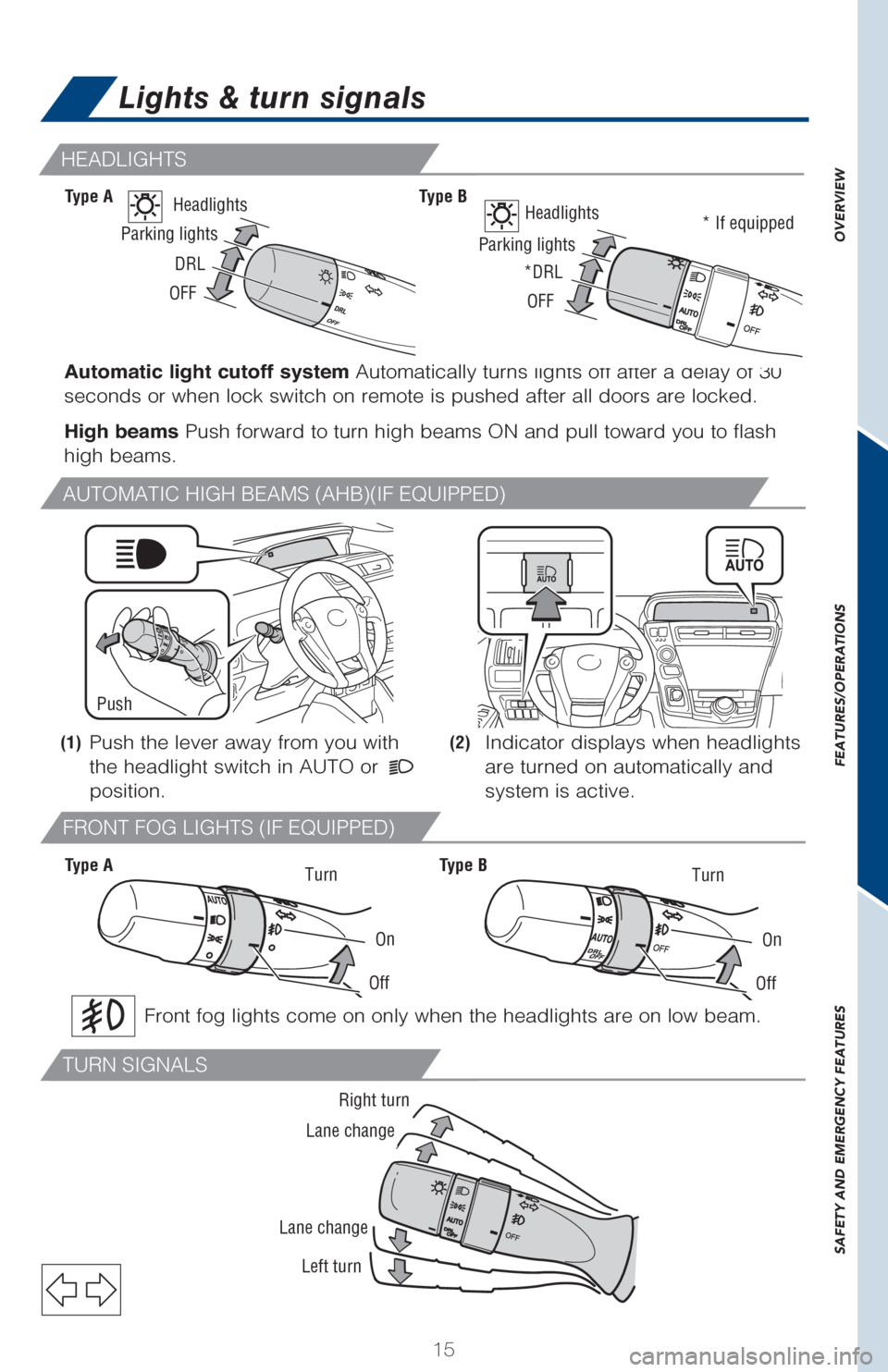

15
HEADLIGHTS
TURN SIGNALS
Push the lever away from you with
the headlight switch in AUTO or
position.
Indicator displays when headlights
are turned on automatically and
system is active.
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds or when lock switch on remote is pushed after all doors are lock\
ed.
High beams Push forward to turn high beams ON and pull toward you to flash
high beams.
Type A
(1) (2)
Type A Type B
Type B
FRONT FOG LIGHTS (IF EQUIPPED)
AUTOMATIC HIGH BEAMS (AHB)(IF EQUIPPED)
Lights & turn signals
Push
Front fog lights come on only when the headlights are on low beam.
Parking lights Headlights
OFF
DRL
Parking lights
Headlights
OFF
*DRL* If equipped
Turn Turn
Off Off
On
On
Right turn
Lane change
Lane change Left turn

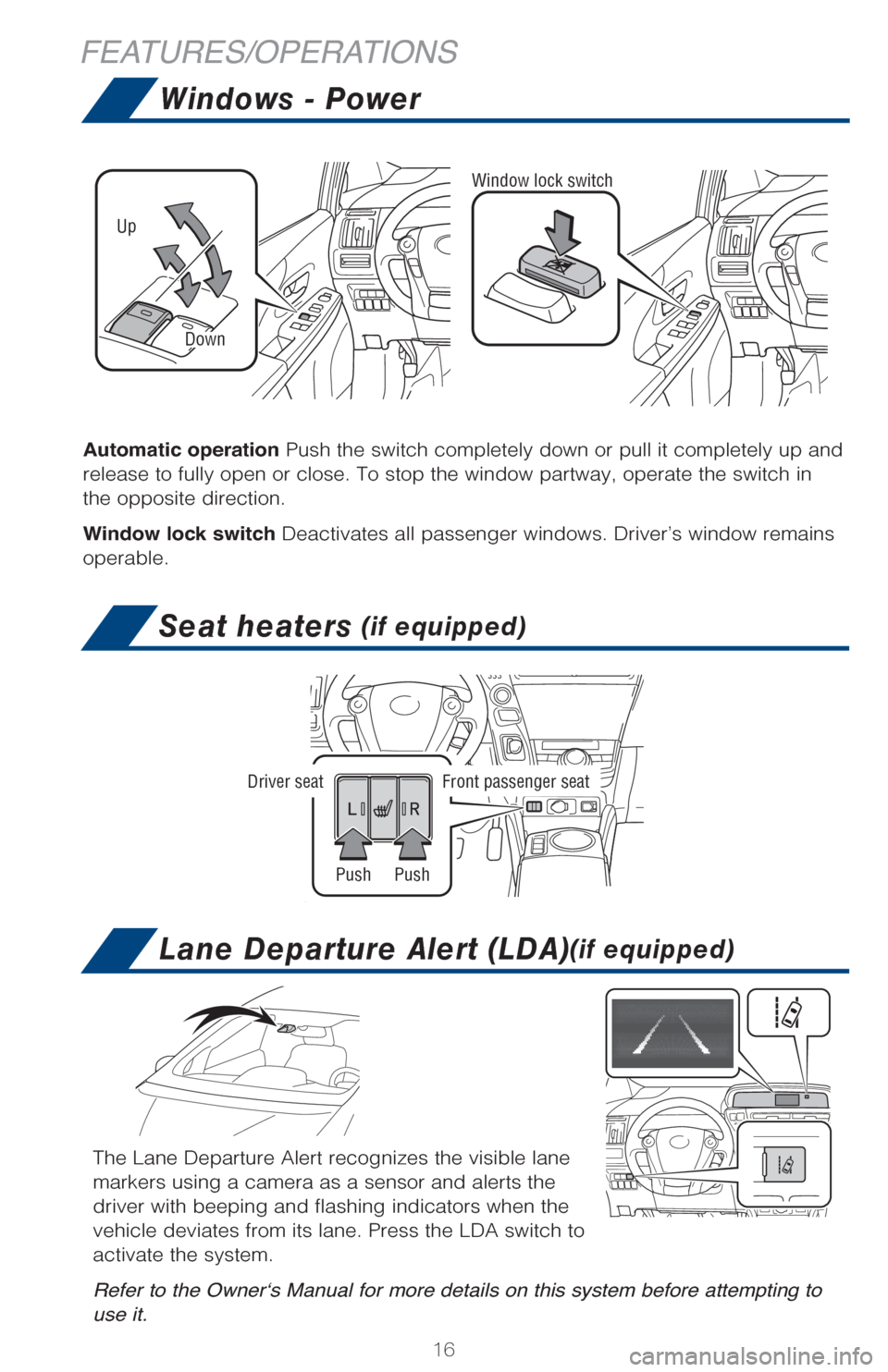

16
Push Push
Up
Down
Window lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the \
switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
The Lane Departure Alert recognizes the visible lane
markers using a camera as a sensor and alerts the
driver with beeping and flashing indicators when the
vehicle deviates from its lane. Press the LDA switch to
activate the system.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
FEATURES/OPERATIONS Windows - Power
Seat heaters (if equipped)
Lane Departure Alert (LDA)(if equipped)
Driver seatFront passenger seat

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

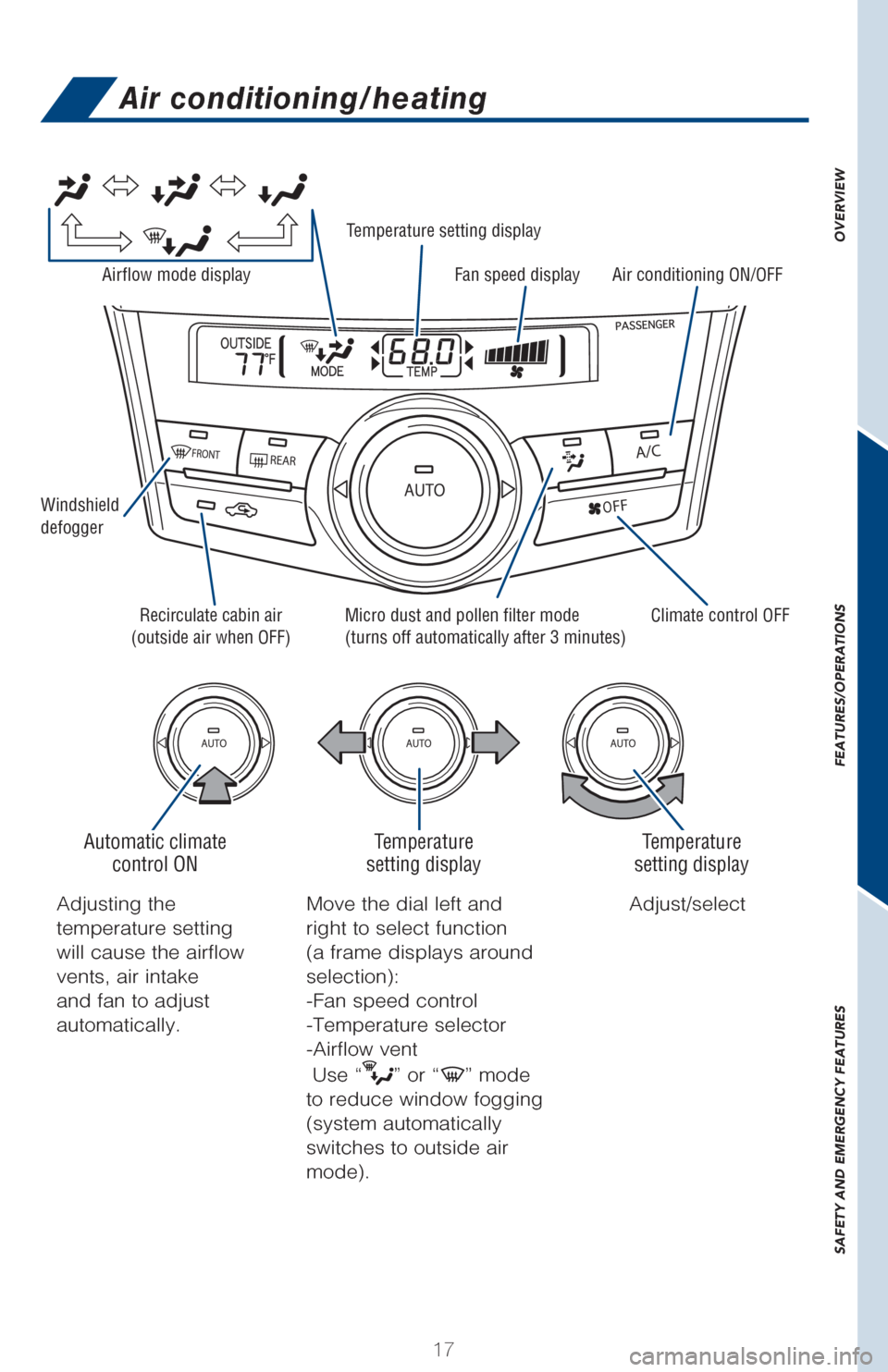

17
Air conditioning/heating
Adjust/selectAdjusting the
temperature setting
will cause the airflow
vents, air intake
and fan to adjust
automatically.Move the dial left and
right to select function
(a frame displays around
selection):
-Fan speed control
-Temperature selector
-Airflow vent
Use “
” or “” mode
to reduce window fogging
(system automatically
switches to outside air
mode).
Climate control OFF
Recirculate cabin air
(outside air when OFF)
Automatic climate control ONTemperature
setting displayTemperature
setting display
Airflow mode display Temperature setting display
Fan speed display
Micro dust and pollen filter mode
(turns off automatically after 3 minutes) Air conditioning ON/OFF
Windshield
defogger

18
Entune™ Audio1,2
Entune™ Premium JBL® Audio with Integrated Navigation and App Suite2
Entune™ Premium Audio with Integrated Navigation and App Suite2
FEATURES/OPERATIONSAudio
(if equipped)
1 Refer to the “OWNER’S MANUAL.”2 Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” and “2017 E\
ntune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the Entune system if it will distract you.
Access to
navigation
system
2
Push to display
home screen
MAP CARD Slot
Seek station/
CD track selectTurn to tune
radio stations
manually or
select tracks or
files
Push to pause or
resume playing
Push to access hands
free Bluetooth
® system
Eject CD Push to turn
ON/OFF
Push to display
audio screen
Push to display
Setup screen
Push to display
vehicle information
Touch screen display
