TOYOTA PRIUS V 2018 Owners Manual

5298-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises

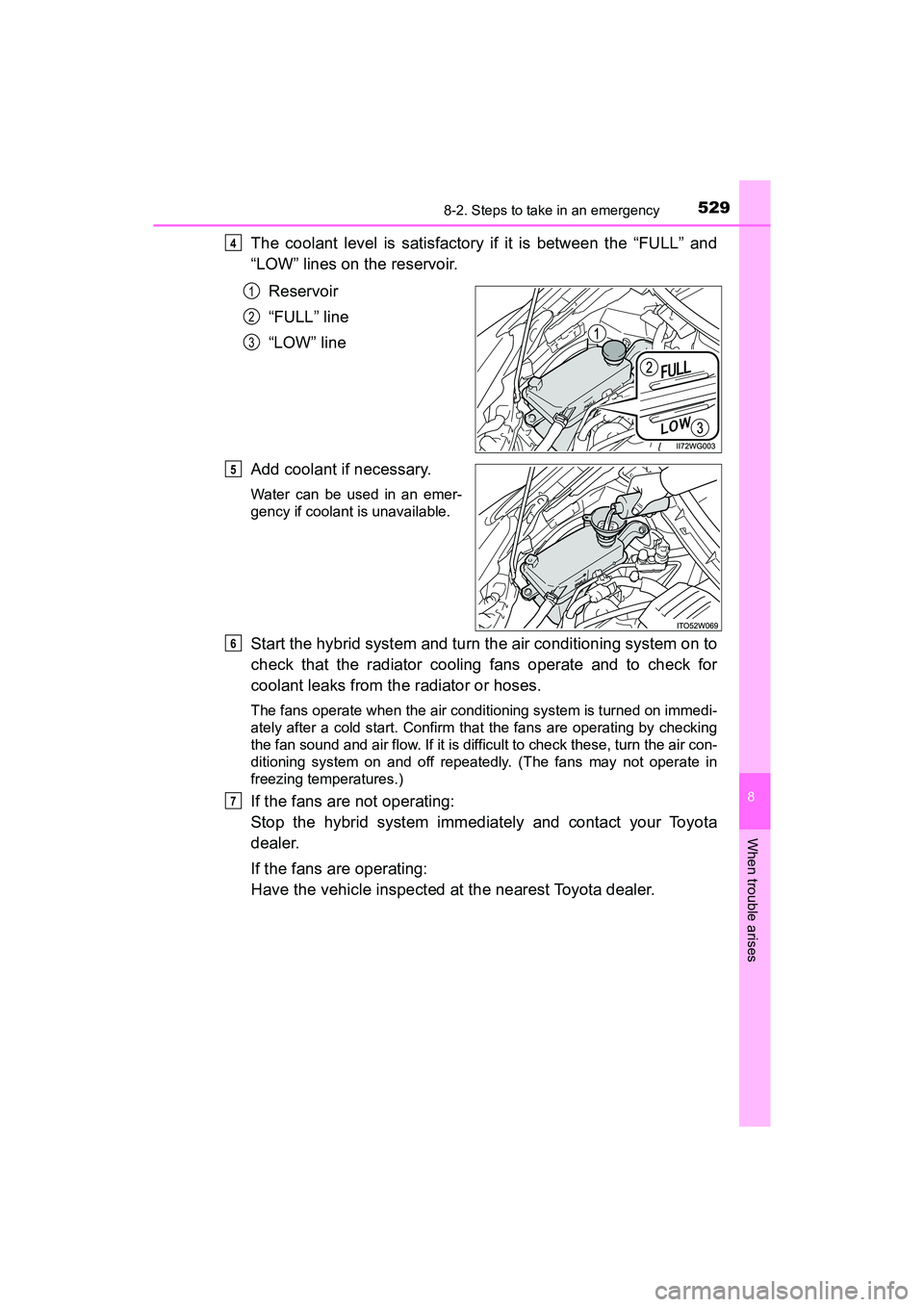

The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for
coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking
the fan sound and air flow. If it is difficult to check these, turn the air con-
ditioning system on and off repeatedly. (The fans may not operate in
freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact your Toyota
dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Toyota dealer.
4
1
2
3
5
6
7

5308-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)■

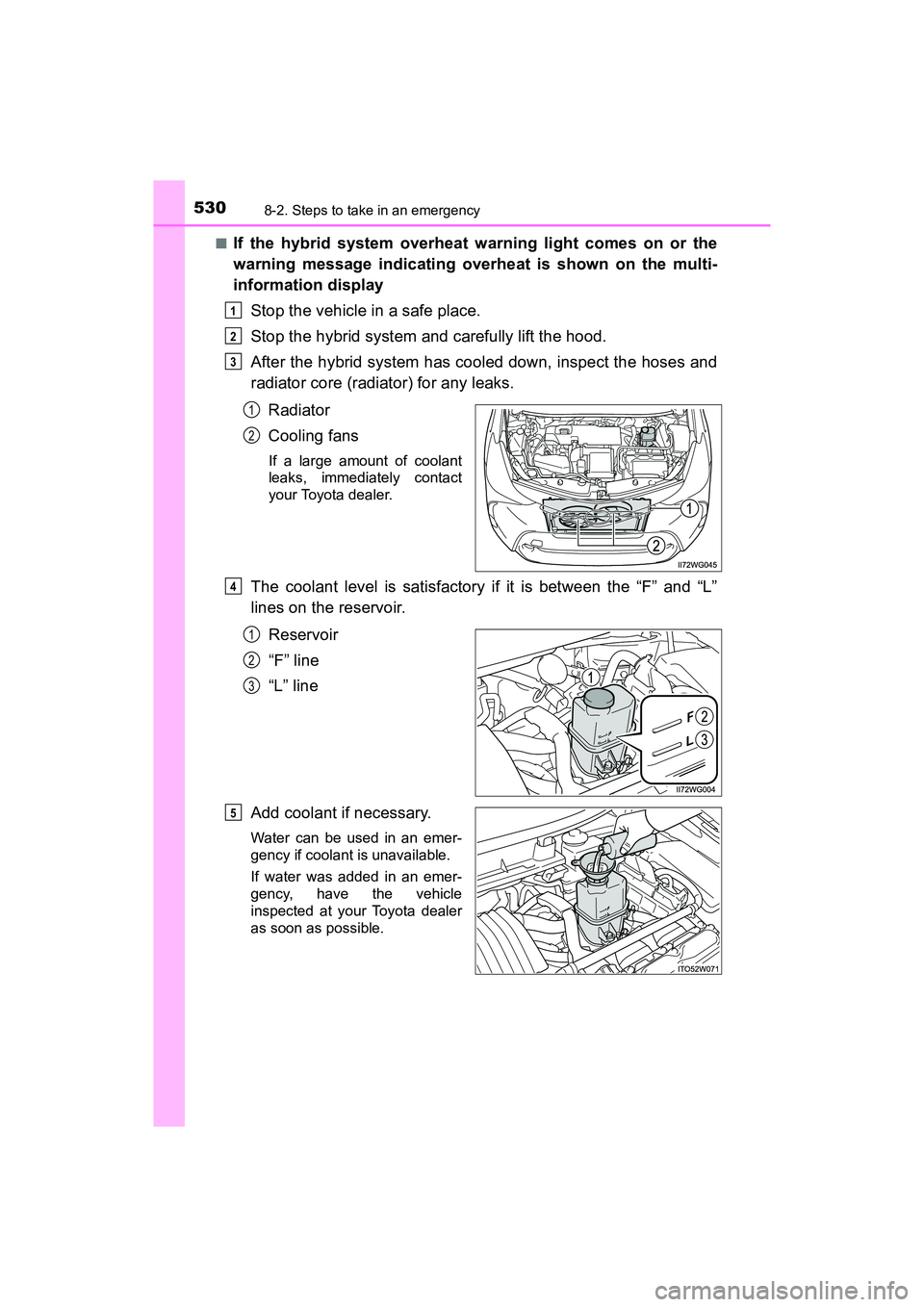

If the hybrid system overheat warning light comes on or the
warning message indicating overheat is shown on the multi-
information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.
The coolant level is satisfactory if it is between the “F” and “L”
lines on the reservoir.Reservoir
“F” line
“L” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
If water was added in an emer-
gency, have the vehicle
inspected at your Toyota dealer
as soon as possible.
1
2
3
1
2
4
1
2
3
5

5318-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises

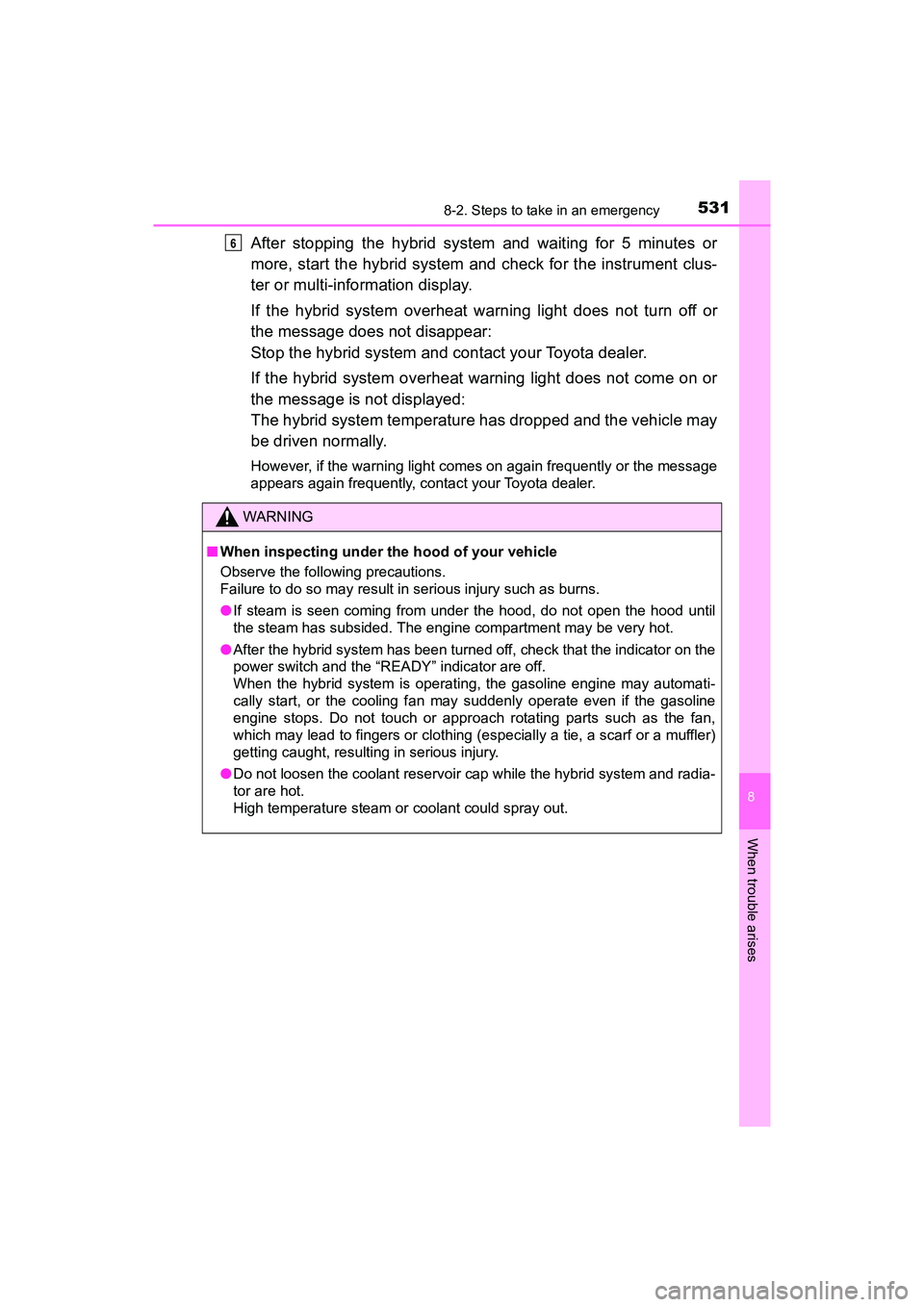

After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system and check for the instrument clus-
ter or multi-information display.
If the hybrid system overheat warning light does not turn off or
the message does not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the hybrid system overheat warning light does not come on or
the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the warning light comes on again frequently or the message
appears again frequently, contact your Toyota dealer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
High temperature steam or coolant could spray out.
6

5328-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)

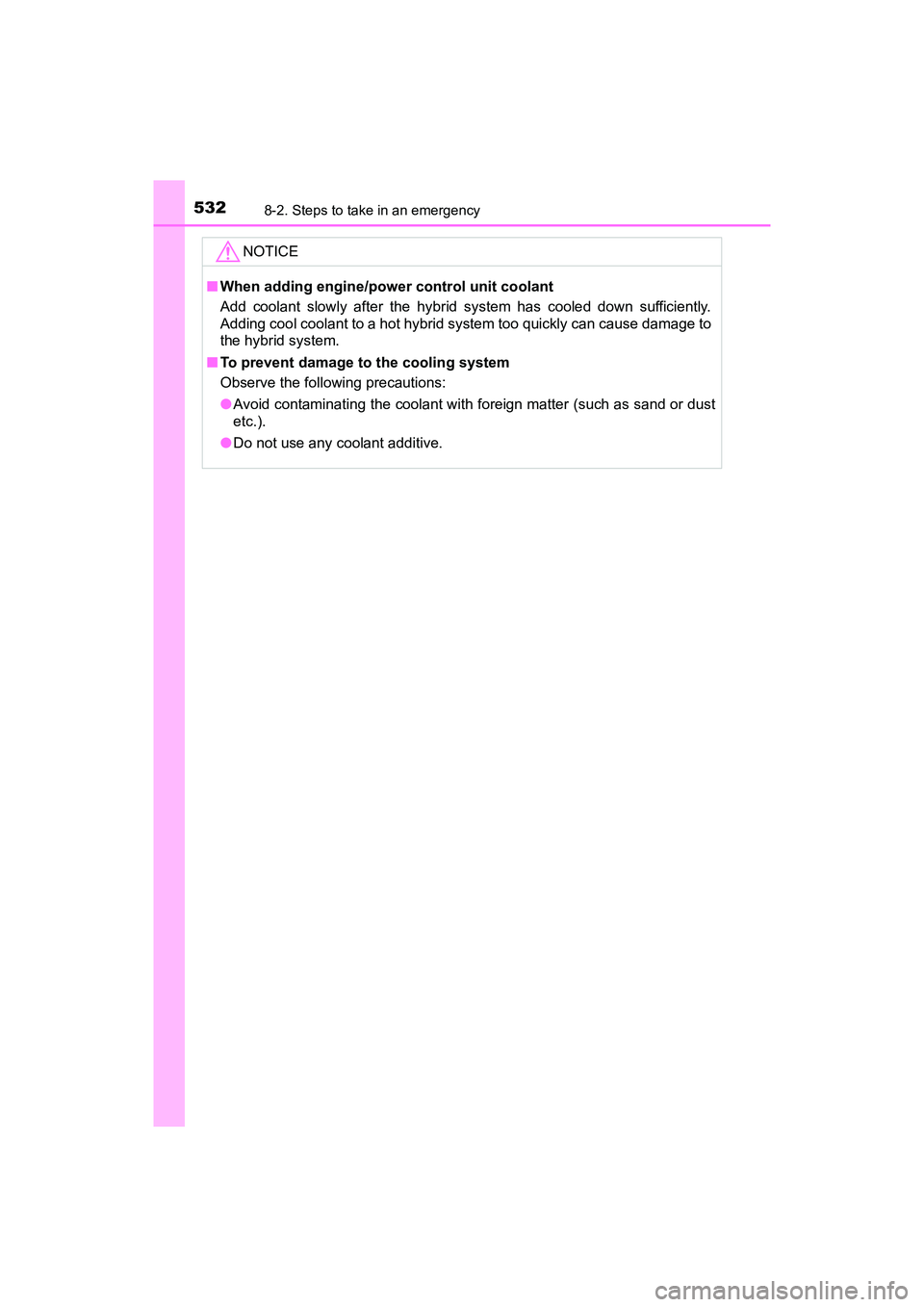

NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

533
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises
8-2. Steps to take in an emergency

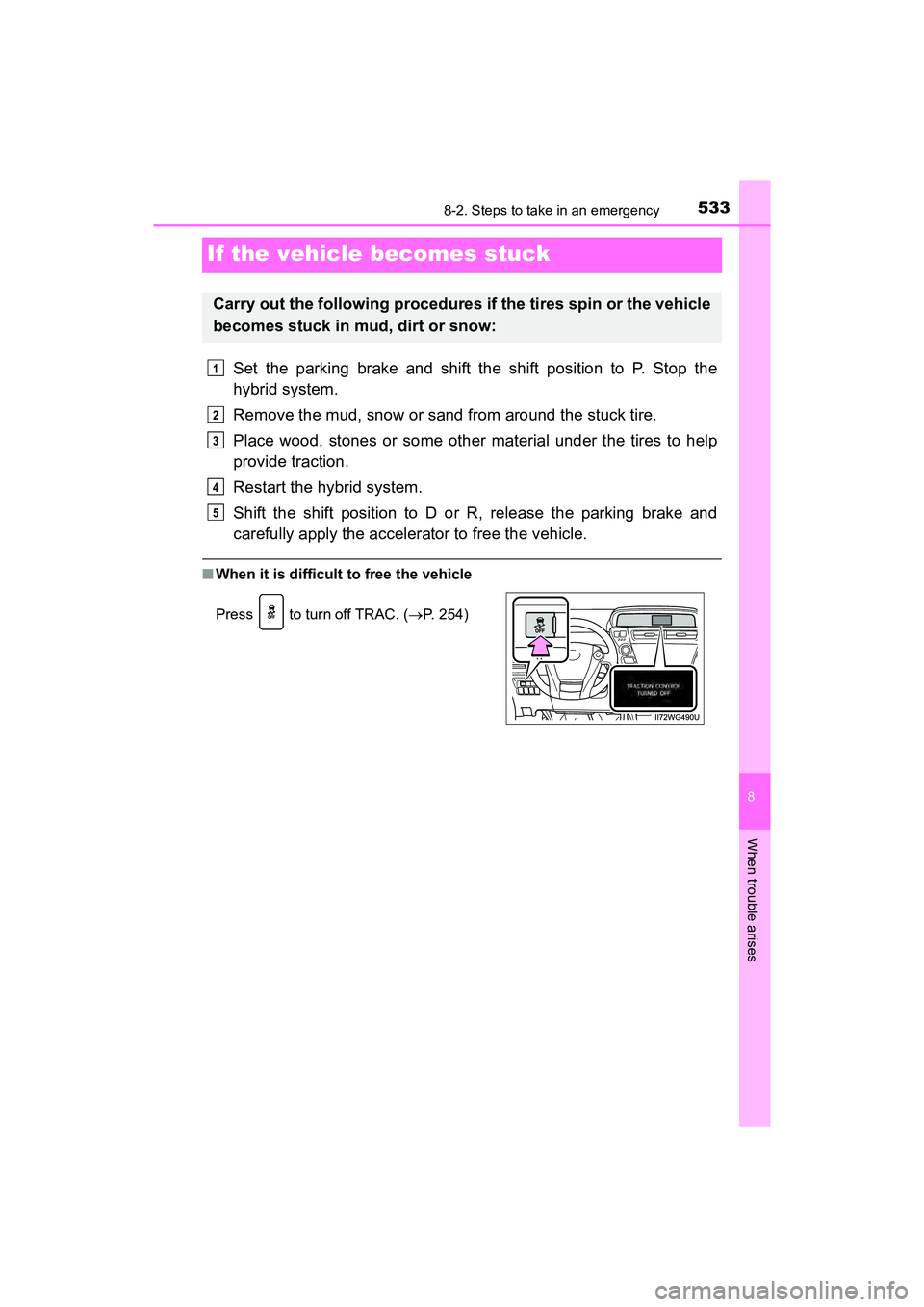

If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake and
carefully apply the accelerator to free the vehicle.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 254)
1
2
3
4
5

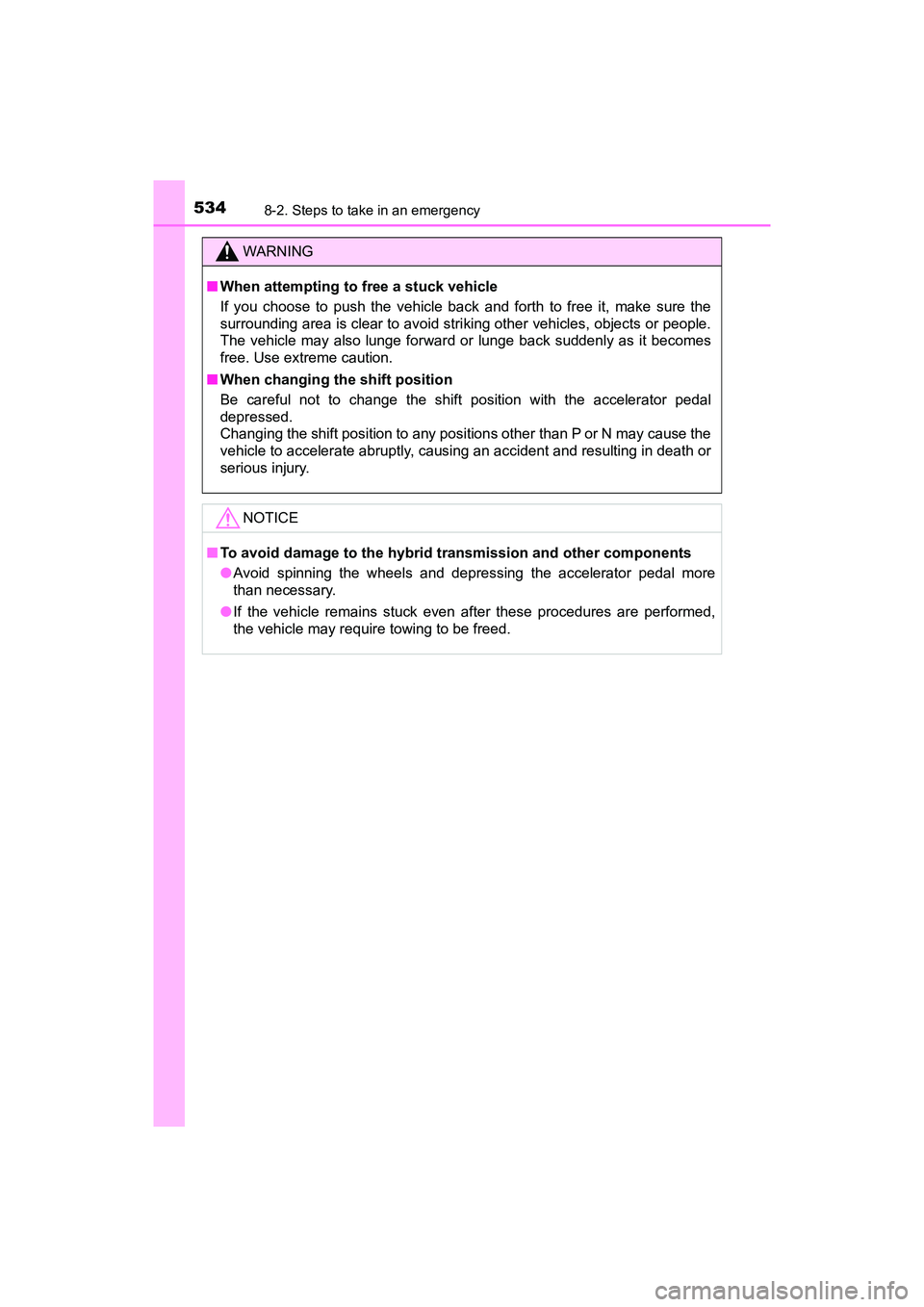

5348-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid stri king other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
NOTICE
■To avoid damage to the hybrid transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

535
PRIUS v_OM_OM47B78U_(U)

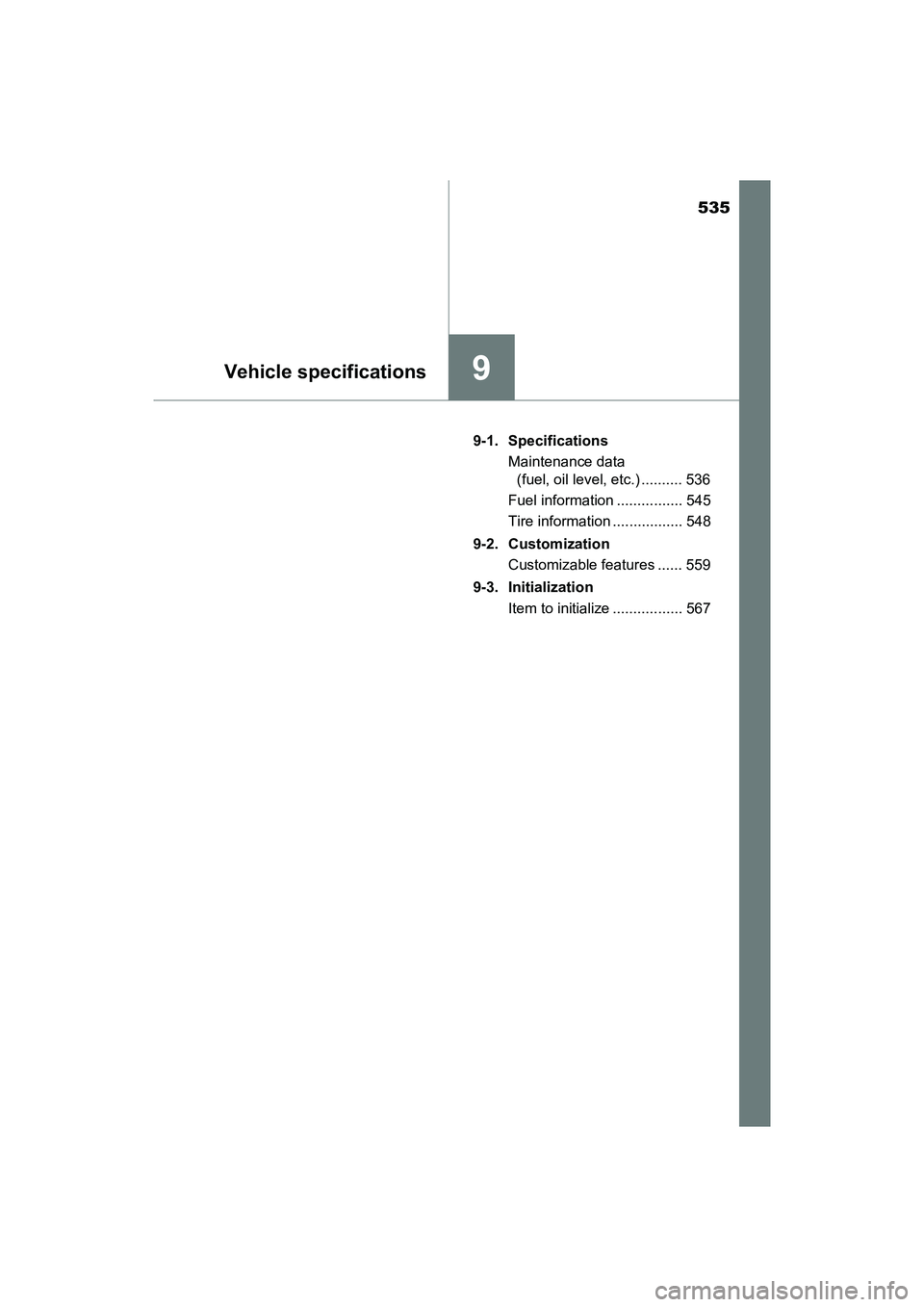

9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 536
Fuel information ................ 545
Tire information ................. 548
9-2. Customization Customizable features ...... 559
9-3. Initialization Item to initialize ................. 567

536
PRIUS v_OM_OM47B78U_(U)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Grade 2 only
*2: Unladen vehicle
*3: Vehicles without panoramic roof
*4: Vehicles with panoramic roof
*5: Vehicles with 16-inch tires
*6: Vehicles with 17-inch tires
Dimensions and weight
Overall length182.9 in. (4645 mm)
182.3 in. (4630 mm)
*1
Overall width69.9 in. (1775 mm)
Overall height*262.0 in. (1575 mm)*3
63.0 in. (1600 mm)*4
Wheelbase109.4 in. (2780 mm)
Tread
Front60.6 in. (1540 mm)*5
60.2 in. (1530 mm)*6
Rear60.8 in. (1545 mm)*5
60.4 in. (1535 mm)*6
Vehicle capacity weight
(Occupants + luggage)885 lb. (400 kg)

PRIUS v_OM_OM47B78U_(U)
5379-1. Specifications
9
Vehicle specifications

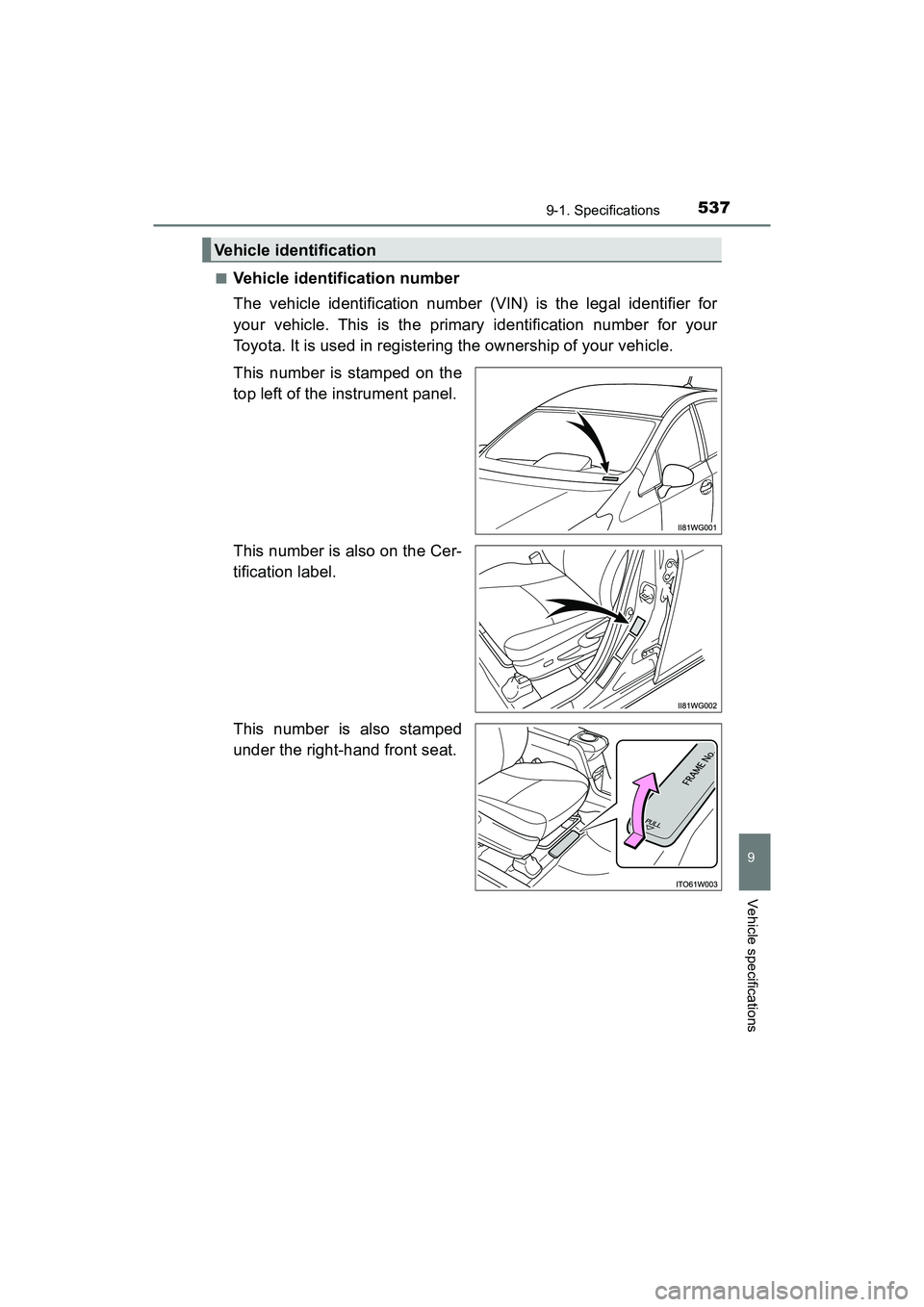

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

538
PRIUS v_OM_OM47B78U_(U)
9-1. Specifications

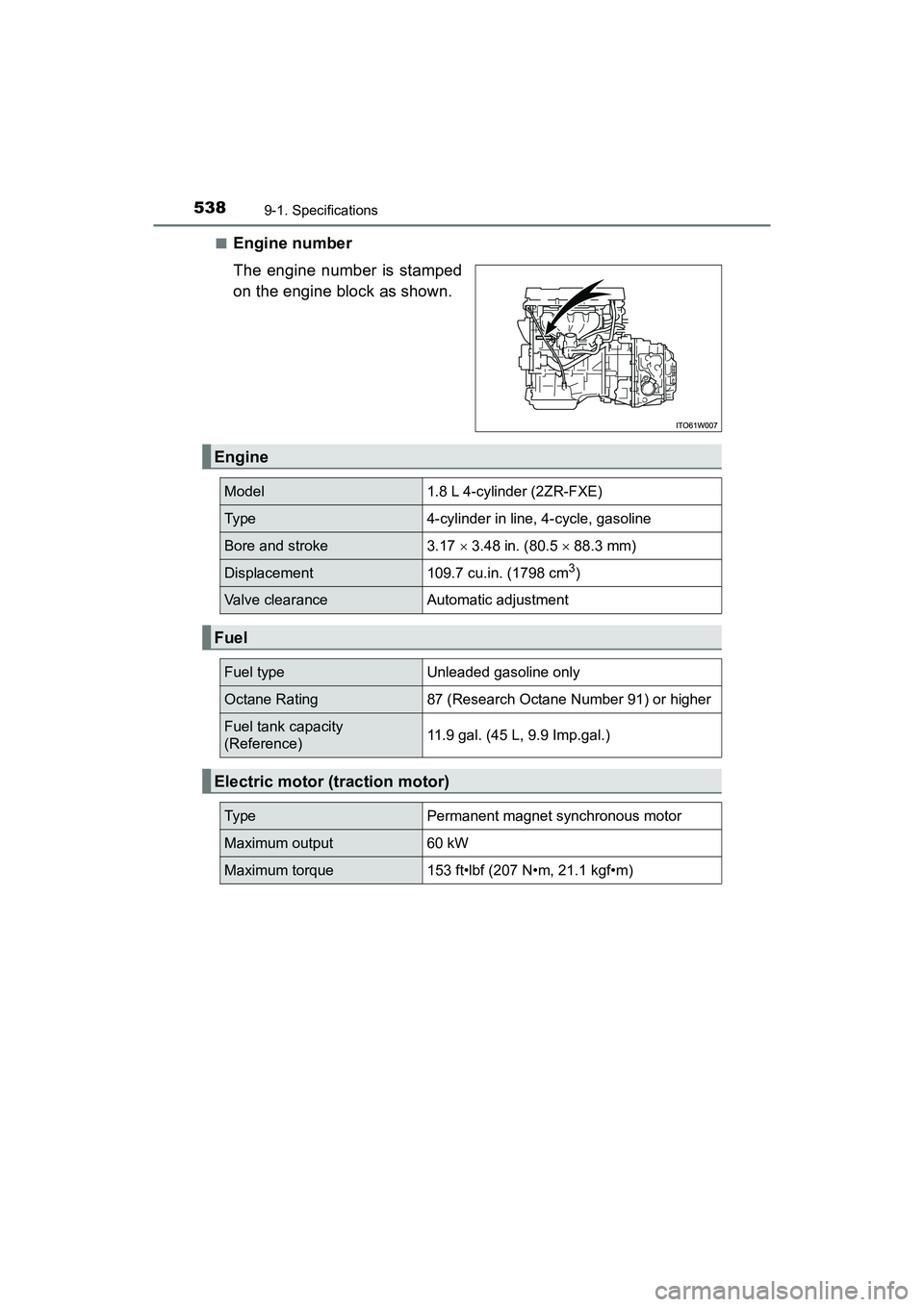

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Typ e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.9 gal. (45 L, 9.9 Imp.gal.)
Electric motor (traction motor)
Typ ePermanent magnet synchronous motor
Maximum output60 kW
Maximum torque153 ft•lbf (207 N•m, 21.1 kgf•m)
