TOYOTA PROACE 2016 Owners Manual

181

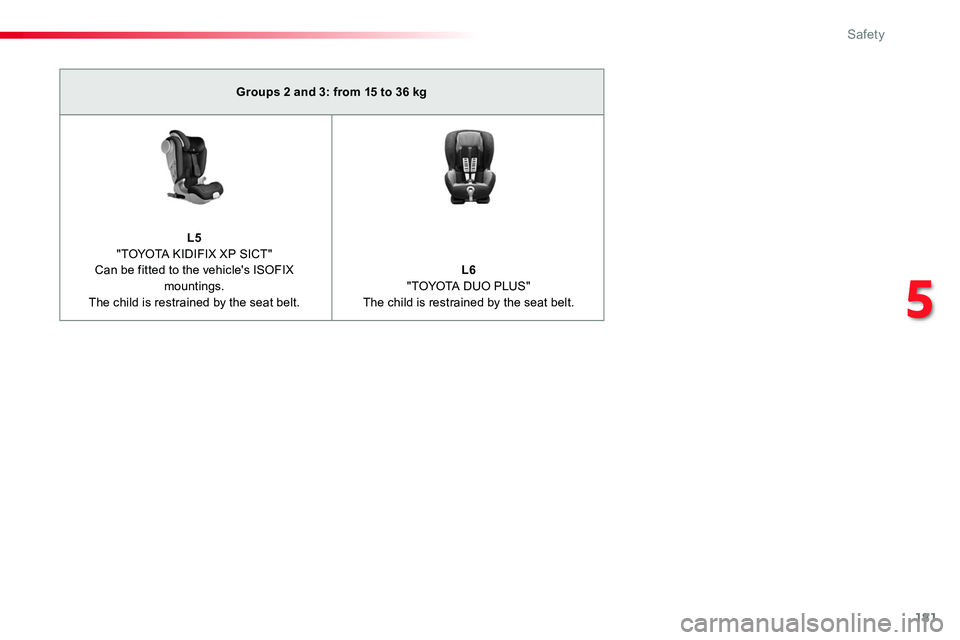

Groups 2 and 3: from 15 to 36 kg
L5 "TOYOTA KIDIFIX XP SICT"Can be fitted to the vehicle's ISOFIX mountings.The child is restrained by the seat belt.
L6 "TOYOTA DUO PLUS"The child is restrained by the seat belt.
5
Safety

182

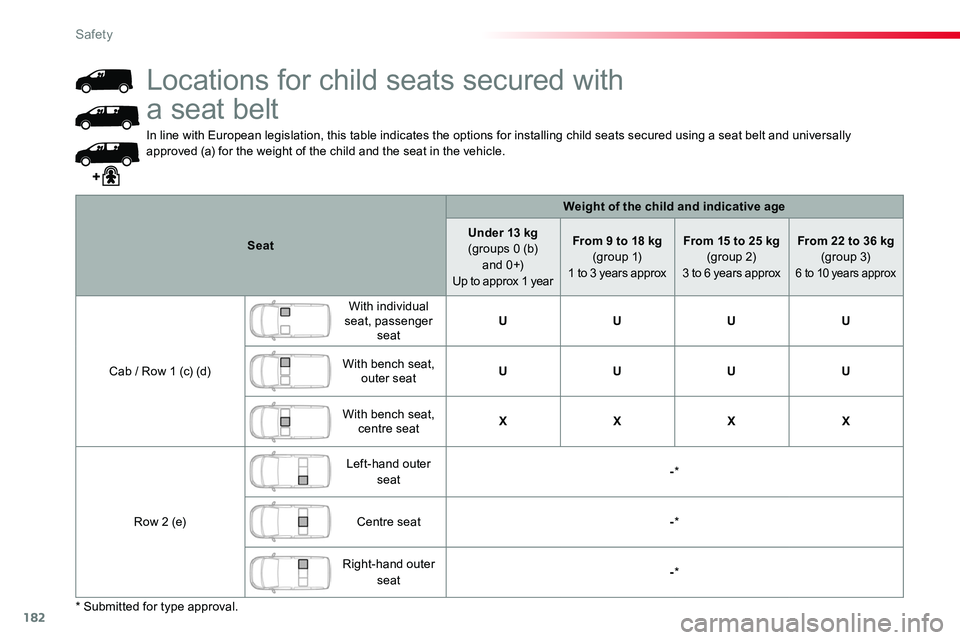

In line with European legislation, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) for the weight of the child and the seat in the vehicle.
Seat
Weight of the child and indicative age
Under 13 kg (groups 0 (b) a n d 0 +)Up to approx 1 year
From 9 to 18 kg (g r o u p 1)1 to 3 years approx
From 15 to 25 kg (group 2)3 to 6 years approx
From 22 to 36 kg (group 3)6 to 10 years approx
Cab / Row 1 (c) (d)
With individual seat, passenger seatUUUU
With bench seat, outer seatUUUU
With bench seat, centre seatXXXX
Row 2 (e)
Left-hand outer seat-*
Centre seat-*
Right-hand outer seat-*
Locations for child seats secured with
a seat belt
* Submitted for type approval.
Safety

183

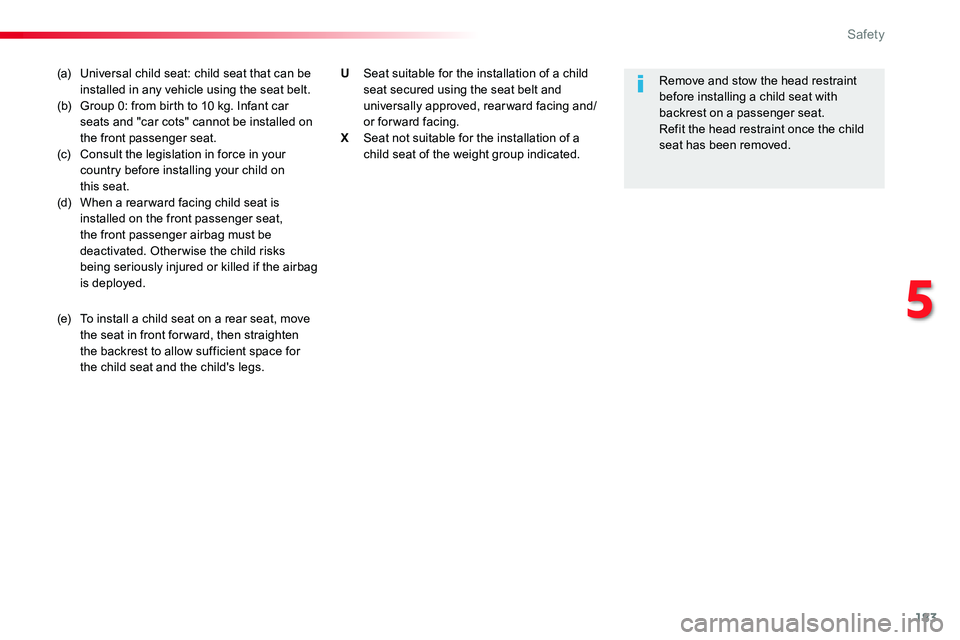

(a) Universal child seat: child seat that can be installed in any vehicle using the seat belt.(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.(c) Consult the legislation in force in your country before installing your child on this seat.(d) When a rear ward facing child seat is installed on the front passenger seat, the front passenger airbag must be deactivated. Otherwise the child risks being seriously injured or killed if the airbag is deployed.
(e) To install a child seat on a rear seat, move the seat in front for ward, then straighten the backrest to allow sufficient space for the child seat and the child's legs.
Remove and stow the head restraint before installing a child seat with backrest on a passenger seat.Refit the head restraint once the child seat has been removed.
U Seat suitable for the installation of a child seat secured using the seat belt and universally approved, rearward facing and/or forward facing.X Seat not suitable for the installation of a child seat of the weight group indicated.
5
Safety

184

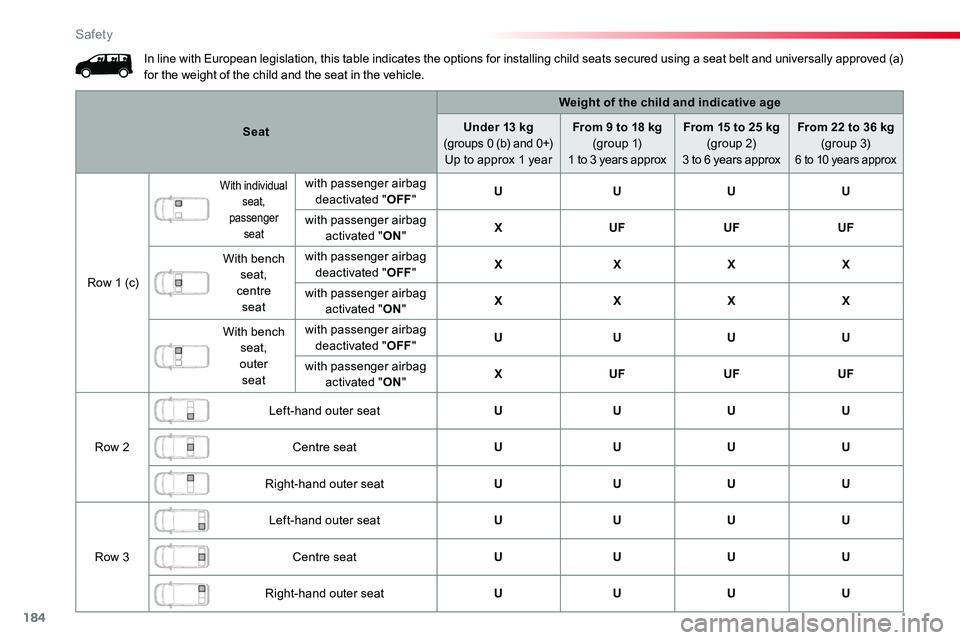

In line with European legislation, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) for the weight of the child and the seat in the vehicle.
Seat
Weight of the child and indicative age
Under 13 kg (groups 0 (b) and 0+)Up to approx 1 year
From 9 to 18 kg (g r o u p 1)1 to 3 years approx
From 15 to 25 kg (group 2)3 to 6 years approx
From 22 to 36 kg (group 3)6 to 10 years approx
Row 1 (c)
With individual seat, passenger seat
with passenger airbag deactivated "OFF"UUUU
with passenger airbag activated "ON"XUFUFUF
With bench seat, centre seat
with passenger airbag deactivated "OFF"XXXX
with passenger airbag activated "ON"XXXX
With bench seat, outer seat
with passenger airbag deactivated "OFF"UUUU
with passenger airbag activated "ON"XUFUFUF
Row 2
Left-hand outer seatUUUU
Centre seatUUUU
Right-hand outer seatUUUU
Row 3
Left-hand outer seatUUUU
Centre seatUUUU
Right-hand outer seatUUUU
Safety

185

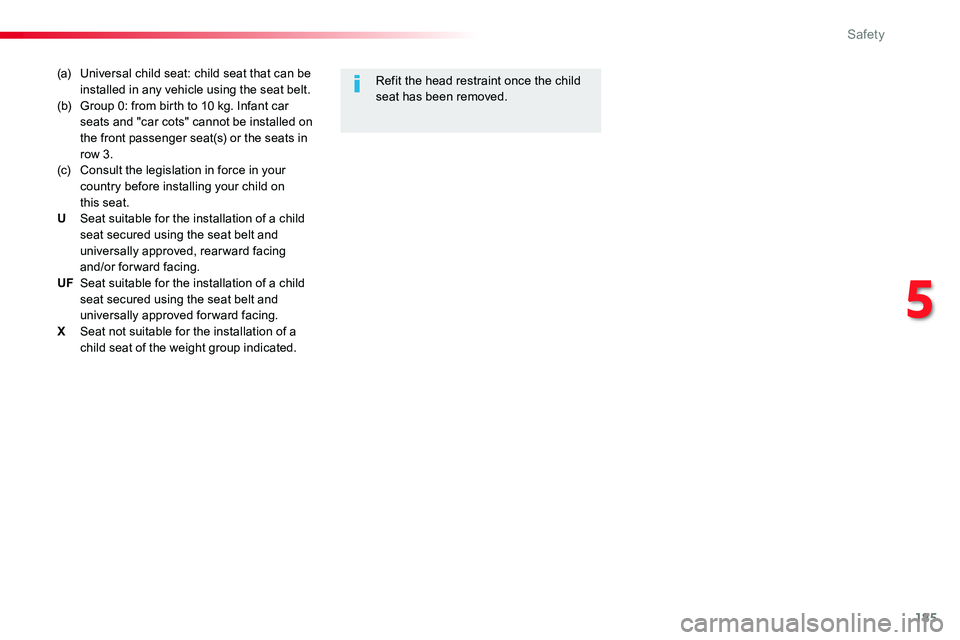

(a) Universal child seat: child seat that can be installed in any vehicle using the seat belt.(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat(s) or the seats in row 3.(c) Consult the legislation in force in your country before installing your child on this seat.U Seat suitable for the installation of a child
seat secured using the seat belt and universally approved, rear ward facing and/or forward facing.UF Seat suitable for the installation of a child seat secured using the seat belt and universally approved forward facing.X Seat not suitable for the installation of a child seat of the weight group indicated.
Refit the head restraint once the child seat has been removed.
5
Safety

186

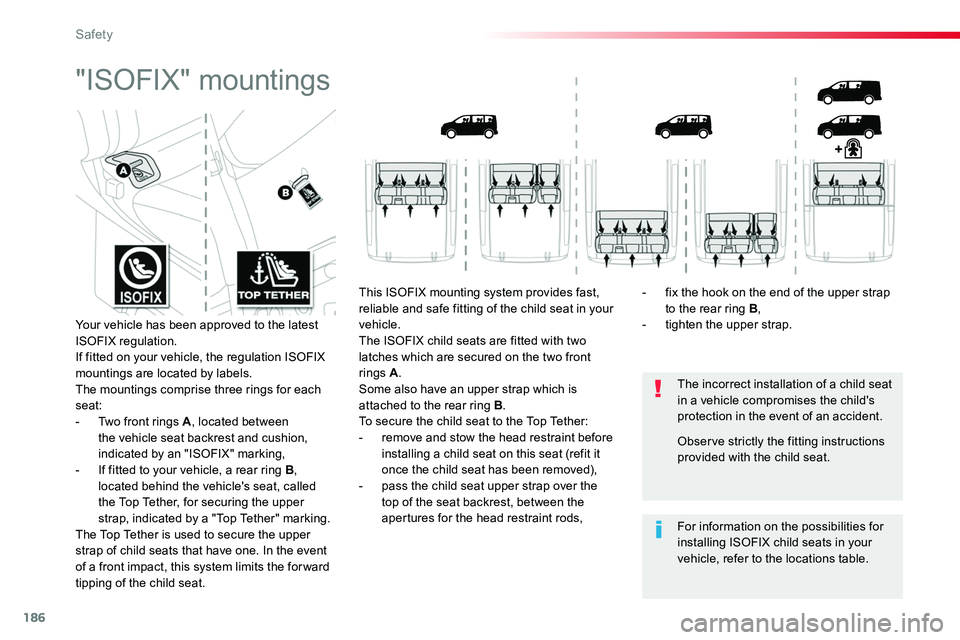

"ISOFIX" mountings
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.
For information on the possibilities for installing ISOFIX child seats in your vehicle, refer to the locations table.
Observe strictly the fitting instructions provided with the child seat.
Your vehicle has been approved to the latest ISOFIX regulation.If fitted on your vehicle, the regulation ISOFIX mountings are located by labels.The mountings comprise three rings for each seat:- Two front rings A, located between the vehicle seat backrest and cushion, indicated by an "ISOFIX" marking,- If fitted to your vehicle, a rear ring B, located behind the vehicle's seat, called the Top Tether, for securing the upper strap, indicated by a "Top Tether" marking.The Top Tether is used to secure the upper strap of child seats that have one. In the event of a front impact, this system limits the for ward tipping of the child seat.
This ISOFIX mounting system provides fast, reliable and safe fitting of the child seat in your vehicle.The ISOFIX child seats are fitted with two latches which are secured on the two front rings A.Some also have an upper strap which is attached to the rear ring B.To secure the child seat to the Top Tether:- remove and stow the head restraint before installing a child seat on this seat (refit it once the child seat has been removed),- pass the child seat upper strap over the top of the seat backrest, between the apertures for the head restraint rods,
- fix the hook on the end of the upper strap to the rear ring B,- tighten the upper strap.
Safety

187

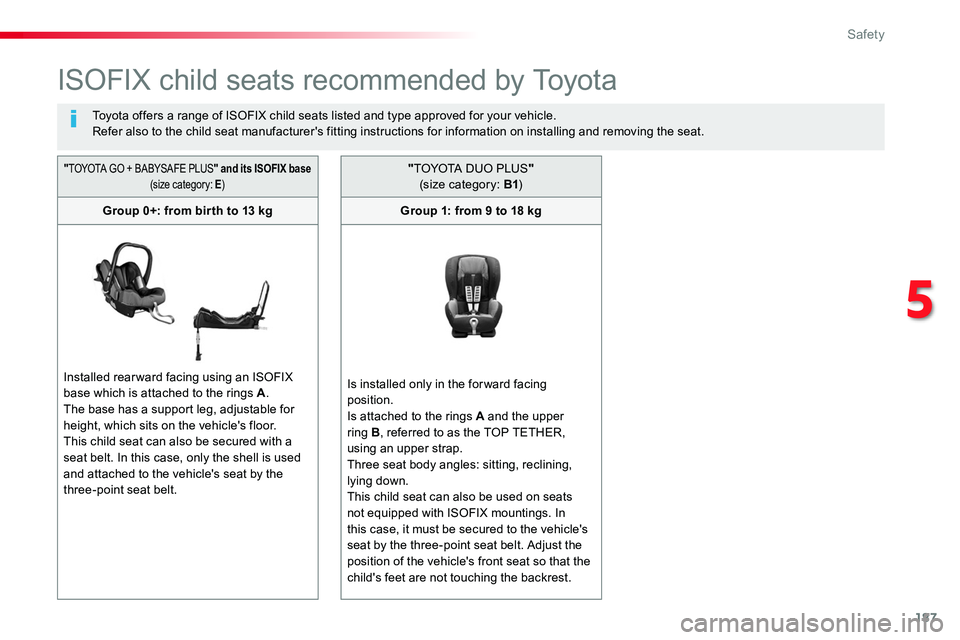

ISOFIX child seats recommended by Toyota
Toyota offers a range of ISOFIX child seats listed and type approved for your vehicle.Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
"TOYOTA GO + BABYSAFE PLUS" and its ISOFIX base (size category: E)
Group 0+: from bir th to 13 kg
Installed rearward facing using an ISOFIX base which is attached to the rings A.The base has a support leg, adjustable for height, which sits on the vehicle's floor.This child seat can also be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
"TOYOTA DUO PLUS" (size category: B1)
Group 1: from 9 to 18 kg
Is installed only in the for ward facing position.Is attached to the rings A and the upper
ring B, referred to as the TOP TETHER, using an upper strap.Three seat body angles: sitting, reclining, lying down.This child seat can also be used on seats not equipped with ISOFIX mountings. In this case, it must be secured to the vehicle's seat by the three-point seat belt. Adjust the position of the vehicle's front seat so that the child's feet are not touching the backrest.
5
Safety

188

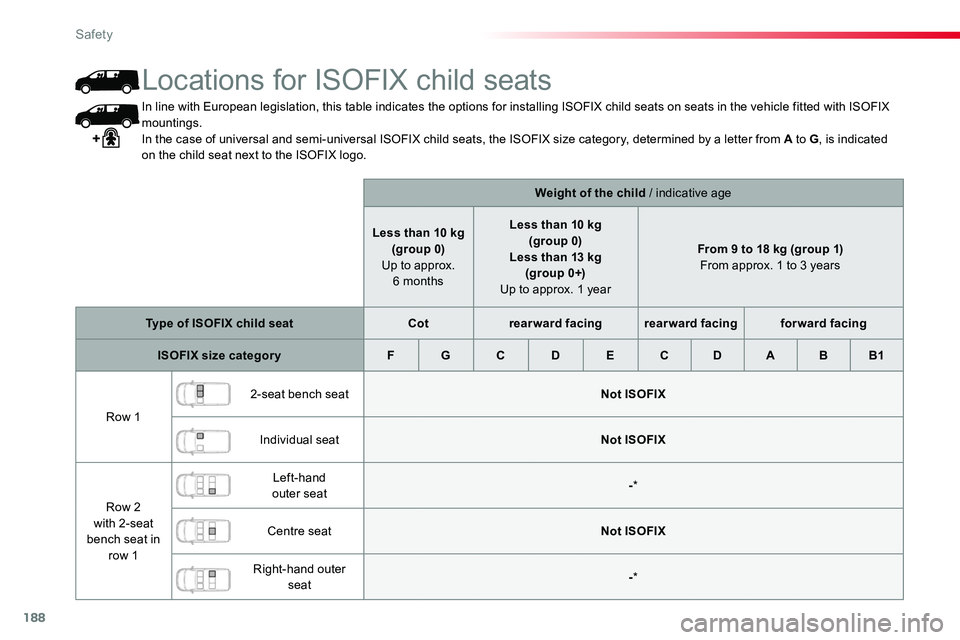

In line with European legislation, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg(group 0) Up to approx. 6 months
Less than 10 kg(group 0)Less than 13 kg(group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCotrearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 1
2-seat bench seatNot ISOFIX
Individual seatNot ISOFIX
Row 2 with 2-seat bench seat in row 1
Left-hand outer seat-*
Centre seatNot ISOFIX
Right-hand outer seat-*
Locations for ISOFIX child seats
Safety

189
Weight of the child / indicative age
Less than 10 kg(group 0) Up to approx. 6 months
Less than 10 kg(group 0)Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From 1 to 3 years approx.
Type of ISOFIX child seatCotrearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 2 with individual seats in row 1
Left-hand outer seat-*
Centre seatNot ISOFIX
Right-hand outer seat-*

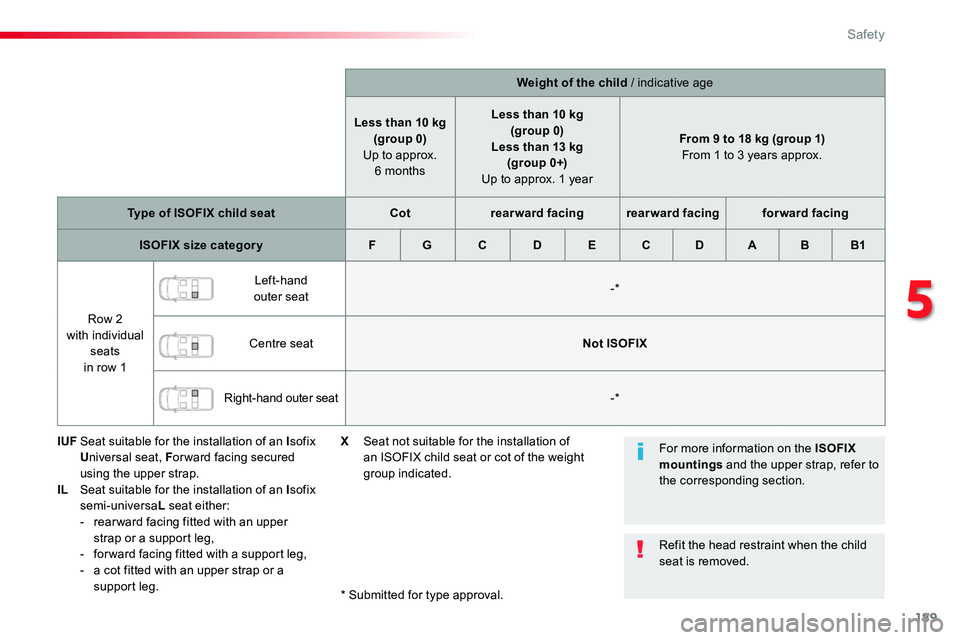

IUF Seat suitable for the installation of an Isofix Universal seat, For ward facing secured using the upper strap.IL Seat suitable for the installation of an Isofix semi-universaL seat either:- rear ward facing fitted with an upper strap or a support leg,- for ward facing fitted with a support leg,- a cot fitted with an upper strap or a support leg.* Submitted for type approval.
For more information on the ISOFIX mountings and the upper strap, refer to the corresponding section.
Refit the head restraint when the child seat is removed.
X Seat not suitable for the installation of an ISOFIX child seat or cot of the weight group indicated.
5
Safety

190

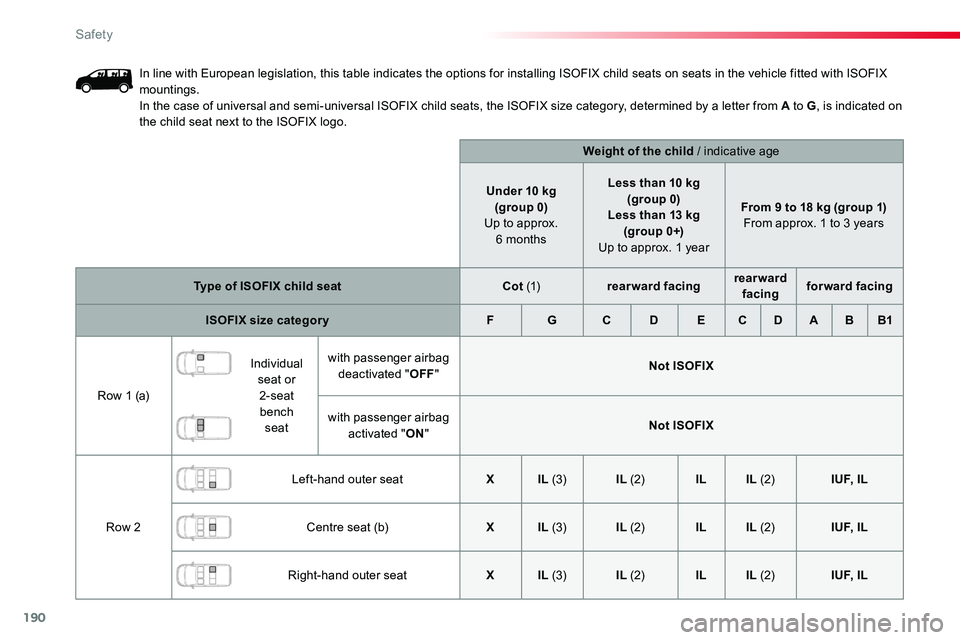

In line with European legislation, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Under 10 kg(group 0) Up to approx. 6 months
Less than 10 kg(group 0)Less than 13 kg(group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCot (1)rearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 1 (a)
Individual seat or 2-seat bench seat
with passenger airbag deactivated "OFF"Not ISOFIX
with passenger airbag
activated "ON"Not ISOFIX
Row 2
Left-hand outer seatXIL (3)IL (2)ILIL (2)I U F, I L
Centre seat (b)XIL (3)IL (2)ILIL (2)I U F, I L
Right-hand outer seatXIL (3)IL (2)ILIL (2)I U F, I L
Safety
