TOYOTA PROACE VERSO 2016 Owners Manual

491

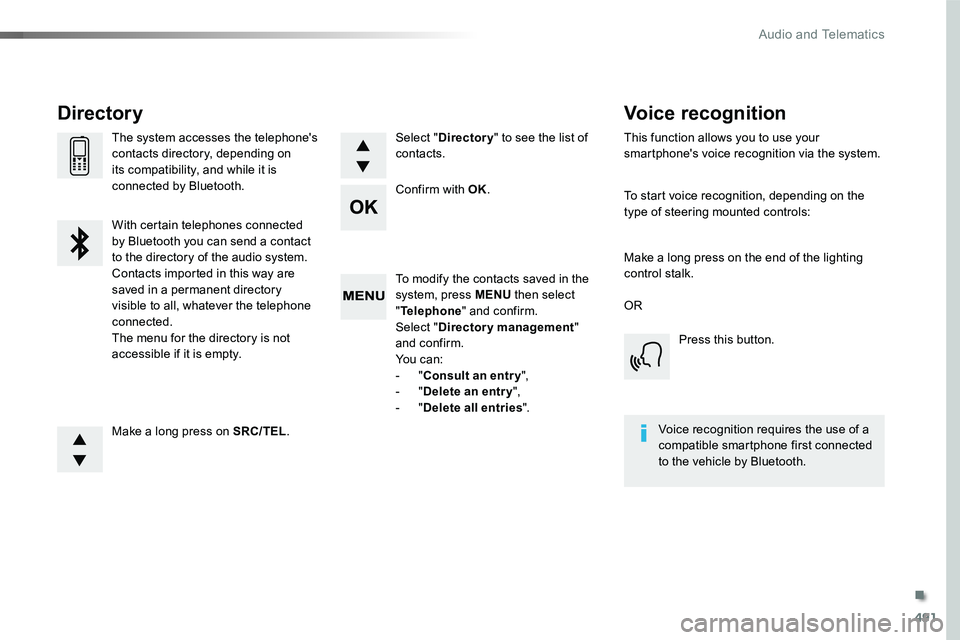

To modify the contacts saved in the system, press MENU then select "Telephone" and confirm.Select "Directory management" and confirm.Yo u c a n :- "Consult an entr y",- "Delete an entry",- "Delete all entries".
Make a long press on SRC/TEL.
The system accesses the telephone's contacts directory, depending on its compatibility, and while it is connected by Bluetooth.
With certain telephones connected by Bluetooth you can send a contact to the directory of the audio system.Contacts imported in this way are saved in a permanent directory visible to all, whatever the telephone connected.The menu for the directory is not accessible if it is empty.
Select "Directory" to see the list of contacts.
Directory
Confirm with OK.
OR
Voice recognition
This function allows you to use your smartphone's voice recognition via the system.
To start voice recognition, depending on the type of steering mounted controls:
Make a long press on the end of the lighting control stalk.
Press this button.
Voice recognition requires the use of a compatible smartphone first connected to the vehicle by Bluetooth.
.
Audio and Telematics

492

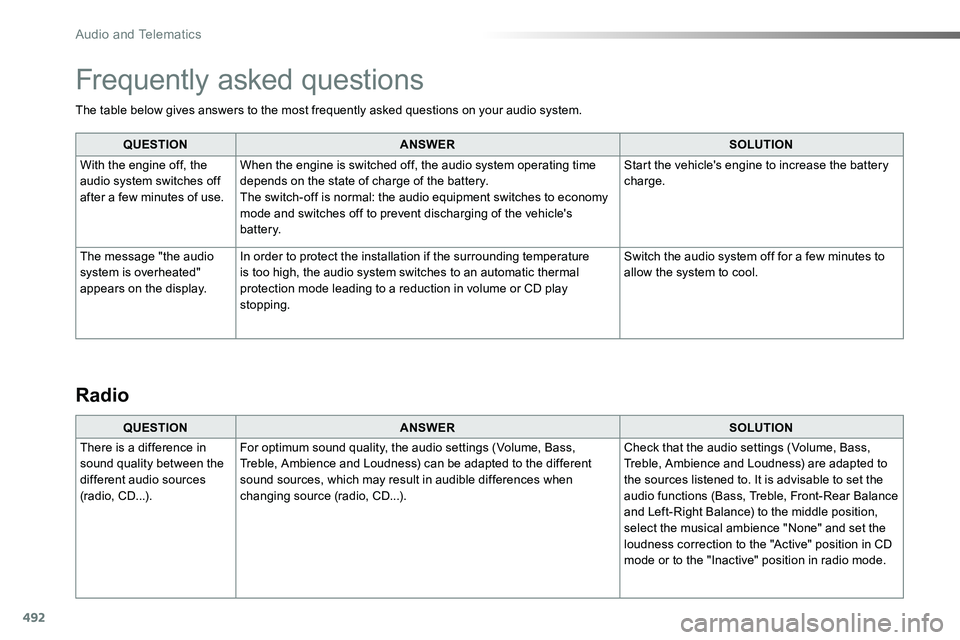

The table below gives answers to the most frequently asked questions on your audio system.
QUESTIONANSWERSOLUTION
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the state of charge of the battery.The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode leading to a reduction in volume or CD play stopping.
Switch the audio system off for a few minutes to allow the system to cool.
Frequently asked questions
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience and Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience and Loudness) are adapted to the sources listened to. It is advisable to set the audio functions (Bass, Treble, Front-Rear Balance and Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
Radio
Audio and Telematics

493
QUESTIONANSWERSOLUTION

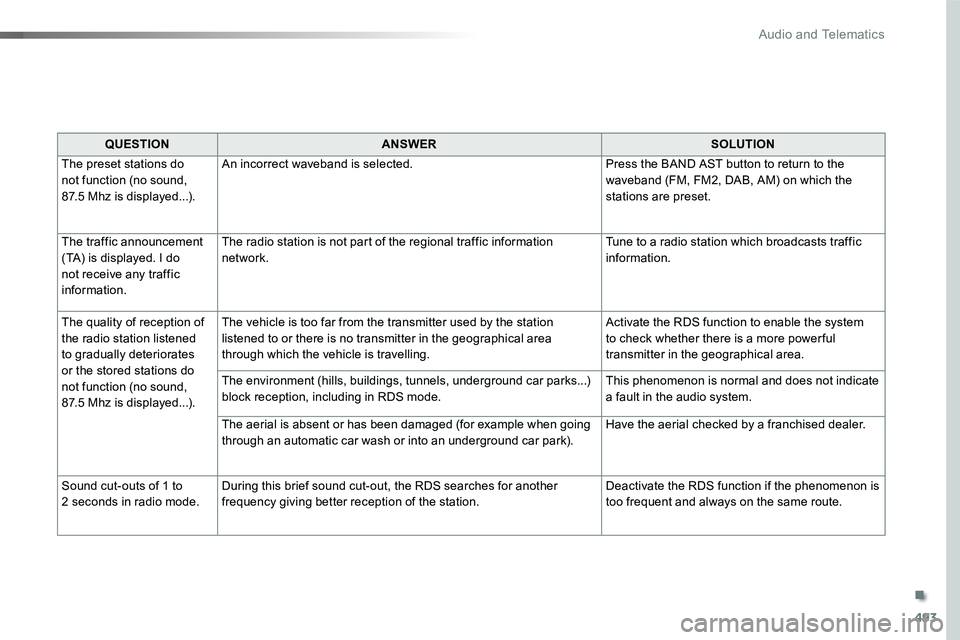

The preset stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected.Press the BAND AST button to return to the waveband (FM, FM2, DAB, AM) on which the stations are preset.
The traffic announcement (TA) is displayed. I do not receive any traffic information.
The radio station is not part of the regional traffic information network.Tune to a radio station which broadcasts traffic information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more power ful transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...) block reception, including in RDS mode.This phenomenon is normal and does not indicate a fault in the audio system.
The aerial is absent or has been damaged (for example when going through an automatic car wash or into an underground car park).Have the aerial checked by a franchised dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.During this brief sound cut-out, the RDS searches for another frequency giving better reception of the station.Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
.
Audio and Telematics

494

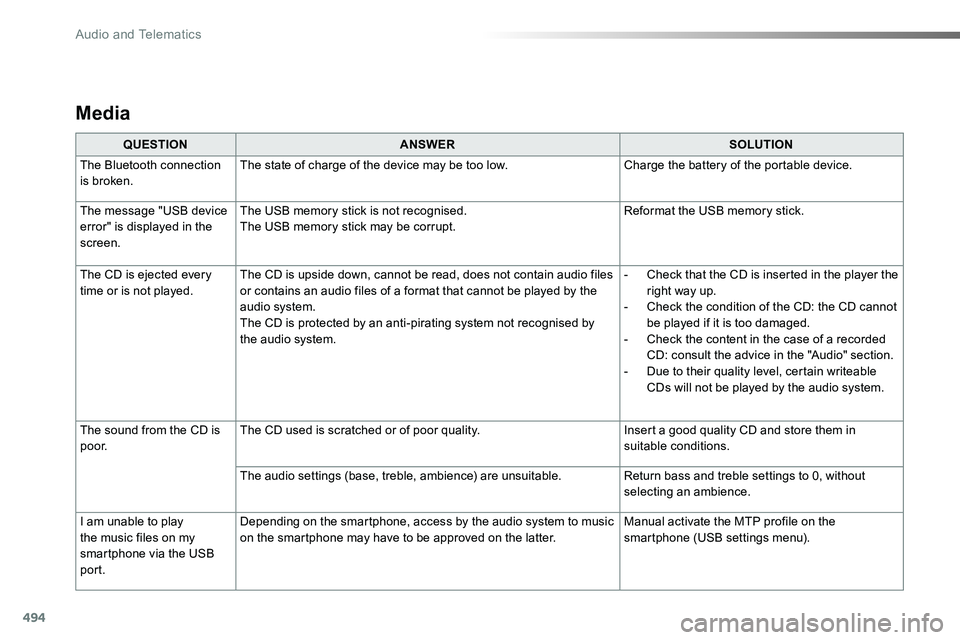

Media
QUESTIONANSWERSOLUTION
The Bluetooth connection is broken.The state of charge of the device may be too low.Charge the battery of the portable device.
The message "USB device
error" is displayed in the screen.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected every time or is not played.The CD is upside down, cannot be read, does not contain audio files or contains an audio files of a format that cannot be played by the audio system.The CD is protected by an anti-pirating system not recognised by the audio system.
- Check that the CD is inserted in the player the right way up.- Check the condition of the CD: the CD cannot be played if it is too damaged.- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.- Due to their quality level, certain writeable CDs will not be played by the audio system.
The sound from the CD is p o o r.The CD used is scratched or of poor quality.Insert a good quality CD and store them in suitable conditions.
The audio settings (base, treble, ambience) are unsuitable.Return bass and treble settings to 0, without selecting an ambience.
I am unable to play
the music files on my smartphone via the USB port.
Depending on the smartphone, access by the audio system to music
on the smartphone may have to be approved on the latter.
Manual activate the MTP profile on the
smartphone (USB settings menu).
Audio and Telematics

495
QUESTIONANSWERSOLUTION

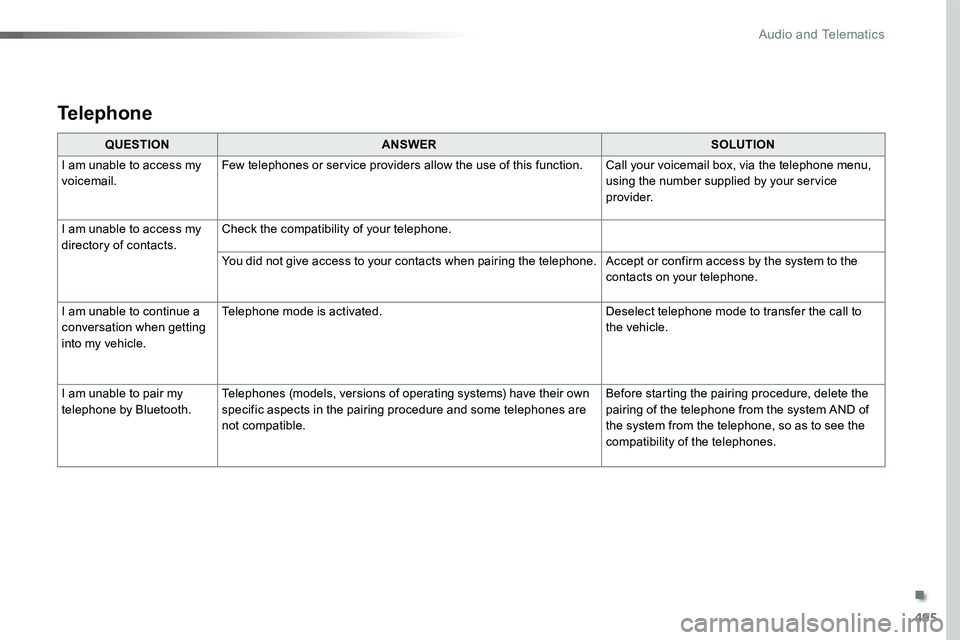

I am unable to access my voicemail.Few telephones or service providers allow the use of this function.Call your voicemail box, via the telephone menu, using the number supplied by your service provider.
I am unable to access my directory of contacts.Check the compatibility of your telephone.
You did not give access to your contacts when pairing the telephone.Accept or confirm access by the system to the contacts on your telephone.
I am unable to continue a conversation when getting into my vehicle.
Telephone mode is activated.Deselect telephone mode to transfer the call to the vehicle.
I am unable to pair my telephone by Bluetooth.Telephones (models, versions of operating systems) have their own specific aspects in the pairing procedure and some telephones are not compatible.
Before starting the pairing procedure, delete the pairing of the telephone from the system AND of the system from the telephone, so as to see the compatibility of the telephones.
Telephone
.
Audio and Telematics

496

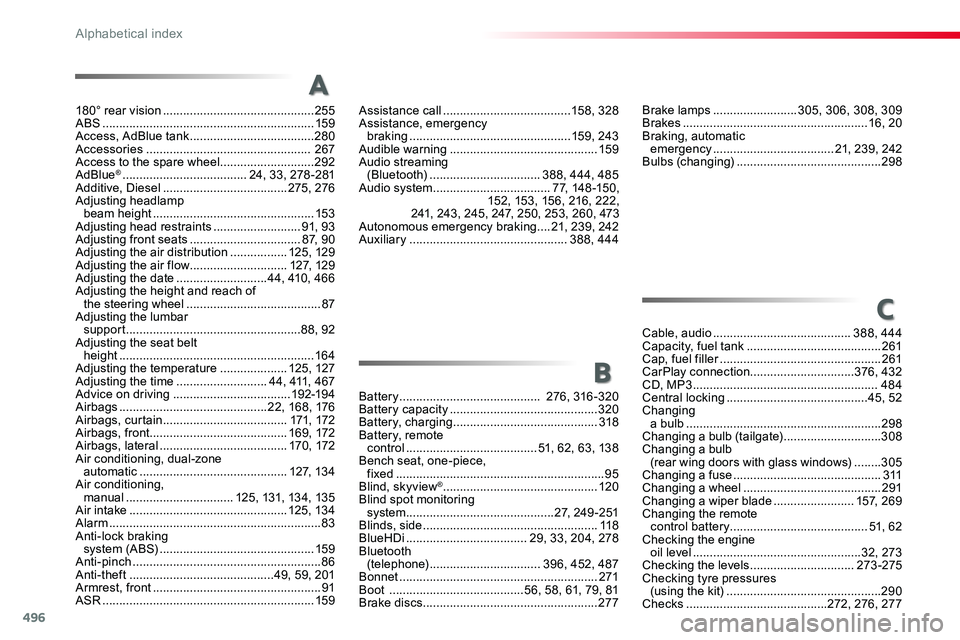

180° rear vision .............................................255ABS ...............................................................159Access, AdBlue tank .....................................280Accessories ................................................. 267Access to the spare wheel ............................292AdBlue® .....................................24, 33, 278-281Additive, Diesel .....................................275, 276Adjusting headlamp beam height ................................................153Adjusting head restraints ..........................91, 93Adjusting front seats .................................87, 90Adjusting the air distribution .................125, 129Adjusting the air flow .............................127, 129Adjusting the date ...........................44, 410, 466Adjusting the height and reach of the steering wheel ........................................87Adjusting the lumbar support ....................................................88, 92Adjusting the seat belt height ..........................................................16 4Adjusting the temperature ....................125, 127Adjusting the time ...........................44, 411, 467Advice on driving ...................................192-19 4Airbags ............................................22, 168, 176Airbags, curtain .....................................171, 172Airbags, front.........................................169, 172Airbags, lateral ......................................170, 172Air conditioning, dual-zone automatic ............................................127, 13 4Air conditioning, manual ................................125, 131, 13 4, 13 5Air intake ...............................................125, 13 4Alarm ...............................................................83Anti-lock braking system (ABS) ..............................................159Anti-pinch ........................................................86Anti-theft ...........................................49, 59, 201Armrest, front ..................................................91ASR ...............................................................159
Assistance call ......................................15 8, 328Assistance, emergency braking ................................................159, 243Audible warning ............................................159Audio streaming (Bluetooth) .................................388, 444, 485Audio system ...................................77, 148-150, 152, 153, 15 6, 216, 222, 2 41, 243, 245, 247, 250, 253, 260, 473Autonomous emergency braking ....21, 239, 242Auxiliary ...............................................388, 444
A
C
B
Brake lamps .........................305, 306, 308, 309Brakes .......................................................16, 20Braking, automatic emergency ....................................21, 239, 242Bulbs (changing) ...........................................298
Cable, audio .........................................388, 444Capacity, fuel tank ........................................261Cap, fuel filler ................................................261CarPlay connection...............................376, 432CD, MP3 ....................................................... 484Central locking ..........................................45, 52Changing a bulb ..........................................................298Changing a bulb (tailgate) .............................308Changing a bulb (rear wing doors with glass windows) ........305Changing a fuse ............................................311Changing a wheel .........................................291Changing a wiper blade ........................157, 269Changing the remote control battery.........................................51, 62Checking the engine oil level ..................................................32, 273Checking the levels ...............................273-275Checking tyre pressures (using the kit) ..............................................290Checks ..........................................272, 276, 277
Battery .......................................... 276, 316-320Battery capacity ............................................320Battery, charging ...........................................318Battery, remote control .......................................51, 62, 63, 13 8Bench seat, one-piece, fixed ..............................................................95Blind, skyview® ..............................................120Blind spot monitoring system ............................................2 7, 249-2 51Blinds, side ....................................................118BlueHDi ....................................29, 33, 204, 278Bluetooth (telephone) .................................396, 452, 487Bonnet ...........................................................271Boot ........................................56, 58, 61, 79, 81Brake discs ....................................................277
Alphabetical index

497
Child lock, electric, manual ........................................................19 0Child lock on rear windows ...........................191Children ..................................167, 170, 173 -191Children (safety) ............................................19 0Child seats, conventional .......................179-182Child seats, ISOFIX ..............................18 4-18 6Closing the boot ..................................76, 79, 81Closing the doors ......................................65-78Coat hook ......................................................115Compressor, tyre inflation .......................................................285Connection, Bluetooth .....370, 396-398, 426, 452-454, 488Connection, MirrorLink ............................372, 374, 428, 430Connection, Wi-Fi network .....................................371, 427Connectivity ..........................................368, 424Control, emergency boot release ..................................................81Control, back-up door .........................................................50, 60Control, heated seats ................................91, 94Control stalk, lighting ....................................14 4Control stalk, wipers .....................................15 4Courtesy lamp, front .....................140, 307, 310Courtesy lamp, rear ......................140, 307, 310Courtesy lamps .............................140, 307, 310Cover, load space .................................115, 118
DAB (Digital Audio Broadcasting) - Digital radio ...........................................386, 442, 480Date (setting) ...................................44, 410, 466Daytime running lamps .........14 4, 147, 299-301Deactivating the passenger airbag .......170, 176Deactivation of DSC (ESC) ...........................161Deadlocking .......................................48, 53, 58Demisting, defrosting, front ..........................................131Demisting, defrosting, rear ..............................................................132Diagnostic system, engine ..............................19Dials ..........................................................13, 14Diesel ............................................................263Dimensions ...................................................323Dipstick ....................................................32, 273Direction indicators ...........146, 299, 302, 303, 305, 308Display, head-up ...........................................218Display screen, instrument panel .....13, 14, 204Door pockets .................................................112Doors ...............................................................65Doors, rear ......................................................79Doors, rear wing door ......5 7, 58, 61, 79, 80, 305, 306Driver Attention Alert ............................247, 248
EBA ...............................................................159Eco-driving (advice) ........................................11Electronic brake force distribution (EBFD) .....................................159Emergency call .....................................15 8, 328Emergency warning lamps ...................15 8, 282Emissions control system, SCR .............25, 278Energy economy mode .................................266Engine compartment ....................................272Engine, Diesel ........19, 263, 272, 322, 325, 326Environment ........................11, 51, 62, 132, 133, 13 4, 13 8, 209, 258, 275, 280, 316ESC (electronic stability control) ..................23, 159
D
E
Cruise control ................................................228 Cruise control, dynamic ......................................................232Cruise control by Road Sign Assist ..............223Cup holder .....................................................115
Driver’s attention warning .............................247Driver's door open warning .......................18, 72Driving abroad...............................................146Driving economically.......................................11Driving time warning .............................247, 248Dynamic stability control (DSC) ............................................23, 159, 161
.
Alphabetical index

498
G
I

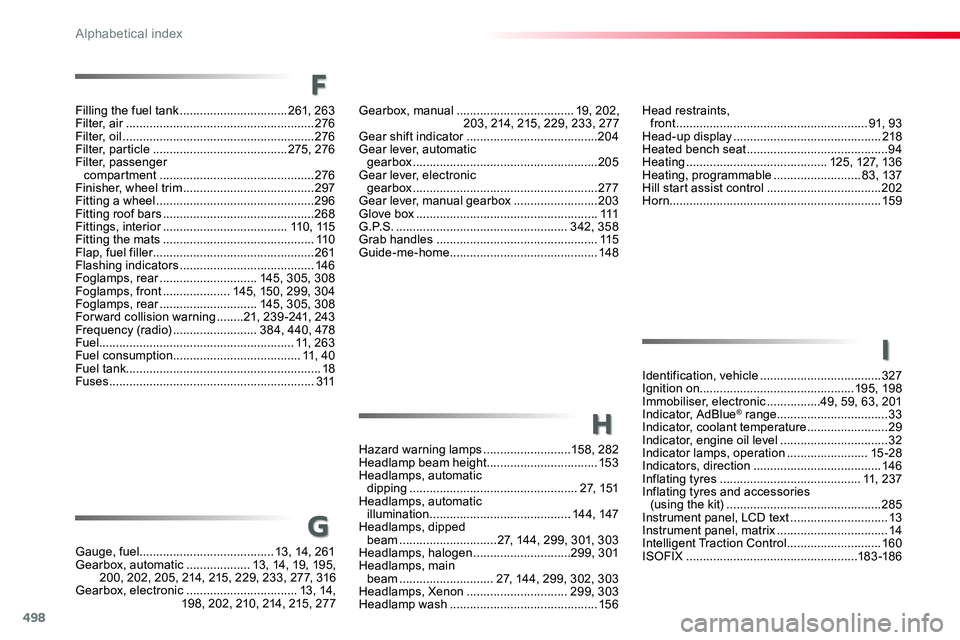

Head restraints, front .........................................................91, 93Head-up display ............................................218Heated bench seat ..........................................94Heating ..........................................125, 127, 136Heating, programmable ..........................83, 137Hill start assist control ..................................202Horn...............................................................159
Gauge, fuel........................................13, 14, 261Gearbox, automatic ...................13, 14, 19, 195, 200, 202, 205, 214, 215, 229, 233, 277, 316Gearbox, electronic .................................13, 14, 198, 202, 210, 214, 215, 277
Identification, vehicle ....................................327Ignition on..............................................195, 198Immobiliser, electronic ................49, 59, 63, 201Indicator, AdBlue® range .................................33Indicator, coolant temperature ........................29Indicator, engine oil level ................................32Indicator lamps, operation ........................15-28Indicators, direction ......................................146Inflating tyres ..........................................11, 237Inflating tyres and accessories (using the kit) ..............................................285Instrument panel, LCD text .............................13Instrument panel, matrix .................................14Intelligent Traction Control ............................160ISOFIX ...................................................183 -18 6
Gearbox, manual ...................................19, 202, 203, 214, 215, 229, 233, 277Gear shift indicator .......................................204Gear lever, automatic gearbox .......................................................205Gear lever, electronic gearbox .......................................................277Gear lever, manual gearbox .........................203Glove box ......................................................111G . P. S . ...................................................342, 358Grab handles ................................................115Guide-me-home ............................................148
Hazard warning lamps ..........................15 8, 282Headlamp beam height .................................153Headlamps, automatic dipping ..................................................27, 151Headlamps, automatic illumination ..........................................14 4, 147Headlamps, dipped beam .............................27, 14 4, 299, 301, 303Headlamps, halogen .............................299, 301Headlamps, main beam ............................27, 14 4, 299, 302, 303Headlamps, Xenon ..............................299, 303Headlamp wash ............................................15 6
H
Filling the fuel tank ................................261, 263Filter, air ........................................................276Filter, oil .........................................................276Filter, particle ........................................275, 276Filter, passenger compartment ..............................................276Finisher, wheel trim .......................................297Fitting a wheel ...............................................296Fitting roof bars .............................................268Fittings, interior .....................................11 0 , 115Fitting the mats .............................................11 0Flap, fuel filler ................................................261Flashing indicators ........................................146Foglamps, rear .............................145, 305, 308Foglamps, front ....................145, 150, 299, 304Foglamps, rear .............................145, 305, 308Forward collision warning ........21, 239-2 41, 243Frequency (radio) .........................384, 440, 478Fuel..........................................................11, 263Fuel consumption ......................................11, 40Fuel tank..........................................................18Fuses .............................................................311
F
Alphabetical index

499

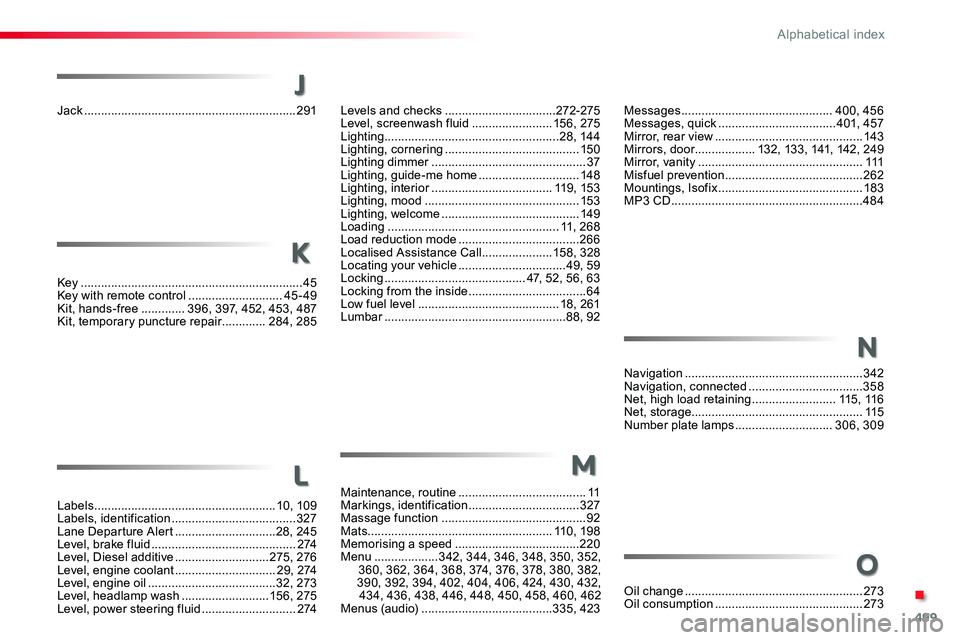

Jack ...............................................................291
Key ..................................................................45Key with remote control ............................45-49Kit, hands-free .............396, 397, 452, 453, 487Kit, temporary puncture repair .............284, 285
Labels ......................................................10, 109Labels, identification .....................................327Lane Departure Alert ..............................28, 245Level, brake fluid ...........................................2 74Level, Diesel additive ............................275, 276Level, engine coolant ..............................29, 2 74Level, engine oil ......................................32, 273Level, headlamp wash ..........................15 6, 275Level, power steering fluid ............................2 74
Levels and checks .................................272-275Level, screenwash fluid ........................15 6, 275Lighting ....................................................28, 14 4Lighting, cornering ........................................150Lighting dimmer ..............................................37Lighting, guide-me home ..............................148Lighting, interior ....................................11 9, 153Lighting, mood ..............................................153Lighting, welcome .........................................149Loading ...................................................11, 268Load reduction mode ....................................266Localised Assistance Call .....................15 8, 328Locating your vehicle ................................49, 59Locking ..........................................47, 52, 56, 63Locking from the inside ...................................64Low fuel level ..........................................18, 261Lumbar ......................................................88, 92
K
LMaintenance, routine ......................................11Markings, identification .................................327Massage function ...........................................92Mats .......................................................11 0, 198Memorising a speed .....................................220Menu ...................342, 344, 346, 348, 350, 352, 360, 362, 364, 368, 374, 376, 378, 380, 382, 390, 392, 394, 402, 404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462Menus (audio) .......................................335, 423
M
Messages .............................................400, 456Messages, quick ...................................401, 457Mirror, rear view ............................................143Mirrors, door..................132, 13 3, 141, 142, 249Mirror, vanity .................................................111Misfuel prevention .........................................262Mountings, Isofix ...........................................183MP3 CD .........................................................484
J
Navigation .....................................................342Navigation, connected ..................................358Net, high load retaining .........................115, 11 6Net, storage...................................................115Number plate lamps .............................306, 309
Oil change .....................................................273Oil consumption ............................................273
N
O
.
Alphabetical index

500
Reversing camera .........................................255Reversing camera (on interior mirror) .......................................254Reversing lamp ....................................305, 308Road Sign Assist ...........................................221Roof bars .......................................................268Roof rack .......................................................268Running out of fuel (Diesel) ..........................322
Safety, children ................................167, 170, 173 -191Saturation of the Diesel Particle Filter (DPF) ..........................................................276Screen, instrument panel ..........................38, 39Screen menu map .......................342, 344, 346, 348, 350, 352, 360, 362, 364, 368, 374, 376, 378, 380, 382, 390, 392, 394, 402, 404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462Screen, menus ..............................335, 423, 477Screenwash ..................................................15 6Screenwash, rear ..........................................155SCR (Selective Catalytic Reduction) ............278Seat and bench seat, rear, fixed .............98, 109Seat and bench seat, rear, on rails .......................................101, 109Seat belts ...............................16 4-167, 179, 180Seat belts, rear ..............................................165Seat, bench front, 2-seat ........................93, 165Seats, electric .................................................90
S
OIl, engine .....................................................273On-board tools ......................................282, 284Opening the bonnet ......................................271Opening the boot ................................45, 54, 81Opening the doors ............................. 65, 66, 68, 76, 77Opening to 180° ..............................................79
Pads, brake ...................................................277Paint colour code ..........................................327Parcel shelf, rear ...........................................118Parking brake ..................................16, 201, 277Parking sensors, audible and visual ....................................................253Plates, identification......................................327Player, Apple® ..............................389, 445, 485Player, MP3 CD .............................................484Player, USB ..................................388, 444, 482Port, USB .............................113, 388, 444, 482Pressures, tyres ........................... 290, 297, 327Pre-tensioning seat belts ..............................16 4Priming the fuel system ................................322Profiles .................................................408, 464Protecting children ..................167, 170, 173 -191Puncture ........................................................285
P
R
Radio ............................................384, 440, 478Radio, digital (Digital Audio Broadcasting - DAB) ..................386, 442, 480Radio Media ..........................................378, 434Range ..............................................................40Range, AdBlue ................................................33RDS ...............................................385, 4 41, 478Rear screen, demisting .................................13 3Rear screen, opening .....................................82Recharging the battery .................................318Recirculation, air ...................................125, 13 0Reduction of electrical load .............................................................266Regeneration of the Diesel Particle Filter (DPF) ..................276Reinitialisation of the Tyre Pressure Warning System (TPWS) ...........................259Reinitialising the remote control .....................................................51, 62Reminder, key in ignition ...............................197Reminder, lighting on ....................................146Remote control .....................................................45-65Removing a wheel ........................................294Removing the mat .........................................11 0Replacing bulbs ...........................................................298Replacing fuses ............................................311Replacing the air filter ...................................276Replacing the oil filter ...................................276Replacing the passenger compartment filter ......................................276Reservoir, headlamp wash ...........................275Reservoir, screenwash .................................275Resetting the service indicator ........................................................31Resetting the trip recorder ........................................................36Rev counter ...............................................13, 14
Alphabetical index
