Warning / indicator lampStateCauseAction / Observations
For ward collision warning /
Autonomous emergency braking system with Pedestrian Detection
flashing.The system is operating.The system brakes briefly so as to reduce the speed of collision with the vehicle ahead.
fixed, accompanied by a message and an audible signal
The system has a fault.Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
fixed, accompanied by a message.The system has been deactivated (via the menu).For more information on the Forward collision warning / Autonomous emergency braking system with Pedestrian Detection system, refer to the corresponding section.
Par ticle filter (Diesel)fixed, accompanied by an audible signal message on the risk of blockage of the particle filter.
This indicates that the particle filter is starting to become saturated.As soon as driving conditions allow, regenerate the filter by driving at a speed of at least 35 mph (60 km/h) until the warning lamp goes off.
fixed, accompanied by an audible signal and and a message that the particle filter additive level is too low.
This indicates the low level of the additive reservoir.Have the reser voir topped-up as soon as possible by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.

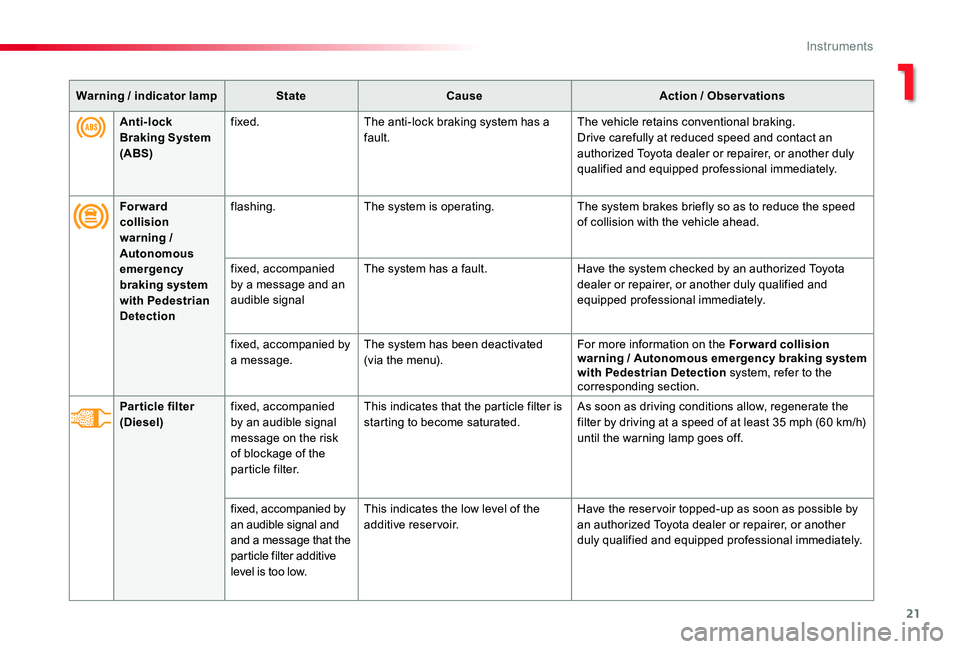

Anti-lock Braking System (ABS)
fixed.The anti-lock braking system has a fault.The vehicle retains conventional braking.Drive carefully at reduced speed and contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
1
Instruments

22
Warning / indicator lampStateCauseAction / Observations

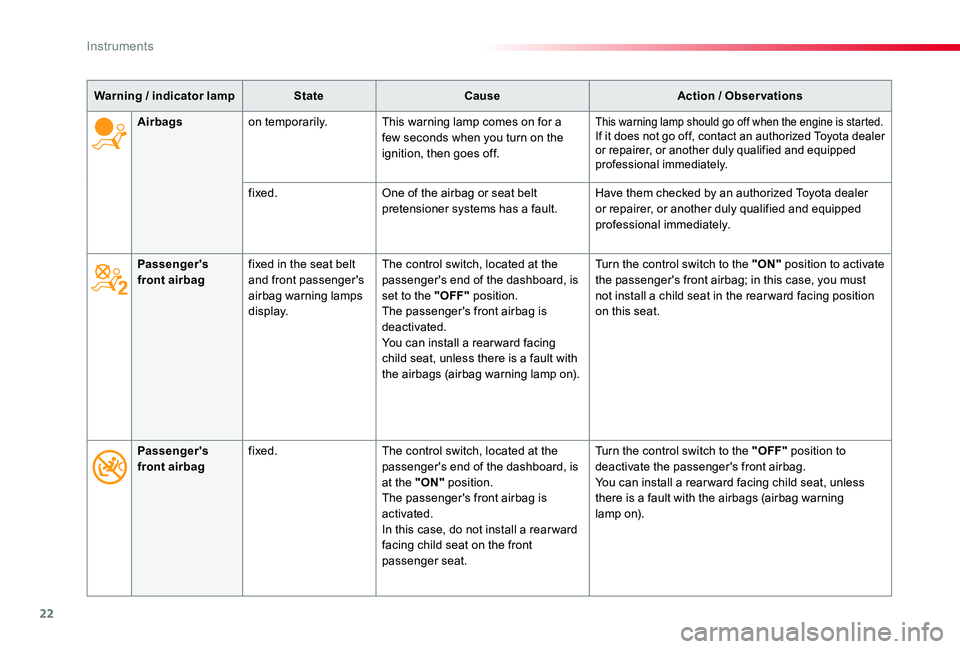

Passenger's front airbagfixed in the seat belt and front passenger's airbag warning lamps display.
The control switch, located at the passenger's end of the dashboard, is set to the "OFF" position.The passenger's front airbag is deactivated.You can install a rearward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Turn the control switch to the "ON" position to activate the passenger's front airbag; in this case, you must not install a child seat in the rear ward facing position on this seat.
Airbagson temporarily.This warning lamp comes on for a few seconds when you turn on the ignition, then goes off.
This warning lamp should go off when the engine is started.If it does not go off, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
fixed.One of the airbag or seat belt pretensioner systems has a fault.Have them checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
Passenger's front airbagfixed.The control switch, located at the passenger's end of the dashboard, is at the "ON" position.The passenger's front airbag is activated.In this case, do not install a rear ward facing child seat on the front passenger seat.
Turn the control switch to the "OFF" position to deactivate the passenger's front airbag.You can install a rear ward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Instruments

23
Warning / indicator lampStateCauseAction / Observations
Power steeringfixed.The power steering has a fault.Drive carefully at reduced speed.Have it checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.

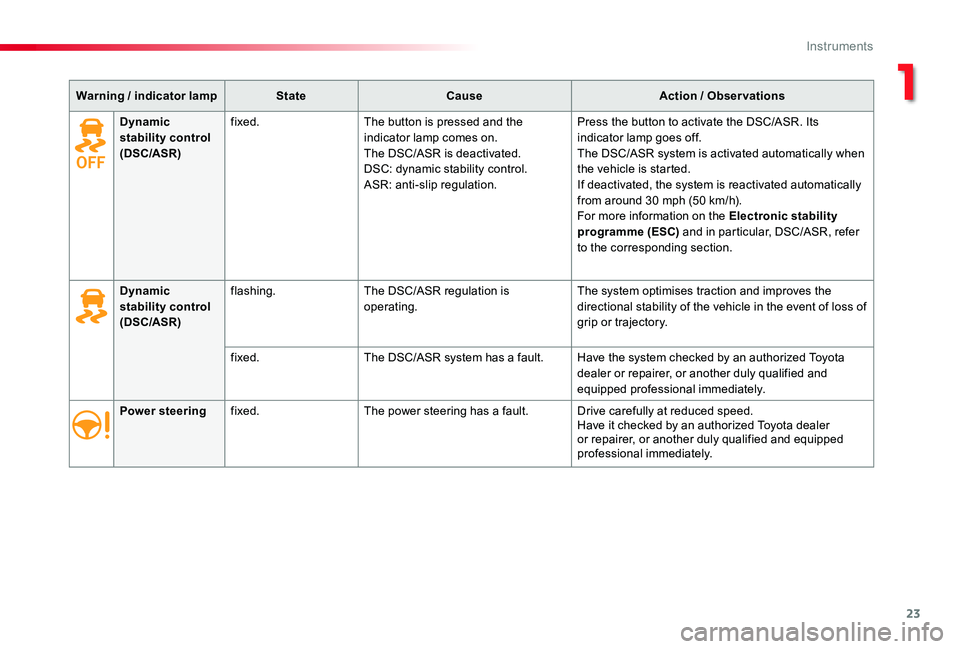

Dynamic stability control (DSC/ASR)
flashing.The DSC/ASR regulation is operating.The system optimises traction and improves the directional stability of the vehicle in the event of loss of grip or trajectory.
fixed.The DSC/ASR system has a fault.Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
Dynamic stability control (DSC/ASR)
fixed.The button is pressed and the indicator lamp comes on.The DSC/ASR is deactivated.DSC: dynamic stability control.ASR: anti-slip regulation.
Press the button to activate the DSC/ASR. Its indicator lamp goes off.The DSC/ASR system is activated automatically when the vehicle is started.If deactivated, the system is reactivated automatically from around 30 mph (50 km/h).For more information on the Electronic stability programme (ESC) and in particular, DSC/ASR, refer to the corresponding section.
1
Instruments

24
For topping-up the AdBlue® fluid or for more information on AdBlue®, refer to the corresponding section.
Warning / indicator lampStateCauseAction / Observations

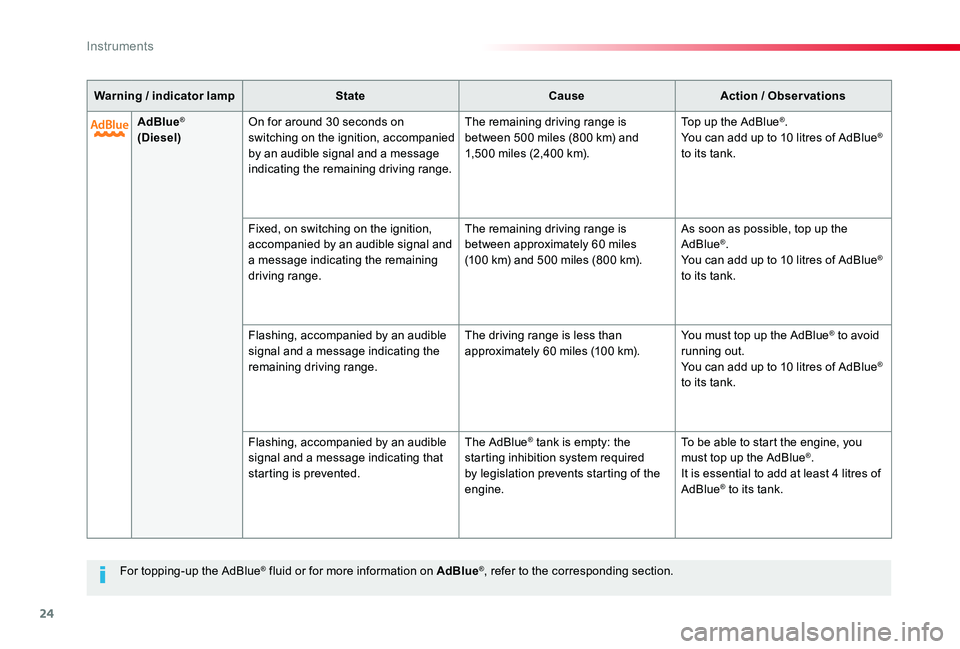

AdBlue® (Diesel)On for around 30 seconds on switching on the ignition, accompanied by an audible signal and a message indicating the remaining driving range.
The remaining driving range is between 500 miles (800 km) and 1,500 miles (2,400 km).
Top up the AdBlue®.You can add up to 10 litres of AdBlue® to its tank.
Fixed, on switching on the ignition, accompanied by an audible signal and a message indicating the remaining driving range.
The remaining driving range is between approximately 60 miles (100 km) and 500 miles (800 km).
As soon as possible, top up the AdBlue®.You can add up to 10 litres of AdBlue® to its tank.
Flashing, accompanied by an audible signal and a message indicating the remaining driving range.
The driving range is less than approximately 60 miles (100 km).You must top up the AdBlue® to avoid running out.You can add up to 10 litres of AdBlue® to its tank.
Flashing, accompanied by an audible signal and a message indicating that starting is prevented.
The AdBlue® tank is empty: the starting inhibition system required by legislation prevents starting of the engine.
To be able to start the engine, you must top up the AdBlue®.It is essential to add at least 4 litres of AdBlue® to its tank.
Instruments

25
Warning / indicator lampStateCauseAction / Observations
+
+

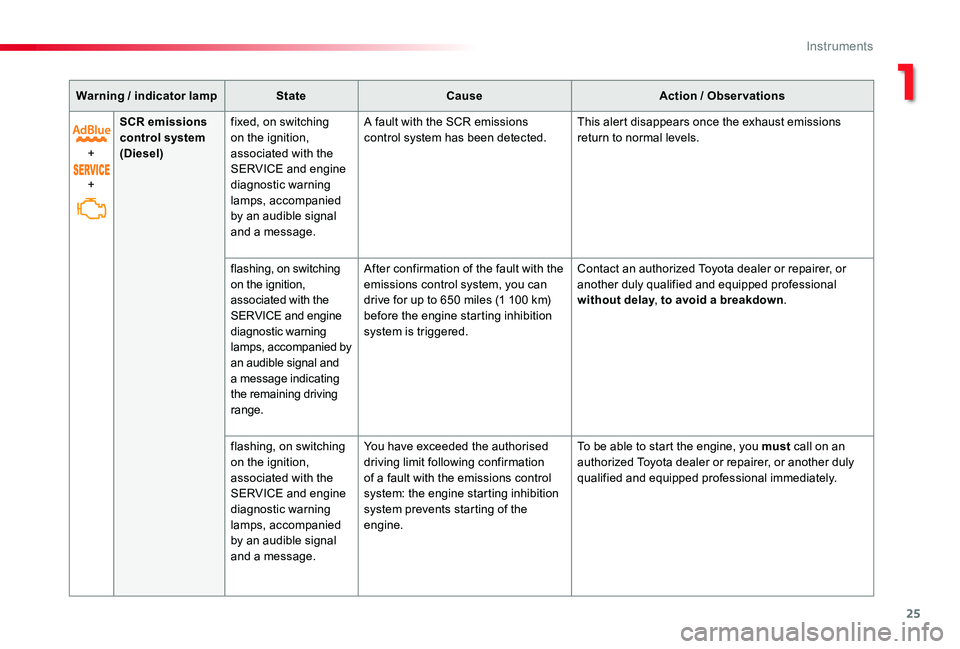

SCR emissions control system (Diesel)
fixed, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal and a message.
A fault with the SCR emissions control system has been detected.This alert disappears once the exhaust emissions return to normal levels.
flashing, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal and a message indicating the remaining driving range.
After confirmation of the fault with the emissions control system, you can drive for up to 650 miles (1 100 km) before the engine starting inhibition system is triggered.
Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional without delay, to avoid a breakdown.
flashing, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal and a message.
You have exceeded the authorised driving limit following confirmation of a fault with the emissions control system: the engine starting inhibition system prevents starting of the engine.
To be able to start the engine, you must call on an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
1
Instruments

26
Warning / indicator lampStateCauseAction / Observations
Rear foglampsfixed.The rear foglamps are on.Turn the ring on the stalk rear ward to switch off the rear foglamps.
Serviceon temporarily.A minor fault has occurred for which there is no specific warning lamp.Identify the fault by means of the associated message, for example:- low engine oil level,- low screenwash/headlamp wash fluid level,- discharged remote control battery,- low tyre pressures,- saturation of the particle filter (DPF) on Diesel vehicles.- ...For more information on Checks and in particular the particle filter, refer to the corresponding section.For any other faults, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
fixed.A major fault has occurred for which there is no specific warning lamp.Identify the fault by reading the message and contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
+
fixed, associated with flashing and then fixed display of the ser vice spanner.
The ser vicing inter val has been exceeded.Only on Diesel versions.Your vehicle must be ser viced as soon as possible.
Instruments

27
Warning / indicator lampStateCauseAction / Observations
Automatic wipingfixed.The wiper control has been pushed down.Automatic front wiping is activated.To deactivate automatic wiping, operate the control stalk downwards or put the stalk into another position.
Automatic headlamp dipping
fixed.The lighting control stalk is in the "AUTO" position, and the function has been activated.The main beam headlamps come on if the exterior lighting and driving conditions permit.
The camera, located at the top of the windscreen, manages the operation of main beam, depending on the ambient lighting and driving conditions.For more information on Automatic headlamp dipping, refer to the corresponding section.
Stop & Star tfixed.When the vehicle stops (red lights, traffic jams, ...) the Stop & Start system has put the engine into STOP mode.
The warning lamp goes off and the engine restarts automatically in START mode, as soon as you want to move off.
flashes for a few seconds, then goes of f.
STOP mode is temporarily unavailable,orSTART mode is invoked automatically.
For more information on Stop & Star t, refer to the corresponding section.
Blind spot monitoring system
fixed.The blind spot monitoring system has been activated.For more information on the Blind spot monitoring system, refer to the corresponding section.
1
Instruments

28
For more information on the Lighting control stalk, refer to the corresponding section.
Warning / indicator lampStateCauseAction / Observations
Front foglampsfixed.The front foglamps are switched on using the ring on the lighting control stalk.
Turn the ring on the lighting control stalk rear ward once to switch off the front foglamps.
Sidelampsfixed.The lighting stalk is in the "Sidelamps" position.
Left-hand direction indicator
flashing with buzzer.The lighting stalk has been pushed down.
Right-hand direction indicator
flashing with buzzer.The lighting stalk has been pushed up.
Dipped beam headlampsfixed.The lighting stalk is in the "Dipped beam headlamps" position.
Main beam headlampsfixed.The lighting stalk has been pulled towards you.Pull the stalk to return to dipped beam headlamps.
Lane Depar ture Alertfixed.The Lane Departure Alert has been activated.The Lane Departure Alert is on.For more information on the Lane Departure Alert, refer to the corresponding section.
Instruments

29

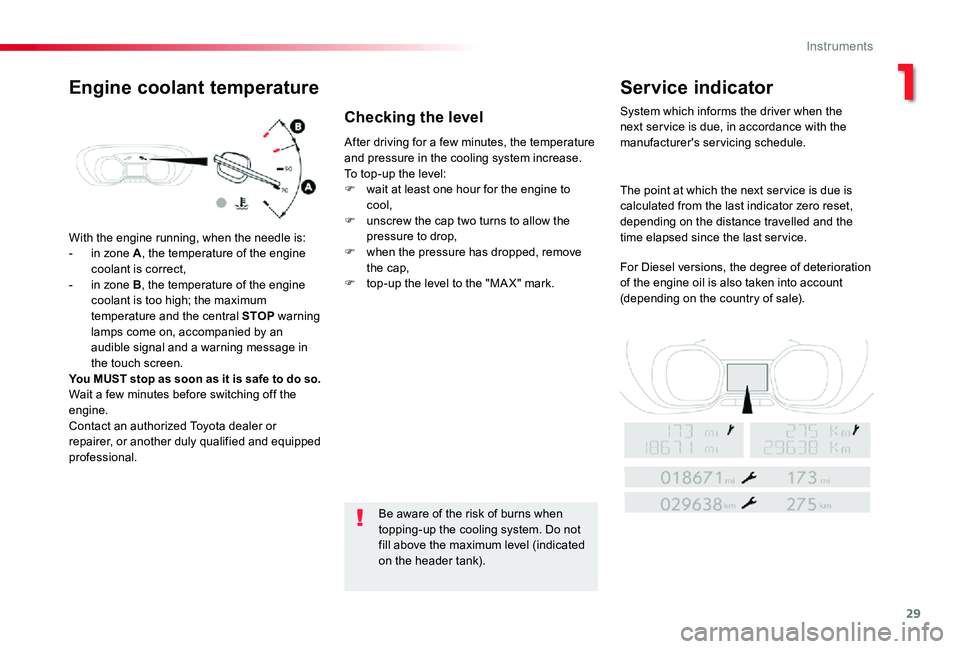

With the engine running, when the needle is:
- in zone A, the temperature of the engine coolant is correct,- in zone B, the temperature of the engine coolant is too high; the maximum temperature and the central STOP warning lamps come on, accompanied by an audible signal and a warning message in the touch screen.You MUST stop as soon as it is safe to do so.Wait a few minutes before switching off the engine.Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
After driving for a few minutes, the temperature and pressure in the cooling system increase.To top-up the level:F wait at least one hour for the engine to cool,F unscrew the cap two turns to allow the pressure to drop,F when the pressure has dropped, remove the cap,F top-up the level to the "MA X" mark.
Be aware of the risk of burns when topping-up the cooling system. Do not
fill above the maximum level (indicated on the header tank).
Engine coolant temperatureService indicator
System which informs the driver when the next ser vice is due, in accordance with the manufacturer's servicing schedule.
The point at which the next ser vice is due is calculated from the last indicator zero reset, depending on the distance travelled and the time elapsed since the last ser vice.
For Diesel versions, the degree of deterioration of the engine oil is also taken into account (depending on the country of sale).
Checking the level
1
Instruments

30

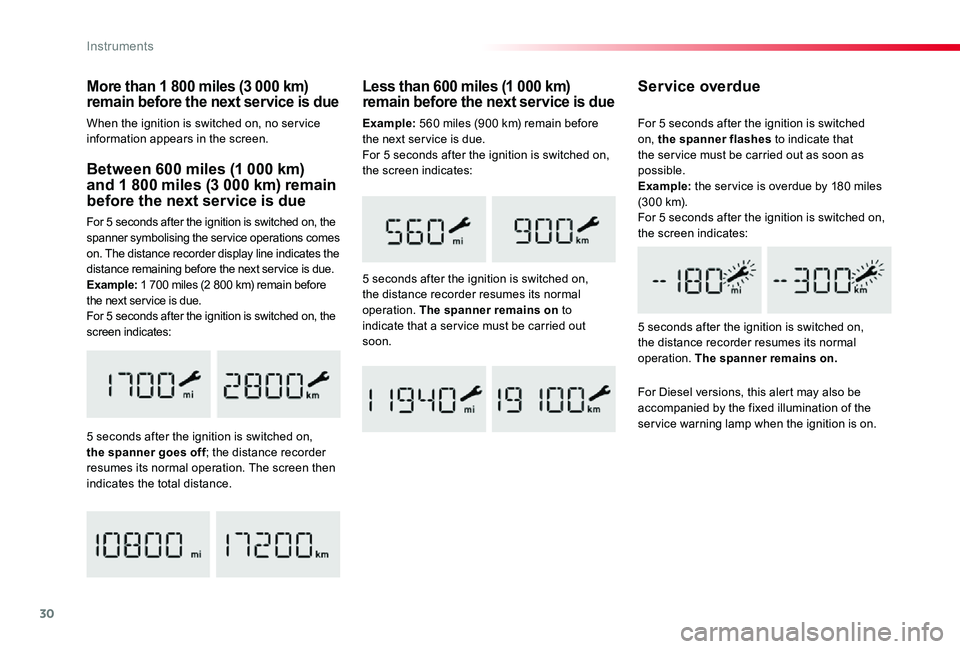

Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the ser vice operations comes on. The distance recorder display line indicates the distance remaining before the next ser vice is due.Example: 1 700 miles (2 800 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off; the distance recorder resumes its normal operation. The screen then indicates the total distance.
Service overdue
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on.
For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the ser vice must be carried out as soon as possible.Example: the ser vice is overdue by 180 miles (300 km).For 5 seconds after the ignition is switched on, the screen indicates:
Less than 600 miles (1 000 km) remain before the next service is due
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a ser vice must be carried out soon.
For Diesel versions, this alert may also be accompanied by the fixed illumination of the ser vice warning lamp when the ignition is on.
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen.Example: 560 miles (900 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
