238

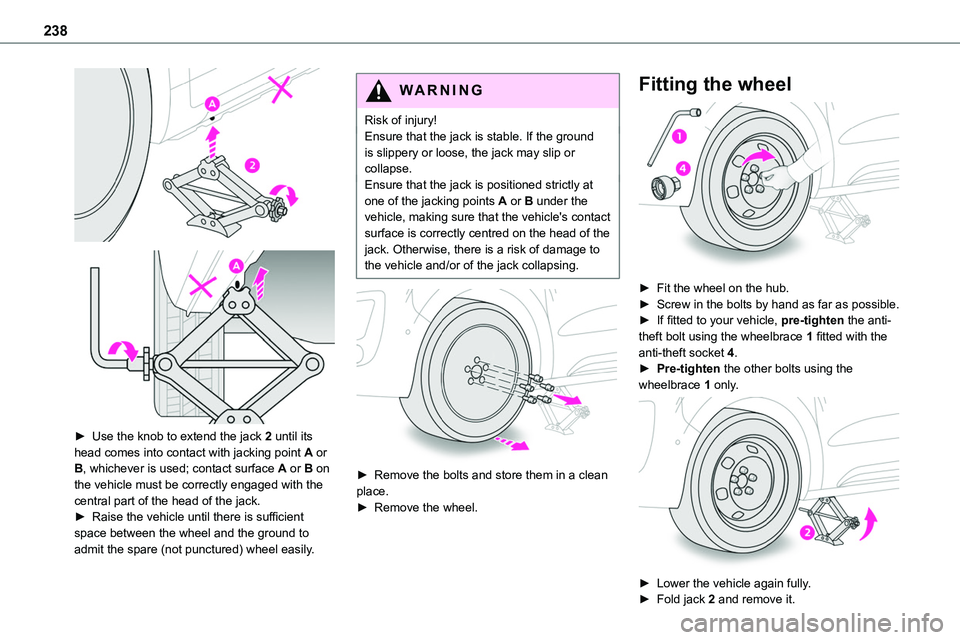

► Use the knob to extend the jack 2 until its head comes into contact with jacking point A or B, whichever is used; contact surface A or B on the vehicle must be correctly engaged with the central part of the head of the jack.► Raise the vehicle until there is sufficient space between the wheel and the ground to admit the spare (not punctured) wheel easily.
WARNI NG
Risk of injury!Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or collapse.Ensure that the jack is positioned strictly at one of the jacking points A or B under the vehicle, making sure that the vehicle's contact
surface is correctly centred on the head of the jack. Otherwise, there is a risk of damage to the vehicle and/or of the jack collapsing.


► Remove the bolts and store them in a clean place.► Remove the wheel.
Fitting the wheel

► Fit the wheel on the hub.► Screw in the bolts by hand as far as possible.► If fitted to your vehicle, pre-tighten the anti-theft bolt using the wheelbrace 1 fitted with the anti-theft socket 4.► Pre-tighten the other bolts using the wheelbrace 1 only.

► Lower the vehicle again fully.► Fold jack 2 and remove it.
