TOYOTA PROACE VERSO EV 2022 Owners Manual

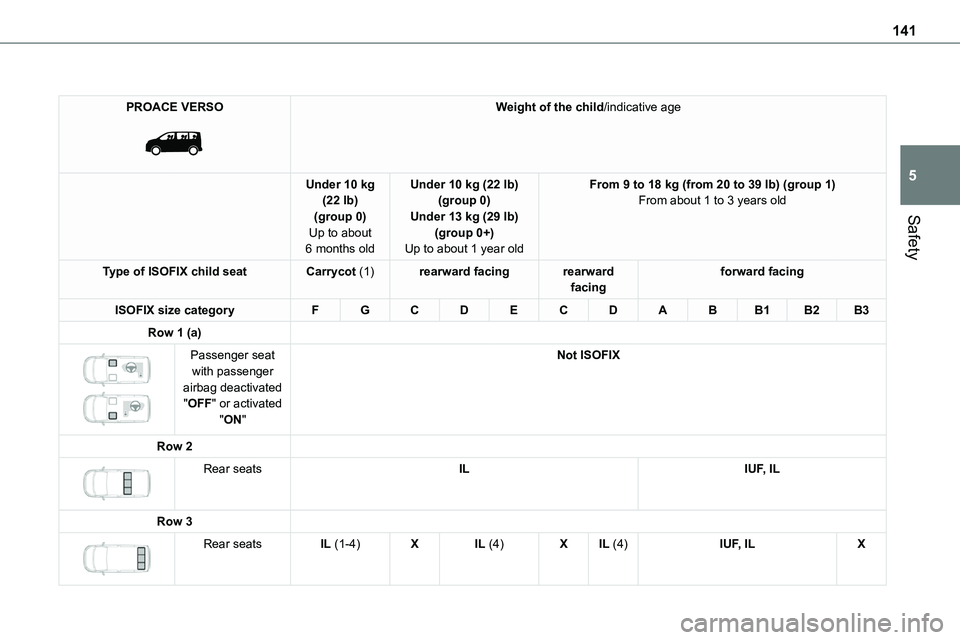

141
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)
Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)
(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Rear seatsILIUF, IL
Row 3

Rear seatsIL (1-4)XIL (4)XIL (4)IUF, ILX

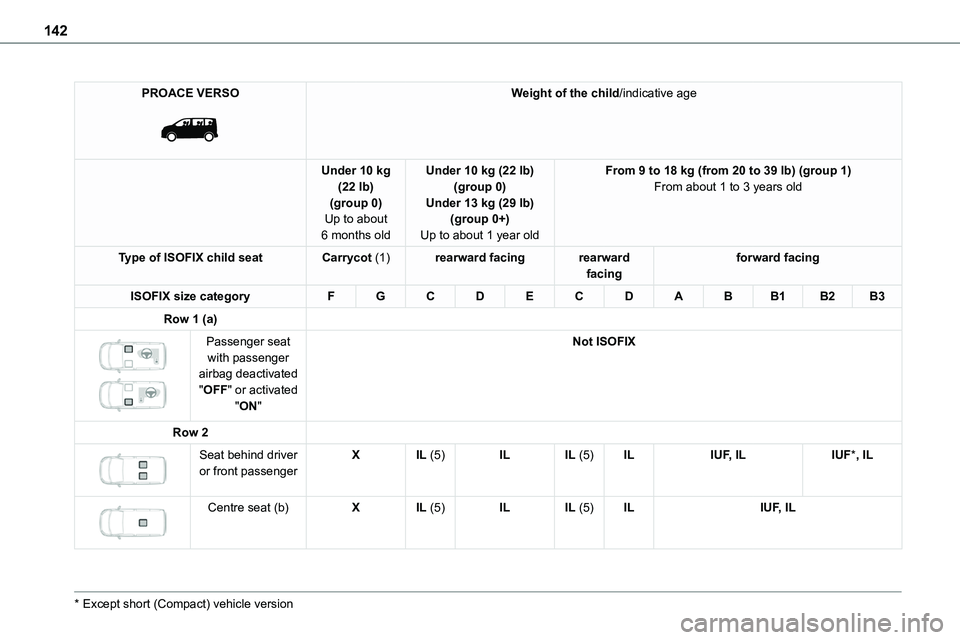

142
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Seat behind driver or front passengerXIL (5)ILIL (5)ILIUF, ILIUF*, IL


Centre seat (b)XIL (5)ILIL (5)ILIUF, IL
* Except short (Compact) vehicle version

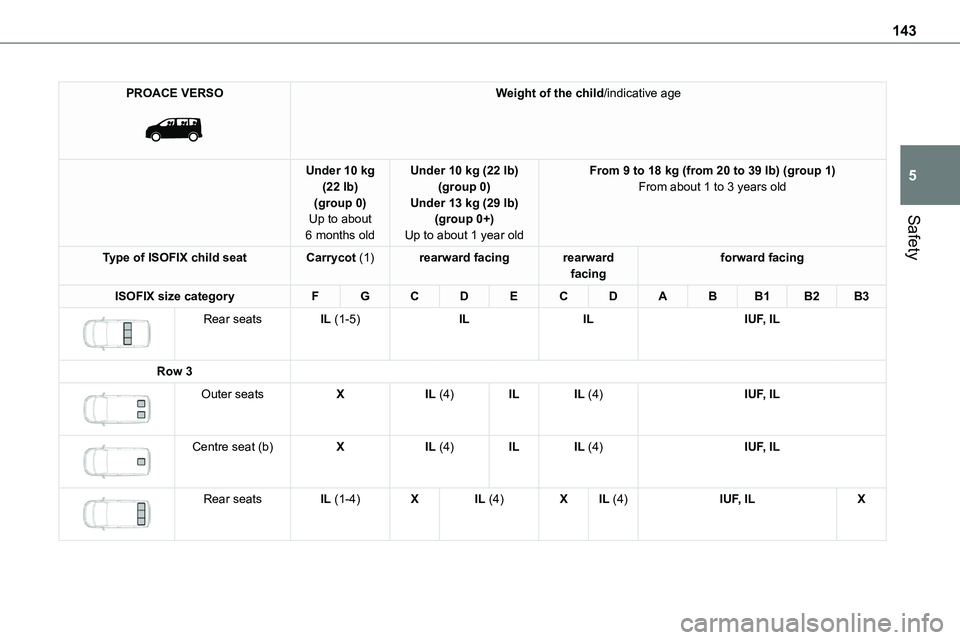

143
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3

Rear seatsIL (1-5)ILILIUF, IL
Row 3

Outer seatsXIL (4)ILIL (4)IUF, IL


Centre seat (b)XIL (4)ILIL (4)IUF, IL


Rear seatsIL (1-4)XIL (4)XIL (4)IUF, ILX

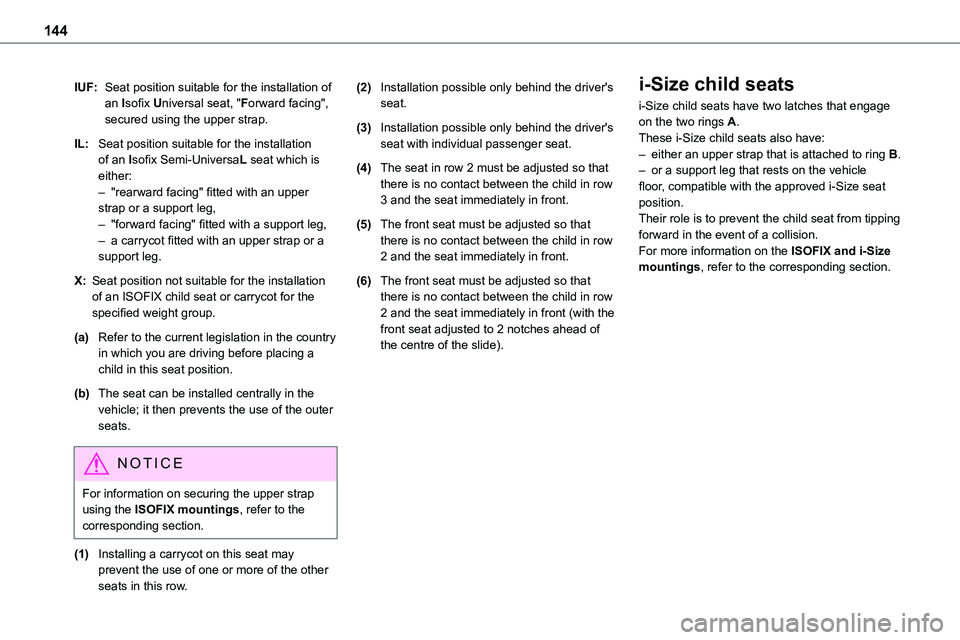

144
IUF:Seat position suitable for the installation of an Isofix Universal seat, "Forward facing", secured using the upper strap.
IL:Seat position suitable for the installation of an Isofix Semi-UniversaL seat which is either:– "rearward facing" fitted with an upper strap or a support leg,– "forward facing" fitted with a support leg,– a carrycot fitted with an upper strap or a support leg.
X:Seat position not suitable for the installation of an ISOFIX child seat or carrycot for the specified weight group.
(a)Refer to the current legislation in the country in which you are driving before placing a child in this seat position.
(b)The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
NOTIC E
For information on securing the upper strap using the ISOFIX mountings, refer to the corresponding section.
(1)Installing a carrycot on this seat may prevent the use of one or more of the other seats in this row.
(2)Installation possible only behind the driver's seat.
(3)Installation possible only behind the driver's seat with individual passenger seat.
(4)The seat in row 2 must be adjusted so that there is no contact between the child in row 3 and the seat immediately in front.
(5)The front seat must be adjusted so that there is no contact between the child in row 2 and the seat immediately in front.
(6)The front seat must be adjusted so that there is no contact between the child in row 2 and the seat immediately in front (with the front seat adjusted to 2 notches ahead of the centre of the slide).
i-Size child seats
i-Size child seats have two latches that engage on the two rings A.These i-Size child seats also have:– either an upper strap that is attached to ring B.– or a support leg that rests on the vehicle floor, compatible with the approved i-Size seat position.Their role is to prevent the child seat from tipping
forward in the event of a collision.For more information on the ISOFIX and i-Size mountings, refer to the corresponding section.

145
Safety
5

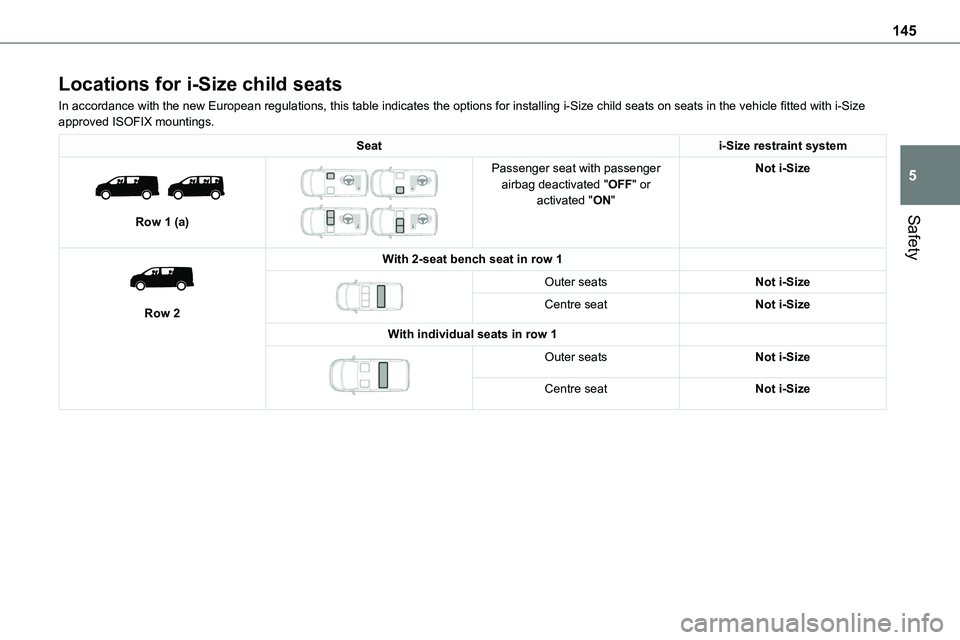

Locations for i-Size child seats
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with i-Size approved ISOFIX mountings.
Seati-Size restraint system

Row 1 (a)


Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not i-Size


Row 2
With 2-seat bench seat in row 1

Outer seatsNot i-Size
Centre seatNot i-Size
With individual seats in row 1

Outer seatsNot i-Size
Centre seatNot i-Size

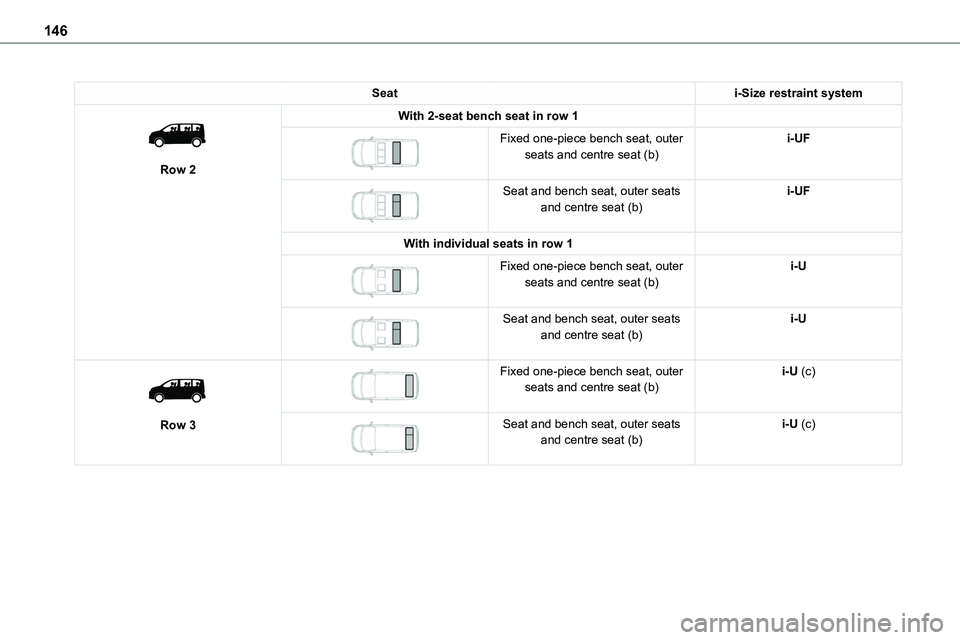

146
Seati-Size restraint system

Row 2
With 2-seat bench seat in row 1

Fixed one-piece bench seat, outer seats and centre seat (b)i-UF


Seat and bench seat, outer seats and centre seat (b)i-UF
With individual seats in row 1

Fixed one-piece bench seat, outer seats and centre seat (b)i-U


Seat and bench seat, outer seats and centre seat (b)i-U


Row 3


Fixed one-piece bench seat, outer seats and centre seat (b)i-U (c)


Seat and bench seat, outer seats
and centre seat (b)
i-U (c)

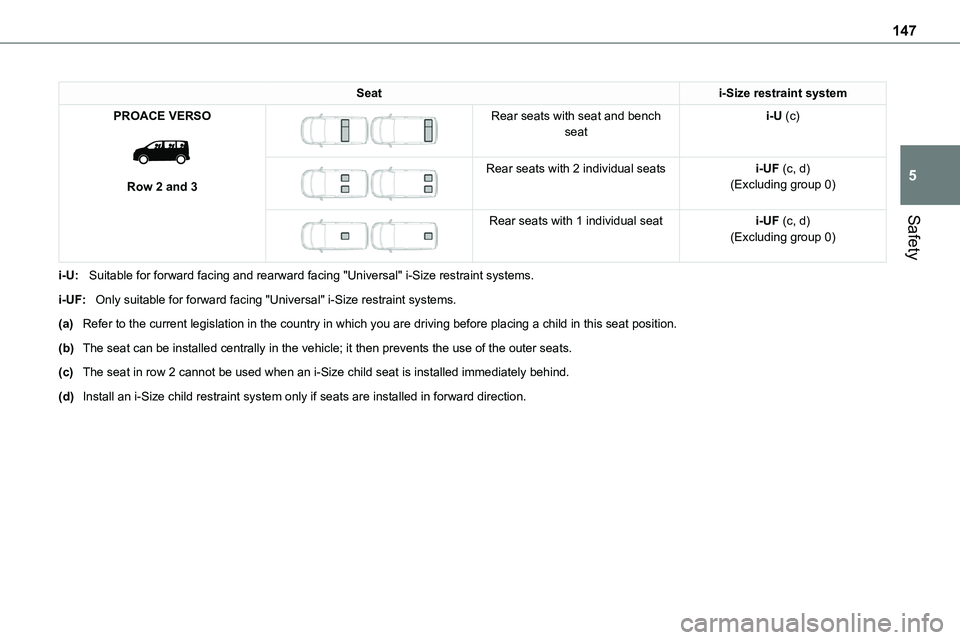

147
Safety
5
Seati-Size restraint system
PROACE VERSO

Row 2 and 3


Rear seats with seat and bench seati-U (c)


Rear seats with 2 individual seatsi-UF (c, d)(Excluding group 0)


Rear seats with 1 individual seati-UF (c, d)
(Excluding group 0)
i-U:Suitable for forward facing and rearward facing "Universal" i-Size restr\
aint systems.
i-UF:Only suitable for forward facing "Universal" i-Size restraint systems.
(a)Refer to the current legislation in the country in which you are driving\
before placing a child in this seat position.
(b)The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
(c)The seat in row 2 cannot be used when an i-Size child seat is installed \
immediately behind.
(d)Install an i-Size child restraint system only if seats are installed in \
forward direction.

148

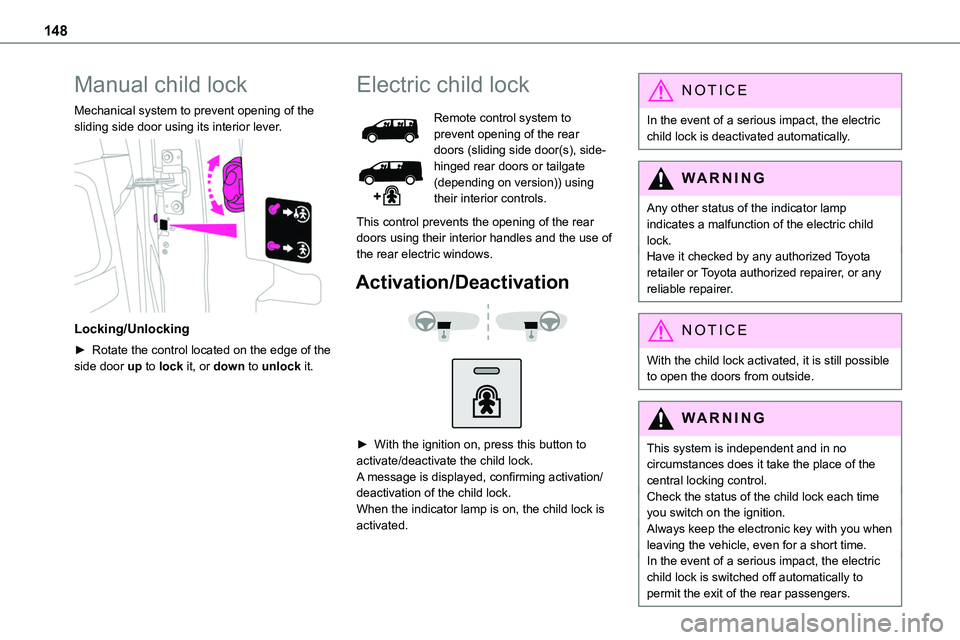

Manual child lock
Mechanical system to prevent opening of the sliding side door using its interior lever.

Locking/Unlocking
► Rotate the control located on the edge of the side door up to lock it, or down to unlock it.
Electric child lock
Remote control system to prevent opening of the rear doors (sliding side door(s), side-hinged rear doors or tailgate (depending on version)) using their interior controls.
This control prevents the opening of the rear
doors using their interior handles and the use of the rear electric windows.
Activation/Deactivation


► With the ignition on, press this button to activate/deactivate the child lock.A message is displayed, confirming activation/deactivation of the child lock.When the indicator lamp is on, the child lock is activated.
NOTIC E
In the event of a serious impact, the electric child lock is deactivated automatically.
WARNI NG
Any other status of the indicator lamp indicates a malfunction of the electric child lock.Have it checked by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
NOTIC E
With the child lock activated, it is still possible to open the doors from outside.
WARNI NG
This system is independent and in no circumstances does it take the place of the central locking control.Check the status of the child lock each time you switch on the ignition.Always keep the electronic key with you when leaving the vehicle, even for a short time.In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of the rear passengers.

149
Safety
5

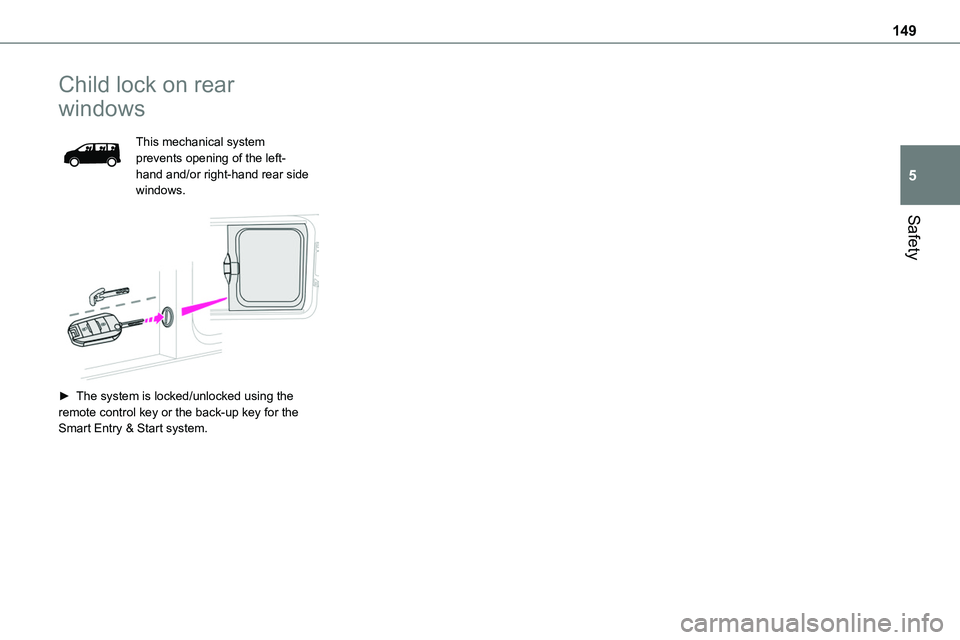

Child lock on rear
windows
This mechanical system prevents opening of the left-hand and/or right-hand rear side windows.

► The system is locked/unlocked using the remote control key or the back-up key for the Smart Entry & Start system.

150

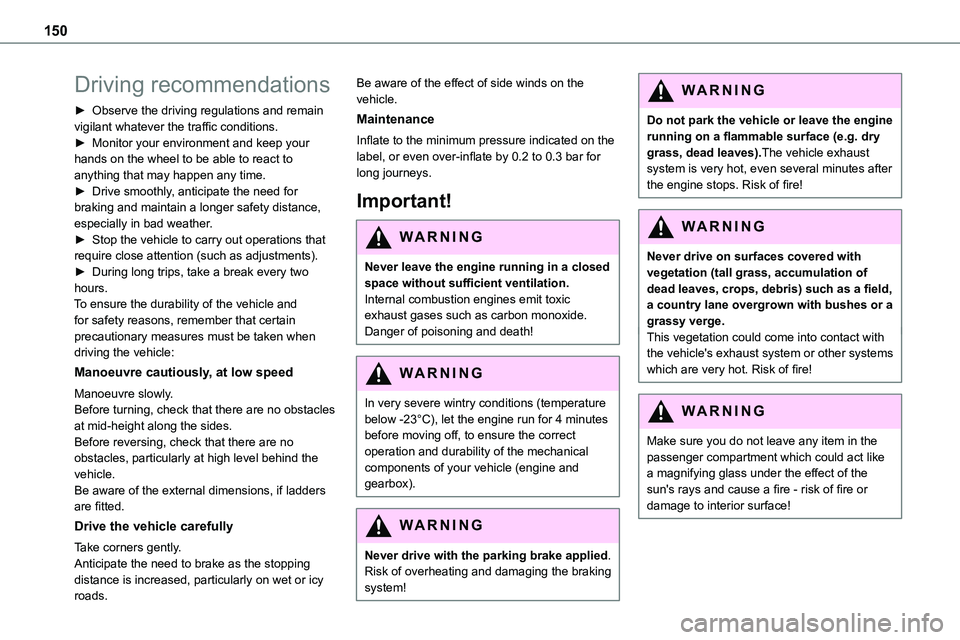

Driving recommendations
► Observe the driving regulations and remain vigilant whatever the traffic conditions.► Monitor your environment and keep your hands on the wheel to be able to react to anything that may happen any time.► Drive smoothly, anticipate the need for braking and maintain a longer safety distance,
especially in bad weather.► Stop the vehicle to carry out operations that require close attention (such as adjustments).► During long trips, take a break every two hours.To ensure the durability of the vehicle and for safety reasons, remember that certain precautionary measures must be taken when driving the vehicle:
Manoeuvre cautiously, at low speed
Manoeuvre slowly.Before turning, check that there are no obstacles at mid-height along the sides.Before reversing, check that there are no obstacles, particularly at high level behind the vehicle.Be aware of the external dimensions, if ladders are fitted.
Drive the vehicle carefully
Take corners gently.Anticipate the need to brake as the stopping distance is increased, particularly on wet or icy roads.
Be aware of the effect of side winds on the vehicle.
Maintenance
Inflate to the minimum pressure indicated on the label, or even over-inflate by 0.2 to 0.3 bar for long journeys.
Important!
WARNI NG
Never leave the engine running in a closed space without sufficient ventilation. Internal combustion engines emit toxic exhaust gases such as carbon monoxide. Danger of poisoning and death!
WARNI NG
In very severe wintry conditions (temperature below -23°C), let the engine run for 4 minutes before moving off, to ensure the correct operation and durability of the mechanical components of your vehicle (engine and gearbox).
WARNI NG
Never drive with the parking brake applied. Risk of overheating and damaging the braking system!
WARNI NG
Do not park the vehicle or leave the engine running on a flammable surface (e.g. dry grass, dead leaves).The vehicle exhaust system is very hot, even several minutes after the engine stops. Risk of fire!
WARNI NG
Never drive on surfaces covered with vegetation (tall grass, accumulation of dead leaves, crops, debris) such as a field, a country lane overgrown with bushes or a grassy verge.This vegetation could come into contact with the vehicle's exhaust system or other systems which are very hot. Risk of fire!
WARNI NG
Make sure you do not leave any item in the passenger compartment which could act like a magnifying glass under the effect of the sun's rays and cause a fire - risk of fire or damage to interior surface!
