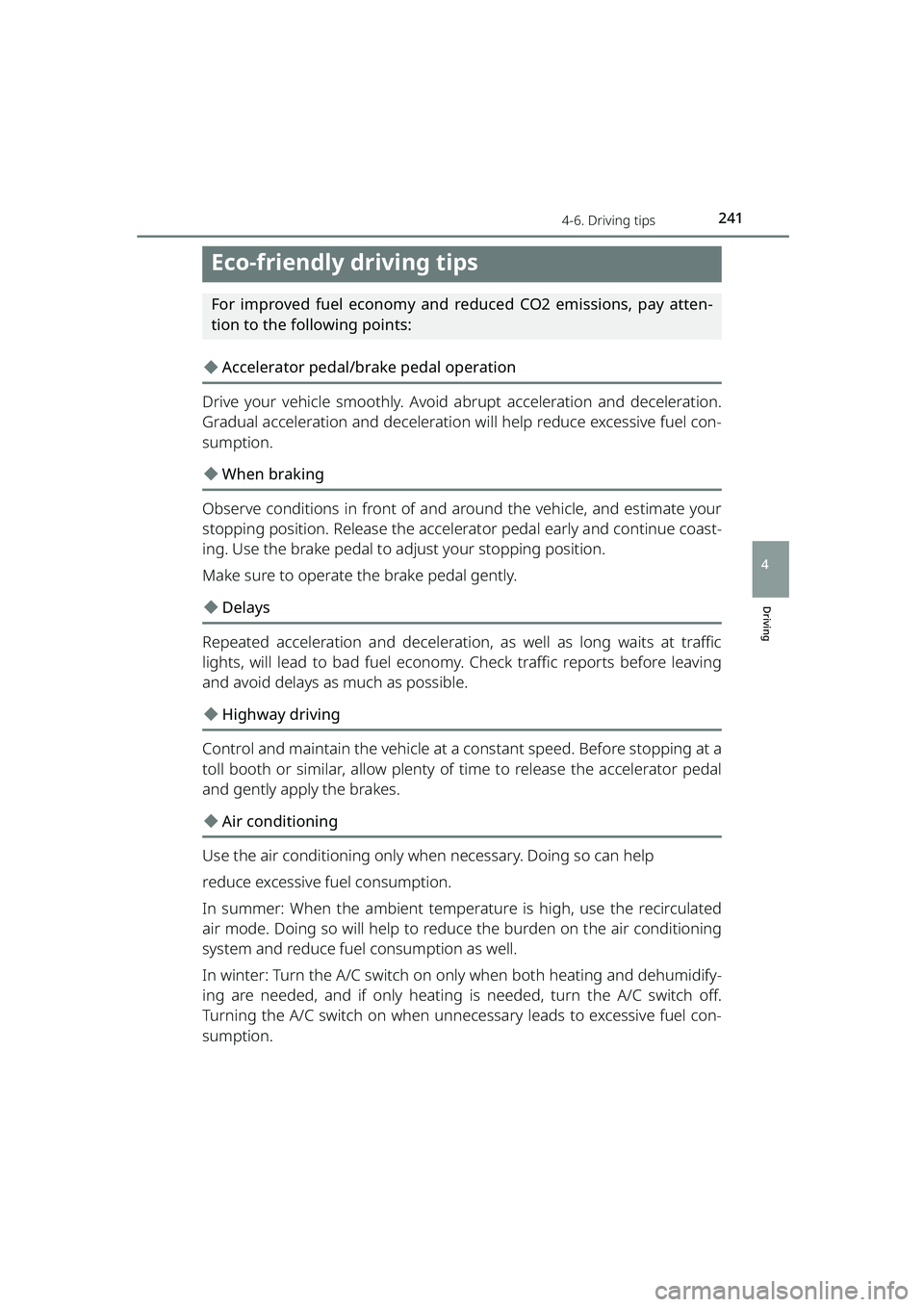

2414-6. Driving tips
RAIZE_OM_General_BZ358E
Driving
4
Eco-friendly driving tips
For improved fuel economy and reduced CO2 emissions, pay atten-
tion to the following points:
◆Accelerator pedal/brake pedal operation
Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration.
Gradual acceleration and deceleration will help reduce excessive fuel con-
sumption.
◆When braking
Observe conditions in front of and around the vehicle, and estimate your
stopping position. Release the accele rator pedal early and continue coast-
ing. Use the brake pedal to adjust your stopping position.
Make sure to operate the brake pedal gently.
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic
lights, will lead to bad fuel economy. Check traffic reports before leaving
and avoid delays as much as possible.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a
toll booth or similar, allow plenty of time to release the accelerator pedal
and gently apply the brakes.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive fuel consumption.
In summer: When the ambient temper ature is high, use the recirculated
air mode. Doing so will help to redu ce the burden on the air conditioning
system and reduce fuel consumption as well.
In winter: Turn the A/C switch on on ly when both heating and dehumidify-
ing are needed, and if only heating is needed, turn the A/C switch off.
Turning the A/C switch on when unnece ssary leads to excessive fuel con-
sumption.
RAIZE_OM_General_BZ358E.book 241 ページ ２０２２年５月１７日　火曜日　午後１時５９分

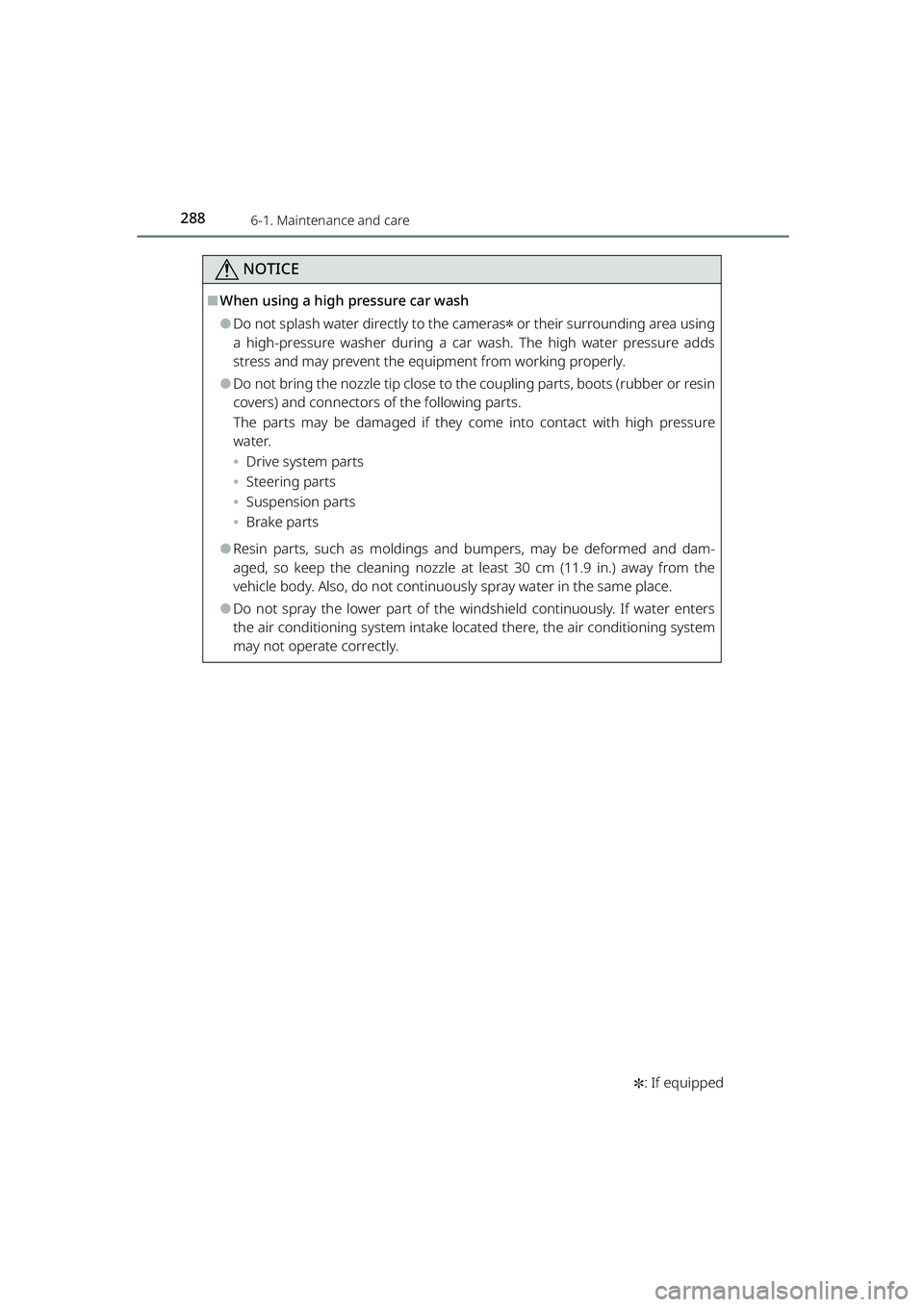

2886-1. Maintenance and care
RAIZE_OM_General_BZ358E
NOTICE
✽: If equipped
⬛When using a high pressure car wash
⚫Do not splash water directly to the cameras✽ or their surrounding area using
a high-pressure washer during a car wash. The high water pressure adds
stress and may prevent the equipment from working properly.
⚫Do not bring the nozzle tip close to the coupling parts, boots (rubber or resin
covers) and connectors of the following parts.
The parts may be damaged if they come into contact with high pressure
water.
⦁ Drive system parts
⦁ Steering parts
⦁ Suspension parts
⦁ Brake parts
⚫Resin parts, such as moldings and bumpers, may be deformed and dam-
aged, so keep the cleaning nozzle at le ast 30 cm (11.9 in.) away from the
vehicle body. Also, do not continuous ly spray water in the same place.
⚫Do not spray the lower part of the windshield continuously. If water enters
the air conditioning system intake loca ted there, the air conditioning system
may not operate correctly.
RAIZE_OM_General_BZ358E.book 288 ページ ２０２２年５月１７日　火曜日　午後１時５９分

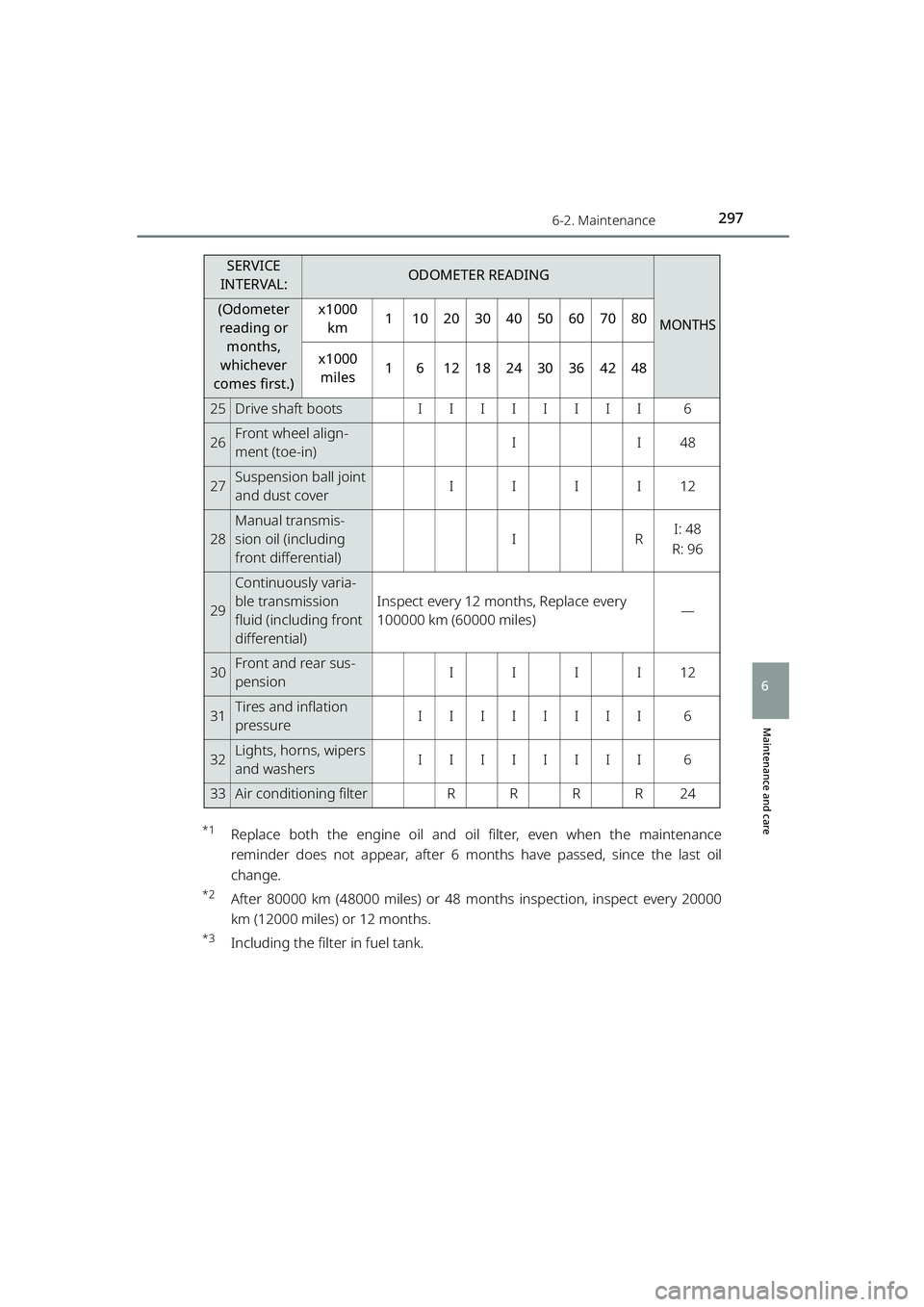

2976-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
25Drive shaft bootsIIIIIIII6
26Front wheel align-
ment (toe-in)II48
27Suspension ball joint
and dust coverIIII12
28
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
29
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
30Front and rear sus-
pensionIIII12
31Tires and inflation
pressureIIIIIIII6
32Lights, horns, wipers
and washersIIIIIIII6
33Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 1 1020304050607080
x1000 miles 1 6 12 18 24 30 36 42 48
RAIZE_OM_General_BZ358E.book 297 ページ ２０２２年５月１７日　火曜日　午後１時５９分

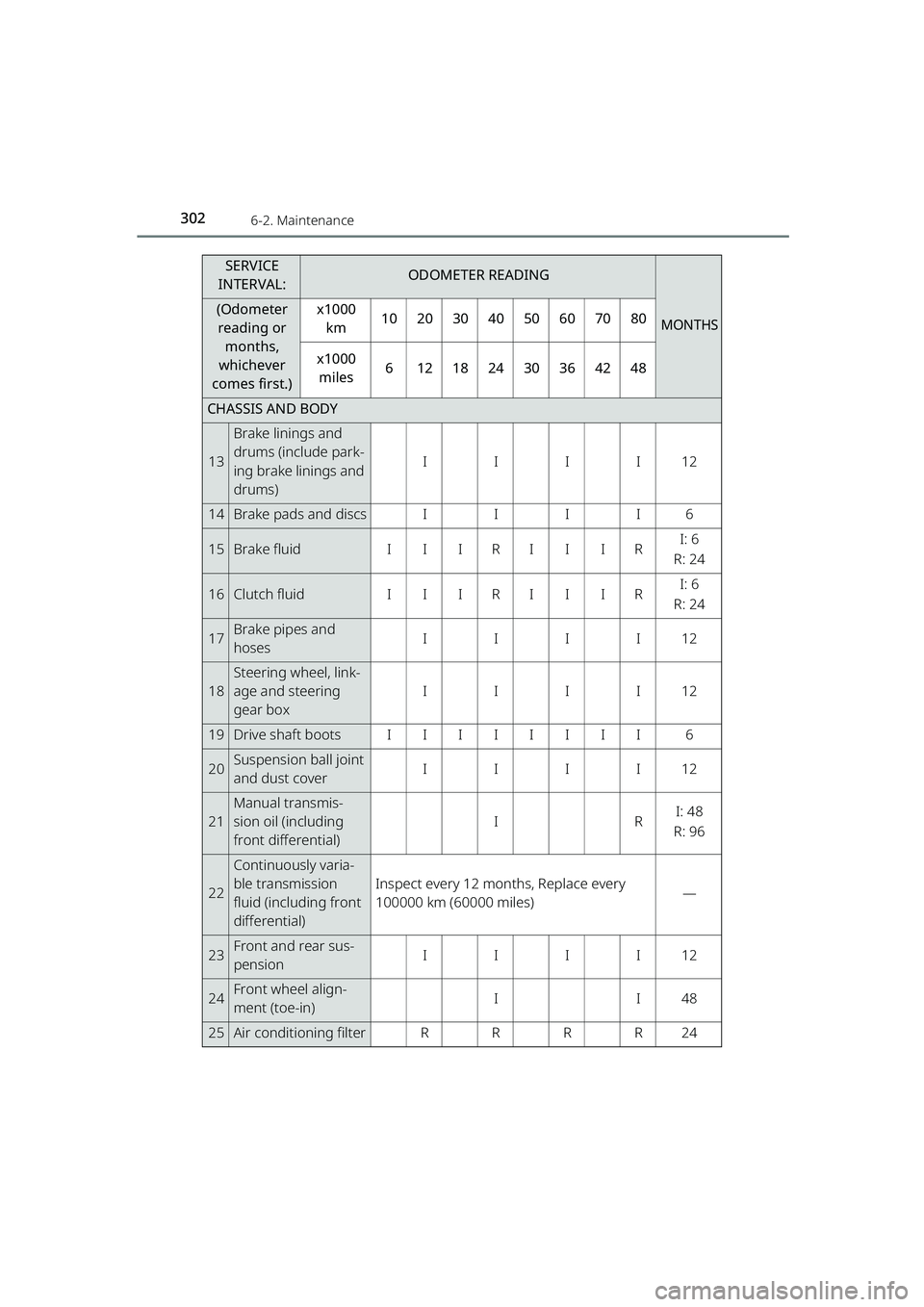

3026-2. Maintenance
RAIZE_OM_General_BZ358E
CHASSIS AND BODY
13
Brake linings and
drums (include park-
ing brake linings and
drums)
IIII12
14Brake pads and discsIIII6
15Brake fluidIIIRIIIRI: 6
R: 24
16Clutch fluidIIIRIIIRI: 6
R: 24
17Brake pipes and
hosesIIII12
18
Steering wheel, link-
age and steering
gear box
IIII12
19Drive shaft bootsIIIIIIII6
20Suspension ball joint
and dust coverIIII12
21
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
22
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
23Front and rear sus-
pensionIIII12
24Front wheel align-
ment (toe-in)II48
25Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 10 20 30 40 50 60 70 80
x1000 miles 6 12182430364248
