3166-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
aWasher fluid tank ( ➞P. 324)
b Engine oil filler cap (➞ P. 317)
c Engine oil level dipstick ( ➞P. 316)
d Brake fluid reservoir ( ➞P. 320)
e Battery ( ➞P. 321)
f Fuse box ( ➞P. 348) g
Air cleaner ( ➞P. 325)
hEngine coolant reservoir (➞P. 319)
i Electric cooling fan
j Condenser ( ➞P. 320)
k Radiator ( ➞P. 320)
Engine oil
With the engine at operating temper ature and turned off, check the oil
level on the dipstick.
⬛Checking the engine oil
a Park the vehicle on level ground. After warming up the engine and
turning it off, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
b Holding a rag under the end, pull the dipstick out.
▶WA-VE engine▶1KR-VET engine
c Wipe the dipstick clean.
d Reinsert the dipstick fully.
eHolding a rag under the end, pull the
dipstick out and check the oil level.
a Low
b Normal
c Excessive
The shape of the dipstick may dif-
fer depending on the type of
vehicle or engine.
f Wipe the dipstick and reinsert it fully.
KBRO620901NKBRO620902N
KBRO620905N
RAIZE_OM_General_BZ358E.book 316 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3486-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Checking and replacing fuses
If a light or the electrical system does not operate, a fuse may have
blown. Check the fuse.
a Turn the engine switch to “OFF”
b Open the fuse box
▶Engine compartment
While pressing down the claw, lift
the cover
▶Instrument panel
For right-hand drive vehicles,
remove the glove box in the leg-
room of the passenger's seat
a Push the left side inward and
disengage the upper claw
b Push the right side inward
and disengage the upper claw
c Disengage the lower claws
For left-hand drive vehicles, dis-
engage the claws at 8 locations
and remove the lower cover in
the legroom of the driver's seat
KBRO620702N
1
3
2
KBRO620703N
KBRO620704E
RAIZE_OM_General_BZ358E.book 348 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3496-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

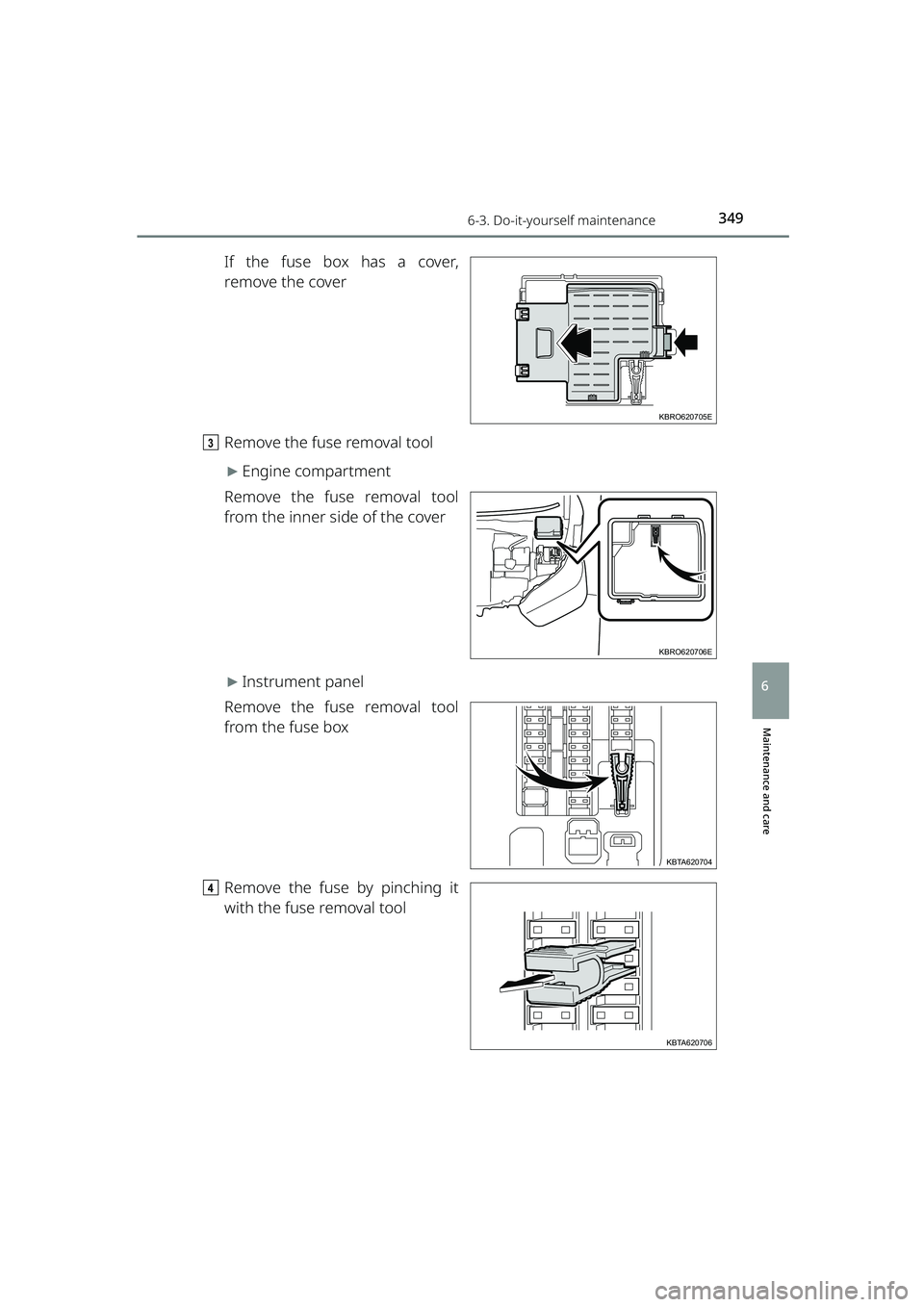

If the fuse box has a cover,
remove the cover
c Remove the fuse removal tool
▶Engine compartment
Remove the fuse removal tool
from the inner side of the cover
▶Instrument panel
Remove the fuse removal tool
from the fuse box
d Remove the fuse by pinching it
with the fuse removal tool
KBRO620705E
KBRO620706E
KBTA620704
KBTA620706
RAIZE_OM_General_BZ358E.book 349 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3506-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

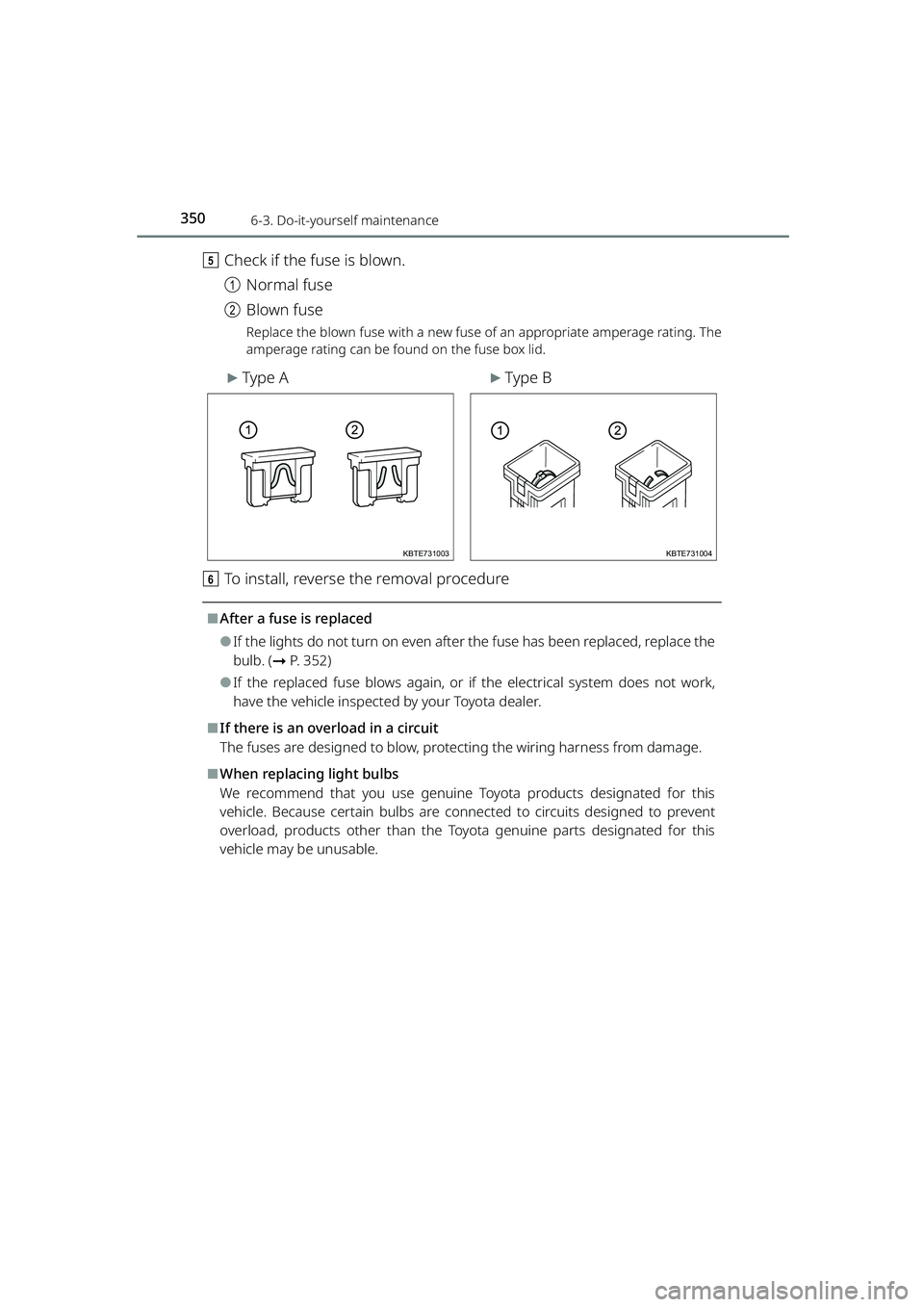

eCheck if the fuse is blown.
aNormal fuse
b Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
▶Type A▶Type B
f To install, reverse the removal procedure
⬛After a fuse is replaced
⚫If the lights do not turn on even afte r the fuse has been replaced, replace the
bulb. ( ➞P. 352)
⚫If the replaced fuse blows again, or if the electrical system does not work,
have the vehicle inspected by your Toyota dealer.
⬛If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
⬛When replacing light bulbs
We recommend that you use genuine Toyota products designated for this
vehicle. Because certain bulbs are connect ed to circuits designed to prevent
overload, products other than the Toyo ta genuine parts designated for this
vehicle may be unusable.
KBTE731003KBTE731004
RAIZE_OM_General_BZ358E.book 350 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3516-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

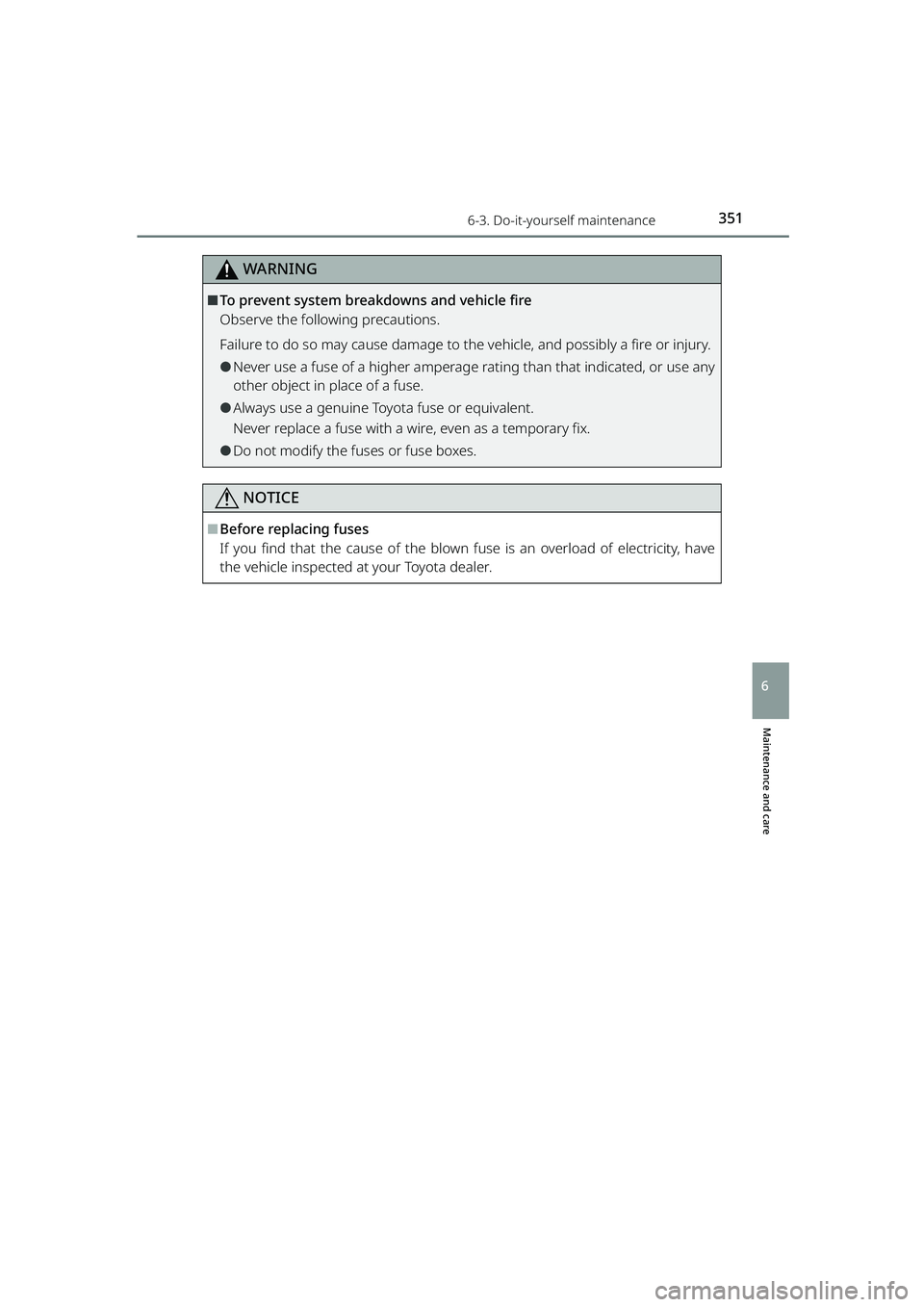

WARNING
⬛To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
⚫Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
⚫Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
⚫Do not modify the fuses or fuse boxes.
NOTICE
⬛Before replacing fuses
If you find that the cause of the blown fuse is an overload of electricity, have
the vehicle inspected at your Toyota dealer.
RAIZE_OM_General_BZ358E.book 351 ページ ２０２２年５月１７日　火曜日　午後１時５９分
