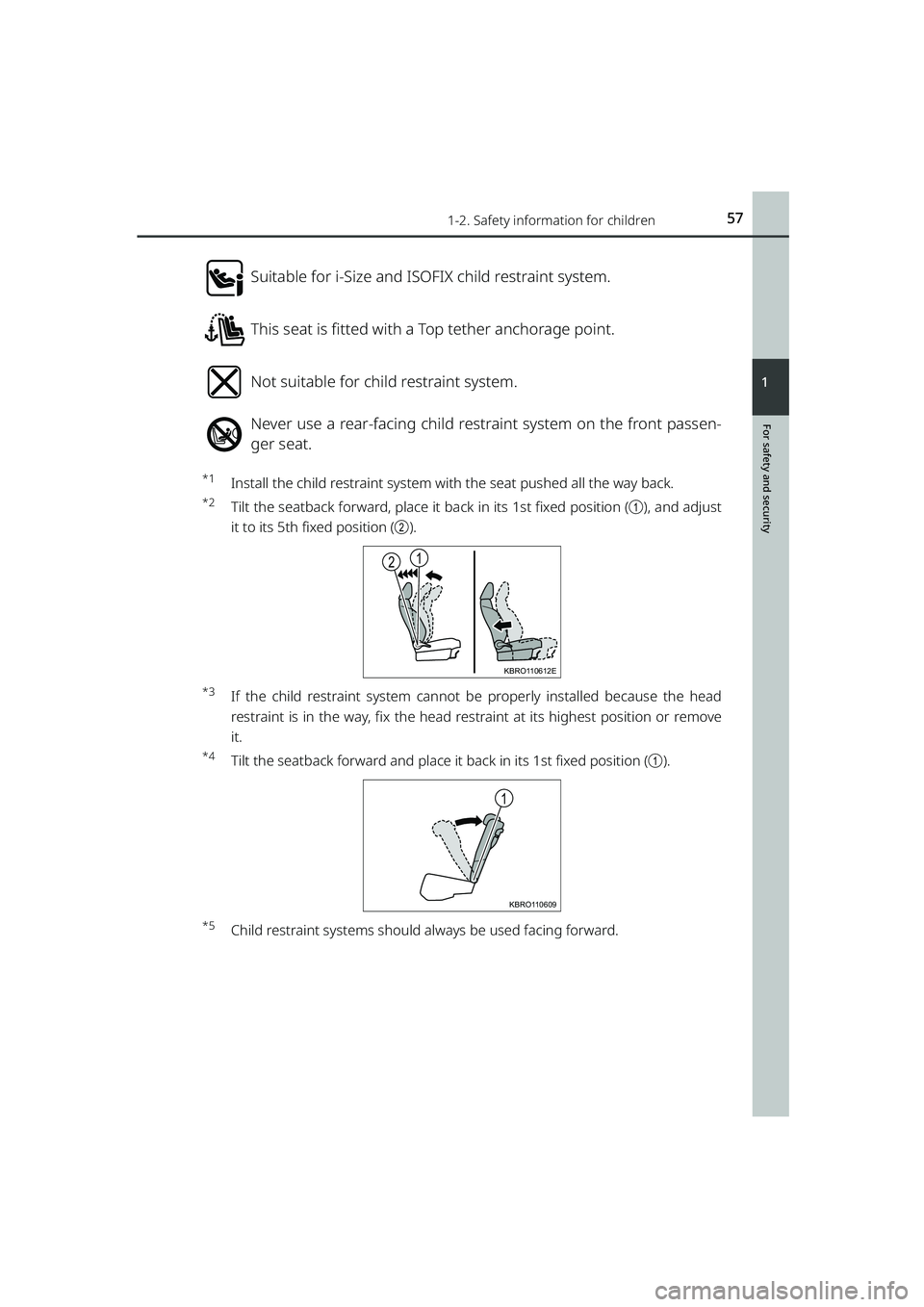

isofix TOYOTA RAIZE 2023 Owners Manual

571-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Suitable for i-Size and ISOFIX child restraint system.
This seat is fitted with a Top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat.
*1Install the child restraint system with the seat pushed all the way back.
*2Tilt the seatback forward, place it back in its 1st fixed position (a), and adjust
it to its 5th fixed position ( b).
*3If the child restraint system cannot be properly installed because the head
restraint is in the way, fix the head restraint at its highest position or remove
it.
*4Tilt the seatback forward and place it back in its 1st fixed position ( a).
*5Child restraint systems should always be used facing forward.
21
KBRO110612E
1
KBRO110609
RAIZE_OM_General_BZ358E.book 57 ページ ２０２２年５月１７日　火曜日　午後１時５９分

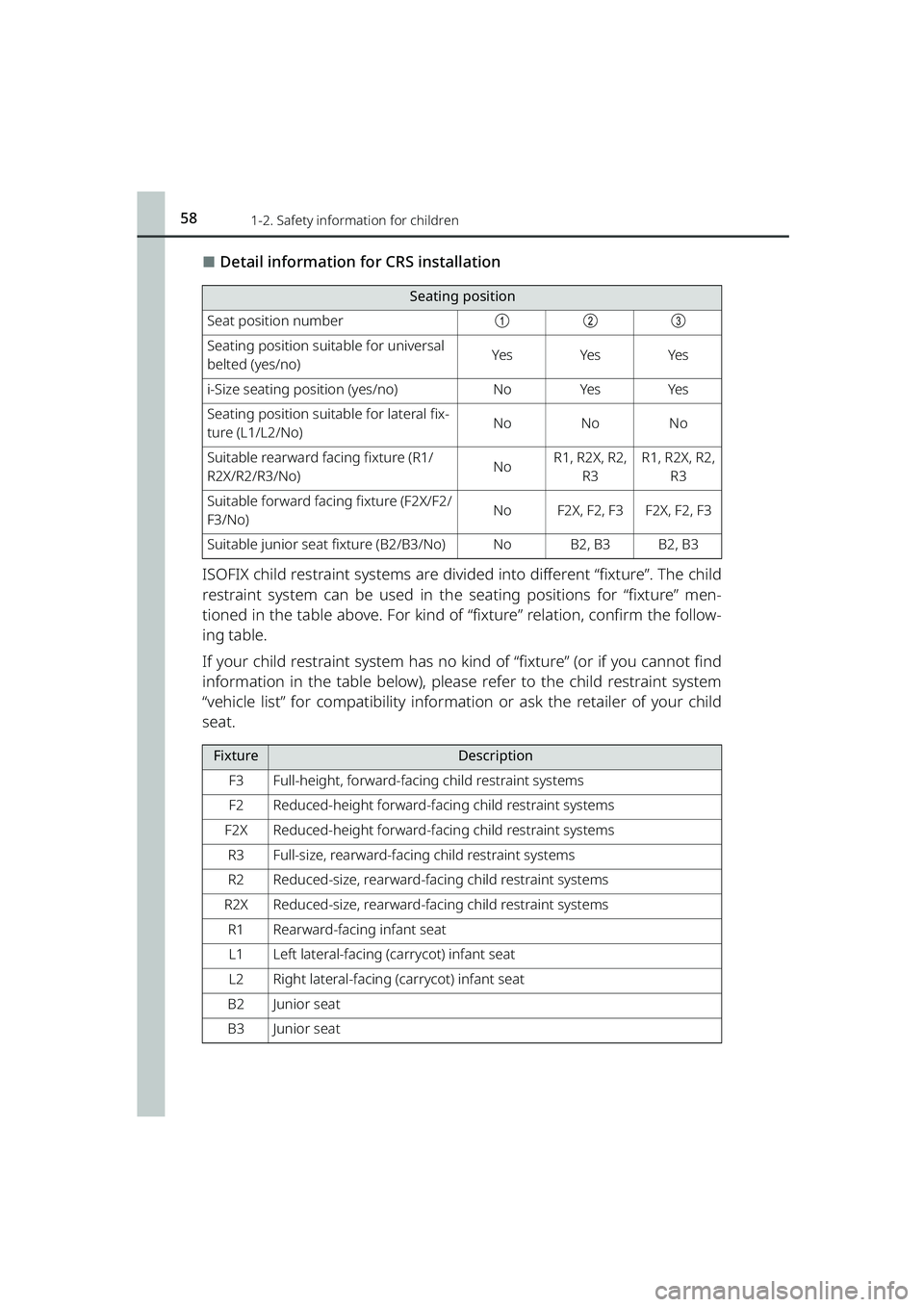

581-2. Safety information for children
RAIZE_OM_General_BZ358E
⬛Detail information for CRS installation
ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in th e seating positions for “fixture” men-
tioned in the table above. For kind of “fixture” relation, confirm the follow-
ing table.
If your child restraint system has no kind of “fixture” (or if you cannot find
information in the table below), please refer to the child restraint system
“vehicle list” for compatibility information or ask the retailer of your child
seat.
Seating position
Seat position numberabc
Seating position suitable for universal
belted (yes/no)YesYe sYe s
i-Size seating position (yes/no)NoYe sYe s
Seating position suitable for lateral fix-
ture (L1/L2/No)NoNoNo
Suitable rearward facing fixture (R1/
R2X/R2/R3/No)NoR1, R2X, R2,
R3R1, R2X, R2, R3
Suitable forward facing fixture (F2X/F2/
F3/No)NoF2X, F2, F3F2X, F2, F3
Suitable junior seat fixture (B2/B3/No)NoB2, B3B2, B3
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-faci ng child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
RAIZE_OM_General_BZ358E.book 58 ページ ２０２２年５月１７日　火曜日　午後１時５９分

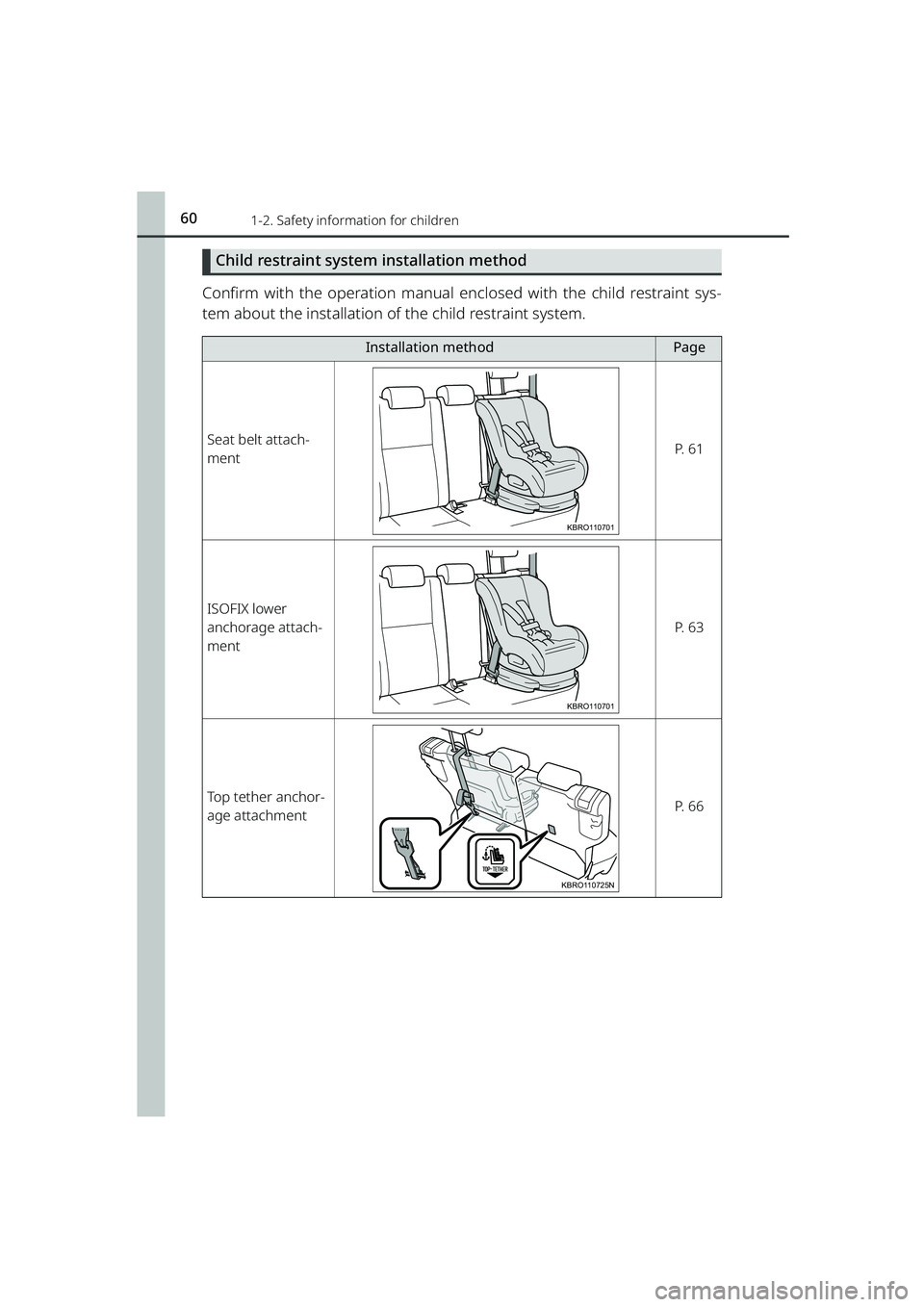

601-2. Safety information for children
RAIZE_OM_General_BZ358E
Child restraint system installation method
Confirm with the operation manual enclosed with the child restraint sys-
tem about the installation of the child restraint system.
Installation methodPage
Seat belt attach-
mentP. 6 1
ISOFIX lower
anchorage attach-
ment
P. 6 3
Top tether anchor-
age attachmentP. 6 6
KBRO110701
KBRO110701
KBRO110725N
RAIZE_OM_General_BZ358E.book 60 ページ ２０２２年５月１７日　火曜日　午後１時５９分

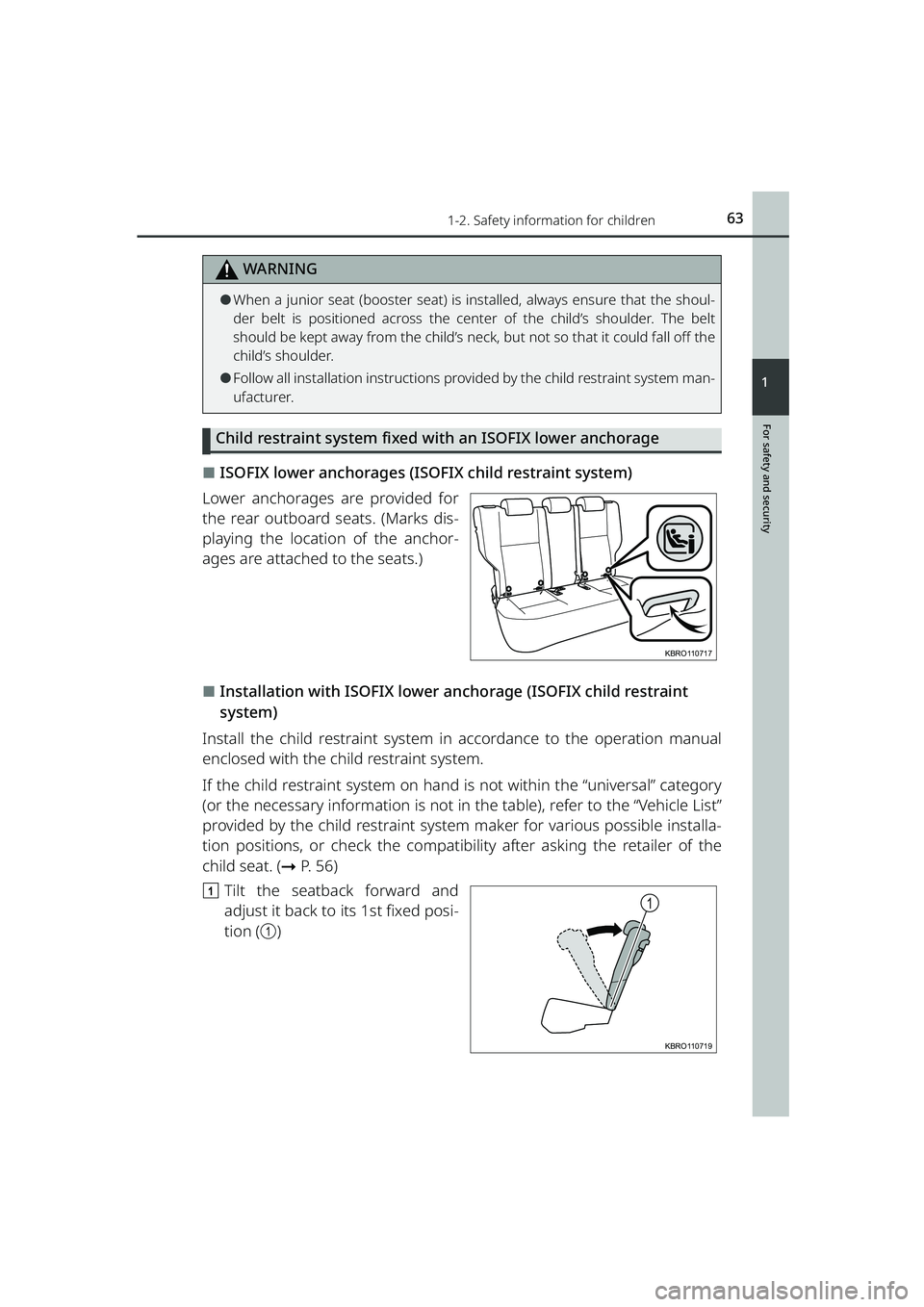

631-2. Safety information for children
RAIZE_OM_General_BZ358E
WARNING
For safety and security
1
⚫When a junior seat (booster seat) is installed, always ensure that the shoul-
der belt is positioned across the cent er of the child’s shoulder. The belt
should be kept away from the child’s neck , but not so that it could fall off the
child’s shoulder.
⚫Follow all installation instructions prov ided by the child restraint system man-
ufacturer.
Child restraint system fixed with an ISOFIX lower anchorage
⬛ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided for
the rear outboard seats. (Marks dis-
playing the location of the anchor-
ages are attached to the seats.)
⬛Installation with ISOFIX lower an chorage (ISOFIX child restraint
system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” category
(or the necessary information is not in the table), refer to the “Vehicle List”
provided by the child restraint system maker for various possible installa-
tion positions, or check the compatibility after asking the retailer of the
child seat. ( ➞P. 5 6 )
a Tilt the seatback forward and
adjust it back to its 1st fixed posi-
tion (a )
KBRO110717
1
KBRO110719
RAIZE_OM_General_BZ358E.book 63 ページ ２０２２年５月１７日　火曜日　午後１時５９分

641-2. Safety information for children
RAIZE_OM_General_BZ358E
bRaise the head restraint to its
highest position
Remove the head restraint if it inter-
feres with proper child restraint system
installation. ( ➞P. 152)
c Installing the chil d restraint sys-
tem to the seat
Attach the child restraint system
attachment buckles to the child
restraint system attachment points.
Follow the instructions in the manual
provided with your child restraint sys-
tem.
d After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
⬛When using an “i-Size MIDI”
Adjust the support leg and IS OFIX connectors as follows:
a Lock the ISOFIX connectors where
number 4 can be seen.
b Lock the support leg where 6 and
half holes can be seen.
KBRO110714
KBRO110708
12
KBRO110720TN
RAIZE_OM_General_BZ358E.book 64 ページ ２０２２年５月１７日　火曜日　午後１時５９分

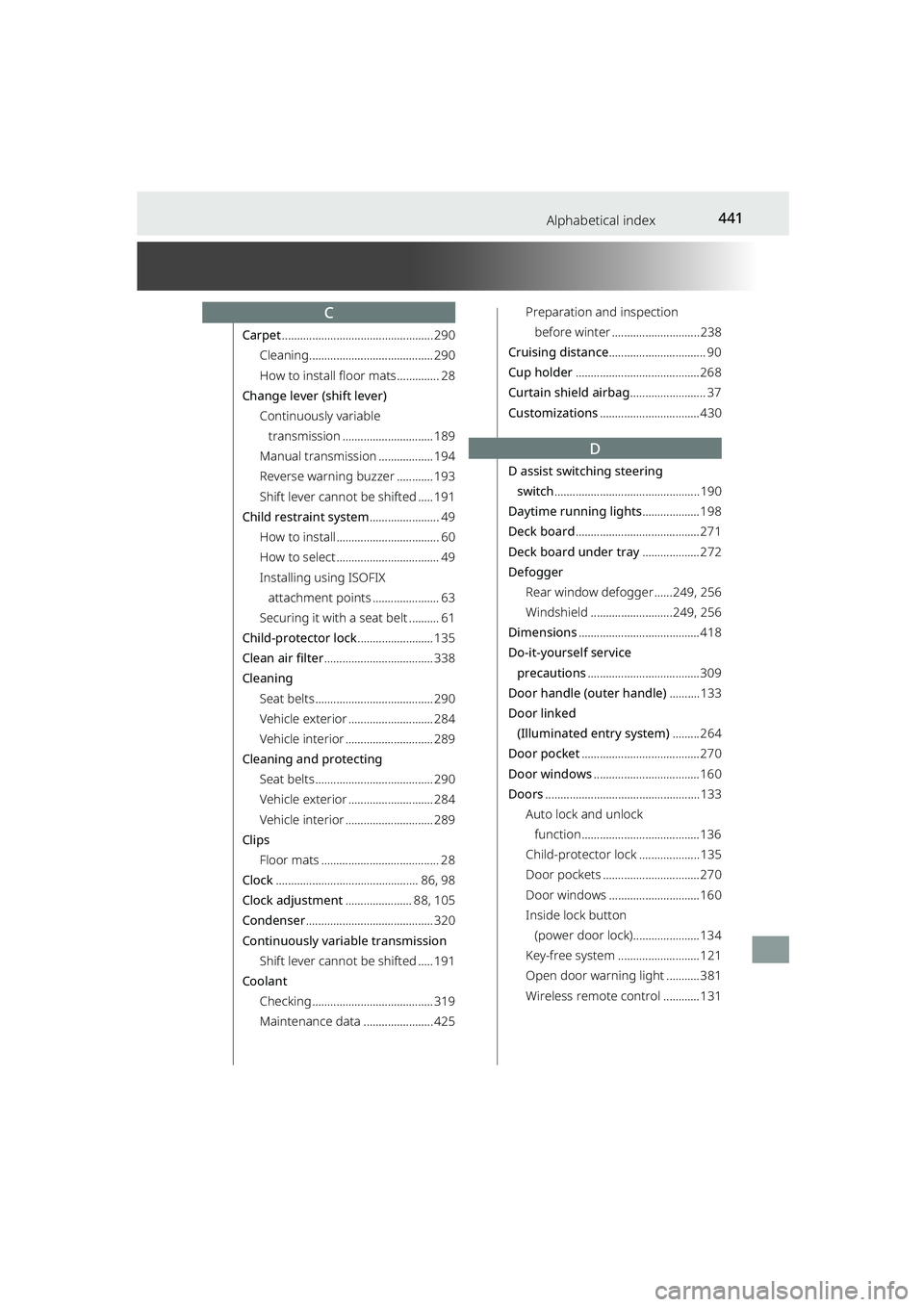

441Alphabetical index
RAIZE_OM_General_BZ358E
C
Carpet.................................................. 290
Cleaning......................................... 290
How to install floor mats.............. 28
Change lever (shift lever) Continuously variable
transmission .............................. 189
Manual transmission .................. 194
Reverse warning buzzer ............ 193
Shift lever cannot be shifted ..... 191
Child restraint system ....................... 49
How to install.................................. 60
How to select .................................. 49
Installing using ISOFIX attachment points ...................... 63
Securing it with a seat belt .......... 61
Child-protector lock ......................... 135
Clean air filter .................................... 338
Cleaning Seat belts....................................... 290
Vehicle exterior ............................ 284
Vehicle interior ............................. 289
Cleaning and protecting Seat belts....................................... 290
Vehicle exterior ............................ 284
Vehicle interior ............................. 289
Clips
Floor mats ....................................... 28
Clock ............................................... 86, 98
Clock adjustment ...................... 88, 105
Condenser .......................................... 320
Continuously variable transmission Shift lever cannot be shifted ..... 191
Coolant
Checking ........................................ 319
Maintenance data ....................... 425
Preparation and inspection before winter ............................. 238
Cruising distance ................................ 90
Cup holder ......................................... 268
Curtain shield airbag ......................... 37
Customizations ................................. 430
D
D assist switching steering
switch ................................................ 190
Daytime running lights ................... 198
Deck board ......................................... 271
Deck board under tray ................... 272
Defogger
Rear window defogger ......249, 256
Windshield .... .......................249, 256
Dimensions ........................................ 418
Do-it-yourself service precautions ..................................... 309
Door handle (outer handle) .......... 133
Door linked (Illuminated entry system) ......... 264
Door pocket ....................................... 270
Door windows ................................... 160
Doors ................................................... 133
Auto lock and unlock
function....................................... 136
Child-protector lock .................... 135
Door pockets ................................ 270
Door windows .............................. 160
Inside lock button (power door lock)...................... 134
Key-free system ........................... 121
Open door warning light ........... 381
Wireless remote control ............ 131
RAIZE_OM_General_BZ358E.book 441 ページ ２０２２年５月１７日　火曜日　午後１時５９分
