remote start TOYOTA RAIZE 2023 Owners Manual

731-4. Theft deterrent system
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1
Alarm✽
The alarm
The alarm uses the emergency flashers and sound to give an alert when
an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
⚫A locked door is unlocked and open ed in any way other than using the
key-free function or wireless remote control.
⚫The hood is opened.
Setting the alarm system
The alarm will be set in the following
cases:
Close the doors and hood, and lock
all the doors using the key-free func-
tion or wireless remote control.
⚫When the doors are locked auto-
matically by the security feature.
( ➞ P. 1 3 9 )
The indicator light is flashing when the
system is set.
Deactivating the alarm
Do one of the following to deactivate the alarm:
⚫Unlock the doors using the key-free function or wireless remote control.
⚫Turn the engine switch to “ON”, or start the engine.
KBRO120101E
RAIZE_OM_General_BZ358E.book 73 ページ ２０２２年５月１７日　火曜日　午後１時５９分

741-4. Theft deterrent system
RAIZE_OM_General_BZ358E
Stopping the alarm
Do one of the following to stop the alarm:
⚫Press the lock or unlock button of the wireless remote control.
⚫Press the lock/unlock switch on the front door while carrying the elec-
tronic key with you.
⚫Press the lock button on the back do or while carrying the electronic key
with you (when opening the driver’s door).
⚫Press the back door opener switch on the back door while carrying the
electronic key with you (when closing the driver’s door).
⚫Get in the car with the electronic key.
⚫Turn the engine switch to “ON”, or start the engine.
⬛If the electronic key does not operate properly
If the electronic key does not work du e to battery depletion, etc., perform
the following operation.
a Vehicles with a continuously vari-
able transmission:
Depress the brake pedal.
Vehicles with a manual transmis-
sion:
Depress the clutch pedal.
b Touch the electronic key to the
engine switch, as shown in the
illustration.
KBRO820801E
RAIZE_OM_General_BZ358E.book 74 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1283-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⬛Important points when locking the doors
During an automatic car wash, the vehicl e’s internal buzzer may sound if water
splashes on the door handle while the electronic key is left inside the vehicle.
⬛Important points when unlocking the doors
⚫When you pull the door handle while operating the door handle switch, the
door may not get unlocked. In that case, restore the door handle to the orig-
inal position and operate the switch again (except for the back door). When
you verify that the door has been unlocked, pull the door handle.
⚫When another electronic key is placed within the operating range, it may
take longer to unlock the door from the time when you operate the switch
on the door handle.
⬛Leaving the vehicle unused for a long period
⚫To prevent theft, keep the electronic key away from the vehicle for approx. 3
m (9.8 ft.).
⚫You can also disable the key-free system beforehand.
Contact your Toyota dealer for further information.
⬛Starting the system normally
Make sure to carry the electronic ke y with you when you start the system.
When you start the system from outside the vehicle, be careful not to keep the
electronic key too close to the vehicle.
Depending on the electronic key’s position or how you hold it when starting
the system, the key may not be detected correctly, preventing the system from
starting normally. (It could cause the al arm to go off unexpectedly or the door
lock prevention func tion may not work. : ➞P. 139)
⬛When the key-free system does not work properly
⚫Locking and unlocking doors: ➞ P. 4 0 6
⚫Starting the engine: ➞P. 4 0 6
⬛Low battery
⚫The standard battery life is between 1 and 2 years.
⚫The battery still depletes without usin g the wireless remote control. Since
the electronic key is constantly receiving radio waves, the battery depletes
even when it is not in use. If you encounter any of the following situations,
the key may be running out of battery. Replace it with a new battery.
⦁ The key-free system or wireless remote control will not start
⦁ The operating range has become narrower
⦁ The LED of the electronic key will not light
RAIZE_OM_General_BZ358E.book 128 ページ ２０２２年５月１７日　火曜日　午後１時５９分

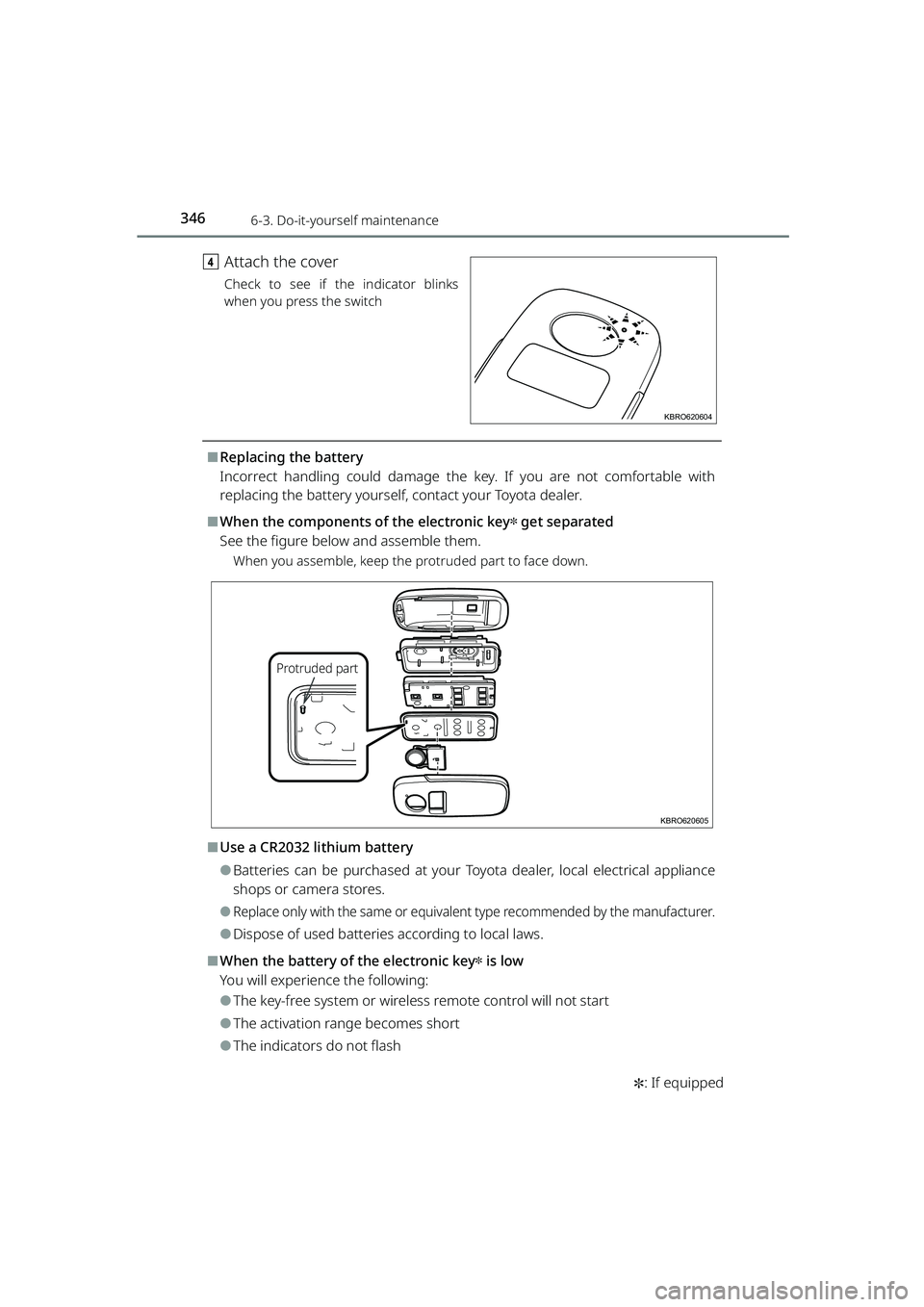

3466-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
d Attach the cover
Check to see if the indicator blinks
when you press the switch

⬛Replacing the battery
Incorrect handling could damage the key. If you are not comfortable with
replacing the battery yourself, contact your Toyota dealer.
⬛When the components of the electronic key✽ get separated
See the figure below and assemble them.
When you assemble, keep the pr otruded part to face down.
⬛Use a CR2032 lithium battery
⚫Batteries can be purchased at your Toyo ta dealer, local electrical appliance
shops or camera stores.
⚫Replace only with the same or equivalent type recommended by the manufacturer.
⚫Dispose of used batteries according to local laws.
⬛When the battery of the electronic key✽ is low
You will experience the following:
⚫The key-free system or wireless remote control will not start
⚫The activation range becomes short
⚫The indicators do not flash
KBRO620604
KBRO620605
Protruded part
Maintenance.fm 346 ページ ２０２２年６月１７日　金曜日　午前９時６分

4067-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
If the electronic key does not work properly
(vehicles with key-free system)
The key-free system and wireless remote control cannot be used
when communication between the electronic key and vehicle is
blocked (➞P. 125) or when the electronic key battery is dead. In such
cases, you can open the doors or start the engine by following the
steps below.
Locking and unloc king the doors
Using the emergency key ( ➞P. 118),
you can:
a Lock all doors
b Unlock all doors
If set, the alarm will sound. ( ➞P. 73)
Starting the engine
a Continuously variable transmission vehicles: Step on the brake pedal
with the shift lever placed in P
Manual transmission vehicles: Step on the clutch pedal with the shift
lever placed in N
b Touch the electronic key to the
engine switch, as shown in the
illustration
⦁The indicator of the engine switch
lights up in green.
⦁ The alarm will shut off. (➞ P. 73)
cPress the engine switch
If you are still unable to start the engine after following the above steps,
contact your Toyota dealer.
12
KBRO720801E
KBRO820801E
RAIZE_OM_General_BZ358E.book 406 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4107-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
⬛When your battery is discharged/removed (vehicles with key-free system)
⚫You may not be able to unlock the vehicle doors using the key-free system
immediately after battery discharge. In such cases, lock and unlock the
doors using the wireless remote control or emergency key.
⚫The vehicle engine may not start on the first try after battery discharge. This
is to be expected, and the engine will start properly on the second try
onward.
⚫The vehicle consistently keeps track of its engine switch mode. Even after a
discharged battery is removed, the en gine mode returns to the state before
removing the battery. Please remove the battery after turning the engine
switch “OFF”.
If you are not sure of the engine swit ch mode prior to battery discharge, be
especially careful when connecting the battery.
WARNING
⬛Avoiding battery fires or explosions
Observe the following precautions to prev ent the fire and sparks to be gener-
ated as these may ignite the flammab le gas emitted from the battery of the
second vehicle and cause an explosion:
⚫Make sure each jumper cable is connec ted to the correct terminal and that it
is not unintentionally in contact with any other than the intended terminal.
⚫Do not allow the other end of the jump er cable connected to the “+” terminal
to come into contact with any other pa rts or metal surfaces in the area, such
as brackets or unpainted metal.
⚫Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
⚫Do not smoke, use matches, cigarette li ghters or allow open flame near the
battery
⚫Do not use or charge the battery when the battery level is lower than the
LOWER LEVEL displayed on the side of the battery
⬛Battery precautions
The battery contains poisonous and corr osive acid electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions
when handling the battery:
⚫When working with the battery, always wear safety glasses and take care not
to allow any battery fluids (acid) to co me into contact with skin, clothing or
the vehicle body
⚫Keep your face and head away from the battery as much as possible
RAIZE_OM_General_BZ358E.book 410 ページ ２０２２年５月１７日　火曜日　午後１時５９分

445Alphabetical index
RAIZE_OM_General_BZ358E
If you have lost your keys ........... ................ 119, 120
Ignition switch ..... ................ 180, 184
Key configuration ........................ 118
Key number plate ........................ 118
Keyless entry ................................ 131
Locking or unlocking does not work ............................................. 406
Mechanical key (emergency key).... ........... 118, 406
Not working properly ................. 406
Replacing the battery ................. 344
Running out of the key battery......................................... 344
The engine cannot be started......................................... 405
Wireless remote control ............ 131
L
Lever
Hood release ................................ 311
Locks (doors) ................................ 134
Shift......... ........................ ....... 189, 194
Turn signal .................................... 196
License plate lights .......................... 198
Headlight switch .......................... 198
Replacing light bulbs .................. 352
Watts .............................................. 428
Light bulbs
Replacement procedure (exterior bulbs) .......................... 352
Watts .............................................. 428
Light sensor ....................................... 199
Lights Automatic light off system ........ 200
Emergency flashers .................... 366
Front fog lights ............................ 201
Front personal lights .................. 263
Headlights ..................................... 198
Interior light........ .................263, 264
Light sensor .................................. 199
Rear fog light ................................ 201
Replacing light bulbs .................. 352
Turn signal lights ......................... 196
Watts .............................................. 428
Lock
Shift lock system .......................... 191
Locks Doors.............................................. 133
Key-free system ........................... 121
Window locks................................ 160
Wireless remote control ............ 133
Luggage Luggage compartment .............. 271
Precautions when loading luggage............. 177
Luggage compartment Deck board.................................... 271
Deck board under tray ............... 272
M
Maintenance
Do-it-yourse lf service
precautions ................................ 309
Maintenance data ....................... 418
Maintenance requirements ...... 292
Scheduled maintenance ............ 294
Maintenance data ............................ 418
Manual air conditioning system ........................... ..........244, 248
Manual transmission ...................... 194
Master warning light ....................... 380
Mechanical key (emergency key) ............................ 118
RAIZE_OM_General_BZ358E.book 445 ページ ２０２２年５月１７日　火曜日　午後１時５９分
