68
RAIZE_OM_General_BZ358E✽
: If equipped
1-3. Emergency assistance
eCall✽*
eCall is a telematics service that uses Global Navigation Satellite Sys-
tem (GNSS) data and embedded cellu lar technology to enable the fol-
lowing emergency calls to be made: Automatic emergency calls
(Automatic Collision Notification ) and manual emergency calls (by
pressing the “SOS” button). This service is required by United Arab
Emirates Regulations.
*Operates within the eCall coverage.
System components
a “SOS” button*
Make sure to open the cover before
pressing the “SOS” button.
bIndicator lights
c Speaker
d Microphone
*This button is inte nded for communi-
cation with the eCall system operator.
Other SOS buttons available in other
systems of a motor vehicle do not
relate to the device and are not
intended for communication with the
eCall system operator.
1
24
3
KBRO130101E
RAIZE_OM_General_BZ358E.book 68 ページ ２０２２年５月１７日 火曜日 午後１時５９分

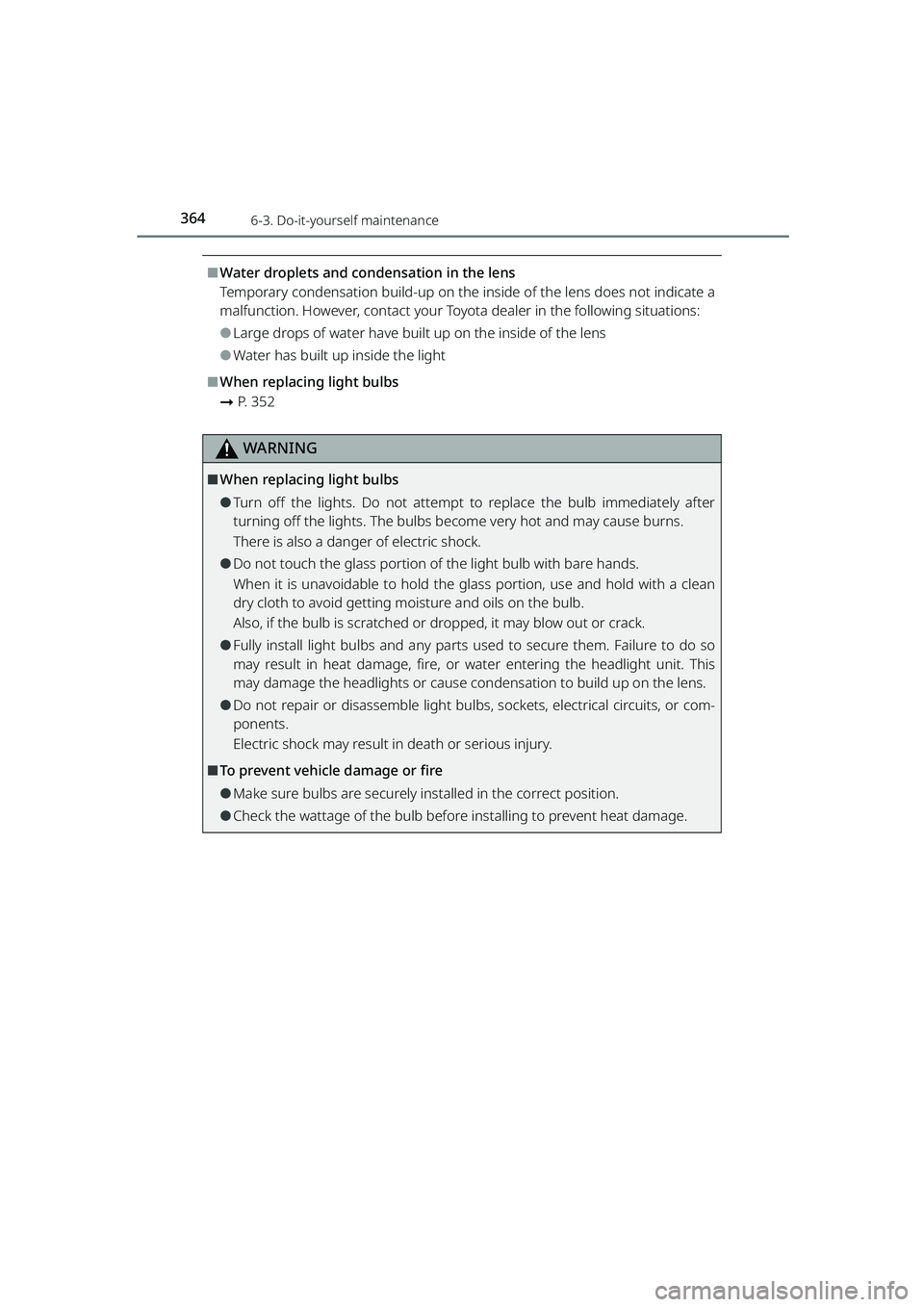

3646-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
⬛Water droplets and condensation in the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. However, contact your Toyota dealer in the following situations:
⚫Large drops of water have built up on the inside of the lens
⚫Water has built up inside the light
⬛When replacing light bulbs
➞P. 3 5 2
WARNING
⬛When replacing light bulbs
⚫Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights. The bulbs be come very hot and may cause burns.
There is also a danger of electric shock.
⚫Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the gl ass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
⚫Fully install light bulbs and any parts us ed to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
⚫Do not repair or disassemble light bulbs, sockets, electrical circuits, or com-
ponents.
Electric shock may result in death or serious injury.
⬛To prevent vehicle damage or fire
⚫Make sure bulbs are securely in stalled in the correct position.
⚫Check the wattage of the bulb before installing to prevent heat damage.
RAIZE_OM_General_BZ358E.book 364 ページ ２０２２年５月１７日 火曜日 午後１時５９分
