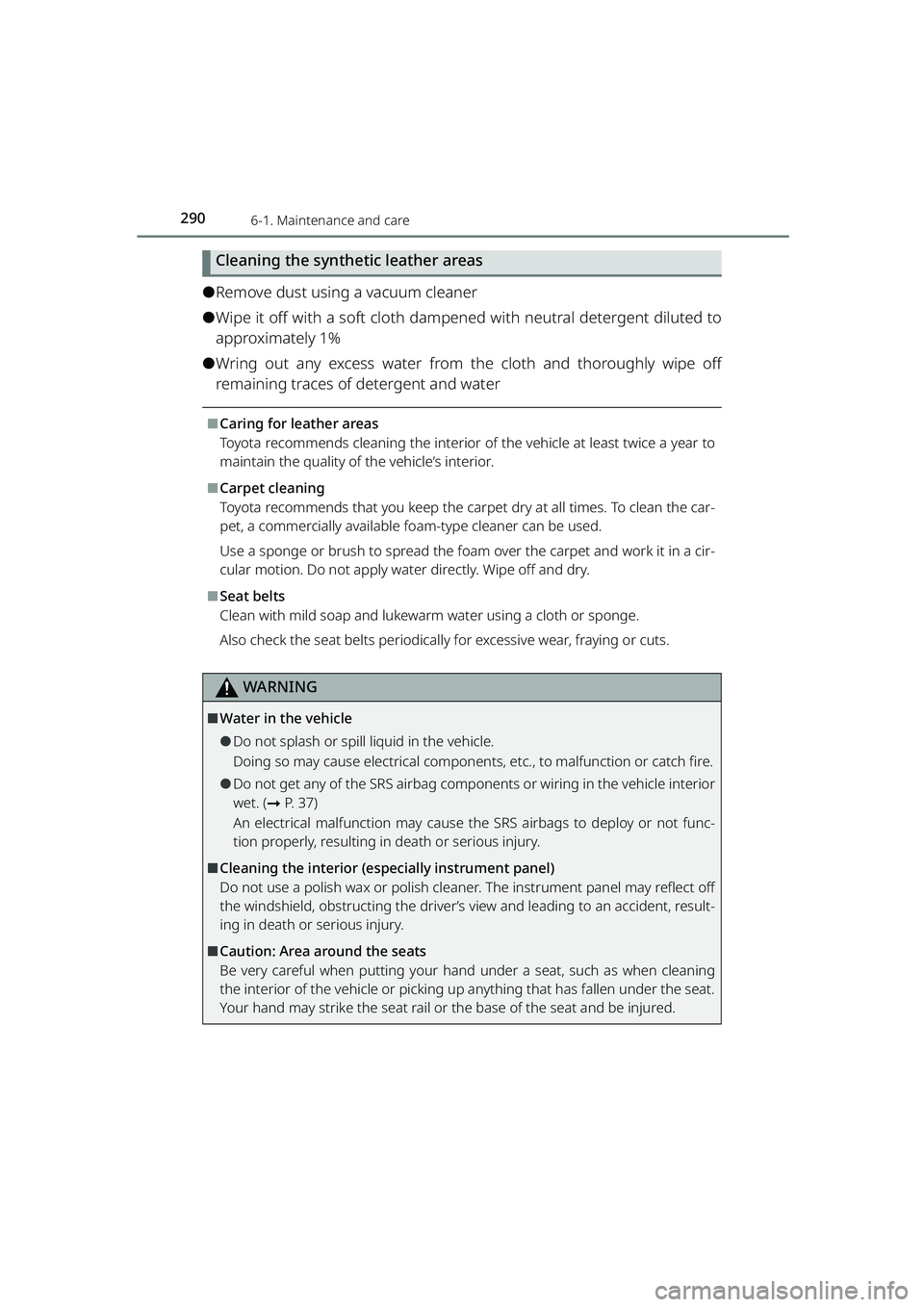

2906-1. Maintenance and care
RAIZE_OM_General_BZ358E
Cleaning the synthetic leather areas
⚫Remove dust using a vacuum cleaner
⚫Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%
⚫Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water
⬛Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
⬛Carpet cleaning
Toyota recommends that you keep the carpet dry at all times. To clean the car-
pet, a commercially available fo am-type cleaner can be used.
Use a sponge or brush to spread the foam over the carpet and work it in a cir-
cular motion. Do not apply water directly. Wipe off and dry.
⬛Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge.
Also check the seat belts periodically for excessive wear, fraying or cuts.
WARNING
⬛Water in the vehicle
⚫Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components, etc., to malfunction or catch fire.
⚫Do not get any of the SRS airbag compon ents or wiring in the vehicle interior
wet. ( ➞P. 3 7 )
An electrical malfunction may cause the SRS airbags to deploy or not func-
tion properly, resulting in death or serious injury.
⬛Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident, result-
ing in death or serious injury.
⬛Caution: Area around the seats
Be very careful when putting your hand under a seat, such as when cleaning
the interior of the vehicle or picking up anything that has fallen under the seat.
Your hand may strike the seat rail or the base of the seat and be injured.
RAIZE_OM_General_BZ358E.book 290 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3506-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
eCheck if the fuse is blown.
aNormal fuse
b Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
▶Type A▶Type B
f To install, reverse the removal procedure
⬛After a fuse is replaced
⚫If the lights do not turn on even afte r the fuse has been replaced, replace the
bulb. ( ➞P. 352)
⚫If the replaced fuse blows again, or if the electrical system does not work,
have the vehicle inspected by your Toyota dealer.
⬛If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
⬛When replacing light bulbs
We recommend that you use genuine Toyota products designated for this
vehicle. Because certain bulbs are connect ed to circuits designed to prevent
overload, products other than the Toyo ta genuine parts designated for this
vehicle may be unusable.
KBTE731003KBTE731004
