TOYOTA RAV4 2000 Service Manual

Rav4(U)
332000 RAV4 (OM42479U)
—Adjusting front seats
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
For easy access to the rear seat, do
this.
1. Lift the seatback angle adjusting lever
or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the front−most posi-
tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
—Moving passenger ’s seat for
rear seat entry
(2−door hardtop and soft−top)
ProCarManuals.com

Rav4(U)
342000 RAV4 (OM42479U)
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.
CAUTION
Adjustments should not be made
while the vehicle is moving.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Rear seats—
—Adjusting seatback angle
ProCarManuals.com

Rav4(U)
352000 RAV4 (OM42479U)
1. Remove the head restraint. Unlock
the seatback and fold it down.
Folding up the rear seats will enlarge the
luggage compartment. See ”Luggage stow-
age precautions” in Section 2 for precau-
tions in loading luggage.2. Unlock the seat cushion. Swing the
whole seat up and forward.3. Lock the raised bottom cushion in
place by attaching the support rod
onto the hook. Then store the head
restraint in the head restraint retain-
ing holes in the bottom cushion.
—Folding up rear seats
(2−door hardtop and soft−top)
ProCarManuals.com

Rav4(U)
362000 RAV4 (OM42479U)
When returning the rear seat to its
original position, first remove the head
restraint. Unlock the seat and return it.
Be certain to replace the head restraint.
CAUTION
When returning seats to their original
position:
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from operat-
ing properly.
BEFORE FOLDING REAR SEAT
Stow the rear seat belt and buckles as
shown in the illustration.
This prevents the belt and buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you fold the seatback.
—Folding up rear seats
(4−door hardtop)
ProCarManuals.com

Rav4(U)
372000 RAV4 (OM42479U)
FOLDING REAR SEAT
1. Remove the head restraint. Unlock
the seatback and fold it down.
Folding up the rear seats will enlarge the
luggage compartment. See ”Luggage stow-
age precautions” in Section 2 for precau-
tions in loading luggage.2. Unlock the seat cushion. Swing the
whole seat up and forward.3. Lock the raised bottom cushion in
place by clipping the strap to the
hook. Then store the head restraint
in the head restraint retaining holes
in the bottom cushion.
ProCarManuals.com

Rav4(U)
382000 RAV4 (OM42479U)
When returning the rear seat to its
original position, first remove the head
restraint. Unlock the seat and return it.
Be certain to replace head restraint.

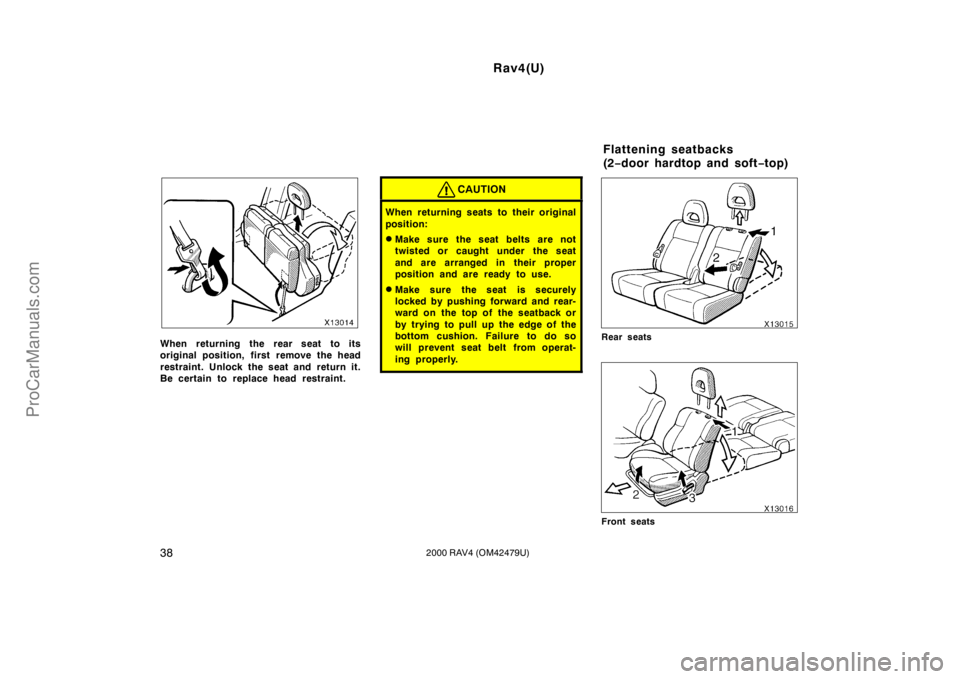

CAUTION
When returning seats to their original
position:
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from operat-
ing properly.
Rear seats
Front seats
Flattening seatbacks
(2−door hardtop and soft−top)
ProCarManuals.com

Rav4(U)
392000 RAV4 (OM42479U)
Rear seats: Remove the head restraint.
Then pull out the strap to unlock the
seatback, and push down the seatback.
Front seats: Remove the head restraint
and slide the seat to the front−most
position. Push the seat further forward
to release the slide−lock, and unlock
and push down the seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
NOTICE
Before closing the back door, make
sure the rear headrests are removed
from the flattened seats.
Rear seats
Front seats
Flattening seatbacks
(4−door hardtop)
ProCarManuals.com

Rav4(U)
402000 RAV4 (OM42479U)
Rear seats: Pull out the strap to unlock
the seatback, and push down the seat-
back.
Front seats: Remove the head restraint
and slide the seat to the front−most
position. Push the seat further forward
to release the slide−lock, and unlock
and push down the seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.

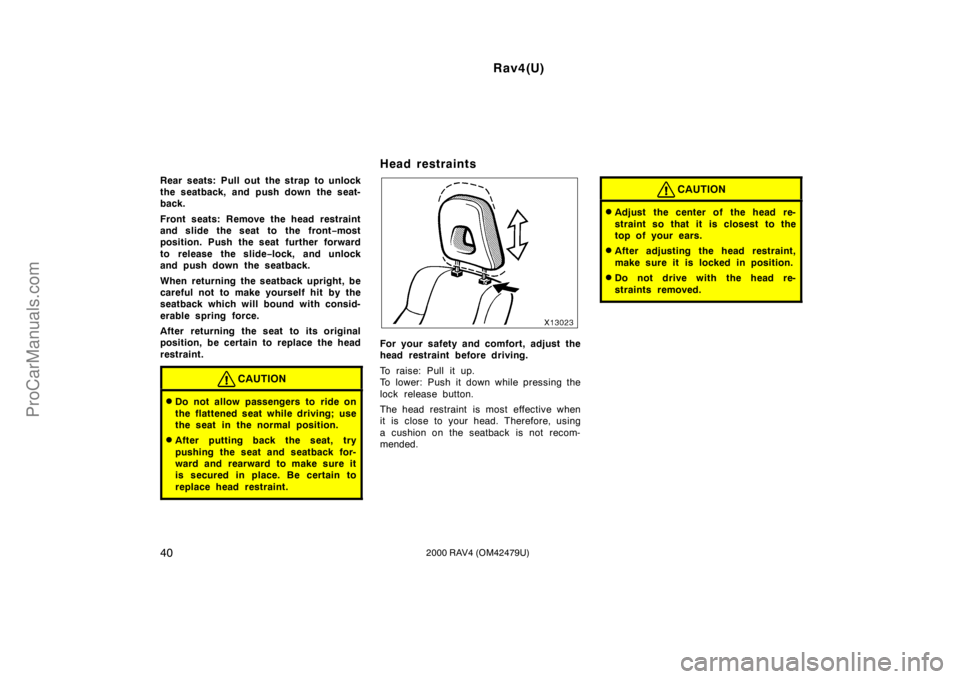

CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
Head restraints
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
ProCarManuals.com

Rav4(U)
412000 RAV4 (OM42479U)
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See ”Child restraint”
for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Seat belts—
—Seat belt precautions
ProCarManuals.com

Rav4(U)
422000 RAV4 (OM42479U)

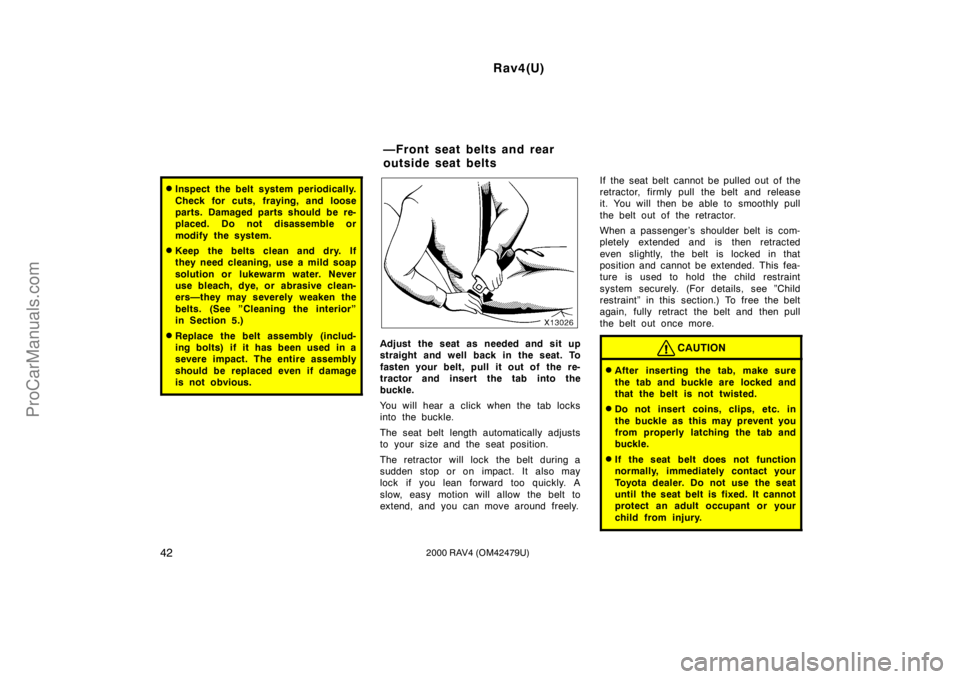

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See ”Cleaning the interior”
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see ”Child
restraint” in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
—Front seat belts and rear
outside seat belts
ProCarManuals.com
