ÐAfter changing wheels
10. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specification
designated on page 249 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
11. Restow all the tools and jack secure-
ly.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 249 in Section 8 with
a torque wrench. Have a technician repair
the flat tire and replace the spare tire with
it.
CAUTION
Before driving, make sure all the
tools and jack are securely in place
in their storage location to reduce the
possibility of personal injury during a
collision or sudden braking.

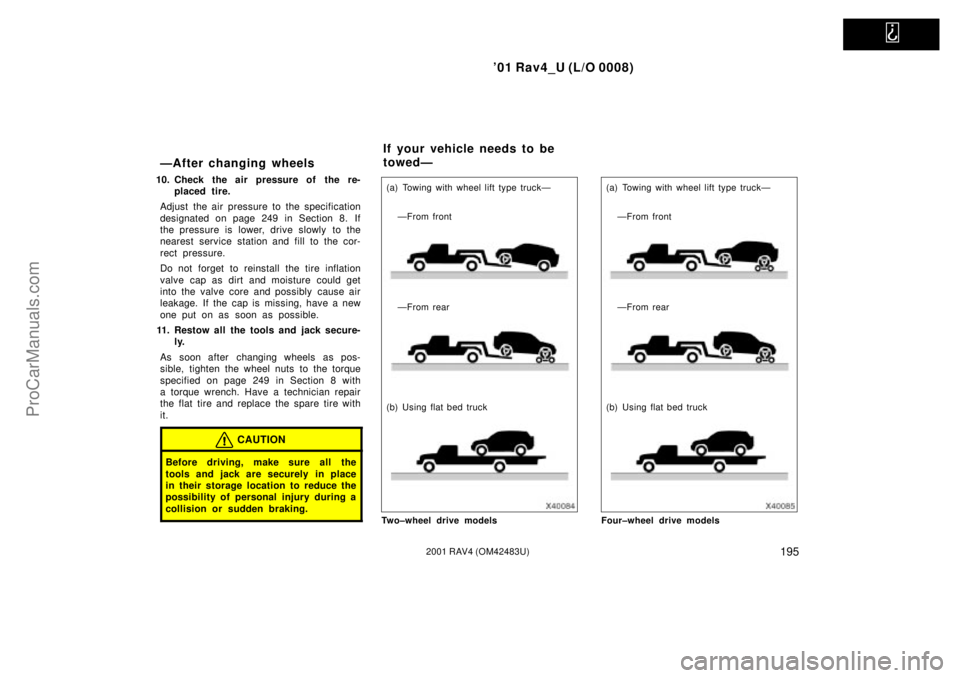

(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Two±wheel drive models(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Four±wheel drive models
If your vehicle needs to be
towedÐ
ProCarManuals.com
'01 Rav4_U (L/O 0008)
2492001 RAV4 (OM42483U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
118 (4.6)
Pedal free play, mm (in.):
1Ð6 (0.04Ð0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
6Ð8 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
Tires
Tire size:
215/70R16 99S
235/60R16 100H
Tire pressure, kPa (kgf/cm
2 or bar, psi):
200 (2.0, 29)
Wheel size:
Steel wheel 166.5J
Aluminum Wheel 167JJ
Wheel nut torque, N
´m (kgf´m, ft´lbf):
103 (10.5, 76)
NOTE: For a complete information on
tires (e.g. replacing tires or re-
placing wheels), see ªChecking
tire pressureº through ªAluminum
wheel precautionsº, pages 225
through 230, in Section 7±2.
