When the antilock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the antilock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the antilock brake sys-
tem activation, the brake pedal may
move a little forward.
CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tires grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at the moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

’02 Rav4_U (L/O 0108)
2582002 MY RAV4_U (OM42503U)

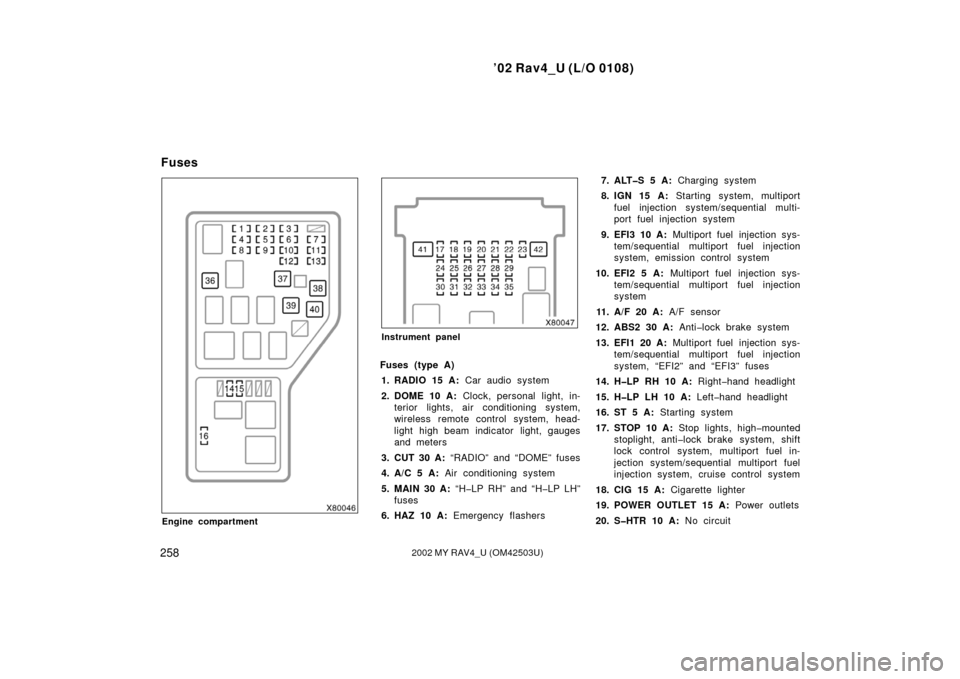

Engine compartment
Instrument panel
Fuses (type A)1. RADIO 15 A: Car audio system
2. DOME 10 A: Clock, personal light, in-
terior lights, air conditioning system,
wireless remote control system, head-
light high beam indicator light, gauges
and meters
3. CUT 30 A: “RADIO” and “DOME” fuses
4. A/C 5 A: Air conditioning system
5. MAIN 30 A: “HLP RH” and “HLP LH”
fuses
6. HAZ 10 A: Emergency flashers 7. ALTS 5 A:
Charging system
8. IGN 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
9. EFI3 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
10. EFI2 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. A/F 20 A: A/F sensor
12. ABS2 30 A: Antilock brake system
13. EFI1 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI2” and “EFI3” fuses
14. HLP RH 10 A: Righthand headlight
15. HLP LH 10 A: Lefthand headlight
16. ST 5 A: Starting system
17. STOP 10 A: Stop lights, highmounted
stoplight, antilock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
18. CIG 15 A: Cigarette lighter
19. POWER OUTLET 15 A: Power outlets
20. SHTR 10 A: No circuit
Fuses
