Foreword
Welcome to the growing group of valueconscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and troublefree motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS:Toyota Customer Assistance Center Tollfree:18003314331
CANADIAN OWNERS:Toyota Canada Customer Interaction Centre Tollfree:1888TOYOTA8 (18888696828)
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyo ta
Motor Corporation.

’02 Rav4_U (L/O 0108)
vii2002 MY RAV4_U (OM42503U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
3 Seats, Seat belts, Steering wheel and Mirrors27
. . . . . . . . . . . . . . . . . . . . .
4 Lights, Wipers and Defogger79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicators87
. . . . . . . . . . . . . . . . . .
6 Ignition switch, Transmission and Parking brake97
. . . . . . . . . . . . . . . . . . .
7 Car audio system109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
8 Air conditioning system127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipment135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 153 . . . . . . . . . . . . .
3 STARTING AND DRIVING 169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 183 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPEARANCE CARE 205 . . . . . . . .
6 VEHICLE MAINTENANCE AND CARE 211 . . . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
2 Engine and Chassis225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
3 Electrical components239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
8 SPECIFICATIONS 253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING 261 . . . . . . . . . . . . . . . . . . . . . . . . . .
1 0 INDEX 265 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of contents

’02 Rav4_U (L/O 0108)
32002 MY RAV4_U (OM42503U)

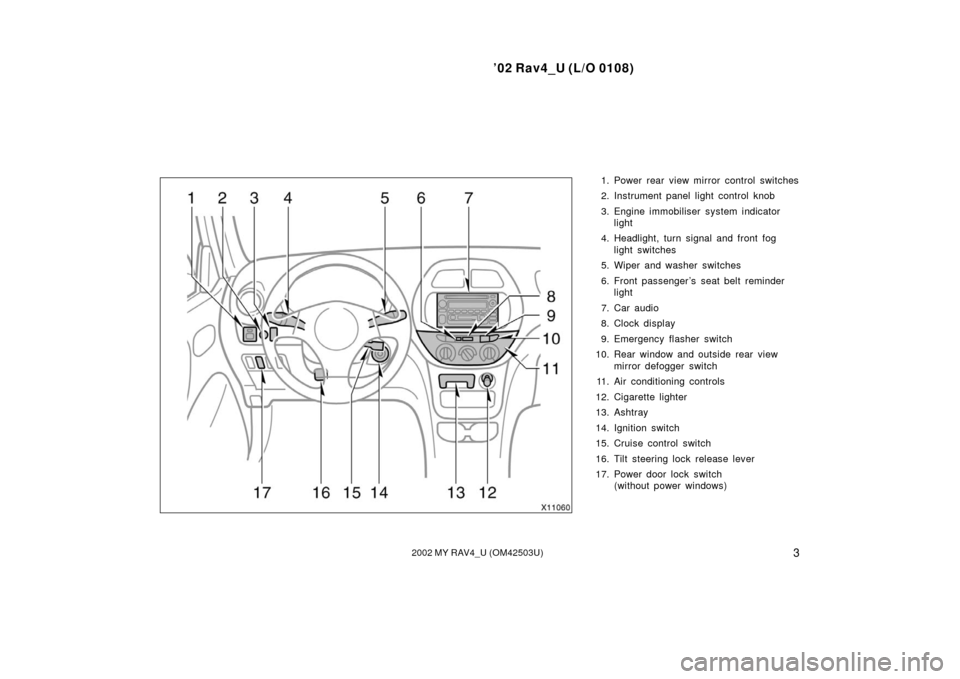

1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobiliser system indicatorlight
4. Headlight, turn signal and front fog light switches
5. Wiper and washer switches
6. Front passenger ’s seat belt reminder light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch (without power windows)

’02 Rav4_U (L/O 0108)
42002 MY RAV4_U (OM42503U)

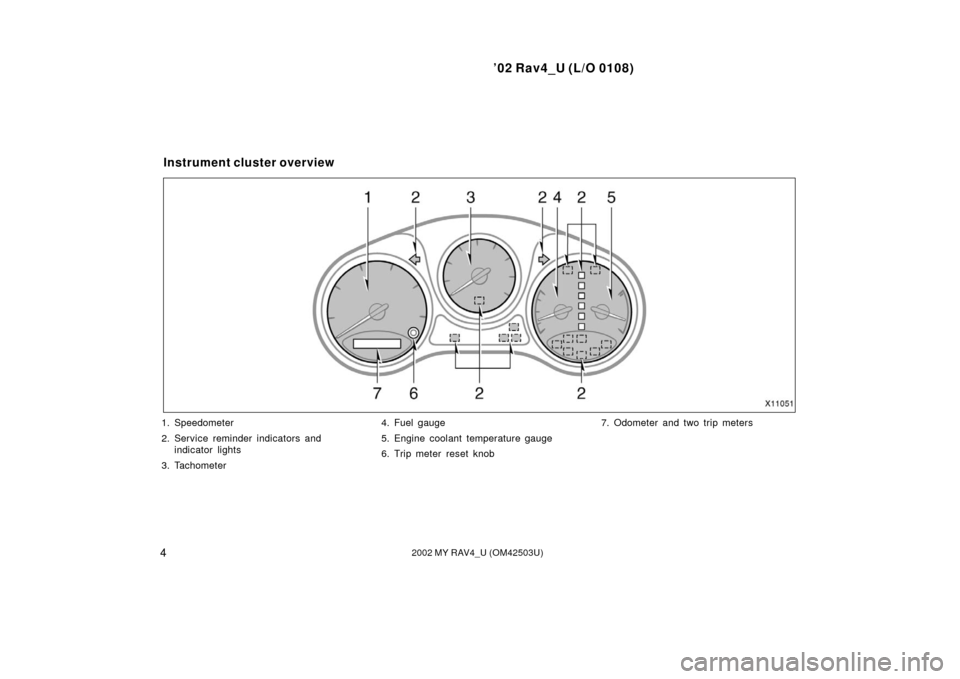

1. Speedometer
2. Service reminder indicators andindicator lights
3. Tachometer 4. Fuel gauge
5. Engine coolant temperature gauge
6. Trip meter reset knob
7. Odometer and two trip meters
Instrument cluster overview

’02 Rav4_U (L/O 0108)
52002 MY RAV4_U (OM42503U)
Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light SRS warning light
∗1
Turn signal indicator lights
Driver ’s seat belt reminder light
∗
1Open door warning light∗1
Low fuel level warning light∗1
Automatic transmission fluid temperature warning
light∗1
Antilock brake system warning light∗1or
Low windshield washer fluid level warning light∗1
or
Front passenger ’s seat belt reminder light∗1
or
Automatic transmission indicator lights
Indicator symbols on the instrument panel

’02 Rav4_U (L/O 0108)
72002 MY RAV4_U (OM42503U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Engine immobiliser system 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’02 Rav4_U (L/O 0108)
82002 MY RAV4_U (OM42503U)

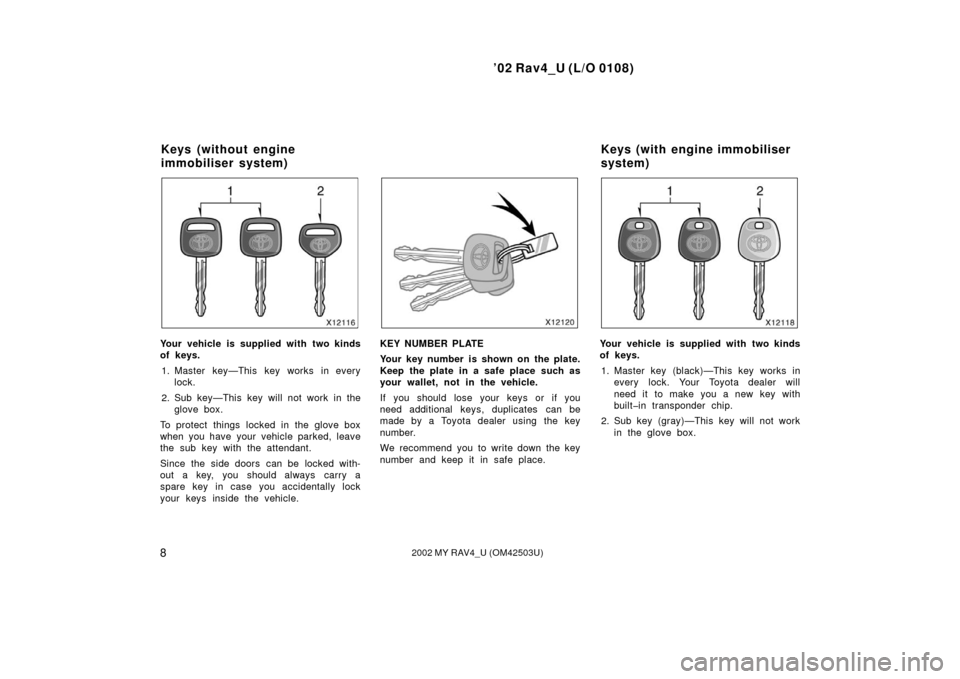

Your vehicle is supplied with two kinds
of keys.1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys. 1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
builtin transponder chip.
2. Sub key (gray)—This key will not work in the glove box.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)

’02 Rav4_U (L/O 0108)
92002 MY RAV4_U (OM42503U)
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.

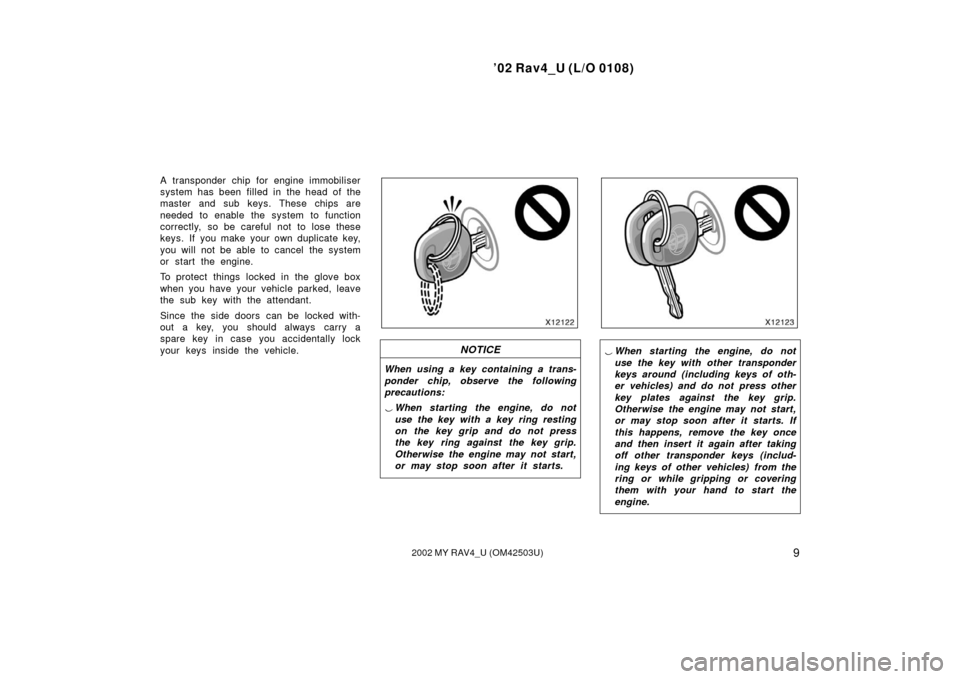

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’02 Rav4_U (L/O 0108)
112002 MY RAV4_U (OM42503U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off. For your Toyota dealer to make you a
new key with builtin transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’02 Rav4_U (L/O 0108)
242002 MY RAV4_U (OM42503U)
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Fuel tank cap
