Other equipment
Clock136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Front cup holder 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Tiedown hooks 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage cover 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Separation net 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Roof luggage carrier 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

’03 Rav4_U (L/O 0208)
1362003 RAV4 from Aug. ’02 Prod. (OM42517U)

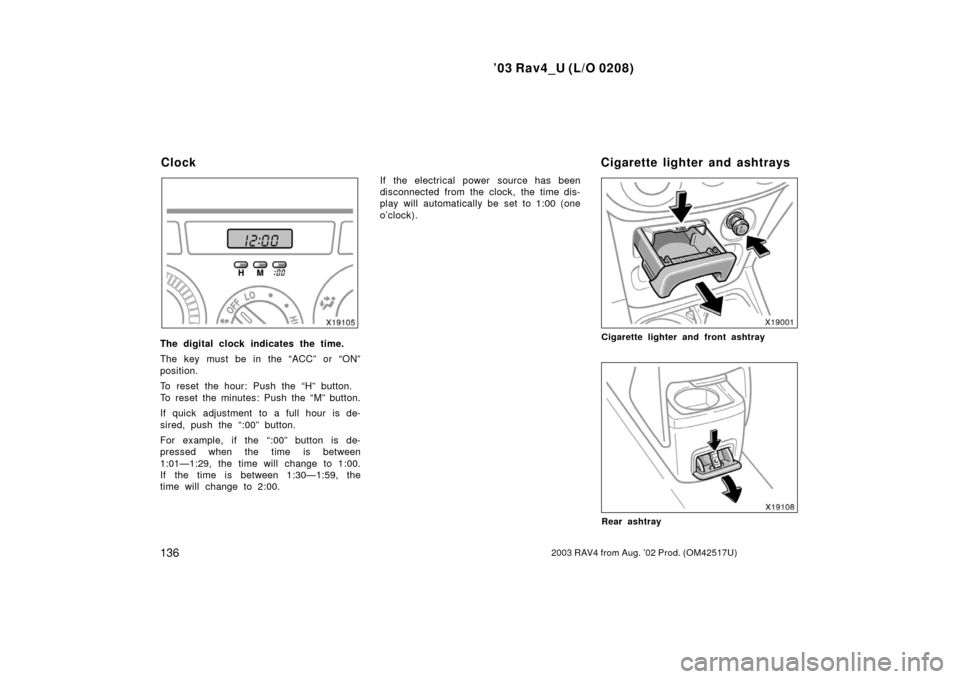

The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).Cigarette lighter and front ashtray
Rear ashtray
Clock
Cigarette lighter and ashtrays

’03 Rav4_U (L/O 0208)
1372003 RAV4 from Aug. ’02 Prod. (OM42517U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.

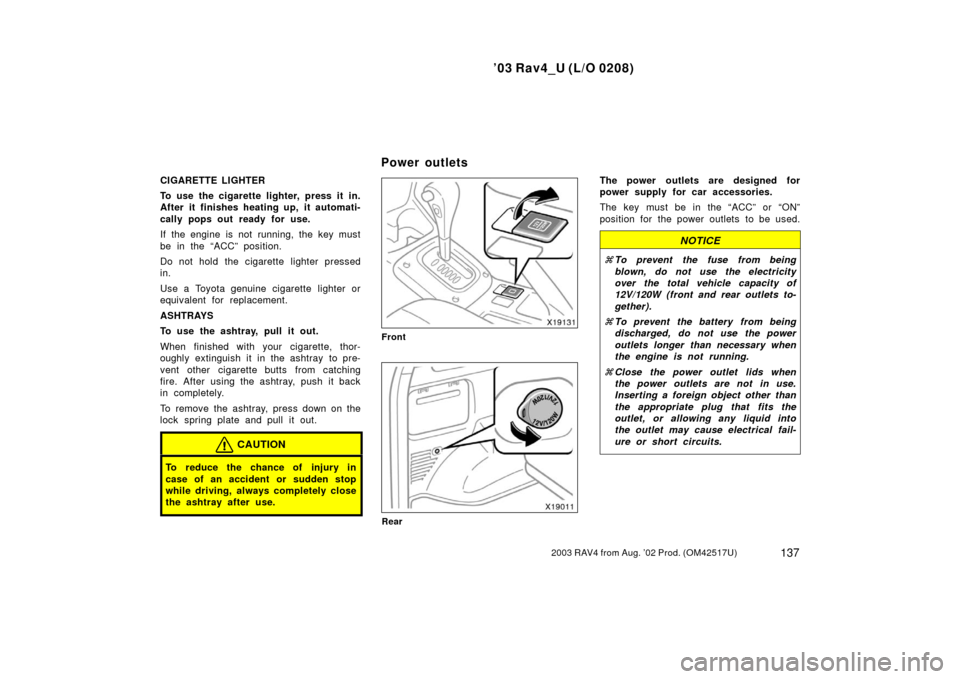

Front
Rear
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W (front and rear outlets to-
gether).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets

’03 Rav4_U (L/O 0208)
1382003 RAV4 from Aug. ’02 Prod. (OM42517U)

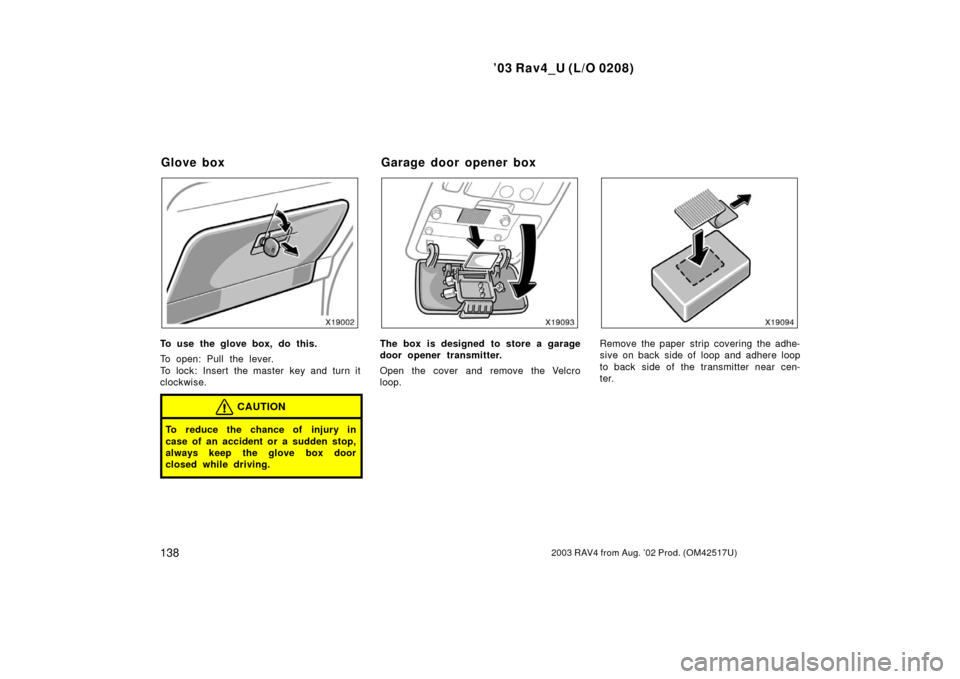

To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.
Glove boxGarage door opener box

’03 Rav4_U (L/O 0208)
1392003 RAV4 from Aug. ’02 Prod. (OM42517U)

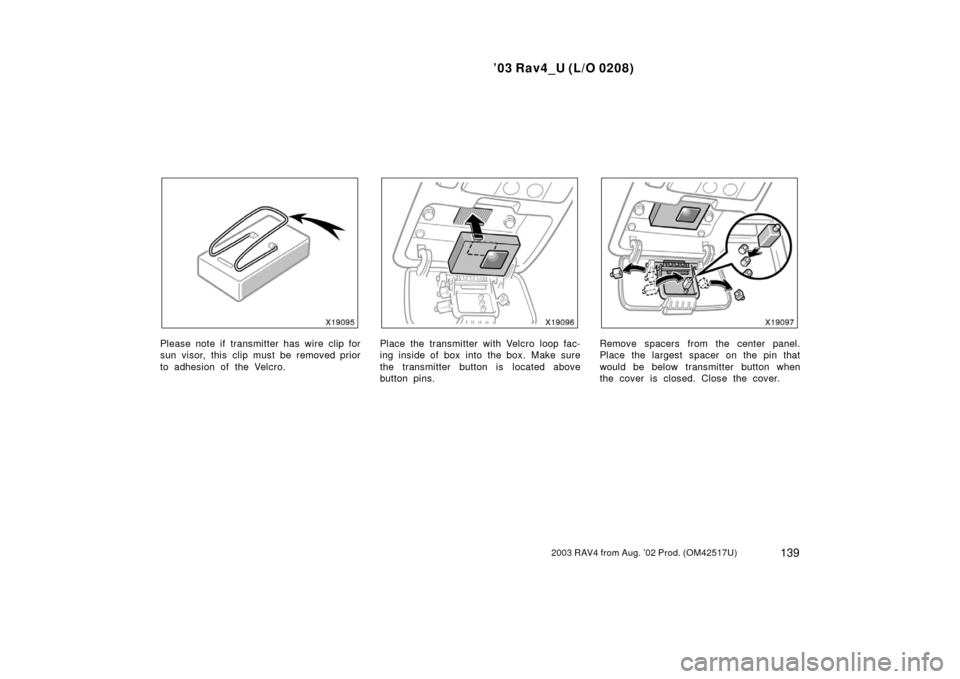

Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.

’03 Rav4_U (L/O 0208)
1402003 RAV4 from Aug. ’02 Prod. (OM42517U)

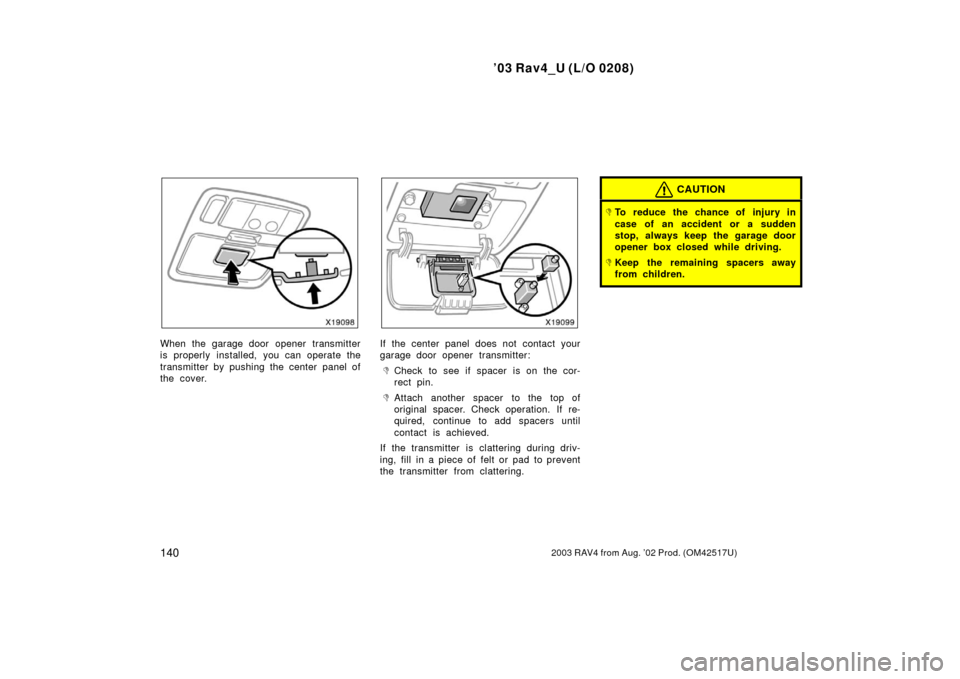

When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.

’03 Rav4_U (L/O 0208)
1412003 RAV4 from Aug. ’02 Prod. (OM42517U)

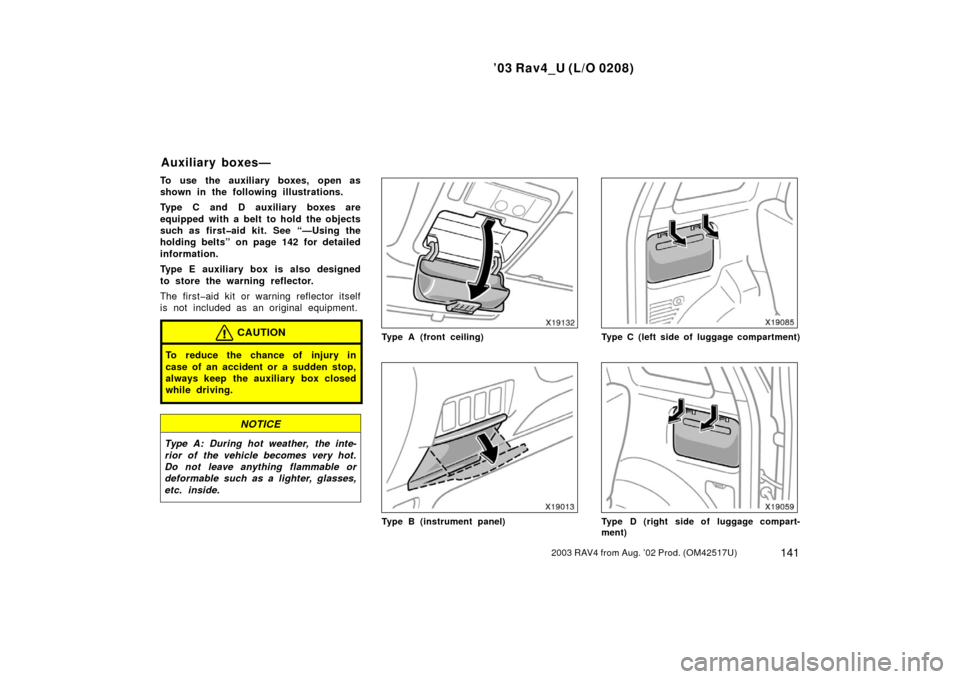

To use the auxiliary boxes, open as
shown in the following illustrations.
Type C and D auxiliary boxes are
equipped with a belt to hold the objects
such as firstaid kit. See “—Using the
holding belts” on page 142 for detailed
information.
Type E auxiliary box is also designed
to store the warning reflector.
The firstaid kit or warning reflector itself
is not included as an original equipment.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A: During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Type A (front ceiling)
Type B (instrument panel)
Type C (left side of luggage compartment)
Type D (right side of luggage compart-
ment)
Auxiliary boxes—

’03 Rav4_U (L/O 0208)
1422003 RAV4 from Aug. ’02 Prod. (OM42517U)
Type E (luggage compartment floor)Type C (left side of luggage compartment)
Type D (right side of luggage compart-
ment)
These auxiliary boxes are equipped with
a belt to hold the objects.
Type D auxiliary box—This belt is de-
signed to hold the firstaid kit.

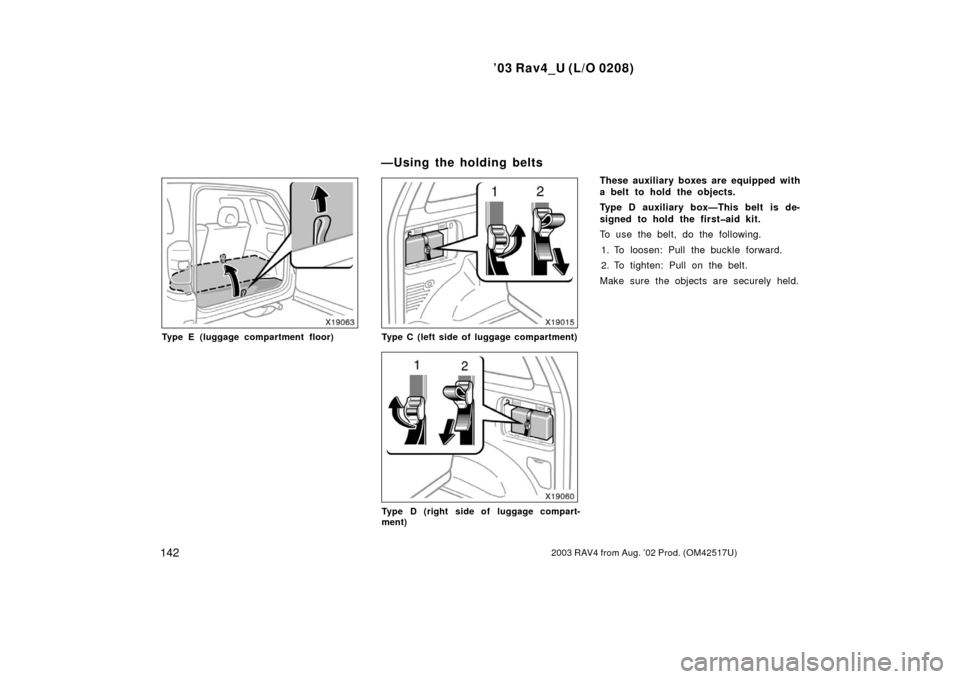

To use the belt, do the following.1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the objects are securely held.
—Using the holding belts

’03 Rav4_U (L/O 0208)
1432003 RAV4 from Aug. ’02 Prod. (OM42517U)

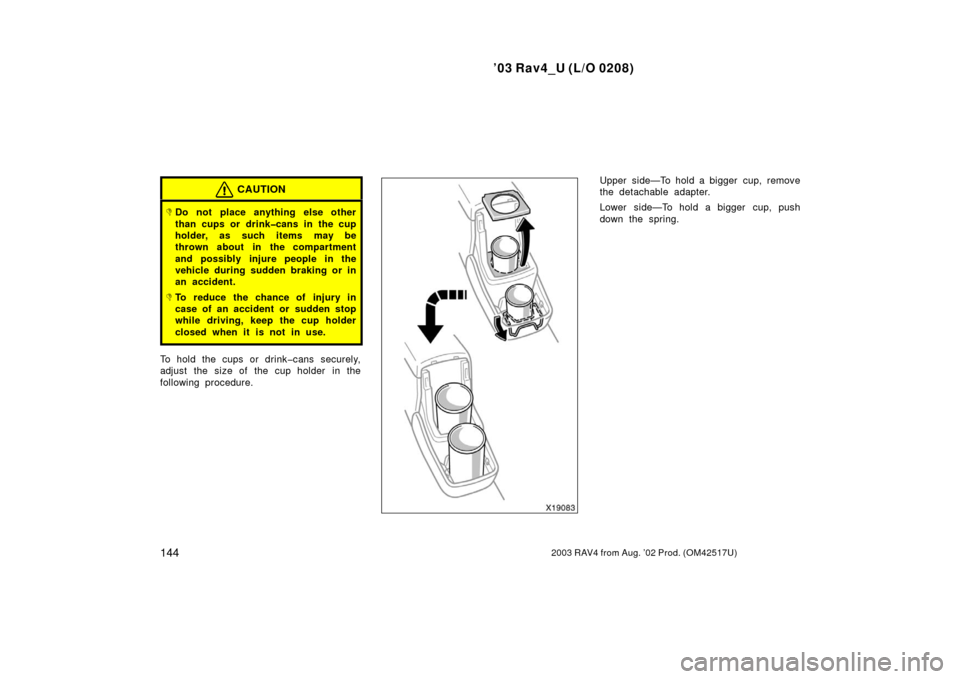

The cup holder is designed for holding
cups or drinkcans securely.
To use the holder, pull its end.
The cup holder can be adjustable to the
size of the cups or drinkcans by chang-
ing the arm position.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
The cup holder is designed for holding
cups or drinkcans securely.
To use the holder, pull up the lever.
Front cup holderRear cup holder

’03 Rav4_U (L/O 0208)
1442003 RAV4 from Aug. ’02 Prod. (OM42517U)
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.

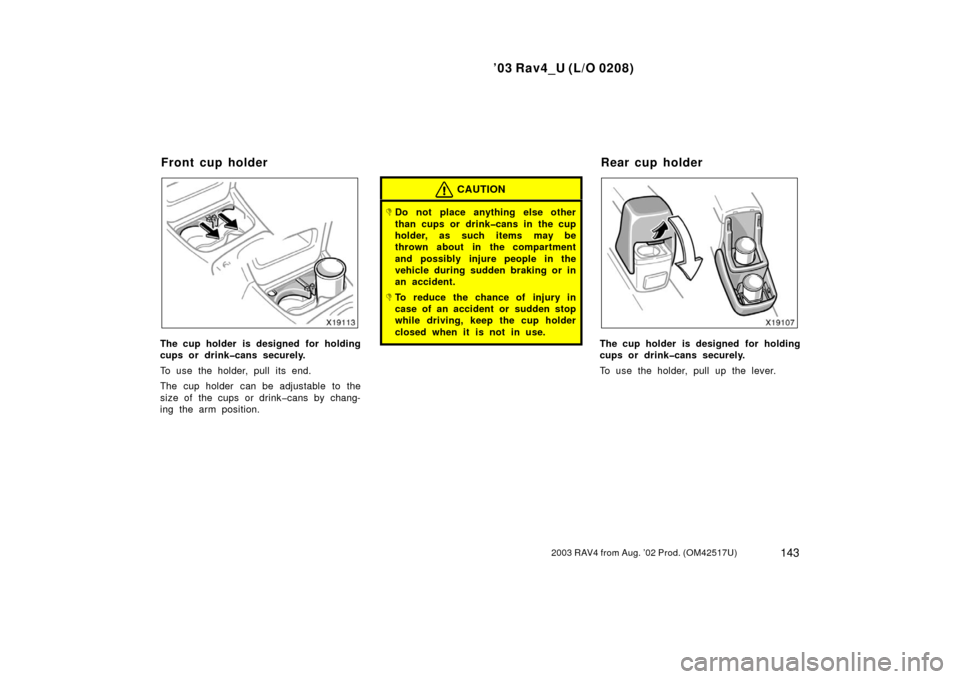

To hold the cups or drinkcans securely,
adjust the size of the cup holder in the
following procedure.
Upper side—To hold a bigger cup, remove
the detachable adapter.
Lower side—To hold a bigger cup, push
down the spring.
