’04 Rav4_U (L/O 0403)
301
2004 RAV4 from Mar. ’04 Prod. (OM42568U)
c. Tighten the hold−down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
After checking the battery, reinstall the
battery cover.
NOTICE
 Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
RedHave battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

’04 Rav4_U (L/O 0403)
303
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

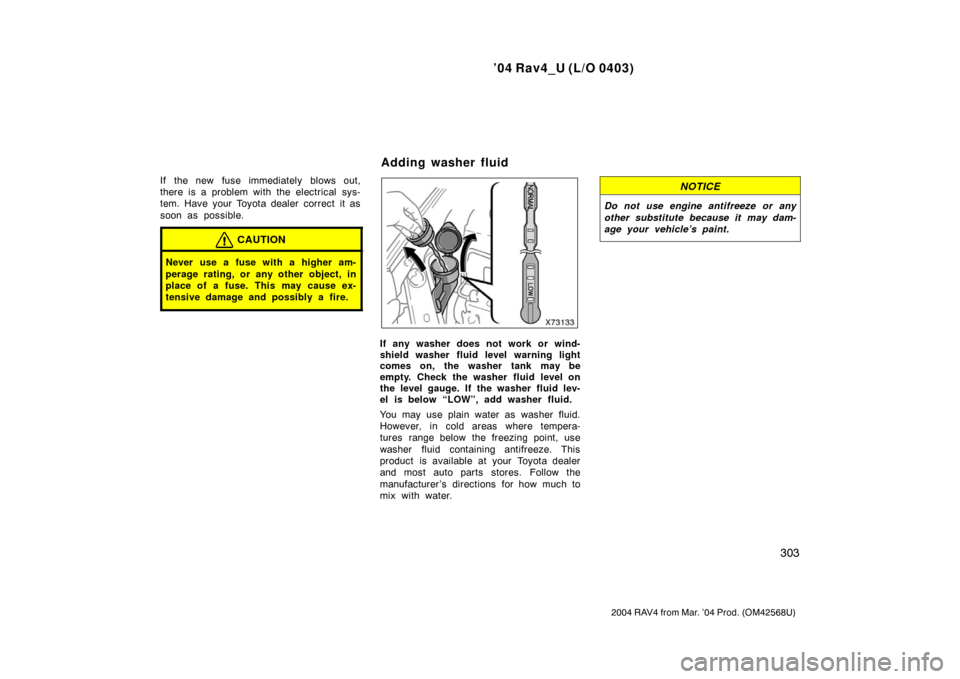

If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Check the washer fluid level on
the level gauge. If the washer fluid lev-
el is below “LOW”, add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’04 Rav4_U (L/O 0403)
316
2004 RAV4 from Mar. ’04 Prod. (OM42568U)
Tire size:215/70R16 99S
235/60R16 100H
Cold tire inflation pressure, kPa
(kgf/cm
2 or bar, psi):
200 (2.0, 29)
Wheel size: Steel wheel 16 61/2J
Aluminum Wheel 16 7JJ
Wheel nut torque, N
·m (kg f·m, ft·lbf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires
or replacing wheels), see
“Checking tire inflation pres-
sure” through “Aluminum
wheel precautions”, pages
291 through 298 in Section
7−2.
Engine compartment
Instrument panel
Fuses (type A)
1. RADIO 15 A: Car audio system
2. DOME 10 A: Clock, personal light, in-
terior lights, vanity lights, garage door
opener, air conditioning system, wire-
less remote control system, gauges
and meters
3. CUT 30 A: “RADIO” and “DOME” fuses
4. A/C 5 A: Air conditioning system
5. MAIN 30 A: “H−LP RH” and “H −LP LH”
fuses
6. HAZ 10 A: Emergency flashers
Tires Fuses
