TOYOTA RAV4 2004 XA20 / 2.G Service Manual

’04 Rav4_U (L/O 0403)
33
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

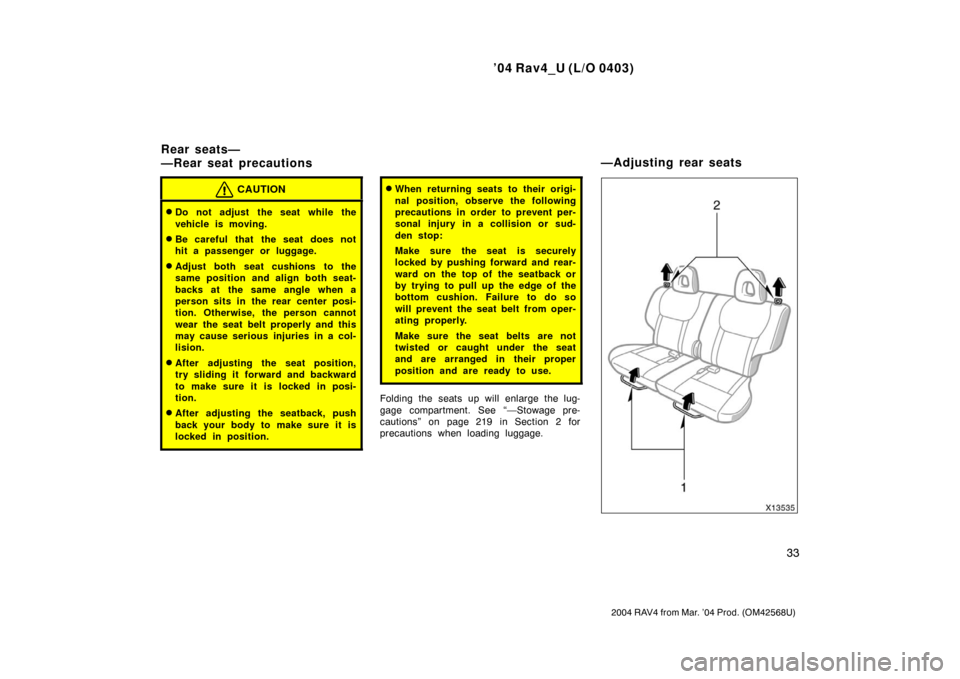

CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a col-
lision.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 219 in Section 2 for
precautions when loading luggage.
Rear seats—
—Rear seat precautions—Adjusting rear seats

’04 Rav4_U (L/O 0403)
34
2004 RAV4 from Mar. ’04 Prod. (OM42568U)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
When a person sits in the rear center
position, adjust both seat cushions to
the same position. 2. SEATBACK ANGLE ADJUSTING STRAP
Pull the strap up. Then lean back to the
desired angle and release the strap.
When a person sits in the rear center
position, align both seatbacks at the

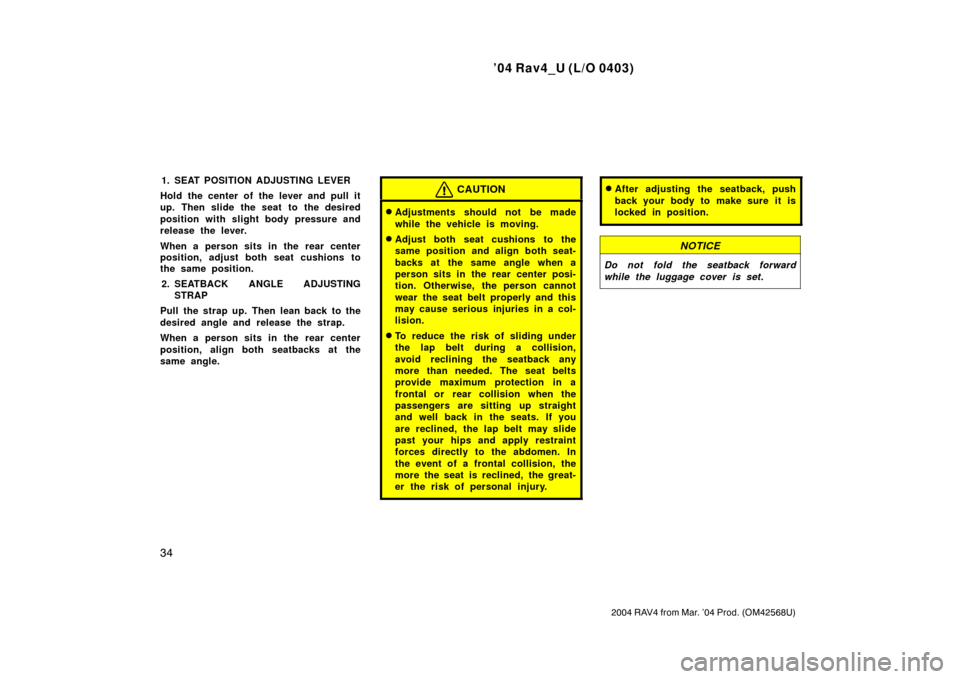

same angle.CAUTION
Adjustments should not be made
while the vehicle is moving.
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a col-
lision.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen. In
the event of a frontal collision, the
more the seat is reclined, the great-
er the risk of personal injury.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.

’04 Rav4_U (L/O 0403)
35
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

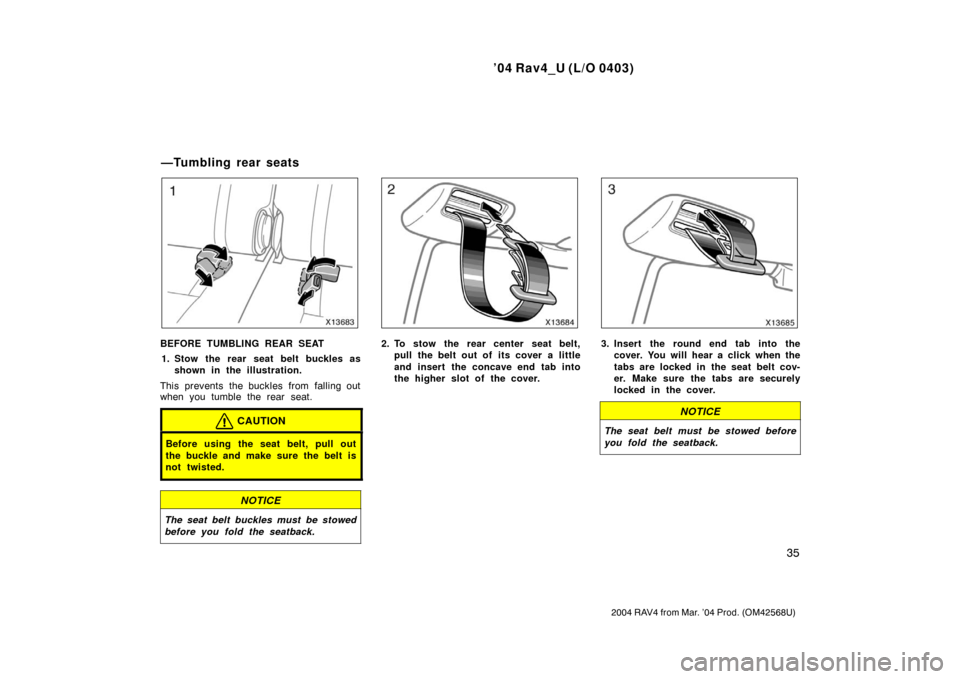

BEFORE TUMBLING REAR SEAT1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you tumble the rear seat.
CAUTION
Before using the seat belt, pull out
the buckle and make sure the belt is
not twisted.
NOTICE
The seat belt buckles must be stowed
before you fold the seatback.
2. To stow the rear center seat belt, pull the belt out of its cover a little
and insert the concave end tab into
the higher slot of the cover.3. Insert the round end tab into thecover. You will hear a click when the
tabs are locked in the seat belt cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Tumbling rear seats

’04 Rav4_U (L/O 0403)
36
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

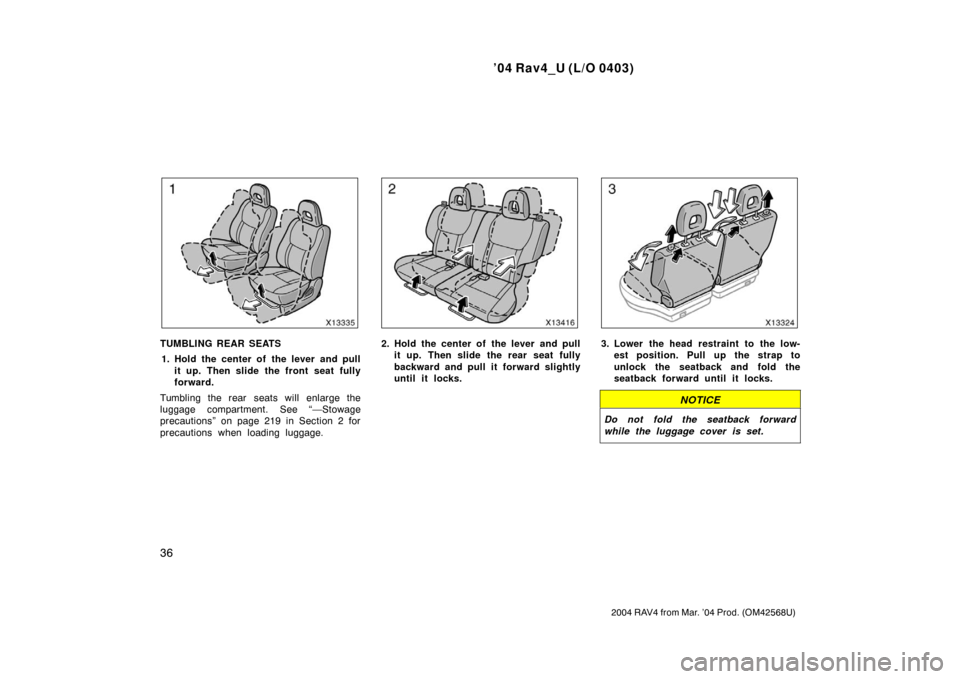

TUMBLING REAR SEATS1. Hold the center of the lever and pull it up. Then slide the front seat fully
forward.
Tumbling the rear seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 219 in Section 2 for
precautions when loading luggage.2. Hold the center of the lever and pull it up. Then slide the rear seat fully
backward and pull it forward slightly
until it locks.3. Lower the head restraint to the low-est position. Pull up the strap to
unlock the seatback and fold the
seatback forward until it locks.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.

’04 Rav4_U (L/O 0403)
37
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

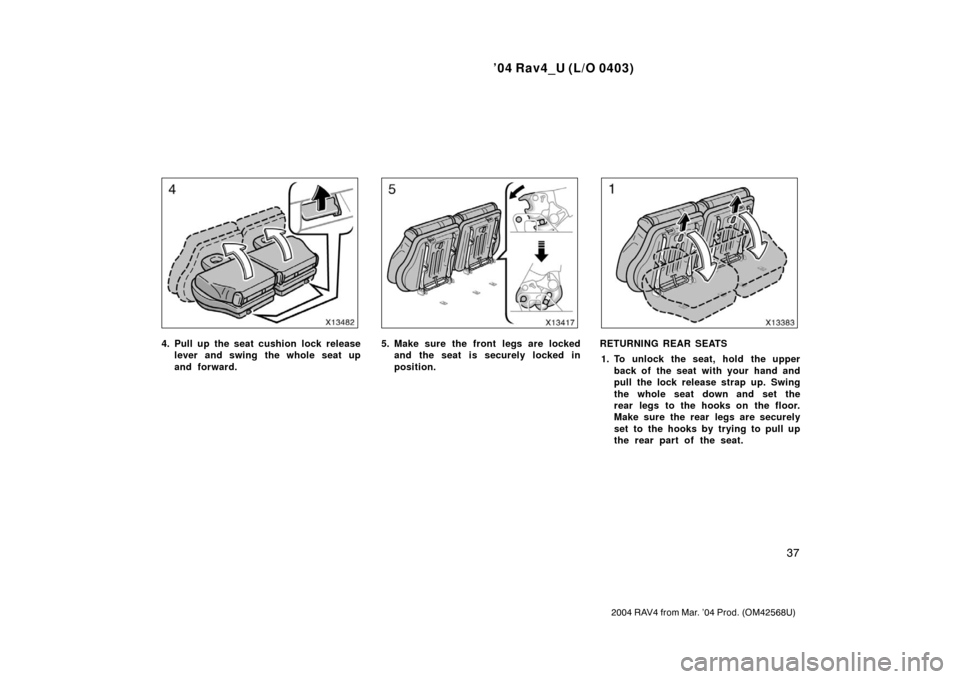

4. Pull up the seat cushion lock releaselever and swing the whole seat up
and forward.5. Make sure the front legs are lockedand the seat is securely locked in
position.RETURNING REAR SEATS
1. To unlock the seat, hold the upper back of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.

’04 Rav4_U (L/O 0403)
38
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

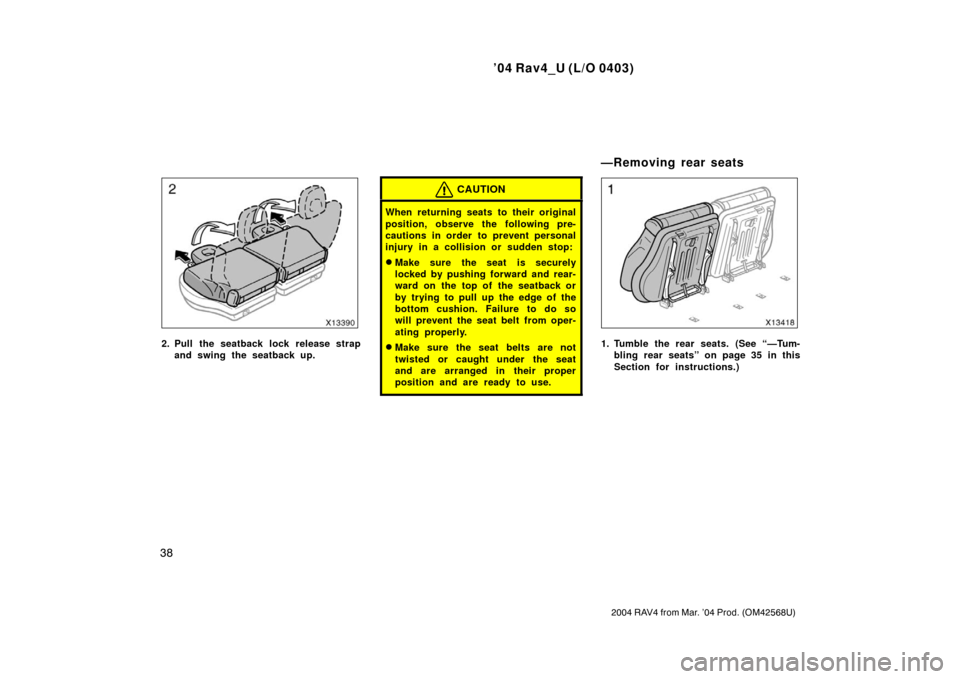

2. Pull the seatback lock release strapand swing the seatback up.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.1. Tumble the rear seats. (See “—Tum-bling rear seats” on page 35 in this
Section for instructions.)
—Removing rear seats

’04 Rav4_U (L/O 0403)
39
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

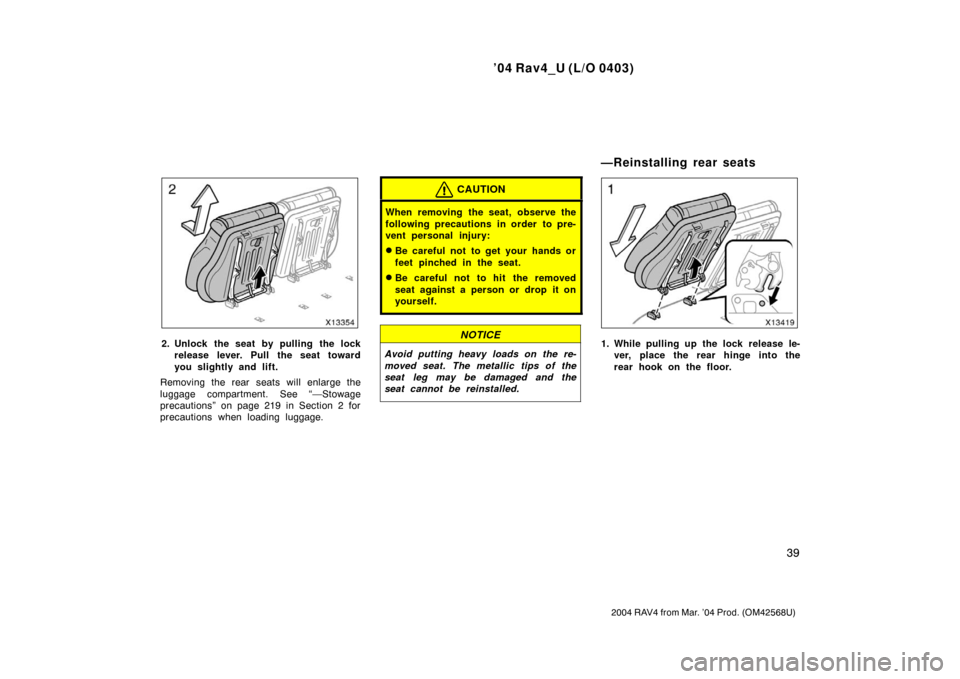

2. Unlock the seat by pulling the lockrelease lever. Pull the seat toward
you slightly and lift.
Removing the rear seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 219 in Section 2 for
precautions when loading luggage.
CAUTION
When removing the seat, observe the
following precautions in order to pre-
vent personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.1. While pulling up the lock rel ease le-
ver, place the rear hinge into the
rear hook on the floor.
—Reinstalling rear seats

’04 Rav4_U (L/O 0403)
40
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

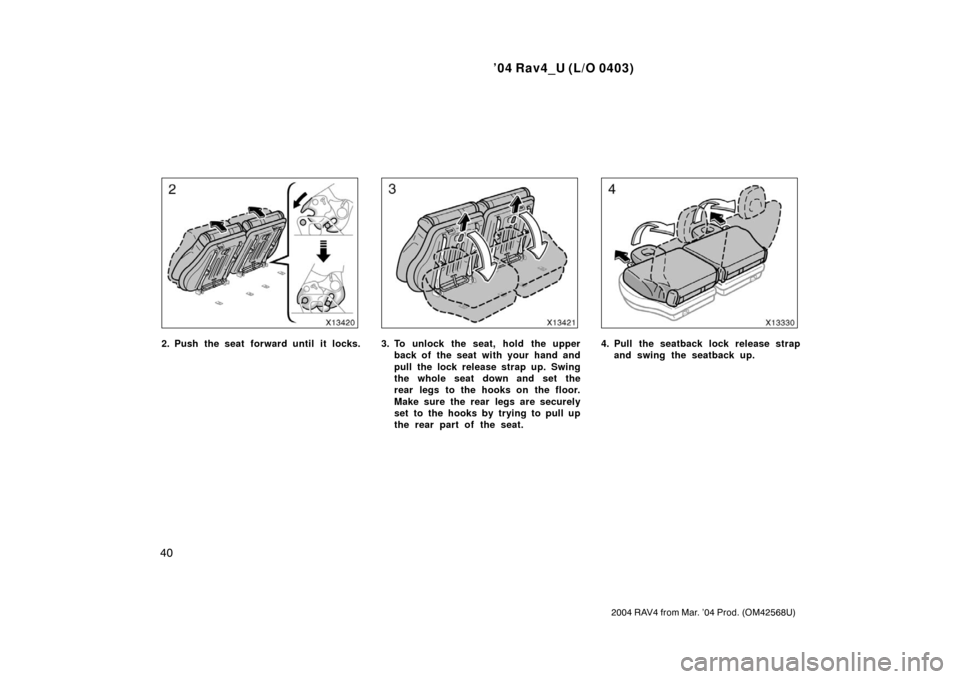

2. Push the seat forward until it locks.3. To unlock the seat, hold the upperback of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.4. Pull the seatback lock release strapand swing the seatback up.

’04 Rav4_U (L/O 0403)
41
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

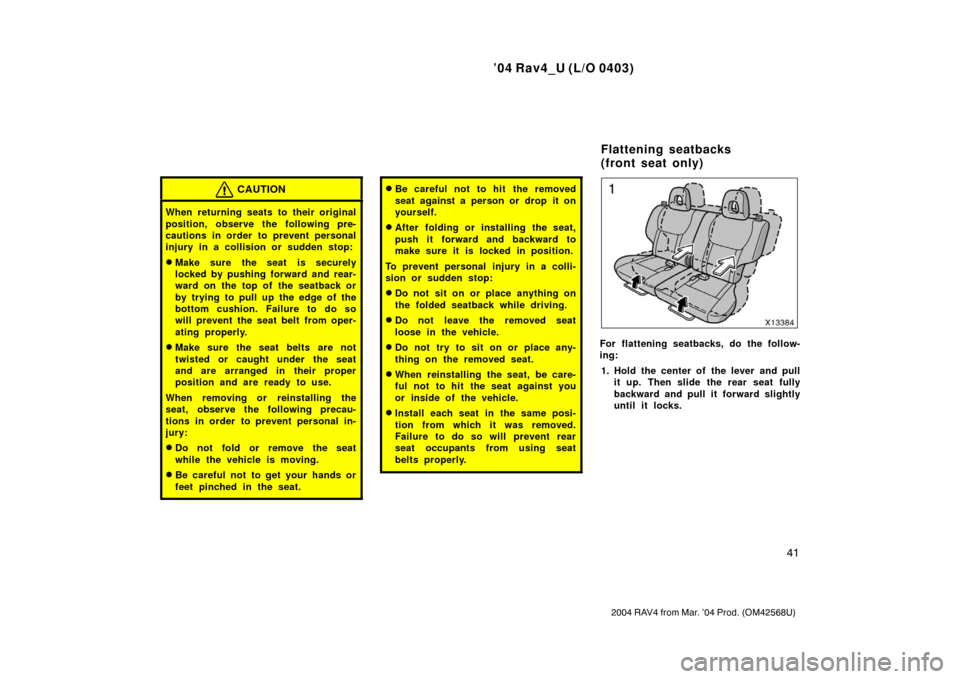

CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
When removing or reinstalling the
seat, observe the following precau-
tions in order to prevent personal in-
jury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent rear
seat occupants from using seat
belts properly.
For flattening seatbacks, do the follow-
ing: 1. Hold the center of the lever and pull it up. Then slide the rear seat fully
backward and pull it forward slightly
until it locks.
Flattening seatbacks
(front seat only)

’04 Rav4_U (L/O 0403)
42
2004 RAV4 from Mar. ’04 Prod. (OM42568U)

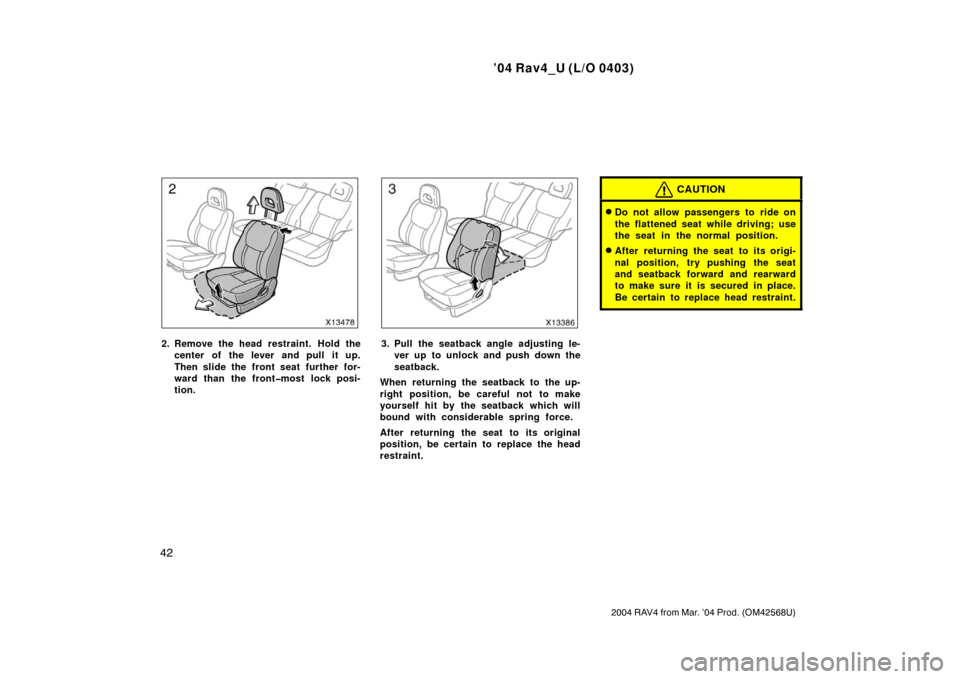

2. Remove the head restraint. Hold thecenter of the lever and pull it up.
Then slide the front seat further for-
ward than the frontmost lock posi-
tion.3. Pull the seatback angle adjusting le-ver up to unlock and push down the
seatback.
When returning the seatback to the up-
right position, be careful not to make
yourself hit by the seatback which will
bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After returning the seat to its origi-
nal position, try pushing the seat
and seatback forward and rearward
to make sure it is secured in place.
Be certain to replace head restraint.
