TOYOTA RAV4 2005 XA30 / 3.G Owners Manual

'05 Rav4_U (L/O 0409)
243
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To avoid serious personal injury and
damage to your vehicle which might re-
sult from battery explosion, acid burns,
electrical burns, or damaged electronic
components, these instructions must be
followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION

Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.

If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water im-
mediately. Then get immediate medi-
cal attention. If possible, continue
to apply water with a sponge or
cloth while en route to the medical
office.

The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting mustbe 12 V. Do not jump start unless youare sure that the booster battery iscorrect.
BEFORE JUMP STARTING

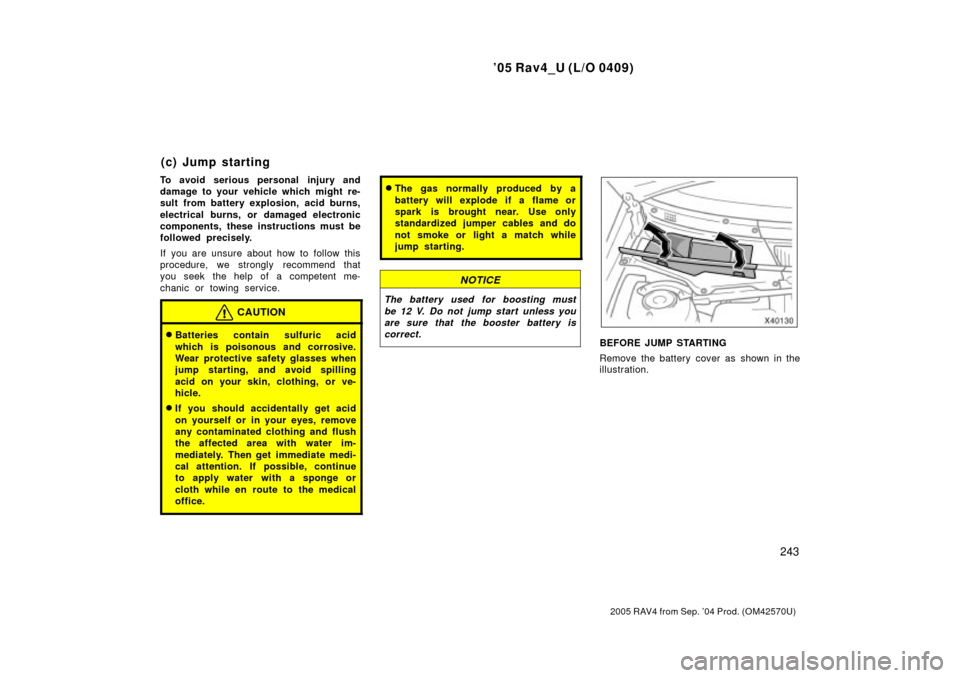

Remove the battery cover as shown in the
illustration.
(c) Jump starting

'05 Rav4_U (L/O 0409)
244
2005 RAV4 from Sep. '04 Prod. (OM42570U)
JUMP STARTING PROCEDURE1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.Jumper cable
Discharged
battery Positive
terminal
(+º mark)
Booster battery Positive
terminal
(+º mark)

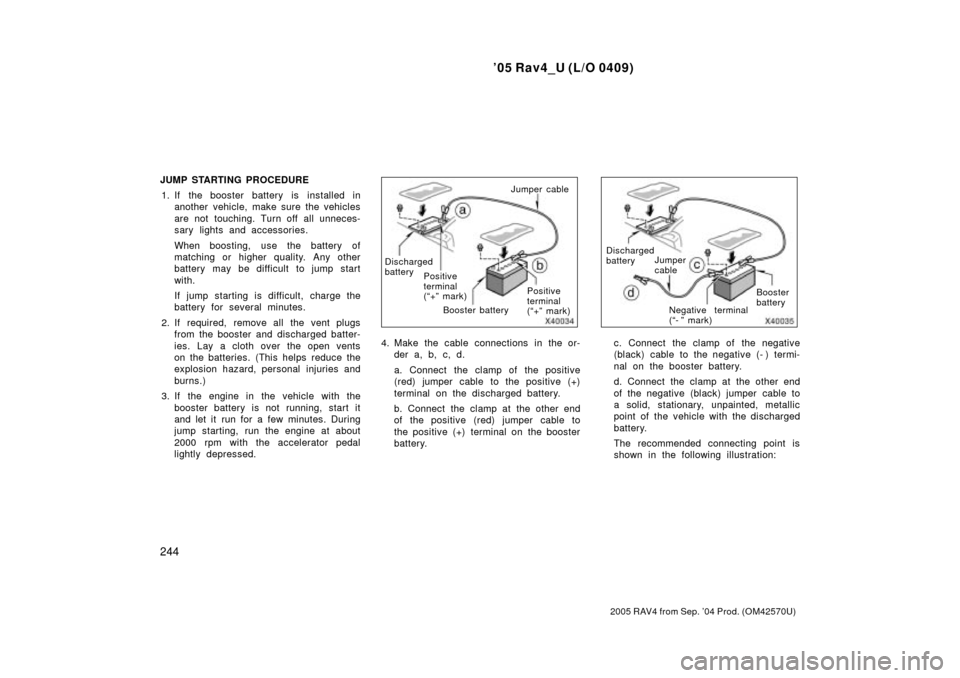

4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
Discharged
battery Jumper
cable
Negative terminal
(- º mark) Booster
battery
c. Connect the clamp of the negative
(black) cable to the negative (- ) termi-
nal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting point is
shown in the following illustration:

'05 Rav4_U (L/O 0409)
245
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Connecting point
Do not connect it to or near any part
that moves when the engine is
cranked.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.
5. Start your engine in the normal way.After starting, run it at about 2000 rpm
for several minutes with the accelerator
pedal lightly depressed.
6. Carefully disconnect the cables in the exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover clothsÐthey may now contain sulfuric
acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked at your Toyota
dealer.
If the first start attempt is not success-
ful...
Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart your en-
gine in the normal way.
If the another attempt is not successful,
the battery may be depleted. Have it ch-
ecked at your Toyota dealer. AFTER JUMP STARTING
Install the battery cover securely in its
original position.
NOTICE
After installed the battery cover, make
sure the battery cover is securely inits original position. If it is not se-cured, it may be damaged to your
vehicle.

'05 Rav4_U (L/O 0409)
246
2005 RAV4 from Sep. '04 Prod. (OM42570U)
If your engine stalls while driving...1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to ACCº or LOCKº, and try starting the engine
again.
If the engine will not start, see If your
vehicle will not startº on page 242 in this
Section.

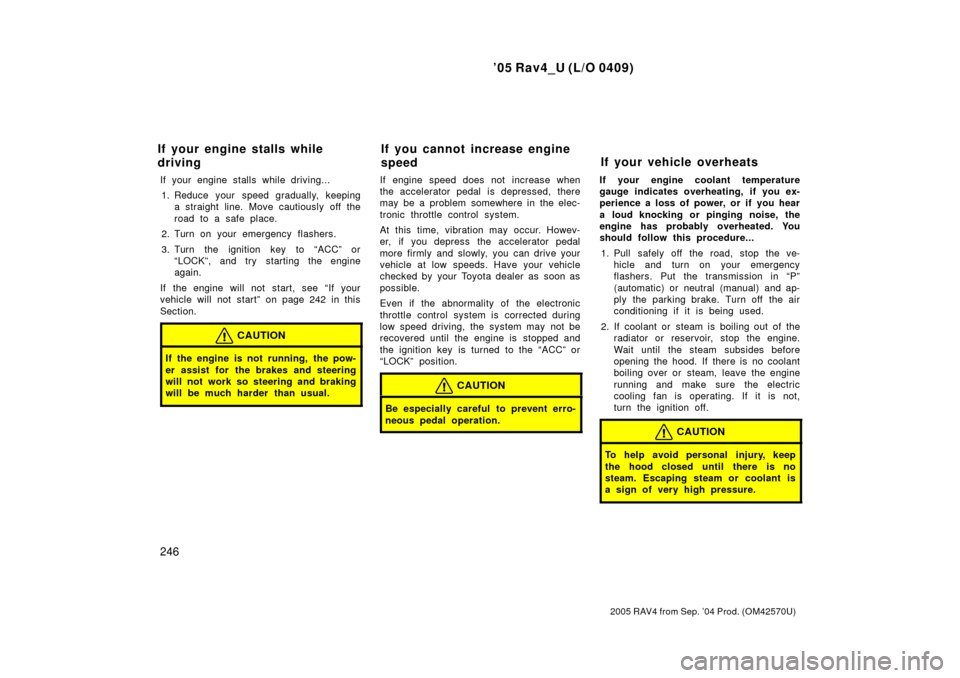

CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to the ACCº or
LOCKº position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure... 1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in Pº
(automatic) or neutral (manual) and ap-
ply the parking brake. Turn off the air
conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
If your engine stalls while
driving If you cannot incr
ease engine
speed If your vehicle overheats

'05 Rav4_U (L/O 0409)
247
2005 RAV4 from Sep. '04 Prod. (OM42570U)
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
For the coolant type, see Coolant type
selectionº on page 289 in Section 7- 2.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperaturehas cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.1. Reduce your speed gradually, keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in Pº (auto-
matic) or reverse (manual).
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.
If you have a flat tireÐ

'05 Rav4_U (L/O 0409)
248
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of personal injury:

Follow jacking instructions.

Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.

Do not start or run the engine
while your vehicle is supported
by the jack.

Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in Pº (automatic) or reverse
(manual). Block the wheel diag-
onally opposite to the one be-
ing changed if necessary.

Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.

Never get under the vehicle
when the vehicle is supported
by the jack alone.

Use the jack only for lifting
your vehicle during wheel
changing.

Do not raise the vehicle with
someone in the vehicle.

When raising the vehicle, do
not place any objects on top
of or underneath the jack.

Raise the vehicle only high
enough to remove and change
the tire.NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage atire and wheel beyond repair.

'05 Rav4_U (L/O 0409)
249
2005 RAV4 from Sep. '04 Prod. (OM42570U)

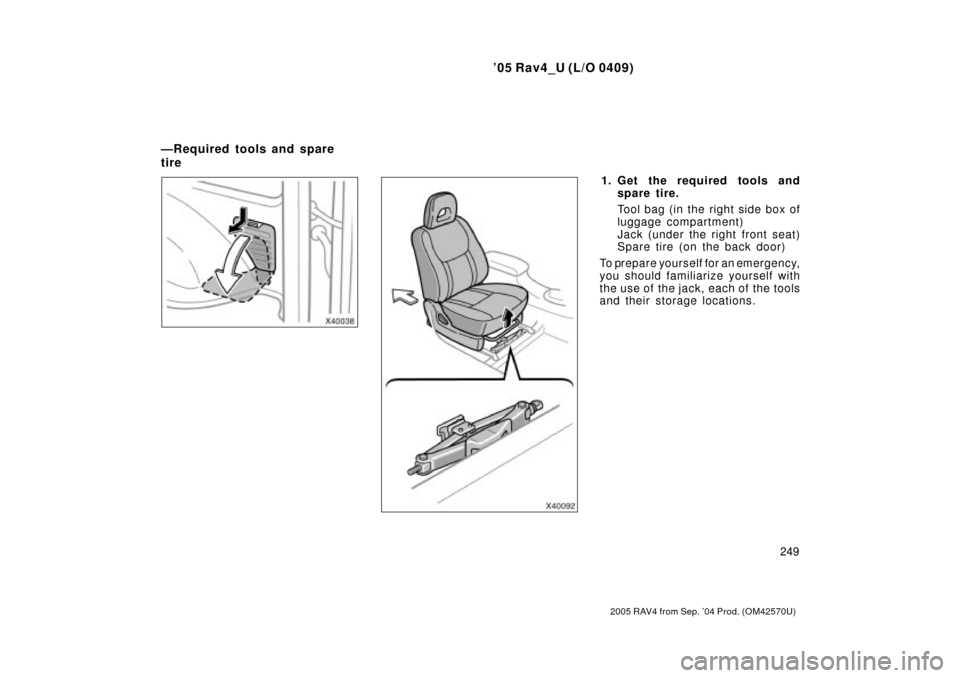

1. Get the required tools andspare tire.
Tool bag (in the right side box of
luggage compartment)
Jack (under the right front seat)
Spare tire (on the back door)
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
Ð R eq u ired to o ls an d sp are
tire

'05 Rav4_U (L/O 0409)
250
2005 RAV4 from Sep. '04 Prod. (OM42570U)

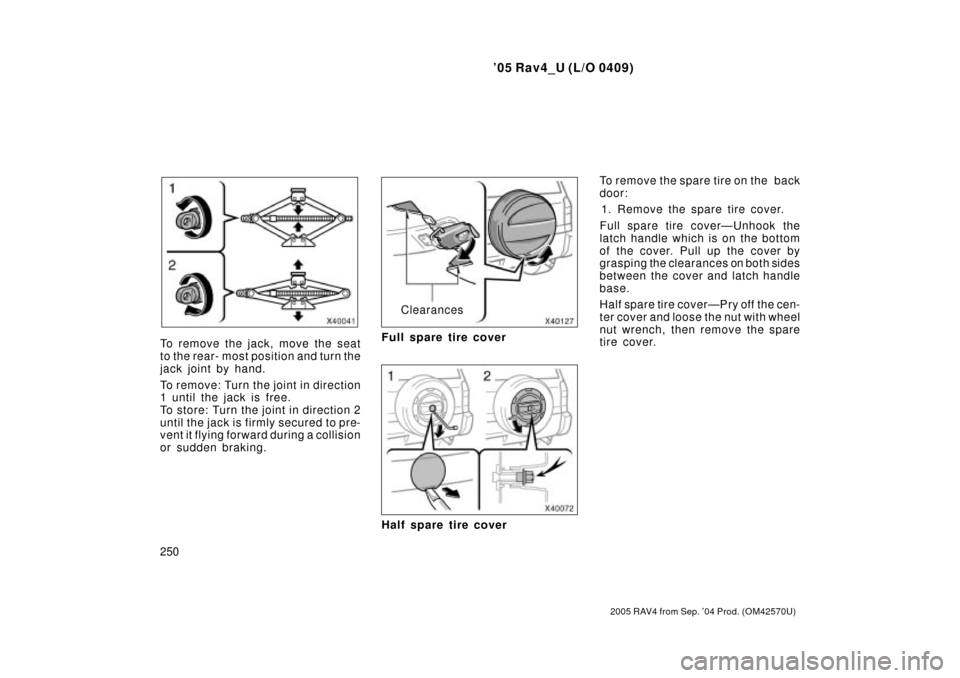

To remove the jack, move the seat
to the rear- most position and turn the
jack joint by hand.
To remove: Turn the joint in direction
1 until the jack is free.
To store: Turn the joint in direction 2
until the jack is firmly secured to pre-
vent it flying forward during a collision
or sudden braking.
Clearances
Full spare tire cover
Half spare tire cover To remove the spare tire on the back
door:
1. Remove the spare tire cover.
Full spare tire coverÐUnhook the
latch handle which is on the bottom
of the cover. Pull up the cover by
grasping the clearances on both sides
between the cover and latch handle
base.
Half spare tire coverÐPry off the cen-
ter cover and loose the nut with wheel
nut wrench, then remove the spare
tire cover.

'05 Rav4_U (L/O 0409)
251
2005 RAV4 from Sep. '04 Prod. (OM42570U)

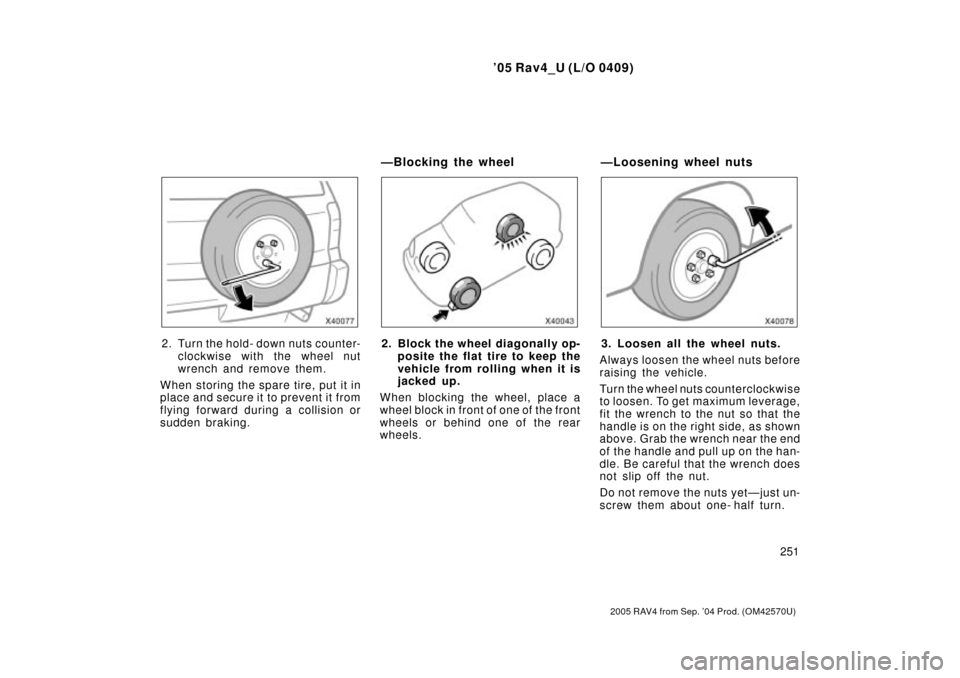

2. Turn the hold- down nuts counter-clockwise with the wheel nut
wrench and remove them.
When storing the spare tire, put it in
place and secure it to prevent it from
flying forward during a collision or
sudden braking.2. Block the wheel diagonally op- posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yetÐjust un-
screw them about one- half turn.
ÐBlocking the wheel ÐLoosening wheel nuts

'05 Rav4_U (L/O 0409)
252
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.

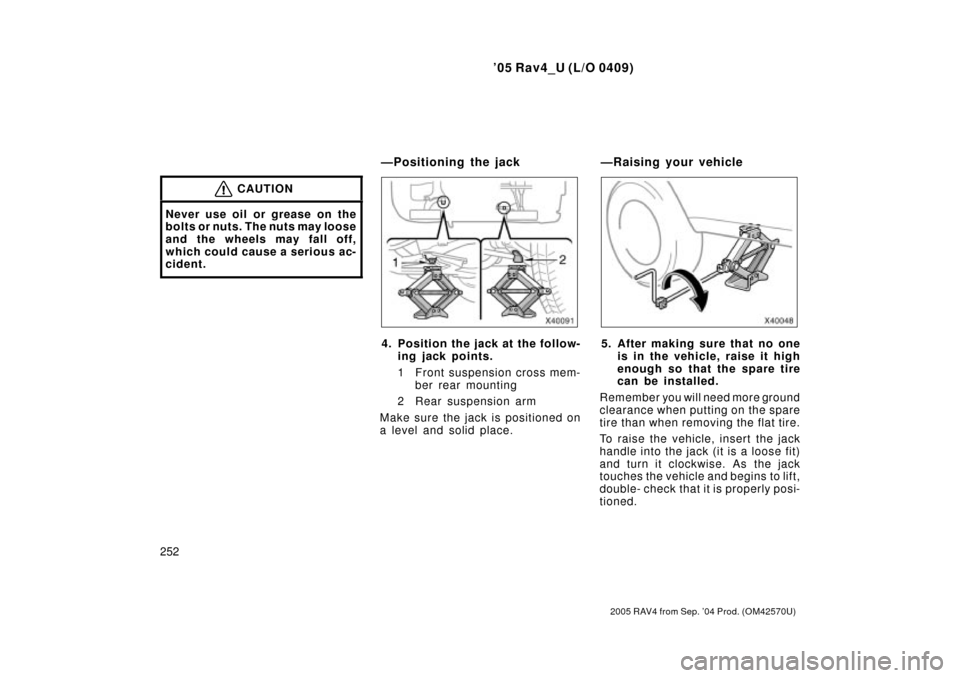

4. Position the jack at the follow-ing jack points.
1 Front suspension cross mem- ber rear mounting
2 Rear suspension arm
Make sure the jack is positioned on
a level and solid place.5. After making sure that no one is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicle, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double- check that it is properly posi-
tioned.
ÐPositioning the jack ÐRaising your vehicle
