1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobilizer system indicatorlight
4. Headlight, turn signal and front fog light switches
5. Wiper and washer switches
6. Rear window and outside rear view mirror defogger switch
7. Audio system
8. Emergency flasher switch
9. Front passenger 's seat belt reminder light
10. Clock display 11. Air conditioning controls
12. Cigarette lighter
13. Seat heater switches
14. Ashtray
15. Ignition switch
16. Cruise control switch
17. Tilt steering lock release lever
18. Audio remote control switches

'05 Rav4_U (L/O 0409)
24
2005 RAV4 from Sep. '04 Prod. (OM42570U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Vehicles with the power door lock sys-
temÐ
All the side doors and back door lock and
unlock simultaneously with the back door.When all the side doors and back door
are unlocked simultaneously using a key,
the interior lights and ignition switch light
will come on and remain on for about 15
seconds before fading out. (For further
information, see Interior lightsº on page
100 and Ignition switch lightº on page
102 in Section 1- 5.)
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See ÐLocking and unlocking doorsº on
page 16 and Side doorsº on page 19 in
this Section.)
When closing the back door, make sure
it is fully closed.
See ÐStowage precautionsº on page 221
in Section 2 for precautions when loading
luggage.
CAUTION

Keep the back door
closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.

If the open back door hides the
stop, tail or rear turn signal lights
while you are parked, other road
users must be warned of the pres-
ence of your vehicle by a warning
triangle or other device.
Back door

'05 Rav4_U (L/O 0409)
27
2005 RAV4 from Sep. '04 Prod. (OM42570U)

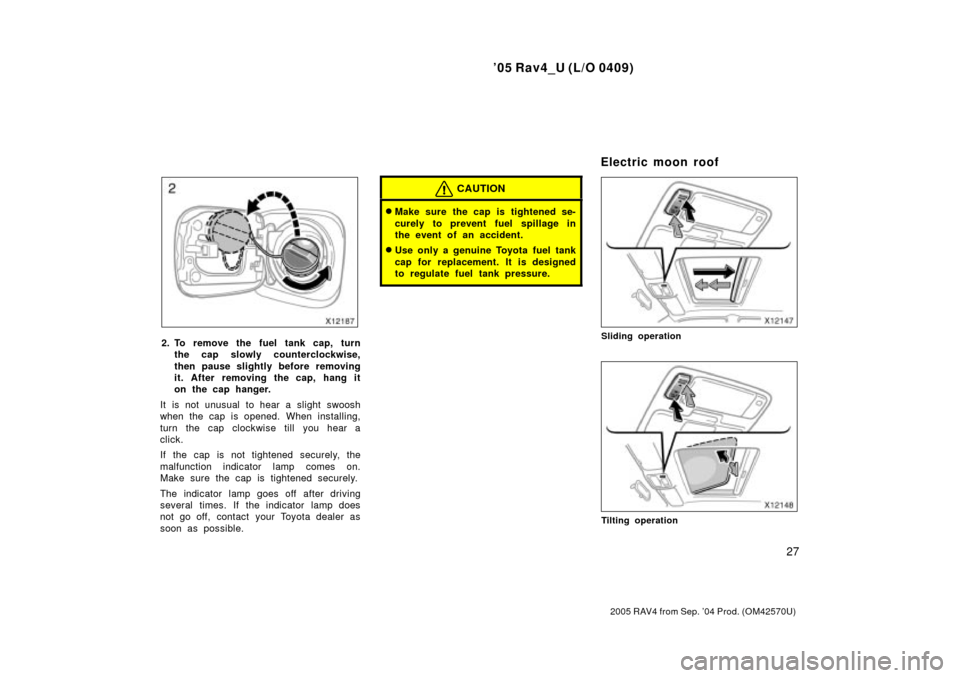

2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION

Make sure the cap is tightened se-
curely to prevent fuel sp illage in
the event of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Sliding operation
Tilting operation
Electric moon roof

'05 Rav4_U (L/O 0409)
141
2005 RAV4 from Sep. '04 Prod. (OM42570U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR´VOLº to turn the audio system
on and off.
Push AMº, FMº, FM1º, FM2º, TAPEº or
DISCº to turn on that function without
pushing PWR´VOLº. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AMº, FMº, FM1º, FM2º, TAPEº or
DISCº if the system is already on but you
want to switch from one function to anoth-
er.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-ing your Toyota through an automaticcar wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-sette tapes into the slot, or the tapeplayer may be damaged.
Using your audio systemÐ
ÐSome basics

'05 Rav4_U (L/O 0409)
147
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TEXT
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the TEXTº button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, NO TITLEº will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.
TUNE (Tuning)
Turn the TUNEº knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

'05 Rav4_U (L/O 0409)
153
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the TRAFº button, TRAF
SEEKº will flash on the display and the
radio will seek a traffic program station.
When a traffic program station is found,
TRAFº will be displayed and you will hear
a beep.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, NO
TRAFINFOº appears on the display, and
the display returns to the previous mode
and a beep sounds.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the TUNEº knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.TYPE (Program Types)
When you push

º or º of the TYPEº
button while receiving an RDS station, the
current program type will appear on the
display. If the system is receiving a sta-
tion that is not RDS, NO PTYº will ap-
pear.
Repeat this operation within 6 seconds to
display the program types in the following
order:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC (Miscellaneous)
ALERT (Emergency message)
To seek or scan for the same type of
program, push the SEEK/TRACKº or
SCANº button while the program type is
displayed. If no program is found, NOTHINGº will
appear on the display. The previous pro-
gram information will resume.
When the system is left untouched for 6
seconds, the program type display will
change to the frequency display.

'05 Rav4_U (L/O 0409)
159
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TEXT
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the TEXTº button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, NO TITLEº will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.
TUNE (Tuning)
Turn the TUNEº knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

'05 Rav4_U (L/O 0409)
177
2005 RAV4 from Sep. '04 Prod. (OM42570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Garage door opener box 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Front cup holder 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Tie- down hooks 190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage cover 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Separation net 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Roof luggage carrier 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1- 10

'05 Rav4_U (L/O 0409)
178
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To reset the hour: Push the Hº button.
To reset the minutes: Push the Mº button.
If quick adjustment to a full hour is de-
sired, push the :00º button.
For example, if the :00º button is de-
pressed when the time is between
1:01Ð1:29, the time will change to 1:00.
If the time is between 1:30Ð1:59, the
time will change to 2:00.
The key must be in the ACCº or ONº
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).Cigarette lighter and front ashtray
Rear ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
Front: To remove the ashtray, press down
on the lock spring plate and pull it out.
Rear: To remove the ashtray, hold both
sides of it and pull up slightly but firmly.
Pull the bottom out of the holder.
ClockCigarette lighter and ashtrays

'05 Rav4_U (L/O 0409)
180
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The garage door opener (
Universal Transceiver) is manufactured
under license from HomeLink and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc. (a) Programming the HomeLink

The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
hand- held transmitter prior to program-
ming.
The battery side of the hand- held trans-
mitter must be pointed away from the
HomeLink
 during the programming pro-
cess.
For Canadian users, follow the procedure
in Programming an entrance gate/Pro-
gramming all devices in the Canadian
marketº.
1. Decide which of 3 HomeLink
 buttons
you want to program.
2. Place your hand- held garage transmit- ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
Glove box Garage door opener
