LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Vehicles with the power door lock sys-
temÐ
All the side doors and back door lock and
unlock simultaneously with the back door.When all the side doors and back door
are unlocked simultaneously using a key,
the interior lights and ignition switch light
will come on and remain on for about 15
seconds before fading out. (For further
information, see Interior lightsº on page
100 and Ignition switch lightº on page
102 in Section 1- 5.)
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See ÐLocking and unlocking doorsº on
page 16 and Side doorsº on page 19 in
this Section.)
When closing the back door, make sure
it is fully closed.
See ÐStowage precautionsº on page 221
in Section 2 for precautions when loading
luggage.
CAUTION

Keep the back door
closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.

If the open back door hides the
stop, tail or rear turn signal lights
while you are parked, other road
users must be warned of the pres-
ence of your vehicle by a warning
triangle or other device.
Back door

'05 Rav4_U (L/O 0409)
25
2005 RAV4 from Sep. '04 Prod. (OM42570U)

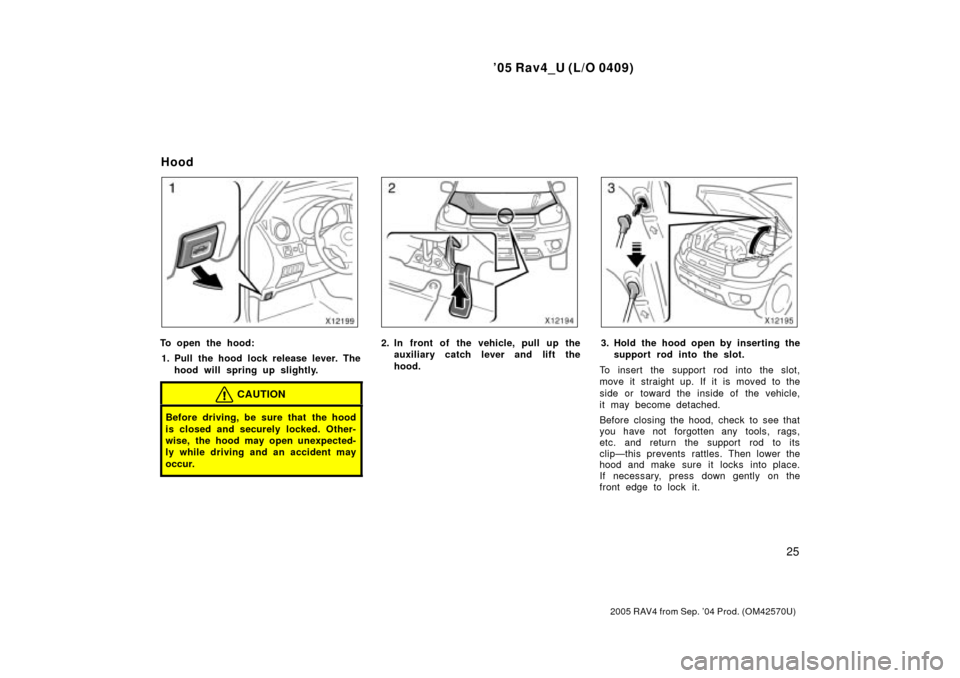

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clipÐthis prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
Hood

'05 Rav4_U (L/O 0409)
30
2005 RAV4 from Sep. '04 Prod. (OM42570U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded- down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.

During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (NHTSAº) advises:
Since the risk zone for driver airbag
is the first 50Ð75 mm (2Ð3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:

Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.

Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non- slippery cushion, or raise
the seat if your vehicle has that
feature.

If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seatsÐ
ÐFront seat precautions

'05 Rav4_U (L/O 0409)
33
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

Do not adjust the seat while the
vehicle is moving.

Be careful that the seat does not
hit a passenger or luggage.

Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a col-
lision.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, push
back your body to make sure it is
locked in position.

When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See ÐStowage pre-
cautionsº on page 221 in Section 2 for
precautions when loading luggage.
Rear seatsÐ
ÐRear seat precautionsÐAdjusting rear seats

'05 Rav4_U (L/O 0409)
35
2005 RAV4 from Sep. '04 Prod. (OM42570U)
BEFORE TUMBLING REAR SEAT1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you tumble the rear seat.
CAUTION
Before using the seat belt, pull out
the buckle and make sure the belt is
not twisted.
NOTICE
The seat belt buckles must be stowed before you fold the seatback.
2. To stow the rear center seat belt, pull the belt out of its cover a little
and insert the concave end tab into
the higher slot of the cover.3. Insert the round end tab into theslot of the cover. You will hear a
click when the tabs are locked in the
seat belt cover. Make sure the tabs
are securely locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
ÐTumbling rear seats

'05 Rav4_U (L/O 0409)
36
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TUMBLING REAR SEATS1. Hold the center of the lever and pull it up. Then slide the front seat fully
forward.
Tumbling the rear seats will enlarge the
luggage compartment. See ÐStowage
precautionsº on page 221 in Section 2 for
precautions when loading luggage.2. Hold the center of the lever and pull it up. Then slide the rear seat fully
backward and pull it forward slightly
until it locks.3. Lower the head restraint to the low-est position. Pull up the strap to
unlock the seatback and fold the
seatback forward until it locks.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.

'05 Rav4_U (L/O 0409)
39
2005 RAV4 from Sep. '04 Prod. (OM42570U)
2. Unlock the seat by pulling the lockrelease lever. Pull the seat toward
you slightly and lift.
Removing the rear seats will enlarge the
luggage compartment. See ÐStowage
precautionsº on page 221 in Section 2 for
precautions when loading luggage.
CAUTION
When removing the seat, observe the
following precautions in order to pre-
vent personal injury:

Be careful not to get your hands or
feet pinched in the seat.

Be careful not to hit the removed
seat against a person or drop it on
yourself.
NOTICE
Avoid putting heavy loads on the re- moved seat. The metallic tips of theseat leg may be damaged and theseat cannot be reinstalled.1. While pulling up the lock rel ease le-
ver, place the rear hinge into the
rear hook on the floor.
ÐReinstalling rear seats

'05 Rav4_U (L/O 0409)
50
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The rear seat belt buckles can be
stowed when not in use.
Seat belt buckles must be stowed before
you fold the seatback. (See ÐTumbling
rear seatsº on page 35 or ÐRemoving
rear seatsº on page 38 in this Section.)
CAUTION
Before using the seat belt, pull out
the buckle and make sure the belt is
not twisted.
STOWING THE REAR CENTER SEAT
BELT1. To stow the rear center seat belt, pull the seat belt out of its cover a
little and insert the concave end tab
into the higher slot of the cover.2. Insert the round end tab into thecover. You will hear a click when the
tabs are locked in the seat belt cov-
er. Make sure the tabs are securely
locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See ÐTumbling rear
seatsº on page 35 or ÐRemoving rear
seatsº on page 38 in this Section.)
NOTICE
Stow the rear center seat belt when not in use.
ÐStowing the rear seat belt
buckles ÐStowing the rear center seat
belt

'05 Rav4_U (L/O 0409)
103
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The INTº band lets you adjust the wiping
time interval when the wiper lever is in
the intermittent position (position 1). Twist
the band upward to increase the time be-
tween sweeps, and downward to decrease
it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see Adding washer fluidº on page 303 in
Section 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-shield is dry. It may scratch theglass.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts.
For instructions on adding washer fluid,
see Adding washer fluidº on page 303 in
Section 7- 3.
NOTICE
Do not operate the rear wiper if therear window is dry. It may scratch theglass.
Rear window wiper and
washer

'05 Rav4_U (L/O 0409)
107
2005 RAV4 from Sep. '04 Prod. (OM42570U)

Idling for a long period with the air
conditioning on in stop- and- go traffic.

Towing a trailer.
It is not a malfunction even if the needle
of the engine coolant temperature gauge
returns to Cº when the ignition switch is
turned to the STARTº position.
NOTICE

Do not remove the thermostat in the engine cooling system as thismay cause the engine to overheat.The thermostat is designed to con-
trol the flow of coolant to keep thetemperature of the engine withinthe specified operating range.

Do not continue driving with anoverheated engine. See If your ve-hicle overheatsº on page 246 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over- revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
It is not a malfunction even if the needle
of the tachometer returns to the bottom
position when the ignition switch is turned
to the STARTº position.
NOTICE
Do not let the indicator needle getinto the red zone. This may causesevere engine damage.
Tachometer
