ECO mode TOYOTA RAV4 2005 XA30 / 3.G Scheduled Maintenance Guide

1
Vehicle Identification
Using the Maintenance Log Charts
Maintenance Log: Cars
Maintenance Log: SUVs and Trucks
Explanation of Maintenance Items
Table of Contents
For your convenience, scheduled maintenance information for your vehicle is
also available at
www.toyota.com.
From the site’s home page, select the “Owners” link, then select “Service &
Maintenance.” This will bring you to the screen shown below, where you willselect your vehicle’s model name, year and current mileage/time interval. After
you click “Submit,” you’ll be able to view your vehicle’s recommended mainte
nance for that interval.
Online Information
2
3
4
20
36

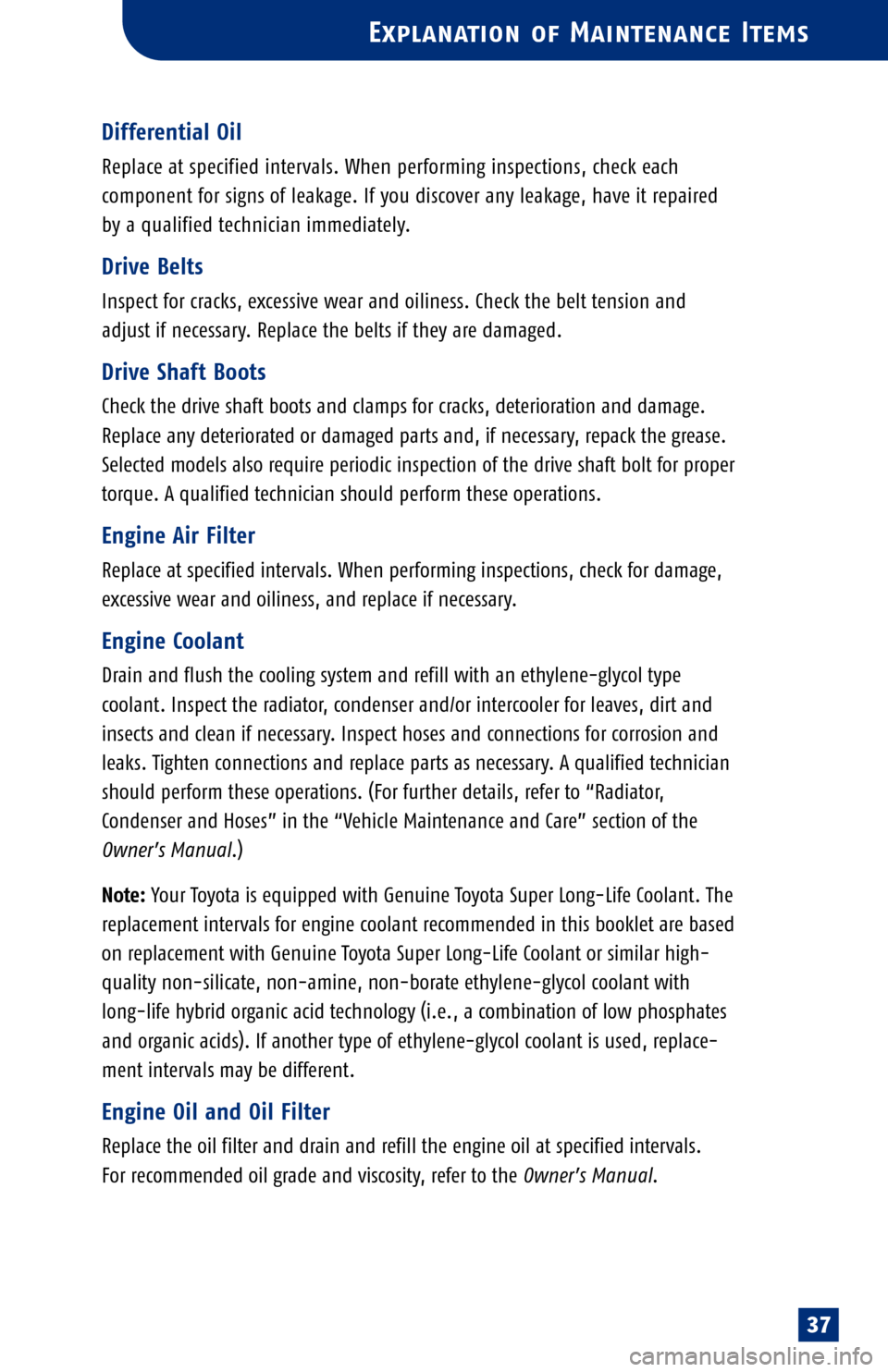

Explanation of Maintenance Items
37
Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
Selected models also require periodic inspection of the drive shaft bolt for proper
torque. A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethyleneglycol type
coolant. Inspect the radiator, condenser and/or intercooler for leaves, dirt and
insects and clean if necessary. Inspect hoses and connections for corrosion and
leaks. Tighten connections and replace parts as necessary. A qualified technician
should perform these operations. (For further details, refer to “Radiator,
Condenser and Hoses” in the “Vehicle Maintenance and Care” section of the
Owner’s Manual.)
Note:YourToyota is equipped with Genuine Toyota Super LongLife Coolant. The
replacementintervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super LongLife Coolant or similar high
quality nonsilicate, nonamine, nonborate ethyleneglycol coolant with
longlife hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethyleneglycol coolant is used, replacementintervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the
Owner’s Manual.
