Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. “+ −” switch
2. “MODE” switch
3. “   ” switch “+ ” switch
Push “+” side to increase the volume. The
volume continues to increase while the
switch is being pushed.
Push “
−” side to decrease the volume.
The volume continues to decrease while
the switch is being pushed.
“MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode se-
quentially if the desired mode is ready to
use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off. “
  ” switch
Radio
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release from the
switch, the radio will begin seeking up or
down for a station. Do this again to find
the next station.
Audio remote controls
(steering switches)

’06 Rav4_U (L/O 0601)
190
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Compact disc player
To select a desired track:
Quickly push and release the “” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
Vehicles with rear seat entertainment sys-
tem—
While the rear DVD player is in operation,
the chapter or track can be changed by
pushing the “ ” or “ ” side of the switch.
With compact disc changer only—
To select a desired disc:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Repeat this
until the disc you wish to listen to is set. MP3/WMA player
To select a desired file:
Quickly push and release the “
” or “ ”
side of the switch until the file you want
to listen to is set. If you want to return
to the beginning of the current file, push
the “ ” side of the switch once, quickly.
To select a desired folder:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Repeat this
until the folder you want to listen to is
set.
Vehicles with rear seat entertainment sys-
tem—
While the rear DVD player is in operation,
the file can be changed by pushing the
“  ” or “ ” side of the switch.
With compact disc changer only—
To select a desired disc:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Repeat this
until the disc you want to listen to is set.

’06 Rav4_U (L/O 0601)
191
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

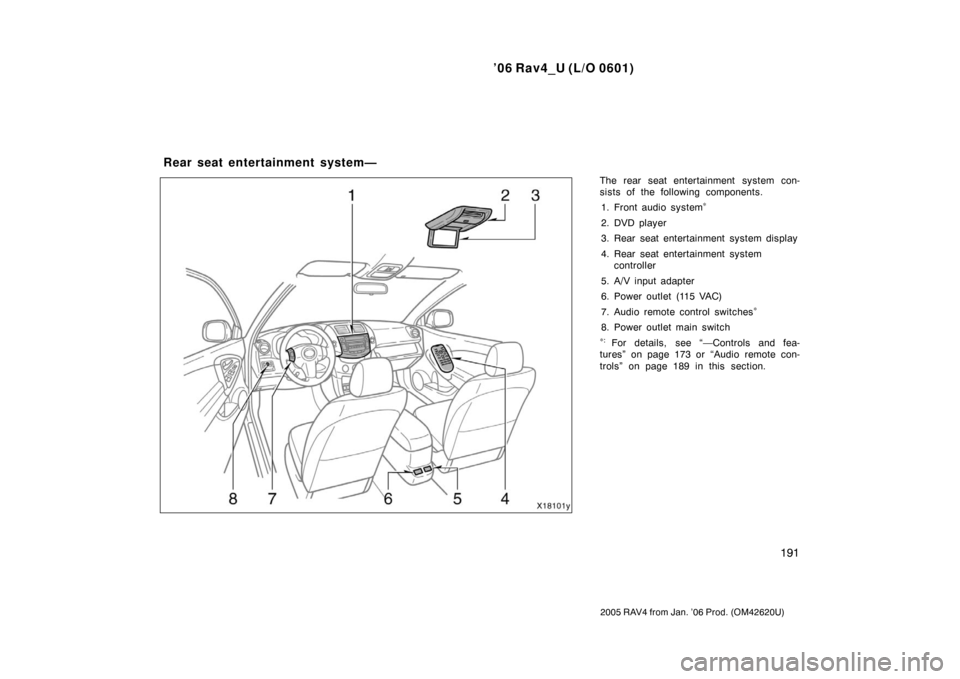

The rear seat entertainment system con-
sists of the following components.1. Front audio system
∗
2. DVD player
3. Rear seat entertainment system display
4. Rear seat entertainment system controller
5. A/V input adapter
6. Power outlet (115 VAC)
7. Audio remote control switches
∗
8. Power outlet main switch
∗: For details, see “—Controls and fea-
tures” on page 173 or “Audio remote con-
trols” on page 189 in this section.
Rear seat entertainment system—

’06 Rav4_U (L/O 0601)
192
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the “ACC” or “ON” position.
The rear passengers can enjoy DVD vid-
eo, audio CD, video CD, CD text, dts−CD
and MP3.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts −CD or MP3 only when a disc is
loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the A/V input adapter. For details, refer
to the manufacturer ’s instructions.
You can enjoy the rear seat entertainment
system with a wireless h eadphone. The
wireless headphone can be used within
rear seat. If the signal becomes weak, the
headphone will mute. For details, refer to
the manufacturer ’s instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone. You can purchase a wireless headphone
at a Toyota dealer.
CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
death or serious injury.
With DVD player:
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

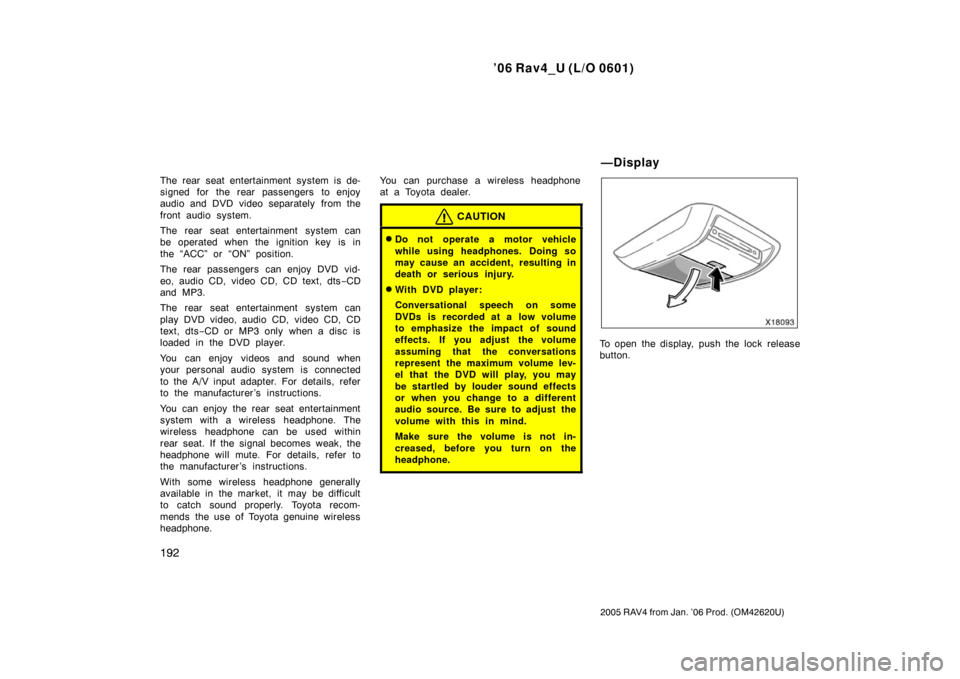

To open the display, push the lock release
button.
—Display

’06 Rav4_U (L/O 0601)
193
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Pull the display down to an easily view-
able angle (between 90 and 125 )
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
To close, push the display up until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
NOTICE
 Benzene or alkaline solutions may
damage the coated surface of the
screen .
 To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.

’06 Rav4_U (L/O 0601)
194
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller and buttons on the
DVD player unit. The system cannot be
operated by touching the switches on the
screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet according
to the following procedure.

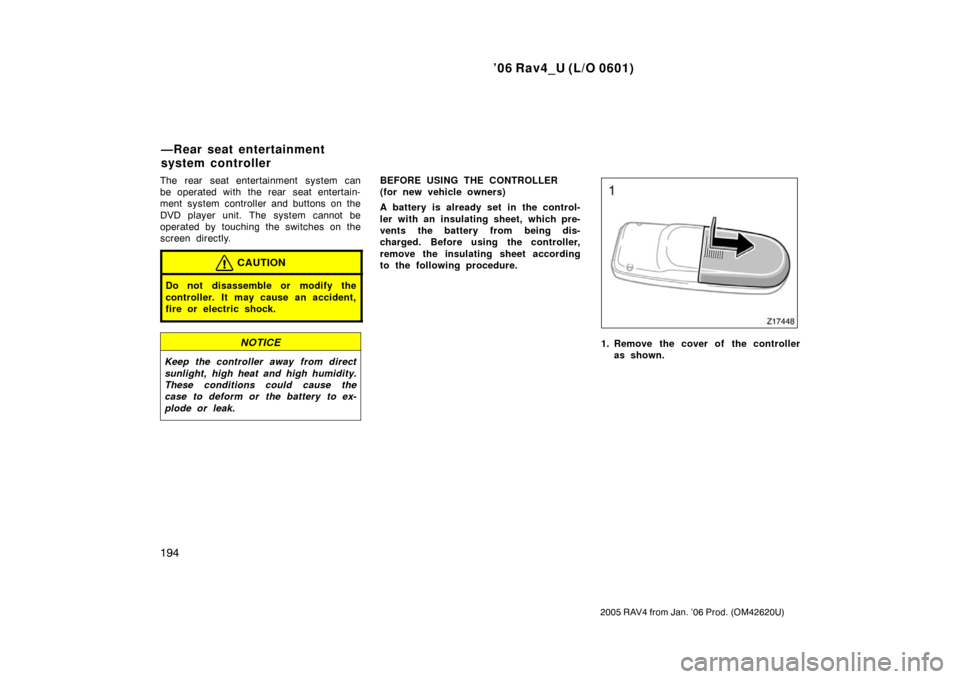

1. Remove the cover of the controlleras shown.
—Rear seat entertainment
system controller

’06 Rav4_U (L/O 0601)
195
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
2. Remove the insulating sheet.
USING THE CONTROLLER

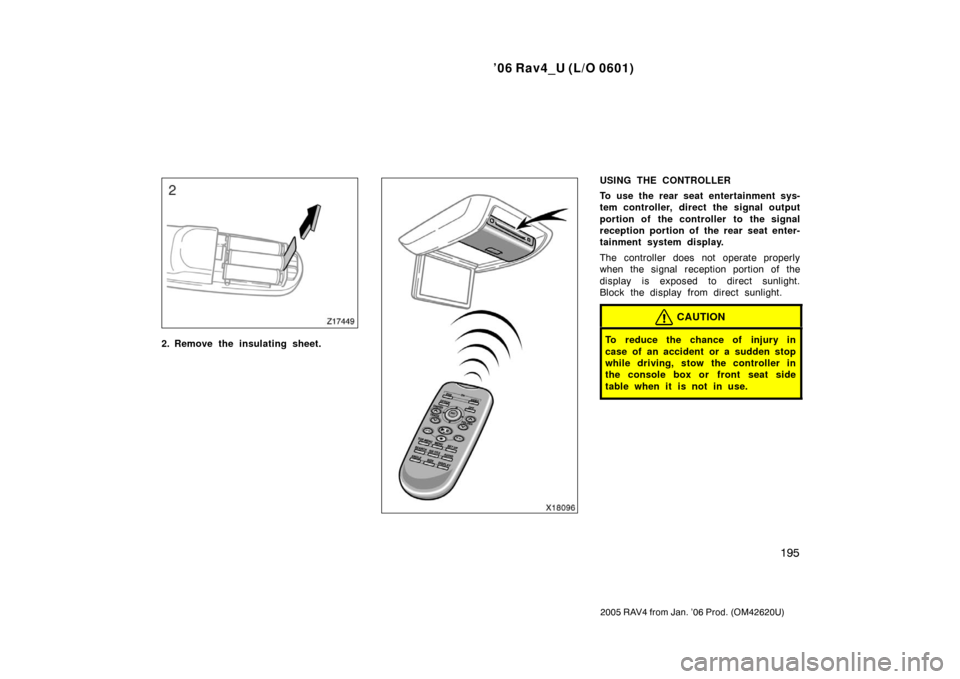

To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seat side
table when it is not in use.

’06 Rav4_U (L/O 0601)
196
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

’06 Rav4_U (L/O 0601)
197
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

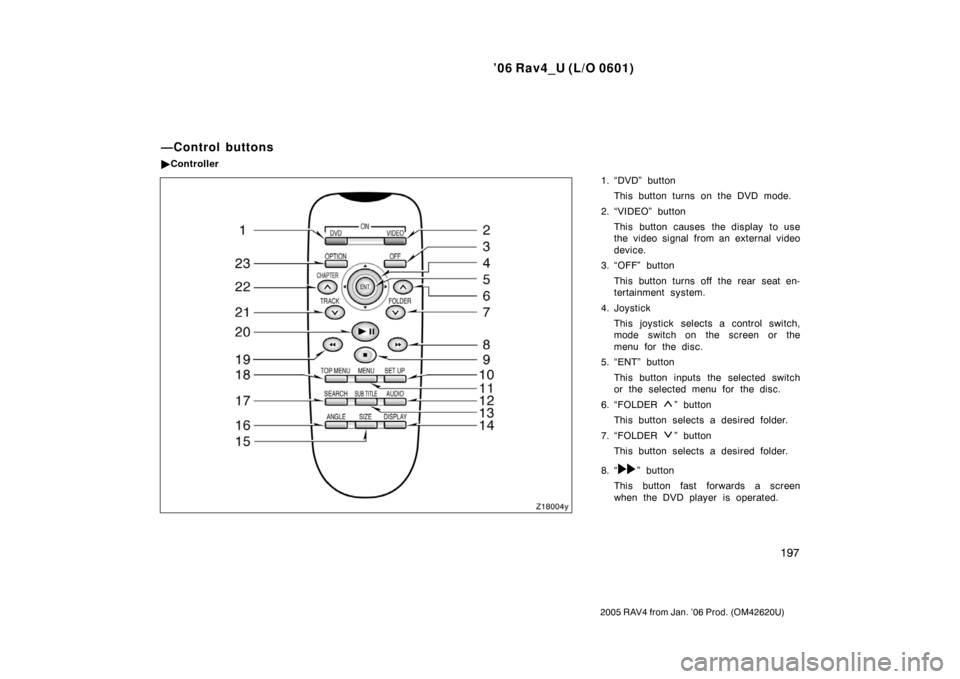

1. “DVD” buttonThis button turns on the DVD mode.
2. “VIDEO” button This button causes the display to use
the video signal from an external video
device.
3. “OFF” button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button
This button inputs the selected switch
or the selected menu for the disc.
6. “FOLDER
” button
This button selects a desired folder.
7. “FOLDER
” button
This button selects a desired folder.
8. “
” button
This button fast forwards a screen
when the DVD player is operated.
—Control buttons
 Controller

’06 Rav4_U (L/O 0601)
198
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
9. “” button
This button stops a screen when the
DVD player is operated.
10. “SET UP” button
This button indicates the initial set up
screen when the DVD player is oper-
ated.
11. “MENU” button This button indicates the menu screen
for DVD video when the DVD player is
operated.
12. “AUDIO” button This button indicates the changing au-
dio screen when the DVD player is
operated.
13. “SUB TITLE” button
This button indicates the changing sub-
title screen when the DVD player is
operated.
14. “DISPLAY” button
This button adjusts the color, tone,
contrast and brightness of the screen.
15. “SIZE” button
This button changes the display mode
when the DVD player is operated. 16. “ANGLE” button
This button selects the angle of the
screen when the DVD player is oper-
ated.
17. “SEARCH” button
This button indicates the title search
screen when the DVD player is oper-
ated.
18. “TOP MENU” button This button indicates the title selection
screen for DVD video when the DVD
player is operated.
19. “
” button
This button reverse a screen when the
DVD player is operated.
20. “
” button
This button plays or pauses a screen
when the DVD player is operated.
21. “TRACK/CHAPTER
” button
This button selects track/chapter.
22. “TRACK/CHAPTER
” button
This button selects track/chapter.
23. “OPTION” button This button indicates the control
switches on the screen when the DVD
player is operated. REPLACING CONTROLLER BATTERY
For replacement, use 3 AA batteries.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
