fog light TOYOTA RAV4 2006 XA30 / 3.G Owners Manual

’06 Rav4_U (L/O 0601)
xi
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
3 Occupant restraint systems33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Steering wheel and Mirrors107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Lights, Wipers and Defogger11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Gauges, Meters and Service reminder indicators123
. . . . . . . . . . . . . . . . .
7 Ignition switch, Transmission and Parking brake139
. . . . . . . . . . . . . . . . . .
8 Audio system169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
9 Air conditioning system237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 Other equipment255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 275 . . . . . . . . . . . . .
3 STARTING AND DRIVING 305 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 319 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPEARANCE CARE 345 . . . . . . . .
6 VEHICLE MAINTENANCE AND CARE 353 . . . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
2 Engine and Chassis367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
3 Electrical components381
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
8 SPECIFICATIONS 391 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS 403 . . . . . . . . . .
1 0 INDEX 405 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of contents

’06 Rav4_U (L/O 0601)
3
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

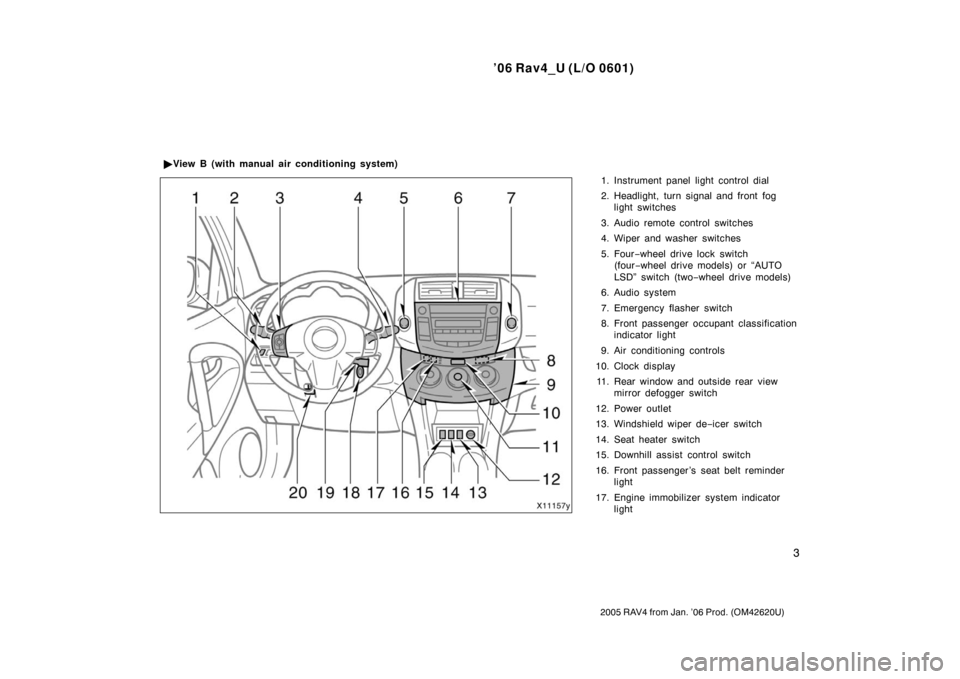

1. Instrument panel light control dial
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Wiper and washer switches
5. Four −wheel drive lock switch
(four −wheel drive models) or “AUTO
LSD” switch (two −wheel drive models)
6. Audio system
7. Emergency flasher switch
8. Front passenger occupant classification indicator light
9. Air conditioning controls
10. Clock display 11. Rear window and outside rear view mirror defogger switch
12. Power outlet
13. Windshield wiper de −icer switch
14. Seat heater switch
15. Downhill assist control switch
16. Front passenger ’s seat belt reminder light
17. Engine immobilizer system indicator light

View B (with manual air conditioning system)

’06 Rav4_U (L/O 0601)
5
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
1. Instrument panel light control dial
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Wiper and washer switches
5. Four −wheel drive lock switch
(four −wheel drive models) or “AUTO
LSD” switch (two −wheel drive models)
6. Audio system
7. Emergency flasher switch
8. Front passenger occupant classification indicator light
9. Air conditioning controls
10. Rear window and outside rear view mirror defogger switch
11. Clock and air conditioning display
12. Power outlet
13. Windshield wiper de −icer switch
14. Seat heater switch
15. Downhill assist control switch
16. Front passenger ’s seat belt reminder light
17. Engine immobilizer system indicator light

View B (with automatic air conditioning system)

’06 Rav4_U (L/O 0601)
9
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 127 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 166 in
Section 1 −7.Cruise control indicator light
∗
2
Four −wheel drive lock indicator light
Headlight high beam indicator light
Turn signal indicator lights
Automatic transmission indicator lights
(4 −speed)
Engine oil replacement reminder light
∗ 1
Slip indicator light
Front fog light indicator light Headlight low beam indicator light
Tail light indicator light
“AIRBAG ON” and “AIRBAG OFF” indicator
lights
Downhill assist control system indicator light “AUTO LSD” indicator light
Low windshield washer fluid level warning
light∗1
Electric power steering system warning light∗1
Automatic transmission indicator lights
(5 −speed)

’06 Rav4_U (L/O 0601)
11 3
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Luggage compartment light 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Windshield wipers and washer 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper de −icer 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Rear window and outside rear view mirror defoggers 122
. . . . . . . . . . .
SECTION 1 5

’06 Rav4_U (L/O 0601)
11 6
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
To adjust the brightness of the instru-
ment panel lights, turn the dial.
With the dial turned fully up, the intensity
of the instrument panel lights will not be
reduced even when the tail lights/head-
lights are turned on.To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Front fog light indicator light on the instru-
ment panel will tell you that the front fog
lights are on.
Instrument panel light control Front fog lights

’06 Rav4_U (L/O 0601)
122
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Manual air conditioning system
Automatic air conditioning system
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
On some models, the heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
CAUTION
On some models: Since the mirror
surfaces can get hot, do not touch
them when the switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de −icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window and outside rear
view mirror defoggers

’06 Rav4_U (L/O 0601)
247
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Air intake selector
Press the button to select the air source.1. RECIRCULATE (indicator light is
on)—Recirculates the air inside the ve-
hicle.
2. FRESH (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
Micro dust and pollen filter button
Push the button to remove the airborne
pollen and micro dust from the cabin as
soon as possible. An indicator will come
on.
The air intake mode will switch to
RECIRCULATE mode. The air will flow to
the upper part of the body of the
occupants and pollen and micro dust will
be removed. After about 3 minutes have
elapsed, the operation stops, and the air
conditioning system automatically returns
to the settings prior to the button being
pushed.
To stop the operation, do one of the fol-
lowing:
Press the pollen removal mode button
again.
Press the “AUTO” button.
Press one of the air flow selector but-
tons or the windshield air flow button.When the ambient temperature is low, the
following may occur:
Air intake mode does not switch to
RECIRCULATE.
The air conditioning system operates
automatically.
The operation is cancelled after 1 min-
ute.
In rainy weather, the windows may fog up.
Press the windshield air flow button.

’06 Rav4_U (L/O 0601)
387
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbs
Bulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Front turn signal,
parking and front
side marker lights
744321/5C
Front fog lights—55D
Rear turn signal
lights744021E
Back −up lights92116C
Rear side marker
lights—5C
License plate light1685C
Interior light—8F
Front personal
lights—8C
Vanity lights—8C
Luggage
compartment light—5E
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: H11 halogen bulbs
E: Wedge base bulbs (amber)
F: Double end bulbs

’06 Rav4_U (L/O 0601)
389
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
If either the left or right front fog light
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front turn signal, parking
and front side marker lights—Front fog lights—Rear turn signal, rear side
marker and backup lights
