remove seats TOYOTA RAV4 2006 XA30 / 3.G Owners Manual

’06 Rav4_U (L/O 0601)
41
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
BEFORE FOLDING DOWN
REAR/SECOND SEATS1. If the center seat belt is connected, release it to prevent damage.
Insert the key into the hole on the
buckle to release the tab, and allow the
belt to retract.2. Insert the tabs of the center seat belt into the cover. Make sure the
tabs are securely locked in the cov-
er.
NOTICE
The seat belt tabs must be stowed
before you fold the seatback.
3. Make sure the outer seat belt passesthrough the hanger when folding the
rear/second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Folddown rear/second
seats

’06 Rav4_U (L/O 0601)
45
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
BEFORE FOLDING DOWN THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you fold down the seatback.
2. Pass the third seat belts through thehangers.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
STOWING THIRD SEATS 1. Lower the head restraint to the low- est position.
—Stowing third seats for
luggage space

’06 Rav4_U (L/O 0601)
50
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
1. Hold the center of the lever and pullit up. Then slide the rear/second
seats fully backward and pull it for-
ward slightly until it locks.2. Remove the front head restraint.Push the seat position adjusting
switch forward to slide the seat to
the frontmost position.3. Move the seatback angle adjustingswitch backward to flatten the seat-
back.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(power seat)

’06 Rav4_U (L/O 0601)
52
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The rear head restraints—When an occu-
pant sits on the rear seats, always pull up
the head restraint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To turn on the seat heater, push the
switches (“L” switch for the left front
seat and “R” switch for the right front
seat). At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The key must be in the “ON” position to
operate seat heaters.
Seat heaters

’06 Rav4_U (L/O 0601)
85
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

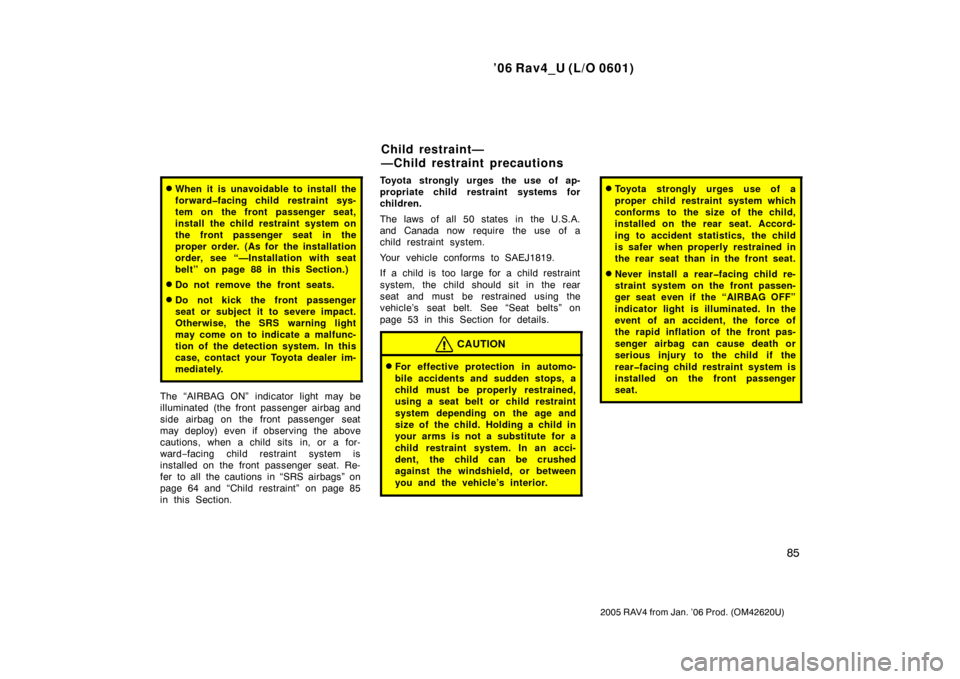

When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 88 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The “AIRBAG ON” indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward −facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in “SRS airbags” on
page 64 and “Child restraint” on page 85
in this Section. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 53 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
Child restraint—
—Child restraint precautions

’06 Rav4_U (L/O 0601)
266
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
STOWING LUGGAGE COVER (without
third seats)1. Open the deck board.
2. Remove the deck side cover.

’06 Rav4_U (L/O 0601)
270
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
USING CARGO NET
To use the net, insert the right end of the
pipe into the hole.Compress the left end of the pipe, and fit
it into the hole on the other side of the
luggage compartment.
Vehicles with third seat: When sitting in
the third seat, you cannot use the rear
cargo net. Make sure to remove the rear
cargo net.
When using the rear cargo net, stow the
third seat (For detailed information, see
“—Stowing third seats for luggage space”
on page 45 in Section 1−3).
