Page 162 of 428
’06 Rav4_U (L/O 0601)
150
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

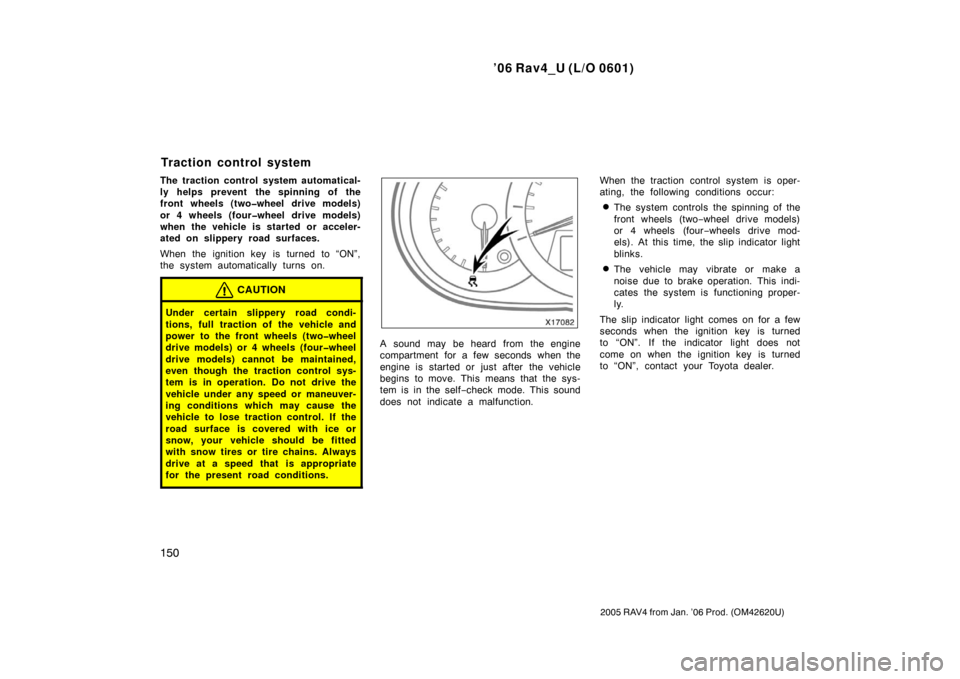

The traction control system automatical-
ly helps prevent the spinning of the
front wheels (two wheel drive models)
or 4 wheels (four wheel drive models)
when the vehicle is started or acceler-
ated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power to the front wheels (two wheel
drive models) or 4 wheels (four wheel
drive models) cannot be maintained,
even though the traction control sys-
tem is in operation. Do not drive the
vehicle under any speed or maneuver-
ing conditions which may cause the
vehicle to lose traction control. If the
road surface is covered with ice or
snow, your vehicle should be fitted
with snow tires or tire chains. Always
drive at a speed that is appropriate
for the present road conditions.
A sound may be heard from the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode. This sound
does not indicate a malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels (two
−wheel drive models)
or 4 wheels (four −wheels drive mod-
els). At this time, the slip indicator light
blinks.
The vehicle may vibrate or make a
noise due to brake operation. This indi-
cates the system is functioning proper-
ly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition key is turned
to “ON”, contact your Toyota dealer.
Traction control system
Page 165 of 428
’06 Rav4_U (L/O 0601)
153
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
If the light comes on while driving, all the
above systems will not work. In such a
case, the brakes will operate when applied
(no electronic assistance will be avail-
able), and it will be possible to continue
driving the vehicle.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
when the ignition key is turned to
“ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.The vehicle stability control system
helps provide integrated control of the
such systems as the anti lock brake,
brake assist, traction control, engine
control, electric power steering. This
system automatically controls the
brakes, engine and power steering to
help prevent the vehicle from skidding
when cornering on a slippery road sur-
face or operating steering wheel abrupt-
ly.
This system activates when the vehicle
speed exceeds about 15 km/h (9 mph).
A sound may be heard from the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self
−check mode. This sound
does not indicate a malfunction.

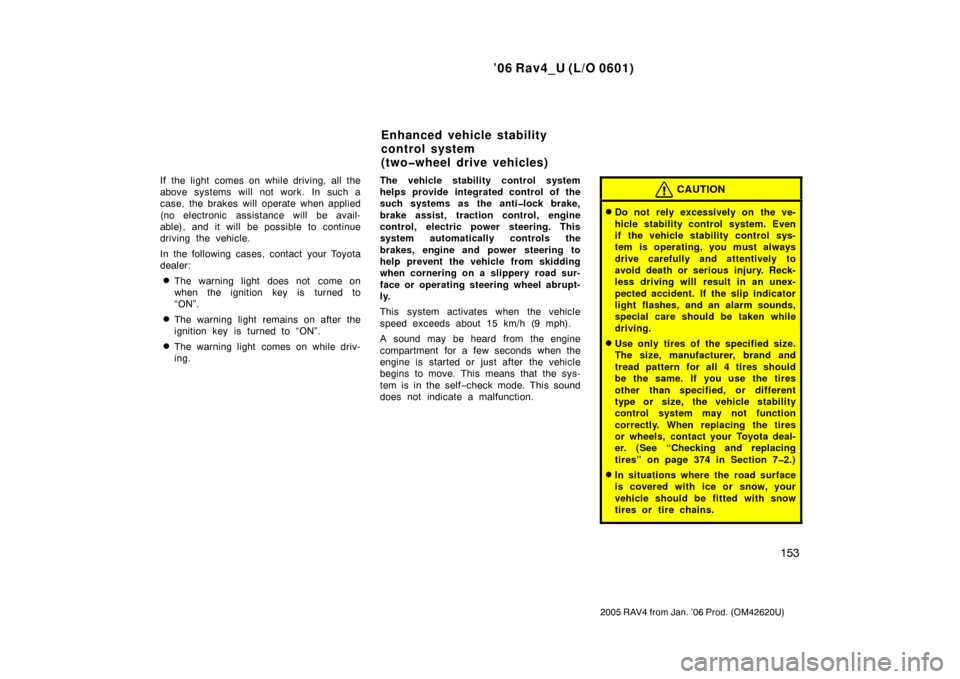

CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid death or serious injury. Reck-
less driving will result in an unex-
pected accident. If the slip indicator
light flashes, and an alarm sounds,
special care should be taken while
driving.
Use only tires of the specified size.
The size, manufacturer, brand and
tread pattern for all 4 tires should
be the same. If you use the tires
other than specified, or different
type or size, the vehicle stability
control system may not function
correctly. When replacing the tires
or wheels, contact your Toyota deal-
er. (See “Checking and replacing
tires” on page 374 in Section 7 2.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Enhanced vehicle stability
control system
(two wheel drive vehicles)
Page 167 of 428
’06 Rav4_U (L/O 0601)
155
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The vehicle stability control system
helps provide integrated control of the
such systems as the anti lock brake,
brake assist, traction control, engine
control, electric power steering, active
torque control 4WD. This system auto-
matically controls the brakes, engine
and power steering as well as driving
force to all the 4 wheels to help pre-
vent the vehicle from skidding when
cornering on a slippery road surface or
operating steering wheel abruptly.
This system activates when the vehicle
speed exceeds about 15 km/h (9 mph).
A sound may be heard from the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode. This sound
does not indicate a malfunction.CAUTION

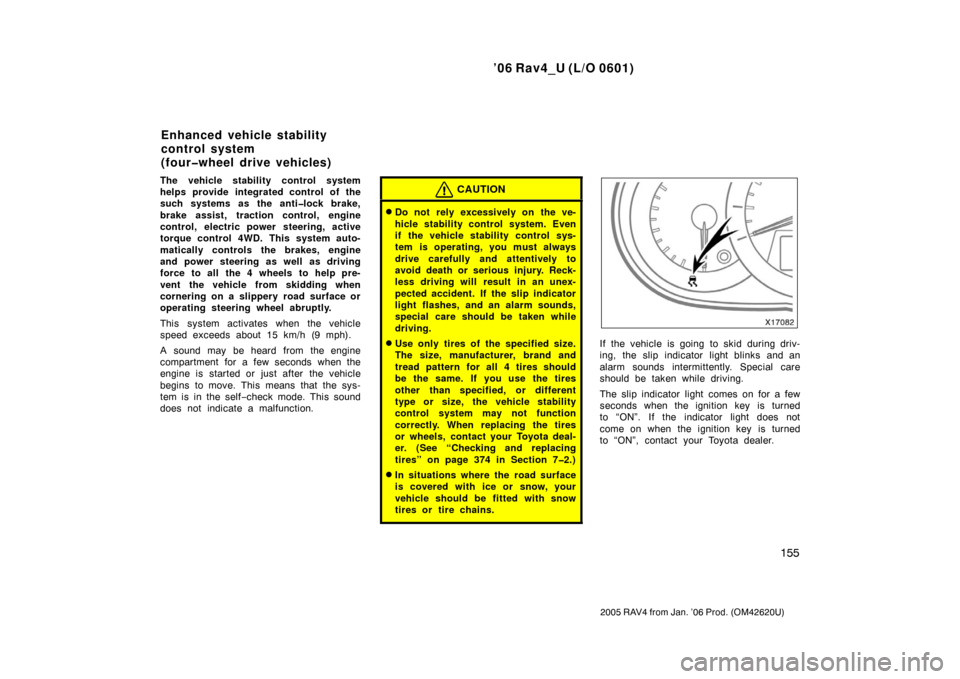

Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid death or serious injury. Reck-
less driving will result in an unex-
pected accident. If the slip indicator
light flashes, and an alarm sounds,
special care should be taken while
driving.
Use only tires of the specified size.
The size, manufacturer, brand and
tread pattern for all 4 tires should
be the same. If you use the tires
other than specified, or different
type or size, the vehicle stability
control system may not function
correctly. When replacing the tires
or wheels, contact your Toyota deal-
er. (See “Checking and replacing
tires” on page 374 in Section 7 2.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition key is turned
to “ON”, contact your Toyota dealer.
Enhanced vehicle stability
control system
(four wheel drive vehicles)
Page 175 of 428
’06 Rav4_U (L/O 0601)
163
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE
If the tire pressure warning light comes
on after blinking for 1 minute when the
ignition switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject
to poor radio wave signal reception.
If the tire inflation pressure is more
than 500 kPa (5 kgf/cm2 or bar, 70
psi).
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the ignition switch is turned to the
“ON” position, have the system checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Page 297 of 428
’06 Rav4_U (L/O 0601)
285
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

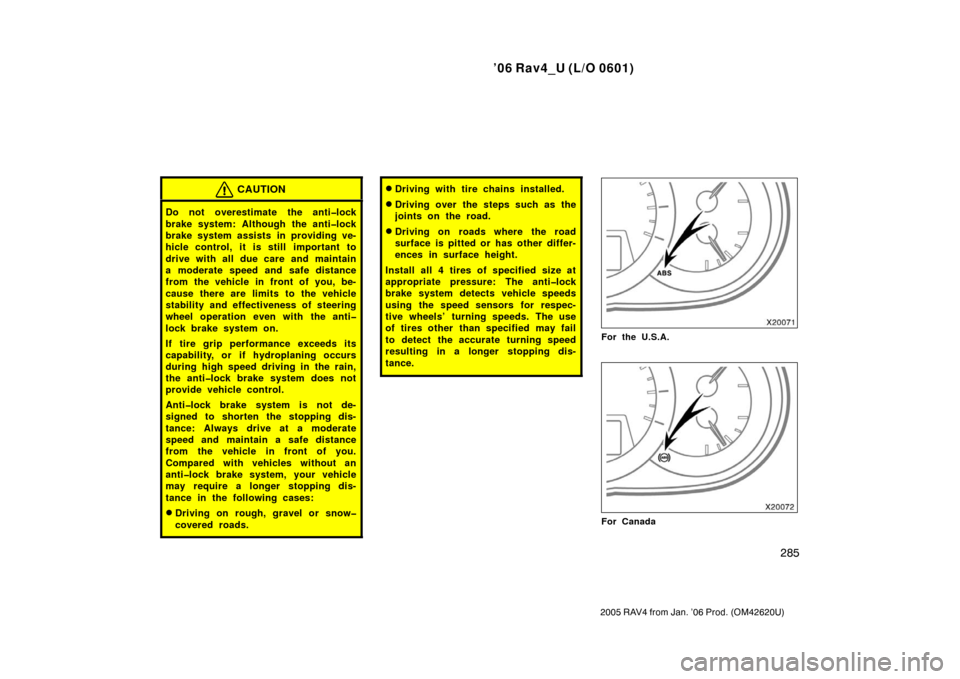

CAUTION
Do not overestimate the anti lock
brake system: Although the anti lock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the anti lock brake system does not
provide vehicle control.
Anti lock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
anti lock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The anti lock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
For the U.S.A.
For Canada
Page 322 of 428
’06 Rav4_U (L/O 0601)
310
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape to
provide enough power for winter starting.
Section 7−3 tells you how to visually in-
spect the battery. Your Toyota dealer and
most service stations will be pleased to
check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 368 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer–they will be pleased to
help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing. Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Page 379 of 428
’06 Rav4_U (L/O 0601)
367
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
DO IT YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level368
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 371
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking tire inflation pressure 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 376
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 379
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 2
Page 387 of 428
’06 Rav4_U (L/O 0601)
375
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The tires on your Toyota have built−in
tread wear indicators to help you
know when the tires need replace-
ment. When the tread depth wears to
1.6 mm (0.06 in.) or less, the indica-
tors will appear. If you can see the
indicators in two or more adjacent
grooves, the tire should be replaced.
The lower the tread, the higher the
risk of skidding.
The effectiveness of snow tires is
lost if the tread wears down below
4 mm (0.16 in.).
If you have tire damage such as
cuts, splits, cracks deep e nough to
expose the fabric, or bulges indi-
cating internal damage, the tire
should be repl aced.
If a tire often goes flat or cannot be
properly repaired due to the size or
location of a cut or other damage, it
should be replaced. If you are not
sure, consult with your Toyota dealer. If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires. Also, on four wheel drive
models, all the tires must be the
same brand and have the same
tread patterns.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label.
Page 389 of 428
’06 Rav4_U (L/O 0601)
377
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

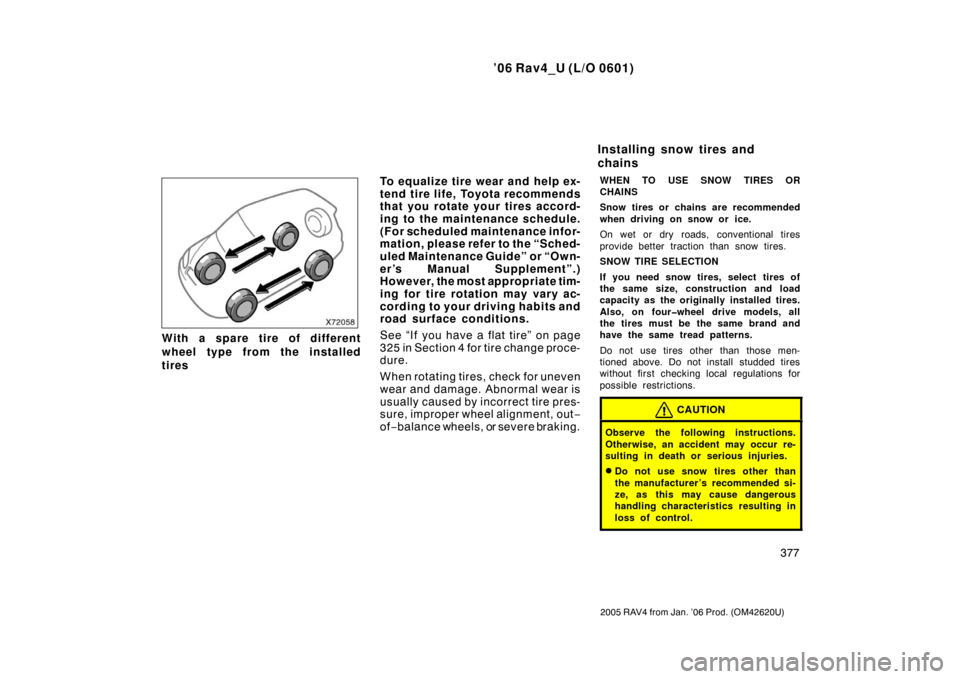

With a spare tire of different
wheel type from the installed
tiresTo equalize tire wear and help ex-
tend tire life, Toyota recommends
that you rotate your tires accord-
ing to the maintenance schedule.
(For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.)
However, the most appropriate tim-
ing for tire rotation may vary ac-
cording to your driving habits and
road surface conditions.
See “If you have a flat tire” on page
325 in Section 4 for tire change proce-
dure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out
−
of −balance wheels, or severe braking.
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on four wheel drive models, all
the tires must be the same brand and
have the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use snow tires other than
the manufacturer ’s recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.
Installing snow tires and
chains
Page 390 of 428
’06 Rav4_U (L/O 0601)
378
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Four wheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires, which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.

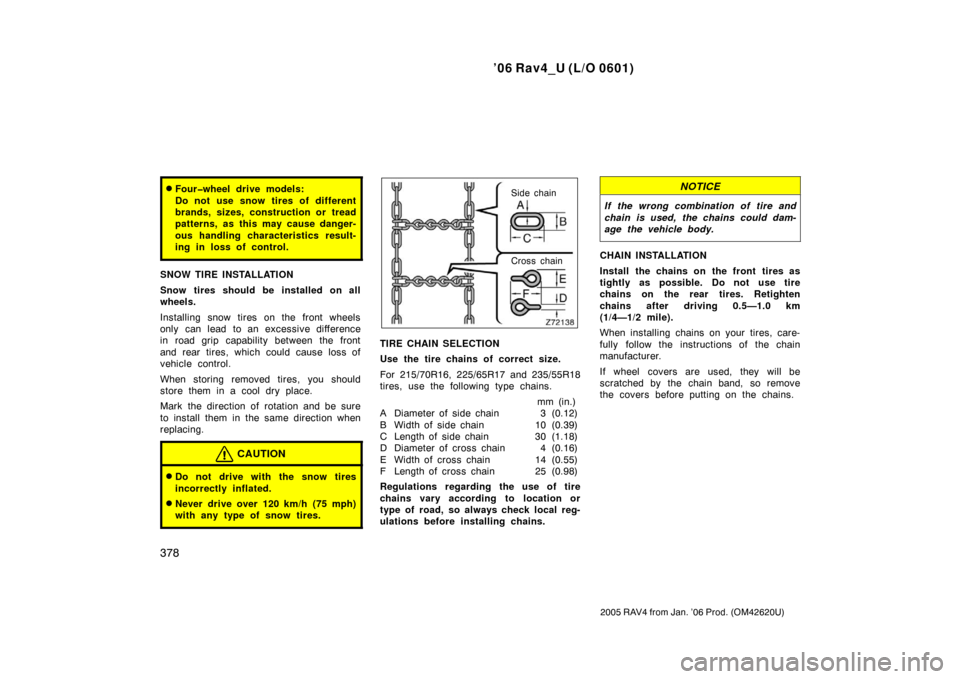

Side chain
Cross chain
TIRE CHAIN SELECTION
Use the tire chains of correct size.
For 215/70R16, 225/65R17 and 235/55R18
tires, use the following type chains.
mm (in.)
A Diameter of side chain 3 (0.12)
B Width of side chain 10 (0.39)
C Length of side chain 30 (1.18)
D Diameter of cross chain 4 (0.16)
E Width of cross chain 14 (0.55)
F Length of cross chain 25 (0.98)
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
NOTICE
If the wrong combination of tire and
chain is used, the chains could dam-
age the vehicle body.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.
