spare wheel TOYOTA RAV4 2006 XA30 / 3.G Owners Manual

’06 Rav4_U (L/O 0601)
162
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light.
The spare tire is also equipped with the
tire pressure warning valve and transmit-
ter. The tire pressure warning light will
turn on if the tire inflation pressure of the
spare tire is low. If a tire goes flat, even
though the flat tire is replaced with the
spare tire, the warning light does not turn
off. Replace the spare tire with the re-
paired tire and adjust the proper tire infla-
tion pressure. The tire pressure warning
light will turn off after several minutes.
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).

’06 Rav4_U (L/O 0601)
163
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE
If the tire pressure warning light comes
on after blinking for 1 minute when the
ignition switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject
to poor radio wave signal reception.
If the tire inflation pressure is more
than 500 kPa (5 kgf/cm2 or bar, 70
psi).
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the ignition switch is turned to the
“ON” position, have the system checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.

’06 Rav4_U (L/O 0601)
326
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.

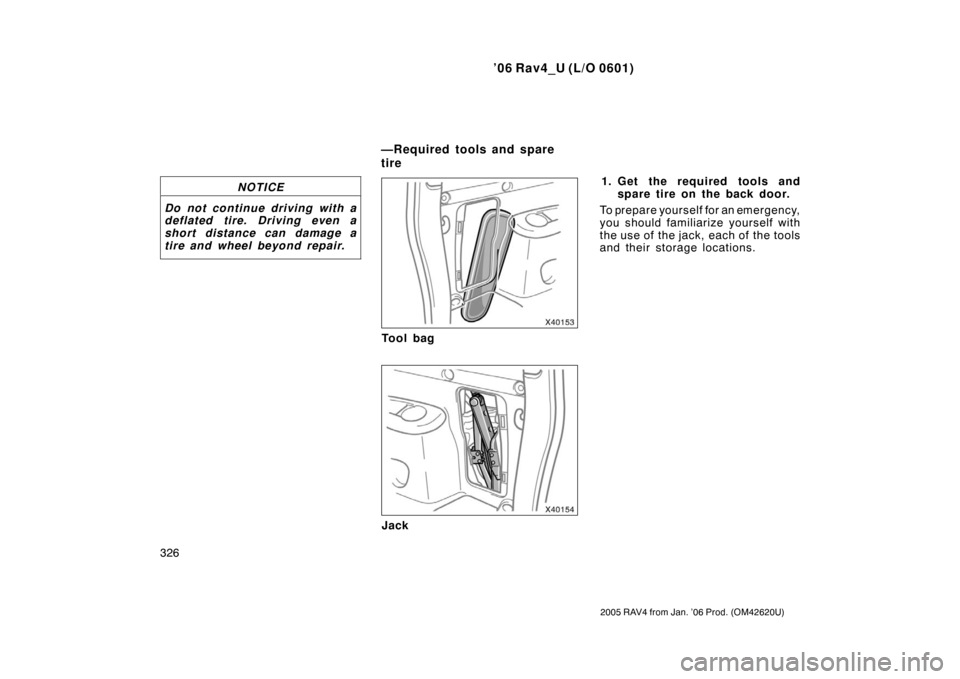

Tool bag
Jack1. Get the required tools and
spare tire on the back door.
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
— R eq u ired to o ls an d sp are
tire

’06 Rav4_U (L/O 0601)
328
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

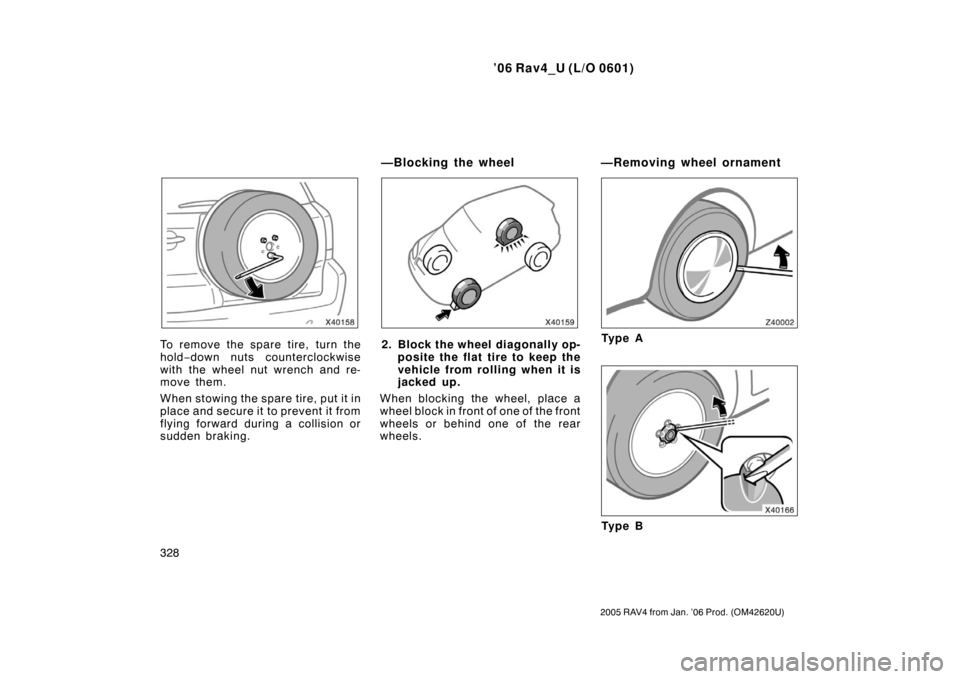

To remove the spare tire, turn the
hold −down nuts counterclockwise
with the wheel nut wrench and re-
move them.
When stowing the spare tire, put it in
place and secure it to prevent it from
flying forward during a collision or
sudden braking.2. Block the wheel diagonally op- posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.Ty p e A
Ty p e B
—Blocking the wheel —Removing wheel ornament

’06 Rav4_U (L/O 0601)
331
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

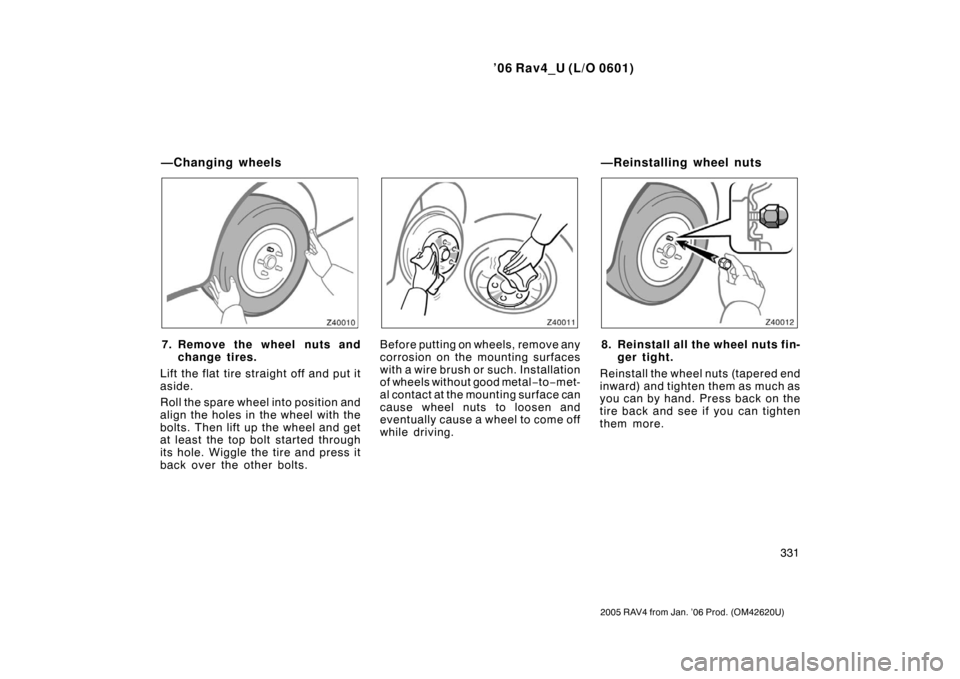

7. Remove the wheel nuts andchange tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal− to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.8. Reinstall all the wheel nuts fin- ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire back and see if you can tighten
them more.
—Changing wheels —Reinstalling wheel nuts

’06 Rav4_U (L/O 0601)
333
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
10.Install the flat tire and spare tirecover on the back door.
CAUTION
Make sure flat tire and spare tire
cover are securely in place in
their storage location to reduce
the possibility of personal injury
during a collision or sudden
braking.
On vehicles with aluminum wheels
and a steel wheel for the spare, re-
move the rubber rings from the wheel
nuts of the spare tire carrier before
stowing a flat tire. Be careful not to
lose the rubber rings after removing
them.
CAUTION
Make sure that the rubber rings
are not installed to the wheel
nuts for aluminum wheel. Other-
wise, the nuts may become loose
and the wheel may fall off, which
may cause a serious accident.
After repairing the flat tire, be sure
to reinstall the rubber rings to the
wheel nuts before stowing the spare
tire. If the steel wheel is stowed with-
out reinstalling the rubber rings to the
wheel nuts, the spare tire carrier may
produce abnormal noise when the ve-
hicle is driven.
—Stowing flat tire

’06 Rav4_U (L/O 0601)
334
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

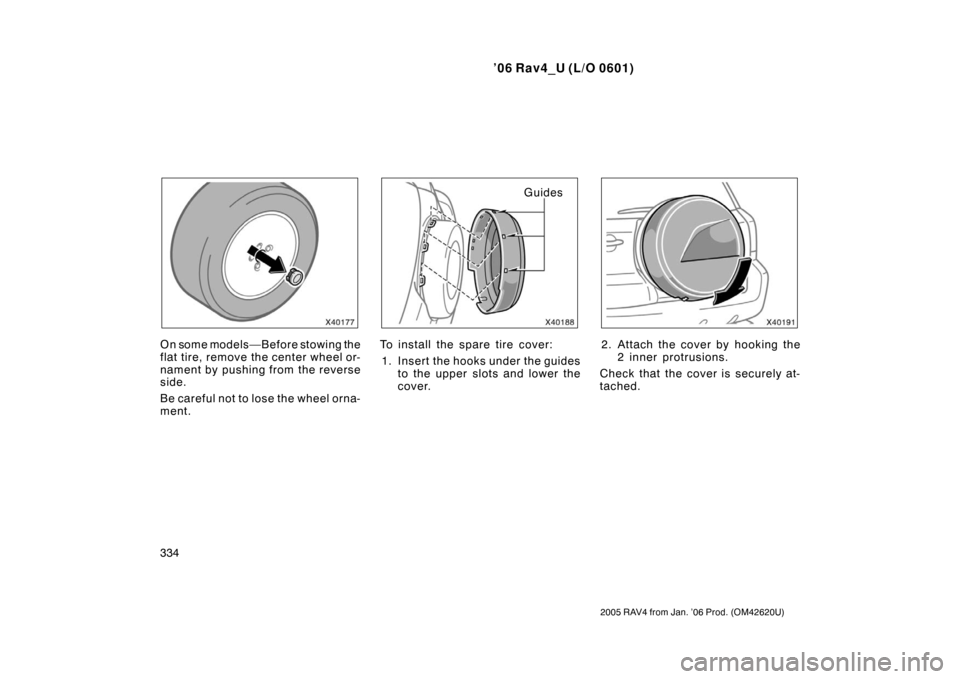

On some models—Before stowing the
flat tire, remove the center wheel or-
nament by pushing from the reverse
side.
Be careful not to lose the wheel orna-
ment.
Guides
To install the spare tire cover: 1. Insert the hooks under the guides to the upper slots and lower the
cover.
2. Attach the cover by hooking the2 inner protrusions.
Check that the cover is securely at-
tached.

’06 Rav4_U (L/O 0601)
336
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Ty pe C—
Push the wheel ornament into the
center hole.
With a spare tire of different wheel
type from the installed tires, the wheel
ornament can not be installed into the
spare tire. After repairing the flat tire,
reinstall the wheel ornament.
CAUTION
Take due care in handling the
ornament to avoid unexpected
personal injury.
 Do not attach a heavily dam-
aged plastic wheel ornament.
It may fly off the wheel and
cause accidents while the ve-
hicle is moving.
12.Check the air pressure of the re-
placed tire.
Adjust the air pressu re to the specifi-
cation designated on page 397 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
13.Restow all the tools and jack se- curely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 397 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire.CAUTION
Before driving, make sure all the
tools and jack are securely in
place in their storage location to
reduce the possibility of person-
al injury during a collision or
sudden braking.
—After changing wheels

’06 Rav4_U (L/O 0601)
341
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
2. Use the front towing eyelet in the toolbag. Secure it to the hole on the
bumper by turning clockwise. (For the
tool bag location, see “—Required tools
and spare tire” on page 326 in this
Section.)3. Tighten the front towing eyelet securelyby a wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the front
eyelet securely. If the eyelet is loose,
it may come off when being towed
and result in death or serious injury.
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
—Emergency towing eyelet
precautions

’06 Rav4_U (L/O 0601)
375
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The tires on your Toyota have built−in
tread wear indicators to help you
know when the tires need replace-
ment. When the tread depth wears to
1.6 mm (0.06 in.) or less, the indica-
tors will appear. If you can see the
indicators in two or more adjacent
grooves, the tire should be replaced.
The lower the tread, the higher the
risk of skidding.
The effectiveness of snow tires is
lost if the tread wears down below
4 mm (0.16 in.).
If you have tire damage such as
cuts, splits, cracks deep e nough to
expose the fabric, or bulges indi-
cating internal damage, the tire
should be repl aced.
If a tire often goes flat or cannot be
properly repaired due to the size or
location of a cut or other damage, it
should be replaced. If you are not
sure, consult with your Toyota dealer. If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires. Also, on fourwheel drive
models, all the tires must be the
same brand and have the same
tread patterns.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label.
