TOYOTA RAV4 2006 XA30 / 3.G Quick Reference Guide

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16
FEATURES/OPERATIONS
“ ”

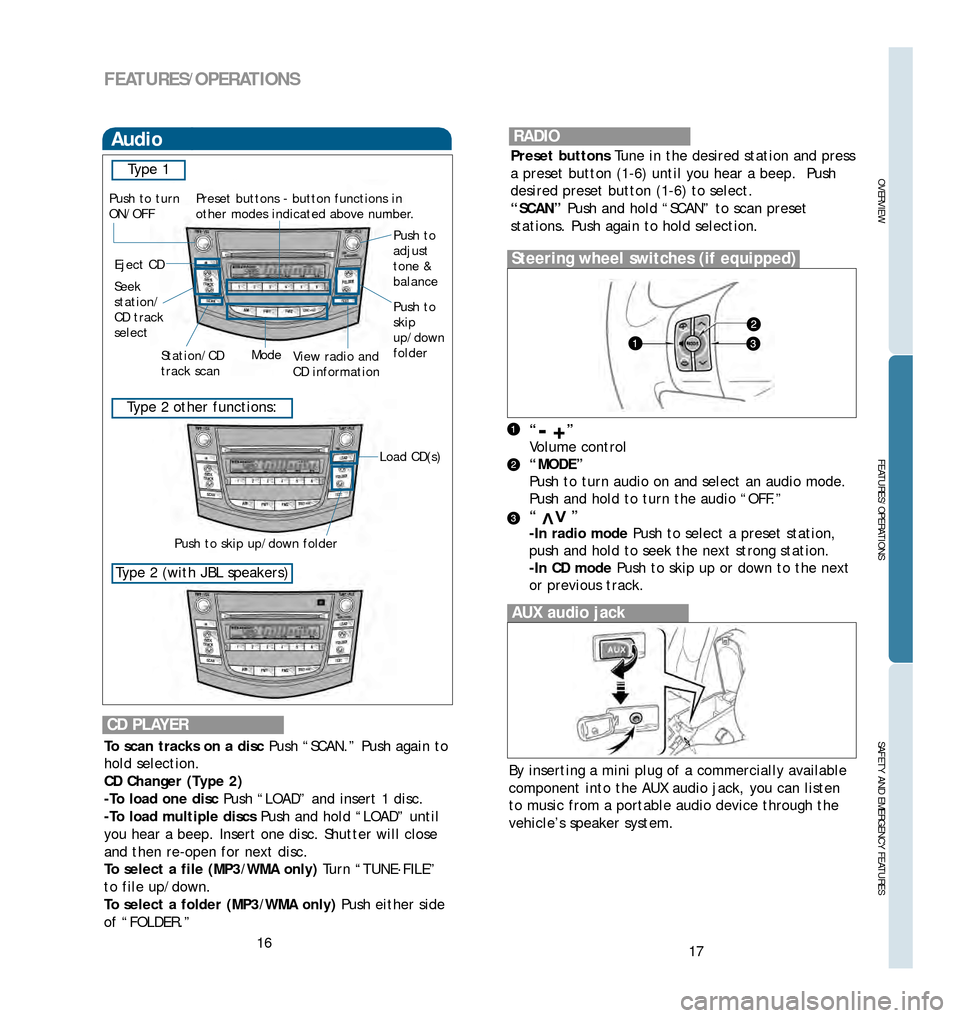

Volume control
“MODE”
Push to turn audio on and select an audio mode.
Push and hold to turn the audio “OFF
.”
“ ”
In r
adio mode Push to select a preset station,
push and hold to seek the next strong station.
In CD mode Push to skip up or down to the next
or previous track.
By inserting a mini plug of a commercially available
component into the AUX audio jack, you can listen
to music from a portable audio device through the
vehicle’s speaker system.>>
Steering wheel switches (if equipped)
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to
hold selection.
CDChanger (Type 2)
T
o load one disc Push “LOAD” and insert 1 disc.
To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then reopen for next disc.
To select a file (MP3/WMA only) Turn “TUNE .
FILE”
to file up/down.
To select a folder (MP3/WMA only) Push either side
of “FOLDER.”
AUX audio jack
Audio
View radio and
CD information
Eject CD
Push to turn
ON/OFF
Push to
adjust
tone &
balance
Push to
skip
up/down
folder
Seek
station/
CD track
select
Station/CD
track scan Mode
Load CD(s)
Preset buttons button functions in
other modes indicated above number.
Push to skip up/down folder
RADIO
Preset buttons
Tune in the desired station and press
a preset button (16) until you hear a beep. Push
desired preset button (16) to select.
“SCAN” Push and hold “SCAN” to scan preset
stations. Push again to hold selection.
+
Type 2 other functions:
Type 2 (with JBL speakers)
Type 1
06 Rav4Inside.qxd 11/10/05 6:04 PM Page 16

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
18
FEATURES/OPERATIONS
Door locks
UnlockLock
Cup holders
FrontRear
Second row
Third row side trim
(if equipped)
Bottle holders
Front doorsRear doors
Indicator light
Auto LSD (Limited Slip Differential)
(2WD models)
Push the “AUTO LSD” switch when the vehicle is
stopped. To deactivate, push the switch again.
NOTE: It will ONLY work for 2wheel drive models.
It should ONL
Y be used when wheel spinning
occurs on slippery or unpaved surfaces.
Refer to the Owner‘s Manual for complete details
on this system before attempting to use it.Moonroof (if equipped)
T ilting operationSliding operation
If battery is disconnected, the moonroof needs to be
reinitialized. Refer to the Owner’s Manual for more
details.
19
Power outlets
12V DC
Luggage Compartment
Instrument panelInside rear console
Open
CloseTilt down
Tilt up
NOTE: Key must be in the “ON” position to be used.
06 Rav4Inside.qxd 11/10/05 6:04 PM Page 18

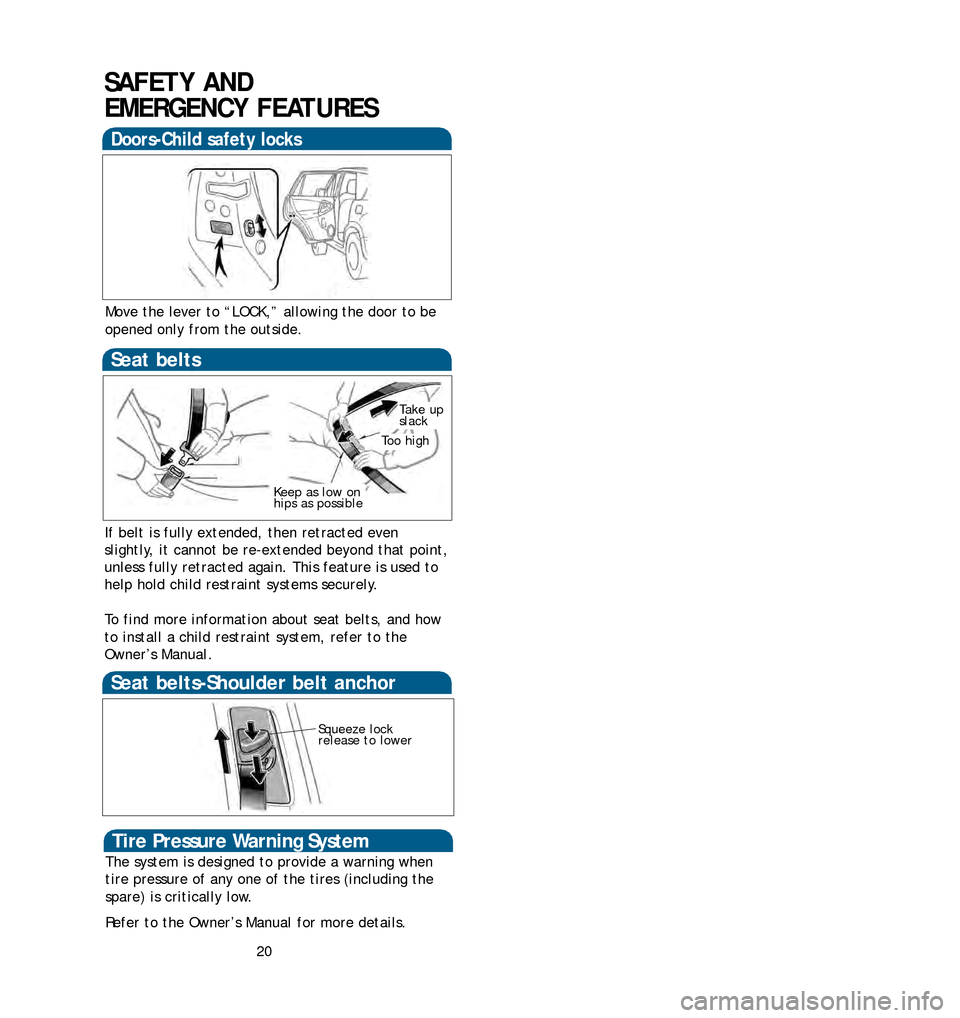

20
SAFETY AND
EMERGENCY FEATURES
Move the lever to “LOCK,” allowing the door to be
opened only from the outside.
DoorsChild safety locks
If belt is fully extended, then retracted even
slightly, it cannot be reextended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual .
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Tire Pressure Warning System
The system is designed to provide a warning when
tire pressure of any one of the tires (including the
spare) is critically low.
Refer to the Owner’s Manual for more details.
Seat beltsShoulder belt anchor
Squeeze lock
release to lower
