OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Auto lock functions

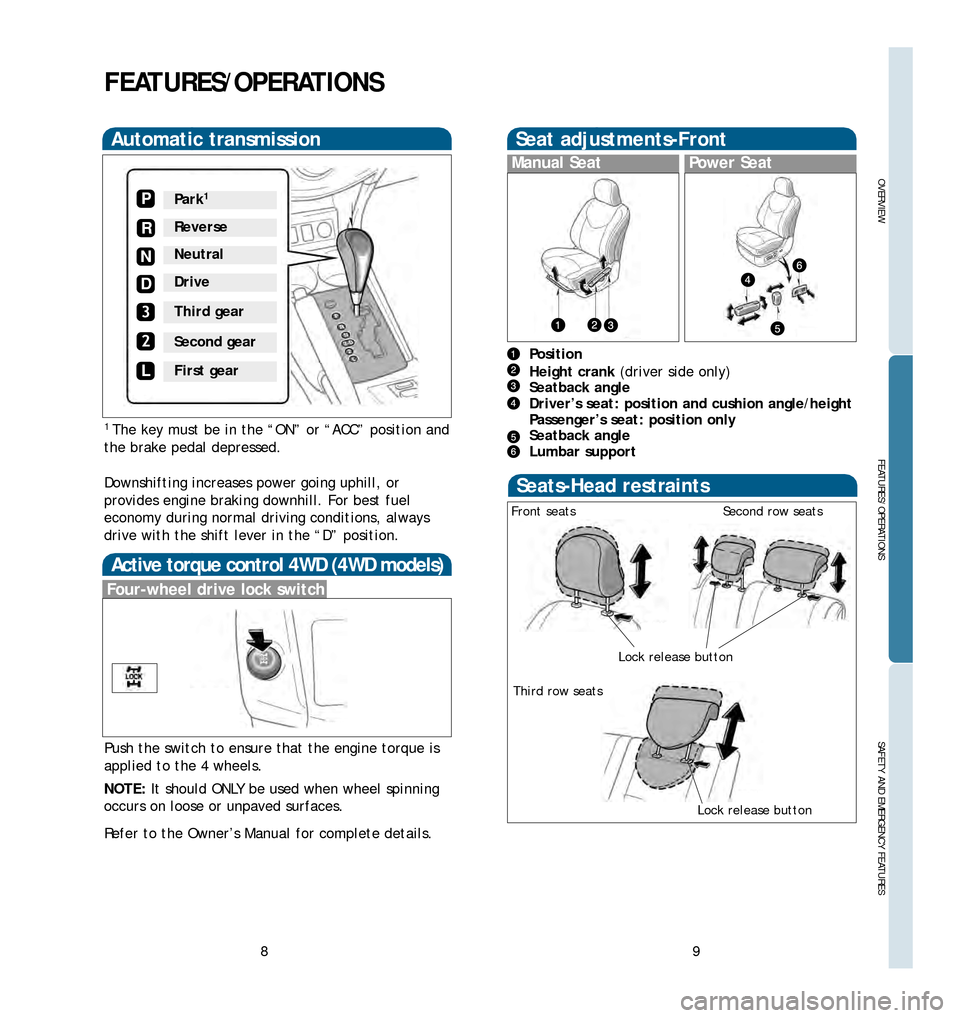

Automatic transmission
1The key must be in the “ON” or “ACC” position and
the brake pedal depressed.
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
FEATURES/OPERATIONS
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Active torque control 4WD (4WD models)
F ourwheel drive lock switch
Push the switch to ensure that the engine torque is
applied to the 4 wheels.
NOTE: It should ONLY be used when wheel spinning
occurs on loose or unpaved surfaces.
R

efer to the Owner’s Manual for complete details.
Position
Height crank (driver side only)
Seatback angle
Driver’sseat: position and cushion angle/height
P

assenger’s seat: position only
Seatback angle
Lumbar support
Seat adjustmentsFront
Manual SeatPower Seat
SeatsHead restr aints
Front seatsSecond row seats
Third row seats
Lock release button
Lock release button
06 Rav4Inside.qxd 11/10/05 6:03 PM Page 8 P R N D 3 2 L

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
18
FEATURES/OPERATIONS

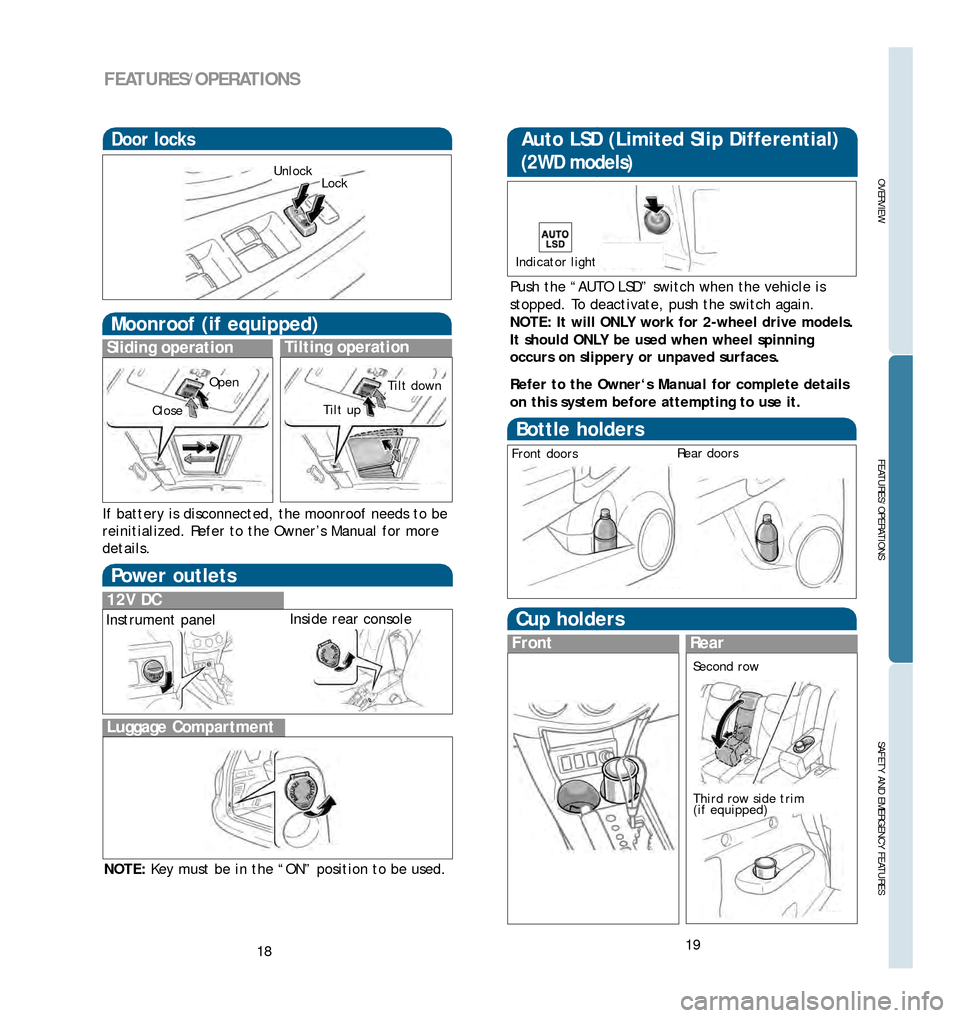

Door locks
UnlockLock
Cup holders
FrontRear
Second row
Third row side trim
(if equipped)
Bottle holders
Front doorsRear doors
Indicator light
Auto LSD (Limited Slip Differential)
(2WD models)
Push the “AUTO LSD” switch when the vehicle is
stopped. To deactivate, push the switch again.
NOTE: It will ONLY work for 2wheel drive models.
It should ONL
Y be used when wheel spinning
occurs on slippery or unpaved surfaces.
Refer to the Owner‘s Manual for complete details
on this system before attempting to use it.Moonroof (if equipped)
T ilting operationSliding operation
If battery is disconnected, the moonroof needs to be
reinitialized. Refer to the Owner’s Manual for more
details.
19
Power outlets
12V DC
Luggage Compartment
Instrument panelInside rear console
Open
CloseTilt down
Tilt up
NOTE: Key must be in the “ON” position to be used.
06 Rav4Inside.qxd 11/10/05 6:04 PM Page 18
