In this position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Pushing this button turns on the defroster−
linked air conditioning. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Open
Close
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.You can change air flow direction by turn-
ing the side vents.
Side vents

’07 Rav4_U (L/O 0701)
282
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
The air conditioning filter information
label is placed in the glove box as
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily in
FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and replacing the
air conditioning filter

’07 Rav4_U (L/O 0701)
283
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
1. Open the glove box. Slide off thedamper as shown.2. Push in each side of the glove boxto disconnect the claws.3. Remove the filter cover as shown inthe illustration.

’07 Rav4_U (L/O 0701)
284
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
4. Pull the filter out of the filter outlet.Inspect the filter on the surface.
If it is dirty, it should be replaced.When inserting the filter in the filter
outlet, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’07 Rav4_U (L/O 0701)
285
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Power outlets 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Luggage storage boxes 290
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Rear console box 291
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Front cup holders 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Rear cup holders 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Bottle holders 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage cover 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear cargo net 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Roof luggage carrier 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’07 Rav4_U (L/O 0701)
286
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Manual air conditioning system
Automatic air conditioning system
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
Instrument panel
Rear console box
ClockPower outlets (12 VDC)

’07 Rav4_U (L/O 0701)
287
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Luggage compartment
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
V/120W (front and rear outlets to-
gether).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet (115 VAC)

’07 Rav4_U (L/O 0701)
288
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet may cause
electrical failure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.

’07 Rav4_U (L/O 0701)
289
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

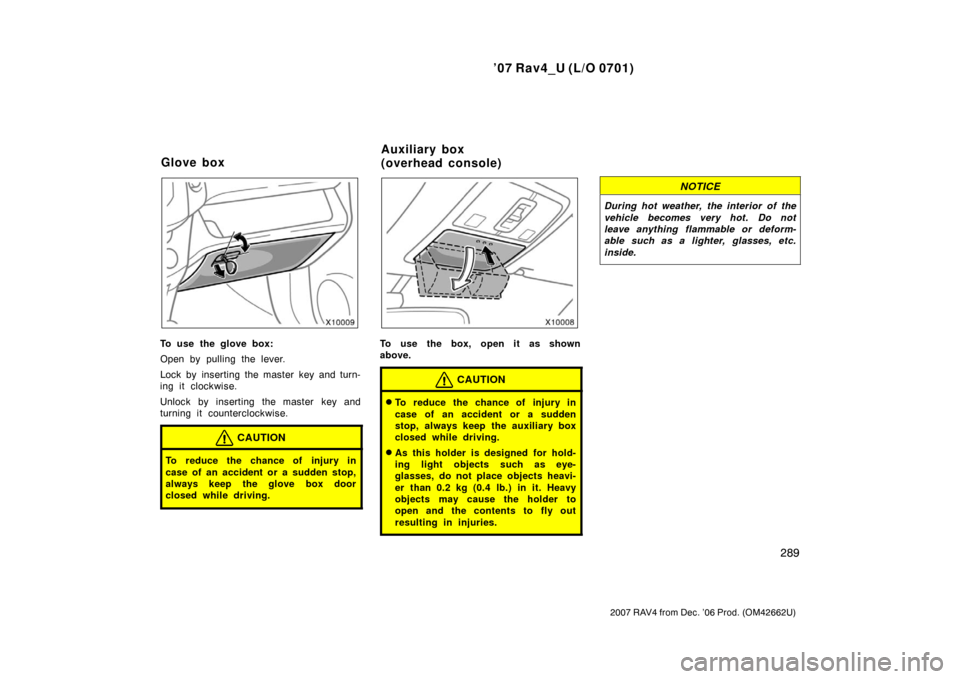

To use the glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
To use the box, open it as shown
above.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
As this holder is designed for hold-
ing light objects such as eye-
glasses, do not place objects heavi-
er than 0.2 kg (0.4 lb.) in it. Heavy
objects may cause the holder to
open and the contents to fly out
resulting in injuries.
NOTICE
During hot weather, the interior of the
vehicle becomes very hot. Do not
leave anything flammable or deform-
able such as a lighter, glasses, etc.
inside.
Glove boxAuxiliary box
(overhead console)

’07 Rav4_U (L/O 0701)
290
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
To open the box, push the “OPEN
CLOSE” button.
To close the box, push the “OPEN
CLOSE” button again.
Do not attempt to open the box forcibly
when your vehicle is on a steep downhill.
Move your vehicle to flat road and open
the box by pushing the button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Front
Rear (type A)
Rear (type B)
To use the box, do the following.
Front: Remove the deck board.
Rear (type A): Open the deck board by
pulling up the strap.
Rear (type B): Fold up the deck board.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage
boxes closed while driving.
Auxiliary box
(instrument panel)Luggage storage boxes
