’07 Rav4_U (L/O 0701)
264
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Display: [995734]
Repeat the above procedure until the
entire number that you want to dial is
input.
Go back operation—
You say: [Go back]
Voice output: [Go back, the last num-
bers entered have been removed.
Push the talk switch and continue
adding numbers otherwise say dial,
go back, or delete.]
Display: [995]
Repeating the above operation deletes
the last digits in reverse order of in-
put.
Delete operation—
You say: [Delete]
Voice output: [Deleted. The entire
number to dial has been deleted.
Please push the talk switch and say
the number.]
Display: [Dial by Num]
The display will return to the initial
screen that allows a number to be
input.Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
Push the talk switch and say [Can-
cel] after the beep at anytime dur-
ing the operation except while a call
is connected.
When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name, or [Incoming] is displayed.
When the vehicle is in motion:
[Incoming] is displayed.
Do either one of the following:
Pushing the off−hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone.
—Receiving a p hone call

’07 Rav4_U (L/O 0701)
287
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Luggage compartment
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
V/120W (front and rear outlets to-
gether).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet (115 VAC)

’07 Rav4_U (L/O 0701)
389
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 392
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 393
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Positioning the jack 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 7 1

’07 Rav4_U (L/O 0701)
390
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

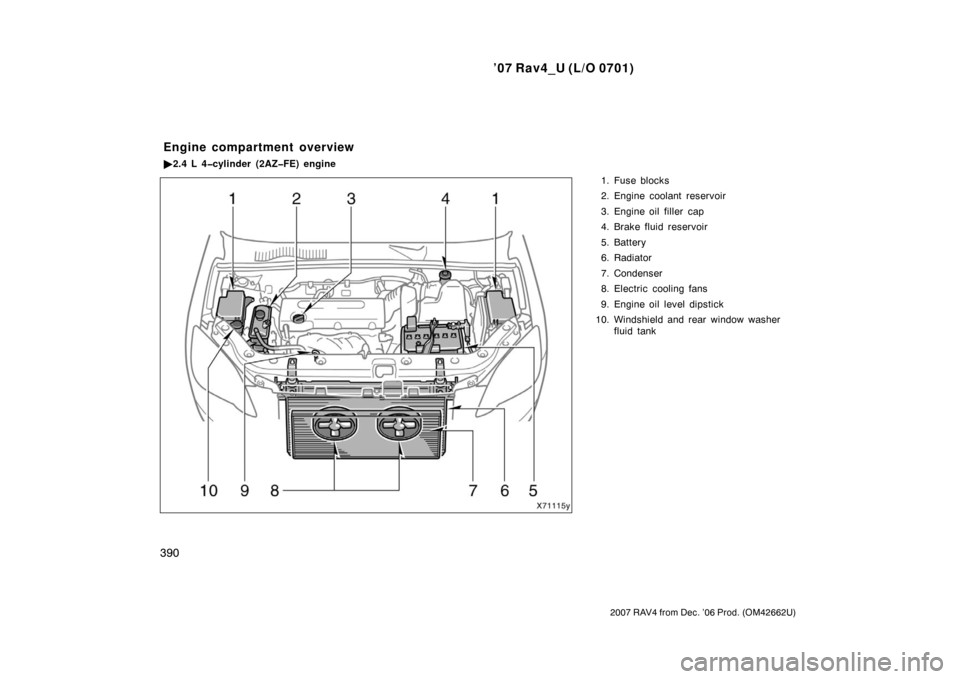

1. Fuse blocks
2. Engine coolant reservoir
3. Engine oil filler cap
4. Brake fluid reservoir
5. Battery
6. Radiator
7. Condenser
8. Electric cooling fans
9. Engine oil level dipstick
10. Windshield and rear window washer fluid tank
Engine compartment overview
2.4 L 4cylinder (2AZFE) engine

’07 Rav4_U (L/O 0701)
391
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

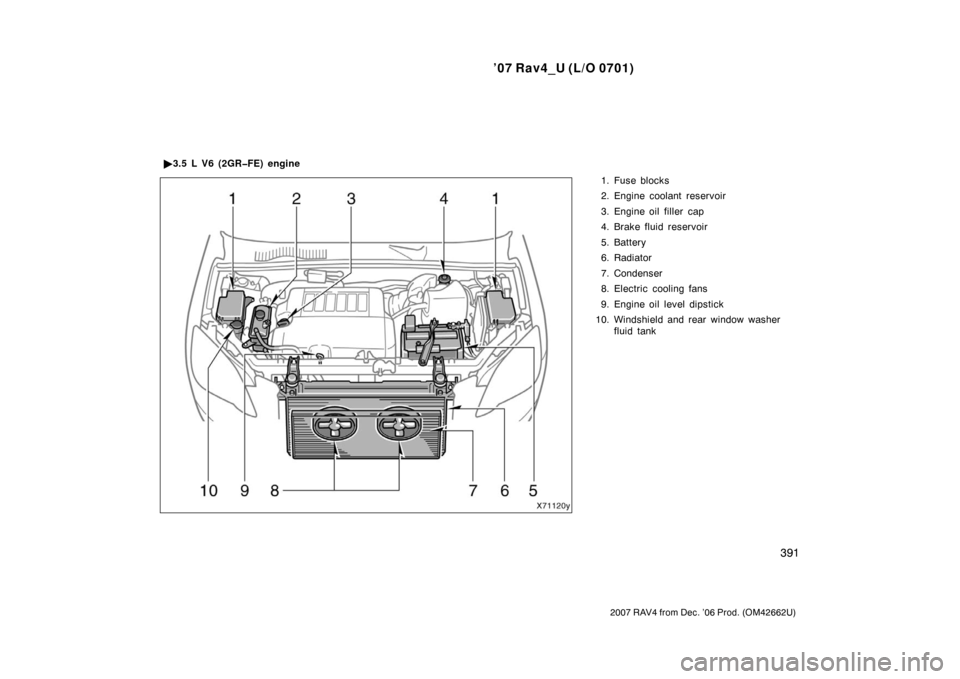

1. Fuse blocks
2. Engine coolant reservoir
3. Engine oil filler cap
4. Brake fluid reservoir
5. Battery
6. Radiator
7. Condenser
8. Electric cooling fans
9. Engine oil level dipstick
10. Windshield and rear window washer fluid tank

3.5 L V6 (2GRFE) engine

’07 Rav4_U (L/O 0701)
392
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

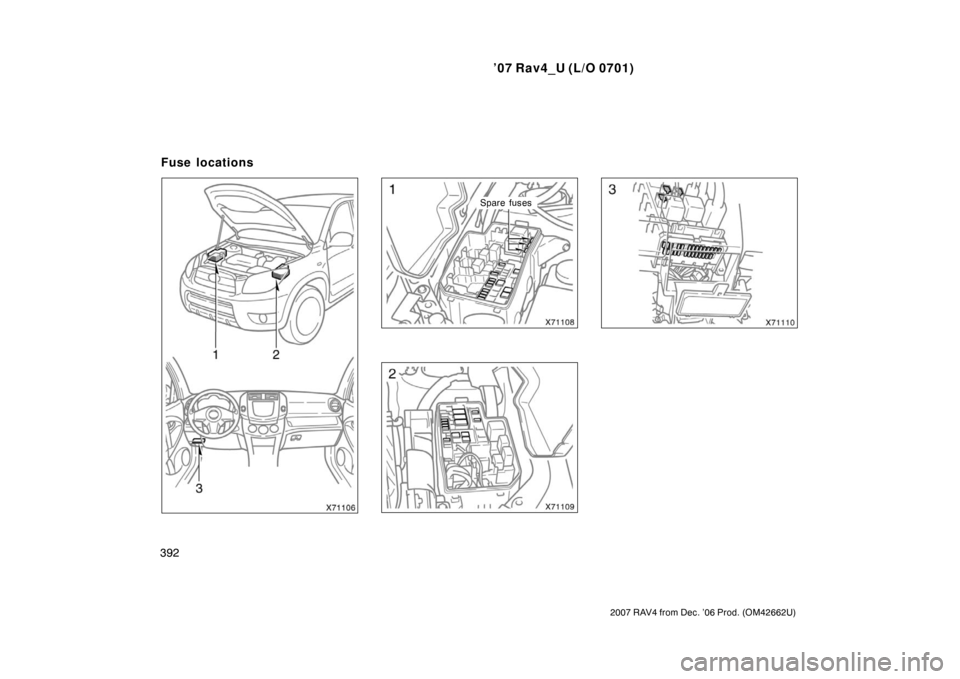

Spare fuses
Fuse locations

’07 Rav4_U (L/O 0701)
395
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 416 in
Section 7 −3.)
Tools:
Screwdriver

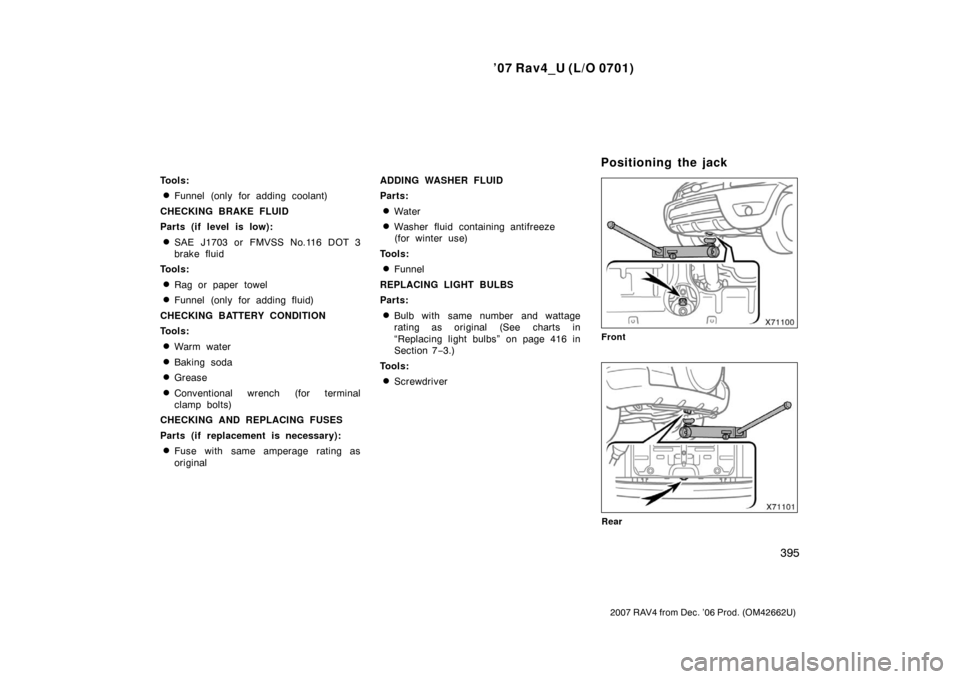

Front
Rear
Positioning the jack

’07 Rav4_U (L/O 0701)
411
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition412
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 414
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 414
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 416
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 416
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’07 Rav4_U (L/O 0701)
414
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Ty p e AGreen Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
Good Blown
Ty p e A
Good Blown
Ty p e B
—Checking battery c ondition Battery recharging pr ecautions Checking and replacing fuses

’07 Rav4_U (L/O 0701)
415
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
GoodBlown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 392 in Sec-
tion 7 −1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 428 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RAD
NO.1” or “CIG” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
