OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Clock and Air Conditioning display
12V DC Power outlet
Seat heater switch
1
Downhill Assist Control (DAC) switch
Front passenger seat belt reminder light
Engine immobilizer indicator
1
Ignition switch
Tilt and telescopic steering release
115V AC Power outlet ON/OFF switch
1
1
If equipped
2
OVERVIEW

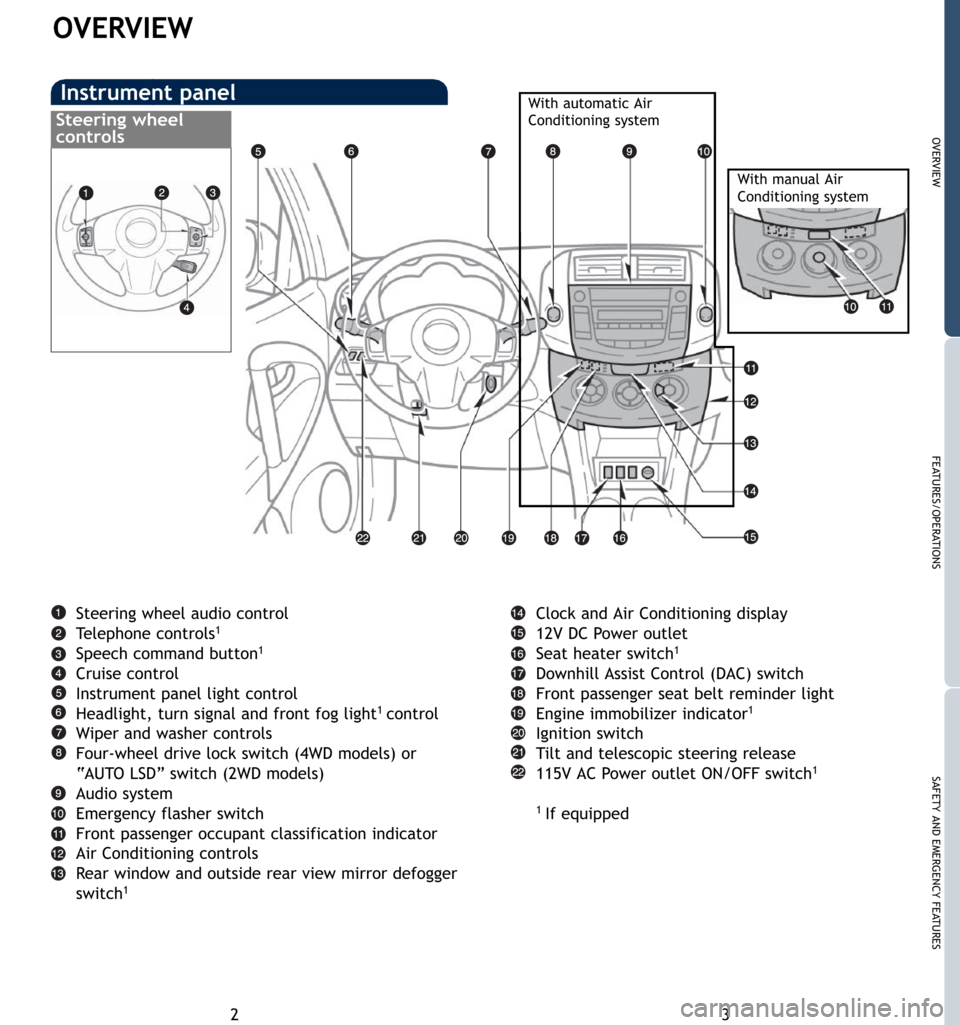

Instrument panel
Steering wheel audio control
Te l e p h o n e controls1
Speech command button1
Cruise control
Instrument panel light control
Headlight, turn signal and front fog light
1control
Wiper and washer controls
Four-wheel drive lock switch (4WD models) or
“AUTO LSD” switch (2WD models)
Audio system
Emergency flasher switch
Front passenger occupant classification indicator
Air Conditioning controls
Rear window and outside rear view mirror defogger
switch
1
With manual Air
Conditioning system
Steering wheel
controlsWith automatic Air
Conditioning system

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
Automatic transmission indicator (4-speed)1
Front passenger occupant classification indicator
Tu r n signal indicator
Front fog light indicator
Low windshield washer fluid level warning1
Open door warning1
Airbag SRS warning1
•Vehicle Stability Control warning1
•“AUTO LSD” warning1
•Tr a c t i o n Control warning1
•Downhill Assist Control warning1
•Hill-start Assist Control warning1
Headlight high beam indicator
4
OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2For details, refer to “Active torque control 4WD system,”
Section 1-7, 2007 Owner’s Manual.
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and outside
temperature display
Tr i p meter reset knob

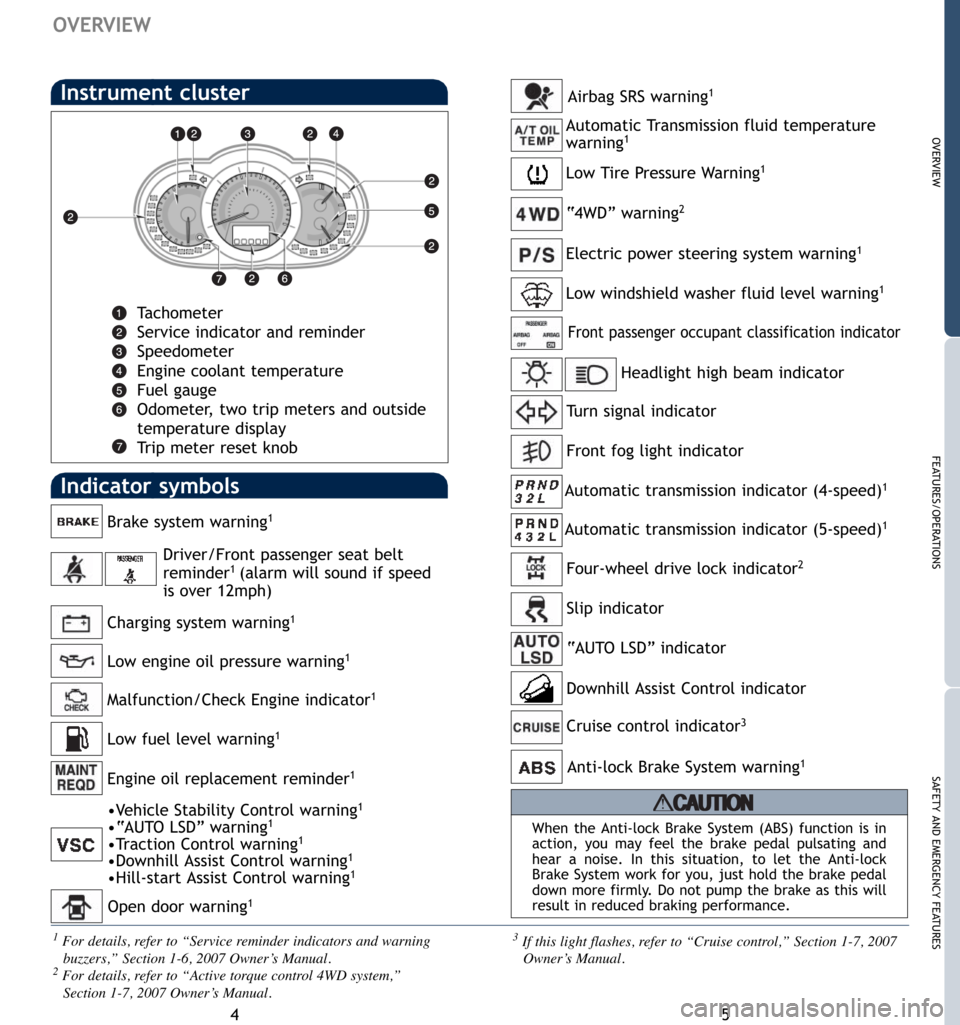

Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced
braking performance.
Indicator symbols
Driver/Front passenger seat belt
reminder1(alarm will sound if speed
is over 12mph)
Low fuel level warning
1
Automatic Transmission fluid temperature
warning1
Low Tire Pressure Wa r n i n g1
“4WD” warning2
Electric power steering system warning1
Four-wheel drive lock indicator2
Slip indicator
Downhill Assist Control indicator “AUTO LSD” indicator
Cruise control indicator3
Anti-lock Brake System warning1
Automatic transmission indicator (5-speed)1
